TUMBLE DRYER
INSTRUCTION BOOK
5kg Automatic/Ecocare Models
You must read these instructions prior to using the appliance
and retain them for future reference.

Safety Advice 3-4
Electrical Requirements 5
Features - get to know the main parts of your Dryer 6
Where to put and vent your Dryer 7-8
How to use your Dryer 9
The Controls 9
Sorting your Laundry 10
How to remove and clean the fluff filter 13
The Controls 14
Duide to drying times 16
Caring for your dryer 17
If something goes wrong 19
Service Offices and Spares Centres Back page
Contents
2
Retention of this Instruction Book
This Instruction Book must be kept handy for reference as it contains important details on
the safe and proper use of the appliance.
If you sell or pass the appliance to someone else, or move house and leave it behind,
make sure this Book is also provided so the new owner can become familiar with the
appliance and safety warnings.

3
For your safety
NEVER ● Allow children to play with or otherwise interfere with the dryer.
NEVER ● Allow the air inlet at the back of the dryer, the air outlet or vent hose
to be obstructed.
NEVER ● Direct the vent hose outlet towards the air intake at the back of the
machine.
NEVER ● Allow the tumble dryer to recycle exhaust air.
NEVER ● Switch the machine off leaving a hot load in the drum.
NEVER ●Tumble dry without the filter in position.
NEVER ● Exceed the maximum load capacity recommended or place
dripping wet items in the drum.
NEVER ● Use the dryer on a carpeted floor where the pile height would
prevent air from entering the dryer from the base.
NEVER ● Allow lint to collect around the dryer.
NEVER ● Add liquid or sheet fabric conditioner to the dryer, use liquid
conditioner in the final rinse of your wash.
NEVER ●Use the dryer for commercial drying, the dryer is only suitable for
domestic use.
NEVER ●Dry Acrylics on the high heat setting.
NEVER ●Tumble articles that have NOT been well washed in water and
detergent then well rinsed and spun.
NEVER ●Dry articles that are contaminated with flammable substances such
as: petrol, oil, paint, hair lacquer, creams, cooking fat or oil.
NEVER ●Tumble dry: rubber, foam rubber, plastic, plastic foam, nappy pants
or liners, polythene or paper. Any dry cleaned garments.
NEVER ●Never attempt to stand on top of your dryer, it is not designed for
such use and you could injure yourself or damage the dryer by such
abuse.
NEVER ●Switch electricity On or Off with wet hands.
IMPORTANT
Using your Tumble Dryer is easy.
Nevertheless, for your own safety and to get the best results it is important to know your
Dryer by reading right through this handbook before using your dryer for the first time.
A CHILD COULD CLIMB INTO OR TAMPER WITH AN UNATTENDED
TUMBLE DRYER.
WHEN THE MACHINE IS NOT IN USE SWITCH OFF, REMOVE THE PLUG
AND CLOSE THE DOOR.
IMPORTANT

4
For your safety
ALWAYS ●When the dryer is not in use, switch off at the wall, remove plug
and close the door.
ALWAYS ●Comply with the specified electrical requirements.
ALWAYS ●Ensure that your dryer is installed correctly and has adequate
ventilation. (see, "Where to put and vent your dryer.")
ALWAYS ●Use the vent hose for optimum drying performance.
ALWAYS ●Finish every programme with the cool tumble cycle provided on
the control.
ALWAYS ●Clean the filter, it is essential that the filter is kept clear of fluff
after EACH drying cycle.
ALWAYS ●Observe the rules for drying garments:
In particular woollen articles should not be dried in a
tumble dryer unless they are labelled ‘Superwash’,
‘Machine washable’ or have the ‘May be tumble dried’
symbol:
If in any doubt do not dry wool in the machine.
Unlike other materials, the mechanism of wool
shrinkage is irreversible, i.e. it will not stretch back to
the original size and shape.
ALWAYS ●Buy genuine accessories and spares.

5
Electrical Requirements
Supply
Changing
the fuse
Moulded plug
Changing
the plug
Rewirable plug
Changing the
mains cable
WARNING: This appliance must be earthed!
REFER TO THE RATING PLATE FOR VOLTAGE AND
CURRENT REQUIREMENTS. (see diagram for location).
The flexible mains lead is supplied fitted with a BS1363 plug and
with a 13 amp BS1362 fuse.
The plug should be connected to the mains supply via a suitable
switched socket which is accessible after installing your dryer.
If it is necessary to fit a replacement fuse, it must be a 13 amp
ASTA approved to BS1362 type.
If a replacement fuse holder/cover is required, it must be of the
same colour coding or wording as shown on the base of the plug.
Replacements are available from your Spares stockist.
The wires in the mains lead are coloured in accordance with the
following:
GREEN/YELLOW - EARTH
BLUE - NEUTRAL
BROWN - LIVE
If a replacement plug is to be fitted, the appropriate wire must be
connected to the correct terminal, the following gives some
examples.
Connect:
Green/Yellow to terminal marked Earth or Green or
Blue to terminal marked Neutral or N or Black
Brown to terminal marked Live or L or Red.
if the plug being replaced is a non-rewirable type then the cut-off
plug must be disposed of safely. DO NOT leave where it can be
inserted into a socket and create a shock hazard.
Should the mains lead ever require replacing at any time please
contact your nearest Service Centre. A charge will be made for the
replacement of the mains lead or if you require a longer lead.
The mains lead must only be replaced by a specially prepared
cable obtainable from your Spares Stockist and fitted by a
qualified electrician.
WARNING: The plug must not be used without a fuse cover.
NOTE: IF IN DOUBT ABOUT ANY OF THE ABOVE CONSULT
A QUALIFIED ELECTRICIAN.
GREEN &
YELLOW TO
EARTH
13 AMP
FUSE
BROWN
TO LIVE
CORD
CLAMP
BLUE TO
NEUTRAL

6
Features - Get to know the main parts of your dryer
Model and
serial numbers
Vent Cover
Fig. 4
Wall/window vent
(Vent cover at front)
NOTE: if your dryer is new wipe out
the inside of the drum before you first
use it to remove any dust which may
have accumulated during transit.
See “The Controls”
FLUFF FILTER
Clean after
each use
Front vent with hose
(Vent cover at rear)
Rating plate
Air intake
grille
Vent hose
fitted here
Caution
Hot
Fig 3.
Rear venting with hose
(Vent cover at front)
Drum
Fig. 2
Fig. 1

7
Where to put and vent your dryer
Stack it on your
washing machine
Venting options
Your tumble dryer should NOT be located adjacent to a gas hob,
cooker, heater, or eye level grill as flames from the burners could
cause damage to your machine.
When the dryer is fitted under a work surface, allow space for air
to enter the rear grille, 10mm above the dryer minimum.
If you are using this dryer adjacent or stacked on top of a
washing machine SEPARATE mains plugs and sockets must be
used for each appliance. DO NOT use 2-way adaptors or
extension leads.
Both your tumble dryer and front loading washing machine are
similar in design allowing the tumble dryer to be permanently
stacked on top saving you valuable floor space. A special
stacking kit complete with instructions is available from your
retailer or nearest Spares Centre.
IMPORTANT:
Only use genuine stacking kits. When ordering you must
state the model numbers of both your Washing Machine and
your Tumble Dryer. Unsuitable kits may result in a potential
hazard and will invalidate your warranty rights.
Some models are designed to give the option of venting the
moist air from the front of the dryer. The dryer as supplied is rear
venting. Some models can be converted to front venting by
removing the vent cover from the aperture on the front (Fig. 1) of
the dryer and fitting it in the aperture at the back.
A vent hose is recommended for optimum performance.
A vent hose must be used if the rear venting option is used.
(If this is not supplied it can be obtained from your retailer
or Spares Centre).
When front venting without a hose a window must always be
opened to reduce condensation.
The hose must be fitted securely into the dryer, as shown on the
diagrams on the previous page. If possible it is always best to
connect the hose to a permanent outlet close to the dryer (see
instructions on next page).
Ensure that the end of the hose is not directed towards the
air intake grille at the rear of the dryer.
If permanent installation is not possible, the dryer will work just
as well with the hose passed through a partly opened window.
(See diagram on next page).
NOTE: The vent hose should not exceed 2.4 metres in
length, and should be kept free of any possible
accumulation of fluff lint (and water) by frequently shaking it
out. Always ensure that the hose is not squashed.
●
●
●
●
●
●
●
●
●
●

8
Where to put and vent your dryer
In conjunction with the vent hose we recommend the use of a
Wall/Window Vent Kit. These are available from your retailer or
nearest Spares Centre.
Fitting instructions are supplied with the kits, which can be mounted
through a wall or window. Details of positioning for wall mounting
are as follows:- Break a hole through the wall to the left of the
proposed position for the dryer. Keep the hose as short and straight
as possible to prevent condensed moisture running back into the
dryer. Similarly the duct inserted into the wall should slope
downwards to the outside. For window venting with stacked dryer,
the hole in the window should ideally be made below the outlet and
the hose should be kept as short as possible.
Depending on the frequency of use, it is essential that the
areas A and B in the illustrations are checked periodically
and any fluff or debris removed.
It is particularly important that the vent hose adaptor is fitted
securely thus preventing any moisture laden air from being
emitted back into the room.
NOTE: The dryer should not be pushed so far back that the
hose adaptor is pulled out of position or the hose squashed.
The hose should be kept clear of the air intake grille and kinks
or ‘U’ bends avoided as these will obstruct the hose or trap
condensation.
For open window venting it must be possible for the end of the hose
to be directed downwards to prevent warm, moist air condensing
in the room or in the dryer.
Permanent
Venting
Wall/Window
Venting
WARNING:
1. ENSURE THAT THE DRYER IS ADEQUATELY VENT-
ILATED AND THAT THE END OF THE VENT HOSE IS NOT
DIRECTED TOWARDS THE AIR INTAKE DUCT.
2. THE DRYER MUST NOT RECYCLE EXHAUST AIR.
3. THE VENT HOSE MUST ALWAYS BE FITTED FOR
OPTIMUM PERFORMANCE.
4. MAKE SURE THAT THE VENT HOSE AND AIR INTAKE
GRILLES ARE NOT OBSTRUCTED OR BLOCKED.
5. MISUSE OF A TUMBLE DRYER MAY CREATE A FIRE
HAZARD.
B
B
AB
Storm cover

9
How to use your dryer
1. Plug in, switch
on electricity. 2. Sort your laundry (see section “Sorting
Your Laundry”)
3. Open the door.
Check that the fluff
filter is clean (see
section How to
remove and clean
the fluff filter).
4. Load the dryer
placing the clothes
carefully in the drum
pushing them well
towards the back
and away from the
door seal. Close the
door.
5. Lock the door
handle (where
lock is fitted). The
edge of a suitable
coin can be used
to rotate the lock.
6. Select the
relevant heat setting (see
section “The Controls”).
Automatic programs
will NOT function on
Low Heat
7. Select drying programme
required.
Automatic drying, average loads
Automatic drying, large loads
The dryer will start (see section “The
Controls”).
9. Switch off electricity and
remove plug from socket.
Lock the door to prevent
access (Where lock is fitted).
About 10 minutes before the programme is completed, the heating elements
will be switched off, and the programme enters the final ‘Cool Tumble’ phase.
During this phase the fabric is cooled. You should always allow the dryer to
complete this phase.
By opening the door you can check the dryness of the load as often as you
wish, and if you want to remove some items before they are fully dry. (This is
particularly useful for a mixed load where you want to iron some items but
others are to be fully dried).
8. When finished, unlock
and open the door and take
out the laundry. Clean and
replace the fluff filter.
WARNING: WHEN
SWITCHING ON
OR OFF, PLEASE
ENSURE THAT
YOUR HANDS
ARE DRY
WARNING: WHEN SWITCHING ELECTRICITY
ON OR OFF, PLEASE ENSURE THAT YOUR
HANDS ARE DRY.

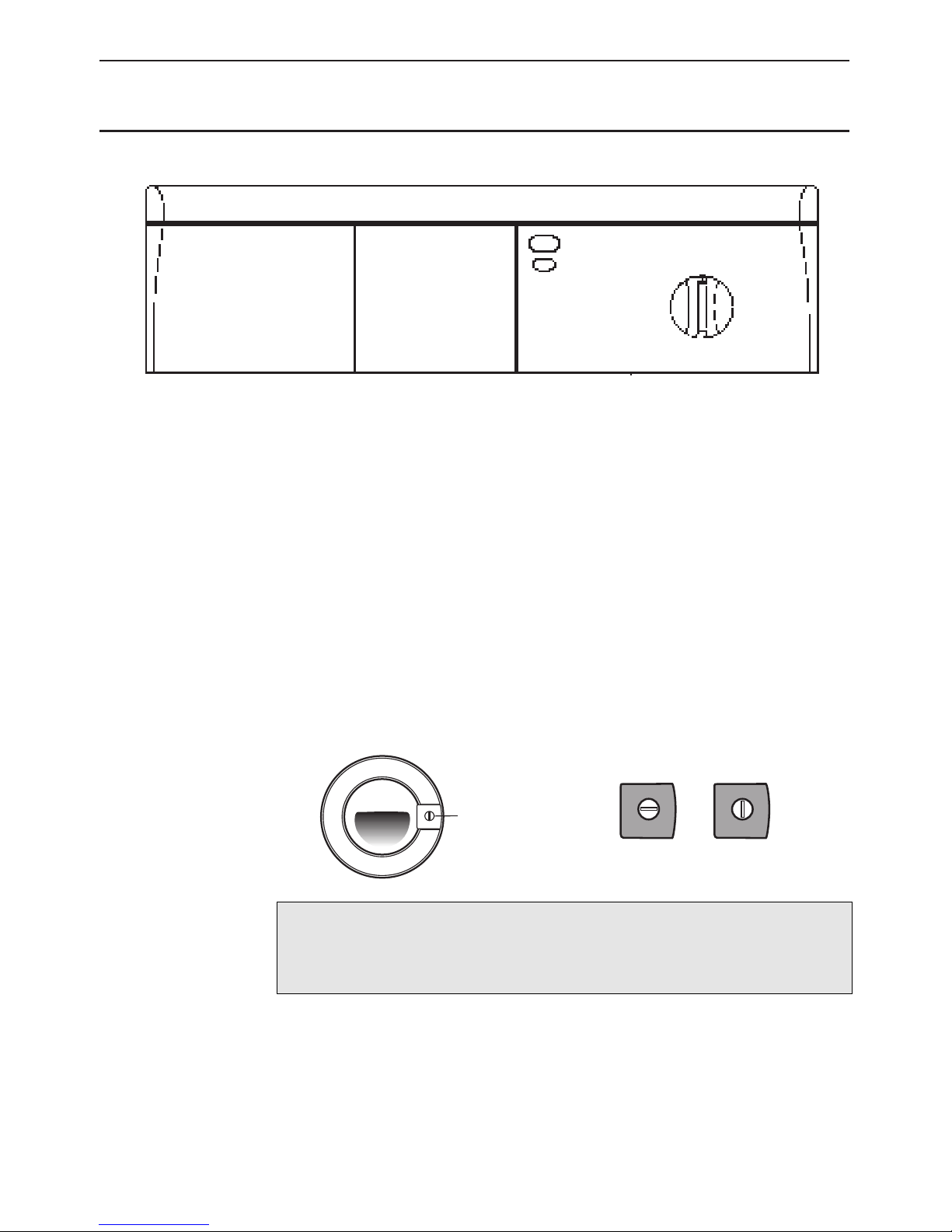

Button IN
or Rocker DOWN
HIGH HEAT
Button OUT
or Rocker UP
LOW HEAT
Never switch the dryer off with a hot load in the drum.
You must terminate every programme with the Cool Tumble Phase.
LOCKED
LOCKED
UNLOCKED
Cool
Tumble
Phase
E
e

10
Sorting your laundry
1. Always separate laundry into the correct fabric groups before
washing and drying.
2. See that all zips are closed, hooks and eyes are fastened and
belt, strings etc. are tied loosely in bows, you will normally have
done this for each item before the washing stage.
3. It is important to extract as much water as possible from each
item before drying. This saves you time and money.
4. Make sure that the items to be dried are suitable for tumble
drying, or are not of a type requiring ‘special attention’ (see“Wash
Care Labels” section).
Your dryer will hold a load of 5kg (11lb) dry weight of natural fabrics.
if you are drying items of man-made fibres (synthetic or acrylics), the
maximum load should not exceed 3kg (6.6lb) dry weight.
This difference is that man-made fibres require more space to
tumble-dry without creasing.
To help you estimate how many items it takes to make up a drying
load, the charts below show the approximate weights of some
everyday washing items.
If you group small cotton or terry-towelling items with a synthetic
fabric load they could be damp at the end of the drying cycle. If this
happens simply give them an additional short period of drying to
finish them off.
Maximum
load size
Typical load
WARNING: CLOTHES SHOULD NEVER BE LOADED
DRIPPING WET
WARNING: DO NOT OVERLOAD AS THIS COULD RESULT
IN REDUCED DRYING PERFORMANCE AND A POSSIBLE
FIRE HAZARD.
Clothes
Blouse Cotton 150g 5oz
Other 100g 31/2oz
Dress Cotton 500g 1lb 2oz
Other 350g 12oz
Jeans 700g 1lb 6oz
10 Nappies 1000g 2lb 3oz
Shirt Cotton 300g 101/2oz
Other 200g 7oz
T-Shirt 125g 41/2oz
Household Items
Duvet cover Cotton 1500g 3lb 5oz
(Double) Other 1000g 2lb 3oz
Large Tablecloth 700g 1lb 6oz
Small Tablecloth 250g 9oz
Tea Towel 100g 31/2oz
Bath Towel 700g 1lb 8oz
Hand Towel 350g 12oz
Double Sheet 500g 1lb 2oz
Single Sheet 350g 12oz
