Crestron 1 Beyond Hawk IV-CAMHK-12-SLVR-1B User manual

IV-CAMHK-12-SLVR-1B
1 Beyond Hawk™ Intelligent Dual-Camera
Tracking Solution, 12x Optical Zoom
Product Manual
Crestron Electronics, Inc.

The original language version of this document is U.S. English.
All other languages are a translation of the original document.
Crestron product development software is licensed to Crestron dealers and Crestron Service Providers (CSPs) under a
limited nonexclusive, nontransferable Software Development Tools License Agreement. Crestron product operating
system software is licensed to Crestron dealers, CSPs, and end-users under a separate End-User License Agreement.
Both of these Agreements can be found on the Crestron website at www.crestron.com/legal/software_license_
agreement.
The product warranty can be found at www.crestron.com/warranty.
The specific patents that cover Crestron products are listed online at patents.crestron.com.
Certain Crestron products contain open source software. For specific information, please visit
www.crestron.com/opensource.
Crestron and the Crestron logo are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United
States and/or other countries. Dante is either a trademark or registered trademark of Audinate Pty Ltd. in the United
States and/or other countries. Webex is either a trademark or a registered trademark of Cisco Systems, Inc. in the
United States and/or other countries. HDMI is either a trademark or a registered trademark of HDMI Licensing LLC in
the United States and/or other countries. Microsoft Teams and Windows are either trademarks or registered
trademarks of Microsoft Corporation in the United States and/or other countries. Panopto is either a trademark or a
registered trademark of Panopto, Inc. in the United States and/or other countries. Mediasite is either a trademark or a
registered trademark of Sonic Foundry, Inc. in the United States and/or other countries. VLC and VLC Media Player are
trademarks or registered trademarks of VideoLAN Association in the United States and/or other countries. Zoom Rooms
is either a trademark or registered trademark of Zoom Video Communications, Inc. in the United States and/or other
countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either
the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and
names of others. Crestron is not responsible for errors in typography or photography.
©2022 Crestron Electronics, Inc.

Contents
Overview 6
Features 7
Participant Tracking with Production-Style Switching 7
Combine with Your Preferred Microphone and Speaker 7
High Quality Video 7
Conferencing Compatibility 7
Quiet, Fast Switching Between Presets 8
Manual Control Options 8
Physical Description 9
Specifications 11
Installation 13
In the Box 13
Mounting 15
Positioning 16
Wiring 17
Network Connection 17
Video Output 17
Reference Audio 17
Configuration 18

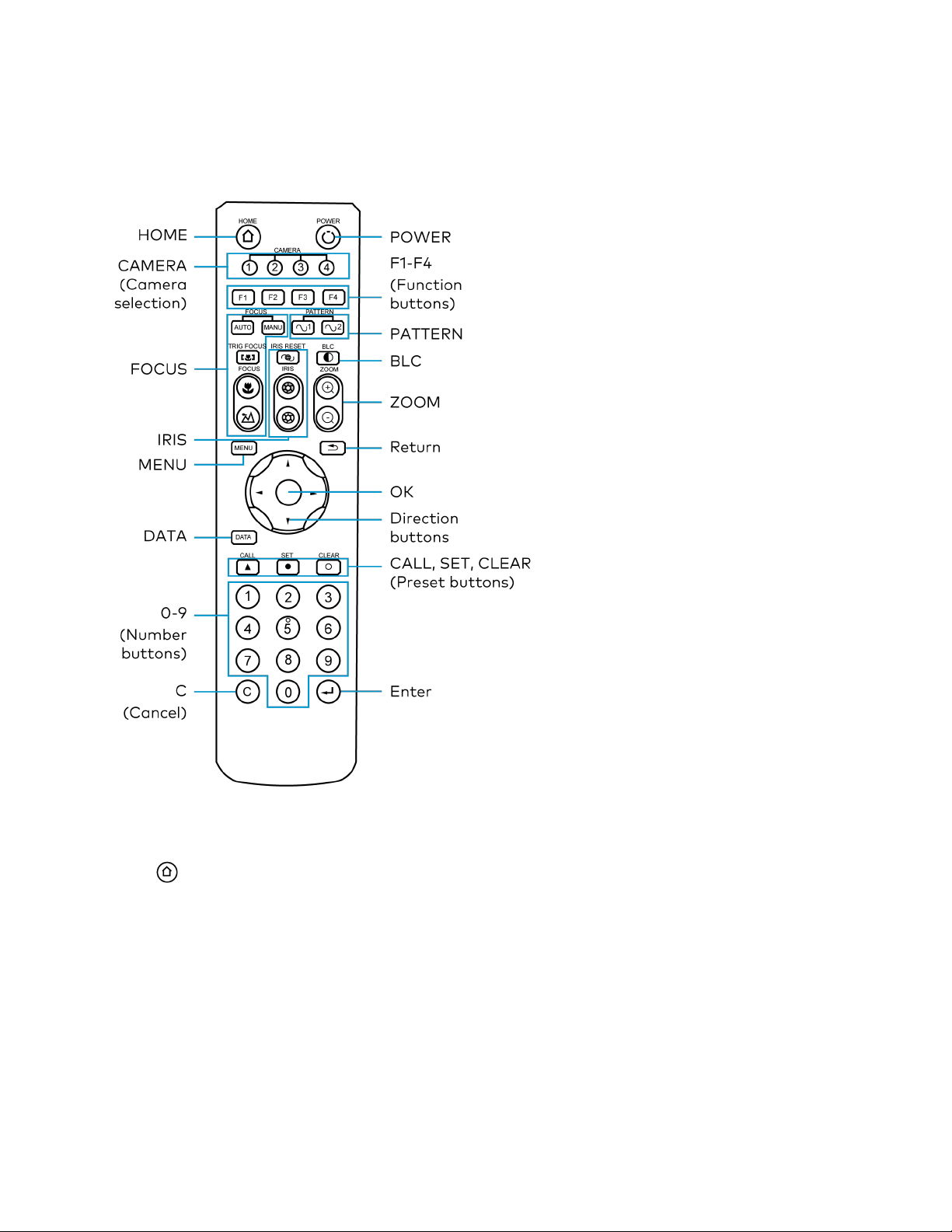

IR Remote Control 19
Home 19
Camera Selection 20
FOCUS 20
IRIS 20
MENU 20
DATA 20
0-9 (Number Buttons) 21
C (Cancel) 21
POWER 21
F1-F4 (Function Buttons) 21
PATTERN 21
BLC 22
ZOOM 22
Return 22
OK 22
Direction Buttons 22
CALL, SET, CLEAR (Preset Buttons) 23
ENTER 23
Product Manual — Doc. 9311A Contents • iii

Echo Cancellation 24
Setup using Windows® Stereo Mix 24
Setup Using VB-Audio Voicemeeter Software 25
Routing from Audio Hardware 26
Configuration via the 1BeyondCameraManager 27
Add to Camera List 27
Access Video Feeds 28
Blocking Zones 29
Basic Settings 31
Verify Performance in Debug Mode 31
Advanced Settings 33
Position Camera 35
Monitor RTSP Streams 37
Automatic Side-by-Side 43
Serial Wiring 43
Reserved Presets 43
VISCA Commands 45
Start/Stop Tracking 45
ACK / Completion Messages 45
Error Messages 45
Commands 46
Inquiry Commands 50
Troubleshooting 55
Resources 57
Crestron Support and Training 57
Product Certificates 57
Related Documentation 57
iv • Contents Product Manual — Doc. 9311A

v • Contents Product Manual — Doc. 9311A

Product Manual — Doc. 9311A IV-CAMHK-12-SLVR-1B • 6
Overview
1Beyond intelligent video technology brings an essential video conferencing solution into the
Crestron® ecosystem. Enabling the best video experience for both in-room and remote attendees
is vital to hybrid work and ensuring productive and effective collaboration. Technologies like
speaker tracking, group framing, and presenter tracking ensure that every person can be seen,
no matter where they are, and provide the best view for the remote attendees.
The IV-CAMHK-12-SLVR-1B is a participant tracking solution that uses two HD PTZ cameras to
automatically cut to a new participant. Ideal for small to medium sized rooms, deploy the
IV-CAMHK-12-SLVR-1B when a close-up view of the meeting participants is desired.

7 • IV-CAMHK-12-SLVR-1B Product Manual — Doc. 9311A
Features
Refer to the following sections for more information on the features provided by the Hawk
IV-CAMHK-12-SLVR-1B camera.
Key features include:
lAutomatically tracks, frames, and switches between participants using voice and facial
detection
lClean switching with broadcast-style cuts
lSide-by-side dialog mode captures multiple participants in conversation
lIntended for spaces up to 25ft from the participants
lSmooth tracking and quiet operation
lHigh quality video supporting resolutions up to 1080p60
lCompatible with a variety of audio solutions
Participant Tracking with Production-Style
Switching
The IV-CAMHK-12-SLVR-1B uses voice and facial recognition to automatically switch to a shot of
the active speaking participant. With production-style switching, the IV-CAMHK-12-SLVR-1B
allows remote participants to follow an in-room conversation without excessive camera
switching.
Combine with Your Preferred Microphone and
Speaker
The camera works with a variety of microphones and audio speakers and offers an echo cancel
audio input. Just add your favorite microphone and route the audio to the camera for echo
cancellation.
High Quality Video
A high quality Sony Exmor CMOS sensor enables the camera to output up to 1080p60 resolution
video via the 3G-SDI or HDMI® ports. The IV-CAMHK-12-SLVR-1B works well in low light and in
front of bright screens.
Conferencing Compatibility
Optimize video conferencing, recording, or streaming by using the 1Beyond AutoFramer camera
with Microsoft Teams®, Zoom Rooms™, Cisco WebEx®, MediaSite®, or Panopto®. The
IV-CAMFR-12-N-SLVR-1B also supports NDI|HX video output.

Product Manual — Doc. 9311A IV-CAMHK-12-SLVR-1B • 8
Quiet, Fast Switching Between Presets
Up to 256 pan, tilt, and zoom combination presets can be configured. The camera will move to
the selected preset point. A quiet, fast motor (120°/s pan speed) sets camera angles quickly.
Manual Control Options
Use VISCA over IP to control the camera with a Crestron® control system. 1B Cam Manager
Software is included for easy configuration from a computer on the network.

9 • IV-CAMHK-12-SLVR-1B Product Manual — Doc. 9311A

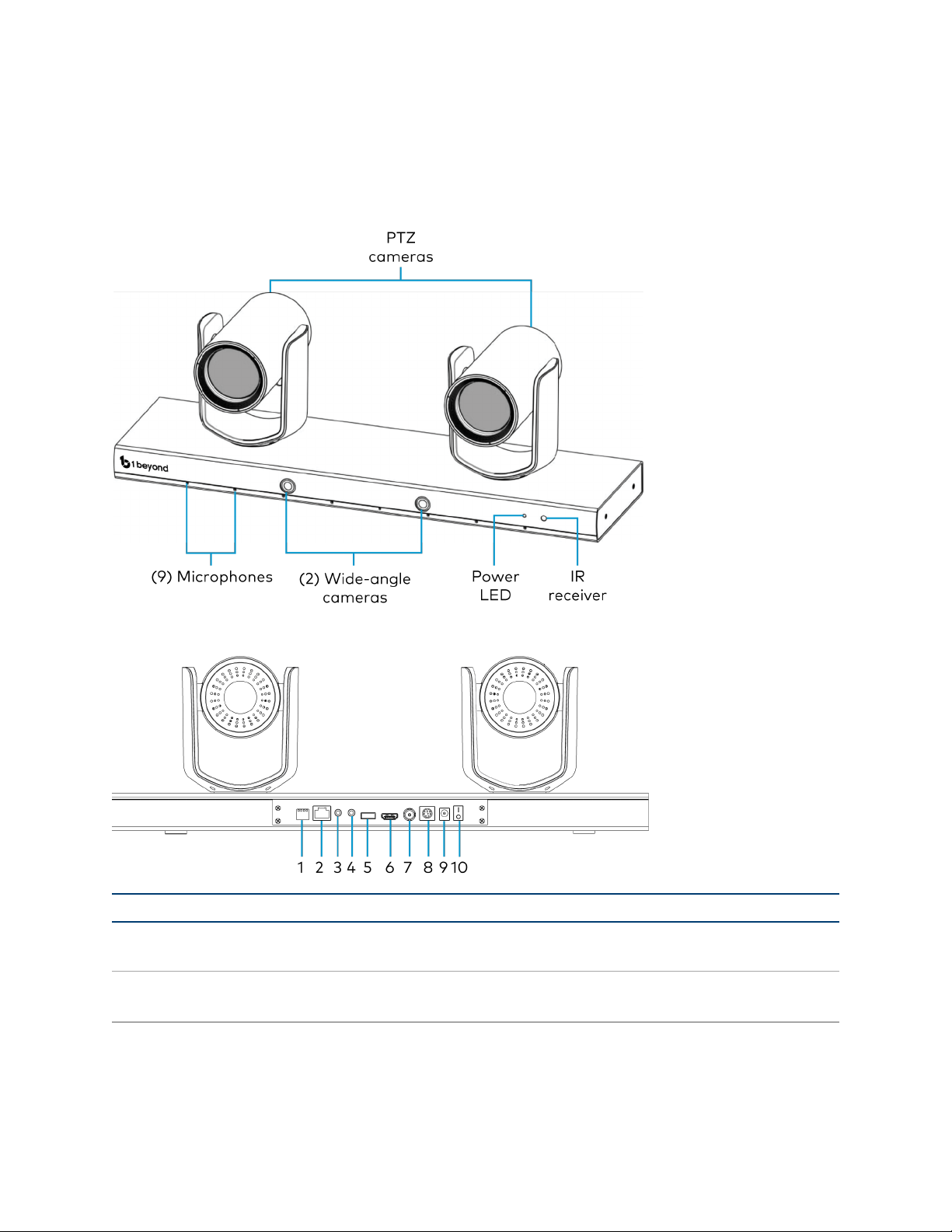

Physical Description
The camera provides the following connectors and indicators.
Front
Rear
No. Name Description
1 Dip Switches Override the Onscreen Menu (OSD) and force resolution settings. Use the
Dip switches only when absolutely necessary
2 Ethernet Port Connects the camera to the network. A network connection is required
for initial configuration but not for day-to-day operation.

Product Manual — Doc. 9311A IV-CAMHK-12-SLVR-1B • 10
No. Name Description
3 Reference Audio Feeds the echo cancellation signal into the camera. This is required for
conferencing operation. Refer to Echo Cancellation on page24.
4 Audio Input Feeds audio into RTSP stream.
5 USB Port For future use.
6 HDMIOutput Uncompressed video output at up to 1080p60.
7 3G-SDI Output Uncompressed video output at up to 1080p60.
8 Serial I/O Combination input/output for RS232 / 422 / 485 serial connection.
9 DC Input Connects the included power adapter to the power source.
10 Power Switch Turns the camera on or off.

11 • IV-CAMHK-12-SLVR-1B Product Manual — Doc. 9311A
Specifications
Product specifications for the Hawk IV-CAMHK-12-SLVR-1B camera.
Optics and Processing
Image Sensor Tracking Cameras: 1/2.8 in. Sony Exmor CMOS, 2.14MP;
Wide-Angle Camera: 1/2.8 in. CMOS, 2.14MP
Focal Length &
Iris-Tracking Cameras f=3.9-46.8 mm, F1.6 - F2.8
Field of View 72.5° - 6.3° (PTZ Cameras), 86° (Wide-Angle Camera)
Focus System Auto, Manual, PTZ Push, One Push
Minimum Illumination 0.5 Lux (Color), 0.1 Lux (B/W)
Shutter Speed 1/25 - 1/10,000 sec
Gain Auto, Manual
White Balance Auto, Indoor, Outdoor, One Push, Manual, Auto Track
Exposure Auto, Manual, Shutter Priority, Iris Priority
Number of Presets Up to 256
Serial Control PELCO-D, VISCA, PELCO-P
Protocol HTTP, RTP, TCP, UDP, ONVIF
Control TCP/IP
Pan, Tilt, Zoom
Tilt/Pan Angle Tilt: -30° - +90°, Pan: 90° - 90°
Tilt/Pan Speed Tilt: 0.1° - 80° /s, Pan: 0.1° - 120° /s
Zoom 12x Optical, 12x Digital
Connectivity
Ethernet RJ-45, 100Mb
Video
Video Outputs11x HDMI output, 1x 3G-SDI output, Convert to USB using certified adapter
Signal Formats (HD) 1080p60/50/30/25, 1080i60/50, 720p60/50
IP Video Compression H.265, H.264 (Four streams)
Streaming RTSP, RTMP
Streaming Resolution Up to 1080p60, User-selectable framesize/framerate/bitrate
Audio
IP Audio Compression AAC (IP Stream Only)

Product Manual — Doc. 9311A IV-CAMHK-12-SLVR-1B • 12
Audio Input 2x Line In (one with echo cancellation), 1x Line Out
Power
Power 12VDC, <50 W
Environmental
Temperature 32° to 104°F (0° to 40°C)
Construction
Mounting 3x 1/4 in. threaded mount hole for 90° Wall Shelf Mount;
Wall shelf mount included
Recommended
Mounting Height: 4-6 in., Distance: 3-28 ft
Color Silver
S/N ≥50dB
Dimensions
Dimensions 19.69 in. x 6.4 in. x 5.71 in. (500 mm x 163 mm x 145 mm)
Weight
6.61 lb (3 kg)
Note:
1. The IV-CAMHK-12-SLVR-1B camera includes integrated circuits produced by HiSilicon (part numbers
HI3516ARBCV100 and HI3516ARFCV200), a subsidiary of Huawei Technologies Company.

13 • IV-CAMHK-12-SLVR-1B Product Manual — Doc. 9311A
Installation
Use the following procedures to install the Hawk IV-CAMHK-12-SLVR-1B camera.
NOTES: Observe the following points.
lCarefully lift the camera out of its packaging by holding it from the base. Holding it by
the PTZ camera assemblies may cause damage to sensitive mechanical parts.
lDo not remove the rubber lens caps until the camera is mounted to avoid scratching
the lenses.
lOnly use the power supply included with this product to power it as non-specified
products may cause damage to the unit.
lDo not operate the camera beyond the specified temperature and humidity limits.
Operating range of the camera is between 32°F - 104°F (0°C -40°C). Ambient
humidity should be less than 95%RH.
lDo not remove any screws from the camera. There are no user-serviceable parts
inside. Contact Crestron's True Blue Support Team if the camera is damaged or
malfunctioning.
lDo not aim the camera lens at the sun or extremely bright lights. Doing so can cause
damage to the image sensor.
lDo not move the camera head manually. Doing so can cause damage to the camera
and inner gear systems. Do not carry the camera by the head; always handle the
camera by the base.
lDo not directly expose the camera to rain, water, or high moisture.
lThis camera is for indoor use only.
In the Box
Qty. Description
1 IV-CAMHK-12-SLVR-1B, 1 Beyond Hawk™ Intelligent Dual-Camera Tracking Solution, 12x
Optical Zoom
Additional Items
1 IRremote control
1 12VDC power adapter
1 RS-232 cable adapter

Product Manual — Doc. 9311A IV-CAMHK-12-SLVR-1B • 14
Qty. Description
1 1Beyond wall mount shelf, IVA-WMT-SHELF-HK-1B
6 Mounting screws
6 Drywall anchors, plastic
2 Tripod-style screws, 1/4-20 UNC (ISO 1222:2010)

15 • IV-CAMHK-12-SLVR-1B Product Manual — Doc. 9311A
Mounting

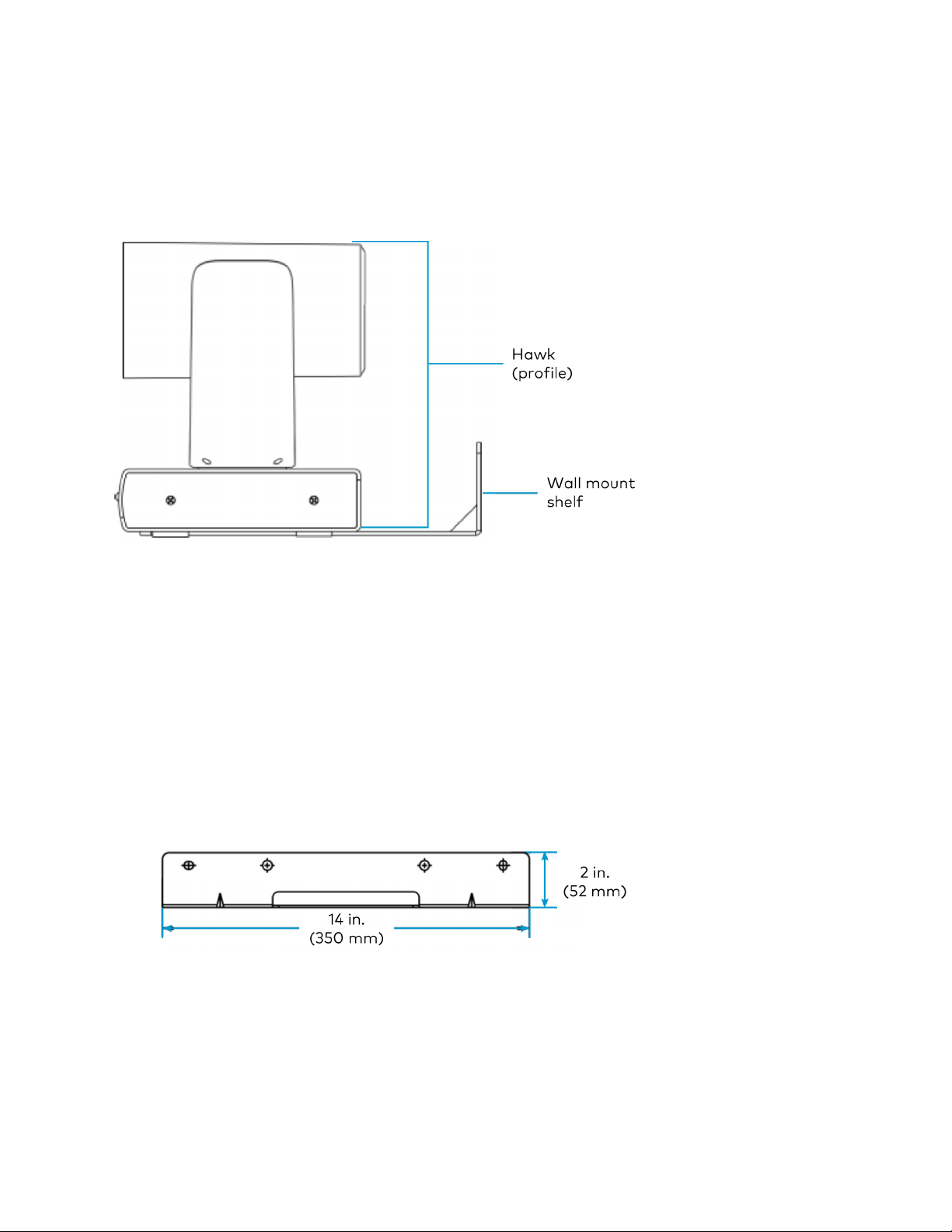

Install the camera using the included 2-point shelf mount to ensure optimum stability. Since both
PTZs are moving frequently, a mount with a center-only connection to the camera can cause
undesirable shaking.
For the best possible tracking performance, observe the following mounting requirements.
lCenter the camera horizontally, facing the meeting participants.
lMount the camera at a height between 4ft (1m) and 6ft (2m). If the camera is mounted
lower than 4ft (1m) or higher than 6ft (2m) facial detection and shot quality may be
affected.
lThe camera detects faces at a distance up to 28ft (9m). In rooms where people are
further away from the camera, satisfactory operation cannot be guaranteed.
To mount the camera:
1. Following diameter and position of the four installation holes on the bracket, drill four
holes in the wall.
2. Use four of the included anchors and mounting screws to attach the bracket to the wall.
3. Use the two tripod-style screws to affix the camera to the bracket.

Product Manual — Doc. 9311A IV-CAMHK-12-SLVR-1B • 16
Positioning
The camera is able to detect faces at a distance of up to 28ft (9m). In rooms where people are
further away from the camera, satisfactory operation cannot be guaranteed.

17 • IV-CAMHK-12-SLVR-1B Product Manual — Doc. 9311A
Wiring
Connect the camera to power using the included 12VDC power supply. If cabling needs to be
extended to reach the camera, utilize a longer IEC power cord
Network Connection
The camera must be connected to a network for initial configuration. Once configured, the
camera does not need be connected to a network. A consistent network connection is
recommended in case any configuration adjustments are performed later.
Video Output
To connect the camera to a conferencing codec or capture device, an HDMI or SDI connection is
required. SDI is recommended for longer cable runs of over 50ft (15m). USB converters are
available for both HDMI and SDI if the camera is to be connected to a computer or codec via
USB.
Reference Audio
An echo cancellation signal is required for the camera to work correctly in video conferencing
applications. Refer to Echo Cancellation on page24.

Product Manual — Doc. 9311A IV-CAMHK-12-SLVR-1B • 18
Configuration
A one-time configuration is required to tailor the tracking parameters to your environment. Once
configured, the camera will work autonomously, and the software will not be required for
operation.
This section provides the following information:
•IR Remote Control
•Echo Cancellation
•Configuration via the 1BeyondCameraManager
•VISCA Commands

19 • IV-CAMHK-12-SLVR-1B Product Manual — Doc. 9311A
IR Remote Control
Use the IRremote to control the camera when autoframing is turned off.
Home
Press to move the camera back to the home position where pan, tilt, and zoom are at 0.

Product Manual — Doc. 9311A IV-CAMHK-12-SLVR-1B • 20
Camera Selection
Select one of up to four cameras (the Hawk and two additional PTZ cameras (not included)) to
control. The selected camera number lights when pressing any button. Camera 1 is assigned to
the left PTZ camera and Camera 2 assigned to the right PTZ camera.
FOCUS
lPress to switch to Auto Focus.
lPress to switch to Manual Focus.
lPress to focus close.
lPress to focus far.
lPress to engage Auto Focus. Triggers Auto Focus until a preset is called. Auto Focus
can also be triggered by activating Zoom.
IRIS
lPress to reset the iris to default.
lPress to open the iris (brighten).
lPress to close the iris (darken).
MENU
Press to enter/exit OSD menu
DATA
Press to enable/disable display of pan, tilt, or zoom values.
