Crestron TPS-VID-1/TPS-VID-2
Video Card for TPS/Tilt Panel
Operations & Installation Guide

This document was prepared and written by the Technical Documentation department at:
Crestron Electronics, Inc.
15 Volvo Drive
Rockleigh, NJ 07647
1-888-CRESTRON
All brand names, product names and trademarks are the property of their respective owners.
©2002 Crestron Electronics, Inc.

Crestron TPS-VID-1 / TPS-VID-2 Video Card for TPS/Tilt Panel
Contents
Video Card for TPS/Tilt Panel: TPS-VID-1/TPS-VID-2 1
Introduction 1
Features and Functions 1
Specifications 2
Physical Description 4
Industry Compliance 5
Installation and Hookup 5
Setup 12
Configuring the Touchpanel 12
VT Pro-e Setup 15
SIMPL Windows Setup 16
Problem Solving 17
Troubleshooting 17
Further Inquiries 18
Future Updates 18
Return and Warranty Policies 19
Merchandise Returns / Repair Service 19
CRESTRON Limited Warranty 19
Operations & Installation Guide - DOC. 6059 Contents •i

Crestron TPS-VID-1 / TPS-VID-2 Video Card for TPS/Tilt Panel
Video Card for TPS/Tilt Panel:
TPS-VID-1/TPS-VID-2
Introduction
Features and Functions
The TPS-VID-1 and TPS-VID-2 video cards are designed for Crestron’s
Isys™ TPS-4500, TPS-5000, and TPS-6000 tilt touchpanels. Each card
contains a video digitizer that allows video signals to be displayed on a
touchpanel. The TPS-VID-1 can display one S-video or composite video
source while the TPS-VID-2 can display one S-Video source or two
composite video sources. The video card accepts either National
Television System Committee (NTSC) or Phase Alternating Line (PAL)
signal types. Composite and S-Video formats are supported and can be
displayed in a window or full screen page in an uploaded VisionTools™
Pro-e (VT Pro-e) touchpanel project.
Functional Summary
• Built-in Time-Based Correction for Stable Video & Graphics
• Scale video at full screen or window to any size
• Display picture-in-picture or place windows anywhere on the
screen
• Supports NTSC/PAL Formats with Auto-Detect
• Coaxial or Balanced Video Input
• Auto-Detects Composite or S-Video Format within two seconds
(TPS-VID-2 Auto-Detects format only on input 1 when input 2 is
not used.)
• Simultaneous display of two real-time composite video windows
on one touchpanel screen (TPS-VID-2 only)
• TPS touchpanels can display up to three sources on-screen
simultaneously when TPS-VID-2 and TPS-XVGA cards are
installed (two composite video, one VGA)
Operations & Installation Guide - DOC. 6059 Video Card for TPS/Tilt Panel: TPS-VID-1/TPS-VID-2 •1

Video Card for TPS/Tilt Panel Crestron TPS-VID-1 & TPS-VID-2
The TPS-VID-1 can automatically detect composite or S-video. The
TPS-VID-2 uses the “C” input for a second composite video source (on
the TPS-VID-2, Composite/S-Video can be auto-detected only when

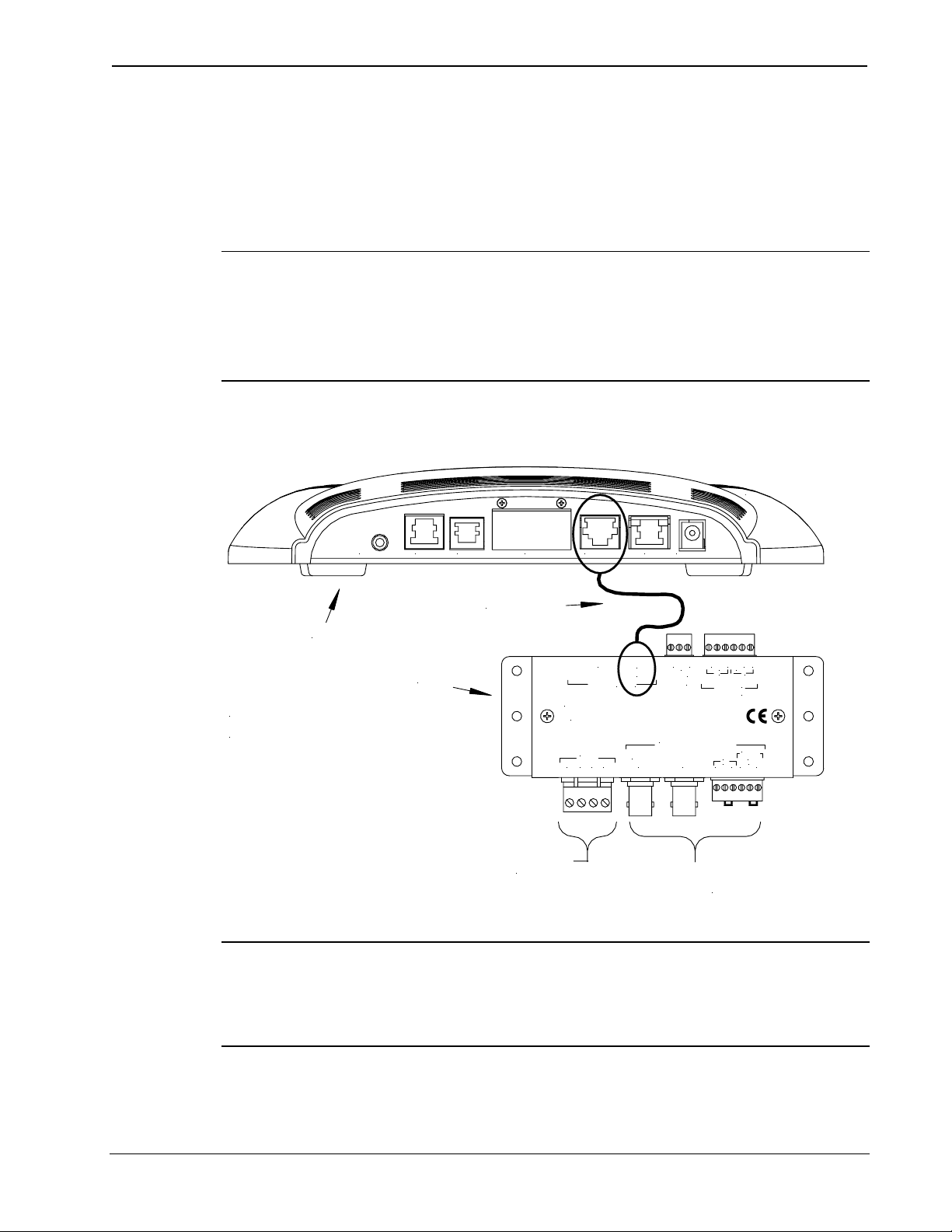

input signal 2 is not used). Video signals to the touchpanel are supplied
through a Crestron TPS interface module (IMC) that is provided with the
touchpanel or an optional TPS wall-mounted interface module (IMW).
When using the TPS-VID-2 for receiving two video sources, the
“Comp/Y” connection will be used for Video Source 1 while the chroma
“C” connection will be used for Video Source 2.
Refer to the table below for touchpanel and interface modules that can be
used with TPS-VID cards.
Touchpanel Interface Module Compatibility
ISYS™
TOUCHPANEL
INTERFACE
MODULE
MODULE
AVAILABILITY MODULE DOC. #
TPS-
4500IMC
Supplied
w/touchpanel 5890
TPS-4500 TPS-
4500IMW Sold Separately 5913
TPS-IMC Supplied
w/touchpanel 5856
TPS-IMC-BV Sold Separately 5921
TPS-5000
and/or
TPS-6000 TPS-IMW Sold Separately 5857
*The TPS-IMC-BV is supplied with the optional TPS-XVGA-BV card that can
only be installed into specific touchpanels. Refer to the TPS-XVGA-BV
Operations and Installation Guide (Document 5920) for further information.
NOTE: For more information about the Crestron TPS interface or wall-
mounted interface module(s), refer to the latest revision of the
appropriate operations guide. The latest versions can be obtained from
the Downloads | Product Manuals section of the Crestron website
(www.crestron.com).
Specifications
The following table provides a summary of specifications for the
TPS-VID-1 and TPS-VID-2 cards.
2 •Video Card for TPS/Tilt Panel: TPS-VID-1/TPS-VID-2 Operations & Installation Guide - DOC. 6059

Crestron TPS-VID-1 / TPS-VID-2 Video Card for TPS/Tilt Panel
Specifications of the TPS-VID-1/VID-2
SPECIFICATION DETAILS
Power Requirements TPS-VID-1: 7 Watts (0.29 Amp @ 24
VDC)
TPS-VID-2: 12 Watts (0.50 Amp @ 24
VDC)
Control System Update
Files1,2,3
2-Series Control System Version C2-2004.CUZ or later
CEN/CN-TVAV Version 5.12.63v.UPZ or later
CNMSX-AV/PRO Version 5.12.63x.UPZ or later
CNRACKX/-DP Version 5.12.63w.UPZ or later
ST-CP Version 4.02.4S.UPZ or later
Isys™ Touchpanel
Firmware4
Version 1.018 or later
VT Pro-e Programming
Software1
Version 3.0.0.8 or later
Video Types NTSC or PAL
Video Formats Composite or S-Video
Video Format Detection Within 2 seconds
Operating Temperature
and Humidity
50º to 113º F (10º to 45º C), 10 to 90%
Relative Humidity (non-condensing)
Dimensions and Weight Height: 0.71 in (1.81 cm)
Width: 3.35 in (8.51 cm)
Depth: 5.93 in (15.06 cm)
Weight: 1.60 oz (0.05 kg)
1. The latest versions can be obtained from the Downloads | Software Updates section
of the Crestron website (www.crestron.com). Refer to NOTE after last footnote.
2. Crestron 2-Series control systems include the AV2, CP2, CP2E, MP2, MP2E, PAC2,
PRO2, and RACK2.
3. CNX update files are required for either CNMSX-AV/Pro or CNRACKX/-DP.
Filenames for CNX update files have a UPZ extension and ST-CP files are in one
EXE or zipped UPZ file. To avoid program problems, make certain you are using the
update file with the correct suffix letter (e.g., S, V, W, X).
4. Touchpanels with later versions of firmware may include features not mentioned in
this guide. Check the Downloads | Product Manuals section of the Crestron website
(www.crestron.com) for newer versions of this guide or contact a Crestron technical
support representative.
Operations & Installation Guide - DOC. 6059 Video Card for TPS/Tilt Panel: TPS-VID-1/TPS-VID-2 •3

Video Card for TPS/Tilt Panel Crestron TPS-VID-1 & TPS-VID-2
NOTE: Crestron software and any files on the Crestron website are for
Authorized Crestron dealers only. New users may be required to register
to obtain access to certain areas of the site (including the FTP site).
Physical Description
The TPS-VID-1 and TPS-VID-2 card, shown in the following diagrams
below, is a printed circuit board (PCB) that is designed for installation
into a dedicated expansion slot on the touchpanel motherboard. The card
contains a 60-pin connector that attaches directly to the motherboard and
is secured with four mounting screws (supplied with each model of the
video card). A 10-position RJ45 port (labeled NET/VIDEO on the
touchpanel) is permanently attached to the motherboard and is accessible
through the connector panel at the rear of the touchpanel base. Refer to
the following diagrams for physical dimensions.

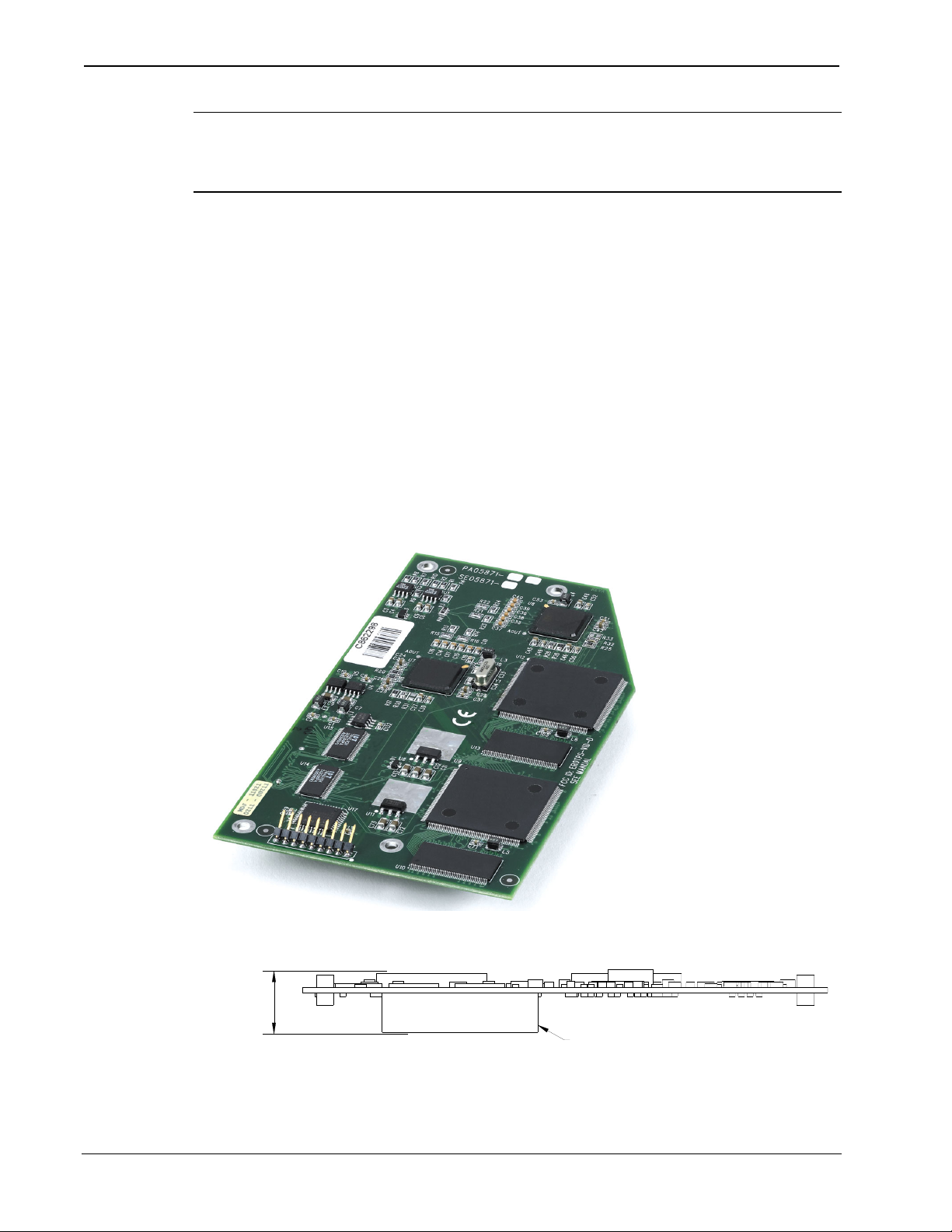

TPS-VID-1/VID-2 VIDEO CARD (TPS-VID-2 Shown)
TPS-VID-1/VID-2 Side View
4 •Video Card for TPS/Tilt Panel: TPS-VID-1/TPS-VID-2 Operations & Installation Guide - DOC. 6059
0.71 in
(1.81 cm)
TOUCHPANEL CONNECTOR

Crestron TPS-VID-1 / TPS-VID-2 Video Card for TPS/Tilt Panel
TPS-VID-1/VID-2 Top View
3.35 in
(8.51 cm)
5.93 in
(15.06 cm)
2.41 in
(6.12 cm)
NOTE: The TPS-VID-1 circuit board is slightly less populated than the
TPS-VID-2
Industry Compliance
As of the date of manufacture, the card has been tested and found to
comply with specifications for CE marking and standards per EMC and
Radiocommunications Compliance Labelling (N11785).
NOTE: This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Installation and Hookup
The TPS-VID-1 and TPS-VID-2 video cards are designed for installation
into a dedicated expansion slot on the TPS touchpanel. The only tools
required for installation are a #1 Phillips screwdriver and a grounding
strap (or grounded workstation).
CAUTION: The TPS-VID-1, TPS-VID-2, and the touchpanel contain
electro-static discharge (ESD) sensitive devices. Perform the following
Operations & Installation Guide - DOC. 6059 Video Card for TPS/Tilt Panel: TPS-VID-1/TPS-VID-2 •5

Video Card for TPS/Tilt Panel Crestron TPS-VID-1 & TPS-VID-2
procedure while wearing a grounding strap that is properly grounded and
on a grounded workstation to avoid damaging the TPS-VID card and/or
the touchpanel.
CAUTION: To prevent stripping of screw heads, threads, or mounting
holes, DO NOT overtighten screws. Tighten only to the specification
listed in the individual step(s).
NOTE: If the angle of the touchscreen needs to be adjusted, consult the
latest revision of the appropriate operations guide for instructions of how
to use the touchpanel position lock buttons. The latest versions of
operations guides can be obtained from the Downloads | Product Manuals
section of the Crestron website (www.crestron.com).
NOTE: The diagrams in this procedure show a TPS-6000 touchpanel
but the installation steps for the TPS-4500 and TPS-5000 Isys™ tilt
touchpanels are identical.
1. To prevent errors when re-connecting, label and disconnect all
cables attached to the touchpanel’s rear ports.
2. If necessary, use the touchpanel position lock buttons to adjust
the touchscreen to the maximum (most vertical/upright) angle.
3. To prevent scratching of the screen, place the touchpanel
face-down onto a padded surface.
4. With one hand, hold the touchpanel base cover in place.
5. Using a #1 Phillips screwdriver, loosen and remove the eight
screws that secure the touchpanel base cover. Refer to the
following diagram for screw locations.
6 •Video Card for TPS/Tilt Panel: TPS-VID-1/TPS-VID-2 Operations & Installation Guide - DOC. 6059

Crestron TPS-VID-1 / TPS-VID-2 Video Card for TPS/Tilt Panel
TPS-VID-1/VID-2 Installation (1 of 6) – Remove Touchpanel Base
Cover Screws
TPS-6000
ZA*****
SEE MANUAL
FCC ID: EROTPS-6000
C000000
USE POWER PACK PW-2420RU
ELECTRONICS, INC
Rockleigh, NJ 07647
U.S.A.
ELECTRONICS, I NC
Rockleigh, NJ 07647
U.S.A.
CLEAN PANEL WIT H SOFT CLOTH O NLY
READ INSTRUCTION MANUAL BEFORE OPERATING
NO U SER SERVICABLE PARTS UNDER THIS COVER
6. Place the touchpanel upright on the work surface.
7. Remove the touchpanel base cover by raising it upwards and
rearward. Refer to the diagram on the following page for a
detailed view.
TPS-VID-1/VID-2 Installation (2 of 6) – Remove Touchpanel Base
Cover
Operations & Installation Guide - DOC. 6059 Video Card for TPS/Tilt Panel: TPS-VID-1/TPS-VID-2 •7

Video Card for TPS/Tilt Panel Crestron TPS-VID-1 & TPS-VID-2
8. Align the pins on the touchpanel interface connector of the
TPS-VID-1 or TPS-VID-2 with the touchpanel motherboard
connector. DO NOT force pins into connector. Press the TPS-
VID-1/VID-2 until the pins are fully seated. Make sure that the
screw holes of the card align with the mounting posts on the
motherboard. Refer to the following diagram for a detailed
view.
TPS-VID-1/VID-2 Installation (3 of 6) – Install TPS-VID-1/VID-2
9. Install the four mounting screws (supplied), tighten to
finger-tight then, using a Phillips screwdriver, tighten each
screw an additional 1/8-turn. Refer to the following diagram for
screw locations.
8 •Video Card for TPS/Tilt Panel: TPS-VID-1/TPS-VID-2 Operations & Installation Guide - DOC. 6059

Crestron TPS-VID-1 / TPS-VID-2 Video Card for TPS/Tilt Panel
TPS-VID-1/VID-2 Installation (4 of 6) – Install TPS-VID-1/VID-2
Mounting Screws
10. Position the touchpanel base cover onto the base by tilting the
front of the cover downward under the touchpanel pivot and
lowering the base cover.
11. Hold the touchpanel base cover in place and position the
touchpanel face-down onto a padded surface to prevent
scratching of the screen.
12. Re-install the eight base cover screws to finger-tight then,
using a Phillips screwdriver, tighten each screw an additional
1/8-turn. Refer to the following diagram for screw locations.
Operations & Installation Guide - DOC. 6059 Video Card for TPS/Tilt Panel: TPS-VID-1/TPS-VID-2 •9

Video Card for TPS/Tilt Panel Crestron TPS-VID-1 & TPS-VID-2
TPS-VID-1/VID-2 Installation (5 of 6) – Re-install Touchpanel Base
Cover Screws
TPS-6000
ZA*****
SEE MANUAL
FCC ID: ER OTPS- 6000
C000000
USE PO WER PACK PW-2420RU
ELECTRONICS, INC
Rockleigh, NJ 07647
U.S.A.
ELECTRONICS, INC
Rockleigh, NJ 07647
U.S.A.
CLEAN PANEL WITH SOFT CLOTH ONLY
READ I NSTRUCTIO N MANUAL BEFOR E OPERATING
NO USER SERVI CABLE PARTS UNDER THIS COVER
The following table is provided as reference information about the
pinouts of the NET/VIDEO connector.
Pin Assignments
TYPE PIN DESIGNATION DESCRIPTION
1 +24V Power (Network)
2 GND Ground (Network)
3 C+ Chrominance (Positive)
4 C- Chrominance (Negative)
5 Y Data (Network)
6 Z Data (Network)
7 Y+ Luminance (Positive)/Composite
8 Y- Luminance (Negative)/Composite
9 GND Ground (Network)
10-pin RJ45
Pin 1 Pin 1
10 +24V Power (Network)
CAUTION: The 10-pin RJ45 Net/Video connector cable supplied by
Crestron is a custom cable and is the only one that should be used. The
end of the cable has a metal shield that is required to protect the
equipment. Using non-Crestron cables will result in damage to the
product.
13. Refer to the following diagram for the video connector signals
and attach the supplied 10-pin Net/Video cable assembly (or
the triamese cable assembly supplied with the TPS-IMC-BV) to
the Net/Video port of the touchpanel. Connect the other end of
10 •Video Card for TPS/Tilt Panel: TPS-VID-1/TPS-VID-2 Operations & Installation Guide - DOC. 6059

Crestron TPS-VID-1 / TPS-VID-2 Video Card for TPS/Tilt Panel
the cable assembly to the NET/VIDEO port of the appropriate
interface module (TPS-IMC is shown) or to the TPSBLOCK-10
interface (refer to the latest version of the TPSBLOCK-10
Installation Guide, Doc. 5979 for functional and physical
description).
NOTE: When connecting the Net/Video cable from the interface
module to the touchpanel, exceeding a cable length of 30 feet will
significantly degrade the video signal. To maintain high-quality video,
DO NOT daisy-chain cables or Crestron TPSBLOCK-10 cables longer
than 30-feet. Contact Crestron for the maximum available cable length.
TPS-VID-1/VID-2 Installation (6 of 6) – Attach 10-Pin Net/Video
Cable Assembly
HEADPHONES AUDIO RGB LANRS-232 NET/VIDEO 24VDC 2.0A
CRESTRON
TPS - IMC
NET
Z
AUDIO
PANEL
AUDIO
INPUT
+S
R
S
MIC
OUT
S
L
+
_ _ +_
TO
VIDEO
NET/
+_
Y
COMP
S
NTSC/PAL VIDEO
+ S
C
C_ Y
COMP
GY24
10-POSITION
NET/VIDEO CABLE
ASSEMBLY
CONNECT TO VIDEO SOURCE(S)
FOR TPS-VID-2, USE "COMP/Y"
FOR SIGNAL 1 AND "C" FOR SIGNAL 2
TOUCHPANEL
TPS-IMC
CONNECTED
TO CRESNET
To display video from the TPS-VID-1/2,
Cresnet power MUST be con-
nected to the TPS-IMC. If utilizing
the TPS-IMC-BV, an external power
pack may be connected to the
TPS-IMC-BV to supplement
Cresnet power or if Cresnet
power is not available.
NOTE:
CAUTION: When running unbalance video, the respective twisted-pair
jumper(s) must be installed to avoid damage to the TPS-IMC. Refer to
the latest version of the TPS-IMC Operations Guide (Doc. 5856) for
hardware hookup details.
Operations & Installation Guide - DOC. 6059 Video Card for TPS/Tilt Panel: TPS-VID-1/TPS-VID-2 •11

Video Card for TPS/Tilt Panel Crestron TPS-VID-1 & TPS-VID-2
NOTE: When using the TPS-VID-2 for receiving two composite video
sources, the “Comp/Y” connection will be used for Video Source 1 while
the chroma (C) connection will be used for Video Source 2.
NOTE: A variety of video wiring combinations can be used. For
example, Signal 1 can be connected to the BNC connector while Signal 2
can use the twisted pair connector. Do not apply different video signals to
the BNC and twisted pair connector for the same input (i.e. one signal on
BNC “Y” input and a different source signal on the twisted pair “Y”
input).
NOTE: When connecting cables to a TPS-IMC-BV, select the
connection to use (BAL or COAX) by sliding the switch to the
appropriate setting that is accessible through the opening in the cover of
the TPS-IMC-BV. Only one connection type can be used at a time.
NOTE: For additional information on video connections over CAT 5,
refer to the latest version of the Crestron CAT 5 Wiring Reference Guide
(Doc. 6137) which is available from the Downloads | Product Manuals
section of the Crestron website (www.crestron.com).
14. Re-connect all cables to the appropriate ports on the rear of the
touchpanel.
Setup
Configuring the Touchpanel
NOTE: Refer to the latest revision of the TPS-4500, TPS-5000, or
TPS-6000 Operations & Installation Guide (Doc. 5891, 5863, or 5864,
respectively) for instructions to access the touchpanel setup screen. The
latest version of the operations guide can be obtained from the
Downloads | Product Manuals section of the Crestron website
(www.crestron.com).
1. From the MAIN MENU, select the SETUP button to access the
touchpanel SETUP MENU.
12 •Video Card for TPS/Tilt Panel: TPS-VID-1/TPS-VID-2 Operations & Installation Guide - DOC. 6059

Crestron TPS-VID-1 / TPS-VID-2 Video Card for TPS/Tilt Panel
SETUP MENU (TPS-VID-1 shown)
NOTE: If the TPS-VID-1 is installed, a single “Video” button will be
displayed. If the TPS-VID-2 is installed, buttons labeled “Video 1” and
“Video 2” will be displayed instead of the single “Video” button.
NOTE: If the video card is not properly installed, the “Video” button(s)
will not be displayed.
2. Select the Video button from the SETUP MENU to set
preferences for the video source. If a TPS-VID-2 is installed,
buttons labeled “Video 1” and “Video 2” will be displayed
instead of the single Video button. Select the appropriate
“Video” button to set preference for the video source.
Operations & Installation Guide - DOC. 6059 Video Card for TPS/Tilt Panel: TPS-VID-1/TPS-VID-2 •13

Video Card for TPS/Tilt Panel Crestron TPS-VID-1 & TPS-VID-2
Video Setup
3. The touchpanel can be configured to auto-detect the signal type
(S-Video or Composite) coming in to the touchpanel or can be
set to a specific signal type (S-Video or Composite). Select the
appropriate signal type.
NOTE: When configuring the TPS-VID-2, the Video 1 signal type can
be automatically detected as long as one signal is sent to the touchpanel.
NOTE: A solid blue screen is displayed in the video window if a video
signal is not detected or is very weak. Verify that the video source is
functioning and properly connected. If the source is properly connected
and functioning, a distribution amplifier may need to be used.
4. Select the preferences for the video signals appearance. Refer to
the following table for further information.
Video Setup Details
VIDEO
SCREEN
BUTTONS
DESCRIPTION
Brightness Use to increase or decrease image brightness.
Contrast Use to increase or decrease image contrast.
(continued on next page)
14 •Video Card for TPS/Tilt Panel: TPS-VID-1/TPS-VID-2 Operations & Installation Guide - DOC. 6059

Crestron TPS-VID-1 / TPS-VID-2 Video Card for TPS/Tilt Panel
Video Setup Details (continued)
VIDEO
SCREEN
BUTTONS
DESCRIPTION
Saturation Use to increase or decrease image saturation.
Hue Use to shift the color balance.
Fast Motion /
Still Video
(toggle)
The Fast Motion setting eliminates motion
artifacts caused by the difference between the
first and second halves of a video field and
softens the image. The Still Video setting yields
a much sharper image, however, motion
artifacts may occur if fast moving objects are
displayed.
Soft / Sharp
(toggle)
Used to soften images that are too sharp or
sharpen video images that are too soft.
Default Returns you to the default settings*.
Return Saves the settings and returns to the SETUP
MENU
* Video default is 50% for each of the video parameters (brightness, contrast,
saturation, and hue) fast motion, sharp picture, and Composite Video on
BNC connector
5. Select the Return button to save settings and return to the
SETUP MENU.
VT Pro-e Setup
A video window object must reside on a page within the uploaded
VT Pro-e touchpanel project and the TPS-VID-1 or TPS-VID-2 must be
properly installed into the touchpanel in order for video signals to be
displayed.
When using the TPS-VID-2, the video window object properties must
have the video source specified in the Input number field (“Composite 1”
for Video 1 or “Composite 2” for Video 2) of the Source tab. Refer to the
following illustration that shows selection of the video source.
Operations & Installation Guide - DOC. 6059 Video Card for TPS/Tilt Panel: TPS-VID-1/TPS-VID-2 •15

Video Card for TPS/Tilt Panel Crestron TPS-VID-1 & TPS-VID-2
Selecting the Video Source
NOTE: If the card is not present, the Crestron Viewport displays a
warning message during the upload and the video window remains blank.
For further information regarding video window objects, refer to the VT
Pro-e help file.
SIMPL Windows Setup
The touchpanel does not require special programming in SIMPL
Windows to display video.
16 •Video Card for TPS/Tilt Panel: TPS-VID-1/TPS-VID-2 Operations & Installation Guide - DOC. 6059
