Crestwood DELAHEY 4 PC CHAT SET TM061638 User manual

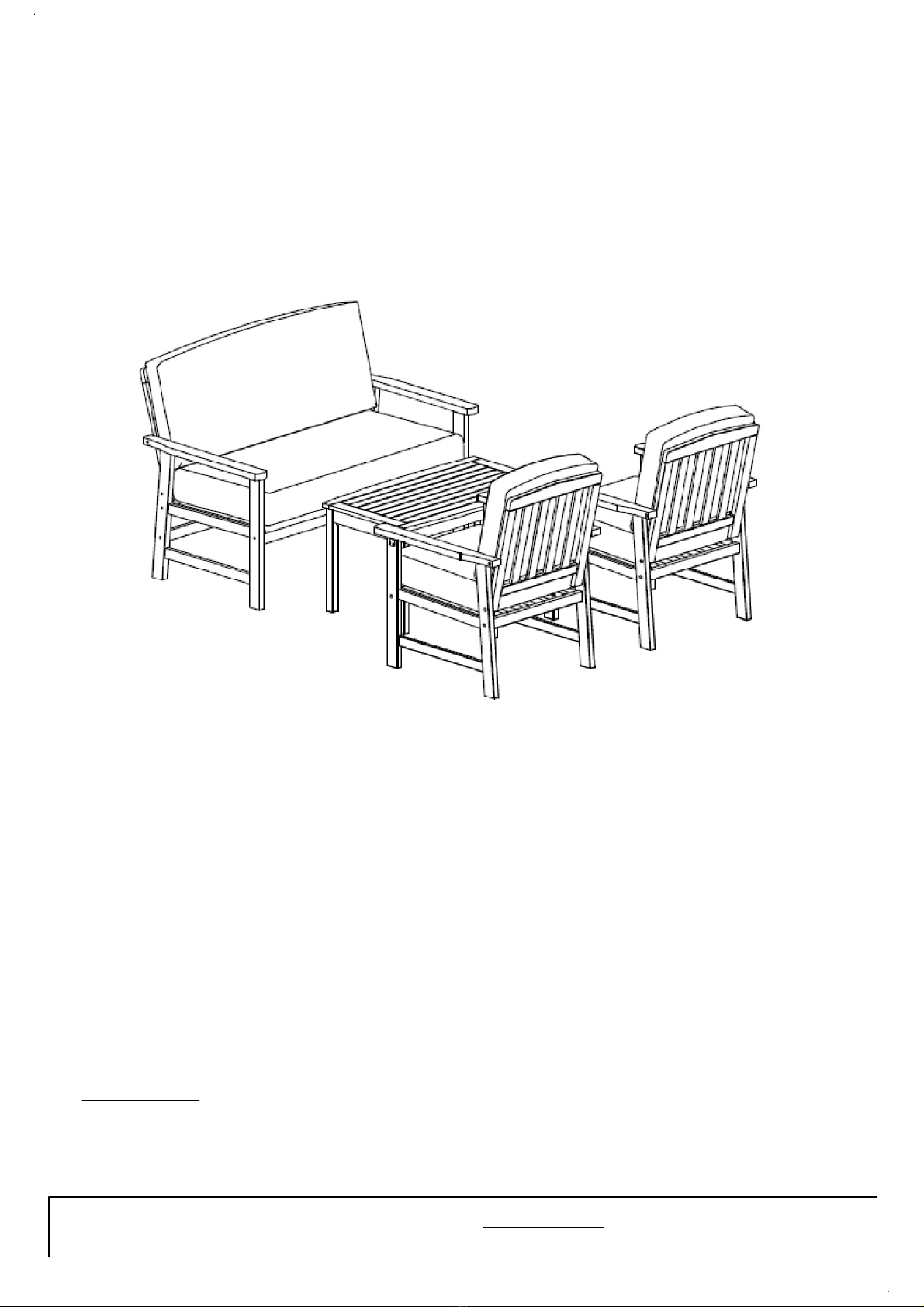

ASSEMBLY INSTRUCTIONS
Style # TM061638
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1
Wood is a living material that continues to respond to climate condition even after being made
into a piece of furniture.
Left untreated, it will weather to a silvery grey outdoors. During normal weathering, wood may
crack slightly due to changes in the moisture. This does not effect the structural integrity of your
furniture. We recommend periodically applying tung or oak/ teak oil to maintain its natural finish.
In order to maintain the product's durability, please read carefully.
To reinforce its weatherproof ability, this product has been treated with oil on its surface during
production. Before using, wipe with clean, dry cloth. If possible, apply the oil and rub the finish
lightly with a soft cloth to obtain a shinier Look.
Periodic applying oil ( commonly known as oak/teak oil; Easy to purchase from the stores/
supermarket) will ensure the timber is protected and its appearance maintained.
After season, apply oil and keep the furniture shaded or disassembled and repack the furniture
for storage.
QUESTION ?
Identify all parts and hardware. If any pieces are missing call our toll free number
at 1-888-287-4275 from 9:00 am to 5.00 pm CST (Monday to Friday) or e-mail
[e-mail] for replacement parts. For faster service, have the style number
handy when calling.
Care Instruction
DELAHEY 4 PC CHAT SET

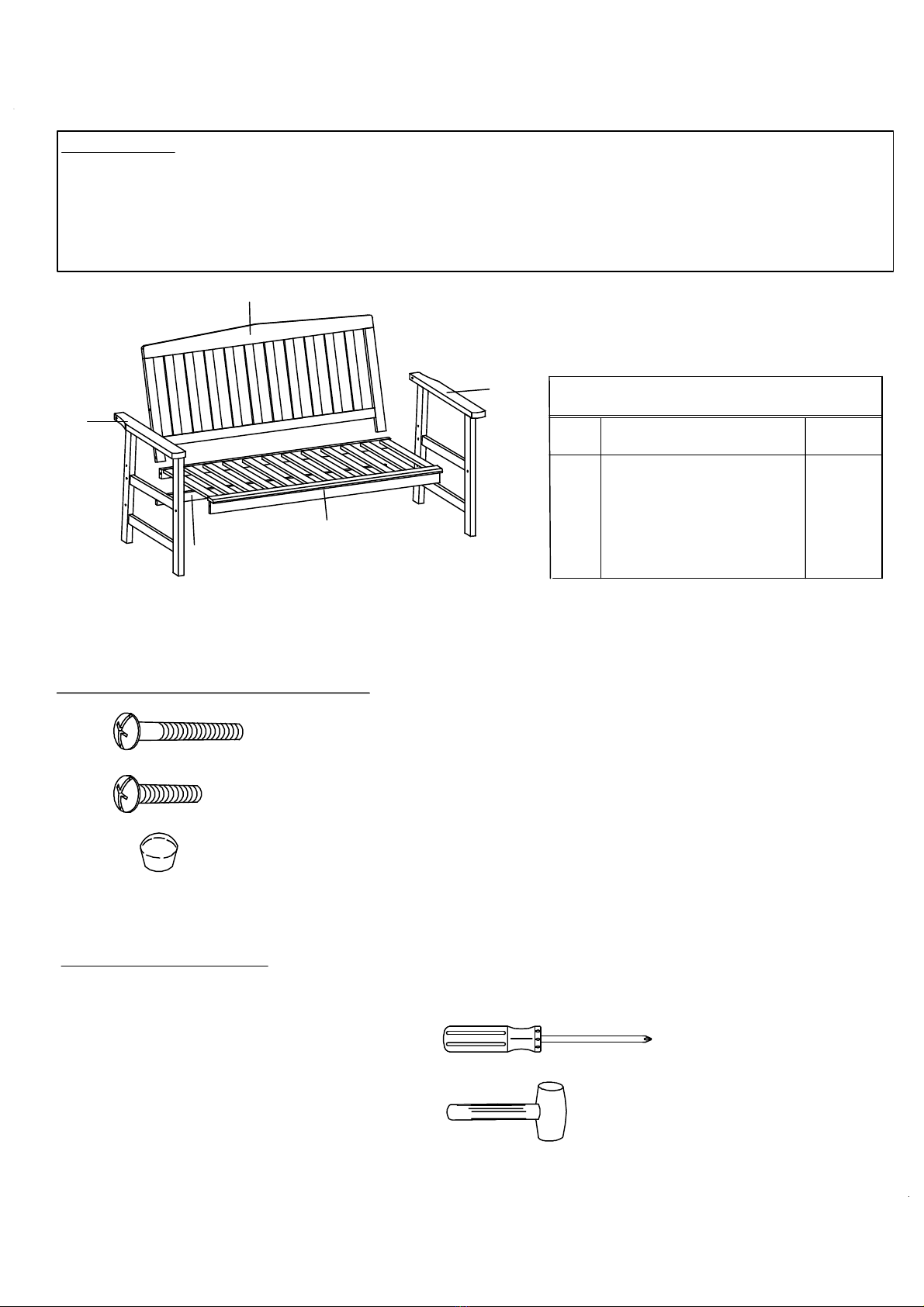

ARMCHAIR WITH CUSHION

Right side frame
Left side frame
Back support
Seat
A1
A2
B
C
1 Pc
1 Pc
1 Pc
1 Pc
Wooden Cap ................. 8 Pcs
2" Bolt ................. 2 Pcs
1. Phillips screwdriver
- for tightening all bolts.
2. Rubber mallet
- for tapping in the wooden caps.
For proper assembly use these tools (not included)
TOOLS REQUIRED
F
LIST OF HARDWARE PARTS
D
2
IMPORTANT !
* ASSEMBLE YOUR UNIT IN AN AREA FREE FROM ANY OBJECTS THAT MIGHT SCRATCH
THE SURFACE OF YOUR UNIT.
* EXAMINE ALL PACKING MATERIAL BEFORE DISCARDING, SHORTAGES MAY OCCUR FROM
PARTS LEFT IN THE PACKING MATERIAL.
* PLEASE READ THE INSTRUCTIONS CAREFULLY, AND VERIFY ALL PARTS ARE INCLUDED.
* ALL BOLTS NEED TO BE TIGHTENED FROM TIME TO TIME TO AVOID DAMAGE.
A1
B
C
A2
LIST OF WOODEN PARTS
DESCRIPTIONNO. Q'TY
E1" Bolt ................. 6 Pcs

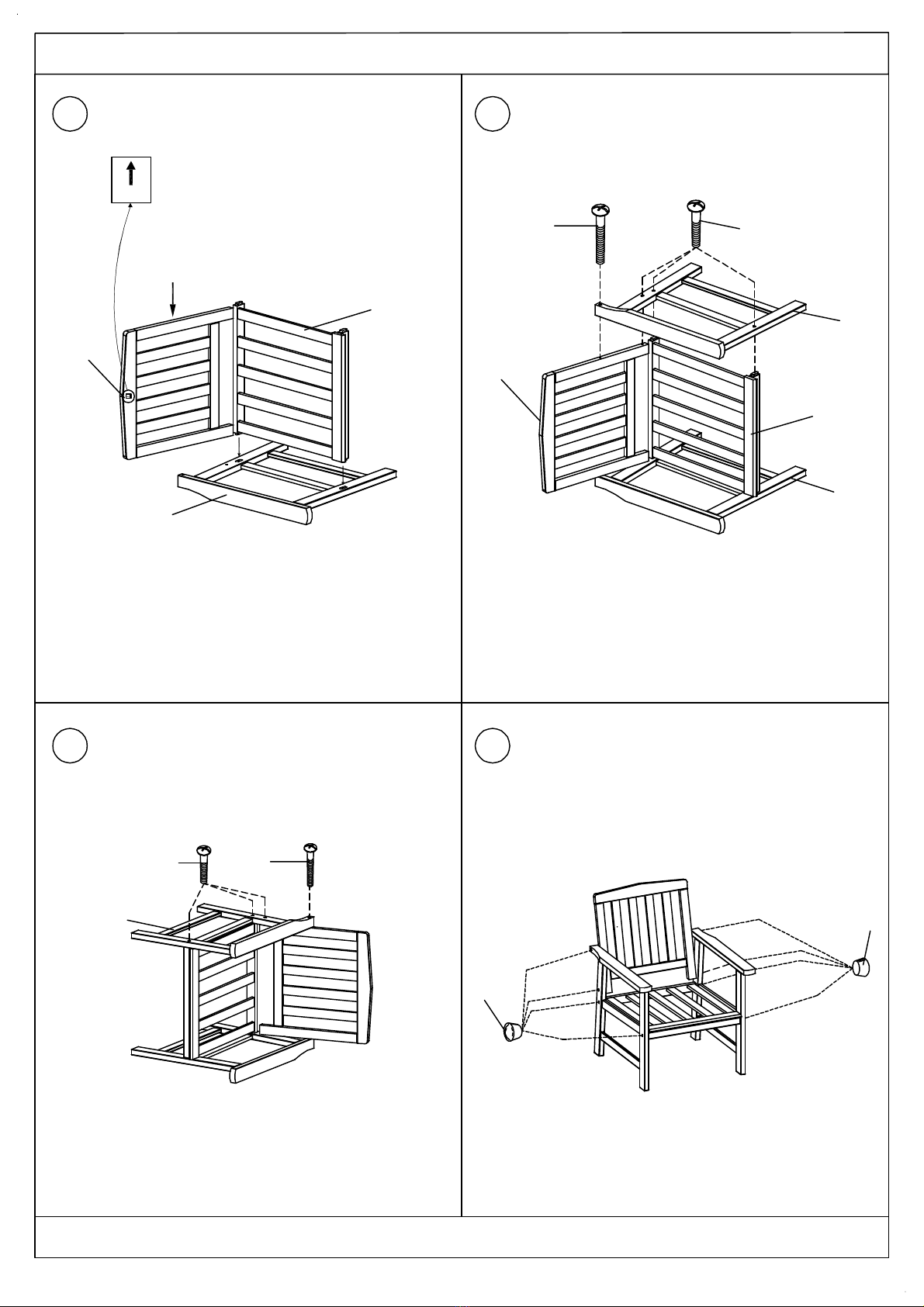

Attach the left side frame (A2) to back support (B) and seat (C),
secure with 2" bolts (D) and 1" bolts (E) as shown.
Tapping in the wooden caps (F) to cover bolts head using rubber mallet.
The chair is now ready for use.
Upside the chair, and repeat step 2
procedure to secure the right side
frame (A1).
Tighten all bolts before
tap in the wooden caps (F).
Attach back support (B) and seat (C)
into the right side frame holes (A1).
3
F
F
A1
B
C
D
A2
E
D
E
C
1
PLEASE READ THE INSTRUCTION SHEET CAREFULLY BEFORE YOU START ASSEMBLY
2
FRONT
B
A1
A1
NOTICE :PLEASE DO NOT USE IT BEFORE YOU TIGHTEN ALL BOLTS.
3 4

ASSEMBLY INSTRUCTIONS
Style # TM061638
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1
Wood is a living material that continues to respond to climate condition even after being made
into a piece of furniture.
Left untreated, it will weather to a silvery grey outdoors. During normal weathering, wood may
crack slightly due to changes in the moisture. This does not effect the structural integrity of your
furniture. We recommend periodically applying tung or oak/ teak oil to maintain its natural finish.
In order to maintain the product's durability, please read carefully.
To reinforce its weatherproof ability, this product has been treated with oil on its surface during
production. Before using, wipe with clean, dry cloth. If possible, apply the oil and rub the finish
lightly with a soft cloth to obtain a shinier Look.
Periodic applying oil ( commonly known as oak/teak oil; Easy to purchase from the stores/
supermarket) will ensure the timber is protected and its appearance maintained.
After season, apply oil and keep the furniture shaded or disassembled and repack the furniture
for storage.
QUESTION ?
Identify all parts and hardware. If any pieces are missing call our toll free number
at 1-888-287-4275 from 9:00 am to 5.00 pm CST (Monday to Friday) or e-mail
[e-mail] for replacement parts. For faster service, have the style number
handy when calling.
Care Instruction
DELAHEY 4 PC CHAT SET
BENCH WITH CUSHION

1" Bolt ................. 8 Pcs
F
Q'TYNO. DESCRIPTION
LIST OF WOODEN PARTS
A2
C
B
A1
IMPORTANT !
* ASSEMBLE YOUR UNIT IN AN AREA FREE FROM ANY OBJECTS THAT MIGHT SCRATCH
THE SURFACE OF YOUR UNIT.
* EXAMINE ALL PACKING MATERIAL BEFORE DISCARDING, SHORTAGES MAY OCCUR FROM
PARTS LEFT IN THE PACKING MATERIAL.
* PLEASE READ THE INSTRUCTIONS CAREFULLY, AND VERIFY ALL PARTS ARE INCLUDED.
* ALL BOLTS NEED TO BE TIGHTENED FROM TIME TO TIME TO AVOID DAMAGE.
2
E
LIST OF HARDWARE PARTS
G
TOOLS REQUIRED
For proper assembly use these tools (not included)
1. Phillips screwdriver
- for tightening bolts.
2. Rubber mallet
- for tapping in the wooden caps.
2" Bolt ................. 2 Pcs
Wooden cap ................. 10 Pcs
1 Pc
1 Pc
1 Pc
1 Pc
1 Pc
A1
A2
B
C
D
Right side frame
Left side frame
Back support
Seat
Apron
D

E
A2
C
1
B
A1
G
G
3
The bench is now ready for use.
Attach back support (B), seat (C) and apron (D)
into the right side frame (A1), secure with 2" bolts (E)
and 1" bolts (F) as shown.
Tighten all bolts completely before tapping in the wooden caps (G).
Tapping in the wooden caps (G) to cover bolts head using rubber mallet.
Attach the left side frame (A2) to back support (B)
and apron (D) & seat (C) , secure with 2" bolts (E) and
1" bolts (F) as shown.
F
DE
F
C
D
B
PLEASE READ THE INSTRUCTION SHEET CAREFULLY BEFORE YOU START ASSEMBLY
A1
FRONT
NOTICE :PLEASE DO NOT USE IT BEFORE YOU TIGHTEN ALL BOLTS.
2
3 4

ASSEMBLY INSTRUCTIONS
Style # TM061638
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1
Wood is a living material that continues to respond to climate condition even after being made
into a piece of furniture.
Left untreated, it will weather to a silvery grey outdoors. During normal weathering, wood may
crack slightly due to changes in the moisture. This does not effect the structural integrity of your
furniture. We recommend periodically applying tung or oak/ teak oil to maintain its natural finish.
In order to maintain the product's durability, please read carefully.
To reinforce its weatherproof ability, this product has been treated with oil on its surface during
production. Before using, wipe with clean, dry cloth. If possible, apply the oil and rub the finish
lightly with a soft cloth to obtain a shinier Look.
Periodic applying oil ( commonly known as oak/teak oil; Easy to purchase from the stores/
supermarket) will ensure the timber is protected and its appearance maintained.
After season, apply oil and keep the furniture shaded or disassembled and repack the furniture
for storage.
QUESTION ?
Identify all parts and hardware. If any pieces are missing call our toll free number
at 1-888-287-4275 from 9:00 am to 5.00 pm CST (Monday to Friday) or e-mail
[e-mail] for replacement parts. For faster service, have the style number
handy when calling.
Care Instruction
DELAHEY 4 PC CHAT SET
COFFEE TABLE

Table top
Leg
A
B1 Pc
4 Pcs
Nut ................. 4 Pcs
Washer ................. 4 Pcs
E
LIST OF HARDWARE PARTS
C
2
IMPORTANT !
* ASSEMBLE YOUR UNIT IN AN AREA FREE FROM ANY OBJECTS THAT MIGHT SCRATCH
THE SURFACE OF YOUR UNIT.
* EXAMINE ALL PACKING MATERIAL BEFORE DISCARDING, SHORTAGES MAY OCCUR FROM
PARTS LEFT IN THE PACKING MATERIAL.
* PLEASE READ THE INSTRUCTIONS CAREFULLY, AND VERIFY ALL PARTS ARE INCLUDED.
* ALL BOLTS NEED TO BE TIGHTENED FROM TIME TO TIME TO AVOID DAMAGE.
A
B
LIST OF WOODEN PARTS
DESCRIPTIONNO. Q'TY
DSpring washer ................. 4 Pcs
TOOLS REQUIRED
For proper assembly use these tools
1. Wrench (included)

- Attach the legs (B) into each corner of table top (A).
The Table is now ready for use.
3
A
B
B
D
E
C
A
PLEASE READ THE INSTRUCTION SHEET CAREFULLY BEFORE YOU START ASSEMBLY
1
Assemblethe washers (c), split
washers (d) and nuts (e) to leg
frame. Tigten the nut using
Wrench.
NOTICE : PLEASE DO NOT USE IT BEFORE YOU TIGHTEN ALL BOLTS.
2
