Crolla ALPHA User manual

04301347
New born-7 years old
MODEL:ALPHA

Headrest locator /
shoulder strap height
locator
9. Always make sure that any straps holding the seat restraint to the vehicle
shall be tight , any straps restraining the child should be adjusted according
to the child’s body, and check that the straps shall not be twisted.
10. Ensure that any lap strap is worn low down , so that the pelvis is firmly
engaged, shall be stressed.
11. Do not use any load bearing contact points other than those described
in the instructions and marked in the child restraint.
12. Any luggage or other objects liable to cause injuries in the event of a collision
shall be properly secured.

Correct fitting/suitable Incorrect fitting/not suitable
13. The rigid items and plastic parts of a child restraint must be so located
and installed that they are not liable , during everyday use of the vehicle
to become trapped by a moveable seat or in a door of the vehicle.
14. To prevent from the risk of fall, your child should always be fastened.
15. It is dangerous to make any alteration or additions to the device without
the approval of the competent authority, and a danger of not following
closely the installation instructions provided by the child restraint
manufacturer.
16.This child seat is designed for children from birth up to 25kg.Never
overload the child seat more than one child or with other loads.
17. The child restraint must not be used without the cover.
18.The seat cover should not be replaced with any other than the one
recommended by the manufacturer, because the cover constitutes an
integral part of the restraint performance.
19. Before you adjust any movable or adjustable parts of your child seat
,you must remove your baby from the child seat.
20. The child seat should be kept away from sunlight if the seat is not
provided with a textile, otherwise it may be too hot for the child’s skin.
21.Never use a second-hand product , as you can never be certain what
was happened to it.
3
3.Usage
3.1 Install position of the child seat in vehicle
Diagonal belt
and Lap belt
Not to use them in seating positions where
an active frontal airbag installed.
Only use on this seat if a lap and diagonal
seat belt is fitted.

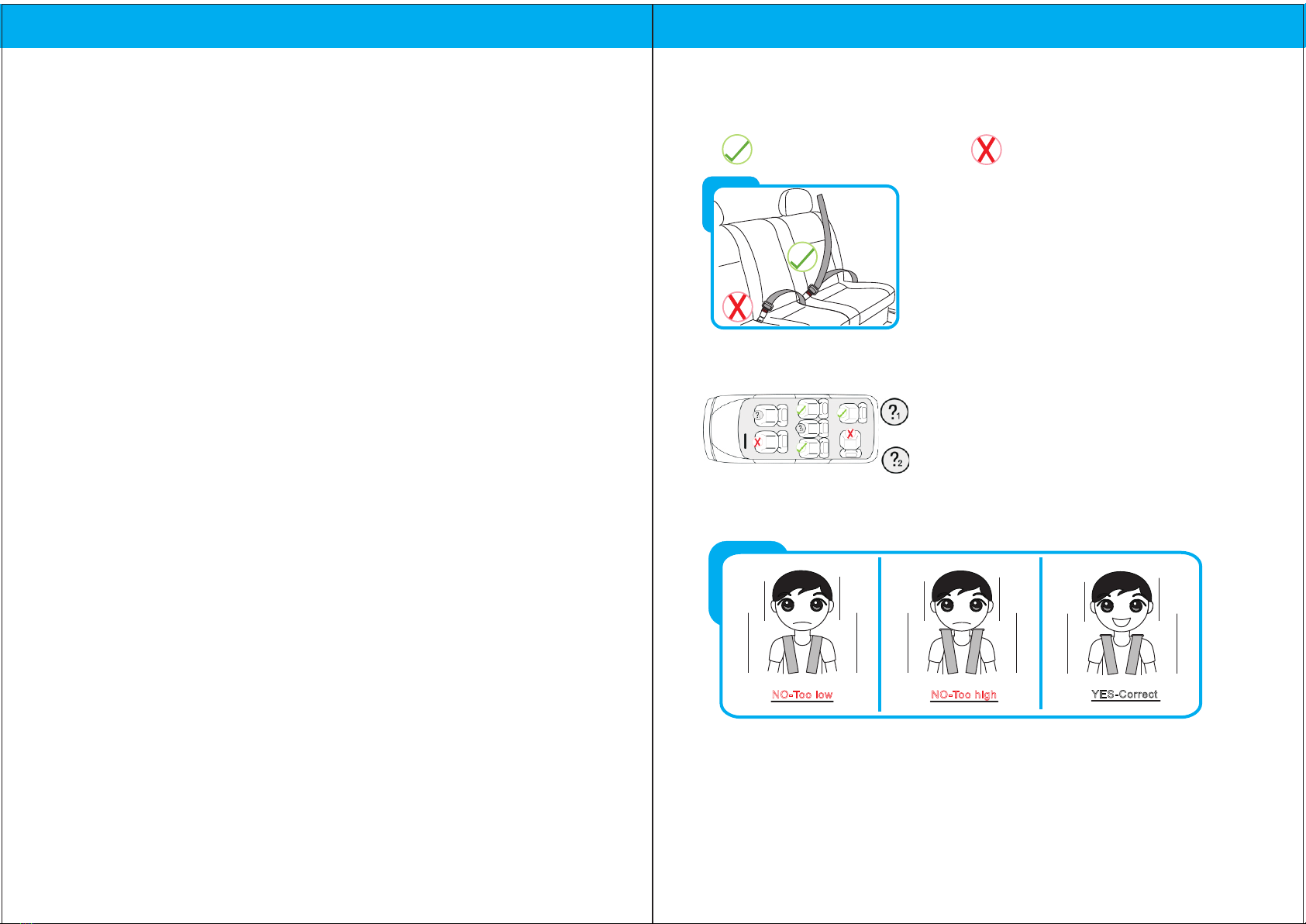

3.2 Checking the shoulder strap height
NO-Too low NO-Too high
YES-Correct
Always check that the shoulder straps are at the correct height for
your child. The child’s shoulders should always be thread through the
slots in the cover and seat shell that are closest to the top of your
child’s shoulders.
4
This child seat is suitable for conventional
use in all cars equipped with three- point
seat belts that are fitted in accordance
with Euroapean standard(ECE 44 or
equivalent standard)
Important:
The child seat must only be installed using
a lap and diagonal seat belt.

Steps to buckle the harness
Engage the buckle connecter until it clicks. Press the red recline adjustment handle, and adjust the child restraint to the
proper position.
There is one recline angle for baby mode (recline angle number 4), it is marked
as blue triangles. There are three recline angles 1-3 for toddler mode, they are
marked as red triangles. There are three recline angles 1-3 for junior mode,
they are marked as red triangles.

Pull out the headrest locator, then you can adjust the height of the
Notice: be sure to loosen the harness before adjust the headrest
locator/shoulder strap height locator ,see 3.4
headrest up and down to ensure that the position of the headrest fits
the child's shoulder height, and at the same time, the height of the
shoulder strap will also be changed accordingly.
3.6 Adjust the shoulder strap height and the headrest 3.7
4
4
4
3

18
Step 3: Fasten the belts in the
rearward blue safety-belt slots at the
back of the body. Shoulder belt must
pass through the rearward
safety-belt slot. Fasten the belt.
Step 4: Open the lock-off device
and insert the safety belt through
it. While pressing the child seat,
pull the belts to fasten the child
seat tightly and securely. Lastly,
slip the belt in to the hook.
Step 2: Fasten the belts in the
forward red safety-belt slots at the
back of the body. Shoulder belt
must pass through the safety-belt
slot. Fasten the belt.
Step 3: Open the lock-off device
and insert the safety belt through it.
While pressing the child seat, pull
the belts to fasten the child seat
tightly and securely.
4

Step 3: Position shoulder belt
through shoulder belt guide, pass
waist belt through seat slots.
Fasten buckle and pull the vehicle
belt to tighten
4
5
5

13
7. The main technical parameters
Length ：510mm
Width ：610mm
Height ：468mm
Weight ：5.5kg
6.3 Remove and assemble the fabric cover
1.
2. Remove the fabric cover of the child seat.To install the fabric cover,
please operate follow the above instructions in reverse order.
Firstly, remove the crotch pad and buckle of the child seat (see 3.7
of page 8, ),and then remove the shoulder straps and comfortable
cushion.
5.2 Washing instruction
Never use any solvant, chemical detergent or lubricant on any part of your
child seat.
30℃P
Do not bleach Dryclean, any
solvent except
trichloroethylene.
Do not tumble dry Do not iron
Hand wash,
water
temperature
below 30℃
