Crooza MABU-01 User manual

OPERATION MANUAL
crooza®
BATTERY-POWERED ELECTRIC VEHICLE
MODEL: MABU-01
www.crooza.de
The children must operate the vehicle under adult supervision.
This vehicle is not allowed to be used as a means of transportation and cannot be
operated in public streets.
WARNING: Never leave charging unattended.
Read this manual carefully before the operation.

- 1 -
OVERVIEW
Instructions 2
Components/Assembly Materials 3
General Overview 5
Charging Batteries 6
Assembly Instructions 7
Attaching Batteries 13
Maintenance and Disposal of the Batteries 14
Instructions For A Safe Operation 15
Operating Mode 16
Maintenance Instructions 17
Troubleshooting 18

- 2 -
Technical Data
Item no MABU-01
Age properly 3-7 Years old
Vehicle Size 1070 x 720 x 670 mm
Net weight 20 kg
Load capacity 40 kg
Environment temperature 0-40 °C
Speed Ca. 3,5-7 km/h
Battery 12V10AH
Charger input Input: AC220V~240V/50Hz~60Hz
Motor 2 x 30Watt
Charging lifetime approx. 300
Charging time 18-22 Hours, never more than 30 hours once.
SAFE OPERATION
WARNING
PREVENTING INJURIES
•The vehicle must be operated only under adult supervision!
•Never use the vehicle in darkness!
•Operate the vehicle only in safe areas!
E.g: In areas
- without swimming pools or ponds. Risk of drowning!
- without slopes!
- far from stairs, ramps, streets and boulevards!
•Operating Directives:
Ensure that the following rules are followed for a safe operation:
- Always sitting properly on the seat, getting on and off only when the vehicle is off.
- No driving without shoes.
- Only one (1) child must drive the vehicle.
OPERATION IS AT USER’S RISK. PARENTS ARE RESPONSIBLE FOR THEIR CHILDREN.
INSTRUCTION
•Small items are included in the package at delivery status. Assembling must be conducted by adults.
•The charger must be used only in a dry environment.

- 3 -
Components/Assembly Materials
•Check if all the parts are available. Keep the package until you complete assembling and become sure
that there are no parts missing.
•Some parts are hidden under the seat. Lift the seat to get the batteries and other assembly parts.
•The surfaces of the metal parts are covered with lubricant for protection. Before installing, clean the
lubricant residues on metal parts by rubbing them with a cloth.
Chassis Handle bar Seat
2 x Front tire Setting plate 2 x Pin for Rear Wheel
2 x Rear tire Frontal covering Bumper

- 4 -
Rear axle 12 Volt Battery 12 Volt Charger
4 x Hub cap 4 x Wheel cap 4 x Centering sleeve 2 x Handle
Diverse Screws, Washers und Fixing pins
Screws Washer Fixing pin

- 5 -
General Overview
The parts shown here are also on the other side of the vehicle.
18
1. Vehicle chassis
2. Handle bar
3. Seat
4. 12 Volt Battery
5. Rear axle
6. Pin for rear wheel (x2)
7. Tire (x4)
8. Wheel cap (x4)
9. Washer (x6)
10. Fixing pin (x4)
11. Hub caps (x4)
12. 12 Volt Charger
13. Centering sleeve (x4)
14. Handle (x2)
15. Handle bar plate
16. Setting plate handle rod
17. Frontal covering
18. Bumper

- 6 -
Charging the Batteries
ELECTRIC SHOCK
WARNING
•Unfixed batteries may fall off the overturned vehicle and cause injury. Ensure that the batteries have been fixed
carefully.
•FIRE PREVENTION
- The electric system of the vehicle is not allowed to be altered. Alterations may lead to fire, black-out of the
electric systems and serious injuries.
- Using wrong batteries and chargers may lead to fire, explosion and serious injuries.
- Only adults are allowed to handle batteries. The batteries, which are quite heavy, are filled with electrolyte.
Leaking batteries may lead to serious injuries.
- Do not let your children to charge the batteries. Only adults are allowed to charge the batteries. Only adults are
allowed to charge the batteries and the charging process must be supervised continuously. Children may
get injured by an electric shock.
- Before charging the batteries, read the safety instructions about batteries.
- Please check the batteries, cable connections and the connector of the charger before charging the batteries. If
you find any defects, do not charge them until they are repaired by an expert.
- The motors produce HEAT! Be careful during the contact with the motors.
WARNING
The charger must be used only in a dry environment.
- The battery has a thermal fuse. The thermal fuse moves back on its own and disrupts the operation when there
is an overload or an adverse condition. If the fuse blows out, take the foot from pedal and wait for approx. 25
seconds before the vehicle is operated again. In order to avoid repeated operational disruptions, ensure that the
vehicle doesn’t carry more than 40 kg. Avoid unfavorable conditions such as slopes or solid objects like walls.
Otherwise, the wheels may stand still and the motors may get overcharged. Teach your child to keep the vehicle
still before changing the direction.
- If the fuse doesn’t comply with the normal operational conditions, contact your service.
- Before the first operation, the batteries must be charged 18-22 hours once.
- While being charged, the batteries must stand vertical.
- The charger is not a toy.
- The batteries mustn’t be short-circuited.
- The batteries mustn’t be taken out of the vehicle for charging.
- Charging through contaminated socket can lead to short-circuit and other defects. Therefore, it must be
refrained.
- The charging process must be carried out safely, far from easily inflammable materials. Look out excessive
smoke and heat generation.
- The charging process must be conducted continuously under adult supervision.

- 7 -
ASSEMBLY INSTRUCTIONS
•Insert the connecter A into the charger jack.
•Then connect the charger to the socket on the wall.
•The vehicle must be turned off!
Instructions:
- Use the charger only on one wall socket. Because of its own
weight, the charger mustn’t be connected to an overhead
socket.
- If the wall socket has a switch, ensure that it is on and there is
power supply.
- Charge the batteries 18-22 hours before the first operation.
Do not charge them longer than 30 hours once.
- When the batteries are completely empty, charge them at
least 14 hours. Do not charge them longer than 30 hours
once.
- After charging, disconnect the connector from the vehicle and
the charger from the socket.
WARNING
In the loose delivery status of the vehicle,
children may hurt themselves with sharp parts
or electric components.
Please be careful while opening the package,
assembling the small parts and attaching or
handling the batteries (especially when you are
assembling the vehicle with your child).
1.
Connect a fixing pin to the end of the rear axle.

- 8 -
2.
- Attach a washer to the rear axle.
- Put a hubcap.
- Put a tire marked ‘L’.
- Pull a pin through (with the ring end as shown).
- Connect all the parts.
4.
- Bring the other rear wheel pin on the rear axle. Ensure
that the rear wheel pin is set on the motor correctly.
- Pull a pin with the ring end inwards as shown above.
- Put a tire marked ‘R’ with the flat side inwards as shown
above.
- Then, attach a wheel cap with the vaulted side outwards
as shown.
- Put a washer.
5.
- Finish assembling the rear axle by fixing everything with
a fixing pin.
3.
- Lay the vehicle down on its top side.
- Position the rear axle as shown. Ensure that the rear
wheel pin is set on the motor correctly.

- 9 -
6.
- Put the rod of the handle bar in the opening on
the front side of the vehicle.
8.
- Attach Stabilizer/Setting plate as shown.
- Put a screw through the opening and fix it.
9.
- Attach a washer to the front axle.
- Pull a pin through (with a ring end firstly).
- Pull a tire marked ‘L’ with the flat side inwards as shown
above.
- Finish the formation with a wheel cap.
- Attach all the parts to each other and put a washer.
7.
- Lift the front part of the vehicle carefully. Ensure
that the control rod is set completely and
correctly.
- Press the wishbone until the control rod is set in
the related place.

- 10 -
10.
- Attach the fixing pin to the related place.
- Repeat the 10. and 11. steps on the other side of the
front axle.
12.
- Position the frontal covering.
Note: The vehicles are delivered partially with pre-
assembled frontal covering.
13.
- Position the bumper on the frontal covering.
- Put two screws into the lower openings and fix them.
11.
- Attach each hub cap to the wheels by pressing them
until they are fixed completely.
- Put the vehicle on its wheels.

- 11 -

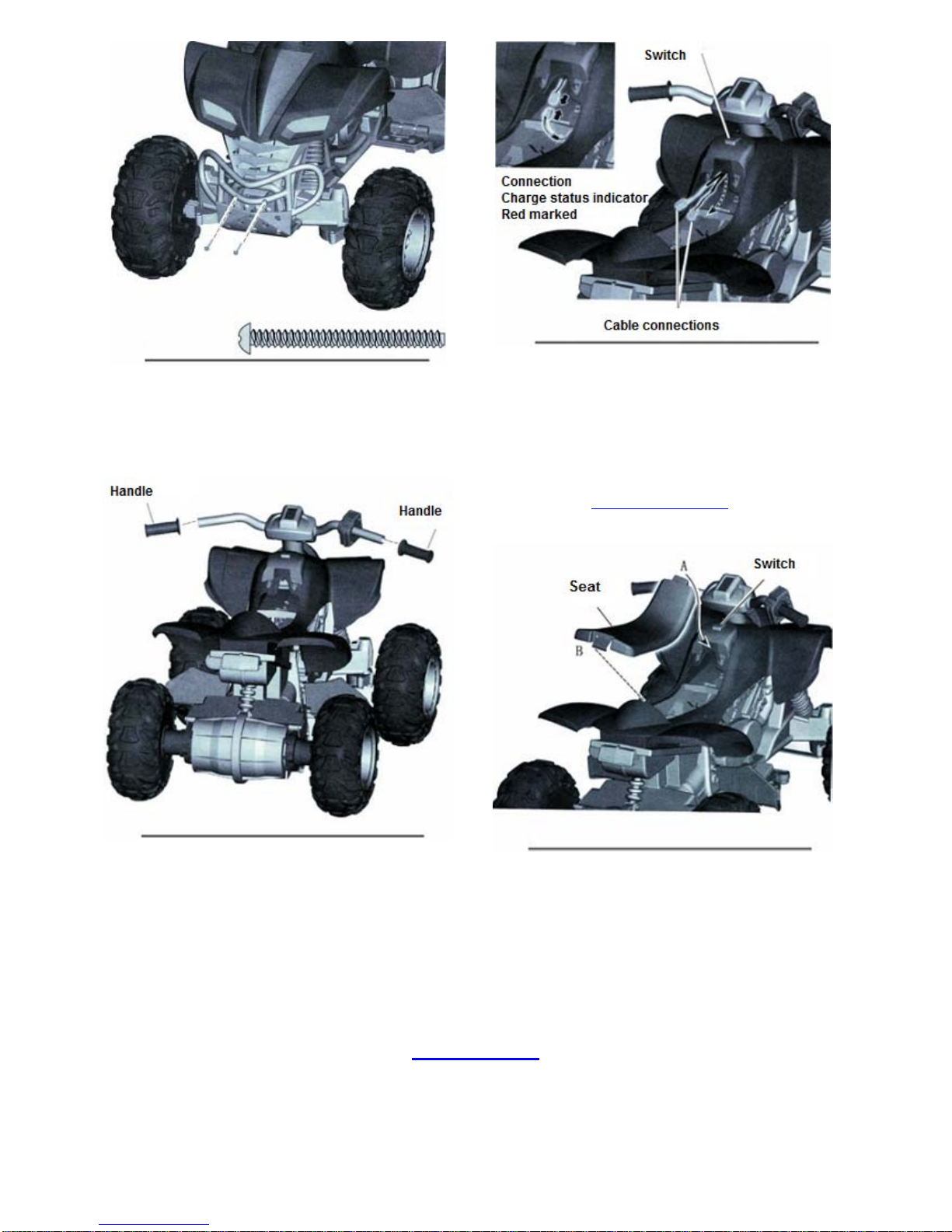

14.
- Put two screws in the upper openings and fix
them.
15.
- If they are not assembled before, put the handles
to the ends of the handle bar.
Note: If you have problems with putting the handles,
dampen the inner sides of the handles with water.
16.
- Locate the opening under the switch.
- Pull out the loose cable inside the opening and connect
them with each other.
- You can find more information about High-Speed
function on Page 17.
If you want to double the speed, check our High Speed-
Motors Sets on http://www.crooza.de .
17.
- Firstly, attach the front side of the seat as shown in
Position A.
- Then, attach the end of the seat as shown in Position B.
INFO: For a more detailed manual, visit our Homepage
www.crooza.de

- 12 -
Attaching Batteries
IMPORTANT! Only 12V Batteries must be used. Other
batteries can damage the motors of the vehicle. Before the
first operation, the batteries must be charged at least 18
hours once through the provided charger. Before each
operation, the batteries must be charged at least 14 hours.
Do not charge the batteries longer than 30 hours once.
Otherwise, the batteries can get damaged.
1.
- Press the ledge on the back side of the vehicle and lift
the seat.
2.
- Pull the battery holder up.
- Place the battery vertically.
3.
- Bring the battery holder to the locked position and
fix the battery.
4.
- Firstly, attach the front side of the seat as shown in
Position A.
- Then, attach the end of the seat as shown in
Position B.

- 13 -
Instructions For A Safe Operation
DANGER ! Explain the instructions below to your child:
Right after seeing the vehicle, your child will want to drive it
immediately. Children are not capable of judging, realizing and
assessing dangers. Unsupervised operations can lead to serious
injuries. Before letting your child drive the vehicle, you must check
the area and your child’s ability to judge and drive the vehicle
safely. Even if children are instructed before, they are not capable
of foreseeing the dangers and turning away from them. There are
no other directly supervision options for adults. Set up safety rules
adapted to local conditions alongside the instructions below about
using the vehicle. Ensure that these instructions are followed. All
of these rules must be obeyed by the children who will play with
your child as well.
Instructions for a safe operation:
Ensure that children learn and obey the rules below:
1. Always sitting properly on the seat.
2. No driving without sturdy shoes.
3. Only one (1) child must get on the vehicle. If the child sits
improperly or stands in the vehicle, he/she may fall off; the
vehicle may overturn and this may lead to serious injuries.
4. Do not allow your child to drive the vehicle in the streets or
roads where motored vehicles are driven.
5. Do not allow your child to drive the vehicle near swimming
pools, ponds, barriers (e.g: furniture, trees with low branches
etc.) or overhanging building parts (e.g: stairs, wall projections
etc.).
6. No driving in darkness!
•An unexpected barrier may cause an accident.
•Driving only in daylight or well-lit areas.
7. Forbid your child to drive on uneven grounds.
8. Do not allow your child to drive down the stairs.
•Even if the pedal isn’t stepped, it may reach a high and
dangerous speed.
•The vehicle may overturn.
•The motor may stop suddenly and the vehicle may roll down
the stairs together with the child.
9. Moving things must be kept away. Revolving things like motor,
gearbox and wheels can jam the fingers, hair etc. and lead to
serious injuries. Do not allow your child to operate the vehicle in
lateral or over-head position.
10.Do not use any easily inflammable materials near the vehicle.
The vehicle has electric switches (like all the switches) which
spark when triggered. Easily inflammable liquids can catch fire.
11.Take the batteries off to prevent an unsupervised operation.
WARNING
PREVENTING INJURIES:
•The vehicle must be operated only under
adult supervision!
•No driving in darkness!
•Operation only on safe grounds!
E.g: In areas
- without swimming pools or ponds. Risk of
drowning!
- without slopes!
- far from stairs, ramps, streets and
boulevards!
•Operating Directives:
- For a safe operation, ensure that these
rules are learnt and followed by the
children.
- Always sitting properly. No standing in the
vehicle.
- No driving without shoes.
- Before getting on and off, the vehicle must
be stopped completely.
- Only one (1) child must operate the
vehicle.

- 14 -
IMPORTANT!
For the safety of your child and to avoid injuries led by the
gearbox of the vehicle, teach your child not to change
direction while driving.
•Press the D-N-R Switch on the tank.
•If the pedal is stepped when D is switched, the vehicle
will move forward.
NOTE: If the right handle is turned during the
operation, High-Speed Function will be activated.
•If N is switched, the vehicle will not move.
•If the pedal is stepped when R is switched, the vehicle
will move backward.
•Practice with your child and show him/her by which
speed the steering wheel must be turned.
•The vehicle has a break system, by means of which the
vehicle stops automatically as soon as the pedal is
disengaged.
•Ensure that your child knows how to steer and to stop
the vehicle.
•Turning the right handle while driving forward
activates the High-Speed Mode of the vehicle.
Then, the vehicle will go forward with approx. 7,5
km/h.
•Practice with your child and show him/her by
which speed the steering wheel must be turned
when the vehicle is moving forward in High-
Speed Mode.
ATTENTION!
The vehicle must be operated ONLY outdoors.
A big part of floor coverings, which have been
misplaced, can be damaged by the vehicle.
The manufacturer is not responsible for the damages
occurring on floor coverings.

- 15 -
Maintenance Instructions
Check if all the screws, nuts and caps are set correctly and firmly. Ensure that none of the plastic parts are
damaged and broken.
In snowy or rainy weather, keep the vehicle in a dry room which has a ceiling. Even if the vehicle won’t be used,
charge the batteries at least once a month.
The vehicle can be cleaned with a wet cloth. Avoid any contact of water with the electric system of the vehicle.
Contact of water with motor and electric components can lead to corrosion and damage on the motor and the
electric components/switches.
Do not use the vehicle on the sand. Sand in the motor, gearbox or electric components causes blockades and
blackouts of the related parts.
The vehicle can be cleaned with a dry cloth. In order to restore the original gleam of the vehicle, you can work on
the plastic parts of the vehicle with a wax free furniture polish. NEVER use a car polish.
For a safe operation, it is recommended that the vehicle is checked regularly by an authorized service point.

- 16 -
Troubleshooting
Problem Possible Cause Solution
The vehicle doesn’t
function The battery wasn’t
charged.
The batteries must be charged at least 18 hours once before the first
operation. After every operation, batteries must be charged at least
14 hours once. Do not charge the batteries longer than 30 hours
once.
Check all the cable connections. Ensure that charger jack is
connected both to the vehicle and the socket. Check if the wall
socket is under power.
The charger doesn’t
work.
Whether a charger functions correctly can be understood with the
help of a voltmeter. If you are not sure about whether your charger
functions correctly, contact your Service Center.
The fuse blew out. The fuse burns out when the vehicle is overcharged or used under
adverse conditions. If a fuse burns out, it must be replaced. In order
to avoid repeated operational disruptions, ensure that the vehicle is
not loaded with more than 40 kg or doesn’t drag anything with it.
Avoid adverse conditions like slopes or solid objects. This can stop
the wheels, motor power and lead to overturning.
Loose cables and
connections
Check all the cable connections. Ensure that the connector of the
motor is attached to the battery and all the cables are connected
properly.
Defected battery If the battery is old or the instructions about the batteries weren’t
applied, it can be defected. Contact the Service Center.
Defected switch The electric switch can be corroded due to the contact with water or
mud or blocked with dust and sand.
Defects on motor Contact your Service Center for diagnosis and reparation.
Sudden disruption
during the
operation Loose cable
connections
Check all the cable connections. Ensure that the connector of the
motor is attached to the battery and all the cables are connected
properly.
Burn-out of the fuse The fuse burns out when the vehicle is overcharged or used under
adverse conditions. If a fuse burns out, it must be replaced.
You can find the Proper Replacement on www.crooza.de

- 17 -
Problem Possible Cause Solution
Short operation
time The battery wasn’t charged. The batteries must be charged at least 18 hours once before the first operation. After every operation, batteries must be charged at least
14 hours once. Do not charge the batteries longer than 30 hours
once.
Check all the cable connections. Ensure that charger jack is
connected both to the vehicle and the socket. Check if the wall
socket is under power.
Overcharged
batteries. Do not charge the batteries longer than 30 hours once. If you think that batteries are damaged due to overcharging, contact your
Service Center.
The batteries are
old and are not
charged fully.
Even when the batteries are used properly, they have a limited
lifetime. Depending on the operation period and conditions, its
lifetime can change between approx. 1-3 years. In such a case,
replace the batteries with the same model. Do not try to change only
some parts of the batteries.
Burn-out of the fuse The fuse burns out when the vehicle is overcharged or used under
adverse conditions. If a fuse burns out, it must be replaced. In order
to avoid repeated operational disruptions, ensure that the vehicle is
not loaded with more than 40 kg or doesn’t drag anything with it.
Avoid adverse conditions like slopes or solid objects. This can stop
the wheels, motor power and lead to overturning.
You can find the Proper Replacement on www.crooza.de
The vehicle is
inactive The battery wasn’t charged. The batteries must be charged at least 18 hours once before the first operation. After every operation, batteries must be charged at least
14 hours once. Do not charge the batteries longer than 30 hours
once.
Check all the cable connections. Ensure that charger jack is
connected both to the vehicle and the socket. Check if the wall
socket is under power.
The battery must be
recharged. The batteries must be charged at least 14 hours once after every operation.
The vehicle is
overcharged Ensure that the vehicle is not loaded with more than 40 kg or doesn’t drag anything with it.
Adverse operational
conditions Avoid adverse conditions like slopes or solid objects. Operate the vehicle generally on flat and firm grounds.

- 18 -
Problem Possible Cause Solution
The vehicle functions
with a reduced speed.
IMPORTANT: In
Backwards mode,
High-Speed function is
automatically off.
High-Speed connector
isn’t connected. At delivery status, The vehicle is on Low-Speed Mode. In order to turn the High-Speed Mode on, you must attach the
High-Speed connector. For more information, visit Page 18.
IMPORTANT: For safety reasons, the High-Speed function
can be operated only on Forward-Mode.
When the pedal is
stepped, only one
wheel revolves.
The vehicle is in Low-
Speed Mode. On Low-Speed Mode, only one wheel may revolve when the vehicle is lifted up. Generally, this is not a problem. Check
the correct function of the vehicle by lifting it up and stepping
on the pedal. If only one wheel revolves, try to slow the
revolving wheel with hand carefully. Then start turning
another wheel. If it doesn’t revolve, it means that there is a
problem. Contact your Service Center for diagnosis and
reparation.
Check if the screws on the electromotor of the gearbox are
loose.
The vehicle sometimes
functions, sometimes
doesn’t.
Loose cable
connections Check the cable connections and ensure that everything is firm.
Defected motor or
switch Contact your Service Center for diagnosis and reparation.
When pedal is
stepped, the vehicle
doesn’t move without
pushing.
Loose cable
connections Check the cable connections and ensure that everything is firm.
‘Dead Point’ on the
electromotor Contact your Service Center for diagnosis and reparation.
The fuse burnt out
although the vehicle
wasn’t overcharged
and operated under
adverse conditions.
Defected battery or
charger Change the batteries and the charger.
Replacement parts are on www.crooza.de
There has been a
direction change without
stopping the vehicle.
Teach your child to change direction after stopping the
vehicle.
Loud ticktack or
rubbing sound from
the gearbox
Broken gear-wheel in
the gearbox Change the defected gearbox.
Replacement parts are on www.crooza.de
The charger gets
warm. This is normal; some chargers get warm
during charging.
Nothing must be done.
If your charger doesn’t get warm during charging, it doesn’t
mean that there is a problem.
The battery produces
blubber sound while
being charged.
This is normal; some
chargers produce this
kind of sounds during
charging.
Nothing must be done.
If your batteries produce no sounds during charging, it
doesn’t mean that there is a problem.

- 19 -
Instructions Related to the Maintenance and Disposal of the Vehicle
MAINTENANCE
If a battery is leaky, remove the battery which has acid
escaping by avoiding skin contact and put the
battery in a plastic bag. Please check the
description on the right side to learn how the
battery can be disposed in the right way.
In the event of skin or eye contact, rinse the affected
part in running water for at least 15 minutes and
see a doctor.
When acid is swallowed, water, milk etc. must be
drunk or egg white eaten immediately. Never try to
throw up. Call the doctor instantly.
Before the first operation, the batteries must be
charged with the help of the provided charger for at
least 18 hours once. Never charge the batteries
longer than 30 hours once. Overloading and
excessive discharge shorten the battery life and
operating period substantially.
Before every operation, the batteries must be charged
approximately 14 hours. Charge the batteries after
every operation, no matter how long the vehicle
was operated.
The batteries must stand vertical while being charged.
Do not discharge the batteries completely before
charging them again.
Charge the batteries for a long time before putting the
vehicle away.
Even if the vehicle won’t be operated, charge the
batteries at least once a month.
Batteries left empty will definitely stop working later.
Never leave leaking batteries in the vehicle. Leaking
liquid can damage the vehicle.
Do not keep the batteries on the surfaces like the
countertops in kitchens; they may get damaged.
Take precautions related to the protection of these
surfaces before you put the batteries.
Do not keep the batteries above 24°C and below -23
°C.
Use only 12V Batteries. Do not forget to charge the
batteries at least 18 hours before the first
operation.
Ensure that the batteries are not loose in the vehicle.
Always use a battery fastener to lock the batteries.
Check the batteries and the charger against
imperfections and defects before every charging. If
you detect a defect, do not charge the batteries
until the defected part is repaired.
DISPOSAL
The provided battery is overflow-protected and welded.
It must be ecologically disposed and recycled.
Do not throw the battery into fire. It may leak or explode.
Do not dispose the batteries together with normal
domestic waste. Disposing the batteries with
normal domestic waste is prohibited by law!
Protect the environment by not disposing the batteries
with normal domestic waste (2202/96/EC). Get
information about recycling and disposing options
from the local administration in your vicinity.
Pb Cd Hg
Batteries separately disposed
(not with domestic waste!)
Don’t throw batteries into fire!
Don’t open!
The symbol „crossed-out waste container“ on the
product and in the manual indicates that electric
and electronic devices must be collected and
disposed separately from normal domestic waste.
There are various collection systems about
recovery and recycling available in the EU.
For more information, please consult your local
authorities or your dealer.
