Cropter HashCropter User manual

HashCropter User Manual
(Version 1.1)
Safety precautions 2
Technical data 6
Scope of delivery / HashCropter Overview 7
Mounting / Operation 8
Dimming/Spectral Tuning / Light Distribution 9
Maintenance / Warranty 10
Disclaimer
Disclaimer 11

The latest version of this document is available on the HashCropter product page at
https://www.hashcropter.com. Before installing or operating this product, check for the
latest version of this document. This version can be found on the frontpage of this
document.
Locally applicable laws, codes and regulations apply when installing, powering,
operating or servicing the xture.
T
This product presents risks of severe injury or death due to re and burn hazards,
electric shock and falls.
Please contact HashCropter customer support at [e-mail] if you have
any safety-related questions.
CAUTION. This product can emit UV radiation. Exposure may result in eye or skin
irritation. Use appropriate shielding. Never block xture light output.
CAUTION. Possibly hazardous optical radiation is emitted from this product. Staring at
the operating lamp may harm your eyes.
CAUTION. This product can emit NIR. Do not stare at operating lamp.
WARNING! Risk Group 2 product in accordance with EN 62471. Do not stare at
operating lamp. Do not view light output with optical instruments that may
concentrate the beam.
Safety precautions
WARNING!
Carefully read the safety precautions in this section before installing,
powering, operating or servicing this product.
The following symbols are used throughout this document to indicate safety-critical information:
Refer to User
Manual.
WARNING!
Burn hazard.
Hot surface. Do
not touch.
DANGER!
Hazardous
Voltage. Risk of
lethal or severe
electrical shock.
WARNING!
Intense light
radiation.
WARNING!
Fire hazard.
DANGER!
Safety Hazard!
Risk of severe
injury or death.
- 2 -

Exterior surfaces of xture may become hot during operation. Use caution when
handling.
Ensure free and unobstructed airow around xture by providing at least 200mm
clearance around all vents.
Do not operate the xture if the ambient temperature (Ta) exceeds 40° C (104° F).
Keep all combustible materials (e.g. fabric, wood, paper) at least 12” (300mm) away
f
from the xture.
Keep ammable materials away from the xture.
Burn and re precautions
WARNING. Fixture may cause injury or damage to objects placed near glass windows,
due to high levels of visible and invisible light radiation. Under no circumstances
operate xture without at least 12” (300mm) open air clearance in front of glass
window.
Electrical shock precautions
Do not remove any cover or panel from xture.
Disconnect xture from AC power before performing maintenance on xture or
moving xture. Only move or perform maintenance on the xture AFTER it has been
disconnected from AC power.
Ensure AC power service to xture is connected to (earth) ground.
Only use
Only use AC power sources that comply with local building and electrical codes
and have both overload and ground-fault (earth-fault) protection.
Under no circumstances connect power to xture if xture, power inlet or power cable
is wet. Before connecting power dry all components with a dry cloth and allow to air
dry until liquid water has evaporated. UNDER NO CIRCUMSTANCES disconnect power
from xture if power cable or power inlet is wet.
Ensure power inlet, xture, and power cable are dry before connecting or
dis
disconnecting power.
Ensure that the operating humidity never exceeds 90% (non-condensing).
Check that power cables are in perfect condition and free from defects before
operating the xture and make sure they are properly rated for current requirements
for all equipment.
If the power cable or any seal, cover, cable or other components are damaged,
defective, deformed, wet or show signs of overheating, isolate the xture from power
immedi
immediately. Do not reapply power until repairs have been completed. Do not expose
xture to rain or moisture.
- 3 -

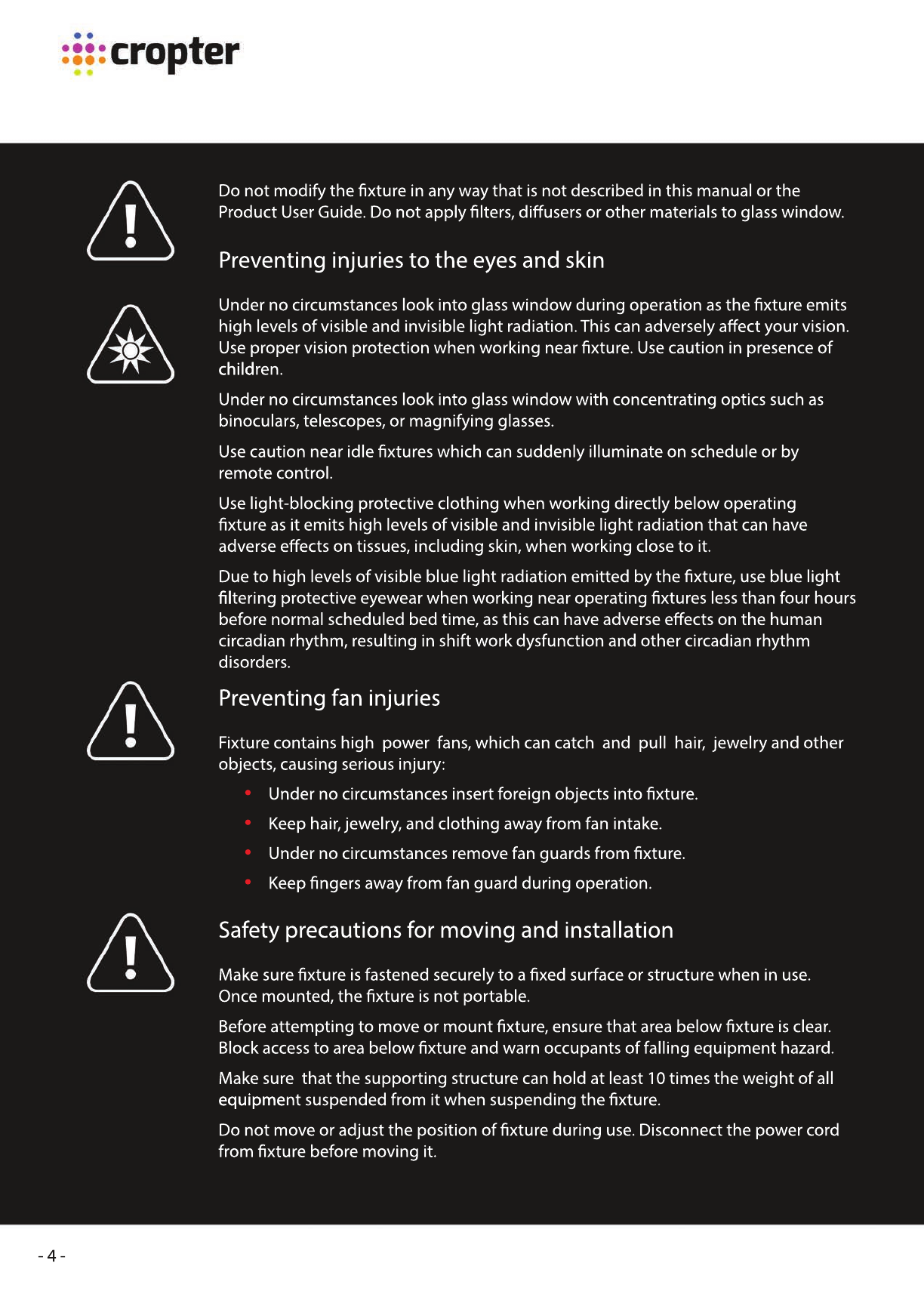

Preventing fan injuries
Fixture contains high power fans, which can catch and pull hair, jewelry and other
objects, causing serious injury:
• Under no circumstances insert foreign objects into xture.
• Keep hair, jewelry, and clothing away from fan intake.
• Under no circumstances remove fan guards from xture.
•
Keep ngers away from fan guard during operation.
Safety precautions for moving and installation
Make sure xture is fastened securely to a xed surface or structure when in use.
Once mounted, the xture is not portable.
Before attempting to move or mount xture, ensure that area below xture is clear.
Block access to area below xture and warn occupants of falling equipment hazard.
Make sure that the supporting structure can hold at least 10 times the weight of all
equipmeequipment suspended from it when suspending the xture.
Do not move or adjust the position of xture during use. Disconnect the power cord
from xture before moving it.
Use caution near idle xtures which can suddenly illuminate on schedule or by
remote control.
Use light-blocking protective clothing when working directly below operating
xture as it emits high levels of visible and invisible light radiation that can have
adverse effects on tissues, including skin, when working close to it.
Due to high levels of visible blue light radiation emitted by the xture, use blue light
l
ltering protective eyewear when working near operating xtures less than four hours
before normal scheduled bed time, as this can have adverse effects on the human
circadian rhythm, resulting in shift work dysfunction and other circadian rhythm
disorders.
Do not modify the xture in any way that is not described in this manual or the
Product User Guide. Do not apply lters, diffusers or other materials to glass window.
Preventing injuries to the eyes and skin
Under no circumstances look into glass window during operation as the xture emits
high levels of visible and invisible light radiation. This can adversely affect your vision.
Use proper vision protection when working near xture. Use caution in presence of
child
children.
Under no circumstances look into glass window with concentrating optics such as
binoculars, telescopes, or magnifying glasses.
- 4 -

Proper disposal
In accordance with Directive 2012/19/EU, waste of electrical and electronic equipment
(WEEE) must be collected separately.
Do not dispose of the HashCropter as unsorted municipal waste within the EU!
Please use the local return and collection system of your member state.
Troubleshooting
To get detailed information about troubleshooting, please visit our website:
https://www.hashcropter.com
Glass precautions
In the event of glass breakage, do not attempt to repair or replace glass. This may
result in injury and damage to product.
Do not operate xture with broken glass. Do not clean glass during operation.
Under no circumstances perform maintenance on a mounted xture. Move xture to
a at surface before attempting to perform maintenance.
Do not drag xture across surfaces.
Avoid shocks and impacts while moving or repositioning xture which may result in
glass breakage.
When moving or storing xture, ensure that the unit is placed on a at surface, and no
f
foreign objects are touching glass.
Do not clean xture during operation.
Unplug xture before attempting to clean. Do not clean glass window during
operation. Do not place objects on top of xture.
Do not place foreign objects on top of xture during operation.
- 5 -

- 6 -
1
2
3
4
5
6
0 - 780 W
1,570 µmol/s
up to 2.1 µmol/J
3 channels: 0 - 100% (CC dimming)
25 sq. ft. (5 x 5 ft.)
12 sq. ft. (4 x 4 ft.)
140 - 240
140 - 240 V
6.6 A @ 120 V (3.3 A @ 240 V)
3.4 A @ 230 V
50/60 Hz
ELECTRICAL POWER
MAX. OUTPUT (PPF)
SYSTEM EFFICIENCY
SPECTRAL ADJUSTABILITY
RECOMMENDED COVERAGE AREA
AUTO VOLTAGE
M
MAXIMUM CURRENT
FREQUENCY
> 0.98
1,651 BTU (max. 2,751 BTU )
50 - 104 °F
active
22.7 lbs.
23 x 23 x 6.5 in
50,000+ hours of ope
50,000+ hours of operation
5 years
CE, UL in progress
POWER FACTOR
HEAT OUTPUT
AMBIENT TEMPERATURES
THERMAL MANAGEMENT
WEIGHT
DIMENSIONS (L x W x H)
LIF
LIFETIME RATING (OVERALL SYSTEM)
WARRANTY
CERTIFICATIONS
TECHNICAL DATA
1 4
2 5
6
3
at 120 V (max. 806 W) also when using CO2 gassing
depending on spectral and dimmer setting; information for the North American market only
1,95 µmol/J @ 120 V max. heat output in the event of light output not
for individual suspension in grow boxes being processed by plants

1
2
34
5
6
7
1
Touch panel
2
Mounting brackets
3
BUS socket
4
Power socket and switch
5
Knurled-head screw to adjust arms
6
Cables (hazardous voltage)
7
Rotating fans
HashCropter Overview
Scope of delivery
The packing list is included in each shipment. It species the part numbers and descriptions of all
parts in your order:
HashCropter
power cord
user manual
Before continuing with installation, verify that all parts in each HashCropter package have been
r
received. If any part is missing, please contact your customer service representative.
NOTE! When unpacking the HashCropter, make sure you have a sturdy surface to work on.
Damage to the unit can occur if dropped. Also note that if a custom order was placed, the accessories in
your package may be different than listed above.
- 7 -

- 8 -
Connect the BUS cable to one of the BUS sockets and the Control HUB.
If you use multiple xtures, daisy chain them together and make sure that
the rst one is connected to the Control HUB and that the BUS has been
terminated correctly on the last one.
Make sure the power switch is set to 0. Then connect the power cord to
the power socket.
Connect the power cord to an (earthed) grounded power outlet
(specications can be found in the Technical Data Section).
Check that the power cables are in perfect condition and free from defects, and make sure they are
properly rated for current requirements for all equipment.
For information on adjusting the arms and distance between the lighting xture and the plants, see the
Light Distribution Section.
Connect light hangers, rope ratchets, chains etc. to the mounting
brackets (see picture) as well as the support structure.
Use the light hangers, rope ratchets, chains etc. to adjust the distance
between the lighting xture and the support structure.
For proper operation the HashCropter must be mounted horizontally from a support structure.
Make sure that the supporting structure can hold the weight of all equipment suspended from
it. Also ensure free and unobstructed air ow around the HashCropter by providing at least
200 mm around all vents.
Mounting
After the HashCropter has been properly mountad, set the power switch to 1. If the HashCropter is
connected to an operating Control HUB, this will be indicated by the remote LED after a few seconds.
If you do not use a Control HUB you can adjust the settings with the integrated touch panel.
If you do not use the Control HUB to schedule lighting recipes, use a common clock timer to automatically
turn the HashCropter on/off.
Use the button to switch between LED channels (B = blue,
W = white, R = red) and the absolute intensity mode. The green LEDs
indicate the active mode.
Use the buttons to adjust the intensity levels of the selected
mode.
Operation

- 9 -
Since the optimal light distribution highly depends on your setup and objectives, we have decided to
provide more detailed instructions at our website: https://www.hashcropter.com
A homogeneous light distribution is crucial for optimizing both yields and crop quality.
The light distribution can be varied by adjusting the position of the
arms. Under no circumstances adjust the light distribution during
operation. Always switch off the HashCropter rst.
Remove the knurled-head screws (see HashCropter Overview).
Select one of the four positions of the arms.
Refasten the knurled-head screws. Under no circumstances operate
the Hash
the HashCropter wightout the knurled-head screws tightly
fastened.
Light distribution
For information on recommended lighting recipes and/or how different lighting recipes inuence the
development of the plant, visit our website: https://www.hashcropter.com
The HashCropter provides an built-in user interface to ne-tune both the spectrum and intensity.
In this section you will learn how to use this interface properly.
Dimming / Spectral Tuning
Use to switch to the B (blue) channel and adjust the amount of blue light by using the
buttons. Repeat this process for the W (white) and R (red) channels in order to optimize the spectral
distribution of the light.
After ne-tuning the spectral distribution, switch back to the absolute intensity mode to re-adjust the
overall intensity level of the light.
Beginners are strongly recommended to set all three channels (B, W, R) to Boost and therefore use the
HashCropters pre-optimized spectrum.
Use the buttons to adjust the intensity level to at least 1.
Use to switch to the absolute intensity mode. This is indicated
when all three mode LEDs (B, W, R) are switched on.

- 10 -
COMPLED Solutions GmbH warrants that the Equipment will be free from defects in material and
workmanship under normal use for a period of ve (5) years from the date of receiving the Equipment.
This limited warranty shall only extend to the original user of the Product. Equipment support is dened as
“Return to Factory” which means the customer is responsible for shipping the Product to the principal
place for logistics of COMPLED Solutions GmbH. Within 30 days of receipt of the defective unit,
COMPLED Solutions GmbH will either repair and return the original unit or provide a reconditioned
uni
unit.
Unless Equipment support occurs during the rst ninety (90) days of the ve (5) year warranty, in
which case COMPLED Solutions GmbH shall be responsible for shipping costs associated with shipping the
Product to COMPLED Solutions GmbH, the customer shall be responsible for shipping costs associated with
shipping the unit to COMPLED Solutions GmbH.
COMPLED Solutions GmbH shall provide for return shipment of the equipment to the original user free
of charge (excluding Tax & Duty) at any time during the ve year period.
T
The warranty period for the Equipment starts on the date it is received by the original user of the Product.
Warranty
Make sure that you examine all cables, rope hangers etc. on a regular basis to prevent damage to the
HashCropter and all attached equipment. If there is any visible cable damage, immediately disconnect
the HashCropter from power and contact our support team.
Safety
In the event of extreme dust accumulation, the performance of the
HashCropter may be affected.
To clean the air inlet or outlets, disconnect the HashCropter from
power and carefully clean the fans and heat sinks by using
compressed air or a vacuum with brush attachment.
Under no circumstances attempt to clean the HashCropter during operation.
Make sure you unplug the HashCropter before cleaning.
In order to avoid damage to the glass, do not use alkaline or acidic cleaners.
Do not use any cloths, pads or brushes with abrasing powders or
particles. Wipe off the glass with a soft damp cloth. A mild detergent can
be used if necessary.
Cleaning
To ensure proper operation, regularly check the condition of the HashCropter by using the
following instructions:
Maintenance

To the full extent permitted by law, COMPLED Solutions GmbH shall not be liable to the customer for
any loss or damage arising from the use of the Equipment, or any defect in the Equipment, however it
may arise.
COMPLED Solutions GmbH shall bear no obligation to provide support, maintenance, upgrades,
modications or new releases apart from the stated warranties.
COMPLED Solutions GmbH disclaims all liability and responsibilities pertaining to and arising under this
A
Agreement as a result of the Customer integrating, connecting or networking the Equipment in any
manner whatsoever.
If technical advice or support is given or offered in connection with the use or implementation of the
Equipment, it shall be solely as an accommodation to the Customer and without charge unless otherwise
agreed upon. COMPLED Solutions GmbH shall have no responsibilities or liabilities whatsoever in relation
to the content or use of such advice.
Under no circumstances shall COMPLED Solutions GmbH be liable to Customer, or any other person for
specia
special, consequential, indirect or incidental loss or damage of any kind or any direct loss or damage of
any kind suffered or incurred by the Customer or any other person in connection with the Equipment
provided hereunder.
THE ABOVE SPECIFIES BOTH THE ENTIRE RESPONSIBILITY OF COMPLED SOLUTIONS AND THE CUSTOMER’S
SOLE AND EXCLUSIVE REMEDY WITH RESPECT TO ANY BREACH OF ANY WARRANTY REGARDING THE
HARDWARE AND SOFTWARE. ON BEHALF OF ITSELF AND ITS AFFILIATES AND SUPPLIERS,
COMPLED SOLUTIONS HEREBY EXPRESSLY DISCLAIMS ALL OTHER WARRANTIES, WHETHER EXPLICIT,
IMPLIE
IMPLIED, OR STATUTORY REGARDING OR RELATING TO THE HARDWARE, DOCUMENTATION, SOFTWARE,
MEDIA, OR THE SERVICES FURNISHED OR PROVIDED TO CUSTOMER. COMPLED SOLUTIONS SPECIFICALLY
DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
COMPLED Solutions GmbH
Wolfshügelstr. 5
01324 Dresden
Germany
wwwww.compled.de
© Copyright 2019
Disclaimer
- 11 -
