Crosley CA5WMVK0 User manual

and
Installation Instructions
1, Front pane]
2, Air louvers
3. Air direction tabs
4, Contro| panel
5. Fiffet
ROOM AIR
Questions regarding features,
operationi_fformance, parts,
accessories or se_ice?
Cala1-_-253°130'1
_w_whir_pooL_m
®
_0702:
© _O0 AII rights reserved
P/No.:: 3828A2_49V Pdnted in Korea

Contents
Use and Care Guide
A Note To You
Air Conditioner Safety
Important Safety Instructions
Operating Your Air Conditioner
Starting your air conditioner
Changing air direction
Saving energy
Normal operating sounds
Caring for Your Air Conditioner
Cleaning the air filter
Cleaning the front panel
Repairing paint damage
Troubleshooting
Ordering Accessories
Requesting Assistance or Service
Page
2
3
3
4
4
4
4
4
5
5
5
5
6
8
8
Installation Instructions
Location
Tools needed
Parts supplied
Electrical requirements
Window preparation
Installation
Warranty
Page
9
9
9
10
10
11
12
A Note To You
Thank you for buying this appliance.
Toensure you enjoy years of trouble-free operation, we
developed this Use and Care Guide. It contains valuable
information about how to operate and maintain your
appliance properly and safely. Please read it carefully. Also,
please complete and mail the Product Registration Card
provided with your appliance. This card helps us notify you
about any new information on your appliance.
Please record your model's information.
Whenever you call to request service on your appliance,
you need to know your complete model number and
serial number. You can find this information on the
model and serial number label. (See Installation
Instructions for model and serial number location.)
Please record the model and serial number
information below. Also, record the purchase date of
your appliance and the store's name, address, and
telephone number.
Model Number
Serial Number
Purchase Date
Store Name
Store Address
Store Phone
Keep this book and the sales slip together
in a safe place for future reference.

Your' safety and the safety of others are
very important.
We have provided many im_rtant safety messages
in this manua_ and on your appliance. A_ways read
and obey al_safety messages.
This is the _fety a_ert symbol.
This s.ymbo_alerts you to potential hazards
that can kill or hurt you and others.
A][ safety m_sa£es will follow the safety alert
symbol and either the word _DANGER" or
"WARN [NG'LThese words mean:
You can _killed or seriously injured ff you don't
immediately follow instructions.
You can _killed or seriously injured #you don't
follow instructions.
Al_safety messages will tell you what the potential
h_ard is tell you how to,reduce the ch_ce of
injury, and tell you what can h_pen if the.
instructionsare not followed.
IMPORTANT SAFETY
WARNING --To reduce the risk of fire, electrical
shock iniury_ or sickness when using your air
conditioner, follow these basic precautions:
- Pmuginto a grounded 3-prong e_let.
Do not remove ground prong.
- Do not use an ad_ter.
, Do not use an extension cord.
- Unplug air conditioner before se_icing
* Use two or more people to move or inst_l air
conditioner.
* Do not drink water collected inside the cabinet
SAVE THESE |NSTRUOTIONS
Help us, h_p yet=
PLease
•rn_H your air conditioner ina window that willhold
the weight, and secure the air conditioner according to
the _nstallation _nst_ctions
• Connect the air conditioner to the proper kind of outlet
with the correct electrical supply and ground (See the
in_a][ationInstructions)
• Make sure the air conditioner is the correct size for the
area you want to cool
,Make sure cu_ains, drapes or furn_ure do not biock
airflc_wfrom the air cond_ioner.
• Use the air conditioner only to do what a window air
conditioner is designed to do
•Make surethe airconditionerisnotused by anyone
unable to o_rate it properly.
•Maintain the air cond_ioner properly.
Also remove the Energy Labe_ Use a damp cloth to
take off any glue residue DO NOT use sharp
instruments, flammable fluids, or abrasive cleaners.
These can damage the air conditioner finish
3

Operating your air conditioner properly helps you to obtain the best possiMe results_
This section explains proper air conditioner operation.
IMP'OR]ANT:
•If you turn the air cond_:ioner off wait at _east3
minutes before turning it back on. This. preyers the air
conditioner from blowing a fuse or tnpping a circuit
breaker.
Starting your air conditioner
• Do not try _oioperate your air conditioner in the cooling
mode when outside tem_ralure is below 65,_F (18°C).
The inside eva_rator coil wit1 freeze up and the air
conditioner will not operate properly.
FAN _NTROL
Set _e FAN CONT_L 'to the desired setting Wben the air conditioner is o_ating at LOW
_OL, MED C_L (some mode_s} or TURBO C_L, the fan circulates air continuousmy.
LOW COOL - for sJeeping comfort
MED COOL (some models} - for normal cooling
TURBO COOL = for maximum coo_ing
FAN ONLY
When the FAN ONLY setting is selected the fan will run continuously to move air.. but the
air wi_ not be c_.
THERMOSTAT
Turn the THERMOSTAT Control to a mid-setting. Adjust the air condi_ioneCs performance
by turning the THERMOSTAT Control clockwise (_) for maximum cooling. For less
cooling turn the THERMOSTAT Control counterclockwise ( _,_}.Experiment and find the
setting th_ suits you best
wmm_j
,,. j
Changing air direction
Tabs The louvers in the top of the fro_ pane_
allow you to control the direction of the
cooled air. Use the tabs to direct the air
up, down dgbt, [eft_or straight ahea&
Saving energy
There are many things you can do 1o help save energy.
• improve your home's insu[_ion. Seal d_rs and
window_. C[_e fireplace flue.
• Cl_e Minds or drapes on the. sunny side of your
house Add awnings.
• Make sure drapes or furniture do not bl_k airflow
from your air cond_ioner.
oTurn fights _d applian_s off when they are not
needed.
Normal operating sounds
= Ventiiat.e your attic. High tempier_ures ill the attic
add to the air conditioneCs cooling _oad.
• Try not to use heat-producing appliances during the
hottest _rt of the day.
"Keep heat registers and cool-air returns closed.
• Use exhaust ve_ fans whi_e cooking, doing _aundry,
or b_hing.
When your air conditioner is operating normally, you may hear sounds such _:
,, DropEetsof water hitting the condenser, _using a ,PVibrations or noise due to poor waif or window
"pinging" or 'clicking" sound. The water droplets construction.
help cool the condenser. • A high-pitched hum or pulsating noise caused by
• Air movement from the fan. the m_em high-efficiency compres_,r cycling on
• C_icks from the thermostat cycle and off.
,4

C forYour Air Conditioner
Your new air conditioner is designed to give you many yea_ of dependable service, This section tells you how to dean
and care, for your air conditioner properly. Ca]_your local authorized dealer for an annual checkuF Remember,, the cod
of this service calf is your responsibil_y
Cleaning the air filter
The air fiffer is removable for easy cleaning_ A clean rifler he[_
remove dus_, ]irtt and other part:ic[e_ from the air and is
important for best cooling and operating efficiency. Check the
filter every 2 weeks to see if it needs cleaning. Do not operate
the air conditioner w_hout the rifler in place
1, Unplug air conditioner or disconnect power.
2. Grasp, ta_ on either side of filter door and puff door
forward.
3, Pu[_out _r lifter from behind grille.
4, Wash air rifler in warm 104°F (40°C) water, Do not ,wash air
fiffer in the dishwasher or u_ any chemic_ cleane_ Air
dry filter comiPlete_y before replacing to,ensure
maximum efficiency,
5, Replace air fi_er behind filter door,
6, Close rifler door,
7. Plug in air conditioner or reconnect _wer
Cleaning the air conditioner
1. Unplug air conditioner or disconnect power,
2, Wipe front _neil and cabinet with warm water and mi_d
so_ or deterge_. Use a soft c_oth
3. Rinse control panel and dry thorougHy with a soft cloth,
4. You may use a liquid wax for appliances to polish cabinet.
5. Plug in air conditioner or reconnect p_er.
To ensure co_inued high efficiency; check condenser coifs
(outside of air conditioner) _riodica[iy and dean them if'they
are cl_ged with soot or dirt.
Repairing paint damage
Check once or twice a year for paint damage, This is
very impod_t, especiaJly in areas near oce_s or
where rust is a problem [f needed, touch up with a
g_ grade ename[ paint,
tabs
NOTE: To reduce paint damage during the winter,
install a heavy-duty cover over air conditioner cabinet
For information on ordering a heavy-du_ cover, see
page &

Troubleshooting!
You can solve many common air conditioner problems easily, saving you the cost of a service call. Try the suggestions
below to see if you can solve your problem without outside help.
Air conditioner will not operate.
Check if ... Then ...
The power supply Firmly plug the power supply cord into alive outlet with proper voltage.
cord is unplugged.
A household fuse Replace the fuse or reset the circuit breaker, Make sure the air conditioner is plugged into a
has blown or circuit properly grounded outlet as described in the Installation Instructions.
breaker has tripped.
The local power has Wait for power to be restored.
failed.
Air conditioner blows fuses or trips circuit breakers.
Check if ... Then ...
Too many appliances Unplug or relocate appliances that share the same circuit.
are being used on the
same circuit.
Time-delay fuse or Replace with a 15-amp time-delay fuse or circuit breaker of the correct capacity. See
circuit breaker of the "Electrical requirements" in the Installation Instructions for the correct capacity.
wrong capacity is
being used.
An extension cord is Do not use an extension cord with this or any other appliance.
being used.
You are trying to Wait at least 3 minutes after turning air conditioner off before trying to restart the
restart the air air conditioner.
conditioner too soon
after turning it off.
Air conditioner seems to run too much.
Then ...Check if ...
The current air
conditioner replaced
an older model.
The air conditioner is
in a heavily occupied
room or heat-
producing
appliances are in
use in the room.
The use of more efficient components may cause the air conditioner to run longer than
an older model, but the total energy consumption will be less. Newer air conditioners do not
emit the "blast" of cold air you may be accustomed to from older units, but this IS NOT an
indication of lesser cooling capacity or efficiency. Refer to the efficiency rating (EER) and
capacity rating (in BTUsihr.) marked on the air conditioner.
Use exhaust vent fans while cooking or bathing and try not to use heat-producing appliances
during the hottest part of the day. A higher capacity air conditioner may be required
depending on the size of the room being cooled.

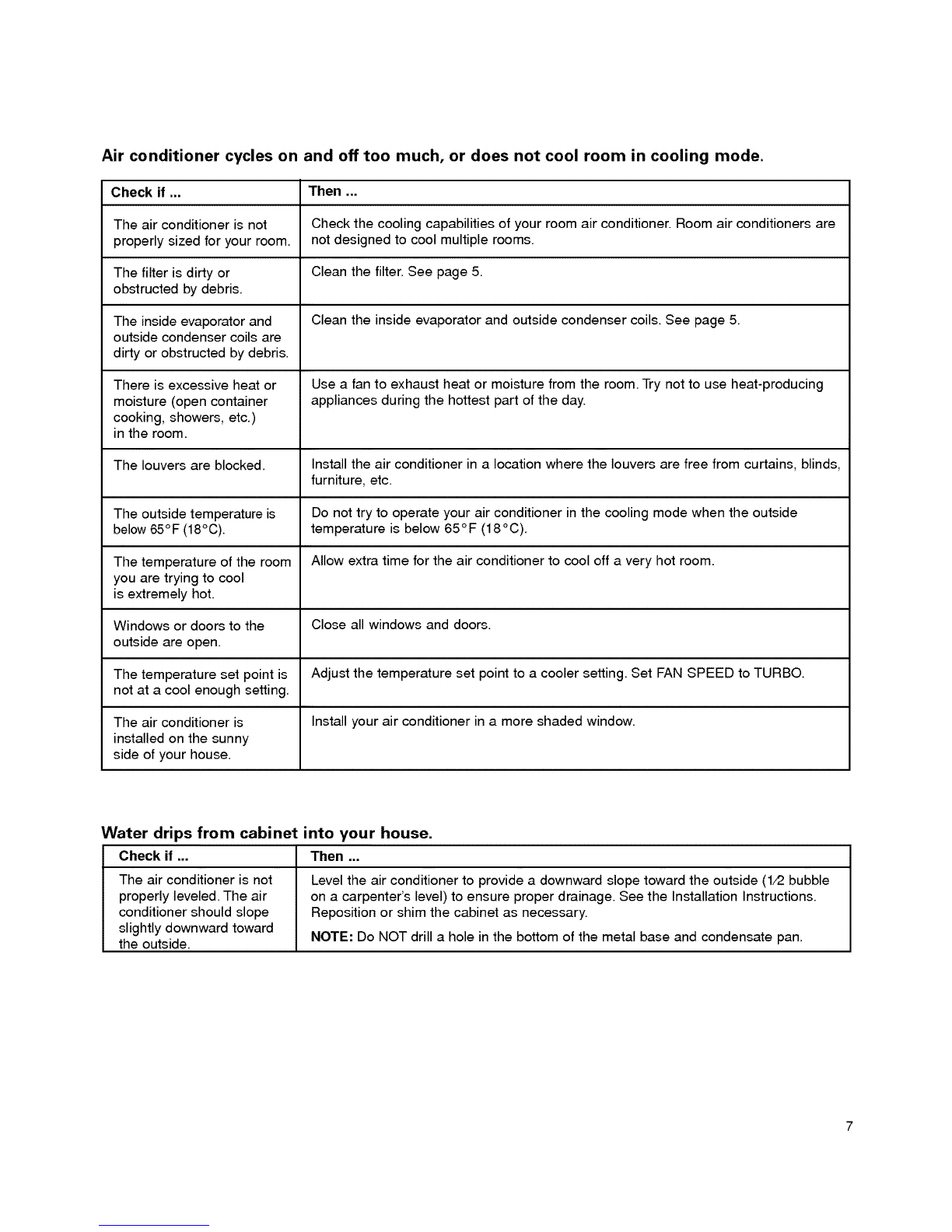

Air conditioner cycles on and off too much, or does not cool room in cooling mode.
Check if ... Then ...
The air conditioner is not Check the cooling capabilities of your room air conditioner. Room air conditioners are
properly sized for your room. not designed to cool multiple rooms.
The filter is dirty or Clean the filter. See page 5.
obstructed by debris.
The inside evaporator and Clean the inside evaporator and outside condenser coils. See page 5.
outside condenser coils are
dirty or obstructed by debris.
There is excessive heat or Use a fan to exhaust heat or moisture from the room. Try not to use heat-producing
moisture (open container appliances during the hottest part of the day.
cooking, showers, etc.)
in the room.
The louvers are blocked. Install the air conditioner in a location where the louvers are free from curtains, blinds,
furniture, etc.
The outside temperature is Do not try to operate your air conditioner in the cooling mode when the outside
below 65°F (18°C). temperature is below 65°F (18°C).
The temperature of the room Allow extra time for the air conditioner to cool off a very hot room.
you are trying to cool
is extremely hot.
Windows or doors to the Close all windows and doors.
outside are open.
The temperature set point is Adjust the temperature set point to a cooler setting. Set FAN SPEED to TURBO.
not at a cool enough setting.
The air conditioner is Install your air conditioner in a more shaded window.
installed on the sunny
side of your house.
Water drips from cabinet into your house.
Check if ... Then ...
The air conditioner is not Levelthe air conditioner to provide a downward slope toward the outside (1/2 bubble
properly leveled. The air on a carpenter's level) to ensure proper drainage. See the Installation Instructions.
conditioner should slope Reposition or shim the cabinet as necessary.
slightly downward toward
the outside. NOTE: Do NOT drill a hole in the bottom of the metal base and condensate pan.

Ordering Accessories
You can order the foflowing accessories for your _r
conditioner from your Ioca_authorized dealer or by
calling 1_0-253-1_,1 from anywhere in the U_S_A_
You wil_hear a recording Foflow the in_ructions to
p_ace an order.
Replacement air filters
A g_, dean air fi_te,ris important for best _Jing
with _east energy consumption. _tbur ,air filter shouEd
denned regularly, See page 5 for c_eaning
instructions, We suggest you replace, your air filter
once a year.
Installation kits
A standard installation k_ [s included with your _r
conditioner. These s,pec[a] installation kits are available:
-Outside Sift 8racket Kit
', Wide-Window Kit
Heavy-duty cover
if you decide to leave your air cond_[oner insta]Fedduring
the winter, a heavy-duty cover will help protect your _r
conditioner _d reduce drafts The cover protec|s against
cold drafts, through the unit's air passages and protects
the cabinet from snow, rain, sleet, _st, and dust.
For a heavy-duty cover sized to fit your air conditioner,
order part #484069.
Toavoid unneces_ry service calls, please check the "Troubleshooting Guide" so.ion, it may save you the cost of a
service ca[] [f you stil_ need heip, follow the instructions below,
If you need assistance or service
Call the Customer interaction Center telephone
number, Dial tolHree 1-800o253-1301, Our consultants
are availa_e to assist you,
When _![ing: PJease know the purchase date, and the
-- complete mode[ and serial number of your
app]iance (_ the "A Note to You" section)
This information will help us better respond to
your requesL
Our consultants provide assistance with:
•Features and s_ifications on our fu][ ]ine of appliances
•Ln_lLation information
• U_ and maintenance proc_ures
•Accessory and repot parLs sa_es
• Sp_ia[ized customer assist_ce (Spanish speaking,
hearing impaired, [imffed vision e_c.)
•Referrals to Local dealers _rvice compani_, and
repair par_ distributors
Our service technicians are trained to fulfil] the product
warranty and provide after-warranty service, anywhere in
the Umied States.
To [_te the authorized se_ice company in your area,
you can also rook in your telephone directory Yellow
Pages.
If you need replacement parts
If you need to order replacement partm we
recommend th_ you only use factoryoauthorized parts.
These paris wil[ fit right and work right, because they
are made to the same exacting sp_iflcat[ons used to
_i]d every new appliance.
To locate factory-aJJthorized p_ts in your area ca_lour
Customer I_eraction Ce_er telephone number, your
nearest authorized service cen_er_or Factory Service
1-8_-442ol 11!
,8

Installation ctions
*|nstalller: Leave Instal]_ion hstructions with the
homeowner.
*Homager: Keep hsta_Lation Instructions lor future
reference,
* Save _nsta_Lationinstructions for ]_a] el_ric_
ins,pector's use,
V
L
Window o_ning
measurements
J
Tools needed
screwdrivers
utility knife
important: Observe all governing codes and
ordinances.
Check location where air _nditioner will be in_lled_
Proper installation is your responsibi]ity_ Make sure you
have ever_hing necessary for correct installation
The _ocation should provide:
• Grounded electrical outlet within four feet (122 cm)
of the window or through4he-wa_] _ocation Do not use
an extension cord,
- Free movement of air to r_ms to _ cooled,
- A large enough opening for the air condiUoner.
22" (55.9 cm) minimum to 36" (91.4 cm) maximum
opening width
14" (35,6 cm) minimum o_ning height
- Adequste wall support for weight of air conditioner,
Air conditioner weighs between 90 and 178 pounds
(40,8 to 80.7 kg).
De net Lnstall| the air eond_ioner in an area where
the front panel wil_ be ex_ed to heat sources that will
raise,the panel sudace temperature above 120_F
Parts
_short
scl_w
seal strip
supplied
Tscr'_4
saslh sea|
panel
9

Electrica| Sho_ Heard
Plug into a g_unded _prong out|e|.
Do not remove g_und prong.
Do not use an adapter.
Do no't use an ex'tension _rd.
Fai|ure _oifollow these |nstt_Jctions can _suit in
death, f|re, or e|ect_ca| shock.
in the U.S. only: If codes perm_ and aseparate
ground wire is usod, _ is recommended that a
qualified el_trlclan determine that the ground path
Check with a qualified e_ectrician if you are not sure air
conditioner is grounde&
A three-wire_ single-phase, 60-Hz AC-only, electdc_
supply is required on a separate circuit_ See model and
serial labe_for circuit amperage required for your
s_ific mo,del_
A time delay fuse or circu_ breaker is required. Use
cop_r wire only.
The mode[ and seria_ label is _oc_ed behind the front
panel on the cabinet. This [a_l Liststhe 8TU c_aci_y,
amperage, voyage and refrigera_ charge requireme_s.
Recommended grounding method
For your per_ona[ safety, thi_ air conditioner must be
grrounded_This air conditioner is equip_ with a power
supply cord with a 3_prong grounding plug_To minimize
possible electrica_ shock hazard, the cord must be
pk_gged into a mating 3-prong grounding4ype outlet_
grounded in accordance with all local cod_ _d
ordinances ff a mating 3=prong grounding type outlet is
not available, it iS the _nsumer's respo,nsibility to have
apropedy grounded, 3-prong outlet installed by a
licensed installer.
tt is'the customer's responsibil_y:
-To contact: a qualified eledrica[ installer.
* Toassure that the ele_rica_ ins_a_}ationis adequate
and in conformance with National E!.ectdcal _de,
ANSVNFPA 70 _ latest edition/and aJ_Ioca_c_es
and ordin_c_
C_#es of the stan_ iist_9 may be obtatr;ed from:
° National |4re P;ot_©n Assc_iabon
_atterymarch Park
Quir_cy, Massachusetts 02269
Power supply cord and receptacle
(_ _ ('tO3.5 rain.- [email protected] max./
-0_12 amperes
15=ar_ t_e_delay f_se o,r
cir_it b_ea_e_-
-14 g_ge _r wb_ag
if storm window frame interferes wRh air conditioner,
a_tach a 2_'(5 cm) -wide wc@ strip t_ inner wind_ sill,
across full width of si& Wood strip sbou[d be.thick
enough 'to raise height of window sill so 'th_ you can
instal_ air condi'tioner without interference from storm
window frame, so that condensation water propody
drains to the outside.
Note: if dis_nce between storm window frame and
inner si_Fmounted wo_ s_rip is greater than 1 inch
(Z5 cm), wood s'tdp for o_ter window sii_(described in
right column) is not nece_ary.
Attach a se_nd wood strip, approximately 6" x 1q/2" x
2" (1&2 cm x 38 cmx 5 cm) in center of o_er windcw
sill flush ag_nst back of inner sill. This w_ strip will
raise the Lbrackets to hold air conditioner securely in
place
/
w_ strip
for L bracket
window
frarr_
outer si||
IND_RS
10

1. _nsert guide panels into air conditioner guides.
2, A_ach curtains to air conditioner with short screws_
6. CarefuEly ]ittair cond_ioner and slide it into open
window. Make sure bottom guide of air conditioner
drops irrlo L bracket. Be sure that air conditioner is
centered in window from right to Left.
3.cotadhesive-backed seal strip to ,_ndow width.
Remoive backing from seal strip. Attach seal strip to
bottom of window.
Note: Maintain a firm hold on air conditioner to prevent
it from falling oN of the opening during in:staHation. h
hL bracke
7. Lower window sash down behind upper guide of air
conditioner Make sure the air conditioner tilts to the
back as shown,
L bracke|
short
s_trsw \
_sea|
OUTSIDE
L
5, Attach one L bracket 8 inches (203 cm) from either
side of centeHine, flush against back of inner
window sill, w_h short side of bracket in verti_
pos_ion. Brackets will he_phoM air conditioner in
place. Use 2 short screws.
8. Extend guide panels to fill window opening. Use 4
wood screws
9. insert sash se_ behind top of lower window sash
and against g}ass of upper window.
1O, Fasten L bracket using a short _r_. 11

Removing air conditioner
from window 1, Turn air cond_ioner off and disconnect power cord,
2, Remove L brackets and screws installed through top
and bottom of guide panels, Save for reins_[[ation,
3, Ciose guide panels.
4.RoUsew ndowsash and carefully ti_tair conditioner
ba_ward to d_in any condensate water in base.
5, Lift air conditioner from window and remove sash
sea_from between windows.
Warranty
WHIRLPOOL WILL NOT PAY FOR
A, Service callis to:
1, Corr_t the installation of your air conditioner,
2_instruct you how to use your air conditioner.
3. R_iace hou_ fus_ or correct house wiring,
4, Clean or r_i_e the air filter,
B. Pickup and delivery Your air conditioner is designed to,be repaired in the home.
C. Damage to your air conditioner caused by accident, misu_, fire flood, acts of God, or use of products not
mentioned in the Use and Care Guide
D. _e removal and reinstaliation of your air conditioner ff it is installed in an overhead or other inaccessible lec_ion or
is not installed in acoordance with published installation instructions.
E. Repairs to parts or systems resulting from unauthorized modifications made to the app!iance.
E Replacement parts or repair laber costs 'for units operated outside the United States or Canada
WHIRLPOOL CORPORATION SHALL NOT BE UASLE FOR iNCiDENTAL OR CONSEQUEI'_IAL DAMAGES, _me
states or provinces do not allow the exclus_n or limitation of incidental or consequential damages, so this exclusion or
limitation m_ no_apply to you. This warran_ gives: you specific [e_[ rights: and _u may aL_o,t'_ve other dghts which va_/
from state to state or province to pro'dnce.
Outside the Unit_ States and Canada a different warranty may apply. For details, please contact your
authorized dearer,
if you n_ service, first see the "Troubleshooting" section of the Use and Care Guide. After checking "Troubleshooting:
additional help can be found by checking the "Requesting Assignee or Service" section, or by calling the Whirlp_31
Gonsumer Assistance Center telephone number, 1°800-253-1301, from anywhere in the US.A_ For service in Canada,
see "if you need assistance or service in Canada _' in your Use and Care Guide for the service branch in your are&
438070,2 1_/%
@2000All rightsr_erv_ Dir_tedil_Korea
