Crosswater Digital Solo User manual

Solo water
control system
Operation and care guide
DIGITAL
DIGITAL WATER CONTROL AT YOUR FINGERTIPS
DIGITAL
DIGITAL WATER CONTROL AT YOUR FINGERTIPS
SOLOUSER
This operation and care guide
must be left with the user.

1
Important Safety Information
DIGITAL
DIGITAL WATER CONTROL AT YOUR FINGERTIPS
Please read these instructions carefully before
using this system and keep in a safe place for
future reference.
To reduce the risk of electric shock and injury,
basic safety precautions, including the following,
should always be followed when using electrical
appliances.
Children MUST be supervised at all times when
using this shower control. Training should be
given to children and vulnerable individuals
before permitting them to operate the control.
Do not pull on the power cable: this may
damage it and cause electric shock.
Operating the Solo water control system
To turn ON / OFF
Setting the temperature
Setting the memory
Contents
2
2
2
3
Self check mode
Cleaning (safe) mode
Thermal disinfection
Cleaning / maintenance
Servicing / contact information
3
4
4
7
7
Never operate any appliance with a damaged
cable or plug. Do not use an appliance that
has been dropped or damaged or after any
malfunctions.
WARNING
CONTINUOUSLY TURNING THE
CONTROL WHEEL IN THE CLOCKWISE
DIRECTION MAY OVERRIDE THE PRE-
SET MAXIMUM TEMPERATURE, WITH
CONSEQUENT RISK OF SCALDING.
ALWAYS TAKE CARE WHEN
OPERATING THE CONTROL WHEEL,
AND DO NOT LEAVE CHILDREN
UNATTENDED WHILST THE PRODUCT
IS IN OPERATION.
Activation set up
Important: Once powered up, the control must be programmed within one hour, this will set the
maximum temperatures, maximum run time, hygiene intervals and ambient light.
5 - 6

2
Operating the Solo water control system
DIGITAL WATER CONTROL AT YOUR FINGERTIPS
Setting the temperature
Turn the control anti-clockwise,
the control will illuminate
Blue and will flash until the set
temperature is reached.
Turn the control until the
control illuminates Orange,
the light will flash until the set
temperature is reached.
Turn the control clockwise,
the control will illuminate Red,
the light will flash until the set
temperature is reached.
Cold Warm Hot
Press the control once, the
control will illuminate Orange
and water will start to flow.
To access a stored memory
(once memory has been set);
press the control once to select
memory 1, twice for memory 2
and three times for memory 3.
To turn ON To turn OFF
Press the control once, the
water and light will turn o.
Important note: Risk of scalding, please read the Safety Information on page 1 before using.

3
DIGITAL
DIGITAL WATER CONTROL AT YOUR FINGERTIPS
Setting the memory
Up to three memory settings
can be stored.
Press the control once.
Set the desired
temperature.
Hold down the control
until the control flashes purple,
release immediately and the
control should flash twice.
The shower temperature is
now stored.
To set the 2nd memory, press
twice quickly in o position,
then follow the same sequence
as memory 1.
To set memory 3, press quickly
3 times in the o position,
then follow same sequence as
memory 1 and 2.
To access a stored memory;
press the control once to select
memory 1, twice for memory 2
and three times for memory 3.
Note: The maximum
temperature for memory
settings is 40 degrees.
1
2
3
4
Self check mode
Press and hold the control until
the Orange light appears, then
release, the system will then run
through a series of diagnostic
checks.
The system checks:
Adjustment of the valves.
Red lights up - the valve
goes hot.
Green lights up - the
valves go o.
Blue lights up - the valve
goes cold.
The valves are closed.
1
2
3
4
Once the check is complete
you will see:
2 x flashes - the control unit
is OK.
3 x flashes - malfunction of the
temperature sensor. Please
contact customer services.
5

4
DIGITAL WATER CONTROL AT YOUR FINGERTIPS
Thermal disinfection
The pipes will flush through at
the hottest temperature your
system will allow, this will clean
through any limescale and
clear any potential bacteria.
Note: Care should be
taken through this thermal
disinfection process as the
pipes will get extremely hot and
there is a risk of scalding.

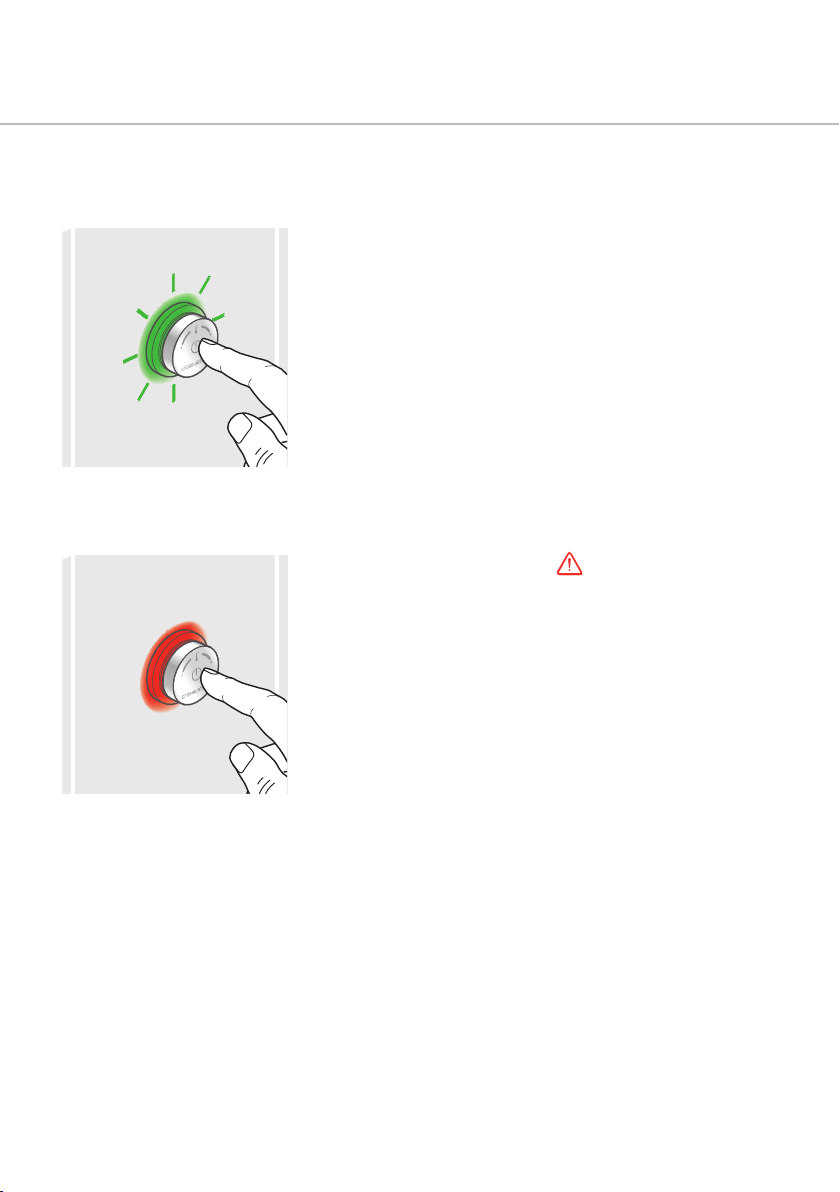

Press the control and keep
pressing until the Red light
comes on, then release.
Press the control until the
Green light appears, then
release, this will disable the
control for 45 seconds to
allow the control to be cleaned
without turning on the control.
Cleaning (safe) mode
Caution: The water is hot
during this process and there is
a risk of scalding.
The control will flash Red
during thermal disinfection
and will last for 5 minutes,
afterwards cold water is
flushed through the system.
Thermal disinfection can
be stopped at any time by
pressing the control.
Maximum run time
This feature allows you to switch
the unit o from 5 seconds to
30 minutes.
Hygiene function
This feature is used for setting
up the shower to turn on and
regularly flush the system
through. Please see the chart on
the next page.
Ambient light
This feature allows you to have
an ambient light on the controller
when not in use; you can choose
your own colour or even have a
mixture of dierent colours.
Extra functions explained

5
DIGITAL
DIGITAL WATER CONTROL AT YOUR FINGERTIPS
Activation set up
menu cleaning mode
press and hold until colour
change, then release
self check mode
thermal disinfection
restore factory settings
maximum run time - not set
hygiene interval - not set
ambient light - not set
maximum temperature
press and hold until colour
change, then release
press and hold until colour
change, then release
press and hold until colour
change, then release
press and hold until colour
change, then release
press and hold until colour
change, then release
press and hold until colour
change, then release
The features below need to be set within an hour of first powering up
press and hold until the Orange light appears, then release
2 x flashes - the control unit is OK
3 x flashes - malfunction of the temperature sensor
Important: Once powered up, the control must be programmed within one hour, this will set the
maximum temperatures, maximum run time, hygiene intervals and ambient light.
Note: If the activation setup is not completed within one hour, power o the unit and leave it for
20 minutes, then start again.
The maximum run time,
hygiene interval and
ambient light settings
have not been set (left
open), the times should
be set as required using
the tables at the top of
page 6.

6
DIGITAL WATER CONTROL AT YOUR FINGERTIPS
blink press to select ambient light colour
blink press to select hygiene interval
blink press to select max. time
turn to select temperature press to select max. temperature
Number
of blinks
Value
1 5 seconds
2 8 seconds
3 10 seconds
4 15 seconds
5 20 seconds
6 30 seconds
7 45 seconds
8 1 minute
9 5 minutes
10 15 minutes
11 30 minutes
12 Open
Maximum run time Hygiene interval
Number
of blinks
Value
1 1 Day
2 2 Days
3 3 Days
4 7 Days
5 Inactive
Control
colour
Adjustment
Light inactive
Cyan Light cyan
Blue Light blue
Magenta Light magenta
Red Light red
Orange Light orange
Yellow Light yellow
Green Light green
White Light white
Fast ambient
light
Light rainbow
Ambient light

For any further information please contact
Crosswater on: 0345 873 8840
Or visit our web-site at:
www.crosswaterdigital.co.uk
Crosswater reserves the right to make technical
modifications without prior notice.
DIGITAL
DIGITAL WATER CONTROL AT YOUR FINGERTIPS
DIGITAL
DIGITAL WATER CONTROL AT YOUR FINGERTIPS
Cleaning / maintenance
Only clean the control with soapy water, do not use abrasive cleaners as these could damage the
brass which would not be covered under any warranty.
Please do not open the processor unit as this will invalidate your warranty.
Servicing / contact info
In the unlikely event that you are experiencing diculties with your new Crosswater Digital product,
please contact the Crosswater T
echnical Advice team on:
0345 873 8840 or via e-mail – [e-mail]
Website: crosswaterdigital.co.uk
August 2015
