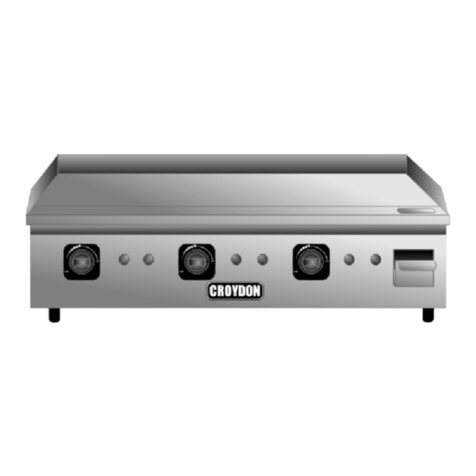

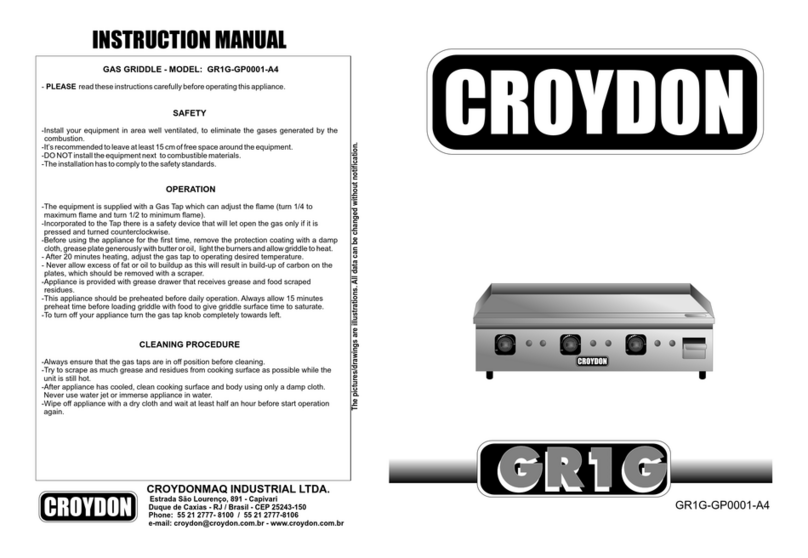

croydon GR1G User manual

GR1G-G00005-A2
GAS GRIDDLE - MODEL: GR1G-G00005-A2
- PLEASE read these instructions carefully before operating this appliance.
SAFETY
-
- After 20 minutes heating, adjust the gas tap to operating desired temperature.
- Never allow excess of fat or oil to buildup as this will result in build-up of carbon on the
plates, which should be removed with a scraper.
-Appliance is provided with grease drawer that receives grease and food scraped
residues.
-This appliance should be preheated before daily operation. Always allow 15 minutes
preheat time before loading griddle with food to give griddle surface time to saturate.
-To turn off your appliance turn the gas tap knob completely towards left.
CLEANING PROCEDURE
-Always ensure that the gas taps are in off position before cleaning.
-Try to scrape as much grease and residues from cooking surface as possible while the
unit is still hot.
-After appliance has cooled, clean cooking surface and body using only a damp cloth.
Never use water jet or immerse appliance in water.
-Wipe off appliance with a dry cloth and wait at least half an hour before start operation
again.
-Install your equipment in area well ventilated, to eliminate the gases generated by the
combustion.
-It’s recommended to leave at least 15 cm of free space around the equipment.
-DO NOT install the equipment next to combustible materials.
-The installation has to comply to the safety standards.
OPERATION
-The equipment is supplied with a Gas Tap which can adjust the flame (turn 1/4 to
maximum flame and turn 1/2 to minimum flame).
-Incorporated to the Tap there is a safety device that will let open the gas only if it is
pressed and turned counterclockwise.
Before using the appliance for the first time, remove the protection coating with a damp
cloth, grease plate generously with butter or oil, light the burners and allow griddle to heat.
INSTRUCTION MANUAL
CROYDON
CROYDON
CROYDONMAQ INDUSTRIAL LTDA.
Estrada São Lourenço, 891 - Capivari - Duque de Caxias.
RJ - Brasil - CEP 25243-150 Fax: [phone]
Phone: [phone]
e-mail: [email protected]

GAS GRIDDLE (GR1G) GAS GRIDDLE (GR1G)
item code description
Technical Data
Power (BTU/h)
Weight (kg/lbs)
Dimension W x H x D (cm/in)
45000
51/112.2
101/39.8 x 36/14.2 x 59/23.3
Screw (4.8)
Grill Plate
Burner
Screw
Gas Tap
Gas Injection Device
Gas Pipe
Grease Collector
Knob
Foot
Plate
Cabinet
557
18.404-3
18.121-3
345
2.202-3
18.020-3
18.405-3
3.506-3
1.965-3
1.918-3
1.342-3
18.422-3
1
2
3
4
5
6
7
8
9
10
11
12
1
2
8
9
11
7
3
4
1
1
5
6
CROYDON
CROYDON
GR1G-G00005-A2
12
10
