Crystal Clean 2733 User manual

MODEL 2733
Adjustable Aqueous Mobile Unit
Electric or Air Operated
Operating Manual
Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948

Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948
2
INTRODUCTION
GENERAL INSTRUCTIONS
CAUTION
READ AND UNDERSTAND ALL LABELS, MSDS, AND THIS INSTRUCTION MANUAL BEFORE USE.
The Industrial Solvent Parts Cleaner is an economical, safe, and innovative system designed to clean parts, using a
mineral spirit based solvent. Solvents, when used to clean grease and oil, must be disposed of properly. Consult your
local environmental management agency for additional guidance and other potentially hazardous materials
compliance requirements.
Install your parts cleaner on a flat, level surface in an area provided with adequate ventilation. Avoid repeated or
prolonged breathing of vapors. Do NOT use compressed air to dry parts as this may cause a high concentration of
vapors in the immediate area. Local exhaust ventilation should be used in areas of high vapor concentration. Provisions
for determining and maintaining adequate ventilation are the responsibility of the operator.
Make sure the parts cleaner is connected to a properly grounded power source. Check serial plate for power
requirements.
Do not allow parts cleaner to operate unattended.
Complete safety in use is dependent upon proper use and handling of the parts cleaner in your workplace.
It is important that you follow the instructions provided in this manual. If you fail to read, understand, and follow all of
the procedures in this manual, you may cause or suffer personal injury.
DO NOT OPERATE ELECTRICAL EQUIPMENT INSIDE OF PARTS CLEANER.

Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948
3
CAUTION
USE ONLY WATER-BASED CLEANING SOLUTIONS DO NOT USE MINERAL SPIRITS
This equipment is designed for use only with Aqueous Based Solutions. Do NOT add any other chemicals to the
cleaning agent including, but not limited to, kerosene, fuel oil, gasoline, or chlorinated solutions. The use of any other
solutions could potentially cause a hazardous condition.
CAUTION
DO NOT ALLOW HEATER TO OPERATE UNATTENDED FOR LONG PERIODS,
SUCH AS EVENINGS OR WEEKENDS.
Avoid contact with eyes or skin. Wear protective eyewear, gloves, and clothing. Operation should be conducted in a
manner, which prevents splashing, or spillage. Any spills should be promptly and properly cleaned up. Soak up all spills
with absorbent material. Remove and dispose of all soaked material in accordance with regulatory requirements.
 This unit is NOT intended for outdoor operation.
 Do NOT leave solution-soaked rags in parts cleaner or in uncovered containers.
 Do NOT obstruct the cover. It is designed to close automatically in the event of a fire. The safety link and cover
closing mechanism must be intact. Do NOT substitute with any other type of cover positioning device. Do
NOT leave large objects in the parts cleaner or hang anything on the cover that could prevent the cover from
closing in the event of a fire.
 Do NOT place heavy objects on edges or front of sink. Although this parts cleaner is designed to be stable,
uneven weight distribution could cause a hazardous condition.
 Do NOT contaminate cleaning solutions with gasoline, alcohol or flammable liquids.
 When cleaning carburetors or other fuel supplying components: remove all gasoline into a proper disposal
container before placing the component into the parts cleaner.
 Do NOT spray aerosols into or around this machine. Install the equipment in an area away from heat, sparks,
and open flame. Never put hot parts into the solution.
 Do NOT use compressed air to dry parts. Be sure parts, especially brake parts, are completely dry prior to
reassembly.
 Turn unit "OFF" and close lid when equipment is not in use. This will reduce evaporation.

Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948
4
IMPORTANT SAFETY INSTRUCTIONS
1. Read all instructions.
2. Care must be taken as burns can occur from touching hot parts.
3. Do not operate equipment with a damaged cord or if the equipment has been dropped or damaged – until it has
been examined by a qualified service person.
4. If an extension cord is necessary, a cord with a current rating equal to or more than that of the equipment should
be used. Cords rated for less current than the equipment may overheat. Care should be taken to arrange the cord
so that it will not be tripped over or pulled.
5. Always unplug equipment from electrical outlet when not in use. Never use the cord to pull the plug from the
outlet. Grasp plug and pull to disconnect.
6. To reduce the risk of fire, do NOT operate equipment in the vicinity of open containers of flammable liquids
(gasoline).
7. To reduce the risk of electric shock, do NOT use on wet surfaces or expose to rain.
8. Use only as described in this manual. Use only manufacturer’s recommended attachments.
9. ALWAYS WEAR PROPER PPE
10. Do NOT operate any electrical equipment inside sink or vat.
11. Do NOT use light bulbs rated over 40 watts.
12. Do NOT smoke, eat or drink in the work area.
13. Do NOT modify these machines.
14. Do NOT operate this unit in any manner that will cause splashing or cause mist to form.
15. Use only the aqueous solution provided.
16. Adjust flexible nozzle or flow-thru brush so solution is directed to inside the sink only.
17. On the Control box, set the breaker switches to OFF before plugging in unit.
18. In any emergency, turn off the unit.
19. These parts washers employ a safety feature called a fusible link that holds the cover open during use. Do NOT
modify, alter, or obstruct the operation of the fusible link.
20. Keep cover closed whenever unit is not in use.
21. Do NOT remove fluid from this equipment or it may cause malfunction or unsafe conditions.
SAVE THESE INSTRUCTIONS

Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948
5
SERVICE
 Call your representative should your parts cleaner need service and always unplug unit when servicing.
 Inspect and keep in good working order the power cord and all electrical components. If components show
signs of damage or wear replace immediately. All work should be done by a trained technician.
 Do NOT replace pump before unplugging unit.
 Do NOT replace fusible link with any other device to hold lid up. If fusible link should fail, for any reason, call
your representative immediately.
INSTALLATION
 Install the parts cleaner on a flat, level surface in a well-ventilated area.
 Remove the parts packed inside the machine and inspect for damage.
 Fill the machine with 5 gallons of aqueous based solvents. Do NOT add any other chemicals to the cleaning
agent including, but not limited to, kerosene, fuel oil, gasoline, or chlorinated solutions. The use of any other
solutions could potentially cause a hazardous condition.
 Plug the power cord into a properly grounded power source. See serial number plate for proper voltage.
Power Requirements = 1 amp, 115 volt 60 Hz
OR
Power Requirements = 80PSI (Air Operated)
 Weight capacity for this parts cleaner is 50 LBS
 Turn on switch to start flow of chemistry, using the brush to scrub parts.
 When not in use, close cover to reduce chemistry loss.
ADDITIONAL SPECIFICATIONS
 Overall Dimensions: 28.5"L x 14"W x 22"H (lid up)
 Inside Dimensions: 25"L x 14"W x 9"H
 Shipping Weight: 52lbs.
 115Vac/60HZ/1PH
 1 Amp

Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948
6

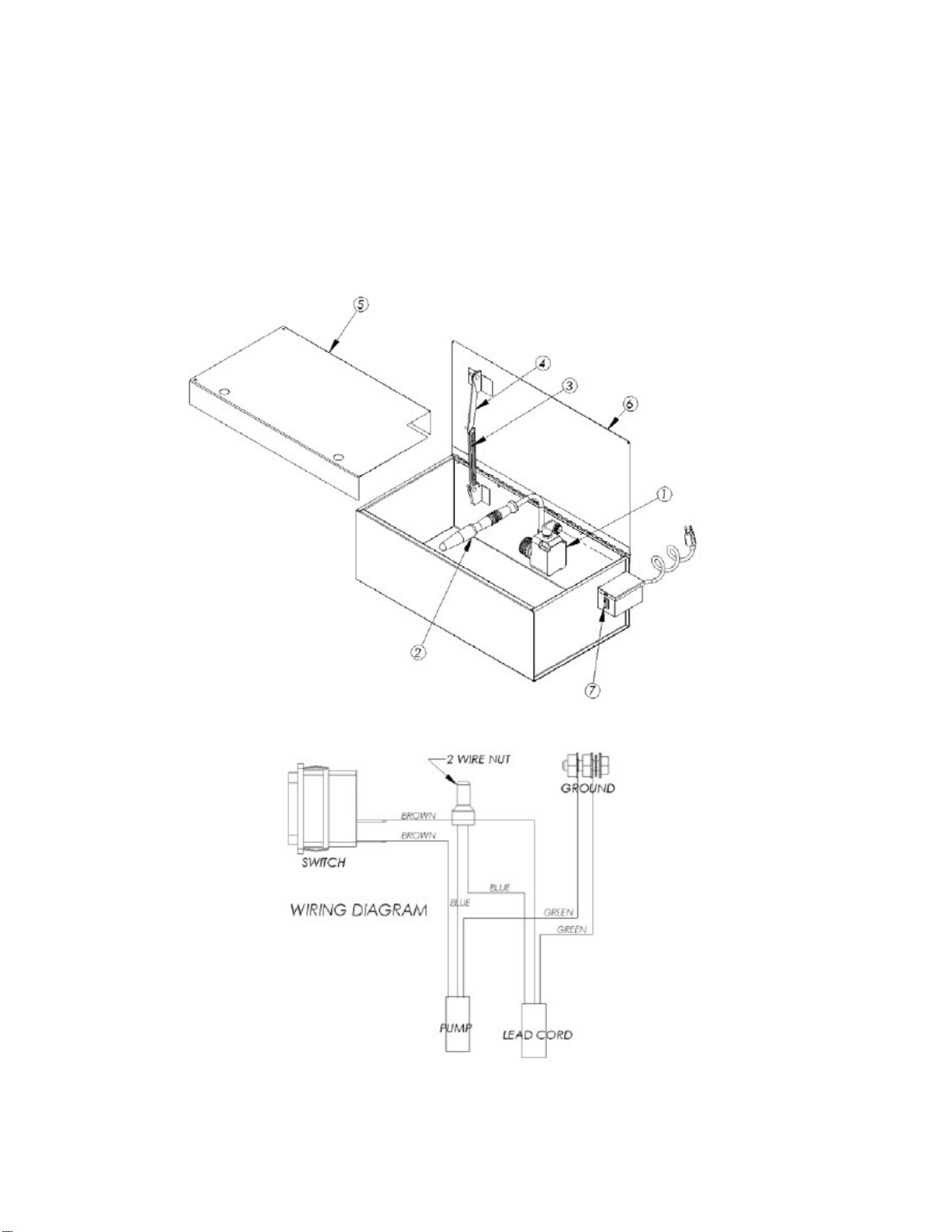

MACHINE DIAGRAM

Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948
7

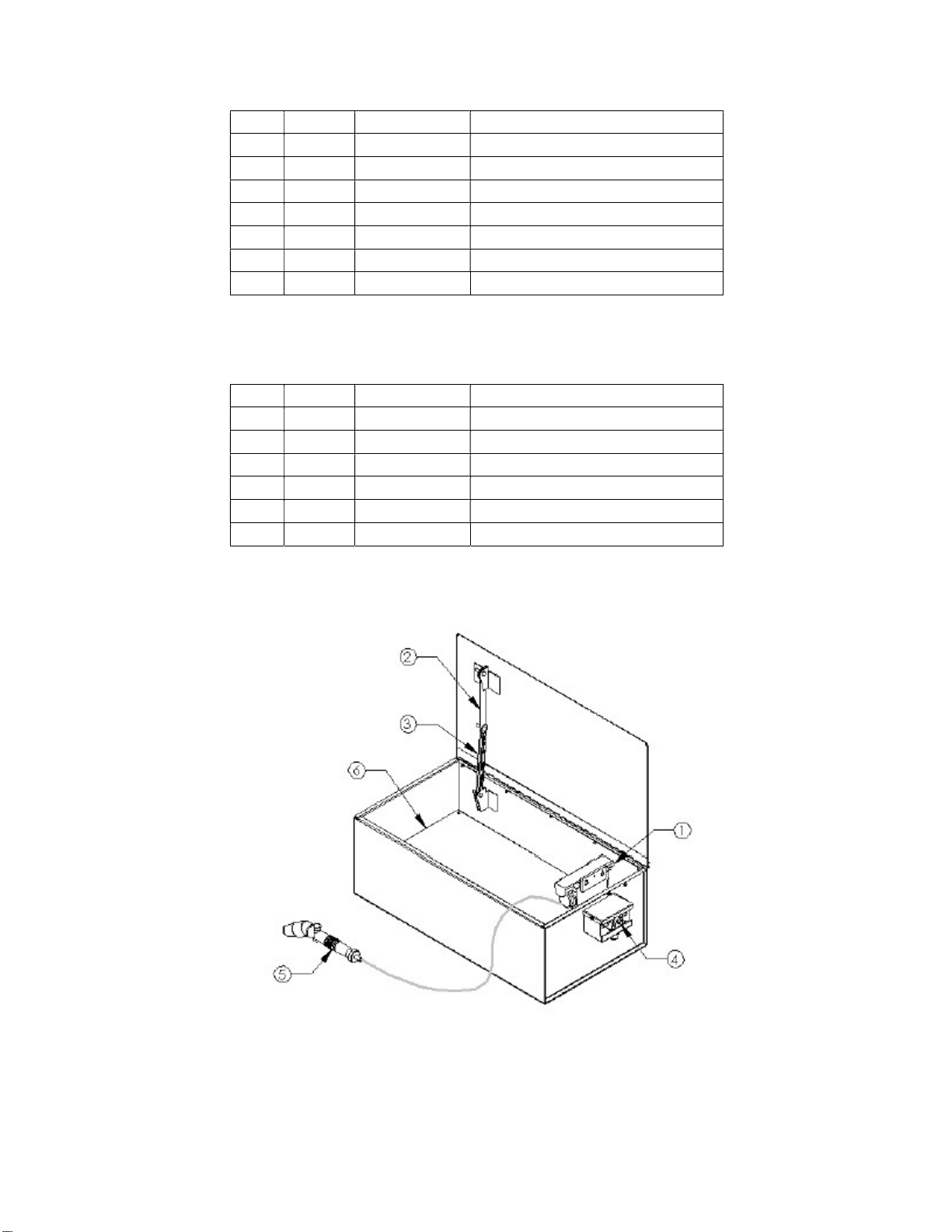

Parts Breakdown – Electric Pump
ITEM QTY PART NO DESCRIPTION
1 1 60773-01 PUMP ASSEMBLY 115V
2 1 8169 BRUSH (INCL W/#1)
3 1 6368 HINGNE STRAP (PLASTIC)
4 1 50534 HINGE STRAP (STEEL)
5 1 61829 SHELF
6 1 55236 TOP COVER
7 1 01122 SWITCH
Parts Breakdown – aIR Pump
ITEM QTY PART NO DESCRIPTION
1 1 57484 PUMP ASSEMBLY, AIR
2 1 50534 HINGE STRAP (STEEL)
3 1 6368 HINGNE STRAP (PLASTIC)
4 1 01000 REGULATOR
5 1 01067 BRUSH W/BUTTON
6 1 60458 SHELF (PAINTED)

Heritage-Crystal Clean, LLC 2000 Center Drive, Suite East C300 Hoffman Estates, IL 60192 877-938-7948
8

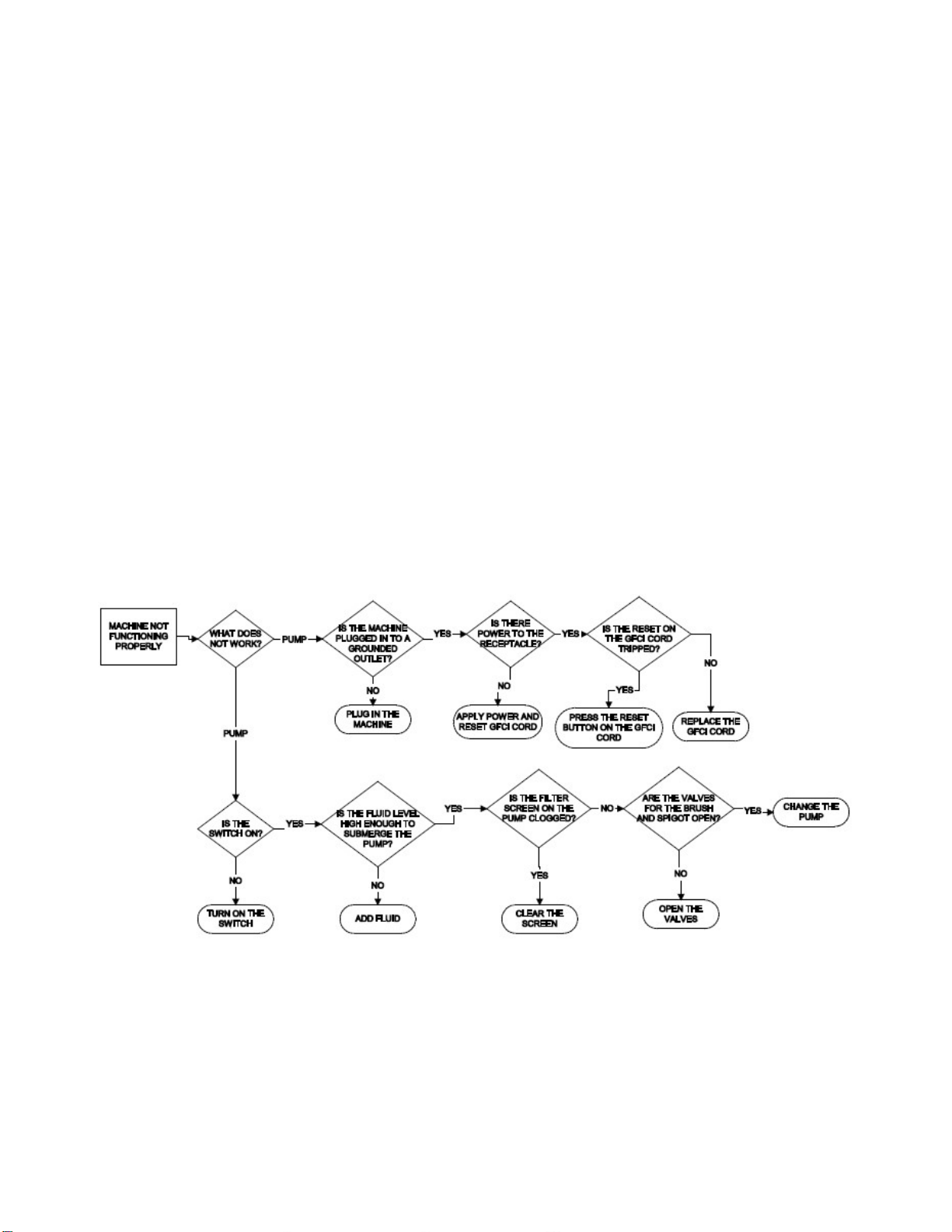

TROUBLESHOOTING
Machine does not operate:
 Make sure the parts cleaner is connected to electric power or air supply.
 Check for incoming power. Check serial plate for power requirements.
 On electric units: check reset button on GFCI cord to make sure it is not tripped. On air units: an increase in air
supply may be required.
Little or no fluid flow thru the flow-thru brush:
 Turn pump switch “ON” or increase air pressure.
 Check the fluid level in the tank.
 Check pump intake for obstructions.
