Crystal Quest OZ-250 Operating instructions

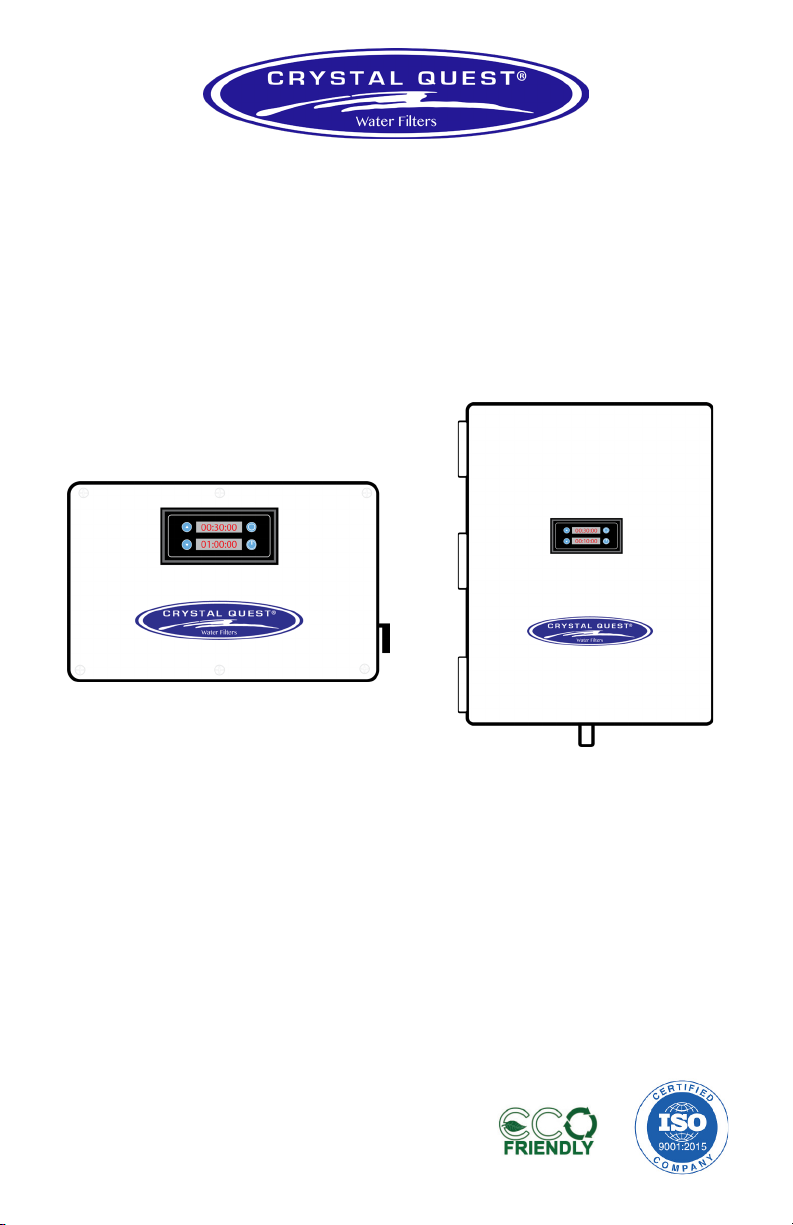

Crystal Quest®Ozonator OZ-250, 400, 600, 800, 2000
INSTALLATION AND OPERATION GUIDE
ONLINE WARRANTY INFORMATION
CrystalQuest.com/warranty.html
Copyright 2020
Crystal Quest®
All rights reserved
MADE IN THE USA

OZONE SAFETY
2
What is Ozone?
Ozone (O3 or trioxygen) is a blue gas, with a density greater than air, and most importantly it is a powerful
anti-viral, anti-microbial, antibacterial, and anti-fungal disinfectant for both air and water. The Crystal Quest
Ozone Generator kills single and multi-cellular organisms including bacteria, viruses (very possibly including the
COVID-19 coronavirus) and fungi. The infusion time varies depending on the size of the indoor space and the
level of ozone that the system produces; after this time you can enjoy a bacteria-free environment with clean air
and peace of mind.
Ozone Safety
To guarantee safety during the use of an Ozone Generator, activate the system when the space is unoccupied.
The Crystal Quest Ozonator is equipped with a timer to assist with safety and will shut the system down prior to
reentry. Please allow at least one hour for the ozone to dissipate before the space is reoccupied.
For Ozone safety, consider what needs to be treated with ozone. Is your goal to sanitize the air you breath,
eliminate odors, remove the smell of tobacco, or disinfect contaminated areas?
0.2% of ozone is a signicant level; this is why ozone concentration is measured in Parts Per Million (PPM).
It only takes 3-4 PPM to kill off all germs, including bacteria, and viruses.
EPA / OSHA STANDARDS:
The Food and Drug Administration (FDA) requires ozone output of indoor medical devices to be no more than
0.05 ppm (parts per million).
The National Institute of Occupational Safety and Health (NIOSH) recommends an upper limit of 0.10 ppm, not
to be exceeded at any time.
EPA’s National Ambient Air Quality Standard for ozone is a maximum 8-hour average outdoor concentration of
0.08 ppm.
If an ozone air purier is going to be running while people are present, the EPA recommends the proper
settings should be selected so that the ozone level is less than 0.08 ppm.
For best results the ozone generator should be mounted as high in the room as practical. Ozone is heavier than
air and it will eventually fall to the oor.
Air circulation is an important factor in how effective ozone works. For large areas, an oscillating fan should be
placed next to the generator to help circulate the ozone throughout the room.
Please Remember: Ozone Generators are an electronic appliance containing electrical parts and connections. Your gener-
ator will become damaged and the ozone output lessened if immersed in water or operated when humidity is above 60%.
Lowering the humidity can often be accomplished with dehumidier or air-conditioner in the room to be treated.
At high concentrations ozone can cause chest pain, coughing, shortness of breath, and throat irritation. Ozone may also
worsen chronic respiratory diseases including asthma and compromise the ability of the body to ght respiratory infec-
tions. If the area is occupied with people, pets, and plants during odor elimination and disinfecting, then Ozone machines
must be operated with very low settings, in well ventilated spaces, and must follow all EPA guidelines.
None of the information presented here-in is to be construed in any way as medical or legal advice . None of the state-
ments made on this site has been evaluated by any applicable government regulatory agency (Federal or State), nor
should the statements or opinions expressed be construed as offering advice of any kind, including but not limited to the
diagnosis, treatment, cure or prevention of any disease.

3
INSTALLATION AND USE
For Basic Odor Elimination and Disinfection:
1. Determine the designated area for
disinfection or shock treatment
2. Place the Crystal Quest Ozonator in an
isolated area and plug into a power supply.
3. Set the timer according to the desired level
of disinfection
4. Begin with the top right-hand button to set
the irst timer which is the pause-time
(the time in which the system will not be active)
5. Press the top right button again to
set the second timer which is the run-time. This
is the amount of time
For Shock Treatment / Advanced
Odor Elimination and Disinfection
1. Determine the designated area for
disinfection or shock treatment
2. Place the Crystal Quest Ozonator in
an isolated area and Plug the Ozonator into a power suppl
3. Set the run-time for the desired amount of treatment,
and do not set the pause-time
to allow the system to remain active.
4. Evacuate the area and then close off the area for a few
hours to several days, depending on the desired level of
treatment.
5. Allow at least double the treatment time for the Ozone
to diccipate prior to re-entry.
Use a properly-sized ozone generator in short cycles of 1-4 hours at a time. Apply Ozonator
treatment incrementally once every two to seven days The variables for application is TIME and
OZONE OUTPUT, so a measured approach is highly recommended if you are not well-versed in the
use of ozone. Following the directions and EPA guidelines is the best way to avoid complications.
CQE-OZ-250 TIMER INSTRUCTIONS:
When the Ozone generator is working, the left light is on. When the air pump is
working, the right light is on. When the ozone generator and the air pump are
working, the ON/OFF indicator will lash. When neither the ozone generator nor the
air pump is working, the ON/OFF indicator will turn red.
OZ-250 TIMER
OZ-400, 600, 800, 2000 TIMER

INSTALLATION AND USE CONTINUED....
KEEP THIS MANUAL FOR FUTURE REFERENCE AND UNIT MAINTENANCE
Online warranty information
http://crystalquest.com/warranty.htm
Product design is subject to change without notice.
For further assistance, contact your Crystal Quest dealer
or visit us at www.crystalquest.com
To view the latest edition of the OZ-200 Ozonator Guide visit CrystalQuest.com
Please note all drawings, pictures, colors and sizes are approximate for illustrative purposes only
and may not exactly resemble the end product.
4
ONE-YEAR LIMITED WARRANTY
CRYSTAL QUEST® warrants your CRYSTAL QUEST®Ozonator for one year from the date of
purchase against all defects in materials and workmanship when used in compliance with the
manual. CRYSTAL QUEST® disclaims all implied warranties including, without limitation, warranties
of merchantability and tness for a particular purpose. If for any reason the product proves
to be defective within one year from the date of purchase (90 days for lter cartridge), please
call for assistance. This warranty gives you specic legal rights and you may have other legal
rights which vary from state to state. CRYSTAL QUEST®assumes no responsibility for incidental
or consequential damages, for damages arising out of misuse of the product, or the use of
any unauthorized attachment. Some states do not allow the exclusion or limitation of implied
warranties or incidental or consequential damages; therefore, the above limitations or exclusions
may not apply to you. Should service be required during or after the warranty period or should
you have any questions regarding how to use your CRYSTAL QUEST®Ozonator, contact our
Technical Support Department at [e-mail], Monday through Friday, 9 A.M. to 5
P.M. Eastern Time.
For decontamination shock treatments 0.5-2.0 mg/hr ozone should be used for every 100 sq/ft, depending on the time
re-quired to complete the treatment for the specific area and the area’s condition. Output of Ozone during
decontamination shock treatment will vary upon temperature of the area.
DECONTAMINATION SHOCK TREATMENT IS MOST EFFECTIVE IN 60 DEGREES FAHRENHEIT AND BELOW.
GEOGRAPHIC LOCATION CAUSES TEMPERATURES TO VARY (for example an Alaska user vs a Florida user),
THEREFORE THE ROOM TEMPERATURE MUST BE SET ACCORDINGLY.
