Crystal Vision Indigo VDA210M HD User manual

VDA210M HD
Analogue video distribution amplifier
Crystal Vision Ltd., Lion Technology Park, Station Road East, Whittlesford, Cambridge, CB22 4WL, England.
Tel: [phone] Fax: [phone] [e-mail] www.crystalvision.tv

Crystal Vision VDA210M HD User Manual
Contents
1Introduction 2
2Hardware installation 4
2.1 Universal rear connectors 4
Rear module connections with RM01 5
Rear module connections with RM15 5
Rear module connections with RM18 6
Rear module connections with RM02 6
2.2 Module configuration 7
Changing the input termination 7
Changing the channel mode 8
2.3 General purpose interface 8
3Card edge operation 12
4Trouble shooting 13
Card edge monitoring 13
Fault finding guide 13
5Specification 14
Revision 1. Note on equalisation added, page 12. Specifications amended. 15/01/09
Revision 2. Specification table amended. 20/11/09
Revision 3. Specification table amended. 09/06/10
VDA210M HD User Manual R1.31 06 June 2018

Crystal Vision Introduction
1 Introduction
The VDA210M HD is a 2-in, 11-out distribution amplifier with continuously variable
gain and equalisation for up to 300 metres of coaxial cable for use with both Standard and
High Definition composite signals.
The VDA210M HD may be used with the RM01 single slot rear connector, the RM02
quadruple slot rear connector and the RM15 and RM18 double slot rear connectors. A
single slot rear connector provides five equalised outputs. An additional five or six extra
outputs and an input loop-through are available with alternative frame rear modules.
Input termination is link selectable and passive loop-through is independent of the
amplifier. The module may be removed without losing the looped-through source.
VDA210M HD is a very compact board with 24 modules fitting in a 4U frame when a
single slot rear connector is used.

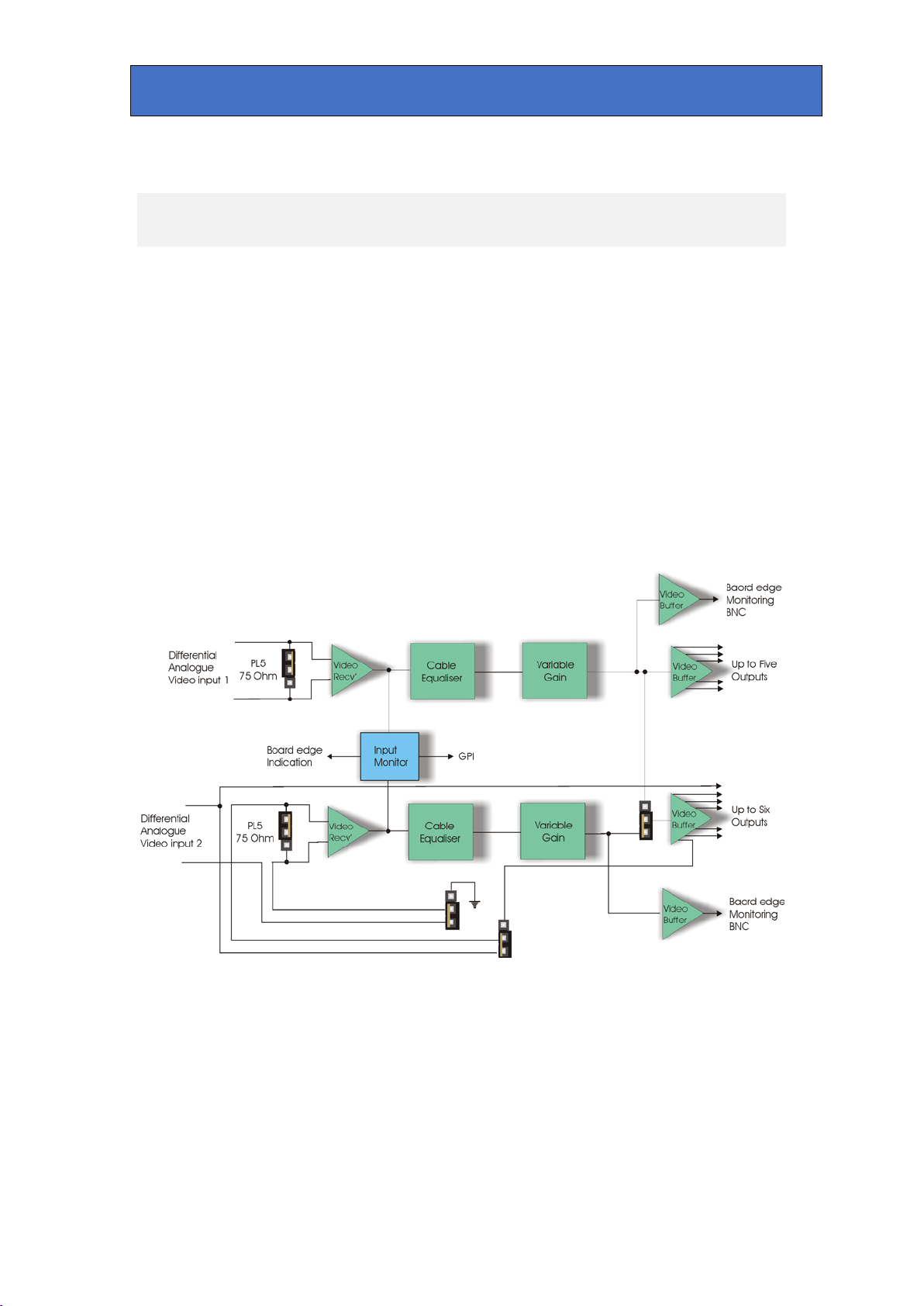

VDA210M HD analogue video DA
The VDA210M HD can be configured in one of two ways:
•2 channels - channel 1 is 1-in 6-out; channel 2 is 1-in 5-out
•1 channel - channel 1 is 1-in 11-out
The VDA210M HD has LED and GPI indication of input presence/failure.
VDA210M HD User Manual R1.32 06 June 2018

Crystal Vision Introduction
The main features are as follows:
•Dual 1-in 6/5-out or single 1-in 11-out video distribution amplifier
•Continuously variable equalisation for up to 300 metres of coaxial cable.
•GPI/LED input presence indication
•Card edge control
Note:
Only the RM18 rear connector allows access to all 6 outputs of channel 1 (or all 11
outputs in single channel mode).

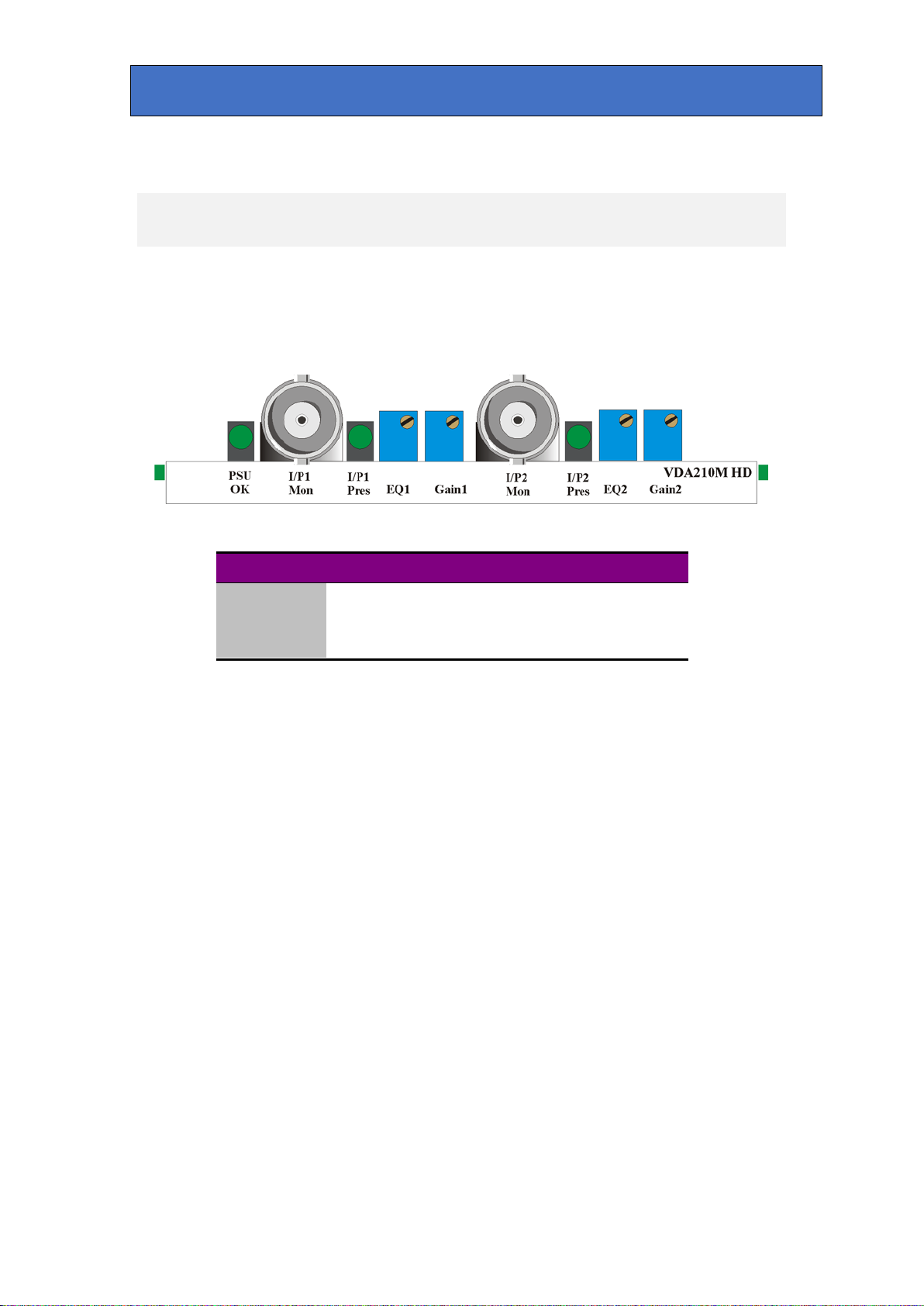

The unit plugs into the front of the rack frame, and the universal connection system
allows a mixture of Crystal Vision modules in the frame. The hinged front panel of the
case reveals LED indication of input status and controls for cable equalisation and gain.
VDA210M HD User Manual R1.33 06 June 2018

Crystal Vision Hardware installation
2 Hardware installation
The VDA210M HD single channel video distribution amplifier fits into all Crystal Vision
rack frames. All modules can be plugged in and removed while the frame is powered
without damage.
2.1 Universal rear connectors
When used with a single height rear connector, the 4U Indigo frame will house up to 24
modules and three power supplies, 2U Indigo frame will house up to 12 modules and two
power supplies, the 1U Indigo frame will house 6 modules and a single or dual power
supply. The 1U desktop box has a built-in power supply and will house up to 2 modules
with a single height rear connector.
The 4U, 2U and 1U frames have a hinged front panel, which gives access to the PSU and
all modules. The desktop box has a removable front. The universal frame wiring system
allows any of the interface range of modules to be fitted in any position with the use of
removable rear modules.
There are six types of rear connector available that provide system flexibility by allowing
a mix between total I/O access and module packing density.
The VDA210M HD may be used with the RM01 and single slot rear connector for up to
24 modules, the RM02 quadruple slot rear connectors for up to 8 modules and the RM15
and RM18 double slot rear connectors for up to 12 modules in a 4U frame.
Note:
The 1U indigo frame and desk top box will not accept either the quad height RM02 or
RM10.
The following table summarises the rear connectors available and their recommended use
with the dual channel VDA210M HD. It also shows the connections for the VDA210M
HD in VDA110M HD mode.
Connector No of
Slots
No of
Cards *
Loop-
through
VDA110M
HD mode
VDA210M
HD
Differential
inputs
RM01 1 1 No 1 in 5 out 2 in 2 x 2 out No
RM09 1 1 1 1 in 4 out Not used Yes
RM15 2 1 2 Not used 2 in 2 x 4 out Yes
RM16 2 1 1 1 in 10 out Not used 1st input only
RM18 2 1 No 1 in 11 out 2 in 5 out / 6 out No
RM02 4 3 No 1 in 8 out 2 in 3 out / 4 out 1st input only
RM10 4 3 1 1 in 7 out Not used Yes
Notes:
*Table shows no of cards per rear connector.
Passive loop-through is independent of the amplifier; the module may be removed
without losing the looped-through source.
VDA210M HD User Manual R1.34 06 June 2018

Crystal Vision Hardware installation
Rear module connections with RM01
RM01 fits in all frames
Description
RM01
•24 modules in 4U, 12 in 2U,
6 in 1U & 2 in a DTB
•All frame slots can be used
BNC Single-channel configuration Dual-channel configuration
IN Ch A Input Input 1
OUT 1 Ch A Output Output 1
OUT 2 Ch A Output Output 1
OUT 1 Ch B Output Output 2
OUT 2 Ch B Output Output 2
IN Ch B Output Input 2
Rear module connections with RM15
RM15 fits in all frames
Description
RM15
•12 modules in 4U, 6 in 2U, 3
in 1U & 1 in a DTB
•1 module per rear connector
•Card fits in upper slot
•No card fits in lower slot
BNC Single-channel configuration Dual-channel configuration
Channel A In Input 1 Input 1
Channel A Loop Input 1 Loop-Through Input 1 Loop-Through
Channel A 1 Output 1 Output 1
Channel A 2 Output 1 Output 1
Channel A 3 Output 1 Output 1
Channel A 4 Output 1 Output 1
Channel B In Output 1 Input 2
Channel B Loop No connection – see note Input 2 Loop-Through
Channel B 1 Output 1 Output 2
Channel B 2 Output 1 Output 2
Channel B 3 Output 1 Output 2
Channel B 4 Output 1 Output 2
Notes:
Do not make a connection to both Channel B In and B Loop in single mode, as this will
double terminate that output.
VDA210M HD User Manual R1.35 06 June 2018

Crystal Vision Hardware installation

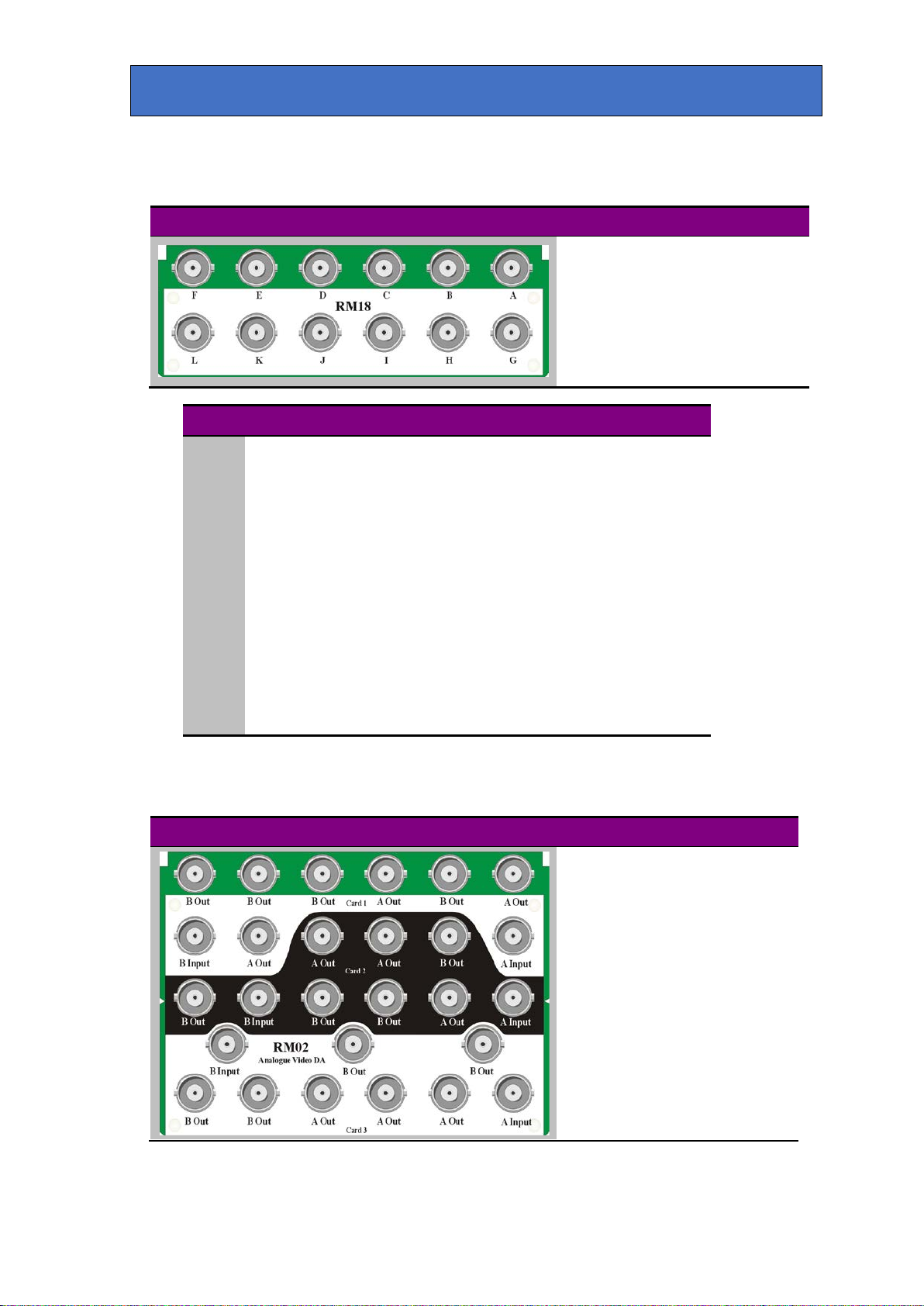

Rear module connections with RM18
RM18 fits in all frames
Description
RM18
•12 modules in 4U, 6 in 2U, 3 in
1U & 1 in a DTB
•1 module per rear connector
•Card fits in upper slot
•No card fits in lower slot
BNC Single-channel configuration Dual-channel configuration
A Output Output 1
B Input Input 1
C Output Output 1
D Output Output 2
E Output Input 2
F Output Output 2
G Output Output 2
H Output Output 2
I Output Output 1
J Output Output 2
K Output Output 1
L Output Output 1
Rear module connections with RM02
RM02 fits in Indigo 2 and Indigo 4 frames Description
RM02
•12 modules per 4U frame
•9 modules per 2U frame
•3 modules per rear connector
•Card 1 fits in slots 1, 5 and 9
•Card 2 fits in slots 2, 6 and 10
•Card 3 fits in slots 4, 8 and 12
•No card fits in 3, 7 or 11
VDA210M HD User Manual R1.36 06 June 2018

Crystal Vision Hardware installation
BNC Single-channel configuration Dual-channel configuration
A input Input Input 1
B input Output Input 2
A out Output Output 1
B out Output Output 2
2.2 Module configuration
The VDA210M HD is equipped with on-board jumper links for input termination and
input/output channel configuration.

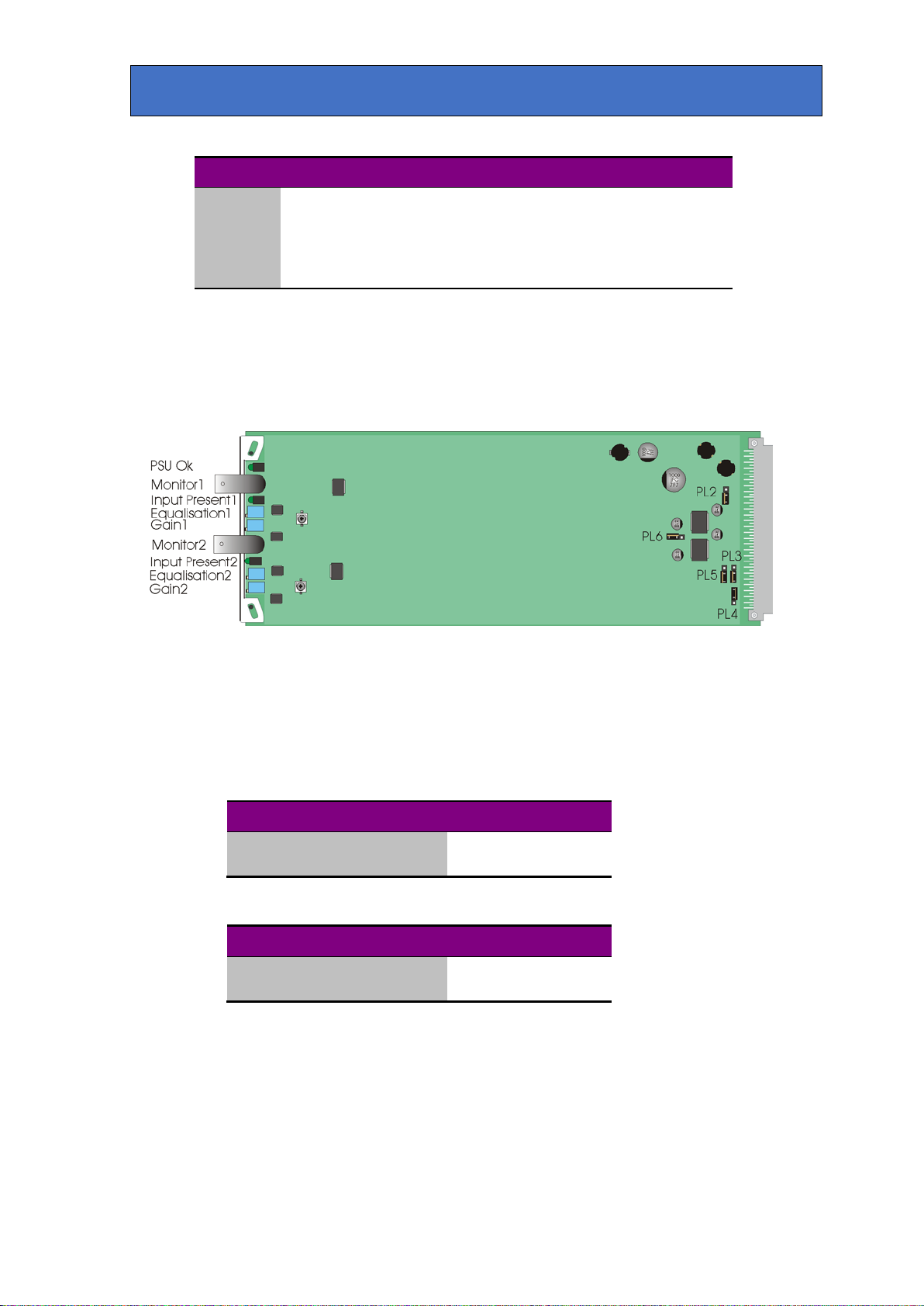

VDA210M HD showing termination jumper PL2
Changing the input termination
Move jumper PL2 (Ch1) and/or PL5 (Ch2) to the appropriate position to set the input
termination to either 75Ωor high-impedance loop-through.
Input 1 termination
PL 2 position Termination
Loop-through position (top) High-impedance
75R position (bottom) Terminated 75 Ω
Input 2 termination
PL 5 position Termination
Loop-through position (top) High-impedance
75R position (bottom) Terminated 75 Ω
VDA210M HD User Manual R1.37 06 June 2018

Crystal Vision Hardware installation
Changing the channel mode
In dual-channel (standard) configuration, the VDA210M HD is configured as 2 inputs. In
single-channel configuration, the VDA210M HD is configured as Input 1 only, Input 2 is
not used.
Mode PL3 position PL4 position PL6 position
Dual channel Bottom position Top position Towards front
Single channel Top position Bottom position Towards rear
Note:
Other adjustments on the card should normally be left in the factory default positions.
2.3 General purpose interface
Each frame slot has up to six connections ‘a-f ‘for GPI control and monitoring. These
connections are available at the rear of the frame on the 26-way D-type remote
connectors.
GPI Low (<1V) High (+5V)
1 ‘a’ Input 1 status Input present Input absent
2 ‘b’ Input 2 status Input present Input absent
3-6 ‘c-f’ Not used
As supplied, each GPI output has a 220Ω resistor in series with its output. This allows for
an external LED to be driven, connected to a DC voltage of +5V.
GPI input connections have 10kΩpull-up resistors to the internal chassis +5V.
VDA210M HD User Manual R1.38 06 June 2018

Crystal Vision Hardware installation
4U frame GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to one of eight rear remote connectors as follows:
Slot no.
‘a’ pin
‘b’ pin
‘c’ pin
‘d’ pin
‘e’ pin
‘f’ pin
1
8 (1)
9 (1)
18 (1)
26 (1)
19 (2)
20 (2)
2
7 (1)
16 (1)
17 (1)
25 (1)
10 (2)
11 (2)
3
8 (3)
9 (3)
18 (3)
26 (3)
19 (4)
20 (4)
4
7 (3)
16 (3)
17 (3)
25 (3)
10 (4)
11 (4)
5
5 (1)
6 (1)
15 (1)
24 (1)
1 (2)
2 (2)
6
4 (1)
14 (1)
13 (1)
23 (1)
3 (2)
4 (2)
7
5 (3)
6 (3)
15 (3)
24 (3)
1 (4)
2 (4)
8
4 (3)
14 (3)
13 (3)
23 (3)
3 (4)
4 (4)
9
3 (1)
12 (1)
22 (1)
21 (1)
12 (2)
13 (2)
10
10 (1)
11 (1)
19 (1)
20 (1)
21 (2)
22 (2)
11
3 (3)
12 (3)
22 (3)
21 (3)
12 (4)
13 (4)
12
10 (3)
11 (3)
19 (3)
20 (3)
21 (4)
22 (4)
Slot no.
‘a’ pin
‘b’ pin
‘c’ pin
‘d’ pin
‘e’ pin
‘f’ pin
1
8 (5)
9 (5)
18 (5)
26 (5)
19 (6)
20 (6)
2
7 (5)
16 (5)
17 (5)
25 (5)
10 (6)
11 (6)
3
8 (7)
9 (7)
18 (7)
26 (7)
19 (8)
20 (8)
4
7 (7)
16 (7)
17 (7)
25 (7)
10 (8)
11 (8)
5
5 (5)
6 (5)
15 (5)
24 (5)
1 (6)
2 (6)
6
4 (5)
14 (5)
13 (5)
23 (5)
3 (6)
4 (6)
7
5 (7)
6 (7)
15 (7)
24 (7)
1 (8)
2 (8)
8
4 (7)
14 (7)
13 (7)
23 (7)
3 (8)
4 (8)
9
3 (5)
12 (5)
22 (5)
21 (5)
12 (6)
13 (6)
10
10 (5)
11 (5)
19 (5)
20 (5)
21 (6)
22 (6)
11
3 (7)
12 (7)
22 (7)
21 (7)
12 (8)
13 (8)
12
10 (7)
11 (7)
19 (7)
20 (7)
21 (8)
22 (8)
Table shows pin number (Remote number)
Note:
Remote 1, Remote 3, Remote 5 and Remote 7 are 26 way high-density D-Type female
sockets. Frame ground is pin 2 and +5V @500mA is pin 1 in each case.
Remote 2, Remote 4, Remote 6 and Remote 8 are 26 way high-density D-Type male
plugs and frame ground is pin 6 in each case and +5V @500mA is pin 15 on Remote 2
and Remote 6.
The +5V output is protected by self-resetting thermal fuses, which limit the total output
current available from Remotes 1-4 to approximately 1A. Remotes 5-8 are similarly
protected.
UpperLower
VDA210M HD User Manual R1.39 06 June 2018

Crystal Vision Hardware installation
2U frame GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to one of four rear remote connectors as follows:
Slot no.
‘a’ pin
‘b’ pin
‘c’ pin
‘d’ pin
‘e’ pin
‘f’ pin
1
8 (1)
9 (1)
18 (1)
26 (1)
19 (2)
20 (2)
2
7 (1)
16 (1)
17 (1)
25 (1)
10 (2)
11 (2)
3
8 (3)
9 (3)
18 (3)
26 (3)
19 (4)
20 (4)
4
7 (3)
16 (3)
17 (3)
25 (3)
10 (4)
11 (4)
5
5 (1)
6 (1)
15 (1)
24 (1)
1 (2)
2 (2)
6
4 (1)
14 (1)
13 (1)
23 (1)
3 (2)
4 (2)
7
5 (3)
6 (3)
15 (3)
24 (3)
1 (4)
2 (4)
8
4 (3)
14 (3)
13 (3)
23 (3)
3 (4)
4 (4)
9
3 (1)
12 (1)
22 (1)
21 (1)
12 (2)
13 (2)
10
10 (1)
11 (1)
19 (1)
20 (1)
21 (2)
22 (2)
11
3 (3)
12 (3)
22 (3)
21 (3)
12 (4)
13 (4)
12
10 (3)
11 (3)
19 (3)
20 (3)
21 (4)
22 (4)
Table shows pin number (remote number)
Note:
Remote 1 and Remote 3 are 26 way high-density D-Type female sockets. Frame ground
is pin 2 and +5V @500mA is pin 1 in each case.
Remote 2 and Remote 4 are 26 way high-density D-Type male plugs and frame ground is
pin 6 in each case and +5V @500mA is pin 15 on Remote 2.
The +5V output is protected by self-resetting thermal fuses, which limit the total output
current available from Remotes 1-4 to approximately 1A.
1U frame GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to one of two rear remote connectors as follows:
Slot no.
‘a’ pin
‘b’ pin
‘c’ pin
‘d’ pin
‘e’ pin
‘f’ pin
1
8 (1)
9 (1)
18 (1)
26 (1)
19 (2)
20 (2)
2
7 (1)
16 (1)
17 (1)
25 (1)
10 (2)
11 (2)
3
5 (1)
6 (1)
15 (1)
24 (1)
1 (2)
2 (2)
4
4 (1)
14 (1)
13 (1)
23 (1)
3 (2)
4 (2)
5
3 (1)
12 (1)
22 (1)
21 (1)
12 (2)
13 (2)
6
10 (1)
11 (1)
19 (1)
20 (1)
21 (2)
22 (2)
Table shows pin number (remote number)
Note:
Remote 1: 26 way high-density D-Type female socket. Frame ground is pin 2 and +5V
@500mA is pin 1.
Remote 2: 26 way high-density D-Type male plugs and frame ground is pin 6 and +5V
@500mA is pin 15
The +5V output is protected by self-resetting thermal fuses, which limit the total output
current available from Remotes 1-2 to approximately 1A.
VDA210M HD User Manual R1.310 06 June 2018

Crystal Vision Hardware installation
Indigo DT desk top box GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to the rear remote connector as follows:
Slot no.
‘a’ pin
‘b’ pin
‘c’ pin
‘d’ pin
‘e’ pin
‘f’ pin
1
8 (1)
9 (1)
18 (1)
26 (1)
19 (2)
20 (2)
2
7 (1)
16 (1)
17 (1)
25 (1)
10 (2)
11 (2)
Table shows pin number (remote number)
Note:
Remote 1: 26 way high-density D-Type female socket. Frame ground is pin 2 and +5V
@500mA is pin 1.
Remote 2: 26 way high-density D-Type male plugs and frame ground is pin 6 and +5V
@500mA is pin 15
The +5V output is protected by self-resetting thermal fuses, which limit the total output
current available from Remotes 1-2 to approximately 1A.
VDA210M HD User Manual R1.311 06 June 2018

Crystal Vision Card edge operation
3 Card edge operation
The front edge of the VDA210M HD card provides power rail monitoring, signal status
and gain/equalisation adjustments. There is no provision for remote control.
VDA210M HD front edge view
LED Location/colour Meaning when lit
PSU OK Green On board power supplies ok
I/P Present 1 Green Valid signal present
I/P Present 2 Green Valid signal present
Adjusting cable equalisation
Cable equalisation is continuously variable from 0m to 300m using the EQ control.
Note:
The cable equalisation has been optimized for 0-6Mhz operation. It will be less effective at
frequencies up to 30Mhz
Adjusting input gain
Gain is continuously variable. The adjustment range is >±3.0dB using the GAIN control.
The VDA210M HD is supplied with a factory-set gain of 0dB.
Video monitoring
A monitoring output for both inputs are provided by the board edge BNC connectors .
On-board jumper link settings
Please refer to Section 2.2 - Module Configuration to set the following options when
using card edge control:
•Changing the input termination – 75Ωor high-impedance loop-through
•Changing output 2 input source – single (1 x 10) or dual (2 x 5) channel
operation
VDA210M HD User Manual R1.312 06 June 2018

Crystal Vision Trouble shooting
4 Trouble shooting
Card edge monitoring
The front edge of the card provides useful power rail and video monitoring in addition to
card-edge controls and status LEDs.
VDA210M HD front edge view
LED Location/colour Meaning when lit
PSU OK Green On board power supplies ok
I/P Present 1 Green Valid signal present
I/P Present 2 Green Valid signal present
Video monitoring test point
Monitoring output BNCs are provided at the board edge.
Fault finding guide
Basic fault finding guide
The Power OK LEDs are not illuminated
Check that the frame PSU is functioning – refer to the appropriate frame manual for detailed
information
Check that the card is seated correctly in the frame
There is no video output
Check that a valid video input is present and that any cabling is intact
Input 2 does not work
Check that a valid video input is present and that any cabling is intact
Check that the input source set for the second set of BNC outputs is set for Input 2 - dual channel
mode (2 x 5)
The video output is low quality
Check that the cable equalisation is correct for the input cable and that the maximum length has not
been exceeded
VDA210M HD User Manual R1.313 06 June 2018

Crystal Vision Specification
5 Specification
General
Dimensions 100mm x 266 mm module with DIN 41612 connector
Weight 140g
Power consumption 1.4 W
Inputs
Video Two analogue inputs.
Input loop-through available with selected rear modules
Outputs
Number and type:
11 (maximum) cable-equalised analogue
Gain adjustment
Continuous adjustment:
Greater than ± 3.0dB
Cable Equalisation
Continuous adjustment:
0 to 300m Belden 8281 or equivalent
Performance
Frequency response:
± 0.05dB 0 to 6MHz. ± 0.2dB 6 to 10MHz. ± 1.5dB 10 to 30MHz.
Differential phase: < 0.4o at 5MHz
Differential gain:
< 0.2% at 5MHz
Signal to noise ratio: Greater than 70dB weighted
GPI lines
Outputs: 1 (D-type on frame)
Input presence/absent for each input
Status monitoring
LED display
Front of card edge visual monitoring with LED indicators to
indicate:
PSU rails present
Input present
VDA210M HD User Manual R1.314 06 June 2018
