Crystal Vision Indigo Smart Switch 3G User manual

Smart Switch 3G
Intelligent 3G/HD/SD 2 x 2 switch
Crystal Vision Ltd., Lion Technology Park, Station Road East, Whittlesford, Cambridge, CB22 4WL, England.
Tel: [phone] Fax: [phone] [e-mail] www.crystalvision.tv

Crystal Vision Smart Switch 3G User Manual
Smart Switch 3G User Manual R1.10 101/09/2016
Contents
1Introduction 3
2Hardware installation 5
2.1 Module configuration 5
2.2 Rear modules and signal I/O 6
Rear module connections with RM53 6
Rear module connections with RM54 6
2.3 General Purpose Interface (GPI) 7
3Card edge operation 11
3.1 Card edge controls 11
3.2 Card edge buttons 11
3.3 Card edge rotary control 11
3.4 Reading card edge LEDs 12
3.5 Navigating card edge menus 12
3.6 Card edge configuration 13
Menu tree 13
Status menu 14
Alarms menu 16
Control menu 18
Delay menu 20
4Using the front control panel 21
4.1 Module selection 21
4.2 The Smart Switch 3G active panel menu structure 23
Active control panel menus 24
The Status menu 25

Crystal Vision Smart Switch 3G User Manual
Smart Switch 3G User Manual R1.10 201/09/2016
The Alarms menu 27
The Control menu 28
The Delay menu 31
5Statesman 32
5.1 Statesman operation 32
Status 33
Alarms 34
Control 35
Delays 36
GPI control 37
6Trouble shooting 38
Basic fault finding guide 39
7Specification 40
Revision 1 Amended GPI table. Page 6 26/06/09
Revision 2 RM53 information added. Page 6 19/10/09
Revision 3 Connection table clarified. Page 6/SNMP re-added 30/10/09
Revision 4 Changing of Main and Aux to output 1 & 2 15/12/09
Updated Statesman screenshots added 22/12/09
Revision 5 Input timing description amended. Page 4 05/01/10
Revision 6 Note added to GPI table. Page 7 03/03/10
Revision 7 RM54 picture and text amended. Page 6 10/01/11
Revision 8 Updated GPI controls added. Pages 7, 19, 30 & 37. 27/05/11
Revision 9 Board link information updated. Page 5 12/08/11
Revision 10 Updated GPI information. Page 7 18/10/13
Updated Statesman screenshots added

Crystal Vision Introduction
Smart Switch 3G User Manual R1.10 301/09/2016
1 Introduction
The Smart Switch 3G is a HD/SD 2 x 2 intelligent switch that incorporates sophisticated
monitoring of the two video inputs which can include embedded audio. As well as
automatically switching between two sources Smart Switch 3G can also be controlled
manually.
The auto switch function relies on an error priority rating to control the switch function. This
gives the Smart Switch 3G the ability to appraise both sources and make its switching decision
on the error rating attributed to both sources. This means that the Smart Switch 3G will not
switch away from the primary source if it detects that the standby source contains an error
with ahigher priorityrating than the error detected on theprimary source.
Once a switch has occurred the option is then available to either reselect the primary source on
removal of the error, delay before reselecting the primary source or latch in the switched state
until reset manually.
Smart Switch 3G can monitor 20 parameters on both the primary and standby inputs. These 20
parameters are listed in order of priority from input missing to input frozen and channel 3-4
audio silent. Any of these parameters can be selected to create an alarm as well as perform a
switch, although an auto switch can only occur away from the highest priority error.
The Smart Switch 3G card can be controlled by Statesman PC control software, active control
panel such as the REMIND-E, or from its card edge controls. The main features of Smart
Switch 3G are:
Intelligent 2 x 2 switch which works with 3Gb/s, HD and SD
Three reclocked outputs, two output 1s and one output 2. Output 1 with relay bypass
Numerous switching options: input present, video black, video frozen, audio group
present, audio silence and various EDH errors
Board-edge, Statesman and GPI alarm indication
Space-saving: 100mm x 266mm module allowing 12 Smart Switch 3G in 2U
SNMP agent giving status and trap generation with suitable frame

Crystal Vision Introduction
Smart Switch 3G User Manual R1.10 401/09/2016
Smart Switch 3G will take its timing information from the best of both inputs to determine the
correct time to do a switch. If an input is absent the ability to manually control the input
routing is disabled (unless the input missing test is overridden). How clean the switch is will
depend on several factors such as if the standbysignal is synchronous with the main
programme or if the detected fault does not cause a disruption to the timing information such
as audio silence or video black. Loss of input will cause a complete loss of timing information
and will result in an immediate crash switch and will be likely to result in a brief picture
disturbance.
The Smart Switch 3G fits in Crystal Vision’s four standard frames and can be integrated with
any boards from the company’s full product range. The RM53 and RM54 are the frame rear
modules which in addition to the two SDI inputs main and standby, give a switched output, a
fixed output and a user-selectable output that can show either inputs or a further main output.
The RM54 also has relay bypass between its input 1 and output 1 which will automatically
connect the programme on input 1 to the output in the unlikely event of a frame failure or
should the Smart Switch 3G be removed for service.
Applications include immediate reaction to and indication of signal or transmission problems
in large systems, especially in unmanned automatic playout facilities or as a simple signal
probe.

Crystal Vision Hardware installation
Smart Switch 3G User Manual R1.10 501/09/2016
2Hardware installation
The Smart Switch 3G single height module is used with the RM53 and RM54 rear connectors,
which will fit into all Crystal Vision rack frames. All modules can be connected or removed
while the frame is powered, without damaging the board.
2.1 Module configuration

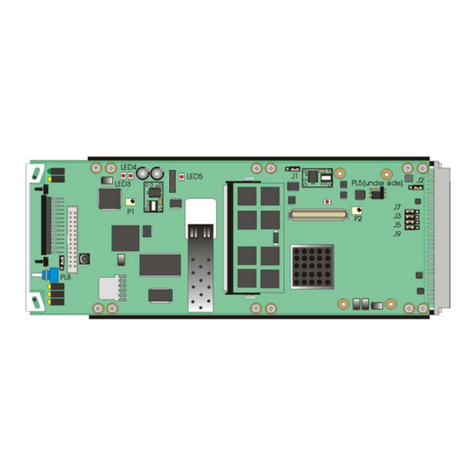

Smart Switch 3G

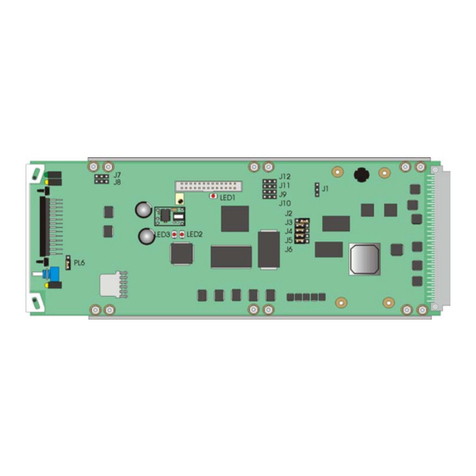

Link configuration and LEDs
There are 13 jumper links and three surface-mounted LEDs on the Smart Switch 3G. The
surface-mounted LEDs are not visible from the front of the frame and are included for
diagnostic purposes only.
Comment
J3-6 GPI
control
←
422
comms
→
Ethernet
comms
→
J9-12 na na na
J1 External reference input termination. 1-2 75R, 2-3 Hi Z
J2 Leave in position 1-2
→
J7 J8 Not used
PL6 2-3 (lower) selected IP address. 1-2 (upper) forced IP address 10-0-0-201
LED1 CPU configuration in progress
LED2 Ethernet Data
LED3 Ethernet Link
Note:
Links J1-12 have been factory set and should not require reconfiguring.

Crystal Vision Hardware installation
Smart Switch 3G User Manual R1.10 601/09/2016
2.2 Rear modules and signal I/O
The 4U Indigo 4 frame will house up to 24 single height modules with up to three power
supplies. The 2U Indigo 2 frame will house up to 12 single height modules and dual power
supplies. The 1U Indigo 1 frame will house six single height modules with either single or
dual power supplies. The Indigo DT desk top box has a built-in power supply and will house
up to two single height modules.
The two appropriate rear modules for the Smart Switch 3G are the RM53 and RM54. Both
rear modules share the same connections. The RM54 has the added benefit of relay bypass
between input 1 and output 1.
Note:
For details of fitting rear connectors please refer to the appropriate frame manual.
Rear module connections with RM53
RM53 fits in all frames Description
RM53
•24 Smart Switch 3G modules
per Indigo 4 frame
•12 per Indigo 2 frame
•Six per Indigo 1 frame
•Two per Indigo DT
•All frame slots can be
used
Rear module connections with RM54
RM54 fits in all frames Description
RM54
•24 Smart Switch 3G modules
per Indigo 4 frame
•12 per Indigo 2 frame
•Six per Indigo 1 frame
•Two per Indigo DT
•All frame slots can be
used
RM53 BNC RM54 BNC I/O assignment
HD/SD IN 2 HD/SD IN 2 Serial Digital input 2 (Aux or Standby Input)
HD/SD IN 1 HD/SD IN 1 Serial Digital input 1 (Main Programme Input)
HD/SD OUT 1A HD/SD OUT 1
(switched) Reclocked SDI output (Programme Out) with relay
bypass protection (RM54 only)
HD/SD OUT 1B HD/SD OUT 1
(Unswitched) Reclocked SDI output (Programme Out) with no relay
bypass protection
HD/SD OUT 2A HD/SD OUT 2A Reclocked SDI output (User selectable)
HD/SD OUT 2B HD/SD OUT 2B Reclocked SDI output, copy of 2A (User selectable)

Crystal Vision Hardware installation
Smart Switch 3G User Manual R1.10 701/09/2016
2.3 General Purpose Interface (GPI)
Each frame slot has up to six connections 'a-f' for GPI control and monitoring. These
connections are available at the rear of the frame on the 26-way D-Type remote connectors.
GPI Low (<1V) High (+5V) Notes
1 ‘a’ See configuration table Held low for tally
2 ‘b’ Held low for tally
3 ‘c’ See configuration table Held low for tally
4 ‘d’ Held low for tally
5 ‘e’ Alarm condition Non-alarm See alarm table
6 ‘f’ See alarm table
As supplied, each GPI output has a 270Ω resistor in series with its output. This allows for an
external LED to be driven, connected to a DC voltage of +5V.
The GPI inputs can be used to control input selection/routing and are configurable for either
pulse or level trigged. They can also be used to give a tally of the selection/routing. When GPI
control is selected to ‘level’ GPI = High (floating) selects Input 1 and GPI = Low (pulled to
ground) selects Input 2.
The following GPI modes can be selected using Statesman, active front panel or board edge
control:
Statesman
label
Front panel/board
edge label
Action
No control,
tally only No GPI Tally on b No GPI control. Tally on GPI 'b' for Output 1 routing and 'd' for
Output 2 routing
Level, 1 GPI Level a Tally b Level control on GPI 'a' for Output 1 routing and 'c' for Output 2
routing. Tally on GPI 'b' for Output 1 routing and 'd' for Output 2
routing
Pulse, 1 GPI Edge a Tally b Pulse (edge) control on GPI 'a' for Output 1 routing and 'c' for
Output 2 routing. Tally on GPI 'b' for Output 1 routing and 'd' for
Output 2 routing
Pulse, 2 GPI Edge ab Tally ab
Pulse (edge) control on GPI 'a' & 'b' for Output 1 routing and 'c' &
'd' for Output 2 routing. Tally on 'a' & 'b' for Output 1 routing and
'c' & 'd' for Output 2 routing
Pulse, 2 GPI,
no tally Edge ab No Tally
Pulse (edge) control on GPI 'a' & 'b' for Output 1 routing and 'c' &
'd' for Output 2 routing. No tally
Pulse, 2 GPI,
force GPI Force Pulse (edge) control on GPI 'a' & 'b' for Output 1 routing. Tally
on 'a' & 'b' for Output 1 routing. GPI 'c' when held low enables
"force" mode so that GPI 'a' & 'b' switch to other input, even if a
fault condition exists. No GPI control or Tally for Output 2
Unless "force" mode is enabled, a GPI input switch will not occur if the input being switched
to contains more significant error conditions than the current input. GPI 5 and 6 can be
configured to show an alarm condition for anyindividual or group of error conditions. Certain
reportable errors such as input missing will result in an immediate indication, whereas other
lesser conditions must be present continuously for a period of time set by the user before an
alarm is asserted. Where a group alarm has more than one preset time delay, an alarm will be
asserted after the longest delay setting.

Crystal Vision Hardware installation
Smart Switch 3G User Manual R1.10 801/09/2016
4U frame GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to one of eight rear remote connectors as follows:
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
1
8 (1)
9 (1)
18 (1)
26 (1)
19 (2)
20 (2)
2
7 (1)
16 (1)
17 (1)
25 (1)
10 (2)
11 (2)
3
8 (3)
9 (3)
18 (3)
26 (3)
19 (4)
20 (4)
4
7 (3)
16 (3)
17 (3)
25 (3)
10 (4)
11 (4)
5
5 (1)
6 (1)
15 (1)
24 (1)
1 (2)
2 (2)
6
4 (1)
14 (1)
13 (1)
23 (1)
3 (2)
4 (2)
7
5 (3)
6 (3)
15 (3)
24 (3)
1 (4)
2 (4)
8
4 (3)
14 (3)
13 (3)
23 (3)
3 (4)
4 (4)
9
3 (1)
12 (1)
22 (1)
21 (1)
12 (2)
13 (2)
10
10 (1)
11 (1)
19 (1)
20 (1)
21 (2)
22 (2)
11
3 (3)
12 (3)
22 (3)
21 (3)
12 (4)
13 (4)
12
10 (3)
11 (3)
19 (3)
20 (3)
21 (4)
22 (4)
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
1
8 (5)
9 (5)
18 (5)
26 (5)
19 (6)
20 (6)
2
7 (5)
16 (5)
17 (5)
25 (5)
10 (6)
11 (6)
3
8 (7)
9 (7)
18 (7)
26 (7)
19 (8)
20 (8)
4
7 (7)
16 (7)
17 (7)
25 (7)
10 (8)
11 (8)
5
5 (5)
6 (5)
15 (5)
24 (5)
1 (6)
2 (6)
6
4 (5)
14 (5)
13 (5)
23 (5)
3 (6)
4 (6)
7
5 (7)
6 (7)
15 (7)
24 (7)
1 (8)
2 (8)
8
4 (7)
14 (7)
13 (7)
23 (7)
3 (8)
4 (8)
9
3 (5)
12 (5)
22 (5)
21 (5)
12 (6)
13 (6)
10
10 (5)
11 (5)
19 (5)
20 (5)
21 (6)
22 (6)
11
3 (7)
12 (7)
22 (7)
21 (7)
12 (8)
13 (8)
12
10 (7)
11 (7)
19 (7)
20 (7)
21 (8)
22 (8)
Table shows pin number (Remote number)
Reportable error conditions
Input missing
Input video different to expected
EDH Missing (SD formats only)
EDH Full Field Error (SD formats only)
EDH Active Picture Error (SD formats only)
Line CRC error (HD formats only)
Selected Audio group missing
Active Video Black for longer than set interval
Active Video Frozen for longer than set interval
Silence from any channel 1-4 of selected group for longer than set interval
Active video Black and Channel 1 silent and Channel 2 silent for longer than longest set interval
Active video Black and Channel 3 silent and Channel 4 silent for longer than longest set interval
Active video Frozen and Channel 1 silent and Channel 2 silent for longer than longest set interval
Active video Frozen and Channel 3 silent and Channel 4 silent for longer than longest set interval
UpperLower

Crystal Vision Hardware installation
Smart Switch 3G User Manual R1.10 901/09/2016
Note: Remote 1, Remote 3, Remote 5 and Remote 7 are 26-way high-density D-Type female sockets.
Frame ground is pin 2 and +5V @500mA is pin 1 in each case.
Remote 2, Remote 4, Remote 6 and Remote 8 are 26-way high-density D-Type male plugs and
frame ground is pin 6 in each case and +5V @500mA is pin 15 on Remote 2 and Remote 6.
The +5V output is protected by self-resetting thermal fuses, which limit the total output current
available from Remotes 1-4 to approximately 1amp. Remotes 5-8 are similarly protected.
2U frame GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to one of four rear remote connectors as follows:
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
1
8 (1)
9 (1)
18 (1)
26 (1)
19 (2)
20 (2)
2
7 (1)
16 (1)
17 (1)
25 (1)
10 (2)
11 (2)
3
8 (3)
9 (3)
18 (3)
26 (3)
19 (4)
20 (4)
4
7 (3)
16 (3)
17 (3)
25 (3)
10 (4)
11 (4)
5
5 (1)
6 (1)
15 (1)
24 (1)
1 (2)
2 (2)
6
4 (1)
14 (1)
13 (1)
23 (1)
3 (2)
4 (2)
7
5 (3)
6 (3)
15 (3)
24 (3)
1 (4)
2 (4)
8
4 (3)
14 (3)
13 (3)
23 (3)
3 (4)
4 (4)
9
3 (1)
12 (1)
22 (1)
21 (1)
12 (2)
13 (2)
10
10 (1)
11 (1)
19 (1)
20 (1)
21 (2)
22 (2)
11
3 (3)
12 (3)
22 (3)
21 (3)
12 (4)
13 (4)
12
10 (3)
11 (3)
19 (3)
20 (3)
21 (4)
22 (4)
Table shows pin number (remote number)
Note:
Remote 1 and Remote 3 are 26-way high-density D-Type female sockets. Frame ground is
pin 2 and +5V @500mA is pin 1 in each case.
Remote 2 and Remote 4 are 26-way high-density D-Type male plugs and frame ground is pin
6 in each case and +5V @500mA is pin 15 on Remote 2.
The +5V output is protected by self-resetting thermal fuses, which limit the total output
current available from Remotes 1-4 to approximately 1amp.
1U frame GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to one of two rear remote connectors as follows:
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
1
8 (1)
9 (1)
18 (1)
26 (1)
19 (2)
20 (2)
2
7 (1)
16 (1)
17 (1)
25 (1)
10 (2)
11 (2)
3
5 (1)
6 (1)
15 (1)
24 (1)
1 (2)
2 (2)
4
4 (1)
14 (1)
13 (1)
23 (1)
3 (2)
4 (2)
5
3 (1)
12 (1)
22 (1)
21 (1)
12 (2)
13 (2)
6
10 (1)
11 (1)
19 (1)
20 (1)
21 (2)
22 (2)
Table shows pin number (remote number)
Note:
Remote 1: 26-way high-density D-Type female socket. Frame ground is pin 2 and +5V
@500mA is pin 1.

Crystal Vision Hardware installation
Smart Switch 3G User Manual R1.10 10 01/09/2016
Remote 2: 26-way high-density D-Type male plugs and frame ground is pin 6 and +5V
@500mA is pin 15.
The +5V output is protected by self-resetting thermal fuses, which limit the total output
current available from Remotes 1-2 to approximately 1amp.
Indigo DT desk top box GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to the rear remote connector as follows:
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
1
8 (1)
9 (1)
18 (1)
26 (1)
19 (2)
20 (2)
2
7 (1)
16 (1)
17 (1)
25 (1)
10 (2)
11 (2)
Table shows pin number (remote number)
Note:
Remote 1: 26-way high-density D-Type female socket. Frame ground is pin 2 and +5V
@500mA is pin 1.
Remote 2: 26-way high-density D-Type male plugs and frame ground is pin 6 and +5V
@500mA is pin 15.
The +5V output is protected by self-resetting thermal fuses, which limit the total output current
available from Remotes 1-2 to approximately 1amp.

Crystal Vision Card edge operation
Smart Switch 3G User Manual R1.10 11 01/09/2016
3 Card edge operation
The card front has a 10-digit display and push switches to navigate the control and status
menus. LEDs are provided to give indication of power rail monitoring and the switch
configuration.
3.1 Card edge controls
Smart Switch 3G card front edge view
3.2 Card edge buttons
The two tactile push button switches allow the operator to navigate within the menu structure.
Button Function Normal state Up, Action Down

Up Menu Push to jump up a menu level or cancel a selection
ENTER Select/Action Push to select a menu and to action and confirm a change
3.3 Card edge rotary control
The board edge rotary encoder is used to navigate through the menu categories and adjust
parameter values.
Control Function
SCROLL
/ADJUST
Rotate SCROLL to identify a menu category. In combination with the ENTER button
select and ADJUST to change the current level or select a further option
Notes: The rotary control can access menus and parameter values by clockwise or anti-clockwise
rotation.

Crystal Vision Card edge operation
Smart Switch 3G User Manual R1.10 12 01/09/2016
3.4 Reading card edge LEDs
Card edge LEDs may be used in conjunction with status information from any connected
remote status panel displayor from Statesman if available.
Refer also to the Trouble shooting chapter for more help with solving problems and
monitoring status information.
The following table summarises the card edge LED functions and colours:
Name
LED
Colour
Function when ON
Function when Off
IP 1 Yellow Input 1 present Input not present
IP 2 Yellow Input 2 present Input not present
PSU Green Good power supply (PSU) rails One or more of the monitor
supplies is out of specification
Yellow Not currently supported
IN1 OP1 Yellow Output 1 showing input 1
IN2 OP1 Yellow Output 1 showing input 2
IN1 OP2 Yellow Output 2 showing input 1
IN2 OP2 Yellow Output 2 showing input 2
3.5 Navigating card edge menus
To access the card edge menu system proceed as follows:
Press the up-arrow [ ] until a top menu category is reached
Rotate the SCROLL control until the desired menu category is found
Push ENTER to enter the sub-menus of that category
Rotate SCROLL to select a sub-menu
Push ENTER to select the desired function. Selection will be indicated by the text being
displayed in italic text
Rotate ADJUST to make the desired change to the selected parameter. The display
brightness will flash slowly to indicate that a change has been made and requires
confirmation
Push ENTER to action the change. The display will cease flashing
Use the up-arrow [ ] and SCROLL control to navigate to further menus
Notes:
The displayed menu brightness will flash slowly if confirmation of a change is required.

Crystal Vision Card edge operation
Smart Switch 3G User Manual R1.10 13 01/09/2016
3.6 Card edge configuration
Menu tree
Tip:
To reach the top menu push the [ ] button repeatedly until a top menu is reached. Rotate the
SCROLL control anti-clockwise until the Status menu appears.

Crystal Vision Card edge operation
Smart Switch 3G User Manual R1.10 14 01/09/2016
Status menu
From the Status top menu press ENTER then SCROLL to access the Status menu list. The
following table lists in order all of the possible selections, the actual selection will depend on
the input type. For a Standard Definition input the EDH messages will be displayed but not the
CRC messages which are related to High Definition. Similarly with a High Definition input
the CRC messages will be visible and the EDH messages will be hidden.
Menu Comment
Input 1 video
standard The input 1 video standard is shown.
1080p 50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60, 625, 525,
Unknown, Missing.
Input 2 video
standard The input 2 video standard is shown.
1080p 50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60, 625, 525,
Unknown, Missing.
Input 1 audio
groups present Groups containing audio data present in the video on input 1. 1234 groups contain audio. ‘-’no audio present.
Input 2 audio
groups present Groups containing audio data present in the video on input 2. 1234 groups contain audio. ‘-’no audio present.
Input 1 EDH
status (SD only) The EDH status of input 1 is shown.
Present, Missing, IP1 EDH NA.
Input 2 EDH
status (SD only) The EDH status of input 2 is shown.
Present, Missing, IP2 EDH NA.
Input 1 EDH
full field status
(SD only)
The EDH full field status of input 1 is shown.
Ok, Error, IP1EDHFFNA.
Input 2 EDH
full field status
(SD only)
The EDH full field status of input 2 is shown.
Ok, Error, IP2EDHFFNA.
Input 1 EDH
active picture
status (SD only)
The EDH active picture status of input 1 is shown.
Ok, Error, IP1EDHAPNA.
Input 2 EDH
active picture
status (SD only)
The EDH active picture status of input 2 is shown.
Ok, Error, IP2EDHFFNA.

Crystal Vision Card edge operation
Smart Switch 3G User Manual R1.10 15 01/09/2016
Input 1 line
CRC status
(HD only)
Input 1 line CRC status is shown.
Ok, Error, IP1 CRC NA
Input 2 line
CRC status
(HD only)
Input 2 line CRC status is shown.
Ok, Error, IP2 CRC NA
Input 1 picture
frozen status Input 1 picture status.
Not frozen, Frozen.
Input 2 picture
frozen status Input 2 picture status.
Not frozen, Frozen.
Input 1 picture
black status Input 1 picture status.
Not Black, Black.
Input 2 picture
black status Input 2 picture status.
Not Black, Black.
Input 1 audio
silence status Input 1 selected group audio channels status.
'-' audio present, ‘s’ audio silent.
Input 2 audio
silence status Input 2 selected group audio channels status.
'-' audio present, ‘s’ audio silent.
Software
version installed The version number of the currently installed software.
Electronically
stored serial
number
The electronically stored PCB serial number. This should correspond
with the serial number label affixed to the PCB connector.
Notes:
If any input is missing, all status displays related to that input will show ‘input missing’.

Crystal Vision Card edge operation
Smart Switch 3G User Manual R1.10 16 01/09/2016
Alarms menu
From the Status top menu rotate SCROLL to display the Alarms menu. Press ENTER to enter
the Alarms menu and rotate SCROLL to show the available options. To select an option press
ENTER; this will cause the display text to change from a normal font to an italic font showing
the option has been selected. Each alarm has two settable selections that can be set. These are:
set for switch (Auto switch) and set for alarm (GPI 6).
Menu Comment
Input missing Rotate the SCROLL/ADJ control to show Input Missing. Press ENTER and rotate SCROLL/ADJ to select. Press ENTER to select.
'-' not selected. ‘A’ set for auto switch. ‘G’ set for alarm.
Selected input
video standard
Rotate the SCROLL/ADJ control to show selected Input Standard.
Press ENTER and rotate SCROLL/ADJ to select. Press ENTER to
select. '-' not selected. ‘A’ set for auto switch. ‘G’ set for alarm.
EDH present
(SD only)
Rotate the SCROLL/ADJ control to show EDH missing. Press
ENTER and rotate SCROLL/ADJ to select. Press ENTER to select.
'-' not selected. ‘A’ set for auto switch. ‘G’ set for alarm.
EDH full field
error
(SD only)
Rotate the SCROLL/ADJ control to show EDH full field error. Press
ENTER and rotate SCROLL/ADJ to select. Press ENTER to select.
'-' not selected. ‘A’ set for auto switch. ‘G’ set for alarm.
EDH active
picture error
(SD only)
Rotate the SCROLL/ADJ control to show EDH active picture error.
Press ENTER and rotate SCROLL/ADJ to select. Press ENTER to
select. '-' not selected. ‘A’ set for auto switch. ‘G’ set for alarm.
Line CRC error
(HD only)
Rotate the SCROLL/ADJ control to show Line CRC error. Press
ENTER and rotate SCROLL/ADJ to select. Press ENTER to select.
'-' not selected. ‘A’ set for auto switch. ‘G’ set for alarm.
Audio group 1
missing
Rotate the SCROLL/ADJ control to show Audio group 1 missing.
Press ENTER and rotate SCROLL/ADJ to select. Press ENTER to
select. '-' not selected. ‘A’ set for auto switch. ‘G’ set for alarm.
Audio group 2
missing
Rotate the SCROLL/ADJ control to show Audio group 2 missing.
Press ENTER and rotate SCROLL/ADJ to select. Press ENTER to
select. '-' not selected. ‘A’ set for auto switch. ‘G’ set for alarm.
Audio group 3
missing)
Rotate the SCROLL/ADJ control to show Audio group 3 missing.
Press ENTER and rotate SCROLL/ADJ to select. Press ENTER to
select. '-' not selected. ‘A’ set for auto switch. ‘G’ set for alarm.
Audio group 4
missing
Rotate the SCROLL/ADJ control to show Audio group 4 missing.
Press ENTER and rotate SCROLL/ADJ to select. Press ENTER to
select. '-' not selected. ‘A’ set for auto switch. ‘G’ set for alarm.

Crystal Vision Card edge operation
Smart Switch 3G User Manual R1.10 17 01/09/2016
Video Black
(timed)
Rotate the SCROLL/ADJ control to show Video black. Press ENTER
and rotate SCROLL/ADJ to select. Press ENTER to select.
'-' not selected. ‘A’ set for auto switch. ‘G’ set for alarm.
Video frozen
(timed)
Rotate the SCROLL/ADJ control to show Video frozen. Press
ENTER and rotate SCROLL/ADJ to select. Press ENTER to select.
'-' not selected. ‘A’ set for auto switch. ‘G’ set for alarm.
Channel 1 of
chosen audio
group silent
(timed)
Rotate the SCROLL/ADJ control to show Silence channel 1. Press
ENTER and rotate SCROLL/ADJ to select. Press ENTER to select.
'-' not selected. ‘A’ set for auto switch. ‘G’ set for alarm.
Channel 2 of
chosen audio
group silent
(timed)
Rotate the SCROLL/ADJ control to show Silence channel 2. Press
ENTER and rotate SCROLL/ADJ to select. Press ENTER to select.
'-' not selected. ‘A’ set for auto switch. ‘G’ set for alarm.
Channel 3 of
chosen audio
group silent
(timed)
Rotate the SCROLL/ADJ control to show Silence channel 3. Press
ENTER and rotate SCROLL/ADJ to select. Press ENTER to select.
'-' not selected. ‘A’ set for auto switch. ‘G’ set for alarm.
Channel 4 of
chosen audio
group silent
(timed)
Rotate the SCROLL/ADJ control to show Silence channel 4. Press
ENTER and rotate SCROLL/ADJ to select. Press ENTER to select.
'-' not selected. ‘A’ set for auto switch. ‘G’ set for alarm.
Video black and
channel 1 & 2
silent (timed)
Rotate the SCROLL/ADJ control to show Video black and channel
1-2 silent combination. Press ENTER and rotate SCROLL/ADJ to
select. Press ENTER to select.
'-' not selected. ‘A’ set for auto switch. ‘G’ set for alarm.
Video black and
channel 3 & 4
silent (timed)
Rotate the SCROLL/ADJ control to show Video black and channel
3-4 silent combination. Press ENTER and rotate SCROLL/ADJ to
select. Press ENTER to select.
'-' not selected. ‘A’ set for auto switch. ‘G’ set for alarm.
Video frozen
and channel 1 &
2 silent (timed)
Rotate the SCROLL/ADJ control to show Video frozen and channel
1-2 silent combination. Press ENTER and rotate SCROLL/ADJ to
select. Press ENTER to select.
'-' not selected. ‘A’ set for auto switch. ‘G’ set for alarm.
Video frozen
and channel 3 &
4 silent (timed)
Rotate the SCROLL/ADJ control to show Video frozen and channel
3-4 silent combination. Press ENTER and rotate SCROLL/ADJ to
select. Press ENTER to select.
'-' not selected. ‘A’ set for auto switch. ‘G’ set for alarm
Notes:
Video black, frozen and audio silence have individual delay controls. Combination alarms
will be controlled by the individual delay that has been set to the longest time period.
Notes:
All controls are common to both input 1 and input 2.

Crystal Vision Card edge operation
Smart Switch 3G User Manual R1.10 18 01/09/2016
Control menu
From the Status top menu rotate SCROLL to display the CONTROL menu. Press ENTER to
enter the Control menu and SCROLL to show the available options. To select an option press
ENTER and rotate SCROLL to make a selection, press ENTER to fix the selection.
Menu Comment
Output 1
selection
Rotate the SCROLL/ADJ control to show output 1 selection. Press
ENTER and rotate SCROLL/ADJ to select. Press ENTER to select.
Input 1, Input 2.
Output 2
selection
Rotate the SCROLL/ADJ control to show output 2 selection. Press
ENTER and rotate SCROLL/ADJ to select. Press ENTER to select.
Input 1, Input 2.
Output 2
routing
Rotate the SCROLL/ADJ control to show output 2 routing selection.
Press ENTER and rotate SCROLL/ADJ to select. Press ENTER to
select. Not Follow OP1, Follow OP1.
Reset
EDH/CRC latch
Rotate the SCROLL/ADJ control to show Reset EDH/CRC Latch.
Press ENTER and rotate SCROLL/ADJ to select. Press ENTER to
select. Reset, Reset Done.
Audio group to
be monitored
Rotate the SCROLL/ADJ control to show Monitor audio group.
Press ENTER and rotate SCROLL/ADJ to select. Press ENTER to
select. Group 1, Group 2, Group 3, Group 4.
Switching mode Rotate the SCROLL/ADJ control to show Switching mode.
Press ENTER and rotate SCROLL/ADJ to select. Press ENTER to
select. Frame, Field, Immediate.
Switching
characteristic
Rotate the SCROLL/ADJ control to show Switching characteristic.
Press ENTER and rotate SCROLL/ADJ to select. Press ENTER to
select. Immediate, Delayed, Latch.
Valid input
standard
selection
Rotate the SCROLL/ADJ control to show Valid input standard.
Press ENTER and rotate SCROLL/ADJ to select. Press ENTER to
select. All, 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60,
625, 525.
GPI control
Rotate the SCROLL/ADJ control to show Output A GPI control menu.
Press ENTER and rotate SCROLL/ADJ to select. Press ENTER to
select. No GPI control, tally on “b”. Level on “a”, tally on “b”.
Edge on “a”, tally on “b”. Edge on “a” & “b”, tally on “a” & “b”.
Edge on “a” & “b”, no tally, GPI Force
Factory reset Rotate the SCROLL/ADJ control to show Reset.
Press ENTER and rotate SCROLL/ADJ to select. Press ENTER to
select. Reset, Reset Done.

Crystal Vision Card edge operation
Smart Switch 3G User Manual R1.10 19 01/09/2016
Switch controls
Both outputs 1 and 2 can be routed individually to connect to either input 1 or input 2. Should
an error occur on one of the outputs associated input, the output can be selected to route away
from the faultyinput to theremaining good input. The monitored error conditions are found in
the Alarm menu.
Switching mode
The switching modes available are Frame, Field or Immediate. These switching modes are
effective with either a manual switch or automatic switch. In Immediate mode the Smart
Switch 3G will act immediately but this untimed ‘crash’ switch is likely to cause a picture
disturbance. Selecting either Field or Frame under non-catastrophic error conditions will allow
the Smart Switch 3G to switch away in a tidier manner, assuming that the two inputs are co-
timed.
Switch back
Once a switch has taken place automatic switch back will be controlled by the switch back
control. Immediate mode will allow the switch to return once the error has disappeared for a
minimum of one frame. In certain circumstances this could result in the output flip-flopping
between the two inputs erratically. To avoid this, the switching action can be either delayed or
latched.
GPI configuration
The GPI inputs can be used to control input selection/routing and are configurable for either
edge or level trigged. They can also be used to give a tally of the selection/routing. When GPI
control is selected to ‘level’, GPI = High (floating) selects Input 1 and GPI = Low (pulled to
ground) selects Input 2.
See page 7 for information on the GPI modes which can be selected.
Factory reset
Factory Reset
Alarms
Ignore
Routing
Ip1>Op1, Ip2>Op2, Op2>Don’t follow OP1
Audio Group Monitor
Group 1
Switch sync
Field
Switch back when clear
Immediate
Delays
2 seconds
Valid video format
All
GPI configuration
As set
