Crystal Vision Indigo SW803 3G User manual

SW803 3G
3G/HD/SD 8 x 3 crosspoint
routing switch
Crystal Vision Ltd., Lion Technology Park, Station Road East, Whittlesford, Cambridge, CB22 4WL, England.
Tel: [phone] Fax: [phone] [e-mail] www.crystalvision.tv

Crystal Vision SW803 3G User Manual
SW803 3G User Manual R1.44 101/09/2016
Contents
1Introduction 3
2Hardware installation 4
2.1 Module configuration 4
2.2 Rear modules and signal I/O 5
Rear module connections with RM50 5
2.3 General Purpose Interface (GPI) 6
3Card edge operation 9
3.1 Card edge controls 9
3.2 Card edge buttons 9
Card edge rotary control 9
Reading card edge LEDs 10
3.3 Navigating card edge menus 10
3.4 Card edge configuration 11
Menu tree 11
Status menu 11
Control menu 12
Routing 12
Output Switch timing 13
Reference source 13
3.5 Presets menu 13
Saving and recalling presets 14
Saving and recalling macros 14
GPI control 14
Recalling factory default settings (Reset) 15

Crystal Vision SW803 3G User Manual
SW803 3G User Manual R1.4 201/09/2016
4Using the front control panel 16
4.1 Module selected 16
Updating the display 17
4.2 The SW803 3G active panel menu structure 18
Active control panel menus 18
The Status menu 19
The Control menu 19
The Presets menu 21
The Reset menu 22
5Statesman 23
5.1 Statesman operation 23
Routing 24
Preset controls 25
6Trouble shooting 27
Basic fault finding guide 28
7Specification 29
8Appendix 30
8.1 The SW808 controller panel 30
8.2 Installing the Controller 30
Controller to frame remote wiring 31
Using controller GPIs 33
8.3 SW808 Controller operation 34
Changing crosspoint assignments 34
Viewing crosspoint assignments 34
Multiple routing 35
Using macros 35
Revision 1. Number of presets clarified. 05-02-10
Revision 2. External reference information clarified. Pages 3 & 5. 30-06-11
Revision 3. RM50 rear module view updated. 09-08-12
Revision 4. Preset recall table amended, page 6. 16-04-13

Crystal Vision Introduction
SW803 3G User Manual R1.4 301/09/2016
1 Introduction
The SW803 3G is a 3G/HD/SD 8 x 3 crosspoint routing switcher.
Switch synchronisation is provided by either obtaining timing information from a selected
SDI input or external analogue references, allowing the SW803 3G to switch in the
vertical blanking interval so avoiding picture disturbance.
There is also provision to switch immediately for cases where there is no common
reference although this is likely to result in a brief picture disturbance.
Individual switches can be set and multiple switch salvos can be created to change a
number of crosspoint switches simultaneously. Up to 15 macros or custom routing table
assignments may be stored and recalled, and up to 15 snapshots of the router table may be
captured as presets for later recall.
Control is available from the SW808 Controller panel, Statesman PC control Software, an
active control panel or the card edge. Names may be assigned to inputs and outputs from
Statesman and active control panels.
The main features are as follows:
•3G/HD/SD 8 x 3 routing switch
•Timed switching from either an SDI input or external analogue reference
•Salvos, macros and router ‘snapshot’ presets
•Names may be assigned to inputs and outputs
•GPI selection of macros and presets
•Control and status monitoring via dedicated controller, Statesman,
frame/remote control panels or the card edge

Crystal Vision Hardware installation
SW803 3G User Manual R1.4 401/09/2016
2Hardware installation
The SW803 3G double height module is used with a pair of RM50 rear connectors, which
will fit into all Crystal Vision rack frames. All modules can be connected or removed
while the frame is powered, without damaging the board.
The SW803 3G control lines can be configured for either GPI control or serial control
from a SW808 button panel. Jumper links determine which control interface is enabled.
2.1 Module configuration
Link
positions
↔
SW803 3G
Link configuration and LEDs
There are 13 jumper links and three surface-mounted LEDs on the SW803 3G. The
surface-mounted LEDs are not visible from the front of the frame and are included for
diagnostic purposes only.
Lower PCB Comments
J3-6 GPI control
←
422 comms
→
J1 No function
J2 Leave in position
→
J7 J8 Spare (leave set to front
←
)
PL8 ↑(User selected IP address). ↓(Forced IP address 10-0-0-201)
LED1 CPU configuration in progress
LED2 Ethernet Data
LED3 Ethernet Link
Upper PCB
J4 External reference input termination.
←
(75R),
→
(Hi Z)

Crystal Vision Hardware installation
SW803 3G User Manual R1.4 501/09/2016
2.2 Rear modules and signal I/O
The 4U Indigo 4 frame will house up to 12 double height modules with up to three power
supplies. The 2U Indigo 2 frames will house up to six double height modules and dual
power supplies. The 1U Indigo 1 frames will house three double height modules and a
single power supply. The Indigo DT desktop box has a built-in power supply and will
house one double height module.
The rear modules used by the SW803 3G are an RM50 in both upper and lower positions.
Note:
For details of fitting rear connectors please refer to the appropriate frame manual
Rear module connections with RM50
RM50 fits in all frames Description
RM50
•12 SW803 3G modules per
Indigo 4 frame
•Six per Indigo 2 frame
•Three per Indigo 1 frame
•One per Indigo DT
•Slots 1-2, 3-4, 5-6, 7-8,9-10,
11-12, 13-14, 15-16, 17-18,
19-20, 21-22 and 23-24 used.
Upper BNCs I/O assignment
HD/SDI IN 5 Serial Digital Input 5
HD/SDI IN 6 Serial Digital Input 6
HD/SDI IN 7 Serial Digital Input 7
HD/SDI IN 8 Serial Digital Input 8
HD/SDI OUT 3 Reclocked SDI output 3
SYNC IN External reference input
Lower BNCs I/O assignment
HD/SDI IN 1 Serial Digital Input 1
HD/SDI IN 2 Serial Digital Input 2
HD/SDI IN 3 Serial Digital Input 3
HD/SDI IN 4 Serial Digital Input 4
HD/SDI OUT 1 Reclocked SDI output 1
HD/SDI OUT 2 Reclocked SDI output 2

Crystal Vision Hardware installation
SW803 3G User Manual R1.4 601/09/2016
2.3 General Purpose Interface (GPI)
Each frame slot has up to six connections ‘a-f ‘for GPI control and monitoring. These
connections are available at the rear of the frame on the 26-way D-Type remote
connectors. GPI connections are available on the lower board’s remote connectors.
The following table shows the binary weighted code required to recall presets or macros 1
to 15 according to the state of GPI ‘e’. A ‘H’ is an open GPI input and a ‘L’ is a grounded
GPI input.
Recall
Preset
No change 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
GPI ‘a’
H
L
H
L
H
L
H
L
H
L
H
L
H
L
H
L
GPI ‘b’
H
H
L
L
H
H
L
L
H
H
L
L
H
H
L
L
GPI ‘c’
H
H
H
H
L
L
L
L
H
H
H
H
L
L
L
L
GPI ‘d’
H
H
H
H
H
H
H
H
L
L
L
L
L
L
L
L
OPEN (+5V)
GROUND
‘a’, ‘b’, ‘c’, ‘d’
See table above
‘e’
Selects Stored Presets
Selects stored Macros
‘f’
Reference source selected
No valid signal on selected source
GPI input assignment
GPI input connections have 10k Ωpull-up resistors to +5V. Closed-contact switches or
+5V to +24V logic levels can be used.
GPI output connections have 330Ωseries resistors fitted to drive LEDs and 10k Ω pull-up
to +5V (to drive a remote input).
4U frame GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to one of eight rear remote connectors as follows:
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
1
2
7 (1)
16 (1)
17 (1)
25 (1)
10 (2)
11 (2)
3
4
7 (3)
16 (3)
17 (3)
25 (3)
10 (4)
11 (4)
5
6
4 (1)
14 (1)
13 (1)
23 (1)
3 (2)
4 (2)
7
8
4 (3)
14 (3)
13 (3)
23 (3)
3 (4)
4 (4)
9
10
10 (1)
11 (1)
19 (1)
20 (1)
21 (2)
22 (2)
11
12
10 (3)
11 (3)
19 (3)
20 (3)
21 (4)
22 (4)
Upper

Crystal Vision Hardware installation
SW803 3G User Manual R1.4 701/09/2016
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
1
2
7 (5)
16 (5)
17 (5)
25 (5)
10 (6)
11 (6)
3
4
7 (7)
16 (7)
17 (7)
25 (7)
10 (8)
11 (8)
5
6
4 (5)
14 (5)
13 (5)
23 (5)
3 (6)
4 (6)
7
8
4 (7)
14 (7)
13 (7)
23 (7)
3 (8)
4 (8)
9
10
10 (5)
11 (5)
19 (5)
20 (5)
21 (6)
22 (6)
11
12
10 (7)
11 (7)
19 (7)
20 (7)
21 (8)
22 (8)
Table shows pin number (Remote number)
Note:
Remote 1, Remote 3, Remote 5 and Remote 7 are 26-way high-density D-Type female
sockets. Frame ground is pin 2 and +5V @500mA is pin 1 in each case.
Remote 2, Remote 4, Remote 6 and Remote 8 are 26-way high-density D-Type male plugs
and frame ground is pin 6 in each case and +5V @500mA is pin 15 on Remote 2 and Remote
6.
The +5V output is protected by self-resetting thermal fuses, which limit the total output
current available from Remotes 1-4 to approximately 1amp. Remotes 5-8 are similarly
protected.
2U frame GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to one of four rear remote connectors as follows:
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
1
2
7 (1)
16 (1)
17 (1)
25 (1)
10 (2)
11 (2)
3
4
7 (3)
16 (3)
17 (3)
25 (3)
10 (4)
11 (4)
5
6
4 (1)
14 (1)
13 (1)
23 (1)
3 (2)
4 (2)
7
8
4 (3)
14 (3)
13 (3)
23 (3)
3 (4)
4 (4)
9
10
10 (1)
11 (1)
19 (1)
20 (1)
21 (2)
22 (2)
11
12
10 (3)
11 (3)
19 (3)
20 (3)
21 (4)
22 (4)
Table shows pin number (remote number)
Note: Remote 1 and Remote 3 are 26-way high-density D-Type female sockets. Frame ground is
pin 2 and +5V @500mA is pin 1 in each case.
Remote 2 and Remote 4 are 26-way high-density D-Type male plugs and frame ground is pin
6 in each case and +5V @500mA is pin 15 on Remote 2.
The +5V output is protected by self-resetting thermal fuses, which limit the total output
current available from Remotes 1-4 to approximately 1amp.
Lower

Crystal Vision Hardware installation
SW803 3G User Manual R1.4 801/09/2016
1U frame GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to one of two rear remote connectors as follows:
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
1
2
7 (1)
16 (1)
17 (1)
25 (1)
10 (2)
11 (2)
3
4 4 (1) 14 (1) 13 (1) 23 (1) 3 (2) 4 (2)
5
6
10 (1)
11 (1)
19 (1)
20 (1)
21 (2)
22 (2)
Table shows pin number (remote number)
Note: Remote 1: 26-way high-density D-Type female socket. Frame ground is pin 2 and +5V
@500mA is pin 1.
Remote 2: 26-way high-density D-Type male plugs and frame ground is pin 6 and +5V
@500mA is pin 15.
The +5V output is protected by self-resetting thermal fuses, which limit the total output
current available from Remotes 1-2 to approximately 1amp.
Indigo DT desk top box GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to the rear remote connector as follows:
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
1
2
7 (1)
16 (1)
17 (1)
25 (1)
10 (2)
11 (2)
Table shows pin number (remote number)
Note:
Remote 1: 26-way high-density D-Type female socket. Frame ground is pin 2 and +5V
@500mA is pin 1.
Remote 2: 26-way high-density D-Type male plugs and frame ground is pin 6 and +5V
@500mA is pin 15.
Note. The +5V output is protected by self-resetting thermal fuses, which limit the total output
current available from Remotes 1-2 to approximately 1amp.

Crystal Vision Card edge operation
SW803 3G User Manual R1.44 901/09/2016
3 Card edge operation
The card front is provided with a 10-digit display and push switches to navigate the
control and status menus. LEDs are provided to give indication of power rail monitoring
and the switch configuration.
3.1 Card edge controls
SW803 3G card front edge view
3.2 Card edge buttons
The two tactile push button switches allow the operator to navigate within the menu
structure.
Button Function Normal state Up, Action Down

Up Menu Push to jump up a menu level or cancel a selection
ENTER Select/Action Push to select a menu and to action and confirm a change
Card edge rotary control
The board edge rotary encoder is used to navigate through the menu categories and adjust
parameter values.
Control Function
SCROLL
/ADJUST
Rotate SCROLL to identify a menu category. In combination with the ENTER button
select and ADJUST to change the current level or select a further option.
Notes: The rotary control can access menus and parameter values by clockwise or anti-clockwise
rotation.

Crystal Vision Card edge operation
SW803 3G User Manual R1.4 10 01/09/2016
Reading card edge LEDs
Card edge LEDs may be used in conjunction with status information from any connected
remote status panel display or from Statesman if available.
Refer also to the trouble-shooting chapter for more help with solving problems and
monitoring status information.
The following table summarises the card edge LED functions and colours:
Name
LED
Colour
Function when ON
Function when Off
IN 1 Yellow Input 1 present Input 1 not present
IN 2 Yellow Input 2 present Input 2 not present
PSU Green Good power supply (PSU) rails
One or more of the monitor
supplies is out of specification
Yellow Not currently supported
IN3 Yellow Input 3 present Input 3 not present
IN4 Yellow Input 4 present Input 4 not present
IN5 Yellow Input 5 present Input 5 not present
IN6 Yellow Input 6 present Input 6 not present
IN7 Yellow Input 7 present Input 7 not present
IN8 Yellow Input 8 present Input 8 not present
3.3 Navigating card edge menus
To access the card edge menu system proceed as follows:
•Press the up-arrow [ ] until a top menu category is reached
•Rotate the SCROLL control until the desired menu category is found
•Push ENTER to enter the sub menus of that category
•Rotate SCROLL to select a sub menu
•Push ENTER to select the desired function. Selection will be indicated by the text
being displayed in italictext
•Rotate ADJUST to make the desired change to the selected parameter. The display
brightness will flash slowly to indicate that a change has been made and requires
confirmation
•Push ENTER to action the change. The display will cease flashing
•Use the up-arrow [] and SCROLL control to navigate to further menus
Note:
The displayed menu brightness will flash slowly if confirmation of a change is required.

Crystal Vision Card edge operation
SW803 3G User Manual R1.4 11 01/09/2016
3.4 Card edge configuration

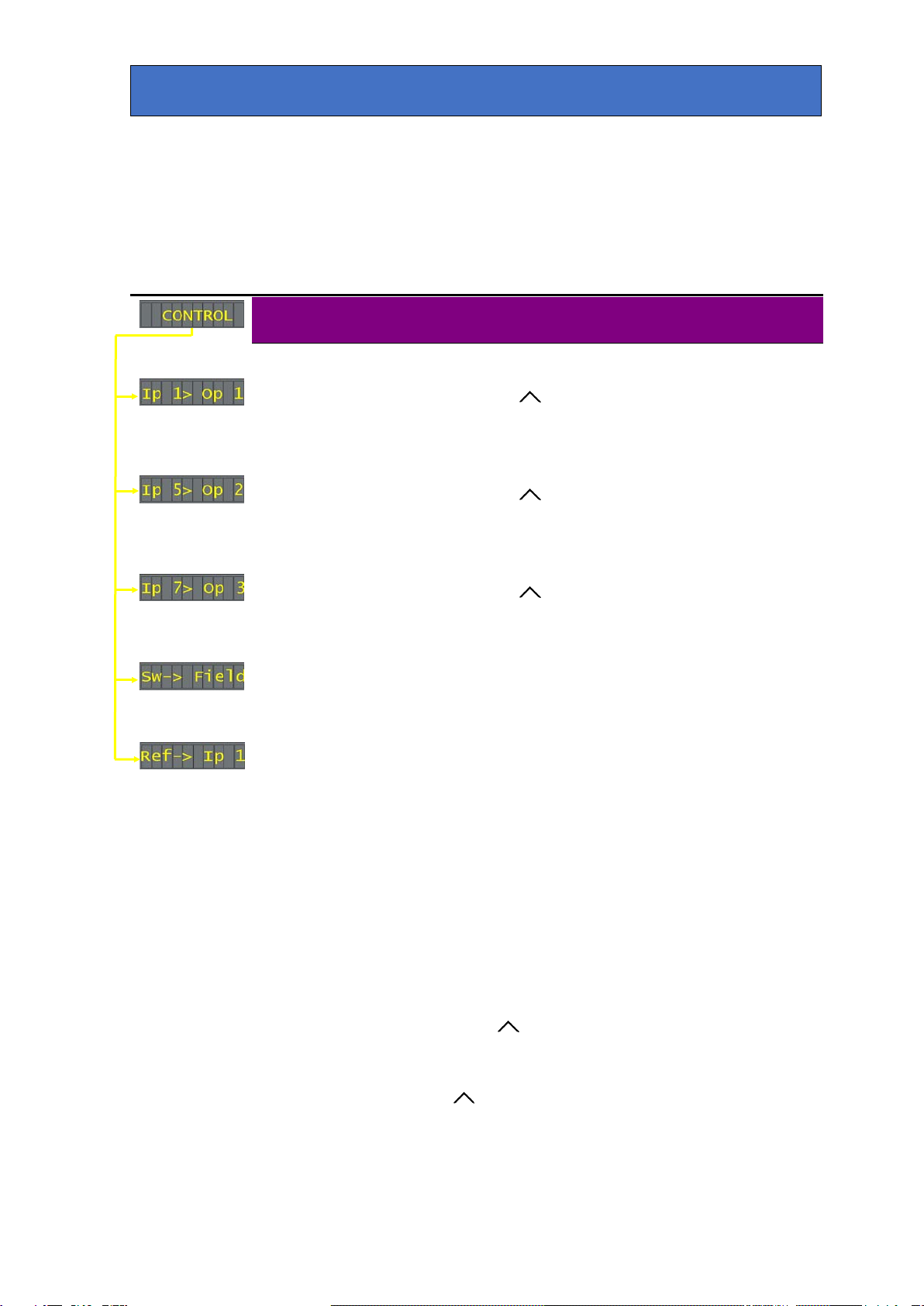

Menu tree
Tip:
To reach the top menu push the [ ] button repeatedly until a top menu is reached. Rotate the
SCROLL control anti-clockwise until the STATUS menu appears.
Status menu
From the Status top menu press ENTER then SCROLL to access the Status menu list.
Menu Comment
Reference
video standard
The Reference video standard is shown.
1080p 50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60, 625, 525,
Unknown.
Input s present The video inputs present are shown.
12345678 (-) missing.
Software
version
installed
The version number of the currently installed software.
Electronically
store serial
number
The electronically stored PCB serial number. This should correspond
with the serial number label affixed to the PCB connector.

Crystal Vision Card edge operation
SW803 3G User Manual R1.4 12 01/09/2016
Control menu
From the Status top menu rotate SCROLL to display the Control menu. Press ENTER to
enter the Control menu and rotate SCROLL to show the available options. To select an
option press ENTER, this will cause the display text to change from a normal font to an
italic font showing the option has been selected. Rotate SCROLL to set the required
variable and press ENTER to fix the selection.
Menu Comment
Output 1 routing
Rotate the Scroll/Adj. control to show Output 1 routing. Press
ENTER and rotate Scroll/Adj. to select. Press ENTER to select
immediately or press [] leave routing unselected.
Ip 1, Ip 2, Ip3, Ip 4, Ip 5, Ip 6, Ip 7, Ip 8.
Output 2 routing
Rotate the Scroll/Adj. control to show Output 1 routing. Press
ENTER and rotate Scroll/Adj. to select. Press ENTER to select
immediately or press [] leave routing unselected.
Ip 1, Ip 2, Ip3, Ip 4, Ip 5, Ip 6, Ip 7, Ip 8.
Output 3 routing
Rotate the Scroll/Adj. control to show Output 1 routing. Press
ENTER and rotate Scroll/Adj. to select. Press ENTER to select
immediately or press [] leave routing unselected.
Ip 1, Ip 2, Ip3, Ip 4, Ip 5, Ip 6, Ip 7, Ip 8.
Output switch
timing
Rotate the Scroll/Adj. control to show Output switch timing
selection. Press ENTER and rotate Scroll/Adj. to select. Press
ENTER to select. Field, Frame, Immediate.
Reference
source selection
Rotate the Scroll/Adj. control to show the reference source selection.
Press ENTER and rotate Scroll/Adj. to select. Press ENTER to select.
Input 1, Input 2, Input 3, Input 4, External, Unknown.
Routing
The board edge routing controls allow both immediate routing of a selected single input to
a selected output, and multiple routing in the manner of a salvo.
Example;
If output 1 routing is selected with input 5 as its source pressing ENTER will result in an
immediate switch, taking into consideration the output switch timing setting.
If instead of pressing ENTER the up arrow [] is pressed the new routing will be
retained but not implemented. The user is now able to go to one of the other output
routing menus where a further routing selection can be made. Pressing ENTER will now
implement the new routing plus the output 1 routing simultaneously. It would also be
possible to again press the up arrow [] and make a third routing selection at which
point all three routings will be implemented on pressing theENTER button.

Crystal Vision Card edge operation
SW803 3G User Manual R1.4 13 01/09/2016
Output Switch timing
From this menu it is possible to set the output switching conditions from the selection of
Field, Frame or Immediate (crash). The timed switching points are in accordance with
RP168-2002 for all supported standards.
When timed switching is selected, and should the chosen reference source be removed the
switching mode will automatically change to immediate. It will be necessary to reselect
the switching mode manually once the reference source has returned.
Reference source
SW803 3G can obtain its timing source reference either from inputs 1 to 4 or take an
external analogue reference being either black and burst or tri-level syncs. The Status
menu will report the reference video standard unless the source is removed in which case
an ‘Unknown’ status will be reported.
3.5 Presets menu
From the Status top menu rotate SCROLL to display the Presets menu. Press ENTER to
enter the Presets menu and rotate SCROLL to show the available options. To select an
option press ENTER, this will cause the display text to change from a normal font to an
italic font showing the option has been selected. Rotate SCROLL to set the required
variable and press ENTER to fix the selection.
Menu Comment
Save presets Rotate the Scroll/Adj. control to show Preset save location. Press ENTER and rotate Scroll/Adj. to select. Press ENTER to save.
1-15.
Recall presets Rotate the Scroll/Adj. control to show Preset location to recall. Press ENTER and rotate Scroll/Adj. to select. Press ENTER to recall.
1-15.
Macro record Rotate the Scroll/Adj. control to show Macro record. Press ENTER to set the start point. Press the up arrow [ ] and make the required
routing selections and follow by a Macro save.
Save Macro Rotate the Scroll/Adj. control to show Save Macro. Press ENTER and rotate Scroll/Adj. to select location. Press ENTER to select.
1-15.
Recall Macro Rotate the Scroll/Adj. control to show Recall Macro. Press ENTER and rotate Scroll/Adj. to select location. Press ENTER to select.
1-15.
GPI Enable Rotate the Scroll/Adj. control to show GPI Enable. Press ENTER and rotate Scroll/Adj. to select. Press ENTER to select.
Enable, Disable.

Crystal Vision Card edge operation
SW803 3G User Manual R1.4 14 01/09/2016
Saving and recalling presets
Unlike a macro, a preset is a snapshot of the state of every crosspoint. Up to fifteen
presets can be saved and recalled at any time.
To save a snapshot of all crosspoint assignments as a preset enter the Save Presets menu
and select the desired location 1-15 and press the ENTER button to assign that location.
Press ENTER a second time to action the save. A successful save will be indicated by the
word ‘Done’ appearing on the display.
Note: Any previously saved crosspoint assignment in a location will be overwritten by the new
configuration.
To recall a preset enter the Recall Presets menu and select the desired location 1-15. Press
the ENTER button to select that location. Press ENTER a second time to action the recall.
A successful recall will be indicated by the word ‘Done’ appearing on the display.
Tip:
If necessary view the routing table to confirm that the required connections have been set.
Saving and recalling macros
A macro is a batch of crosspoint assignments, which are changed together and unlike a
preset will only affect that batch of crosspoints, any crosspoints outside of the batch will
remain unaffected when the macro is recalled.
To build a macro select the Macro Record menu and press the ENTER button. This will
cause the Macro Record text to change from normal text to an italic font. Press the up
arrow [] and navigate to the routing menus where the desired assignment can be made.
Navigate to the Macro Save menu and select a location where the macro is to be saved.
Save the macro.
To recall a macro enter the Recall Macro menu and select the desired location 1-15. Press
the ENTER button to select that location. Press ENTER a second time to action the recall.
A successful recall will be indicated by the word ‘Done’ appearing on the display.
Tip:
If necessary view the routing table to confirm that the required connections have been set.
Note:
When reassigning routing, it is not necessary to disturb the existing routing. This is achieved
by leaving the new routing unasserted. See Routing.
GPI control
The SW803 3G may be controlled via GPI lines connected to the rear of the frame in
which the module is used. GPI control is limited to recalling stored presets or macros.
GPI control cannot be used at the same time as the SW808 Controller panel as both use
the same physical control lines. Please refer to the Installation chapter for more
information on using GPIs.
To enable GPI control select GPI control Enable.

Crystal Vision Card edge operation
SW803 3G User Manual R1.4 15 01/09/2016
Recalling factory default settings (Reset)
From the Reset top menu press ENTER then SCROLL to display the Reset menu.
Menu Comment
Reset
Press ENTER to access Reset menu. Rotate the Scroll/Adj control to
select Yes, press ENTER to action reset. Displaywill confirm reset
done.
Default
Press ENTER to access Defaults menu. Rotate the Scroll/Adj control
to select Yes, press ENTER to action reset. Display will confirm reset
done.
Note: Factory reset will erase all saved preset and macro configurations. To preserve contents
of the preset and macro locations use the Defaults command.
Parameter Default value
Routing Input 1 to Output 1, Input 2 to Output 2, Input 3 to Output 3
Switch Synchronisation Field
Reference Input 1
Presets Erased (factory reset only)
Macros Erased (factory reset only)
GPI Enable Not enabled

Crystal Vision Using the front control panel
SW803 3G User Manual R1.4 16 01/09/2016
4Using the front control panel
4.1 Module selected
This operational guide assumes that the panel has been set up according to the panel setup
procedure described in the Crystal Vision Control Panel manual.
Note:
It is ESSENTIAL that the panel setup procedure is followed and any old or unknown
passwords cleared prior to using the panel for the first time.
At power up all eight control panel keys LEDs will illuminate briefly. Once the panel has
completed its power up and configuration sequence the panel will enter Statesman mode
and the massage ‘Press Cal to Exit’ will be displayed.
Statesman mode is entered by default
To continue with control panel operation or configuration, press the CAL key once. A
second press of the CAL key will return to Statesman control.
The control panel will display the name of the card that first responds to the polling
request together with its location number.
The location number consists of the frame number plus the card position in the frame.
Navigating the display
The functions assigned to control panel keys are:
•DEVICE – enters Device menu to select a card or show cards available / enters
Panel Set up when held down during power up / shows frame status when pressed
from Statesman mode
•CAL – enters or leaves Statesman mode / enters Panel Diagnostics mode when held
down during power up / updates the display
•Asterisk – enters Board Rename menu from the Device menu
•F1 to F4 – soft keys, function assigned within each menu
•HOME – moves the display to the Home menu
•ENTER – accept current selection
•Upward arrow – used to move up the menu structure / enter Lock Panel menu from
the Device menu
•Rotary control – shaft encoder used to select options or variable data

Crystal Vision Using the front control panel
SW803 3G User Manual R1.4 17 01/09/2016
Note:
Please refer to the Crystal Vision Control Panel manual for details of the Panel Setup, Lock Panel and
Diagnostic menus.
Selecting a SW803 3G
To select a particular card in a frame, press the DEVICE key to go to the Device menu.
Note: There may be a delay whilst the frame is interrogated during which time the ‘No cards Found’ could be
displayed.
The top line of the display will show ‘Available cards X’, where X is thenumber of cards
that have responded so far to the polling request.
The Available cards menu
Rotate the shaft encoder and the bottom row will display the successfully polled cards by
name and location or slot number.
In the example above, the card displayed is located in the first frame in slot number 1.
When the desired card is selected press the ENTER key to access that card’s Home menu.
The message shows that a SW803 3G has been selected.
The SW803 3G Home menu
Updating the display
The values displayed on an active front panel are only updated when an adjustment is
made and when changing menu level. If changes occur through the use of card edge
controls or other remote control, the text displayed on the active front panel will not be
updated immediately. If necessary, use the upward arrow to leave and then re-enter a
menu to update the display.

Crystal Vision Using the front control panel
SW803 3G User Manual R1.4 18 01/09/2016
4.2 The SW803 3G active panel menu structure
At any time the main top-level menu (Home) is obtained by pressing the HOME key.
From the Home menu further selections can be made. Active function keys are indicated
by illuminated, integrated LEDs.
The main top-level menus for the SW803 3G are obtained by pressing the F1- F4 keys
from the Home menu. Menu keys are illuminated when active and when further menus
are available.
The top-level menus are:
•Status – Press F1
•Control (Routing, Switch sync and Reference source) – Press F2
•Presets (Preset and Macro call/recall) – Press F3
•Reset – Press F4
When a sub menu has been selected, further options may be obtained by using the Shaft
control to scroll through them. Once the desired option has been located a selection or
value change can be made by either toggling the appropriate function key or by selecting
and using the shaft control to alter a numerical value. A configuration change or value
will be activated as the shaft control is rotated or function button is toggled. The variable
being adjusted will appear in brackets. If the variable updates in real time it will be
contained within square brackets [Field].
The following chart shows the available SW803 3G menus. The actual menus available
may vary slightly as software is updated.
Active control panel menus
Note:
Function key LEDs are illuminated when active.

Crystal Vision Using the front control panel
SW803 3G User Manual R1.4 19 01/09/2016
The Status menu
Pressing button F1 from the Home menu will enter the Status menu. This menu is
traversed by rotating the shaft control. The following table lists in order the available sub
menus.
No changes can be made from this menu as it is read only.
Note:
Not all status information will be updated in real time. If necessary press the * button
to update the display information.
Menu Comment
Reference Input
video standard Rotate the shaft control to view the reference input video standard.
1080p 50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60, 625,
NTSC, Unknown.
Video Inputs
Present Rotate the shaft control to view the video inputs present. 12345678 (-) missing.
Input 1 audio
groups present
Rotate the shaft control to view the version number of the currently
installed software.
Input 2 audio
groups present Rotate the shaft control to view the electronically stored PCB serial number. This should correspond with the serial number label affixed
to the PCB connector.
The Control menu
Pressing button F2 from the Home menu will enter the Control menu. From this menu the
routing, switch timing selection and reference source are selected. All settings are made
using the function buttons and shaft control.
Menu Comment
Routing
Rotate the shaft control to view the Routing menu.
Press F3 and rotate the shaft control to select the source.
Press F4 and rotate the shaft control to select the output.
Press F1 to assign the routing selection.
Output switch
timing
Rotate the shaft control to view the switch timing selection.
Press F2 and rotate shaft control to make the selection.
Press Enter to select.
Field, Frame, Immediate.
Reference
source selection
Rotate the shaft control to view the reference source selection.
Press F2 and rotate shaft control to make the selection.
Press Enter to select.
Input 1, Input 2, Input 3, Input 4, External, Unknown.
