Crystal Vision Introduction
1 Introduction
ViViD 3GT-20 is a 3Gb/s-compatible variable video delay. The maximum delays
possible are ten seconds for 3Gb/s, 20 seconds for HD and 110 seconds for SD
signals. Delays are adjustable in seconds,frames, lines and pixels for precise
matching of system delays. The pass-through delay for ancillary timecode (ATC) or
VITC can be set to match the video signal or set to a minimum value to effectively
advance timecode with respect to the video.
The main features are as follows:
•Use with any source – works with 3Gb/s, HD and SD.
•Supports the following video standards: 625, 525, 720p50, 720p59, 1080i50,
1080i59.
•Optimise the video: video proc-amp allows adjustment of video gain, black level
and independent YUV gains.
•Multiple video outputs – Four delayed outputs save the need for an additional
DA.
•Control of ViViD 3GT-20 is most easily achieved with VisionWeb PC software
but also by an active front panel on the frame, a remote panel and SNMP. Board
edge control was also available prior to 2019.
•Optical connectivity – send signal beyond the local equipment bay with the
fibre input and output options.
•GPI control – 16 presets allow different delay values to be assigned then
recalled automatically by GPI.
•HANC and VANC blanking option.
•EDH insertion.
•Supports rear module connectors: RM41, RM57, RM67.
•Compatible with Crystal Vision standard frames available in 2U, 1U and desk
top box.
•Passes all timecode, AFD, subtitling information, Dolby E metadata and
embedded audio.
•Timecode pass-through delay can follow video or be set to minimum.
•Freeze output –Force output to freeze or produce black, blue or bars manually,
or automatically if input video lost.
•GPI Output Alarms – Two output alarms if input video is missing, black or
frozen.
ViViD 3GT-20 User Manual R1.1 320 January 2021

Crystal Vision Introduction
Input video from either the BNC input or the (optional) optical input is equalised and then
re-clocked. The video signal is passed to a delay line whose length is adjustable in
seconds, frames, line and pixel increments under control of the CPU. Following the delay
line is the timecode reinserter where previously extracted ATC packets or VITC data is
added to the video before the proc-amp where lift and gain can be applied to the video
components in the YUV or RGB domain. Finally, depending on the rear module fitted, the
video is output to the rear modules as either four BNC or three BNC and one optical
output.
Video delays in ViViD 3GT-20
3GT-20 Video Format
3Gb/s HD SD
Delay Range in
lines and frames. 2 lines->500 frames 2 lines->500 frames 3 lines->2750 frames
Max. Delay in
Secs.
10 secs @ 50Hz
8 secs @ 59.94Hz
20 secs @ 50Hz
16 secs @ 59.94Hz
110 secs @ 625 line
91 secs @ 525 line
Video Delays for ViViD 3GT-20
Block diagram
ViViD 3GT-20 Functional Block Diagram
ViViD 3GT-20 User Manual R1.1 420 January 2021

Crystal Vision Introduction
Timecode delay
The timecode delay through a ViVid 3GT-20 is set by the ‘Timecode Delay Mode’
control (see Timecode Delay in section Control Descriptions) to be either the same as
the video signal or to a minimum value.
When set to ‘Follow Video Delay’ the timecode data remains encoded within the
video signal and passes through the video delay line to the video output with exactly
the same delay.
When set to ‘Minimum Delay’ timecode data is extracted from the incoming video
signal to bypass the video delay. A separate timecode delay is used to delay the
timecode by the minimum amount necessary for it to be reinserted into the delayed
video on the same line from where it was extracted.
The amount of timecode delay to achieve this depends on the amount of video delay
selected. The longer the video delay then the longer the timecode delay must be to
reinsert timecode into the original line. Timecode delay can be increased to a
maximum of one frame after which the delay reverts to zero and timecode is
reinserted into the original line but of the previous frame. At the video output the
reinserted timecode values will be effectively advanced by one frame for every frame
of video delay. In this way down-stream equipment will see the timecode value for a
event prior to the video image.
The precise amount of timecode delay depends on not only the video delay but also
the timing of the RP186 switch line to the start of active video.
For HD signals the original incoming ATC packets are marked for deletion prior to the
video delay and new packets are written on the same line when reinserted. For SD
signal the reinserted VITC overwrites the original data.
The diagram above shows two instances where the video is first delayed by 200
lines and then by 100 frames plus 200 lines. In the first instance a timecode delay
of 200 lines will align the input timecode for reinsertion into the the same line of
the same frame. The timecode values will remain unchanged as the timecode
delay is less than one frame. In the second instance the timecode delay will
remain at 200 lines but timecode reinsertion will be into a frame 100 frames later.
The timecode values will be 100 frames less than the delayed video.
ViViD 3GT-20 User Manual R1.1 520 January 2021

Crystal Vision Hardware installation
2 Hardware installation
Board configuration
ViViD 3GT-20 main board top-side
Note: The potentiometer P1 is factory set and should not be adjusted.
Link Configuration
There are no user-settable links on the ViViD 3GT-20.
Link Towards front of board or Up Towards the rear of board or
Down
PL8
Debug mode
Normal mode (factory set, do not
alter)
ViViD 3GT-20 User Manual R1.1 620 January 2021

Crystal Vision Rear modules and signal I/O
3 Rear modules and signal I/O
The 2U Indigo 2 frame will house up to 12 single height modules and dual power
supplies. The 1U Indigo 1 frame will house six single height modules and a single or
dual power supply. The Indigo DT desk top boxes have a built-in power supply and
will house up to two single height modules. All modules can be plugged in and
removed while the frame is powered without damage.
Note: For details of fitting rear connectors please refer to the appropriate frame
manual.
The ViViD 3GT-20 can support the following rear modules: RM41, RM57 and RM67.
Rear module connections with RM41

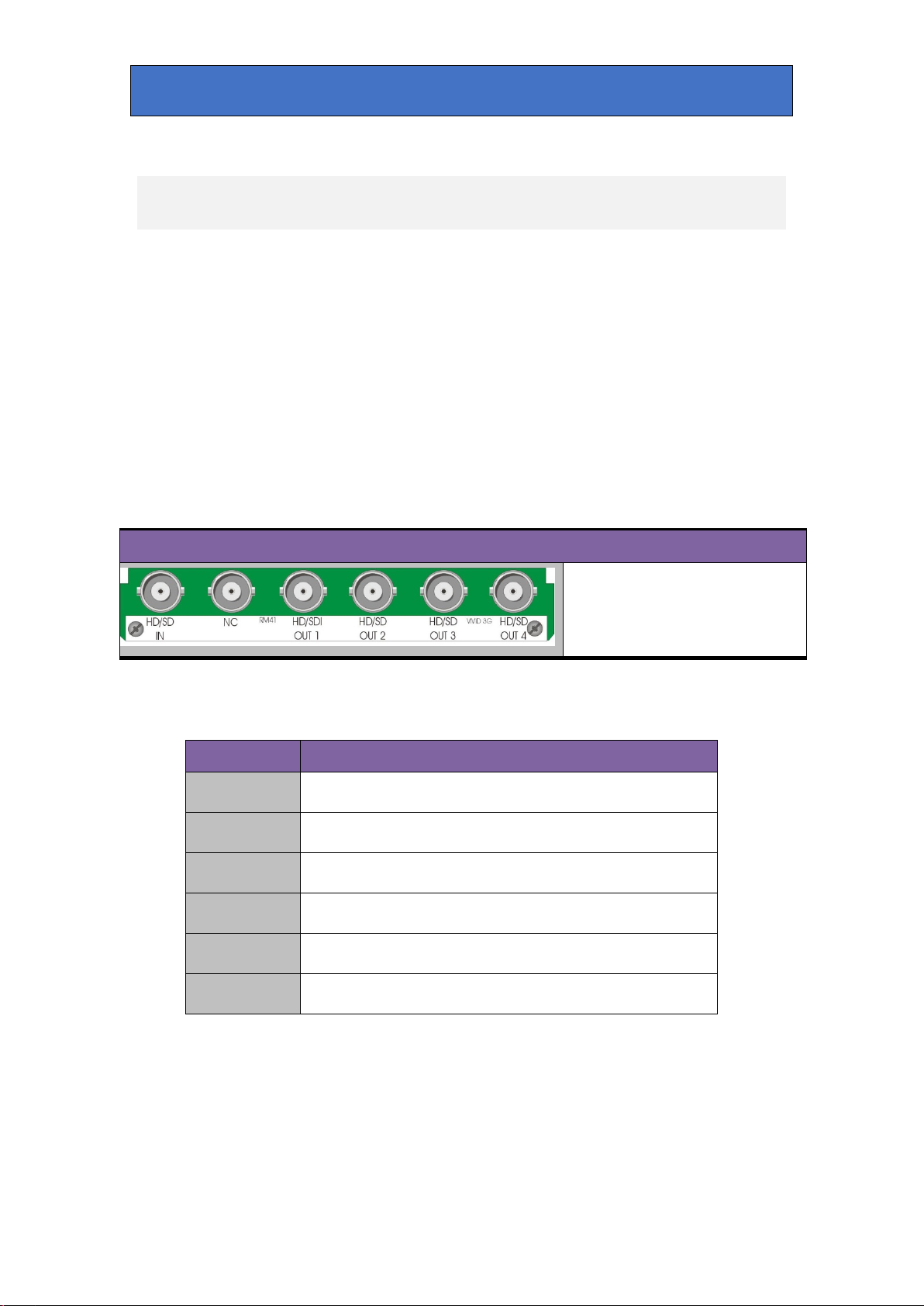

The RM41 being a single height module will allow maximum packing density with one
HD/SD video input and four HD/SD video outputs.
RM41 rear module connector
Description
RM41
•12 per Indigo 2 frame
•Six per Indigo 1 frame
•Two per Indigo DT
•All frame slots can be used
BNC Connections
BNC I/O assignment
HD/SD IN 3G/High Definition/Standard Definition serial digital input.
NC No connection.
HD/SD OUT 1 3G/High Definition/Standard Definition serial digital output.
HD/SD OUT 2 3G/High Definition/Standard Definition serial digital output.
HD/SD OUT 3 3G/High Definition/Standard Definition serial digital output.
HD/SD OUT 4 3G/High Definition/Standard Definition serial digital output.
ViViD 3GT-20 User Manual R1.1 720 January 2021

Crystal Vision Rear modules and signal I/O
Rear module connections with RM57
The RM57 being a single height module will allow maximum packing density with one
HD/SD video input and three HD/SD video outputs and a single optical I/O connector.
RM57 rear module connector
Description
RM57
•12 per Indigo 2 frame
•Six per Indigo 1 frame
•Two per Indigo DT
•All frame slots can be used
BNC connections
BNC I/O assignment
HD/SD IN 3G/High Definition/Standard Definition serial digital input.
NC No connection
HD/SD OUT 1 3G/High Definition/Standard Definition serial digital output.
HD/SD OUT 2 3G/High Definition/Standard Definition serial digital output.
HD/SD OUT 3 3G/High Definition/Standard Definition serial digital output.
OPTICAL IN/OUT 3G/High Definition/Standard Definition serial digital optical input/output.
Rear module connections with RM67
The RM67 relay bypass rear module is a single height module that allows maximum
packing density with one HD/SD video input and four HD/SD video outputs. In the
event of power failure, the video input is automatically connected to HD/SD OUT 3
(SWITCHED).
RM67 rear module connector Description
RM67
•12 per Indigo 2 frame
•Six per Indigo 1 frame
•Two per Indigo DT
•All frame slots can be used
ViViD 3GT-20 User Manual R1.1 820 January 2021

Crystal Vision Rear modules and signal I/O
BNC Connections
BNC I/O assignment
HD/SD IN 3G/High Definition/Standard Definition serial digital input.
NC No connection.
HD/SD OUT 1 3G/High Definition/Standard Definition serial digital output.
HD/SD OUT 2 3G/High Definition/Standard Definition serial digital output.
HD/SD OUT 3
(SWITCHED)
3G/High Definition/Standard Definition serial digital output. HD/SD IN is
automatically connected to this output in the event of power failure.
HD/SD OUT 4 3G/High Definition/Standard Definition serial digital output.
ViViD 3GT-20 User Manual R1.1 920 January 2021

Crystal Vision General Purpose Interface
4 General Purpose Interface
Introduction
Each frame slot has up to six connections ‘a-f’ for GPI control and monitoring. These
connections are available at the rear of the frame on the 26-way D-Type remote
connectors.
ViViD 3GT-20 has four GPI inputs and two GPI outputs.
Each General Purpose Interface (GPI) input is fitted with a 6800Ω resistor connected
to the internal +5V and in the following table, this equates to logic ‘H’, so with no
connections to the GPI lines, preset 1 (logic ‘HHHH’) will be selected. See the
‘Presets’ section on page 31 for details of inverting the GPI preset logic.
Each General Purpose Interface (GPI) output has a 270Ω resistor in series with its
output. This allows for an external LED to be driven, connected to a DC voltage of
+5V.
The GPI inputs can be programmed to automatically recall a previously saved preset
configuration. The 16 user preset configurations are selected using binary
notation.The two outputs can be programmed to assert themselves for a number of
different alarm conditions.
GPI Low (<1V) High (+5V)
1 ‘a’ Recall preset bit 1
See following table for user preset control
2 ‘b’ Recall preset bit 2
3 ‘c’ Recall preset bit 4
4
‘d’
Recall preset bit 8
5 ‘e’ Alarms (See alarm table) Alarm condition No alarm
6
‘f’
Alarms (
See alarm table) Alarm condition No alarm
Table showing the six GPI functions
GPI
Bit 8
Bit 4
Bit 2
Bit 1
GPI
Bit 8
Bit 4
Bit 2
Bit 1
Preset
Preset
1
H
H
H
H
9
L
H
H
H
2
H
H
H
L
10
L
H
H
L
3
H
H
L
H
11
L
H
L
H
4
H
H
L
L
12
L
H
L
L
5
H
L
H
H
13
L
L
H
H
6
H
L
H
L
14
L
L
H
L
7
H
L
L
H
15
L
L
L
H
8
H
L
L
L
16
L
L
L
L
Binary coding of GPI inputs to recall preset configurations
ViViD 3GT-20 User Manual R1.1 10 20 January 2021

Crystal Vision General Purpose Interface
Alarms
GPI outputs 5 and 6 (e, f) can be configured to be asserted (logic ‘L’) for a selection of
error conditions.
For each GPO there are four separate alarm conditions and all of the alarm conditions
can be assigned to both.
See GPO Alarms for more details of alarms.
Reportable error conditions No. of
alarms
Input Video Missing 1
Input Video Black 1
Input Video Frozen 1
Alarm Table
2U frame GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to two of four rear remote connectors as
follows:
Slot no.
‘a’ pin
‘b’ pin
‘c’ pin
‘d’ pin
‘e’ pin
‘f’ pin
1
8 (1)
9 (1)
18 (1)
26 (1)
19 (2)
20 (2)
2
7 (1)
16 (1)
17 (1)
25 (1)
10 (2)
11 (2)
3
8 (3)
9 (3)
18 (3)
26 (3)
19 (4)
20 (4)
4
7 (3)
16 (3)
17 (3)
25 (3)
10 (4)
11 (4)
5
5 (1)
6 (1)
15 (1)
24 (1)
1 (2)
2 (2)
6
4 (1)
14 (1)
13 (1)
23 (1)
3 (2)
4 (2)
7
5 (3)
6 (3)
15 (3)
24 (3)
1 (4)
2 (4)
8
4 (3)
14 (3)
13 (3)
23 (3)
3 (4)
4 (4)
9
3 (1)
12 (1)
22 (1)
21 (1)
12 (2)
13 (2)
10
10 (1)
11 (1)
19 (1)
20 (1)
21 (2)
22 (2)
11
3 (3)
12 (3)
22 (3)
21 (3)
12 (4)
13 (4)
12
10 (3)
11 (3)
19 (3)
20 (3)
21 (4)
22 (4)
Table shows pin number (remote number)
Note:
Remote 1 and Remote 3 are 26-way high-density D-Type female sockets. Frame
ground is pin 2 and +5V @500mA is pin 1 in each case.
Remote 2 and Remote 4 are 26-way high-density D-Type male plugs and frame
ground is pin 6 in each case and +5V @500mA is pin 15 on Remote 2.
Note: The +5V output is protected by self-resetting thermal fuses, which limit the
total output current available from Remotes 1-4 to approximately 1A.
ViViD 3GT-20 User Manual R1.1 11 20 January 2021

Crystal Vision General Purpose Interface
1U frame GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to two rear remote connectors as follows:
Slot no.
‘a’ pin
‘b’ pin
‘c’ pin
‘d’ pin
‘e’ pin
‘f’ pin
1
8 (1)
9 (1)
18 (1)
26 (1)
19 (2)
20 (2)
2
7 (1)
16 (1)
17 (1)
25 (1)
10 (2)
11 (2)
3
5 (1)
6 (1)
15 (1)
24 (1)
1 (2)
2 (2)
4
4 (1)
14 (1)
13 (1)
23 (1)
3 (2)
4 (2)
5
3 (1)
12 (1)
22 (1)
21 (1)
12 (2)
13 (2)
6
10 (1)
11 (1)
19 (1)
20 (1)
21 (2)
22 (2)
Table shows pin number (remote number)
Note:
Remote 1: 26-way high-density D-Type female socket. Frame ground is pin 2 and
+5V @500mA is pin 1.
Remote 2: 26-way high-density D-Type male plugs and frame ground is pin 6 and
+5V @500mA is pin 15.
Note: The +5V output is protected by self-resetting thermal fuses, which limit the
total output current available from Remotes 1-2 to approximately 1A.
Indigo DT desk top box GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to two rear remote connectors as follows:
Slot no.
‘a’ pin
‘b’ pin
‘c’ pin
‘d’ pin
‘e’ pin
‘f’ pin
1
8 (1)
9 (1)
18 (1)
26 (1)
19 (2)
20 (2)
2
7 (1)
16 (1)
17 (1)
25 (1)
10 (2)
11 (2)
Table shows pin number (remote number)
Note:
Remote 1: 26-way high-density D-Type female socket. Frame ground is pin 2 and
+5V @500mA is pin 1.
Remote 2: 26-way high-density D-Type male plugs and frame ground is pin 6 and
+5V @500mA is pin 15.
Note: The +5V output is protected by self-resetting thermal fuses, which limit the
total output current available from Remotes 1-2 to approximately 1A.
ViViD 3GT-20 User Manual R1.1 12 20 January 2021

Crystal Vision Control and Status Monitoring
5 Control and Status
Monitoring
ViViD 3GT-20 controls and status can be accessed most easily by Crystal
Vision’s ‘VisionWeb’ PC software but also by card edge control and the rack front
panel.
Board edge control was removed from ViViD 3GT-20 in 2019. Therefore the card
edge control information detailed here is only relevant for older versions of the
product.
Card edge controls
ViViD 3GT-20 board edge
Card edge buttons
The two tactile push button switches allow the operator to navigate within the menu
structure.
.
Button Function Normal state Up, Action Down
Up Menu Push to jump up a menu level or cancel a selection.
ENTER Select/Action Push to select a menu and to action and confirm a change.
Card edge rotary control
The board edge rotary encoder is used to navigate through the menu categories and
adjust parameter values.
Control Function
SCROLL/
ADJ
Rotate SCROLL/ADJ to identify a menu category. In combination with the
ENTER button select and ADJUST to change the current level or select a further
option.
Notes:
The rotary control can access menus and parameter values by clockwise or anti-
clockwise rotation.
ViViD 3GT-20 User Manual R1.1 13 20 January 2021

Crystal Vision Control and Status Monitoring
Reading card edge LEDs
Card edge LEDs may be used in conjunction with status information from any
connected remote status panel display or from VisionWeb or Statesman if
available.
Refer also to the troubleshooting chapter for more help with solving problems and
monitoring status information.
The following table summarises the card edge LED functions and colours:
Name
LED
Colour
Function when On
Function when Off
PSU Green Good power supply (PSU) rails
One or more of the monitor
supplies is out of specification
Ref Yellow Reference input present (Not
relevant to this product) Not relevant to this product
IP1HD Yellow Video input standard is HD
(High Definition)
Input not present
IP1SD Yellow
Video input standard is SD
(Standard Definition)
GPO5
Yellow
GPO 5 active / low
GPO 5 inactive / high
GPO6
Yellow
GPO 6 active / low
GPO 6 inactive / high
Navigating card edge menus
To access the card edge menu system proceed as follows:
•Press the up arrow [ ] until a top menu category is reached
•Rotate the SCROLL/ADJ control until the desired menu category is
found
•Press ENTER to enter the sub-menus of that category
•Rotate SCROLL/ADJ to select a sub-menu
•Press ENTER to select the desired function. Selection will be indicated
by the text being displayed in italic text
•Rotate ADJUST to make the desired change to the selected parameter.
The display changes to italicsto indicate that a change has been made
and requires confirmation
•When required push ENTER to action the change. The display will
return to normal non-italic text
•Use the up-arrow [ ] and SCROLL/ADJ control to navigate to further
menus
ViViD 3GT-20 User Manual R1.1 14 20 January 2021

Crystal Vision Control and Status Monitoring
Using the front control panel
At power up, the LEDs of all eight control panel keys will illuminate briefly. Once the
panel has completed its power up and configuration sequence, the panel will enter its
status mode and display the current software version and frame IP address.
‘Status’ menu showing current software version and IP address

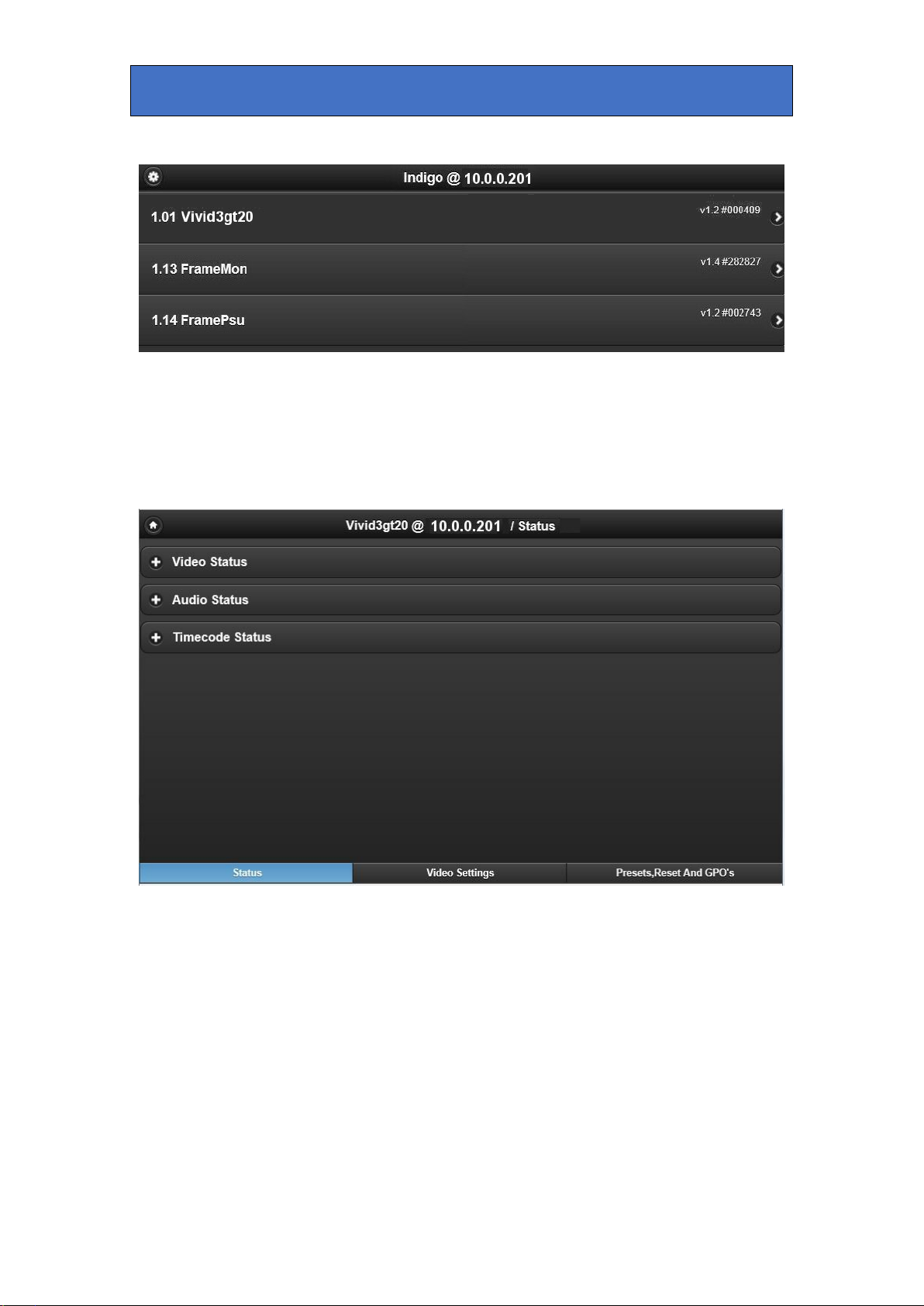

Selecting a ViViD 3GT-20
To continue with control panel operation or configuration, press the ‘DEVICE’ key
once. The control panel will display the name of the card that first responds to the
polling request together with its location number. The location number consists of the
frame number plus the card position in the frame. Rotate the Shaft control to poll
through the available cards.Use the F2 soft key to toggle between the card’s serial
number and issue number with modification level.
‘Device’ menu showing ViViD 3GT-20 in slot 1.01
In the example above, the card displayed is located in the first frame in slot number 1.
When the desired card is selected, press the ENTER key to access that card’s HOME
menu.
The ViViD 3GT-20 home ‘Status’ menu
Rotate the shaft control to scroll through the menu structure and press ENTER to
select the sub-menus. Press HOME at any time to return to the home menu.
ViViD 3GT-20 User Manual R1.1 15 20 January 2021

Crystal Vision Control and Status Monitoring
ViViD 3GT-20 Video Status sub-menu
Press ENTER to select the Video Status menu or SCROLL to display other sub-
menus. See description of menu structure below for list of sub-menus.
Control Panel keys overview
The functions assigned to the control panel keys are:
•DEVICE – enters ‘device’ menu to select a card or show available cards.
•ASTERISK (*) – selects ‘network configuration’ menu.
•F1 to F4 – soft keys not currently used by ViViD 3GT-20.
•HOME – returns to top of ViViD 3GT-20’s menu structure.
•ENTER – accepts current selection.
•Up arrow – used to move up through the menu structure.
•Rotary control – shaft encoder used to select sub-menus or variable data.
Updating the display
The values displayed on an active front panel are only updated when an adjustment
is made and when changing menu level. If changes occur through the use of card
edge controls or other remote control, the text displayed on the active front panel will
not be updated immediately. If necessary, use the upward arrow to leave and then re-
enter a menu to update the display.
Menu Structure
The basic menu structure for card edge, front panel access and VisionWeb is
identical and consists of the following menus and sub-menus.
Status
Video Status
Input Video
Input Present
Input Standard
Input Black
Audio Status Input Frozen
Audio
Present
Grp 1
ViViD 3GT-20 User Manual R1.1 16 20 January 2021

Crystal Vision Control and Status Monitoring
Grp 2
Timecode
Grp 3
Status Grp 4
Timecode
Present
Video
Settings
ATC
Video Delay
VITC
Delay
Seconds
Frames
Lines
Pixels
Timecode
Delay
ATC Delay
Delay Mode
Follow Video
VITC Delay
Minimum
Delay Mode
Follow Video
Minimum
VITC Line 525
10->20
Output
Configure
VITC Line 625
Force Output 6->22
Freeze Op
Video Op
Black
Blue
Bars
On loss of Input
Freeze
Freeze 3s
Output
Black
Blue
Bars
Last frame
Blank Enbl. No Op
Hanc
RGB Proc Vanc
Amp
RGB Proc-amp
Lift
Gain
Calibrate Gain
Cal.Lift & Gain
YUV Proc
Amp
YUV Proc-amp
Lift
Gain
Calibrate Gain
Cal. Lift & Gain
ViViD 3GT-20 User Manual R1.1 17 20 January 2021

Crystal Vision Control and Status Monitoring
Fibre Input
Enable
Fibre Input
Enable
Fibre Enable
Presets,
Reset &
GPO’s
Presets
Select
Preset Select
Store
Recall
GPI Preset
GPI Enable
GPI Trigger
Pulse
Level
GPI Level
Resets
High
Reset Low
Fact Res Exc
Presets
Fact Res Inc
Presets
GPO Alarms
GPO 5/6 Alarms
GPO Asserted
Input Missing
Input Video
Black
Input Video
Frozen
Alarm Delay
Time
Alarm Delay
Black
Frozen
The above menu structure is the means to access the various ViViD 3G controls
and status. A more detailed description is in the section Control Descriptions.
Controlling cards via VisionWeb
Crystal Vision cards use an XML file to create a control database that is used by
the card’s front-edge controller, the Indigo frame front panel controller and
VisionWeb software. VisionWeb software offers a full range of controls with slider
controls etc. similar to that available with the older Statesman PC software.
Accessing the Indigo Home page with a PC browser via the Ethernet connector of
an Ethernet-enabled frame will display a list of the cards fitted. (See appropriate
frame manual for more details.)
ViViD 3GT-20 User Manual R1.1 18 20 January 2021

Crystal Vision Control and Status Monitoring
Indigo home page
The example above shows a ViViD 3GT-20 card fitted in slot one and the frame’s
power supply and status monitor in slots 13 and 14. Clicking on the ViViD 3GT-
20 card will bring up the card’s home (Status) page:
ViViD 3GT-20 Status Page
ViViD 3GT-20 User Manual R1.1 19 20 January 2021
