CTA PAD-SWMB User manual

Secure Tabletop and Wall Mount
PAD-SWMB
INSTRUCTION - MANUAL
CONTENTS:
INSTALLATION:
888-733-4448
B
B
A
G
G
D
D
A
1. Attaching Holder to Body
1A. Insert holder joint (A)
into body joint (B) and
align allen key hole.
1B. Insert the allen screws
(G) into holes and securely
tighten with provided allen
tool (D).
2. Attaching Body to Base
2A. Insert base joint (A)
into body component (B)
and align allen key hole.
2B. Insert the allen screws
(G) into holes and securely
tighten with provided allen
tool (D).
Ax1
Cx1
B
x1
Dx1
Fx1
Ex4
Hx1
Gx6
Jx4
Ix2
Kx4

888-733-4448
B
B
AI
H
H

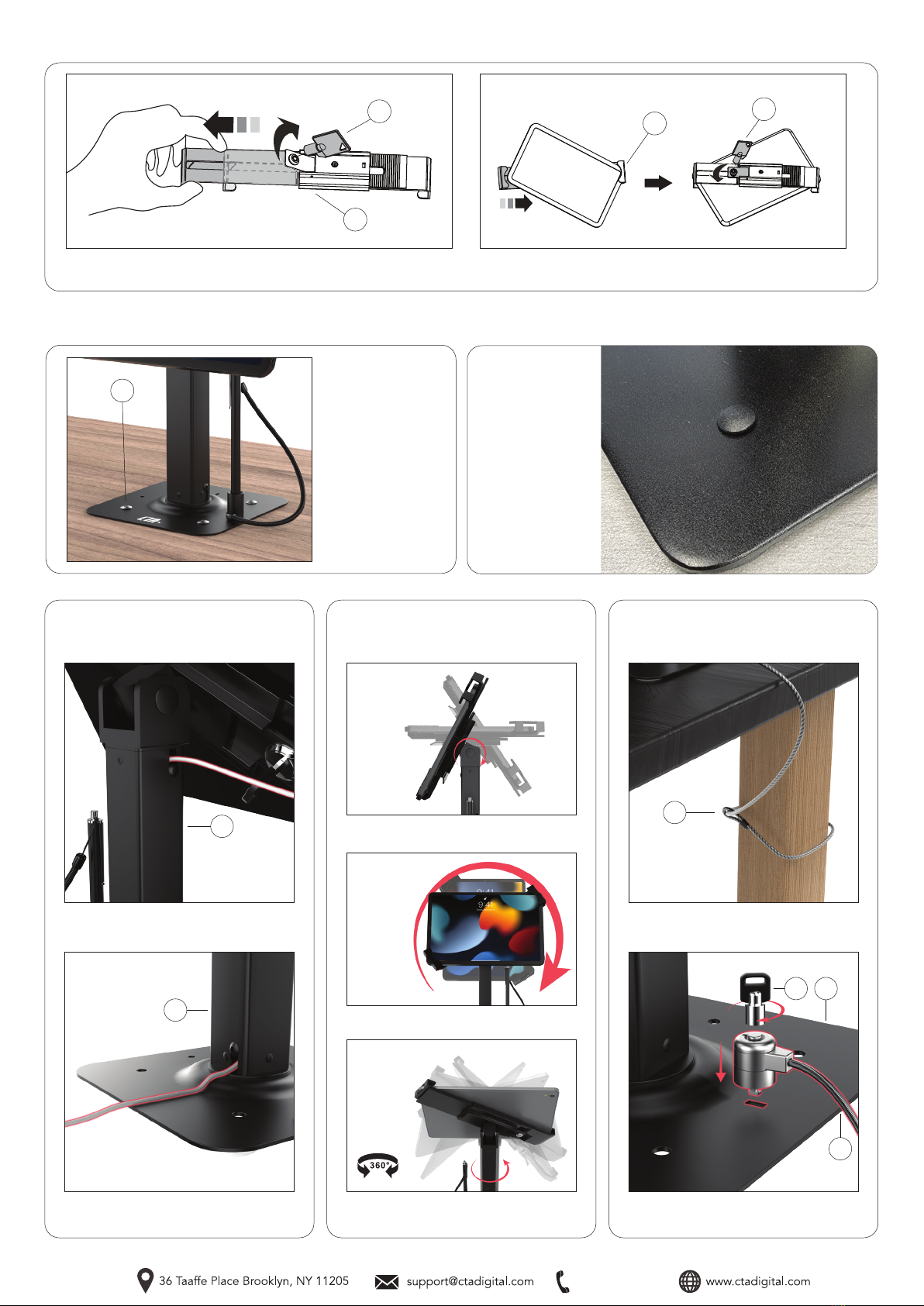

3. Inserting Tablet into Holder
3A. Insert key (F) into lock at back of holder (C). Turn counterclockwise to
unlock, pull back the lock component, then slide the arms out.
3B. Insert tablet against fixed end, then slide down to hold tight. Turn key (F)
clockwise to lock.
FC
F
C
4A. Align and screw in
screws (J) through base
(A) until securely
attached to counter.
4. (Optional) Bolting to Countertop
Fish the cable wire through the top end of the
kiosk body (B).
Fish the cable wire out the other end
as shown above.
Adjust the joint (C) rotation to the
prefered angle.
Adjust the orientation to the prefered view.
Anchor the cable loop of your security cable
lock (H) around an immovable object.
Secure and lock the other end to the kiosk
into the cable lock slot hole (A) as shown.
**Tablet only shown for
illustration purposes,
not included.
**Tablet and cable only
shown for illustration
purposes, not included.
**Cable only shown for
illustration purposes, not
included.
**Tablet only shown for
illustration purposes,
not included.
**Tablet only shown for
illustration purposes,
not included.
Adjust the base pole (B) to the prefered angle.
**Tablet only shown for
illustration purposes,
not included.
Stand
Adjustability
Anti-Theft
Security Cable
Cable
Rounting
J
5. Inserting Mounting Hole Fillers
5A. Insert mounting hole
fillers (K) for a seamless
and clean aesthetic if not
mounting into surface.
Simply press into hole
firmly
