Cub Cadet 01008371 15HP Z-Force 44 Setup guide

HydrostaticZero-Turn
ResidentialRidingMower
Turf Equipment
ILLUSTRATED PARTS LIST
MODEL
15HP Z-Force 44
53AA5D2L100
18HP Z-Force 44
53AA5A5L100

3

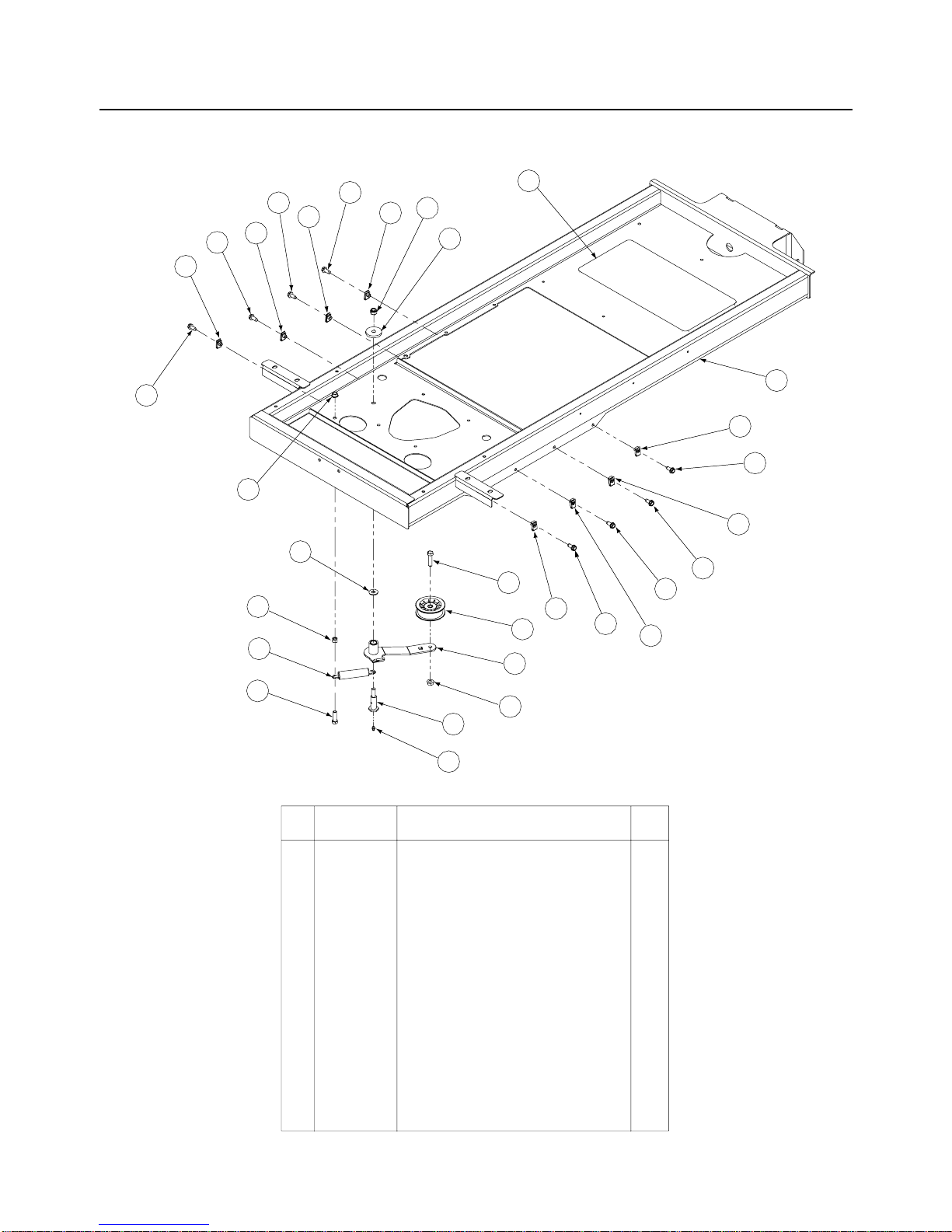

Frame Assembly- Figure 1 and Parts List
Ref.
No. Part No. Description Qty.
1 00012166 Hex Nut, 5/16-18 1
2 00011438 Hex Cap Screw, 3/8-16 x 1-1/2 1
3 00013116 Hex Cap Screw, 5/16-18 x 1-1/4 1
4 00006168 Flat Washer, 3/8 zinc 1
5 00022560 Hex Nut, 3/8-16 Flange Lock 1
6 00027279 Nylock Nut, 7/16-14 1
7 00030782 Flat Idler Pully w/ adaptor 1
8 00060078 Grease Fitting, 1/4-28 x 3/16 1
9 01000505 Shoulder Bolt 1
10 01002874 Extension Spring, .865 OD x 4.68 lg 1
11 01003269 Flat Washer, 7/16 ID x 1.75 OD 1
12 01003563 U-Nut, 5/16-18 8
13 01008480 Frame Assembly Weldment 1
14 01008399 Idler Arm Assembly 1
15 01008764 Hex Washer Screw 5/16-18 x .750 8
16 01000635 Nut, 5/16-18, Hexflange Lock 1
17 01006528 Abrasive Foot Pad 1
12
15 12
15 12
15
12
15
6
16
11
4
1
3
10
8
95
14
7
2
12 15 12
15
15
12
15
12
13
17
GD: 01008104-T04

4
44" Formed Cutter Deck - Figure 2
48
23
7
45
41
39
47
54
49
36
51
28
30
4
31
49
8
10
45
34
56
16
29
13
30
21
20
42
15
9
55
23
55
55
59 26
33
58
46
19
18
22
14
61
11
18
27
57
22
24
27
3
60
14
45
1
53
32
45
2
38
5
44
51
52 6
40
35
38
45
43
17
10
37
12
22
62
GD: 01008112-T09

5
44" Formed Cutter Deck - Parts List for Figure 2
Ref.
No. Part No. Description Qty. Ref. No. Part No. Description Qty.
1 01008590 Deck Mounting Plate Assembly 1 32 01008456 Spacer .760 ID x 1.5 OD 1
2 01008593 Idler Arm Assembly 1 33 750-0656 Spacer .50 OD x .75 ID 1
3 01008589 Idler Assembly 1 34 750-0150 Spacer .550 ID x .750 OD 1
4 618-3129 Spindle Assembly 3 35 750-3119 Spacer .406 ID x 1.0 OD 1
5 631-0094 Chute Assembly 1 36 754-3039 Belt 1
6 01008587 Belt Cover Right Hand 1 37 756-3089 Pulley 3
7 703-1890 Deck Wheel 4 38 01004081 Flat Pulley 2
8 01008481 Deck Assembly 44" 1 39 00002528 Hex Cap Screw 3/8-16 x 2.00 1
9 01008586 Belt Cover Left Hand 1 40 00003107 Cotter Pin .125 Dia x 1.0 1
10 01008620 Self Tapping Screw 5/16-18 x .750 18 41 00005763 Hex Nut 7/16-14 1
11 01008530 Hex Cap Screw 5/8-18 x 4.25 1 42 00010958 Flat Washer .50 ID x 1.065 OD 1
12 710-1852 Spindle Bolt 3/4-16 x 5.37 3 43 00013406 Hex Cap Screw 5/16-18 x .75 1
13 715-3003 Pin 2 44 01002766 Nut, 1/4-20, hexflange Lock 2
14 716-3020 Internal Snap Ring 2 45 00022560 Hex Nut, 3/8-16, Flange Lock 11
15 726-3045 Button Plug 2 46 00023287 Nut, 1/2-20, Center Lock 1
16 732-0802 Compression Spring .63 OD x 6.3 2 47 00083192 Idler Washer 1
17 736-0100 Flat Washer .531 ID x 1.25 OD 1 48 01000338 Hex Cap Screw 1/4-20 x .620 2
18 736-0188 Flat Washer .76 ID x 1.49 OD 4 49 01000372 Carriage Bolt 3/8-16 x .75 3
19 736-0179 Flat Washer .50 ID x 1.25 OD 1 50 01000375 Roller Pin 1/2 x 7.31 1
20 01000873 Flat Washer .536 ID x .93 OD 1 51 01000380 Nut, 3/4-16, Hex Flange 3
21 01008538 Deck Handle Weldment 1 52 01000385 Front Roller 1
22 737-3000 Grease Fitting 5 53 732-3067 Idler Torsion Spring 1
23 738-3056 Shoulder Screw 1/2 x 2.5 4 54 01000389 Lock Washer 7/16 1
24 738-3172 Shoulder Screw .68 x 2.11 1 55 01000635 Lock Nut 5/16-18 Hex Flange 7
25 738-0213 Shoulder Screw .498 x 1.445 1 56 01000930 Flat Washer .508 ID x 1.0 OD 2
26 741-0338 Flange Bearing .75 ID x .52 2 57 01002391 Belt 1
27 741-0524 Bearing .625 ID x 1.574 OD 2 58 01002874 Extension Spring .865 OD x 4.68 1
28 01008616 Blade 3 59 01004863 Tension Rod Stop Bracket 1
29 747-3013 Support Pin 2 60 01008376 Double Pulley 1
30 748-3065 Spindle Spacer 6 61 01008404 Spacer .635 ID x .88 OD 1
31 748-3020 Blade Spacer 3 62 00030276 Carriage Bolt 3/8-16 x 1.50 1

6

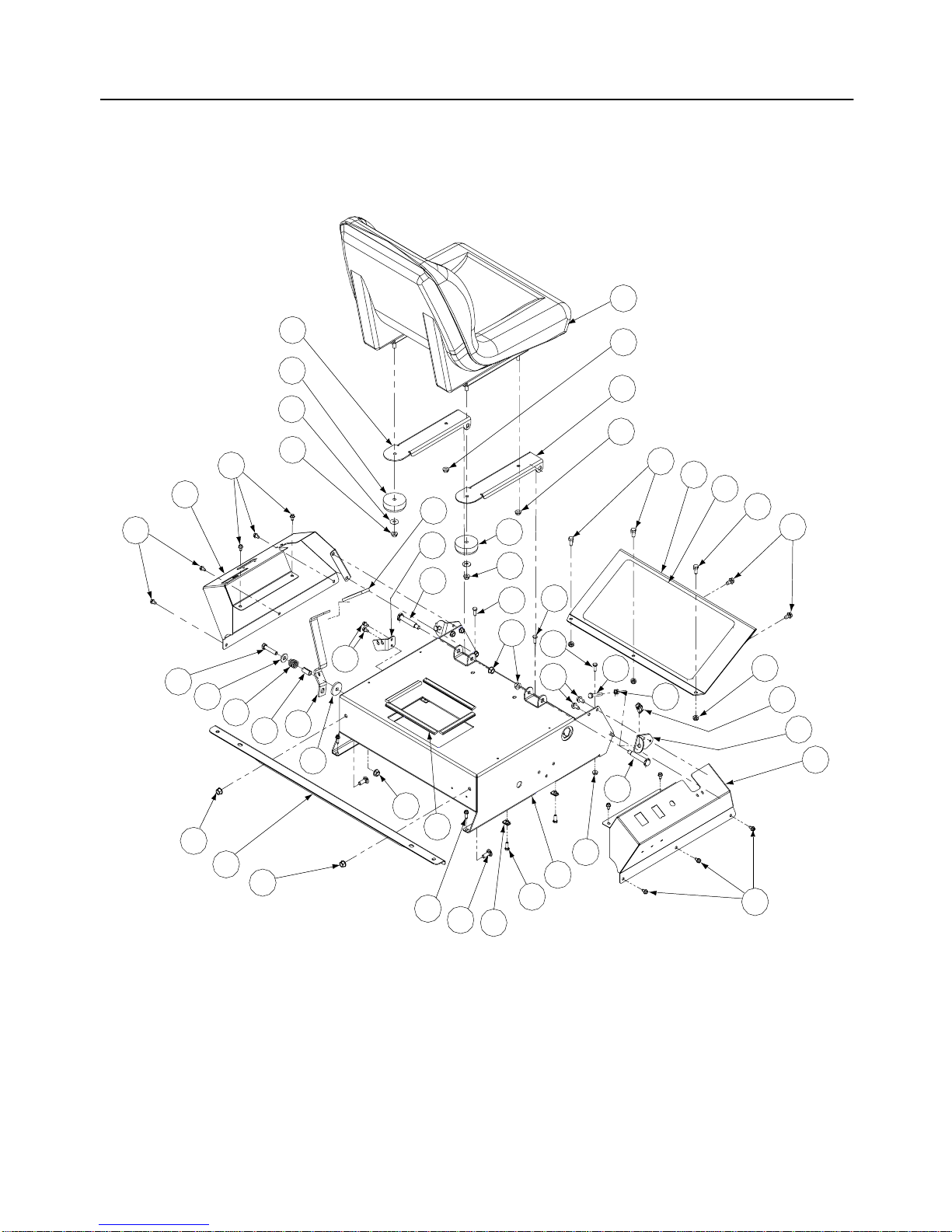

Control Assembly - Figure 3
6
5
19
30
26
12
15
17
23
7
31
10 32
10
29
10
11
27
18
9
2
3
12
25
12
12
33
16
13
24
13
33
13
6
20
6
1
7
7
12
13
7
10
16
28
15
8
34
74
35
36
GD: 01008105-T12

7
Control Assembly
- Parts List for Figure 3
Ref.
No. Part No. Description Qty.
1 00012382 Hex Cap Screw, 5/16-18 x 1-1/2 2
200083192 Idler Washer 1
3 00008495 Capscrew, 3/8-16 x 1-3/4 1
4 01000372 Carriage Bolt, 3/8-16 2
5 00012165 Nylock Nut, 5/16-18 3
6 01008620 Self Tapping Screw, 5/16-18 x 3/4 5
7 01008763 Hex Cap Screw, 1/4-20 x 3/4 9
8 00013595 Parking Brake Grip 1
9 00021797 Spring, .80 OD x 1 Lg 1
10 00022560 Hex Nut, 3/8-16 Flange Lock 5
11 01000872 Flat Washer, 1.25 x .411 x .100 1
12 01000628 Screw, 1/4-20 x 1/2 18
13 01000635 Hex Nut, 5/16-18 Flange Lock 4
14 -- -- --
15 01002634 Shoulder Screw, 3/8-16, .5 x 2.345 2
16 01002753 Groment, 2.5 OD x 1.0 Lg 2
17 01002766 Hex Nut, 1/4-20 Flange Lock 3
18 01002772 Spacer, .375 x .50 x 1.02 1
19 01003563 U-Nut, 5/16-18 2
20 01008464 Foot Rest Bracket 1
21 01008198 Left Hand Brake Cable (not shown) 1
22 01008199 Right Hand Brake Cable (not shown) 1
23 01008482 Control Housing Weldment 1
24 01008413 Seat Adjust 1
25 01008472 Left Hand Control Console 1
26 01008473 Right Hand Control Console 1
27 01008487 Parking Brake Lever 1
28 01008489 Brake Cable Bracket 1
29 01008491 Front Tank Mounting Bracket 1
30 01008533 Lapbar Stop Bracket 2
31 01008539 U-Nut, 1/4-20 4
32 01008572 Battery Edge Trim 4
33 01008583 Seat Mounting Bracket 2
34 00012166 Hex Nut, 5/16-18 2
35 01000960 Washer, .325 x .930 x .045 2
36 01006528 Abrasive Foot Pad 1

8
Front Caster & Tire Assembly - Figure 4 and Parts List
Ref.
No. Part No. Description Qty.
1 00012157 Lock Washer, 3/8 Zinc 2
201000368 Hex Cap Screw, 3/8-16 x.88 2
3 00012187 Lug Nut, 1/2-20 8
4 00023822 Washer Special 3
5 00060078 Grease Fitting, 1/4-28 x 3/16 2
6 01000678 Nut Jam, 1.0-14, Nylon Insert 1
7 01000745 Hex Cap Screw, 1/2-20 x 5.50 2
800023282 Nut, 1/2-20, Center Lock 2
9 01006309 Hex Cap Screw, 1-14 x 5.0 1
10 01008320 Wheel Assembly, 20 x 7 2
11 01008405 Front Axle Assembly 1
12 01008570 Front Wheel Assembly 2
13 01008550 Castor Wheel Mounting Bracket 2
14 731-0374 Flange Bearing, 1.0 ID 6
15 01009253 Flat Washer, .390 x 1.5 x .134 2
16 750-0456 Spacer, .790 ID x .347 Lg 4
17 750-3197AWheel Spacer 2
9
2
1
15
11
13
7
12
16
4
14
14
6
2
1
15
14
13
5
4
14
7
16
17
10
3
3
10 3312
16 17
8
5
GD: 01008107-T11

9
Steering Assembly -Figure 5 and Parts List
Ref.
No. Part No. Description Qty. Ref. No. Part No. Description Qty.
1 00006129 Hex Cap Screw, 5/16-18 x 1-3/4 2 14 01008432 Bellcrank Steering Shaft Assembly 1
2 00012165 Nut, 5/16-18, Nylock 13 15 01008840 Steering Bellcrank Assembly Left Hand 1
3 01000635 Nut, 5/16-18, Lock 4 16 01008841 Steering Bellcrank Assembly Right Hand 1
4 00012167 Hex Nut, 5/16-24 4 17 01008425 Steering Handle Assembly Left Hand 1
5 00012179 Hex Cap Screw, 5/16-18 x 3/4 4 18 01008426 Steering Handle Assembly Right Hand 1
6 01008600 Capscrew, 5/16-18 x 1.50, Socket Head 2 19 01008165 Steering Pivot Bracket 2
7 00013092 Hex Cap Screw, 5/16-18 x 1.0 9 20 01008410 RodEnd,5/16, RightHand 4
8 00014081 Nut, 1/4-28, SS, Nylon Insert 2 21 01008551 Rod End, 5/16, Left Hand 4
9 00071691 Control Rod Spacer 2 22 01008552 Lap Bar Grip 2
10 01001919 Shoulder Screw, 1/4-28 2 23 01008458 Pivot Bracket Weldment 2
11 00003107 CotterPin,.125Dia.x1.0 4 24 01008576 Hex Nut,5/16-24,Left Hand 4
12 01008433 Steering Input Shaft Assembly 2 25 736-0287 Flat Washer, .793 ID x 1.24 OD x .060 6
13 01008149 Steering Link Rod 4 26 741-0598 Hex Flange Bearing, .752 ID 4
22
17
5
2
7
11
14 11 25
A
B
2
2
15
24
21
420 7
7
13
2
16
7
25
7
2
2
25
1310 9
8
63
19
5
18
22
2
23
25
26
12
25
4
20
7
A
B
8
1
62
21
12
26
25
3
3
23
2
19
9
10
224
13
GD: 01008108-T07

10

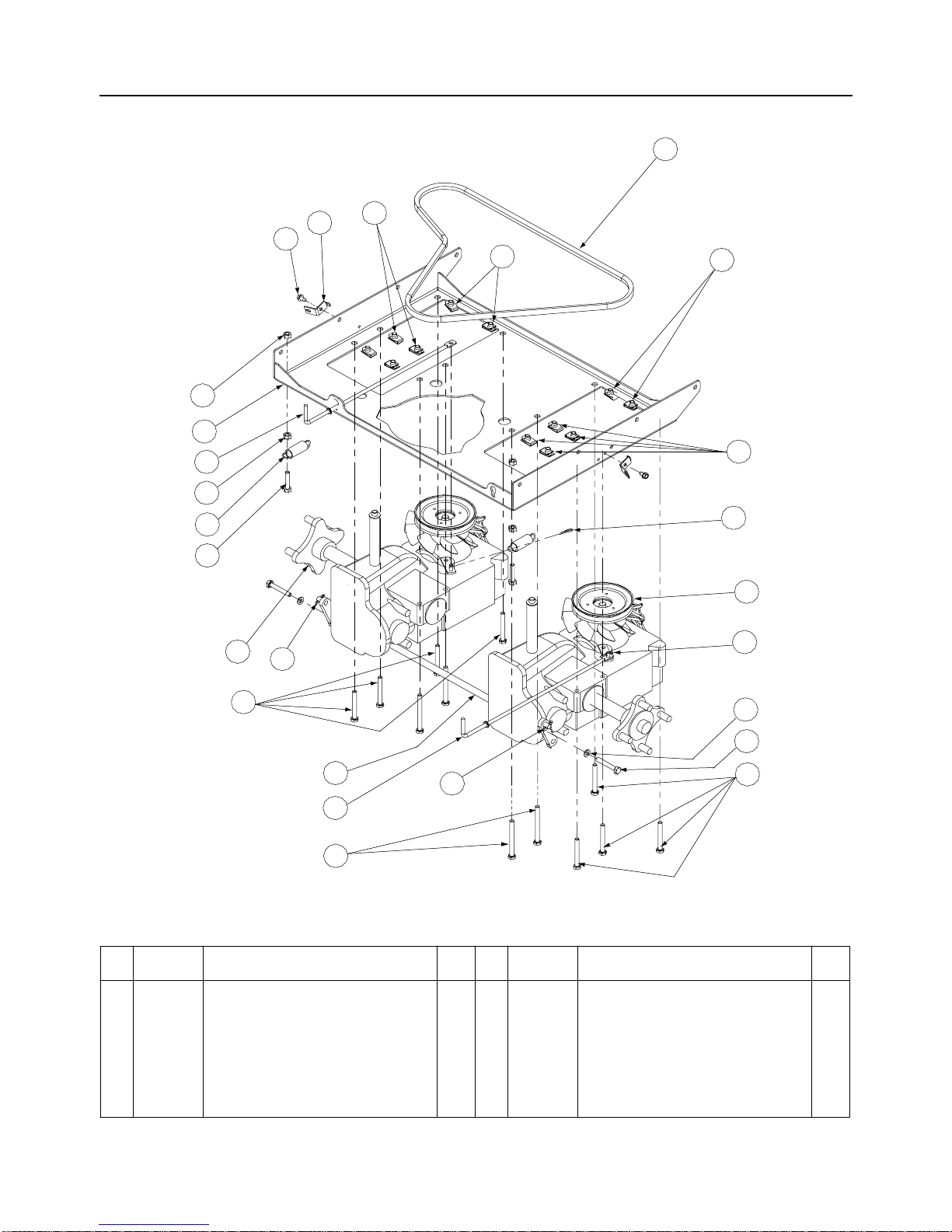

Drive Train Assembly- Figure 6 and Parts List
Ref.
No. Part No. Description Qty. Ref. No. Part No. Description Qty.
1 00013198 Hex Cap Screw, 5/16-18 x 2.0 2 9 01008461 Transmission Mounting Bracket 1
2 00012169 Flat Washer, .320 ID x .591 OD 2 10 01008380 Pump Rod 2
3 01002771 Cotter Pin, .072 x 1.12 Lg 4 11 01008414 Transmission Brace Tube 1
4 01003563 U-Nut, 5/16-18 12 12 00012166 Nut, 5/16-18 4
5 01007122 Hex Cap Screw, 5/16-18 x 2.5 12 13 01001972 Hex Cap Screw, 5/16-18 x 2.75 2
6 01008192 IZT Transmission, Left Hand 1 14 01000628 Screw, 1/4-20 x 1/2 2
7 01008193 IZT Transmission, Right Hand 1 15 01008758 Extension Spring, 1.0 OD x 5.000 2
8 01008349 V-Belt, 56.00 1 16 01008611 Brake Cable Mounting Bracket 2
8
4
4
3
7
3
5
5
10
5
6
10
9
4
4
12
15
13
12
11
2
1
16
14
3
3
GD: 01008106-T08

11

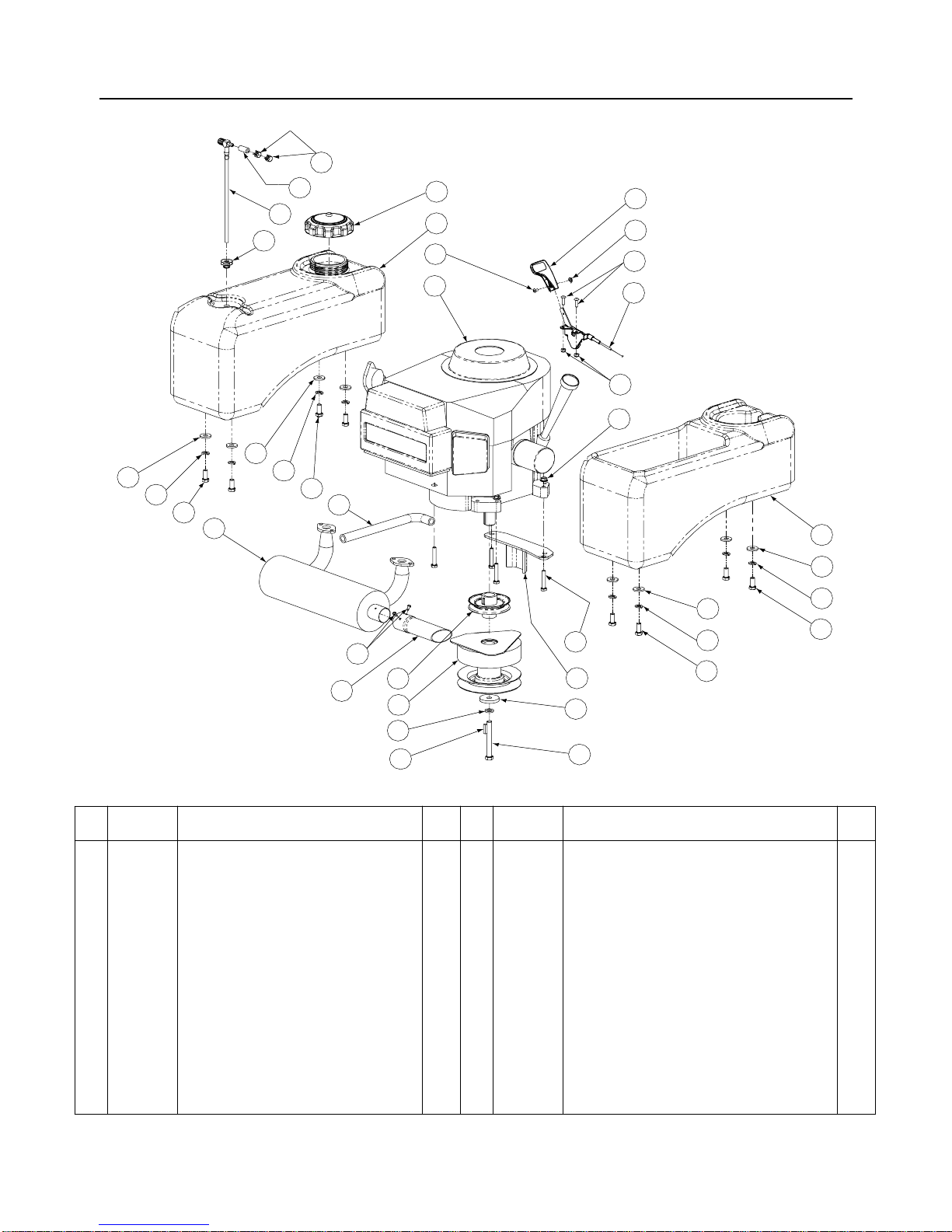

15HP Kawasaki Engine Assembly
- Figure 7 and Parts List
Ref
No Part No. Description Qty. Ref No Part No. Description Qty.
1 00006129 Hex Head Cap Screw, 5/16-18 x 1-3/4 4 17 01004004 Throttle Control Knob 1
2 00012157 Lock Washer, 3/8 Zinc 8 18 01004350 Fuel Tank 1
3 -- Hose, 1/4" Fuel Line 1 19 01005314 Flat Washer, 7/16 ID x 1.75 OD x .250 1
4 00012235 Clamp, Union 2 20 01006223 Oil Drain Extension Hose 1
5 00014602 Round Head Machine Screw, 10-32 x 3/4 2 21 01008138 Utility Bin 1
6 00014608 Lock Nut, Nylon Insert, 10-32 2 22 01008381 Electric PTO Engine Pulley (Discontinued)1
7 00060056 Nut, w/ Star Washer 1 01008808 Electric PTO Engine Pulley 1
8 01000069 FuelCap 1 23 01008415 15HP Twin Kawasaki Engine 1
9 01000281 FuelTankGroment 1 24 01008424 Kawasaki Muffler 1
10 01000368 Hex Cap Screw, 3/8-16 x .88 8 25 01008544 Ogura JD08 Electric Clutch 1
11 01000389 Lock Washer, 7/16 1 26 01008575 Choke Control Cable 1
12 01000635 LockNut,HexFlange,5/16-18 4 27 01008640 Clutch Retainer Assembly 1
13 01008637 Hex Cap Screw, 7/16-20 x 4.0 1 28 01000811 Screw, 8-32 x .375, Hex Washer 2
14 01000721 Machine Screw, 8-32 x .375 1 29 00025344 Key, 1/4 x 1/4 x 7/8 (Discontinued)1
15 01000723 Flat Washer, .406 ID x 1.0 OD x .105 8 01007533 Key, 1/4 x 1/4 x 2.75 1
16 01003116 Fuel Pickup Fitting 1 30 01008623 Exhaust Pipe 1
21
15
2
10
15
2
10
1
27
19
22
25
11
13
24
10
2
15 10
2
15
20
4
3
16
9
8
18
14
23
17
7
5
26
6
12
28
30
29
GD: 01008110-T09

12
18HP Briggs Engine Assembly
- Figure 8 and Parts List
Ref
No Part No. Description Qty. Ref No Part No. Description Qty.
1 00006129 Hex Head Cap Screw, 5/16-18 x 1-3/4 4 20 01003283 Oil Drain Extension Hose 1
2 00012157 Lock Washer, 3/8 Zinc 8 21 01008138 Utility Bin 1
3 -- Hose, 1/4" Fuel Line 1 22 01008381 Electric PTO Engine Pulley (Discontinued)1
4 00012235 Clamp, Union 2 01008808 Electric PTO Engine Pulley 1
5 00014602 Round Head Machine Screw, 10-32 x 3/4 2 23 01008883 18HP Twin Briggs Engine 1
6 00014608 Lock Nut,NylonInsert, 10-32 2 24 01008902 Briggs Muffler 1
7 00060056 Nut, w/ Star Washer 1 25 01008544 Ogura JD08 Electric Clutch 1
8 01000069 Fuel Cap 1 26 01003272 Throttle Control Cable 1
9 01000281 Fuel TankGroment 1 27 01008640 Clutch Retainer Assembly 1
10 01000368 Hex Cap Screw, 3/8-16 x .88 8 28 01000811 Screw, 8-32 x .375, Hex Washer 2
11 01000389 Lock Washer, 7/16 1 29 00025344 Key, 1/4 x 1/4 x 7/8 (Discontinued)1
12 01000635 LockNut,Hex Flange,5/16-18 4 01007533 Key, 1/4 x 1/4 x 2.75 1
13 01008637 Hex Cap Screw, 7/16-20 x 4.0 1 30 01008623 Exhaust Pipe 1
14 01000721 Machine Screw, 8-32 x .375 1 31 00012168 Lock Washer, 5/16 4
15 01000723 Flat Washer, .406 ID x 1.0 OD x .105 8 32 01009142 Socket Head Cap Screw, 5/16-18 x 1.00 4
16 01003116 Fuel Pickup Fitting 1 33 01004020 Choke Cable 1
17 01004004 Throttle Control Knob 1 34 01008881 Harness Adaptor 1
18 01004350 Fuel Tank 1 35 00023041 Starter Side Lock Nut 1/4-20 1
19 01005314 Flat Washer, 7/16 ID x 1.75 OD x .250 1
21
15
2
10
15
2
10
1
27
19
22
25
11
13
24
10
2
15 10
2
15
20
4
3
16
9
8
18
14
23
17
7
5
26
6
12
28
30
29
31
32
33
34
35
GD: 01008901-T04

13
Electrical Assembly - Figure 9 and Parts List
Ref.
No. Part No. Description Qty. Ref. No. Part No. Description Qty.
1 00012032 Battery, 12V 260CCA 30Min 1 13 01002228 Solenoid 1
2 00012152 Lock Nut, Nylon Insert, 1/4-20 2 14 01002251 Relay, 12V 40A 3
3 00012165 Nut, 5/16-18, Nylock 2 15 01003277 Normally Closed Seat Switch 1
4 00013131 Hex Cap Screw, 1/4-20 x .75 2 16 01003581 Switch, Ignition, 6 Pin 1
5 00013258 Boot, 1" OD Rubber Battery-PST Red 2 17 01008042 Safety Switch Retainer Spring 3
6 00014608 Lock Nut, Nylon Insert, 10-32 1 18 01008375 Harness Assembly (not shown) 1
7 00024233 Cable, Battery, Black, 17" 1 19 01008386 Neutral Switch 2
8 00032097 Nut, 5/8-32, w/Cap 1 20 01008511 Neutral Switch Mounting Bracket 2
9 00095773 Cable, Battery, Red, 15" (Kawasaki) 2 21 01008531 Self Tapping Screw, 10-32 x 1/2 11
Cable, Battery, Red, 15" (Briggs) 1 22 01008571 Switch, Plunger 1
10 01000628 Self Tapping Screw, 1/4-20 x 1/2 7 23 01008614 Bracket, Safety Switch, Left Hand 1
11 01001717 Normally Closed Safety Switch 2 24 01008615 Bracket, Safety Switch, Right Hand 1
12 01002111 Electric PTO Switch 1 25 01002252 Cable, Battery, Red, 24" (Briggs) 1
10
12
16
8
10 17 21 14
5
6
9
2
13
3
22
17
21
17
5
7
2
21
20
19
21
11
23
15
10
4
21
1
10
21 21
11
24
20
19
21
9,25 *
GD: 01008111-T03
GD: 01009135-T00
NOTE:
* Ref. #9 use for kawasaki engines
* Ref. #25 use for Briggs engines

14
Lift Assembly
- Figure 10
and Parts List
Ref.
No. Part No. Description Qty. Ref. No. Part No. Description Qty.
1 00012382 Hex Cap Screw, 5/16-18 x 1-1/2 2 15 01008467 UpperLinkLiftAssembly,LeftHand 1
2 00022547 Nut, 5/16-18, Center Lock 4 16 01008183 Lower Lift Bracket, Left Hand 1
3 00022560 Nut, 3/8-16, HexFlange Lock 4 17 01008186 Link Lift PLate, Right Hand 1
4 18 01008187 Cap Lift Push Nut 2
5 01008620 SelfTapping Screw, 5/16-18 x 3/4 12 19 01008382 Front Lift Rod 2
6 01003993 Linch Pin 2 20 01008188 Lift Index Weldment, Left Hand 1
7 01008139 Deck Lift Handle 1 21 01008189 Lift Index Weldment, Right Hand 1
8 01008140 Deck Lift Spring, Left Hand 1 22 01008465 Rear Lift Arm 2
9 01008141 Deck Lift Spring, Right Hand 1 23 01008557 Front Lift Rod 1
10 01008477 LiftHub Assembly 2 24 01008573 Lift Spring 2
11 01008459 Lift Shaft Assembly 1 25 01008638 Front Lift Bracket 2
12 01008494 Handle Lift Arm 2 26 00035632 Jam Nut, 5/8-11 4
13 01008175 Lift Handle Rod 1 27 01008658 Jam Nut, 1/2-20 2
14 01008176 Lift Rod Index 1 28 738-3151 Shoulder Screw, 3/8-16, .56 x .27 4
26
6
25
26
19
28
22
28
17
3
5
10
11
27
3
27
16
28
15
5
28
1
3
22
18
14
5
7
8
12
20
5
5
13
26
19
18
5
12
25
26
6
23
10
5
2
24
24 9
21
1
5
GD: 01008109-T07

This Page Left Intentionally Blank
15

16

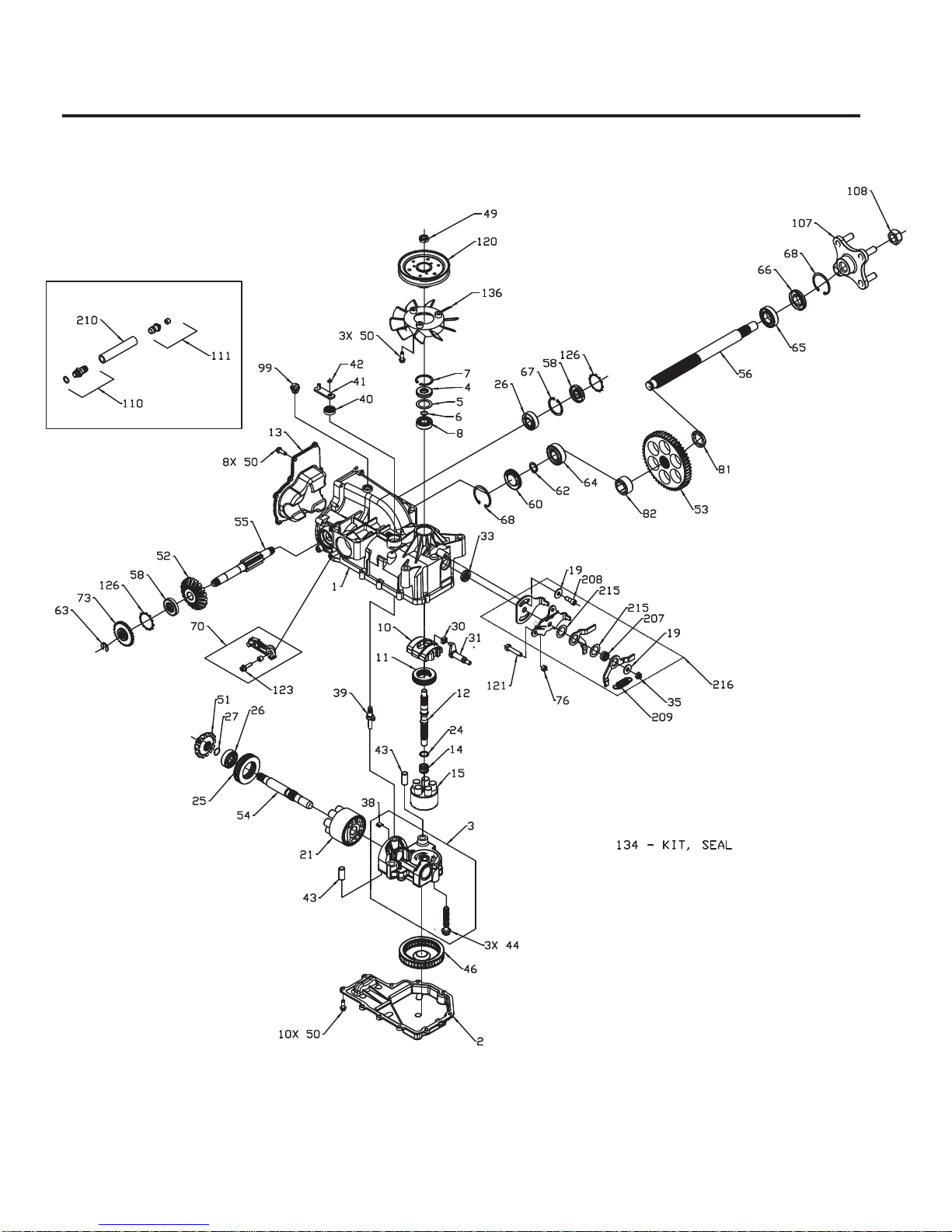

Hydro IZT Transmission L.H. 344-2400L - Figure 10

Hydro IZT Transmission L.H. 344-2400L - Parts List For Figure 10
Ref.
No. Part No. Description Qty.
1 HG-70627 KIT, HOUSING-MAIN 1
HOUSING, MAIN 1
CRADLE BEARING 2
TRUNNION BUSHING 1
SEAL, LIP 12 x 25 x 7 1
SCREW, HFHC 1/4-28 x 7/8 (PATCH) 1
2 HG-50890RM LOWER HOUSING 1
3 HG-70677 KIT, CENTER SECTION 1
CENTER SECTION 1
BUSHING .67 x 1.03 x .75 1
PLATE, BYPASS 1
BOLT, HEX FLANGE 3/8-24 x 2.5 3
CHECK PLUG ASSEMBLY, .027 2
4 HG-9008000-0128 SEAL, LIP 15 x 35 x 7 1
5 HG-2003018 SPACER 1
6 HG-2003016 RING, WIRE RETAINING 1
7 HG-2003052 RING, RETAINING 1
8 HG-2003043 BALL BEARING 1
10 HG-2003087 VARIABLE SWASHPLATE 1
11 HG-50551 THRUST BEARING 30 x 52 x 13 1
12 HG-50005 SHAFT, INPUT 1
13 HG-50891RM COVER-BACK 1
14 HG-2003014 SPRING, BLOCK 1
15 HG-70331 10cc CYLINDER BLOCK ASSY. 1
10cc CYLINDER BLOCK 1
10cc PISTON SPRING 5
PISTON SEAT WASHER 5
10cc PISTON 5
19 HG-44130 WASHER, .34 x .88 x .06 2
21 HG-70082 21cc CYLINDER BLOCK ASSY. 1
21cc CYLINDER BLOCK 1
21cc PISTON SPRING 7
PISTON SEAT WASHER 7
21cc PISTON 7
24 HG-2003017 WASHER, BLOCK THRUST 1
25 HG-50552 THRUST BEARING 42 x 68 x 16 1
26 HG-50315 BALL BEARING 2
27 HG-2000022 RING, WIRE RETAINING 1
30 HG-2000015 SLOT GUIDE 1
31 HG-50807 TRUNNION ARM 1
33 HG-9008000-0126 SEAL, LIP 12 x 25 x 7 1
35 HG-50108 NUT, HEX LOCK LOCK 5/16-24 UNJF 1
38 HG-70680 KIT, BYPASS PLATE 1
PLATE, BYPASS (BREAD) 1
PLATE, BYPASS 1
39 HG-2003555 BYPASS ACTUATOR 1
40 HG-45074 SEAL, LIP 10 x 25 x 7 1
41 HG-50270 ARM, BYPASS 1
42 HG-44870 RING, RETAINING 1
43 HG-50002 PIN, HOLLOW .39 x .5 x 1 2
44 HG-50016 BOLT, HEX FLANGE 3/8-24 x 2.5 3
46 HG-50990 FILTER 1
49 HG-51244 HEX LOCK NUT 1/2-20 (NYLON INSERT) 1
50 HG-50752 SCREW, 1/4-20 x .75 21
51 HG-50744 14T BEVEL GEAR 1
52 HG-50745 19T BEVEL GEAR 1
53 HG-50746 53T SPUR GEAR 1
17

Hydro IZT Transmission L.H. 344-2400L - Parts List For Figure 10
Ref.
No. Part No. Description Qty.
54 HG-50757 SHAFT, MOTOR 1
55 HG-51298 SHAFT, BRAKE 1
56 HG-50748 SHAFT, AXLE 1
58 HG-51161 SEAL, LIP 17 x 40 x 7 2
60 HG-50995 SEAL PLUG-SIDE 1
62 HG-50759 RING, RETAINING-AXLE 1
63 HG-51109 RING, RETAINING 1
64 HG-50743 BEARING-BALL 20 x 47 x 14 (6204) 1
65 HG-50740 BEARING-BALL 25 x 47 x 12 (6005) 1
66 HG-50751 SEAL, LIP 25 x 47 x 7 1
67 HG-50329 RING, RETAINING 1
68 HG-50760 RING, RETAINING-AXLE 2
70 HG-70391 ASSEMBLY, BRAKE ARM SERVICE 1
ARM, BRAKE ZINC 1
CLEVIS PIN 1
BUSHING .255 x .394 x .330 1
SCREW, HFHC 1/4-28 x 7/8 (PATCH) 1
73 HG-50754 BRAKE DISC 1
76 HG-43083 NUT, HEX 5/16-18 1
81 HG-50942-2 AXLE BUSHING 1
82 HG-50942-1 AXLE BUSHING 1
99 HG-9005200-5600 PLUG, PLASTIC 1
107 HG-70314 HUB ASSEMBLY 1
HUB 1
LUG BOLT 4
108 HG-50863 NUT, HEX 3/4-16 1
110 HG-70110 FITTING O-RING ASSEMBLY 1
PLASTIC HOSE FITTING 1
O-RING 1
111 HG-70109 CAP VENT ASSEMBLY 1
CAP-POPPET VALVE 1
PLASTIC VENT 1
120 HG-50302 PULLEY, 4.5 x 1.625 1
121 HG-51753 BOLT, 5/16-18 x 1.50 1
123 HG-51576 SCREW, HFHC 1/4-28 x 7/8 (PATCH) 1
126 HG-51316 RING, RETAINING 2
134 HG-70553 KIT, SEAL 1
136 HG-51365 FAN, 6" 10 BLADE 1
207 HG-51396 SPACER, RTN 1
208 HG-51400 SHCS 5/16-24 x .75 (PATCH) 1
209 HG-51399 SPRING, EXTENSION 1
210 HG-51401 HOSE .5 x 4 1
215 HG-51408 WASHER, PLASTIC 1.19 x .7 2
216 HG-70609 KIT, RTN SCISSOR 1
WASHER, .34 x .88 x .06 2
NUT, HEX LOCK 5/16-24 UNJF 1
ARM, RTN 1
ARM, RTN SCISSOR, INNER 1
ARM, RTN SCISSOR, OUTER 1
ARM, CONTROL 1
SPACER, RTN 1
SPRING, EXTENSION 1
SHCS 5/16-24 x .75 (PATCH) 1
WASHER, PLASTIC 1.19 x .7 2
18

This Page Left Intentionally Blank
19

Hydro IZT Transmission R.H. 344-2400R - Figure 11
20
