Cuisinart®Classic Toaster Oven Broiler TOB-50
INSTRUCTION AND
RECIPE BOOKLET
T0B50 IB-5946 4/30/05 9:50 AM Page 1
All manuals and user guides at all-guides.com
all-guides.com

T0B50 IB-5946 4/30/05 9:50 AM Page 2
All manuals and user guides at all-guides.com

1
CONTENTS
Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Special Cord Set Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
General Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Use and Care
Broil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Bake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Toast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Browning Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Toast (continued) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Oven Rack Position Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Recipes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
IMPORTANT SAFEGUARDS
When using an electrical appliance, basic safety precautions should always
be followed, including the following:
1. Read all instructions.
2. Do not touch hot surfaces. Use handles.
3. To protect against electrical shock, do not place any part of the toaster
oven broiler in water or other liquid. See instructions for cleaning.
4. This appliance should not be used by or near children.
5. UNPLUG FROM OUTLET WHEN NOT IN USE AND BEFORE
CLEANING. Allow to cool before cleaning or handling.
6. Do not operate any appliance with a damaged cord or plug or after the
appliance has malfunctioned or has been dropped or damaged in any way
or is not operating properly. Return the toaster oven broiler to the nearest
Cuisinart Repair Center for examination, repair or mechanical
or electrical adjustment.
7. The use of accessory attachments not recommended by Cuisinart may
cause injury.
8. Do not use outdoors.
9. Do not let cord hang over the edge of the table or countertop where
it could be pulled on inadvertently by children or pets, or touch hot
surfaces, which could damage the cord.
10. Do not place toaster oven broiler on or near a hot gas or electric burner
or in a heated oven.
11. Do not use this toaster oven broiler for anything other than its
intended purpose.
12. Extreme caution should be exercised when using containers constructed
of materials other than metal or glass in the toaster oven broiler.
13. To avoid burns, use extreme caution when removing tray or disposing
of hot grease.
T0B50 IB-5946 4/30/05 9:50 AM Page 3
All manuals and user guides at all-guides.com

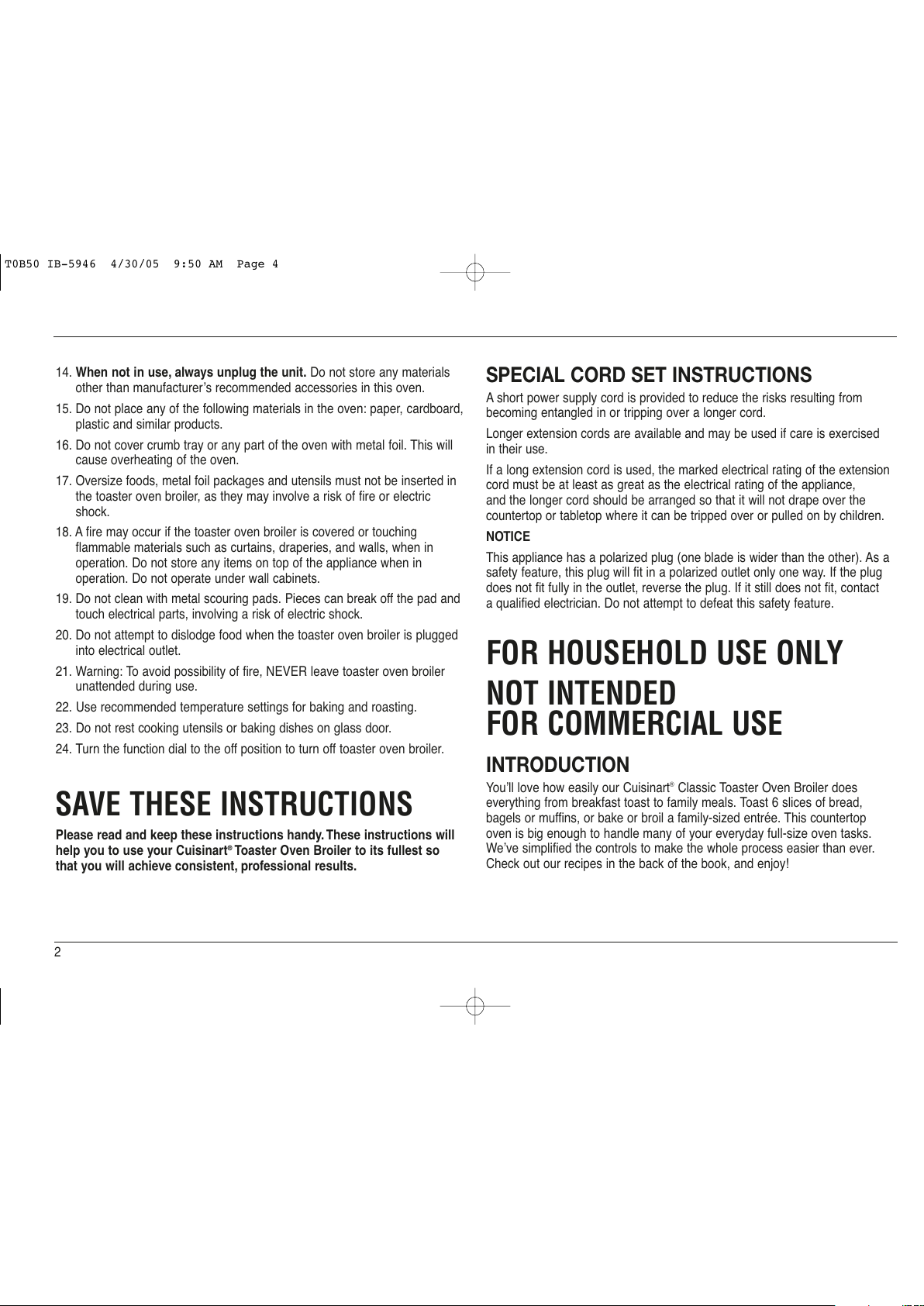

14. When not in use, always unplug the unit. Do not store any materials
other than manufacturer’s recommended accessories in this oven.
15. Do not place any of the following materials in the oven: paper, cardboard,
plastic and similar products.
16. Do not cover crumb tray or any part of the oven with metal foil. This will
cause overheating of the oven.
17. Oversize foods, metal foil packages and utensils must not be inserted in
the toaster oven broiler, as they may involve a risk of fire or electric
shock.
18. A fire may occur if the toaster oven broiler is covered or touching
flammable materials such as curtains, draperies, and walls, when in
operation. Do not store any items on top of the appliance when in
operation. Do not operate under wall cabinets.
19. Do not clean with metal scouring pads. Pieces can break off the pad and
touch electrical parts, involving a risk of electric shock.
20. Do not attempt to dislodge food when the toaster oven broiler is plugged
into electrical outlet.
21. Warning: To avoid possibility of fire, NEVER leave toaster oven broiler
unattended during use.
22. Use recommended temperature settings for baking and roasting.
23. Do not rest cooking utensils or baking dishes on glass door.
24. Turn the function dial to the off position to turn off toaster oven broiler.
SAVE THESE INSTRUCTIONS
Please read and keep these instructions handy. These instructions will
help you to use your Cuisinart®Toaster Oven Broiler to its fullest so
that you will achieve consistent, professional results.
SPECIAL CORD SET INSTRUCTIONS
A short power supply cord is provided to reduce the risks resulting from
becoming entangled in or tripping over a longer cord.
Longer extension cords are available and may be used if care is exercised
in their use.
If a long extension cord is used, the marked electrical rating of the extension
cord must be at least as great as the electrical rating of the appliance,
and the longer cord should be arranged so that it will not drape over the
countertop or tabletop where it can be tripped over or pulled on by children.
NOTICE
This appliance has a polarized plug (one blade is wider than the other). As a
safety feature, this plug will fit in a polarized outlet only one way. If the plug
does not fit fully in the outlet, reverse the plug. If it still does not fit, contact
a qualified electrician. Do not attempt to defeat this safety feature.
FOR HOUSEHOLD USE ONLY
NOT INTENDED
FOR COMMERCIAL USE
INTRODUCTION
You’ll love how easily our Cuisinart®Classic Toaster Oven Broiler does
everything from breakfast toast to family meals. Toast 6 slices of bread,
bagels or muffins, or bake or broil a family-sized entrée. This countertop
oven is big enough to handle many of your everyday full-size oven tasks.
We’ve simplified the controls to make the whole process easier than ever.
Check out our recipes in the back of the book, and enjoy!
2
T0B50 IB-5946 4/30/05 9:50 AM Page 4
All manuals and user guides at all-guides.com

3
6
Broiling Pan and Drip Tray
10
9
11
FEATURES AND BENEFITS
1. Temperature Dial
Select desired temperature for the “Baking” or “Broiling” function.
2. Function Dial
Select cooking method – Bake, Broil or Toast.
3. Toast Shade Dial
Select the desired toast shade – Light, Medium or Dark.
4. Toasting Start Button
Push button to start toasting function.
5. Toasting Stop Button
Push button to stop toasting in mid-cycle and shut off oven.
6. Oven On Indicator
Indicator light will remain lit when oven is in use.
7. Oven Rack (not shown)
Has two positions. The top position has a 50% stop feature so
the rack stops halfway out of the oven. It can be removed by lifting
the front of the rack and sliding it out.
8. Slide-out Crumb Tray (not shown)
Slides out from bottom of the toaster oven broiler for easy cleaning.
9. Cord Storage
Takes up excess cord and keeps countertop neat.
10. Easy-Clean Interior
The sides of the oven are coated, providing an easy-to-clean surface.
11. Baking/Broiling Pan
A baking/broiling pan is included for your convenience. The broiling pan’s
drip tray has two positions to accommodate a variety of meats, poultry,
and fish for broiling.
5
14
23
T0B50 IB-5946 4/30/05 9:50 AM Page 5
All manuals and user guides at all-guides.com

BEFORE THE FIRST USE
Place your oven on a flat surface.
Before using your oven, move it two to four inches away from the wall or
from any objects on the countertop. Do not use on heat-sensitive surface.
DO NOT STORE OBJECTS ON THE TOP OF THE OVEN. IF YOU DO,
REMOVE ALL OBJECTS BEFORE YOU TURN ON YOUR OVEN. THE
EXTERIOR WALLS GET VERY HOT WHEN IN USE. KEEP OUT OF
REACH OF CHILDREN.
GENERAL GUIDELINES
Baking: Baking function can be used as you would normally use your
kitchen oven for roasting meats including chicken, or baking cakes,
cookies and more.
Broiling: Broiling function can be used for beef, chicken, pork, fish and more.
It also can be used to top brown casseroles and gratins. Caution: Aluminum
foil is not recommended for covering the drip tray. Foil is extremely dangerous
when broiling fatty foods. Grease will accumulate and may catch fire. The use
of foil is not recommended, but if foil is used to cover broiling pan, be sure foil
is tucked neatly around the pan and does not touch the walls or heating rods.
Never cover crumb tray.
Toasting: Always have the rack in rack position “B”, as indicated in the
diagram on page 5, for even toasting. Always center your item/items in the
middle of the rack.
WARNING: Placing the rack in the bottom position or in the top position
with the rack upwards while toasting may result in a fire. Refer to rack
position diagram for proper use.
Turning off the toaster oven broiler: Turn the function dial to off. The
indicator will turn off.
USE AND CARE
Unwind the power cord. Check that the crumb tray is in place and that there
is nothing in the oven. Plug power cord into the wall outlet.
Broil
Note: When broiling, add approximately 1⁄4cup water to the bottom of the
broiling pan to reduce sizzling and splattering. Place the drip tray in the
broiling pan. Note: There are two positions for the drip tray so that a variety of
thicknesses of foods can be broiled. Also, the oven rack can be turned up or
down depending on the thickness of the food being broiled. In most cases the
oven rack should be in the higher position (position “C” – see rack position
diagram on page 5).
To broil, set temperature and function dials to broil. Preheat oven for five
minutes with door closed. After the five-minute preheat period, place the
broiling pan in the oven. Always leave door ajar when broiling.
Note: Never use glass oven dishes to broil.
To stop broil operation, turn function dial to off position.
Bake
To bake, turn the temperature dial to the desired temperature and turn
function dial to bake position. Make sure oven rack is in position “A” – see
rack position diagram on page 5. The oven indicator light will turn on.
Preheat oven for five to ten minutes (time will vary depending upon desired
temperature); then begin to bake.
Toast
To toast, make sure the oven rack is in rack position “B”, as indicated in
the diagram on page 5. If toasting two items, center them in the middle of
the rack. Four items should be evenly spaced – two in front, two in back.
Six items should be evenly spaced – three in front, three in back. Close the
glass door.
Browning Selection
Set function dial to toast. Turn toast shade dial to desired browning setting.
Press “Start” button to begin toasting.
4
T0B50 IB-5946 4/30/05 10:30 AM Page 6
All manuals and user guides at all-guides.com
all-guides.com

5
Stop Toasting
When the toasting cycle is finished, the oven will beep 5 times and turn off.
If you wish to stop the toasting cycle before it is finished, simply press the
“Stop” button. The toaster oven broiler will cancel your toast cycle.
Important Notes on Toasting
The oven rack must be in rack position “B” as indicated in the diagram
on this page.
CLEANING AND MAINTENANCE
Always allow the oven to cool completely before cleaning.
1. Always unplug the oven from the electrical outlet.
2. Do not use abrasive cleansers, as they will damage the finish. Simply
wipe the exterior with a clean damp cloth and dry thoroughly. Apply the
cleansing agent to a cloth, not to the toaster oven, before cleaning.
3. To clean interior walls, use a damp cloth and a mild liquid soap solution
or a spray solution on a sponge. Never use harsh abrasives or corrosive
products. These could damage the oven surface. Never use Brillo pads,
etc. on interior of oven.
4. To remove crumbs, slide out the crumb tray and discard crumbs. Wipe
clean and replace. Crumb tray is dishwasher-safe. To remove baked-on
grease, soak the tray in hot sudsy water or use nonabrasive cleaners.
Never operate the oven without the crumb tray in place.
5. Wire rack, broiling pan and drip tray are dishwasher-safe. If heavily soiled,
soak in hot sudsy water or use a nylon scouring pad or nylon brush.
6. Never wrap the cord around the outside of the oven. Use the cord storage
cleats on the back of the oven.
IMPORTANT
After cooking greasy foods and after your oven has cooled, always clean top
interior of oven. If this is done on a regular basis, your oven will perform like
new. Removing the grease will help to keep toasting consistent, cycle after
cycle.
All of our recipes have been tested in our kitchen and specially developed to
work in the Cuisinart®Classic Toaster Oven Broiler. These mouth-watering
recipes are just a sampling of what the Cuisinart®Classic Toaster Oven
Broiler can do.
OVEN RACK POSITION DIAGRAMS
Each recipe gives you step-by-step
directions and will even tell you
where the oven rack should be
positioned for best results.
Please refer to the diagram
for oven rack positions.
Each position is described with
a letter that is referred to in
the recipe.
RACK
POSITION
“A”
RACK
POSITION
“B”
RACK
POSITION
“C”
T0B50 IB-5946 4/30/05 9:50 AM Page 7
All manuals and user guides at all-guides.com

6
RECIPES
Jammy Muffins
Get your ingredients all ready to mix the night before – combine dry
ingredients and cover; combine egg, milk, yogurt and vanilla; cover and
refrigerate. In the morning mix and bake for fresh warm muffins.
Makes 6 regular muffins
11⁄2teaspoons + 3 tablespoons granulated sugar
1⁄2teaspoon ground cinnamon
cooking spray
1 cup unbleached all-purpose flour
11⁄4teaspoons baking powder
1⁄4teaspoon baking soda
1⁄8teaspoon salt
1 large egg
1⁄4cup lowfat milk
2 tablespoons plain lowfat yogurt
1⁄4teaspoon vanilla extract
4 teaspoons jam or marmalade (not jelly)
Preheat toaster oven to 400°F. Combine 11⁄2teaspoons granulated sugar
with cinnamon and reserve. Lightly coat a standard 6-cup muffin tin with
cooking spray.
Place flour, 3 tablespoons granulated sugar, baking powder, baking soda,
and salt in a medium bowl. Stir to blend. Place egg in a small bowl and stir
until smooth. Add milk and yogurt to beaten egg and stir until smooth, then
stir in vanilla. Add the liquid mixture to the dry ingredients and whisk until
just smooth – do not overmix – the muffins can become tough and rubbery.
Divide the batter evenly among the prepared muffin cups. Top each in the
center with about 3⁄4teaspoon jam or marmalade. Sprinkle muffins with the
sugar/cinnamon mixture.
Bake in toaster oven for 18 to 20 minutes, rotating the muffin tin after
approximately 9 minutes. Turn out onto a rack and cool for at least
5 to 10 minutes (the jam will be hot enough to burn) before serving.
Nutritional information per muffin:
Calories 138 (9% from fat) • carb. 28g • pro. 4g • fat 1g • sat. fat 0g
• chol. 36mg • sod. 196mg • calc. 46mg • fiber 1g
Parmesan Chive Corn Muffins
These muffins are delicious served warm
from the oven with soups or stews.
Makes six 21⁄2-inch muffins
cooking spray
1⁄2cup all-purpose flour
1⁄2cup yellow cornmeal
2 tablespoons firmly packed brown sugar
1 teaspoon cream of tartar
1⁄4teaspoon baking soda
1⁄8teaspoon salt
1 large egg, lightly beaten
1⁄2cup milk (can use whole, 2%, 1% or nonfat)
2 tablespoons unsalted butter, melted and cooled
1⁄4cup freshly grated Parmesan cheese
1 tablespoon chopped fresh chives
Place the rack in Position B, and preheat toaster oven to 400ºF. Lightly coat
a standard 6-cup muffin tin with cooking spray.
In a small mixing bowl, combine the flour, cornmeal, brown sugar, cream of
tartar, baking soda and salt; stir to combine and completely break up any
lumps in the brown sugar.
In a 1-cup glass measure combine the egg, milk and melted cooled butter.
Add the liquid ingredients, the grated Parmesan and the chives all at once
to the dry ingredients. Stir until just moistened. Fill the prepared muffin
cups with the batter.
T0B50 IB-5946 4/30/05 9:50 AM Page 8
All manuals and user guides at all-guides.com

7

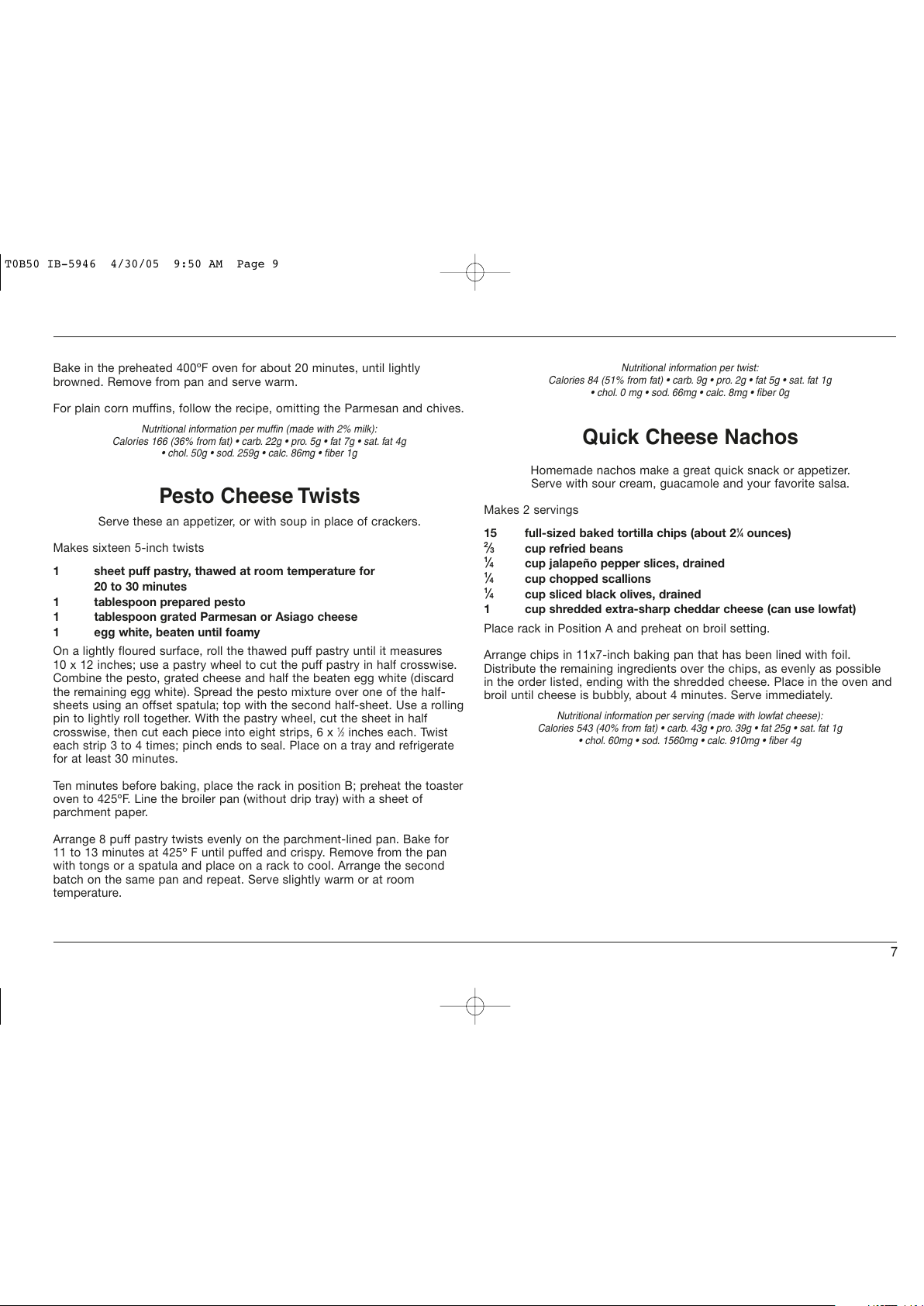

Bake in the preheated 400ºF oven for about 20 minutes, until lightly
browned. Remove from pan and serve warm.
For plain corn muffins, follow the recipe, omitting the Parmesan and chives.
Nutritional information per muffin (made with 2% milk):
Calories 166 (36% from fat) • carb. 22g • pro. 5g • fat 7g • sat. fat 4g
• chol. 50g • sod. 259g • calc. 86mg • fiber 1g
Pesto Cheese Twists
Serve these an appetizer, or with soup in place of crackers.
Makes sixteen 5-inch twists
1 sheet puff pastry, thawed at room temperature for
20 to 30 minutes
1 tablespoon prepared pesto
1 tablespoon grated Parmesan or Asiago cheese
1 egg white, beaten until foamy
On a lightly floured surface, roll the thawed puff pastry until it measures
10 x 12 inches; use a pastry wheel to cut the puff pastry in half crosswise.
Combine the pesto, grated cheese and half the beaten egg white (discard
the remaining egg white). Spread the pesto mixture over one of the half-
sheets using an offset spatula; top with the second half-sheet. Use a rolling
pin to lightly roll together. With the pastry wheel, cut the sheet in half
crosswise, then cut each piece into eight strips, 6 x 1⁄2inches each. Twist
each strip 3 to 4 times; pinch ends to seal. Place on a tray and refrigerate
for at least 30 minutes.
Ten minutes before baking, place the rack in position B; preheat the toaster
oven to 425ºF. Line the broiler pan (without drip tray) with a sheet of
parchment paper.
Arrange 8 puff pastry twists evenly on the parchment-lined pan. Bake for
11 to 13 minutes at 425º F until puffed and crispy. Remove from the pan
with tongs or a spatula and place on a rack to cool. Arrange the second
batch on the same pan and repeat. Serve slightly warm or at room
temperature.
Nutritional information per twist:
Calories 84 (51% from fat) • carb. 9g • pro. 2g • fat 5g • sat. fat 1g
• chol. 0 mg • sod. 66mg • calc. 8mg • fiber 0g
Quick Cheese Nachos
Homemade nachos make a great quick snack or appetizer.
Serve with sour cream, guacamole and your favorite salsa.
Makes 2 servings
15 full-sized baked tortilla chips (about 21⁄4ounces)
2⁄3cup refried beans
1⁄4cup jalapeño pepper slices, drained
1⁄4cup chopped scallions
1⁄4cup sliced black olives, drained
1 cup shredded extra-sharp cheddar cheese (can use lowfat)
Place rack in Position A and preheat on broil setting.
Arrange chips in 11x7-inch baking pan that has been lined with foil.
Distribute the remaining ingredients over the chips, as evenly as possible
in the order listed, ending with the shredded cheese. Place in the oven and
broil until cheese is bubbly, about 4 minutes. Serve immediately.
Nutritional information per serving (made with lowfat cheese):
Calories 543 (40% from fat) • carb. 43g • pro. 39g • fat 25g • sat. fat 1g
• chol. 60mg • sod. 1560mg • calc. 910mg • fiber 4g
T0B50 IB-5946 4/30/05 9:50 AM Page 9
All manuals and user guides at all-guides.com

MELTED CHEESE SANDWICHES
The next two sandwiches are classic toaster-oven fare, quick and easy hot
sandwiches for any time of day or night.
Toasted Crab & Cheddar Melts
A classic open-faced toasted sandwich. Serve with
a green salad for supper, or for Sunday brunch.
Makes 4 open-faced sandwiches
2 sandwich-size English muffins, split
12 ounces lump crab meat, drained
1⁄2cup finely chopped celery
1⁄3cup chopped parsley
2 tablespoons finely chopped green onion
1⁄2cup lowfat mayonnaise
1 cup shredded sharp Cheddar cheese (can use lowfat)
Toast English muffin in toaster oven on light setting; let cool completely.
Line the baking pan with foil; preheat toaster oven on broil setting.
Pick crab over carefully to remove shell and cartilage bits, taking care not
to break up large lumps, and place in a medium bowl. Add celery, parsley,
green onion, mayonnaise and half the cheese. Stir gently to combine.
Divide crab mixture evenly among the four toasted English muffin halves
and spread evenly. Sprinkle each with 1⁄4of the remaining cheese. Arrange
the sandwiches on the prepared baking tray. Broil until golden, toasty, hot,
and cheese is melted, about 4 to 5 minutes.
Nutritional information per serving (one open-faced sandwich):
Calories 355 (42% from fat) • carb. 33g • pro. 29g • fat 16g • sat. fat 2g
• chol. 102mg • sod. 808mg • calc. 360mg • fiber 2g
Hot Smoked Turkey & Havarti
Sandwiches with Avocado
Makes 4 open-faced sandwiches
4 slices good quality whole wheat or pumpernickel bread
(about 5 x 31⁄2x 1⁄2-inches)
6 tablespoons lowfat mayonnaise
1 tablespoon Dijon-style mustard
1 tablespoon chopped fresh parsley
11⁄2teaspoons tarragon
1⁄8teaspoon freshly ground pepper
12 ounces thinly sliced smoked turkey
12-16 thin slices Italian tomato (slice, then place on layered
paper towels to drain)
6 ounces sliced Havarti cheese (can also use Cheddar, Swiss,
provolone, Gouda)
1 avocado (ripe but firm), peeled and sliced
Toast bread on medium setting (or to taste). Reserve.
Preheat toaster oven to 400°F. Line baking pan with foil. In small bowl,
combine mayonnaise, mustard, parsley, tarragon, and pepper; mix well.
Spread mayonnaise mixture on one side of each slice of toasted bread.
Top each evenly with one quarter of the smoked turkey, one quarter of
the sliced tomatoes, and one quarter of the cheese. Place on foil-lined
baking pan, evenly spaced. Place in toaster oven and bake until cheese is
bubbly and browned, about 4 to 6 minutes. Garnish with sliced avocado
and serve hot.
Nutritional information per serving (one open-faced sandwich):
Calories 493 (55% from fat) • carb. 25g • pro. 19g • fat 29g • sat. fat 13g
• chol. 92mg • sod. 1329mg • calc. 258mg • fiber 6g
8
T0B50 IB-5946 4/30/05 9:50 AM Page 10
All manuals and user guides at all-guides.com
