Curb Roller Manufacturing Hydra-Pack HP1300 User manual

www.curbroller.com
785-467-3132
MODEL HP1300
OWNER’S MANUAL

Congratulations on your
purchase of the Hydra-Pack!
Curb Roller Manufacturing
proudly manufactures the
Hydra-Pack HP1300 in the USA.
Before using the Hydra-Pack
HP1300 you must read and
follow this instruction manual
for proper use and set up.
The Hydra-Pack HP1300 has been
designed and manufactured to
provide many years of service.
Carefully examine your equipment
upon receipt. Report any damage
immediately to the freight carrier
and register any claim. If any
material or manufacturing defects
be discovered, contact a Curb
Roller Manufacturing representative.
Information provided in this manual
was current as of the issue date.
Curb Roller Manufacturing reserves
the right to make design changes
without notice or liability.
NOTICE
NOTICE
NOTICE
WARNING
Information furnished in this manual
does not include all of the details of
design, production, or variations of
the equipment. It does not cover all
of the possible contingencies which
may emerge during operation. If
special problems arise or further
information be desired, please
contact Curb Roller Manufacturing.
Equipment modifications from
original design and specifications
are strictly prohibited. Modifications
may compromise safe operation,
subjecting users to serious injury or
death. Modifications not authorized
by a Curb Roller Manufacturing
representative may void any
remaining warranty.
Curb Roller Manufacturing
reserves the right to change,
improve, modify, or expand
features of this equipment at any
time. Specifications, models, or
equipment are subject to change
without notice and without incurring
any obligations to change, improve,
or expand features of previously
delivered equipment. Because of
the variations in optional equipment
and continued design improvement,
certain information contained within
this manual may not apply.
The owner/operator of this
equipment must observe all safety
codes or operating limitations listed
herein, as well as any applicable
federal, state, provincial, or local
regulations.

Specifications
Hydraulic Reservoir Capacity
11 gal. (41.6 l)
Hydraulic Flow*
7 gpm (26.5 lpm)
Maximum Hydraulic Pressure
2300 psi (158.6 bar)
Oil Filtration
10 Micron
*Dependent on engine RPM
Safety
Before assembling and operating
this equipment you must read,
understand, and follow the
instructions and safety warnings in
this manual. Your Hydra-Pack may
not be equipped with some of the
optional equipment shown in the
illustrations in this manual.
If you have any safety concerns or
questions that are not covered by
this manual, please contact a Curb
Roller Manufacturing representative
at 785-467-3132.
Hazards
Do not operate, work on or around
this machine while under the
influence of alcohol, drugs, or if
feeling ill.
Entanglement hazard. Keep away
from moving parts. Do not wear
loose fitting clothing. Loose fitting
clothing and long hair can become
entangled in moving or rotating
parts. Long hair must be tied back
or netted.
Never operate machine with open
or missing guards or shields.
Observe all federal, state,
provincial, and local safety codes
and regulations that apply to the job
site.
Pressurized fluids can penetrate
the skin. Hydraulic hoses can fail
from age, damage, or exposure.
Do not search for hydraulic leaks
without body and face protection.
A tiny, almost invisible leak can
penetrate the skin thereby requiring
immediate medical attention.
Use wood or cardboard to detect
hydraulic leaks. Never use your
hands.
The engine exhaust from this
product contains chemicals known
to the state of California to cause
cancer, birth defects, or other
reproductive harm.
Engine exhaust contains poisonous
carbon monoxide. Do not operate
the Hydra-Pack in an enclosed or
confined area.
Avoid areas and actions that expose
you and others to carbon monoxide.
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
Equipment Identification
A. Hydraulic Oil Reservoir
B. Directional Valve
C. Engine Fuel Tank
D. Engine Air Filter
E. Cart
F. Hydraulic Oil Filter
G. Hydraulic Oil Suction Strainer
H. Female Hydraulic Coupler
I. Male Hydraulic Coupler
A
B
C
D
E
F
G
H
I

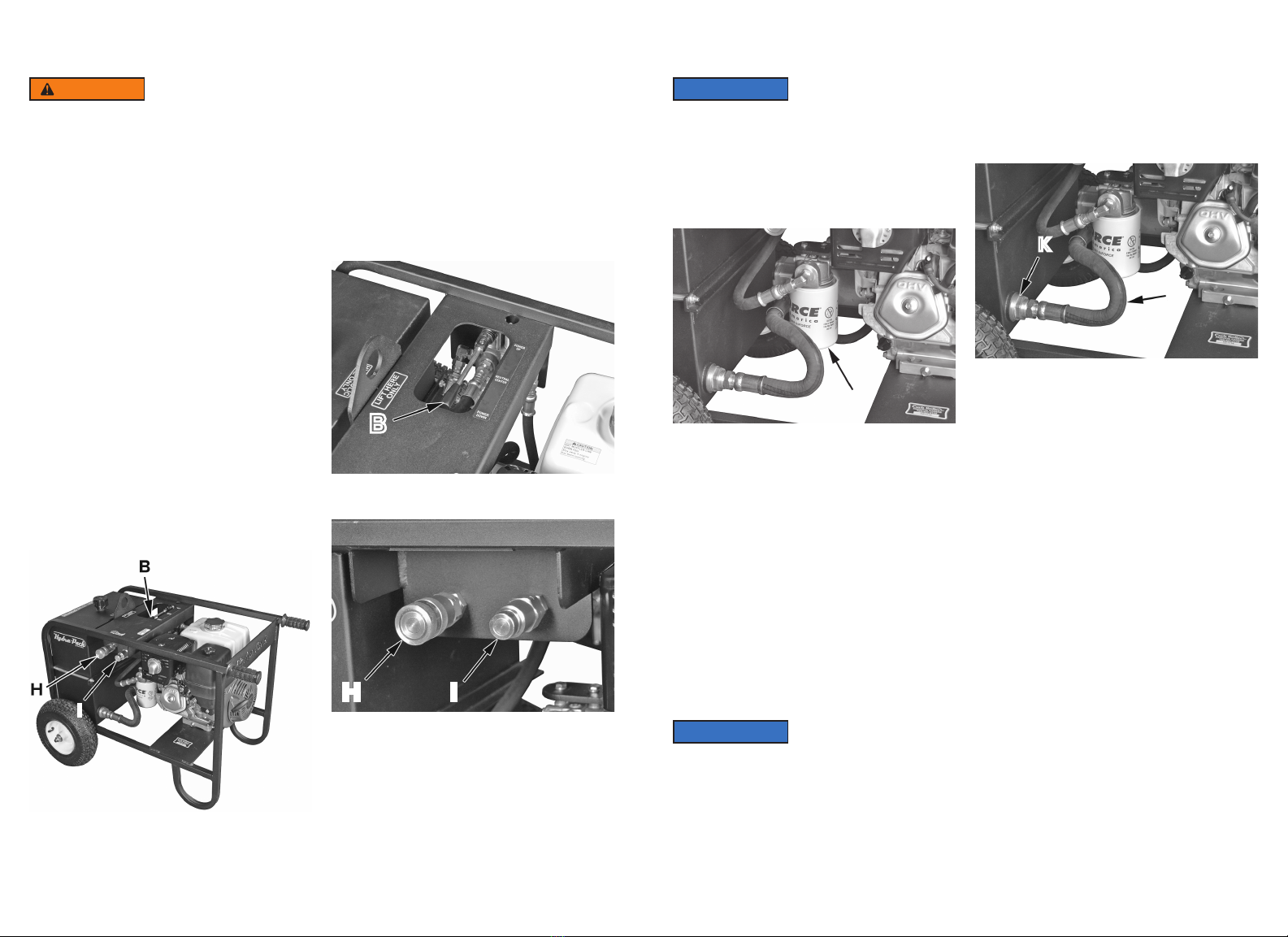

Operation
Prevent injury. Verify directional
valve is in neutral position before
connecting hydraulics.
1. Read and understand the engine
manufacturers’ operators manual
before using the Hydra-Pack.
2. Check hydraulic oil level in
reservoir. Add hydraulic oil if
necessary.
3. Verify directional valve (B) is in
center neutral position.
4. Connect hydraulic hoses to the
hydraulic couplers (H & I).
5. Start and operate engine per
guidelines in engine operator’s
manual.
6. Set engine throttle to max
position.
7. Move directional valve (B) down
to send pressure oil through
female coupler (H). Move
directional valve up to send
pressure oil through male
coupler (I).
8. Move directional valve (B) to
center neutral position to stop
pressurized oil flow.
Maintenance
Change hydraulic oil filter every
300 hours.
1. Stop engine.
2. Place a drain pan under filter.
3. Remove and replace filter.
4. Refill hydraulic oil reservoir to
proper level.
5. Dispose of oil in an
environmentally safe manner.
Change hydraulic oil every 600
hours/annually.
1. Stop engine.
2. Place a drain pan under suction
strainer.
3. Remove hose (J) to drain oil.
4. Remove, inspect, and clean
suction strainer (K). Replace
suction strainer if damaged.
5. Install suction strainer (K) and
connect hose (J).
6. Refill hydraulic oil reservoir to
proper level.
7. Dispose of oil in an
environmentally safe manner.
II
BB
HHI
I
J
K
K
WARNING
NOTICE
NOTICE

1
3
5
2
4
67
89
10
11
12
13
14
15
16
17
18
19
20
23
24
21
22
25
26
27
28
9
9
12
30
30
32
33
34
36
35
37
38
39
40
41
42
43 44
45
46
47
21
48
49
36
29
32
31
44
21

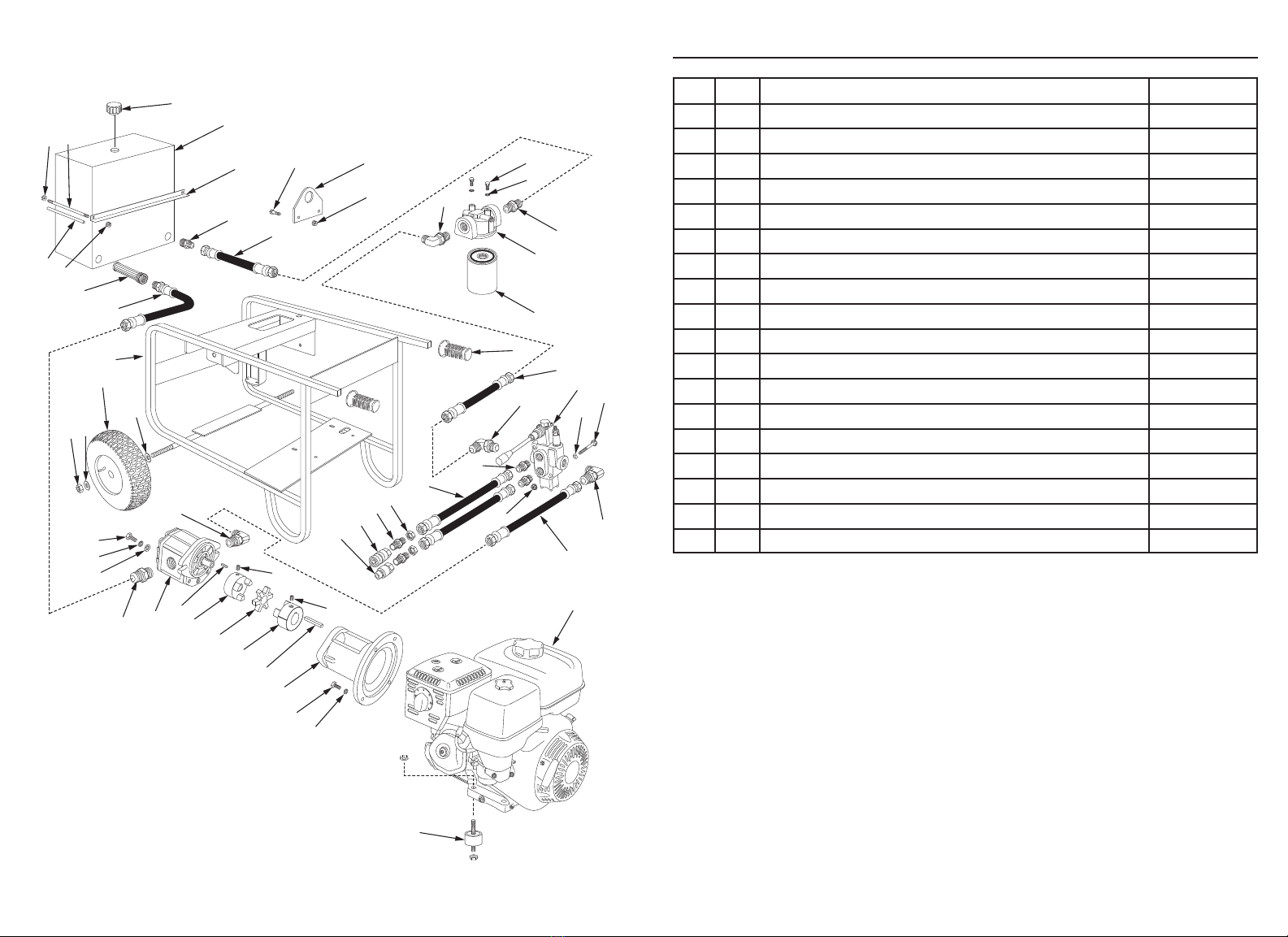

Parts
No.
1
18
1
1
1143-501
19001-007
Breather Cap With Dipstick
Manual
2
19
1
2
13010-001
313-510
Hydraulic Reservoir
Hex Bolt, 5/16 x 2-1/2 Inch
3
20
1
1
13002-001
17105-003
Tank Brace
Hydraulic Hose, 08U-608-608, 23 Inch
4
21
1
6
1221-124
105-102
Fitting, 8 M JIC x 3/4 M NPT Connector, 37° Flare, Male
Flange Lock Nut, 1/4 Inch
5
22
1
1
17105-007
1503-001
Hydraulic Hose, 08U-608-608, 18 Inch
Engine
6
23
2
2
383-504
17105-009
Hex Bolt, 3/8 x 3/4 Inch
Hydraulic Hose, 08U-608-608, 13 Inch
7
24
1
2
13001-001
1209-024
Lift Bracket
Bulkhead Lock Nut, 3/4-16 Female JIC 37 Degree
8
25
2
2
105-103
1209-006
Flange Nut, 3/8 Inch
Fitting, 1/2 Male Pipe x 1/2 Bulkhead Male JIC
9
26
3
1
1211-037
1205-002
Fitting, 90 Degree Elbow Male JIC-8 Male SAE
Hydraulic Coupler, Female
10
27

1
251-003
1205-022
Hex Bolt, 1/4 x 3/4
Hydraulic Coupler, Male
11
28
2
1
103-107
1145-071
Lock Washer, 1/4 Inch
Engine Mount Kit
12
29
3
6
1213-006
101-109
Fitting, 08M JIC to 08M SAE
Flat Washer, 5/16 Inch
13
30
1
4
1143-911
103-109
Hydraulic Oil Filter Housing
Lock Washer, 3/8 Inch
14
31
1
1
1143-901
13000-001
Hydraulic Oil Filter
Frame
15
32
2
6
1143-001
383-505
Grip
Hex Bolt, 3/8 x 1-1/4 Inch
16 1 17105-005Hydraulic Hose, 08U-608-608, 21 Inch
17 1 1501-051Valve, Single Spool With 3-Position Detent
Qty. Part No.Description

Parts
No.
33
NS
1
1
1503-021
19000-007
Pump Mount
Decal Kit
34 1 1023-101Key, 1/4 x 1-1/2 Inch
35 1 1201-101Coupling, 1 Inch Shaft
36 2 071-040Set Screw
37 1 1201-301Spider, Rubber
38 1 1201-001Coupling, 5/8 Inch Shaft
39 1 1023-303Round Nose Key
40 1 1502-001Hydraulic Pump
41 1 1221-124
Fitting, SAE 12m To JIC 12m
42 1 1213-007Fitting, 90 Degree Elbow 3/4-16m JIC x 7/8-14m O-Ring
43 2 119-113Nylock Nut, 5/8 Inch
44 4 102-012Flat Washer, 5/8 Inch
45 2 1141-001Tire, 13-5.00-6, Includes Rim and Tube
46 1 17109-001Hydraulic Hose, 2014-12-12U-612-116, 31 Inch
47 1 1143-051Suction Strainer, 1-1/2 x 1 Inch
48 2 13003-001Protector Sleeve For #49
49 2 249-032All Thread Bolt, 5/16 x 10 Inch
Qty. Part No.Description
1
3
5
2
4
67
89
10
11
12
13
14
15
16
17
18
19
20
23
24
21
22
25
26
27
28
9
9
12
30
30
32
33
34
36
35
37
38
39
40
41
42
43 44
45
46
47
21
48
49
36
29
32
31
44
21

4. Goods or component parts
that are modified or changed
in any way other than by, or
authorized by, Curb Roller
Manufacturing.
Warranty questions or service
information can be obtained from your
dealer or by contacting Curb Roller
Manufacturing at 785-467-3132 .
Please visit www.curbroller.com to
register your product.
sole and exclusive remedy against
Curb Roller Manufacturing shall be
for the replacement or repair of
defective goods as provided herein.
Machine is warranted for a period
of three (3) years after date of
original purchase to original
purchaser.
Curb Roller Manufacturing product
warranty shall not extend or apply
to:
1. Defects which in our
judgment are the result of
misuse, negligence, accident,
or failure to perform regular
maintenance or service, and
any parts that may wear and
need to be replaced.
2. Products and component
parts not manufactured by
Curb Roller Manufacturing
beyond the warranty period
provided by the original
manufacturer or supplier.
3. Products improperly installed,
maintained, or used not in
accordance with all applicable
Curb Roller Manufacturing
instructions.
NOTICE
Hydra-Pack HP1300 Warranty
Curb Roller Manufacturing warrants
to the original purchaser that this
product will be free from defects in
material and workmanship.
Curb Roller Manufacturing agrees to
repair or replace, at manufacturer’s
discretion, any defective product
free of charge within three years
from the date of purchase.
Curb Roller Manufacturing must
authorize all work and returns prior
to any work being performed or
returns made. If the customer does
perform work and makes a return
without authorization, the customer
does so with the understanding that
Curb Roller Manufacturing or any of
its agents shall not be obligated for
the cost of any such unauthorized
expenses or actions.
Proof of purchase in the form of
your dated sales receipt showing
serial number and the model of
the product will be required before
our dealers can perform warranty
service on the product.
All allowances will be credited at
factory cost with no provisions
for overtime, travel time, mileage,
freight charges, or special services
(i.e. down time).
The purchaser of any goods
covered by this warranty
understands and agrees that the

Curb Roller Mfg., 112 South Main Street, Fairview, KS 66425
Registered Trademarks: 87624718, 87855416
©2020
