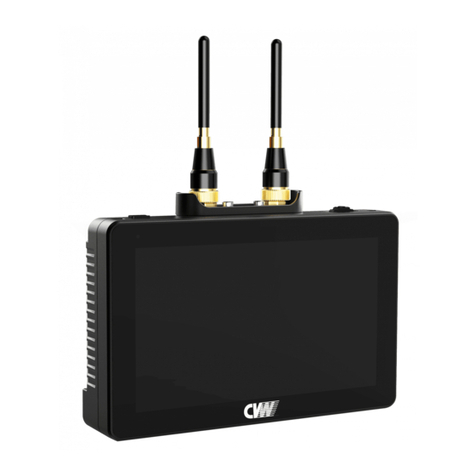

CVW SWIFT Z User manual

SWIFT Z
5.5″ Wireless Monitor
HDMI/3D LUT/HDR
User Manual

1
Product Overview
Thank you for purchasing our wireless video monitor. The product is a
set of touch-screen monitors with a built-in wireless receiver and a
built-in wireless transmitter, respectively. The highest resolution of
wireless transmission is 1080P/60Hz, using 2*2dBi antenna technology
and H.264 encoding and decoding technology for professional image
processing, clearer image and lower delay.
Full HD color LCD monitor, which adopts advanced integrated digital
signal processing circuits and professional IPS LED panel, which makes
it high brightness, low power consumption, stable performance, etc.
This monitor has HDMI input and output, auxiliary power output, touch
screen menu operation, support user 3D LUT upload and HDR etc. It
has small size, simple operation, portable convenience and wide
application range. Advanced features include Parade, Vector,
Histogram, Audio Meter, Focus Assist, False Color, Zebra Exposure,
Pixel to Pixel, Center Marker, Safety Marker, Marker Mat, Monochrome,
Image Freeze, Zoom, Anamorphic etc.The integration of image
transmission and monitoring bringing you more professional and
convenient enjoyment.
The monitor is equipped with dual battery plates; you can use the power
adapter supply or use the external battery for power supply.
To insure the best use of the unit, please read the
user’s manual carefully

2
CAUTION
●This product should not be exposed dripping or splashing.
●Please place the wireless monitor on a flat with hard and stable
surface.
●In order to reduce the risk of electric shock of fire, please do not
expose the receiver/ transmitter to rain or moisture.
● Please avoid the heavy impact and drop onto the ground when
move the product.
● The screen of this product is made of glass. Please do not drop the
screen towards the ground. Keep away from injury if the screen is
broken.
● Keep the product away from the heat source, and avoid the
prolonged exposures to the sun as the LCD screen will be
damaged.
● To avoid damaging the product, please do not take apart or repair
the unit by yourself without the adjustable components in the unit.
● In order to better maintain the LCD screen and protect the cover,
please follow the following ways to avoid damages.
1. Please refrain from using the hard objects to hit the screen.
2. Please do not force to wipe the screen.
3. Please do not use the chemical solutions to clean the screen.
4. Please do not spray any detergent on the screen.
5. Please do not write on the screen directly.
6. Please do not stick on the screen.
7. Please simply wipe with a clean soft cloth and make sure no
water on the screen.

3
Special Notice
●The impact of radio waves (such as the following environment may
cause the abnormal audio and video (blocked image, noise...etc.).
1) Transmit near the wall which is hard for the radio waves to get
through.
2) Quite close to the refrigerator, metal fitment and appliances, or
net to the crowded situation.
●This product has been tested and manufactured to comply with
national electrical safety rules, however, there will be noise caused by
the interference with other machines in rare cased. If the interference
is happened, please keep a certain distance away from other
machines.
●The product is susceptible to interference from 5GHz wireless local
area network or other wireless devices.
●Optimal range between transmitter and receiver is between 1 meter
and 30 meters with in line of sight indoor.
●It will take 30-40 seconds to boot the system before wireless
communication start, the media receiver can not be operated during
this time.
Features
●Up to 250m/800ft transmission range (LOS)
●Ultra-low delay: 70ms
●Up to 1080P60Hz
●Support multiple channels selection
●Support frequency modulation on either the wireless monitor TX or
RX.

4
●Both the transmitter (TX) and receiver (RX) support HDMI IN and
HDMI OUT interface (same screen display).
●Support the opening and closing function of the wireless
transmission module, which can be used as a monitor alone or as
an integrated wireless monitor.
● 5.5 inches 1920x1080 full HD IPS screen, touch screen menu
operation
● Support 3D LUT Log to REC.709 and user 3D LUT upload
● Support HDR monitoring
●All Waves display, Parada, Vector, Histogram, Focus assist, False
color and other functions, help you accurately expose and focus
● DC 8V power out to power your DSLR camera or mirrorless camera
● External sunshade, sunlight readable

5
CONTENTS
1. Product Description ----------------------------------------- 6
1.1 Button Instruction --------------------------------------------- 7
1.2 Port Instruction (bottom) ------------------------------------ 7
1.3 Port Instruction (right) --------------------------------------- 8
1.4 Power Supply Way ------------------------------------------- 9
1.5 Mount Points --------------------------------------------------- 9
1.6 Sunshade ------------------------------------------------------ 10
2. Menu Operation Instruction ------------------------------ 11
3. Menu Function Instruction --------------------------------14
4. Technical Parameters ---------------------------------------18
5. Trouble Shooting --------------------------------------------- 20

6
1. Product Description
⚫Front Panel
⚫Back Panel

7
1.1 Button Instruction
: Long press to turn on and off the power; short press to
turn on and off the screen touch function
MENU: Long press to open the main menu and short press to open
the shortcut menu. Rotate the wheel to select a menu item, press it
again to open the corresponding menu function.
(See details: 2.Menu Operation Instruction)
1.2 Port Instruction (Bottom)
Type-C: For 3DLUT upload via type-c to USB and for firmware upgrade
DC OUT 8V: DC power output interface, polarity as the output power

8
Barrel output for powering your camera with a separately available
DC coupler via adaptor (NP-FW50 Sony & LP-E6
Canon&DMW-BLF19 Panasonic). More adapters coming soon.
1.3 Port Instruction (Right)
TX: Transmitter
RX: Receiver
HDMI IN: 1.4, HDMI signal input
HDMI OUT: 1.4, HDMI signal output
DC IN 12V: DC power input, polarity as the input power
: 3.5mm earphone port output

9
1.4 Power Supply Way
(1) The rear cover of the monitor is equipped with F970 dual battery
plates, which is applicable to F970 series of batteries.
●Sony F970 battery plate for battery of Sony DV:
Sony F970 F960 F950 F930 F770 F750 F730 F570 F550 F530
QM91D QM91 QM90D QM90 QM71D QM71 QM70D QM70 QM51D
QM51 FM71 FM70 series
●Battery switching instruction
When the two battery plates are installed with batteries, the upper right
corner of the monitor will display the battery level. White indicates the
using battery, gray indicates non using battery. Double-click the battery
icon, after about 3 seconds switch to another battery.
(2) Barrel (5.5mm outer, 2.1mm inner) at the bottom of the
monitor, DC 7~24V Input.
Remark: Different specifications of the battery have different
capability. The working time for the monitor will be different.
Higher capability (working time) will be longer. Please take off the
battery from the monitor if you don’t use the monitor in a long time.
1.5 Mount Point
There is a ¼-20 thread point on bottom can be easily connected to the hot
shoe mount, tripod fixed installation.

10
1.6 Sunshade
①Sunshade ②Sunshade Frame
③Fixed Frame ④Sunshade Application
First lock the Sunshade Frame ②with the monitor tight ③.
Open the sunshade ①, and match the sticker on the sunshade inside to
the marked part of the sunshade frame ②, smooth and press 3 sides on
the sunshade, and then complete the sunshade installation ④.

11
2. Menu Operation Instruction
After the monitor is properly connected to the power supply, the
indicator light is on (red). Press button to turn on the
monitor power. The indicator light turns yellow. After inputting the HDMI
signal, the indicator light turns from yellow to green.
After startup, short press to select to turn the screen touch
function on or off.
After the transmitter input the HDMI signal, the receiver will receive the
signal from the transmitter, will display simultaneously for both monitors.
Swipe the right side of the screen to display the transmission function
including switch, signal, 4 channels and WPS pairing. Long
press until it turns red to close the wireless video transmission
function.
TX RX
(1). Directly touch the screen for menu operation (turn on the
screen touch function)

12
①．Double-click on the screen to open the main menu (on the left side of
the screen) and click on the corresponding menu to display the
secondary menu. You can enter the corresponding function option
to select or set with the "<" or ">" key of the option. Exit the menu
and press key of the main menu or click the touch screen.
②．Swipe up from the bottom of the screen to open the shortcut menu
and click on the corresponding menu to open or set the
corresponding function. Double-click the shortcut menu function
and select the function setting with the "<" or ">" key.
③．On the left side of the screen (1/2 split screen), you can directly
adjust the brightness of the screen backlight; on the right side of the
screen (1/2 split screen), you can directly adjust the volume.
④. Swipe the right side (upper, lower, middle) of the screen to open the
transmitting channel (TX), receiving channel (RX) and WPS pair.
There are 4 channels for selection. Tap anywhere on the screen to
exit the channel display
Figure:

13
(2) Menu Operation of MENU Wheel
①．When the menu is not displayed, directly rotate the wheel to
backlight or brightness adjustment. The wheel option can be set to
backlight or brightness in the menu .
②．Long press the MENU wheel to open the main menu (on the left side
of the screen). Rotate the wheel to select the secondary function
menu. After selecting it, press the wheel, then rotate the wheel to
select or set the option function.
③．Short press the MENU wheel to open the shortcut menu (below the
screen), rotate the wheel to select the shortcut menu option, press
the wheel to directly turn on/off the function, if you press the
parameter selection, repeat the above operation. The shortcut
menu will automatically exit after about 5 seconds without
operation.

14
3. Menu Function Instruction
⚫
All Waves
OFF, ON
Parada
OFF, RGB, YUV, Y
Vector
OFF, ON
Histogram
OFF, ON
Focus Assist
OFF, ON
The focus level and focus color items are
displayed after the focus assist is turned on.
Focus Level
1～10
Focus Color
yellow, red, green, blue, white
Audio Meter
OFF, ON
Zebra
OFF, ON
The zebra value item is displayed only after the
zebra is turned on.
Zebra Value
1%～100%
Monochrome
OFF, gray, red, green, blue
False Color
OFF, type 1, type2
Return
Please use the scroll wheel to return to the
previous menu or click on the main menu directly
⚫

15
Nine Grid
OFF, ON
Safety Marker
OFF, 70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4,
1.85:1, 2.35:1
Center Marker
OFF, ON
Marker Mat
OFF, 16:9, 16:10, 4:3, 1.85:1, 2.35:1
The Marker Mat Alpha item is displayed after the
Marker Mat is turned on.
Marker Mat Alpha
0%, 25%, 50%, 75%
Marker Color
yellow, red, green, blue, white, black
Return
Please use the scroll wheel to return to the
previous menu or click on the main menu directly
⚫
Scan Mode
Under Scan, Over Scan
Video Aspect
auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1,
stretch, user
Under the user, you can customize the Video Width
(100% ~ 200%), Video Height (100% ~ 200%)
Anamorphic Mode
OFF, 1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag
Auto Mirror
OFF, ON
Flip H
OFF, ON
Flip V
OFF, ON
Zoom Times
OFF, 100%～300%
Freeze
OFF, ON
Pixel to Pixel
OFF, ON
Return
Please use the scroll wheel to return to the
previous menu or click on the main menu directly

16
⚫
HDR
OFF, HLG 2020, HLG 709, HLG P3
Lut Switch
OFF, ON
The Lut item is displayed after the Lut Switch is
turned on.
Lut
SLOG2, SLOG3, LOGC, VLOG
Lut Import
(Type-C)
After copying the 3D LUT file to the U disk and
inserting it into the Type-C to USB connector, you
can click the “<” or “>” key in the Lut Import(Type
C) to import the 3D LUT file or rotate the wheel to
import the 3D LUT file(up to 50 Luts).
Colortemp
5600K, 6500K, 9300K, user
Under the “user” item, the red, green, and blue
values of the image can be adjusted.
Backlight
1～100
Brightness
0～100
Contrast
0～100
Saturation
0～100
Hue
0～100
Sharpness
0～100
Return
Please use the scroll wheel to return to the
previous menu or click on the main menu directly

17
⚫
Wheel
Backlight, Volume
After selecting the wheel option, you can click the
“<”or “>”button in the wheel option, or rotate the
wheel to select one of the shortcut keys to set it to
the rotary wheel adjustment (when the menu is
not displayed).
Language
中文, English, 日本語, Deutsch, Français,
Italiano, Español, 한국, Pусский
Transparency
OFF, low, middle, high
OSD Time
5s, 10s, 15s, 20s, 25s, always
Touch
OFF, ON
Please short press the TOUCH button to turn on
the touch function again after choosing turn off
Volume
0～100
Mute
OFF, ON
Reset
OFF, ON
After selecting the reset option, you can click the
“<” or “>” key in the reset option or rotate the
wheel to restore the factory settings.
Firmware Update
After copying the update file to the U disk and
inserting it into Type-C to USB connector, and
then connect to the Type-C interface of the
monitor, you can click the “<” or “>” key in the
firmware update option or rotate the wheel to
update.
Return
Please use the scroll wheel to return to the
previous menu or click on the main menu directly

18
⚫
Exit the menu
4.Technical Parameters
Panel Size
5.5”touch screen
Resolution
1920 × 1080 pixels
Frequency
5.1～5.9(GHz)
Audio Format
PCM
System Latency
70ms
Video Compression
Format
H.264
Transmission
Distance
250m/800ft (open environment)
Antenna Mode
2dBi x 2
Dot Pitch
0.0639 (H) × 0.0213 (W) mm
Pixel Density
400PPI
Aspect Ratio
16:9
Brightness
500cd/m2
Contrast
1000:1
Viewing Angle
80°/80°(L/R) 80°/80°(U/D)
Backlight
LED
Adjustable Backlight
Yes
Input
HDMI V1.4
Output
HDMI V1.4, 3.5mm stereo headphone jack
Power In
DC IN 12V, Barrel (5.5mm outer, 2.1mm inner)

19
Power Out
DC OUT 8V, Barrel (5.5mm outer, 2.1mm inner; Power
DSLR or mirrorless camera)
HDMI Input/ Output
Support Format
Wireless Transmission Opening
480P,576I,576P,720P60/59.94/50,1080I50/59.94/60
1080p23.98/24/25/29.97/30/50/59.97/60
Wireless Transmission Closing
480P,576I,576P,720P60/59.94/50,1080I50/59.94/60
1080p23.98/24/25/29.97/30/50/59.97/60
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz)
DCI 4K 4096×2160p (24Hz)
Power Input Voltage
7～24V
Power Consumption
≦18W
Unit Size (mm)
148Lx93Hx20W (mm)
Unit Weight
370g (TX) , 370g (RX)
Mount Point
one ¼-20 thread point on bottom
Working Temperature
-20℃～55℃
Storage Temperature
-30℃～65℃
