Cy lighting Eagle-3000 User manual

CY

CY LIGHTING

LIGHTING

1200W

1200W Moving

Moving

Moving Head

Head

Strengthen(28CH)

Strengthen(28CH) USER

USER

USER MANUAL

MANUAL

EAGLE-3000

Guangzhou CY Lighting Equipment Co.,Ltd

No.17,South Longtou Road, Dalongtou Village, Jianggao Town, Baiyun District, Guangzhou, China.

http://www.chuangyilight.com www.eagle-hk.com

This product manual contains important information about the safe installation and use of

this luminaire . Please read and follow these instructions carefully and keep this manual in

a safe place for future reference.

EAGLE 3000 Moving Head User Manual

1

CONTENT

ACCESSORIES ................................ ............. .............................. 2

INTRODUCTION ................................................ ............. ............. 2

SECURE ALARM ............................................... ............. .............. 3

CHAPTER 1: INSTALLING THE LUMINAIRE ...................... ............. ............... 4

LUMINAIRE STRUCTURE AND INSTALLATION . ..... ... ..... ................. .... 4

INSTALL ING / REPLACING THE LAMP ....... ..... ............................... 4

POWRE AND

DATA

CABLING REQUIREMENTS .... ..... .... ... . ... . . ............. 5

CHAPTER 2: LUMINAIRE RUNNING .................................. ............. .......... 9

DMX PROTOCOL ................................. ............. ............. ... 9

CONTROL CHANNEL FUNCTIONS ................. ............. ...... . ....... ..1 1

CHAPTER 3: MENU SYSTEM ................................. ............. ..... . ....... ....1 2

WHAT

IS

THE MANU SYSTEM? .................. ............. ....... ...........1 2

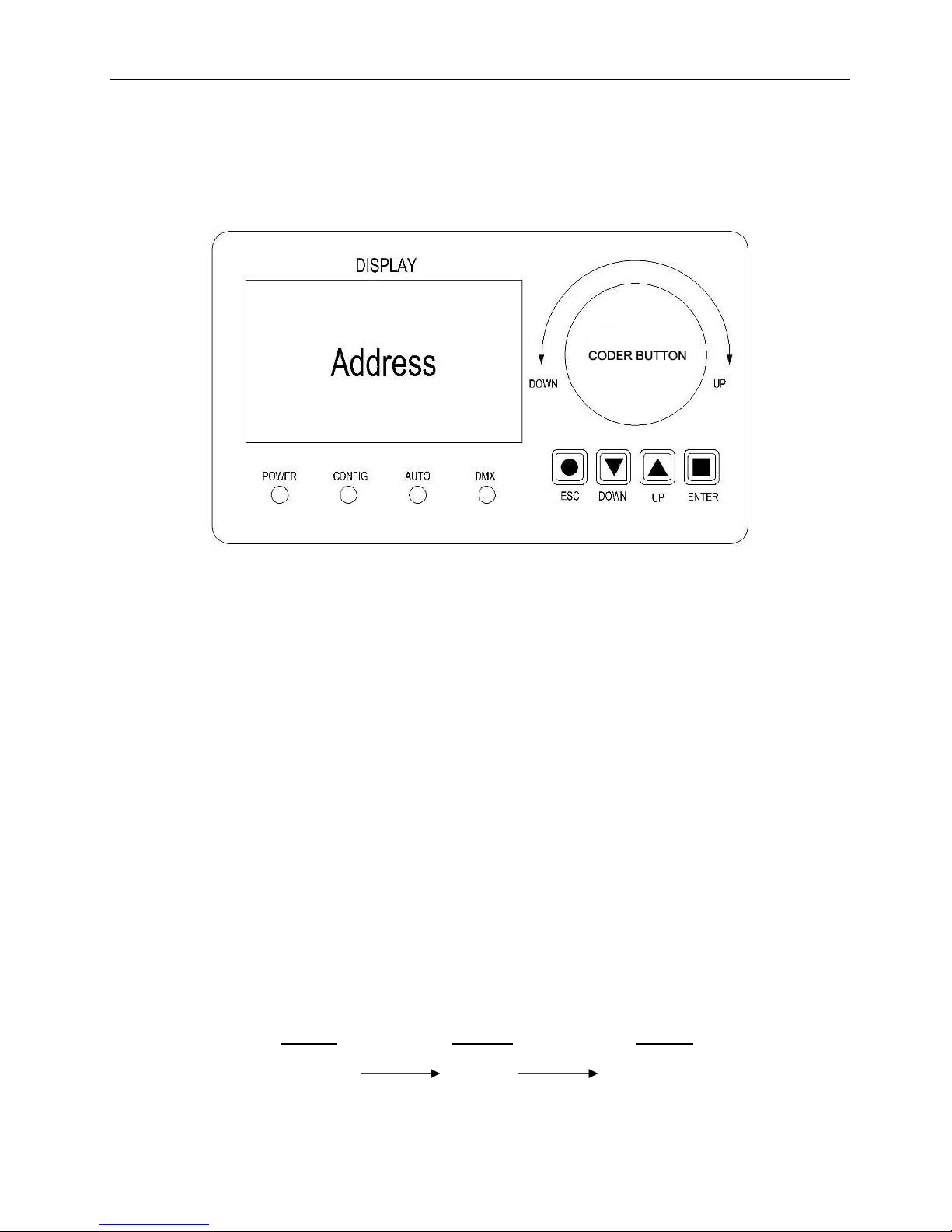

CONTROLS OPERATION ....................... ............. . ..................1 2

MANU SYSTEM OVERVIEW ................... .................................1 3

MANU FUNCTION DEFINITIONS .............. ..................................1 4

CHAPTER 4: TROUBLESHOOTING AND ROUTINE MAINTENANCE ............................1 6

TROUBLESHOOTING GUIDE ...... .............................................1 6

LAMP REPLACEMENT ... ......................................................1 6

GOBO REPLACEMENT ... .....................................................1 7

COLOR FILTER REPLACEMENT ................................................1 7

CHAPTER 5: LUMINAIRE MAINTENANCE ....................................................1 8

MAINTENANCE .... ...........................................................1 8

LUBRICATION ... ..............................................................1 8

KEEPING THE LUMINAIRE CLEAN ..............................................1 8

CHAPTER 6: TECHNICAL SPECIFICATIONS .................................................1 9

EAGLE 3000 SPOT LUMINAIRE .................................................1 9

ELECTRICAL DIAGRAM ........................................................2 1

Please note that as part of our ongoing commitment to continuous product development, specifications are

subject to change without notice. Whilst every care is taken in the preparation of this manual we reserve the

right to change specifications in the course of product improvement. The publishers cannot be held

responsible for the accuracy of the information herein, or any consequence arising from them.

Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and

/ or the unit are in good condition before installation and use. Should there be any damage caused by

transportation, consult your dealer and do not use the unit. Any damage caused

by

improper use will not be

assumed

by

the manufacturer and / or dealer.

EAGLE 3000 Moving Head User Manual

2

ACCESSORIES

These items are packed together with the luminaire:

Omega clamps (2PCS)

XLR cable ( 5Pin with plug )(1PC)

Safety belt (1PC)

This manual (1PC)

INTRODUCTION

Thank you so much choosing our EAGLE series professional moving heads product: EAGLE

3000, 1200W Moving Head Spot Strengthen style.

EAGLE-3000 , 1200W Moving Head Spot Strengthen style is our latest developed

intelligentized 、high efficient product . This luminaire adopt ultra-quiet design, possess the

international advanced electronic control technology . It complies with CE certificate and

international standard DMX512 signal control.

Th is luminaire use s advanced optic al system which can make it have super big zoom and

linear dimmer in big scale; High quality lens enable project out ultra-clear, high efficient

imaging and reach super spot effect ; E special selected Gobo s and CMY linear mixing system

can performance hight saturation and richness color ; LCD display in English-Chinese language

make more convenience operation ; Two styles high quality hook and assemble underplate

have more easy and fast lock features.

W ith kinds of metal and glass gobos , which can make versatile performance effect when

combine with strobe, wash, color mixing, rainbow, prism and flow ing effects, EAGLE 3000

becomes the TV station, big performance and professional lighting projects' first choice.

EAGLE 3000 Moving Head User Manual

3

SECURE

SECURE ALARM

ALARM

When unpacking and before disposing of the carton check there is no transportation damage before using

the luminaire .

Should there be any damage caused

by

transportation, consult your dealer and do not use the apparatus.

The luminaire is for indoor use only, IP20. Use only in dry locations. Keep this device away from rain and

moisture,excessive heat, humidity and dust. Do not allow contact with water or any other liquids.

The luminaire is not designed or intended to be mounted directly on to inflammable surfaces.

The luminaire is only intended for installation, operation and maintenance

by

qualified personnel.

The luminaire must be installed in a location with adequate ventilation, at least 50cm from adjacent wall

surfaces. Be sure that no ventilation slots are blocked.

Do not project the beam onto inflammable surfaces, minimum distance is 5m.

Avoid direct exposure to the light from the lamp. The light is harmful to the eye.

Do not attempt to dismantle and/or modify the luminaire in any way.

Electrical connection must only be carried out

by

qualified personnel.

Before installation, ensure that the voltage and frequency of power supply match the power requirements of

the luminaire .

It is essential that each luminaire is correctly earthed and that electrical installation conforms to all relevant

standards.

Do not connect this device to any other types of dimmer apparatus.

Make sure that the power-cord is never crimped or damaged

by

sharp edges. Never let the power-cord come

into contact with other cables. Only handle the power-cord

by

the plug. Never pull out the plug

by

tugging the

power-cord.

Keep the lamp clean. Do not touch the lamp glass with bare hand.

The luminaire should always be installed with a secondary safety fixing.

A

safety cord is supplied for this; it

should be attached as shown in “ installing the luminaire ” section.

The lamp used in this luminaire is a OSRAM HTI 1200W W/D7/60 discharge lamp. After switching off don ’ t

attempt to restart the luminaire until lamp has cooled, this will require approx 15 minutes. Switching the lamp

on and off at short intervals will reduce the life of both the lamp and the luminaire . But occasional breaks will

prolong the life of the lamp and luminaire .

Never run the luminaire without a lamp.

The lamp shall be changed if it has become damaged

or

thermally deformed.

Shields and lens shall be changed if they have become visibly damaged to such an extent than their

effectiveness is impaired, for example

by

cracks

or

deep scratches.

There is no user serviceable parts inside the luminaire , do not open the housing and never operate the

luminaire with the covers removed.

Always

Always disconnect

disconnect

disconnect from

from

from the

the

the mains,

mains,

mains, when

when

when the

the

the device

device

device is

is

is not

not

not in

in

in use

use

use or

or

or before

before

before cleaning

cleaning

cleaning it

it

it or

or

before

before attempting

attempting

attempting any

any

any maintenance

maintenance

maintenance work

work

work !

!

If you have any questions, don ’ t hesitate to consult your dealer

or

manufacturer.

EAGLE 3000 Moving Head User Manual

4

CHAPTER

CHAPTER ONE:

ONE:

ONE: INSTALLING

INSTALLING

INSTALLING THE

THE

THE LUMINAIRE

LUMINAIRE

ONE:

ONE: LUMINAIRE

LUMINAIRE

LUMINAIRE STRUCTURE

STRUCTURE

STRUCTURE AND

AND

AND INSTALLATION

INSTALLATION

WARNING

WARNING :

To

pass

pass 1

1

1 SAFETY

SAFETY

SAFETY BELT

BELT

through

through 2

2

2 HOLES

HOLES

HOLES for

for

for safety!

safety!

Omega clamps(2PCS) Safety belt(1PC)

Handle

Figure

Figure 1-1

1-1

1-1 Figure

Figure

Figure 1-2

1-2

Take

2 clamps and 1 safety belt out from the package and mount 2 clamps on the underside of luminaire with

4 retainers attached to each clamp. Hang the luminaire on the structure and fasten the screws attached to

each clamp. (See the WARNING

WARNING

WARNING on the underside of the base as shown above)

To

pass

pass 1

1

1 SAFETY

SAFETY

SAFETY belt

belt

through

through 2

2

2 HOLES

HOLES

HOLES for

for

for safety!

safety!

Always ensure that the l uminaire

is

firmly anchored to avoid vibration and slipping whilst functioning. Always

ensure that the structure that you are going to mount the l uminaire

is

secure and

is

strong enough to support

a weight of EAGLE 30 00.

WARNING:

1.

1. Unlock

Unlock

Unlock the

the

the PAN

PAN

PAN and

and

and TILT

TILT

TILT before

before

before the

the

the 1

1

1st

st

st application

application

application of

of

of luminaire

luminaire

luminaire for

for

for safety.

safety.

2.

2. The

The

The luminaire

luminaire

luminaire MUST

MUST

MUST be

be

be lifted

lifted

lifted or

or

or carried

carried

carried by

by

by the

the

the HANDLES

HANDLES

HANDLES instead

instead

instead of

of

of clamps.

clamps.

TWO:

TWO: INSTALLING

INSTALLING

INSTALLING /

/

/ REPLACING

REPLACING

REPLACING THE

THE

THE LAMP

LAMP

Figure

Figure 2

2

EAGLE 3000 Moving Head User Manual

5

Please

Please installing

installing

installing the

the

the lamp

lamp

lamp before

before

before using,

using,

using, the

the

the lamp

lamp

lamp and

and

and light

light

light are

are

are packed

packed

packed separately

separately

separately during

during

during delivery.

delivery.

CAUTION:

CAUTION: Wear cotton gloves

or

other covering while installing lamp. Touching lamp glass with bare

fingers will leave oil and may cause the lamp to explode

or

reduce lamp life. If touched, use alcohol and

cotton cloth to thoroughly clean glass portion of lamp.

INSTALLING / REPLACING THE LAMP ：

1. E nsure power

is

removed from luminaire.

2. Lock the Head before installing the lamp.

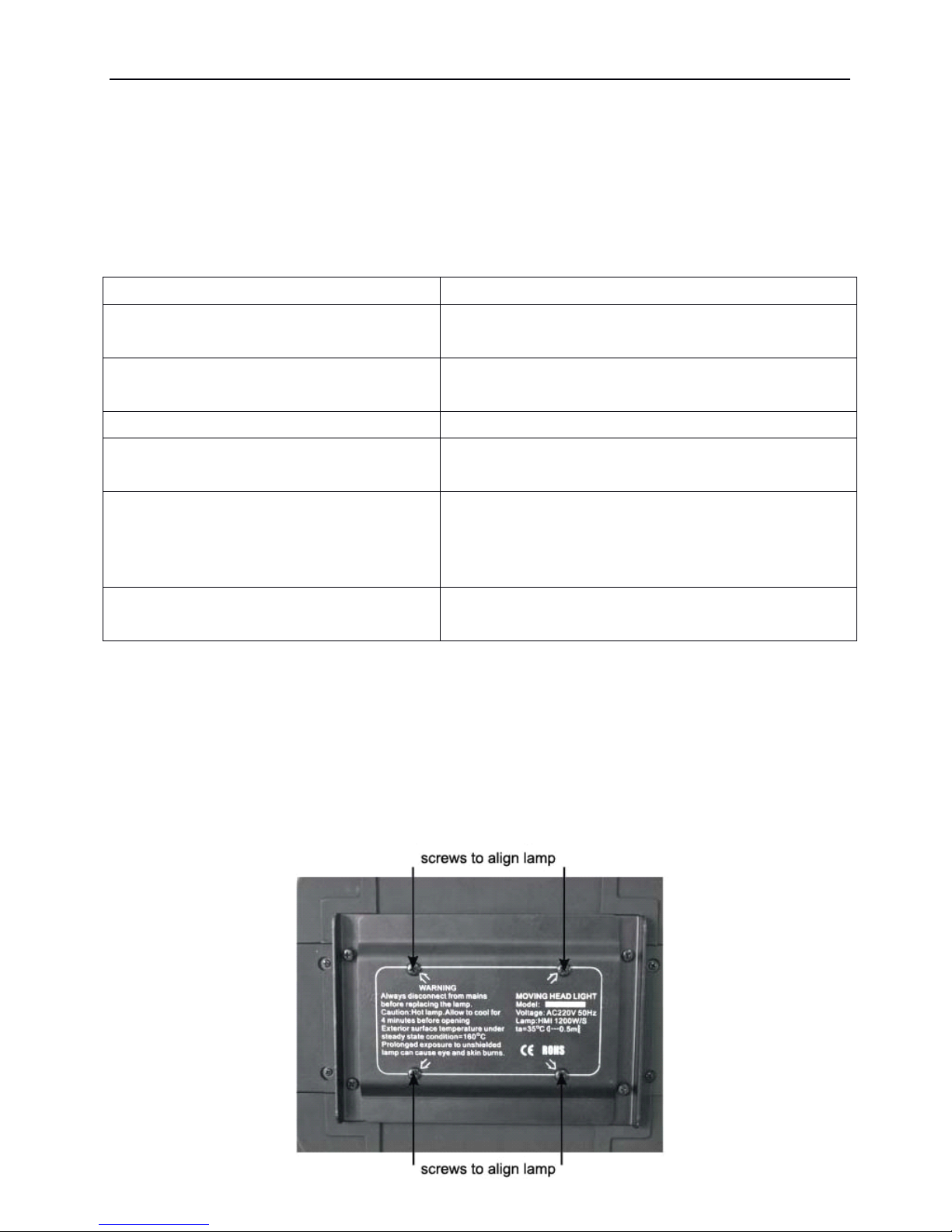

3. At rear of luminaire head, loosen four screws and slide lamp box back and out .

4. Loosen 2 nuts

at

the both ends of lamp and take out the worn-out lamp.

5. Fit new lamp and fasten 2 screws

at

the both ends of lamp. Note:

Note:

Note: don ’

t

touch the bulb of the new lamp

with bare hand so

as

not to influence the beam output; the PST (pumping stem tip off) on the bulb facing the

rear cover with fans perpendicularly and being not in the beam ’

s

way

is

a must and aids cooling.

6. Close lamp box and re-tighten screws.

7. Align lamp as detailed in Chapter Four.

WARNING:

WARNING: The

The

The HTI

HTI

HTI series

series

series are

are

are high-pressure

high-pressure

high-pressure lamps

lamps

lamps with

with

with external

external

external igniters

igniters

igniters .

.

. Care

Care

Care should

should

should always

always

always be

be

taken

taken when

when

when handling

handling

handling these

these

these lamps.

lamps.

lamps. Always

Always

Always read

read

read the

the

the manufacturers

manufacturers

manufacturers "Instructions

"Instructions

"Instructions for

for

for use"

use"

use" enclosed

enclosed

with

with the

the

the lamp.

lamp.

THREE:

THREE: POWER

POWER

POWER AND

AND

DATA

CABLING

CABLING REQUIREMENTS

REQUIREMENTS

POWER

The l uminaire requires standard AC power distribution from , Electronic Ballast: 1 00- 12 0 VAC, 200-240 VAC,

50/60 Hz ; Magnetic Ballast: 200-240 VAC. Use the plug provided to connect the mains power to the l uminaire

paying attention to the voltage and frequency marked on the panel of the l uminaire .

It

is

recommended that

each l uminaire be supplied separately so that they may be individually switched on and off.

Depending on the application, the l uminaire ’

s

AC input cable may require a different connector. If required,

install a new connector meeting your requirements using the following wire color code:

Table

Table One:

One:

One: Power

Power

Power Connection

Connection

IMPORTANT

It

It is

is

is essential

essential

essential that

that

that each

each

each luminaire

luminaire

luminaire is

is

is correctly

correctly

correctly earthed

earthed

earthed and

and

and the

the

the electrical

electrical

electrical installation

installation

installation conforms

conforms

conforms to

to

to all

all

relevant

relevant standards.

standards.

Wire

Connection

Green/Yellow

AC Ground

Blue

AC Neutral

Brown

AC Line

EAGLE 3000 Moving Head User Manual

6

DATA

CABLES

Connection between controller and luminaire and between one luminaire and another must be made with a 2

core-screened cable, with each core having

at

least a 0.5mm diameter. Connection to and from the luminaire

is

via cannon 3 pin (which are included with the luminaire )

or

5 pin XLR plugs and sockets. The XLR's are

connected

as

shown in the figure above.

Note: care should be taken to ensure that none of the pins touch the metallic body of the plug

or

each other.

The body of the plug

is

not connected in any way. The EAGLE-3000 accepts digital control signals in protocol

DMX512.

Figure

Figure 3

3

CONNECTTING

DATA

CABLE

CABLE AND

AND

AND POWER

POWER

Figure

Figure 4

4

EAGLE 3000 Moving Head User Manual

7

Each DMX cable can connect 32 pcs light

at

the most.

Note:

Note: This maximum range

is

only

fit

for connect in series. Maybe your system

or

controller only needs

several pcs light in each DMX cable.

POWER

POWER AND

AND

AND DMX

DMX

DMX CABLE

CABLE

CABLE CONNECT:

CONNECT:

1. Connect data cable from controller to first luminaire in chain

at

DATA

IN connector.

2. If required, connect additional data cables from

DATA

OUT connectors to

DATA

IN connectors of

remaining luminaires in link

3. At last luminaire in link, install male termination connector

at

DATA

THRU connector. ( l uminaires

and other devices on the same DMX chain may not function properly without termination.)

4. Connect AC input cable connector to power input source.

5. Dress AC input and data cables and secure them so that they will not interfere with luminaire head

and yoke movement.

DMX

DMX TERMINATOR

TERMINATOR

In the Controller mode,

at

the last luminaire in the chain, the DMX output has to be connected with a DMX

terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals.

The DMX terminator

is

simply an XLR connector with a 120 Ω(ohm) resistor connected across pins 2 and 3,

which

is

then plugged into the output socket on the last luminaire in the chain. The connections are illustrated

below.

Figure

Figure 5

5

SETUP

SETUP OPTIONS-

OPTIONS-

OPTIONS- LUMINAIRE

LUMINAIRE

LUMINAIRE CONFIGURATION

CONFIGURATION

Luminaire configuration can be set conveniently via press button switch and LCD display.

Turn the luminaire on and the LCD display will show DMX address you set and save last time and

it

can be

reset and saved again

as

you please.

EAGLE 3000 Moving Head User Manual

8

Launch the luminaire . Press button ENTER panel. Press button UP

or

DOWN if you want to browse through

the various Setup Options. If you turn the coder knob clockwise, the function like

as

button UP . On the

contrary, the function like

as

button DOWN.

Press button ENTER to save your settings

or

enter the next menu. There

is

same function if you push the

coder knob. Press button UP

or

DOWN to shift.

Press button ES C,

it

will return to the upper menu one

by

one. If you stay for minutes defaulted will show

display status automatically. (Details in Chapter Three)

PROGRAM

PROGRAM START

START

START ING

ING

ING ADDRESS

ADDRESS

Each EAGLE 30 00 must be given a DMX start address so that the correct luminaire responds to the correct

control signals. This DMX start address

is

the channel number from which the luminaire starts to “ listen ” to

the digital control information being sent out from the controller.

The EAGLE 30 00 Strengthen has 28 DMX channels . For example standard mode has 2 8 channels, so set

the No. 1 Luminaire ’

s

address 001, No. 2 Luminaire ’

s

address 0 29 , No. 3 Luminaire ’

s

address 05 7 , No. 4

Luminaire ’

s

address 08 5 , and so on.

Launch the luminaire . Press button ENTER

or

coder knob to panel.

Press button ENTER to show you DMX address.

Press button UP and DOWN, you can set the address; Press button ENTER to confirm; In the same time , the

setting has been enabled and saved.

Press button ES C,

it

will return to the upper menu one

by

one.

EAGLE 3000 Moving Head User Manual

9

CHAPTER

CHAPTER TWO:

TWO:

TWO: LUMINAIRE

LUMINAIRE

LUMINAIRE RUNNING

RUNNING

DMX

DMX PROTOCOL

PROTOCOL

These tables assume a DMX start address of 1. When a different starting address

is

used, this address

becomes channel 1 function and other functions follow in sequence.

Table

Table 2-1:

2-1:

2-1: EAGLE-3000

EAGLE-3000

EAGLE-3000 Strengthen

Strengthen

Strengthen DMX

DMX

DMX PROTOCOL

PROTOCOL

DMX channel

Functions

DMX

value

Description

Standard

Extended

1

Dimmer

0-255

dark to light （0-100% ）

2

Pan

0-255

Pan rotate 540 °

3

Pan Fine

0-255

Pan 16Bi t

4

Tilt

0-255

Tilt rotate 270 °

5

Tilt Fine

0-255

Tilt 16Bit

6

Focus

0-255

Linear Focus

7

Zoom

0-255

Beam angle linear adjustable (small to big)

8

CTO

0-255

Color temperature linear adjustable (high to low)

9

Cyan

0-255

Cyan linear adjustable (light to dark)

10

Yellow

0-255

Yellow linear adjustable (light to dark)

11

Magenta

0-255

Magenta linear adjustable (light to dark)

12

Color Wheel

0-14

White

15-30

White / Color 1

31-47

Color 1

48-61

Color 1 / Color 2

62-76

Color 2

77-92

Color 2 / Color 3

93-108

Color 3

109-123

Color 3 / Color 4

124-139

Color 4

140-154

Color 4 / Color 5

155-170

Color 5

171-185

Color 5 / Color 6

186-200

Color 6

201-216

Color 6 / White

217-232

Reverse Rainbow Effect

233-240

To

stop rotating at the current position

241-255

Forward Rainbow Effect

13

Gobo Wheel 1

0-7

White

8-25

Gobo 1

26-44

Gobo 2

45-63

Gobo 3

64-82

Gobo 4

83-99

3-facet Prism

EAGLE 3000 Moving Head User Manual

10

100-116

White

117-134

Gobo 1

135-153

Gobo 2

154-172

Gobo 3

173-191

Gobo 4

192-209

3-facet Prism

210-216

Reserve

217-232

Reverse Flowing Effect

233-240

Stop

241-255

Forward Flowing Effect

14

Gobo Rotation 、Index 1

0-255

Gobo Rotation 、Index 1

15

Gobo Rotation 、Index 1 Fine

0-255

Gobo Rotation 、Index 1 Fine

15

16

Gobo Wheel 2

0-7

White

8-25

Gobo 1

26-45

Gobo 2

46-63

Gobo 3

64-82

Gobo 4

83-99

Gobo 5

100-116

White

117-134

Gobo 1

135-153

Gobo 2

154-172

Gobo 3

173-191

Gobo 4

192-209

Gobo 5

210-216

Reserve

217-232

Reverse Flowing Effect

233-240

Stop

241-255

Forward Flowing Effect

16

17

Gobo Rotation 、Index 2

0-255

Gobo Rotation 、Index 2

18

Gobo Rotation 、Index 2 Fine

0-255

Gobo Rotation 、Index 2 Fine

17

19

Animation Gobo Wheel

0-255

Animation Gobo Wheel Gradually E nter

18

20

Animation Rotation 、Speed

0-255

Animation Rotation 、Speed (Fast to Slow)

19

21

Animation Rotation

、

Speed Fi ne

0-255

Animation Rotation 、Speed Fine

20

22

Iris

0-255

Iris from small to big linear adjustable

21

23

Shutter + Strobe

0-2

Shutter On

3-5

Shutter Off

6-255

Strobe Speed from slow to fast

24

Focus Time

0-255

Focus Speed from fast to slow

25

Color Time

0-255

Color Speed from fast to slow

26

Zoom Time

0-255

Beam Speed from fast to slow

27

Gobo Time

0-255

Gobo Speed from fast to slow

22

28

Control

0-60

Fan Speed

61-80

Reserve

81-87

Luminaire Reset

88-99

Reserve

EAGLE 3000 Moving Head User Manual

11

NOTE

NOTE ：The use of channel 28 (standard mode: channel 22) for lamp on / off function operation, when lamp

off , do not try to pushing the fader to 249-255 immediately to start the lamp

or

p ush this range to wait lamp

cooling, in these two condition s, the system will not respond to commands to start lamp. The correct way to

restart the lamp on channel 28 is: Turn off the lamp-->Wait lamp cooling-->To push the fader restart the lamp.

CONTROL

CONTROL CHANNEL

CHANNEL

CHANNEL FUNCTIONS

FUNCTIONS

Control channel functions allow special actions such as reset, lamp on/off and partial recalibration. These

must be executed with zero time transition

or

with timing disabled. Discrete values must be used; not manual

controls such

as

faders

or

encoders (see chart below for values).

Table

Table 2-2:

2-2:

2-2: Control

Control

Control Channel

Channel

Channel Functions

Functions

To

use

use control

control

control channel

channel

channel functions:

functions:

Step 1. Select an action to be sent.

Step 2. Set control channel value for desired action (for example, 84 for reset). Hold value for 3 seconds.

Step 3 . Set control channel value to zero.

100-104

Color Reset

105-111

Reserve

112-116

Gobo Reset

117-125

Reserve

126-130

Focus / Zoom / Iris Reset

131-137

Reserve

138-142

Dimmer / Strobe Reset

143-164

Reserve

165-171

Lamp Off

172-221

Reserve

222-230

Lamp Half power consumption

231-248

Reserve

249-255

Lamp On

Control

Channel

Functions

Control

Control Channel

Channel

Channel Value

Value

% Value

DMX Value

For 3 Secs or Greater

After 3 Secs

Fan Speed

0-24

0-60

0

Luminaire Reset

32-33

81-87

0

Lamp Off

65-67

165-171

0

Lamp On

98-100

249-255

0

Partial Recalibration of:

0

Color

40

100-104

0

Gobos

45

112-116

0

Focus / Zoom / Iris

50

126-130

0

Dimmer / Strobe

55

138-142

0

EAGLE 3000 Moving Head User Manual

12

CHAPTER

CHAPTER THREE:

THREE:

THREE: MANU

MANU

MANU SYSTEM

SYSTEM

WHAT

WHAT IS

IS

IS THE

THE

THE MANU

MANU

MANU SYSTEM?

SYSTEM?

The menu system

is

a programmable set of commands used to configure, address, operate, and test the

luminaire. The menu system

is

controlled

at

the Menu Display available at the enclosure input panel.

Figure

Figure 6:

6:

6: Menu

Menu

Menu Display

Display

Display Location

Location

CONTROLS

CONTROLS OPERATION

OPERATION

The menu system

is

controlled by four buttons and a coder button. These buttons function as follows :

[

[ ESC

ESC

ESC ]

]

]button

button

button .

.

.Displays the menu,

or

if

at

first level, the current address.

[

[ UP

UP

UP ]

]

] triangle.

triangle.

triangle. Scrolls menu options upward or increases current data value.

[

[ DOWN

DOWN

DOWN ]

]

] triangle

triangle

triangle .

.

.Scrolls menu options downward

or

decreases current data value.

[

[ENTER

ENTER

ENTER ]

]

]button.

button.

button. Selects the current menu option

or

stores current data value .

[CODER]

[CODER] button.

button.

button. Scrolls menu options upward and downward, selects the current menu option

or

stores

current data value.

To

enter the menu system, first press [ESC], exit to initial interface, then press[ENTER] button into 1

st

level functions.

Press [ UP ] / [ DOWN ] triangle

or

turn [CODER] button to access the 1st level functions, once desired function

appears in the display, press [ENTER]

or

[CODER] button. When the highest level for the function

is

reached, [Up] / [Down] triangle can be pressed to enter a value . Press [Enter]

or

[CODER] button to

store the value

or

select an action . For example:

1

st

level 2 nd level 3

rd

level

TEST AUTO RUN TEST

EAGLE 3000 Moving Head User Manual

13

MENU

MENU SYSTEM

SYSTEM

SYSTEM OVERVIEW

OVERVIEW

Figure

Figure 7:

7:

7: Menu

Menu

Menu System

System

System Overview

Overview

EAGLE 3000 Moving Head User Manual

14

MENU

MENU FUNCTIONS

FUNCTIONS

MENU

MENU SYSTEM

SYSTEM

SYSTEM FUNCTION

FUNCTION

FUNCTION CHART

CHART

Table

Table 3:

3:

3: Menu

Menu

Menu System

System

System Function

Function

Function Chart

Chart

1 st Level

2 nd Level

3 rd Level

Main Menu

Exit

D MX Address

D MX value XXX

Parameter

Back

Control

Standard

Extended

Models

EAGLE Series

EAGLE 1018

EAGLE 1018C

EAGLE 1028

EAGLE 1008

EAGLE 2008

EAGLE 2008C

EAGLE 2028

EAGLE 2000

EAGLE 1000C

EAGLE 3000

Option

Back

X Reverse

No

Yes

Y Reverse

No

Yes

XY Exchange

No

Yes

Dimmer Reverse

No

Yes

Iris Reverse

No

Yes

Turn short test

No

Yes

DMX Reset

No

Yes

Display

Back

EAGLE 3000 Moving Head User Manual

15

Language Display

English

Simplified Chinese

Manual Control

Back

CH1 XXX

CH1 Dmx value =XXX

CH2 XXX

CH2 Dmx value =XXX

CH3 XXX

CH3 Dmx value =XXX

CH4 XXX

CH4 Dmx value =XXX

CH5 XXX

CH5 Dmx value =XXX

CH6 XXX

CH6 Dmx value =XXX

CH7 XXX

CH7 Dmx value =XXX

CH8 XXX

CH8 Dmx value =XXX

CH9 XXX

CH9 Dmx value =XXX

CH10 XXX

CH10 Dmx value =XXX

CH11 XXX

CH11 Dmx value =XXX

CH12 XXX

CH12 Dmx value =XXX

CH13 XXX

CH13 Dmx value =XXX

CH14 XXX

CH14 Dmx value =XXX

CH15 XXX

CH15 Dmx value =XXX

CH16 XXX

CH16 Dmx value =XXX

CH17 XXX

CH17 Dmx value =XXX

CH18 XXX

CH18 Dmx value =XXX

CH19 XXX

CH19 Dmx value =XXX

CH20 XXX

CH20 Dmx value =XXX

CH21 XXX

CH21 Dmx value =XXX

CH22 XXX

CH22 Dmx value =XXX

CH23 XXX

CH23 Dmx value =XXX

CH24 XXX

CH24 Dmx value =XXX

CH25 XXX

CH25 Dmx value =XXX

CH26 XXX

CH26 Dmx value =XXX

CH27 XXX

CH27 Dmx value =XXX

CH28 XXX

CH28 Dmx value =XXX

Test

operation

Back

Sound

Program Run

Auto

Program Run

Resume default

Back

Enter

Luminaire reset

Back

Enter

EAGLE 3000 Moving Head User Manual

16

CHAPTER

CHAPTER FOUR:

FOUR:

FOUR: TROUBLESHOOTING

TROUBLESHOOTING

TROUBLESHOOTING AND

AND

AND ROUTINE

ROUTINE

ROUTINE MAINTENANCE

MAINTENANCE

WARNING:

WARNING: All maintenance procedures are to be performed with power removed from the

luminaire. Never remove covers

or

backcap while lamp

is

in operation.

TROUBLESHOOTING

Table

Table 4:

4:

4: Troubleshooting

Troubleshooting

ALIGN

ALIGN LAMP

LAMP

The design of the EAGLE 3000 luminaire optical system allows for a flat

or

peaked field.

A

flat field

is

one

where there

is

no detectable hot spot and a peaked field

is

one where the intensity of the beam

is

greater

at

the center of the beam than

at

the perimeter.

After a new lamp

is

installed,

it

will be necessary to align the lamp to optimize the beam. Knobs located

at

the

luminaire ’

s

backcap will allow adjustment.

PROBLEM

ACTION

The luminaire doesn ’ t switch on

1. Check the fuse on the power socket.

2. Replace the lamp.

The lamp comes on but the luminaire

doesn ’ t respond to the controller

1. Make sure that the luminaire is correctly configurated.

2. Replace or repair the DMX cable.

The luminaire only functions intermittently

Make sure the fan is working and not dirty.

Defective projection

1. Check the lenses are not broken.

2. Remove dust or grease from the lenses.

The project image appears to have a halo

1. Make sure the lamp is installed correctly.

2. Carefully clean the optical group lenses and the

luminaire

components.

The beam appears dim

1. Check the optics is clean.

2. Replace with a new lamp of the specified type and rating.

EAGLE 3000 Moving Head User Manual

17

Figure

Figure 8

8

WARNING:

WARNING: Backcap and adjustment knobs will be HOT during lamp operation. Wear gloves to

prevent burns.

To

align

align lamp

lamp

lamp :

:

1、Power-up luminaire .

2、

At

Menu Display , s

et

intensity to 100%, open beam size iris and focus for hard edge.

3、Position beam on a white wall

at

a distance of 10 to 20 feet.

4、

At

backcap , use cross screwdriver adjust screws, adjust beam

as

required

GOBO

GOBO REPLACEMENT

REPLACEMENT

WARNING:

WARNING: Remove power from luminaire before performing maintenance. Gobos may be HOT after

operation. Allow to cool before replacing.

To

replace

replace a

a

a gobo:

gobo:

1、Remove power from luminaire.

2、Remove appropriate head cover by loosening four screws

3、Rotate gobo wheel until required gobo position

is

accessible.

CAUTION:

CAUTION: Do not push on gobo glass. Press on gobo carrier only.

CAUTION:

CAUTION: Do not touch gobos with bare fingers. Wear cotton gloves

or

other covering while

replacing Clean with glass cleaner and soft cloth if required .

4、Remove current gobo by carefully pressing on edges of gobo carrier with fingers, pressing gobo

toward front end of luminaire (toward lens), and out of wheel.

5、Install new gobo as follows:

A.

Align three tabs on gobo carrier with three notches in wheel (gobo can only be oriented in one

direction).

B.

Insert gobo carrier into wheel, ensuring that carrier snaps into place.

6、Close fan duct assembly and replace covers.

COLOR

COLOR FILTER

FILTER

FILTER REPLACEMENT

REPLACEMENT

WARNING:

WARNING: Remove power from luminaire before performing maintenance. Filters may be HOT after

operation. Allow to cool before replacing.

To

replace

replace a

a

a color

color

color filter:

filter:

1、Remove power from luminaire.

2、Remove top head cover by loosening four screws

CAUTION:

CAUTION: Do not touch filters with bare fingers. Wear cotton gloves or other covering while replacing.

Clean with glass cleaner and soft cloth if required.

EAGLE 3000 Moving Head User Manual

18

3、Rotate color wheel until required filter position

is

accessible.

4、Install new filter (orientation does not matter) ensuring that

it

is

securely in position.

5、Replace head cover.

CHAPTER

CHAPTER FIVE:

FIVE:

FIVE: LUMINAIRE

LUMINAIRE

LUMINAIRE MAINTE

MAINTE

MAINTE NANCE

NANCE

MAINTENANCE

If the luminaire

s

becomes damaged

or

broken

it

should be replaced. If the lamp becomes damaged

or

deformed in any way

it

must be replaced. If the light from the lamp appears dim this would normally indicate

that

it

is

reaching the end of

its

life and

it

should be changed

at

once, aged lamps run to the extremity of their

life might explode. If the luminaire not function, check the fuses on the power socket of the luminaire should

only be replaced

by

fuses of the same specification. Should these be damaged call a qualified technician

before replacement. The luminaire has t hermal protection device that will switch off the luminaire of

overheating, should either of these operate, check that the fans are not blocked, and if they are dirty clean

them before switching on the l uminaire

.

Check that the fans are operational, if not call a qualified technician.

Any

Any maintenance

maintenance

maintenance work

work

work should

should

should only

only

only be

be

be carried

carried

carried out

out

out by

by

by qualified

qualified

qualified technicians.

technicians.

LUBRICATION

To

ensure the continuous rotation of the rotating gobos and linear motion of the lens for focusing,

it

is

recommended that the bearings for the rotating gobos and the 2 shafts for the focusing lens holder be

lubricated periodically, preferably every two months. Use only high quality, high-temperature resistant grease

instead of any type of oil. When lubricating the bearings, a syringe with a fine needle

is

the easiest way to

introduce the grease to the bearings around each gobo.

KEEPING

KEEPING THE

THE

THE LUMINAIRE

LUMINAIRE

To

ensure the reliability of the luminaire ould be kept clean.

It

is

recommended that the fans should be cleaned

every 15 days. The lens and dichroic colour filters should also be regularly cleaned to maintain an optimum

light output. Do

Do

Do NOT

NOT

NOT use

use

use any

any

any type

type

type of

of

of solvent

solvent

solvent on

on

on dichroic

dichroic

dichroic colour

colour

colour filters.

filters.

Cleaning frequency depends on the environment in which the luminaire tes: damp, smoke

or

particularly dirty

surroundings can cause greater accumulation of dirt on the unit ’

s

optics.

A

soft cloth and typical glass cleaning

products should be used in cleaning.

It

is

recommended to clean the external optics

at

least once every 20

days and clean the internal optics

at

least once every 30 / 60 days.

Do

Do not

not

not use

use

use any

any

any organic

organic

organic solvent,

solvent,

solvent, e.g.

e.g.

e.g. alcohol,

alcohol,

alcohol, to

to

to clean

clean

clean the

the

the reflector

reflector

reflector mirror,

mirror,

mirror, dichroic

dichroic

dichroic colour

colour

colour filters

filters

filters or

or

housing

housing of

of

of the

the

the apparatus.

apparatus.

EAGLE 3000 Moving Head User Manual

19

CHAPTER

CHAPTER SIX:

SIX:

SIX: TECHNICAL

TECHNICAL

TECHNICAL SPECIFICATIONS

SPECIFICATIONS

EAGLE

EAGLE 3000

3000

3000 SPOT

SPOT

SPOT STRENGTHEN

STRENGTHEN

STRENGTHEN LUMINAIRE

LUMINAIRE

VOLTAGES

Electronic Ballast ：AC 100V/120V/200V/220V/230V/240V , 50 - 60Hz

Magnetic Ballast ：AC 200C-240V, 50-60Hz

POWRE

POWRE CONSUMPTION

CONSUMPTION

Electronic Ballast ：1500W

Magnetic Ballast ：1500W

LAMP

OSRAM HTI 1200 W/D7/60

Color temperature ：6000 ° K

Manufacturers Rated Life ：750 hours

COLOR

COLOR SYSTEM

SYSTEM

Linear CMY color mixing system, speed adjustable. 1 color wheel, 6 interchangeable colors plus white, with

CTO color temperature filter, half color effect, bi-directional rainbow effect

at

variable speed.

GOBOS

2 rotating gobo wheels, 10 interchangeable rotating glass gobos plus white, indexable, bi-directionally

rotating

at

variable speed.

ANIMATION

ANIMATION GOBO

GOBO

GOBO WHEEL

WHEEL

Bi-directionally rotating

at

variable speed, have flowing & flame effect while working with other gobos

FOCUS

Linearly adjustable

ZOOM

ZOOM OPTICS

OPTICS

A

6:1 zoom optics system, covering a range from 10 ° -60 °

DIMMER

0-100% linearly adjustable

STROBE/SHUTTER

Double strobe/shutter blades, 1-12 flash per second

IRIS

5-100% linearly adjustable

RANGE

Pan- 540 ° ，Tilt- 270 °

COLLING

Forced air cooling, fan speed adjustable

CONTROL

CY Lighting EAGLE-3000 User manual
