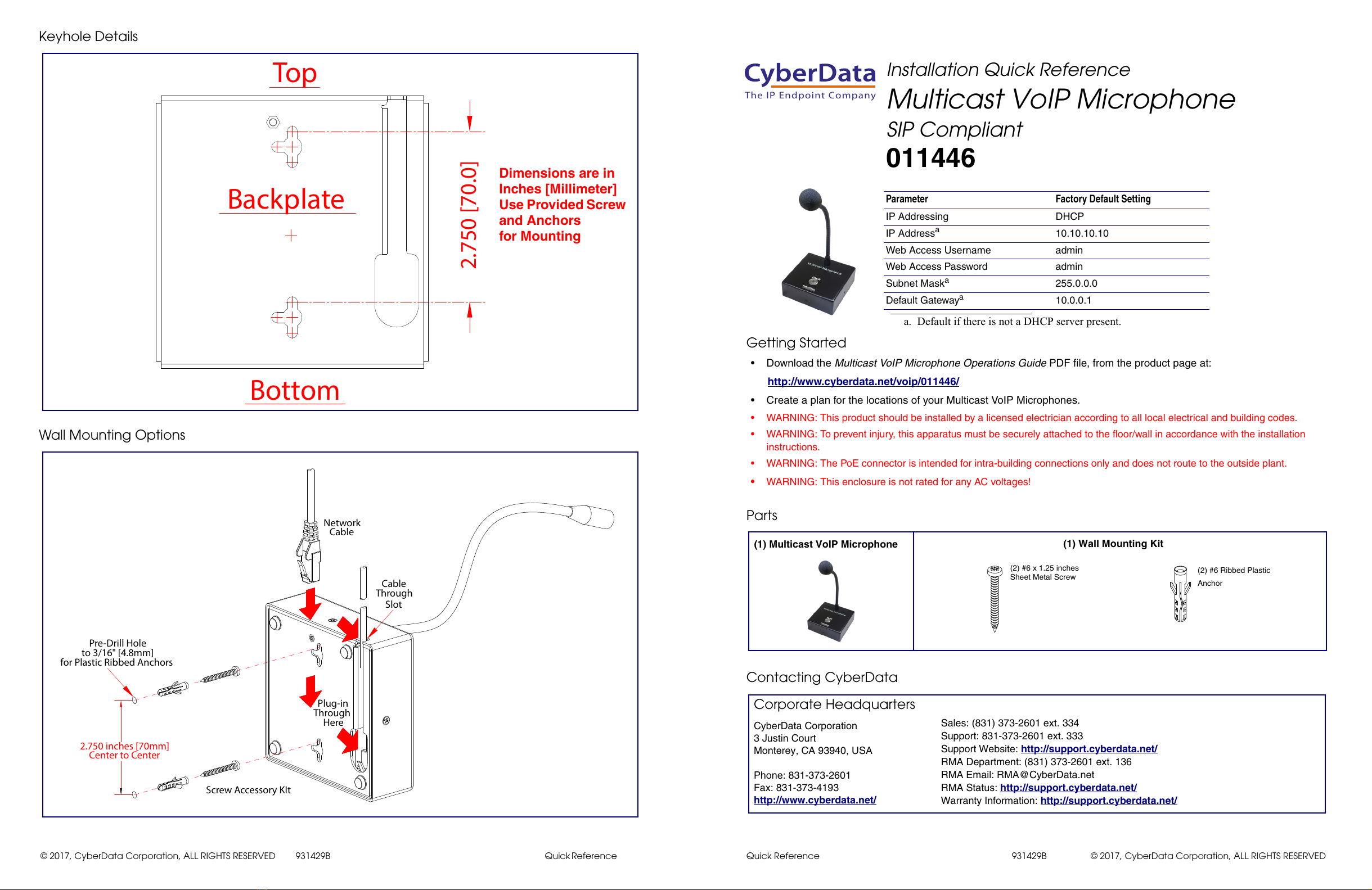

Quick Reference 931429B © 2017, CyberData Corporation, ALL RIGHTS RESERVED© 2017, CyberData Corporation, ALL RIGHTS RESERVED 931429B Quick Reference
Keyhole Details
Wall Mounting Options
Bottom
2.750 [70.0]
Top
Backplate
Dimensions are in
Inches [Millimeter]
Use Provided Screw
and Anchors
for Mounting
Screw Accessory KIt
to 3/16" [4.8mm]
for Plastic Ribbed Anchors
Pre-Drill Hole
Cable
Network
Slot
Through
Cable
Through
Plug-in
Here
2.750 inches [70mm]
Center to Center
Getting Started
• Download the Multicast VoIP Microphone Operations Guide PDF file, from the product page at:
http://www.cyberdata.net/voip/011446/
• Create a plan for the locations of your Multicast VoIP Microphones.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
•WARNING: This enclosure is not rated for any AC voltages!
Parts
Contacting CyberData
Parameter Factory Default Setting
IP Addressing DHCP
IP Addressa10.10.10.10
Web Access Username admin
Web Access Password admin
Subnet Maska255.0.0.0
Default Gatewaya10.0.0.1
a. Default if there is not a DHCP server present.
(1) Multicast VoIP Microphone
(2) #6 x 1.25 inches
Sheet Metal Screw (2) #6 Ribbed Plastic
Anchor
(1) Wall Mounting Kit
Sales: [phone] ext. 334
Support: 831-373-2601 ext. 333
Support Website: http://support.cyberdata.net/
RMA Department: [phone] ext. 136
RMA Email: [e-mail]
RMA Status: http://support.cyberdata.net/
Warranty Information: http://support.cyberdata.net/
Corporate Headquarters
CyberData Corporation
3 Justin Court
Monterey, CA 93940, USA
Phone: [phone]
Fax: [phone]
http://www.cyberdata.net/
The IP Endpoint Company
Installation Quick Reference
Multicast VoIP Microphone
SIP Compliant
011446
