CyberPower BPSE240V75ART3U User manual

Userˊs Manual
BPSE240V75ART3U
CyberPower Systems Inc.
www.cyberpower.com
K01-C000117-01

CONTENT:
1. SAFETY ............................................................................................................1
2. UNPACKING.....................................................................................................3
3. BASIC OPERATION.........................................................................................4
3.1. SCHEMATIC .............................................................................................4
3.2. FRONT/REAR PANEL DESCRIPTION.....................................................4
4. HARDWARE INSTALLATION..........................................................................5
4.1. RACKMOUNT INSTALLATION.................................................................5
4.2. VERTICAL/TOWER INSTALLATION ........................................................8
5. ELECTRICAL INSTALLATION ......................................................................10
5.1. One Battery module with 240Vdc input of the Power module..................10
5.2. Multiple Battery modules with 240Vdc input of the Power module ..........11
5.3. Two Battery modules with ±240Vdc input of the Power module..............13
5.4. Multiple Battery modules with ±240Vdc input of the Power module ........13
6. TECHNICAL SPECIFICATION .......................................................................14

1
1. SAFETY
This manual contains important instructions. Please read and follow all instructions
carefully during installation and operation of the unit. Read this manual thoroughly
before attempting to unpack, install, or operate the Battery module.
CAUTION! The UPS unit must be connected to a grounded AC power outlet
with fuse or circuit breaker protection. The Battery modules grounded are
through the UPS.
CAUTION! The battery can power hazardous components inside the unit,
even when the AC input power is disconnected.
CAUTION! To prevent the risk of fire or electric shock, install in a
temperature and humidity controlled indoor area, free of conductive
contaminants. (Please see specifications for acceptable temperature and
humidity range).
CAUTION! (No User Serviceable Parts): Risk of electric shock, do not
remove cover. No user serviceable parts inside. Refer servicing to qualified
service personnel.
CAUTION! (Non-Isolated Battery Supply): Risk of electric shock, battery
circuit is not isolated from AC power source; hazardous voltage may exist
between battery terminals and ground. Test before touching.
CAUTION! Wiring must be done by qualified personnel.
CAUTION! DO NOT USE WITH OR NEAR AQUARIUMS! To reduce the
risk of fire, do not use with or near aquariums. Condensation from the
aquarium can come in contact with metal electrical contacts and cause the
machine to short out.
CAUTION! Do not dispose of batteries in fire as the battery may explode.
CAUTION! Do not open or mutilate the battery, released electrolyte is
harmful to the skin and eyes.
CAUTION! A battery can present a risk of electric shock and high short
circuit current. The following precaution should be observed when working on
batteries
1. Remove watches, rings or other metal objects.
2. Use tools with insulated handles.
CAUTION! Make sure everything is turned off and disconnected completely

2
before conducting any maintenance, repairs or shipment.
CAUTION! Connect the Protection Earth (PE) safety conductor before any
other cables are connected.
DO NOT INSTALL THE UNIT WHERE IT WOULD BE EXPOSED TO
DIRECT SUNLIGHT OR NEAR A STRONG HEAT SOURCE!
SERVICING OF BATTERIES SHOULD BE PERFORMED OR SUPERVISED
BY PERSONNEL KNOWLEDGE OF BATTERIES AND THE REQUIRED
PRECAUTIONS. KEEP UNAUTHORIZED PERSONNEL AWAY FROM
BATTERIES!

3

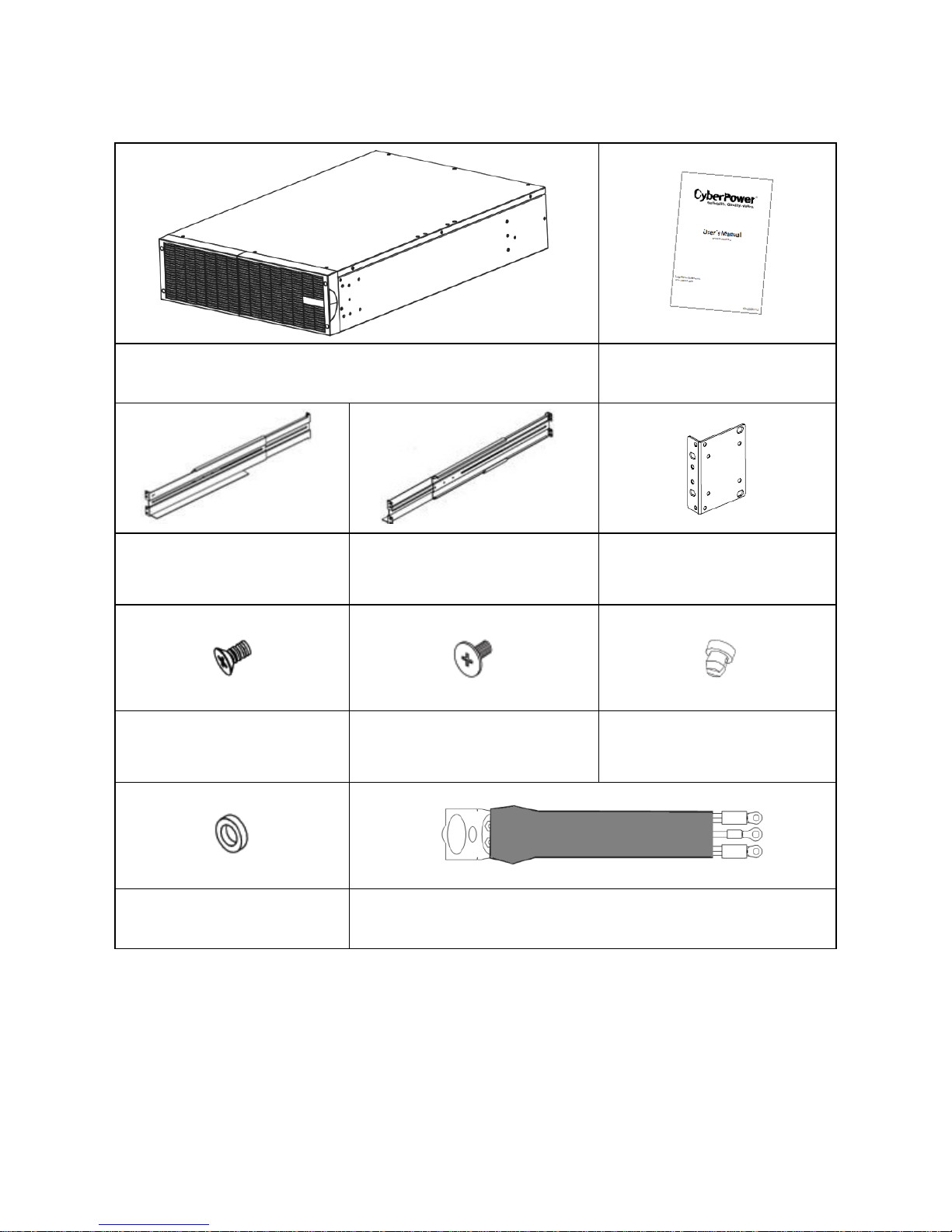

2. UNPACKING
Battery module
User’s manual
Rackmount left rail
Rackmount right rail
Rackmount ears
(Stands)*2PCS
Flat head screws:
M4X8L*8PCS
Pan head screws:
M5X12L*12PCS
Screw hole dust
covers*8PCS
Plastic washers*8PCS
Battery Cable

4
3. BASIC OPERATION

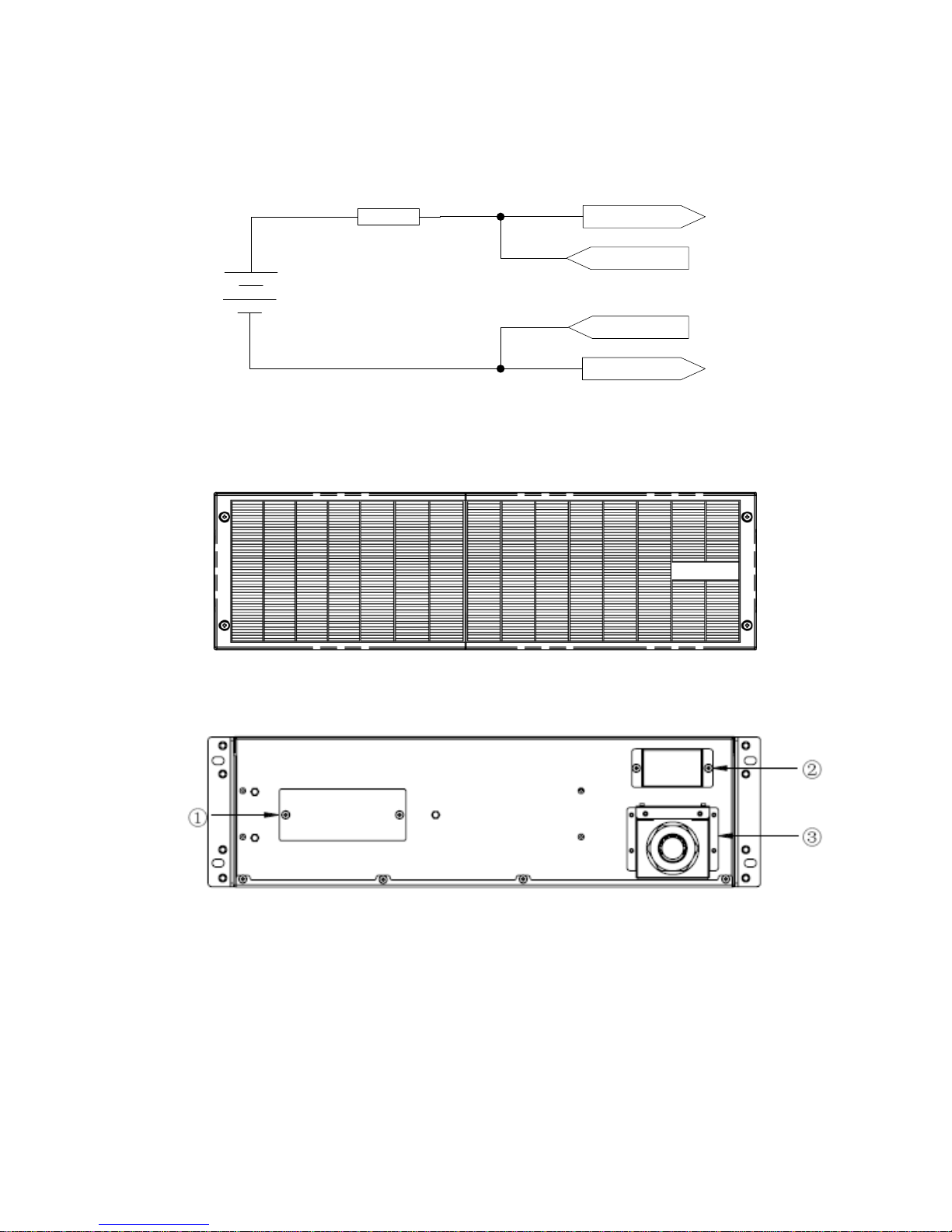

3.1. SCHEMATIC
Battery String
Fuse
Battery Output-
Battery Output+
Battery Input+
Battery Input-
3.2. FRONT/REAR PANEL DESCRIPTION
Front View
Rear View
①. Fuse: Replaceable fuse is accessible from the rear panel. It must be done by
qualified personnel.
②. Output Connector: Use this output connector to connect the Battery module
and the Power module.
③. Battery input Terminal Block: Use this input Terminal Block to daisy chain
the next Battery module.

5
4. HARDWARE INSTALLATION
CAUTION! To prevent the risk of fire or electric shock, only use the supplied
hardware to attach the mounting brackets.
These versatile UPS systems can be mounted in a rackmount or vertical/tower
orientation. This versatility is especially important to growing organizations with
changing needs that value having the option to position a UPS on a floor or in a
rackmount system. Please follow the instructions below for the respective
mounting methods.
4.1. RACKMOUNT INSTALLATION

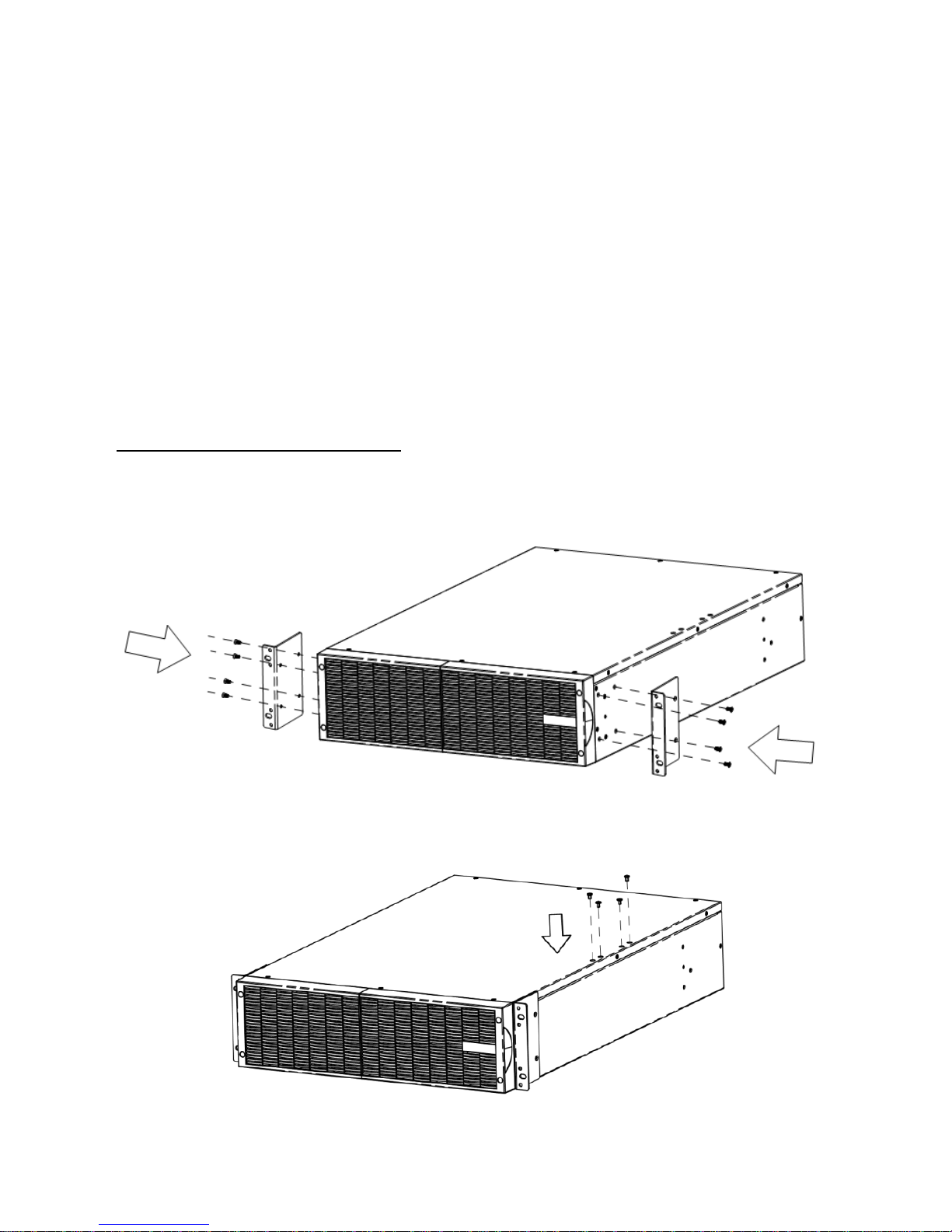

Step1.Rackmount ears installation
a) Attach the two rackmount ears to the UPS using the provided screws
M4X8L*8pcs.
b) Insert dust cover into the rackmount ear screw holes that are not being used.

6
Step2.Rackmount rails Installation
a) The rails adjust to mount in 48-cm
(19-inch) panel racks from 52 to 91.5cm
(20.5 to 36 inches) deep. Select the
proper holes in the rack for positioning
the UPS in the rack. The UPS takes up
position 1 through position 9.
b) Attach the rackmount rail to your rack
with two M5X12L screws and two plastic
washers at the front of the rack.
(Located in position 1 & position 6) Do
not tighten the screws. Adjust the rail
size on the rail assembly of your rack.
Secure the rail to the rear of the rack
with two M5X12L screws and two plastic
washers. Tighten all screws at the front and rear of the rail. Once completed,
perform the same steps for assembling the other rackmount rail.

7
Step3.Install the UPS on the rack
a) Place the UPS on a flat stable surface with the front of the unit facing toward
you. Secure the UPS to your rack with four M5X12L screws at the front of the
rack. (Located in position 2 & position 8).
b) Once completed, perform the same steps for Power module.
CAUTION! The Battery module must be installed below the UPS.

8

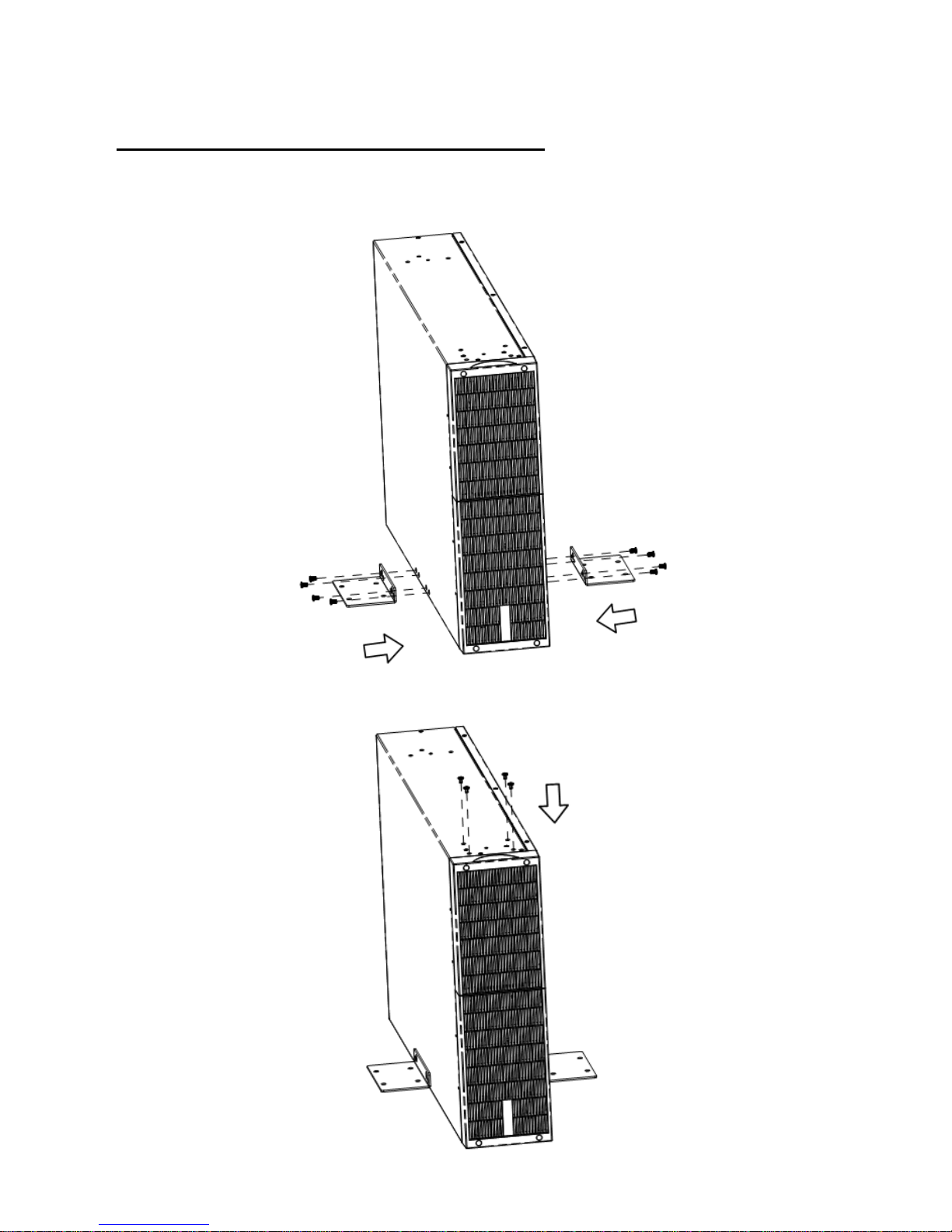

4.2. VERTICAL/TOWER INSTALLATION
Attach the base stands #1: Without Power module
a) Tighten the screws (M5X12*4pcs) of the base stands (rackmount ears) onto
the bottom of the Battery module.
b) Insert dust cover into the rackmount ear screw holes that are not being used.

9
Attach the base stands #2: With Power module
a) Tighten the screws (M5X12*4pcs) of the base stands (rackmount ears) onto
the bottom of the UPS and Battery module.
b) Insert dust cover into the rackmount ear screw holes that are not being used.

10
5. ELECTRICAL INSTALLATION
The system must be installed and wired only by qualified electricians in accordance
with applicable safety regulations!

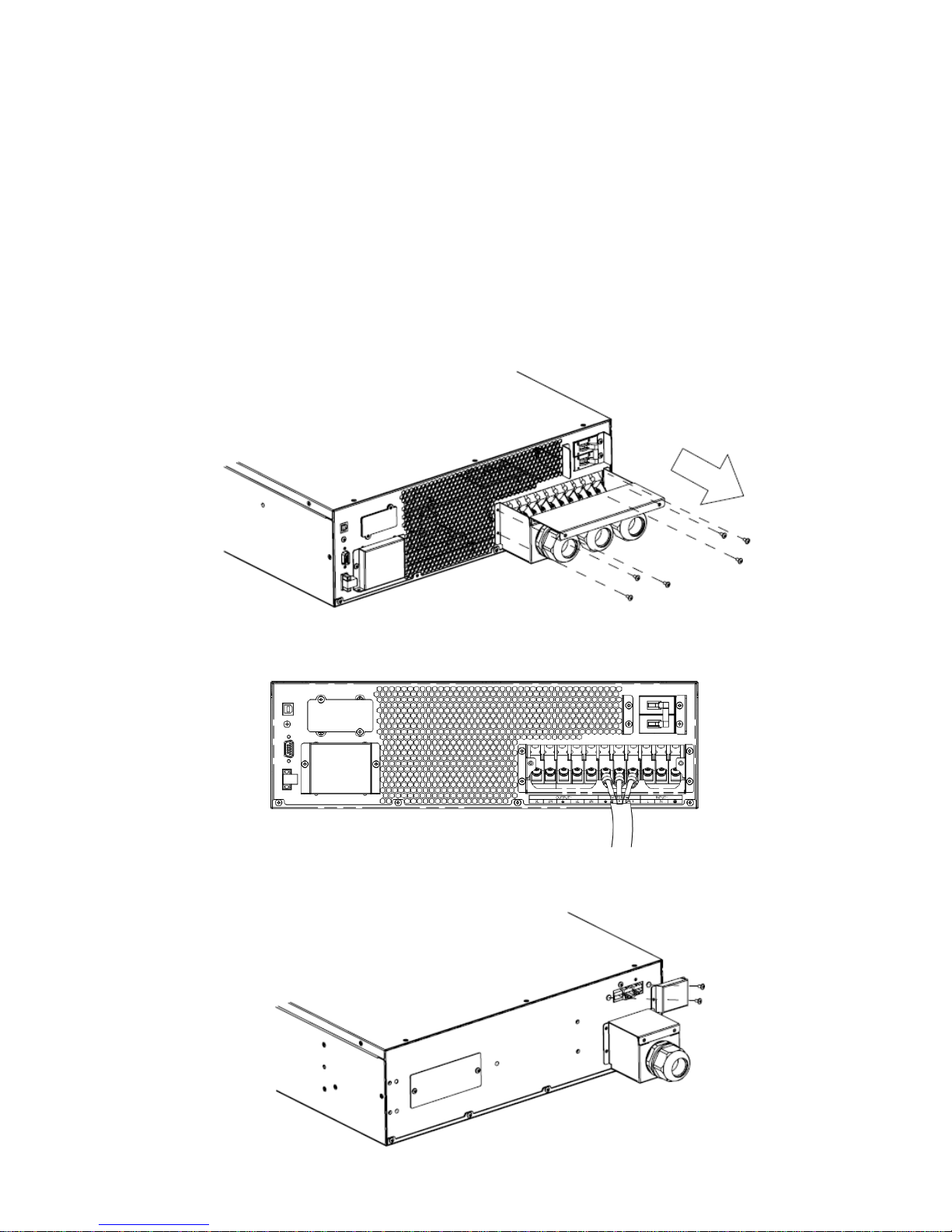

5.1. One Battery module with 240Vdc input of the Power
module
a) Loosen the screws to remove the Terminal Block Cover located on the rear
panel of Power module.
b) Connect the Battery Cable to the Power module and ensure the polarity is
right.
c) Loosen the screws to remove the Output Connector Cover of Battery module.

11
d) Connect the Battery Cable to the Battery module. Once completed, retighten
the Block Cover.
5.2. Multiple Battery modules with 240Vdc input of the
Power module
a) Loosen the screws to remove the Battery input Terminal Block Cover and
Output Connector Cover of the #1 Battery module.
b) Connect Battery Cable to Battery input Terminal Block of the #1 Battery
module and ensure the polarity is right.
#1 Battery
module

12
c) Loosen the screws to remove the Output Connector Cover of the #2 Battery
module.
d) Connect the #1 Battery module to the #2 Battery module.
e) Connect the #1 Battery module to Power module. (Refer to above steps of
chapter 5.1). Once completed, retighten the Block Cover.
#2 Battery
module

13

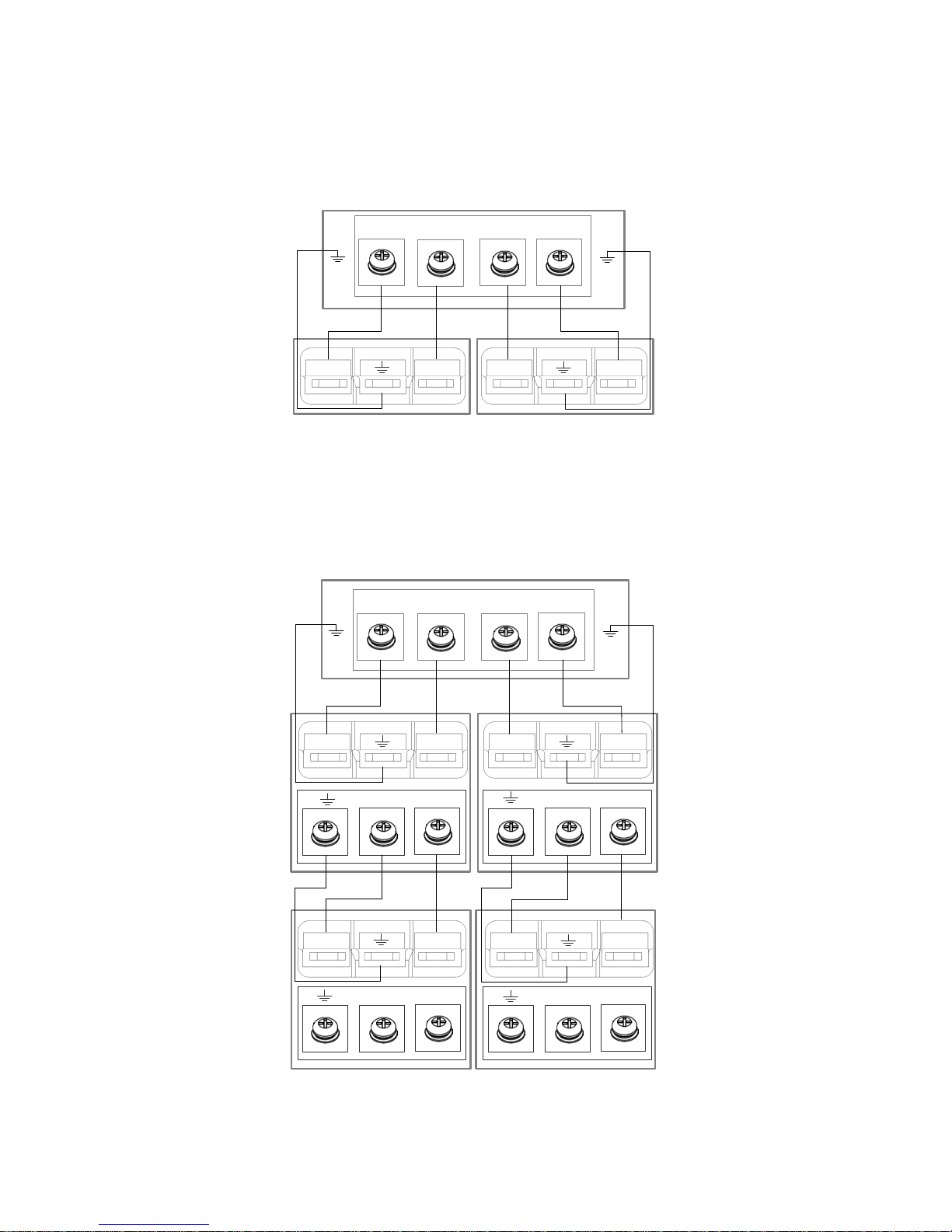

5.3. Two Battery modules with ±240Vdc input of the Power
module
Please refer to the following diagram and the steps of Connection #1.
+
-
+
-
#1 Battery module
Output Connector
#2 Battery module
Output Connector
Power module
Battery Input
±240Vdc
+
-NN
5.4. Multiple Battery modules with ±240Vdc input of the
Power module
Please refer to the following diagram and the steps of Connection #2.
+
-
+
-
Power module
Battery Input
±240Vdc
#4 Battery module
Input Terminal Block
+
-NN
#1 Battery module
Output Connector
#1 Battery module
Input Terminal Block
#3 Battery module
Output Connector
#3 Battery module
Input Terminal Block
#2 Battery module
Output Connector
#2 Battery module
Input Terminal Block
#4 Battery module
Output Connector
+
-
+
-
+
-+
-
+
-
+
-

14
6. TECHNICAL SPECIFICATION
Model
BPSE240V75ART3U
Battery
Sealed Maintenance Free Lead Acid Battery
12V / 7Ah x20pcs
Rated Battery Voltage
240Vdc
Overload Protection
Fuse
Physical
Maximum Dimensions (WxHxD) (mm)
438x130.5x680
Weight (kg)
55
Environment
Operating Temperature
0C to 40C
Relative Humidity
0 to 90%(Non-condensing)
CyberPower Systems Inc.
www.cyberpower.com
6F, No. 32, Sec. 1, Chenggong Rd., Nangang District, Taipei 115, Taiwan
Entire contents copyright©2013 CyberPower Systems Inc., All rights reserved. Reproduction in whole or
in part without permission is prohibited. PowerPanel®Business Edition and PowerPanel®Personal
Edition are trademarks of CyberPower Systems Inc.
