USER’S MANUAL
BPL48V75ART2U
K01-0000152-02

1
Overview
The Extended Battery Module (EBM) is designed for various CyberPower UPS systems and
can be used in either rack or tower installation. The heavy gauge power cord has a
plug-n-play DC connector for easy installation. When combining with UPS, the EBM provides
extended runtime with a 48V DC external connection. Further, the additional
parallel-connected EBMs provide UPS for a longer extended runtime operation.
Product Features
Form Factor- 2U/5U configuration supports both rack and tower mounting
Metal Housing- Rigid metal construction provides greater durability and safety
Back-panel Fuse- User replaceable fuse is easily accessed from the rear panel
Model List
Model
Compatible UPS
BPL48V75ART2U
PR3000LCDRTXL2U, PR3000ELCDRTXL2U, PR5000LCDRTXL5U,
PR6000LCDRTXL5U, PR5000ELCDRTXL5U, PR6000ELCDRTXL5U
Unpacking
(1) Extended battery module
(1) User’s manual
(1) Registration card
(8) Rubber buffer*
(8) Rubber buffer M4*8 screw*
(2) Expansion-fixed piece for metal stand*
(2) Base stand extensions**
(18) Expansion-fixed piece M4*8 screw*
(6) Additional extended battery module
connector plug M3*6 fixed screw
(14) Screw hole dust cover
(1) Auxiliary AC power cord, 1ft, IEC 320
C14/IEC 320 C13
(1) Power cord, 10ft, NEMA 5-15P/IEC 320
C13
(1) Rail kit –CP2RAIL04
* for UPS PR5000/6000(E)LCDRTXL5U
** for UPS PR3000(E)LCDRTXL2U
INTRODUCTION

2

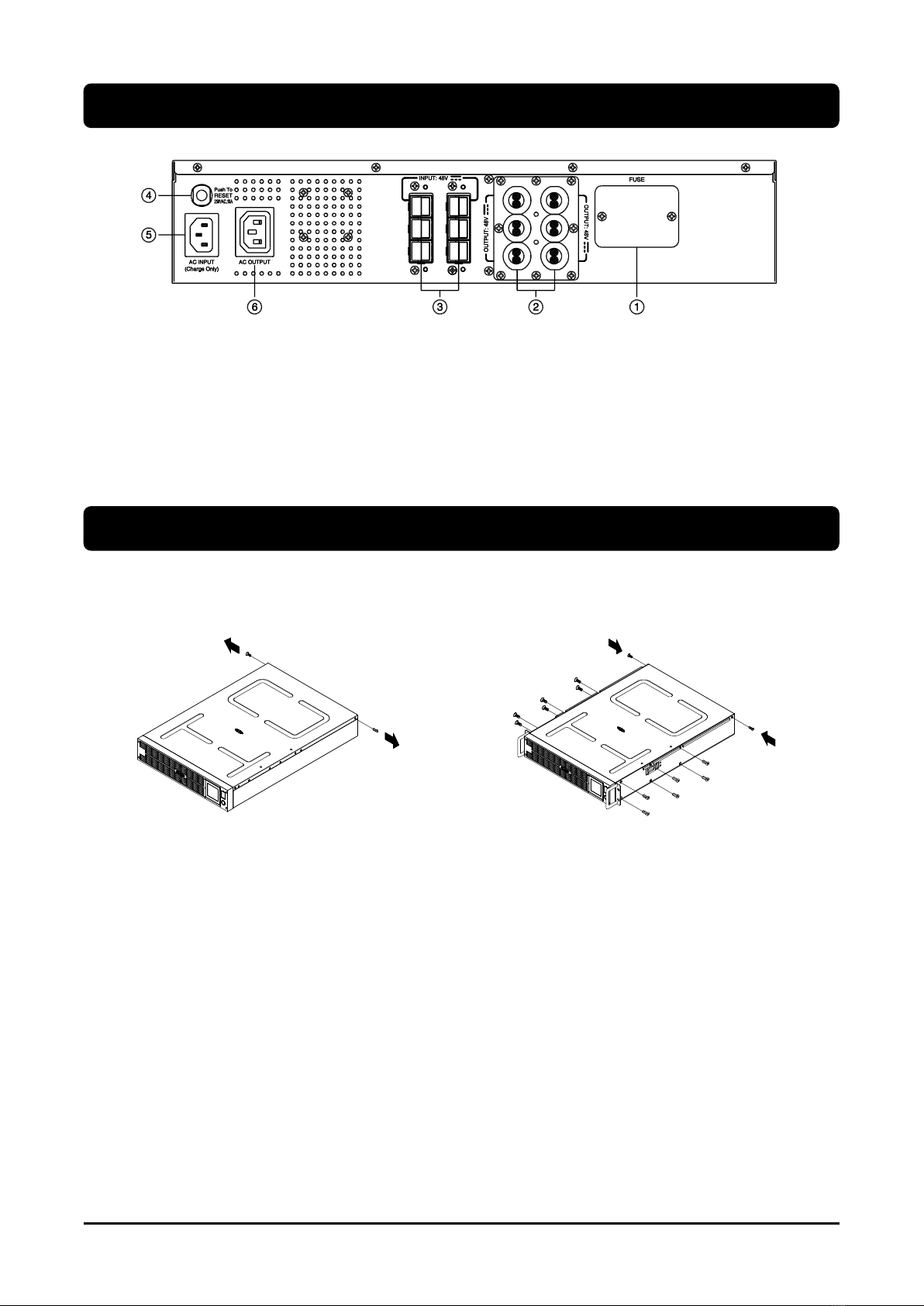

1. On-board User-replaceable Fuse Cover
2. Extended Battery Module Connecter Plug
3. Additional Extended Battery Module Connecter Socket
4. AC Input Circuit Breaker
5. AC Inlet: AC power connectivity to wall receptacle.
6. AC Outlet: This outlet connects to the AC inlet of additional Extended Battery Modules.
Rack-mounting Installation for 4-post Rack
1
2
Release the two (2) screws from the unit.
Affix the hanging brackets to each side of
the unit with twelve (12) M5*7 flat head
screws and with two (2) screws from the
unit. Use provided four (4) M4*8 flat head
screws to secure the rack-mounting handles
to the hanging brackets if needed. Screws
and hanging brackets are provided in the
rail kit.
BASIC CONFIGURATION
INSTALLATION

3
Rack-mounting Installation for 4-post Rack (cont.)
3
4
Screw the hanging rails to the rack with
eight (8) M5 pan head screws and plastic
washers. Screws, washers and rails are
provided in the rail kit.
Lift the unit upon the hanging rails and slide
the unit into the rack. Affix the unit to the
rack with four (4) M5 pan head screws that
come with rail kit.
Tower Installation for PR3000LCDRTXL2U/ PR3000ELCDRTXL2U
Note: UPS and Extended Battery Module have to combine together to implement the vertical
installation.
2 3 41
INSTALLATION (cont.)
Step 1. Remove the UPS from the base stands, and
separate the base stands to make room for the base stand
expanders. Take the base stand extensions and insert
them in-between the separated base stands. Be sure the
pieces firmly snap together.
Step 2. Insert dust covers into the rack-mounting screw
holes that are not being used.
Step 3. The UPS and Extended Battery Module should
now fit easily in the newly expanded base stands.

4
Tower Installation for PR5000LCDRTXL5U/ PR6000LCDRTXL5U/ PR5000ELCDRTXL5U/
PR6000ELCDRTXL5U
Normal Use
1. Plug the Extended Battery Module into a grounded receptacle/ wall outlet.
2. Connect the Extended Battery Module to your UPS by plugging the Extended Battery
Module connector plug into the connector socket on the rear panel of the UPS. Ensure
the color coded connector plug lines up correctly with the colors in the UPS socket, such
as red to red, black to black and green to green.
3. Check and modify the setting of Extended Battery Module Quantity setting on your UPS
through the LCD, PowerPanel® Business Edition software or RMCARD interface (if
installed) to ensure the UPS reports an accurate runtime.
Connecting Multiple Extended Battery Modules
Additional Extended Battery Modules are connected in parallel, the voltage maintains the
same, yet the battery amp-hour capacity depends on the numbers of Extended Battery
Modules in the set-up. Follow the steps described below to add multiple Extended Battery
Modules to your UPS.
1. Use the auxiliary power cord to connect the AC inlet from one Extended Battery Module
to the AC outlet of another Extended Battery Module.
2. Plug the Extended Battery Module into a grounded receptacle/ wall outlet.
INSTALLATION (cont.)
BASIC OPERATION
Step 1. Stand the UPS and the Extended
Battery Module(s).
Step 2. Mounting two stabilizer brackets
(supplied with UPS) to outside of UPS and
Extended Battery Module(s).
Step 3. Affix the rubber feet to the bottom of
the Extended Battery Module. Secure two
Expansion-fixed pieces (supplied) to the 5U
UPS and Extended Battery Module(s).
Step 4. Insert the dust covers into the rack
mount ear screw holes that are not being
used.

5
3. Connect the Extended Battery Module to your UPS by plugging the Extended Battery
Module connector plug into the connector socket on the rear panel of the UPS. Ensure
the color coded connector plug lines up correctly with the colors in the UPS socket, such
as red to red, black to black and green to green.
4. Check and modify the setting of Extended Battery Module Quantity setting on your UPS
through the LCD, PowerPanel® Business Edition software or RMCARD interface (if
installed) to ensure the UPS reports an accurate runtime.
Be aware of the following statements:
A. Your Extended Battery Module may be used immediately upon receipt. However,
charging the battery for at least twelve (12) hours before connecting to UPS is
recommended to ensure the battery reaches its maximum charge. Charge loss may
occur during shipping and storage. To recharge the battery, simply leave the unit
plugged into an AC outlet.
B. To maintain optimal battery charge, leave the Extended Battery Module plugged into an
AC outlet at all times.
C. Always plug the Extended Battery Module into a grounded receptacle/ wall outlet. Make
sure the wall branch outlet is protected by a fuse or circuit breaker and does not service
equipment with large electrical demands, e.g. air conditioner, refrigerator, copier, etc.
Avoid using extension cords.
D. DO NOT plug the AC power cord from the Extended Battery Module into a UPS.
E. To prevent risk of electric shock, it is necessary to plug the Extended Battery Module
into a grounded receptacle before connecting to the UPS, or turn the UPS off first,
connect the Extended Battery Module as above steps and then turn the UPS on.
BASIC OPERATION (cont.)

6
Problem
Possible Cause
Solution
UPS does not
perform expected
runtime.
UPS does not recognize
the correct quantity of
Extended Battery
Modules.
Adjust the setting of Extended Battery
Module Quantity on your UPS to correct
numbers via UPS LCD module,
PowerPanel® Business Edition software
or RMCARD interface (if installed).
Batteries are degraded.
Contact CyberPower about replacement
batteries.
The Extended
Battery Module
does not work.
Batteries are not fully
charged.
Allow the Extended Battery Module to
charge for at least 12 hours.
Batteries are degraded.
Contact CyberPower about replacement
batteries.
The fuse blew.
Contact CyberPower for repair.
Additional troubleshooting information can be found at www.cyberpower.com.
Model
BPL48V75ART2U
AC Input Voltage Range
100Vac –240Vac
DC Output
48Vdc, 100A
Battery
Internal Battery
Sealed Maintenance Free Lead Acid Battery 12V 9AH x12
Built-in Charger
Yes
Typical Recharge Time
6 –8 Hours
Physical
Dimensions (in)
2U Rack, 17”x 3.5”x 23.6”
Weight (lbs)
96 lbs
Environmental
Operating Temperature
32°F –104°F
Operating Relative
Humidity
0% –95% Non-condensing
Operating Elevation
0 ft –10000 ft
Approvals
Certifications
UL1778, CSA C22.2, NOM, FCC Class A, CE
RoHS
Compliant
TROUBLESHOOTING
TECHNICAL SPECIFICATIONS

7
Read the following terms and conditions carefully before using the CyberPower
BPL48V75ART2U (the “Product”). By using the Product you consent to be bound by and
become a party to the terms and conditions of this Limited Warranty and Connected
Equipment Guarantee (together referred to as this “Warranty”). If you do not agree to the
terms and conditions of this Warranty, you should return the Product for a full refund prior
to using it.
Who is providing this warranty?
CyberPower Systems (USA), Inc. (“CyberPower”) provides this Limited Warranty.
What does this warranty cover?
This warranty covers defects in materials and workmanship in the Product under normal use
and conditions. It also covers equipment that was connected to the Product and damaged
because of the failure of the Product.
What is the period of coverage?
This warranty covers the Product for three years and connected equipment for as long as
you own the Product.
Who is covered?
This warranty only covers the original purchaser. Coverage ends if you sell or otherwise
transfer the Product.
How do you get warranty service?
1. Before contacting CyberPower, identify your Product model number, the Purchase Date,
and each item of Connected Equipment (E.G. Computer tower, Computer Monitor,
Cable Modem, etc).
2. Visit our web site at https://www.cyberpowersystems.com/support or Call us at (877)
297-6937.
3. If your product requires warranty service you must provide a copy of your dated
purchase receipt or invoice.
How do you open a connected equipment claim?
1. Call us at [phone] or write to us at Cyber Power Systems (USA), Inc., 4241 12th
Ave. E., STE 400, Shakopee, MN 55379, or send us an e-mail message at
[email protected] for instructions, within 10 days of the occurrence.
2. When you contact CyberPower, identify the Product, the Purchase Date, and the item(s)
of Connected Equipment. Have information on all applicable insurance or other
resources of recovery/payment that are available to the Initial Customer and Request a
Claim Number.
3. You must provide a dated purchase receipt (or other proof of the original purchase) for
the CyberPower unit and connected equipment. You also need to provide a description
of the damage to your connected equipment.
LIMITED WARRANTY AND CONNECTED EQUIPMENT GUARANTEE

8
4. Pack and ship the product to CyberPower and, if requested, the item(s) of Connected
Equipment, a repair cost estimate for the damage to the Connected Equipment, and all
claim forms that CyberPower provides to you. Show the Claim Number on the shipping
label or include it with the product. You must prepay all shipping costs, you are
responsible for packaging and shipment, and you must pay the cost of the repair
estimate.
How long do I have to make a claim?
All claims must be made within ten days of the occurrence.
What will we do to correct problems?
CyberPower will inspect and examine the Product.
If the Product is defective in material or workmanship, CyberPower will repair or replace it at
CyberPower's expense, or, if CyberPower is unable to or decides not to repair or replace the
Product (if defective) within a reasonable time, CyberPower will refund to you the full
purchase price you paid for the Product (purchase receipt showing price paid is required).
If it appears that our Product failed to protect any equipment plugged into it, we will also
send you forms for making your claim for the connected equipment. We will repair or
replace the equipment that was damaged because of the failure of our Product or pay you
the fair market value (NOT REPLACEMENT COST) of the equipment at of the time of the
damage. We will use Orion Blue Book, or another a third-party valuation guide, or eBay,
craigslist, or other source to establish that amount. Our maximum liability is limited to
$400,000 for BPL48V75ART2U.
Who pays for shipping?
We pay when we send items to you; you pay when you send items to us.
What isn’t covered by the warranty?
1. This Warranty does not cover any software that was damaged or needs to be replaced
due to the failure of the Product or any data that is lost as a result of the failure or the
restoration of data or records, or the reinstallation of software.
2. This Warranty does not cover or apply to: misuse, modification, operation or storage
outside environmental limits of the Product or the equipment connected to it, nor for
damage while in transit or in storage, nor if there has been improper operation or
maintenance, or use with items not designed or intended for use with the Product, such
as laser printers, appliances, aquariums, medical or life support devices, etc.
What are the limitations?
The sole and exclusive remedies of the Initial Customer are those provided by this Warranty.
1. This Warranty does not apply unless the Product and the equipment that was connected
to it were connected to properly wired and grounded outlets (including compliance with
electrical and safety codes of the most current electrical code), without the use of any
adapters or other connectors.
LIMITED WARRANTY AND CONNECTED EQUIPMENT GUARANTEE (cont.)

9
2. The Product must have been plugged directly into the power source and the equipment
connected to the Product must be directly connected to the Product and not
“daisy-chained” together in serial fashion with any extension cords, another Product or
device similar to the Product, surge suppressor, or power tap. Any such installation voids
the Limited Warranty.
3. The Product and equipment connected to it must have been used properly in a suitable
and proper environment and in conformance with any license, instruction manual, or
warnings provided with the Product and the equipment connected to it.
4. The Product must have been used at all times within the limitations on the Product’s VA
capacity.
The Product was designed to eliminate disrupting and damaging effects of momentary (less
than 1ms) voltage spikes or impulses from lightning or other power transients. If it can be
shown that a voltage spike lasting longer than 1ms has occurred, the occurrence will be
deemed outside the rated capabilities of the Product and the Limited Warranty is void.
CyberPower Does Not Cover or Undertake Any Liability in Any Event for Any of the
Following:
1. Loss of or damage to data, records, or software or the restoration of data or records, or
the reinstallation of software.
2. Damage from causes other than AC Power Line Transients, spikes, or surges on properly
installed, grounded and code-compliant 120 volt power lines in the United States and
Canada; transients, surges or spikes on standard telephone land lines, PBX telephone
equipment lines or Base 10T Ethernet lines, when properly installed and connected. (This
exclusion applies, for example, to fluctuations in data transmission or reception, by
CATV or RF transmission or fluctuations, or by transients in such transmission.)
3. Damage from any circumstance described as excluded above with respect to the
Product.
4. Damages from fire, flood, wind, rain, rising water, leakage or breakage of plumbing,
abuse, misuse or alteration of either the product or the Connected Equipment.
5. CyberPower excludes any liability for personal injury under the Limited Warranty and
Connected Equipment Guarantee. CyberPower excludes any liability for direct, indirect,
special, incidental or consequential damages, whether for damage to or loss of property
[EXCEPT FOR (AND ONLY FOR) the specific limited agreement of CyberPower to provide
certain warranty benefits regarding "Connected Equipment" under this Warranty], loss
of profits, business interruption, or loss of information or data. NOTE: Some States or
Provinces do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation may not apply to you.
LIMITED WARRANTY AND CONNECTED EQUIPMENT GUARANTEE (cont.)

10
6. The Product is not for use in high-risk activities or with aquariums. The Product is not
designed or intended for use in hazardous environments requiring fail-safe
performance, or for use in any circumstance in which the failure of the Product could
lead directly to death, personal injury, or severe physical or property damage, or that
would affect operation or safety of any medical or life support device (collectively, "High
Risk Activities"). CyberPower expressly disclaims any express or implied warranty of
fitness for High Risk Activities or with aquariums. CyberPower does not authorize use of
any Product in any High Risk Activities or with Aquariums. ANY SUCH USE IS IMPROPER
AND IS A MISUSE OF THE PRODUCT.
Where can I get more information?
The application of the United Nations Convention of Contracts for the International Sale of
Goods is expressly excluded. CyberPower is the warrantor under this Limited Warranty.
For further information please feel free to contact CyberPower at CyberPower Systems (USA),
Inc. 4241 12th Ave E., STE 400, Shakopee, MN 55379; call us at [phone]; or send us an
e-mail message at c[email protected].
FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may
cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
Important: Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Canadian Compliance Statement This device complies with Industry Canada
licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil
ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
LIMITED WARRANTY AND CONNECTED EQUIPMENT GUARANTEE (cont.)
REGULATORY COMPLIANCE

Customer Support is available on our website.
Visit CyberPower at www.cyberpower.com to get more information.
Entire contents copyright © 2018 Cyber Power Systems, Inc. All rights reserved.
Reproduction in whole or in part without permission is prohibited.
CyberPower is a registered trademark and brand of Cyber Power Systems (USA), Inc.
