OVERVIEW
1
The CyberPower Battery modules (BPE240V30ART3U / BPE240V50ART3U) support 30A/50A polarized plugs, and are designed for variety of CyberPower
UPS systems. When combining with the UPS, the Battery module provides extended runtime with a 240VDC external connection. Additional
parallel-connected Battery modules provide the UPS for a longer extended runtime operation.
Battery module
User’s manual Register card
Rackmount left rail Rackmount right rail
Power cord
Rackmount ears (Stands) (2) * 1 set
Tie plate (1) * 1 set
Flat head screws:M5X8L (8) * 1 set
Pan head screws:M5X12L (12) * 1 set
Plastic washers (8) * 1 set
Screw hole dust covers (10) * 1 sets
UNPACKING

Copyright © 2011 CyberPower Systems, Inc.
HARDWARE INSTALLATION
2
HARDWARE INSTALLATION
These versatile Battery modules can be mounted in a rackmount or
vertical tower orientation. This versatility is especially important to
growing organizations with changing needs that value having the option
to position a Battery module on a floor or in a rackmount system. Please
follow the instructions below for the respective mounting methods.
SAFETY PRECAUTIONS
CAUTION! To prevent the risk of fire or electric shock, only use the
supplied hardware to attach the mounting brackets.
RACKMOUNT INSTALLATION
Step 1: Remove the internal battery trays from the Battery module
(See page 7)
Step 2: Rackmount ears installation
Attach the two rackmount ears to the Battery module using the provided
screws M5X8L*8pcs.
Step 3: Rackmount rail Installation
The rails adjust to mount in 48-cm (19-inch) panel racks from 52 to
91.5cm (20.5 to 36 inches) deep. Select the proper holes in the rack for
positioning the Battery module in the rack. The Battery module takes up
position 1 through position 9.
Step 4: Adjust rackmount rails to fit your rack
Attach the rackmount rail to your rack with two M5X12L screws and two
plastic washers at the front of the rack. (Located in position 1 & position 6)
Do not tighten the screws. Adjust the rail size on the rail assembly of your
rack. Secure the rail to the rear of the rack with two M5X12L screws and
two plastic washers. Tighten all screws at the front and rear of the rail.
Once completed, perform the same steps for assembling the other
rackmount rail.
Place the Battery module on a flat stable surface with the front of the unit
facing toward you. Secure the Battery module to your rack with four
M5X12L screws at the front of the rack. (Located in position 2 & position
8)
Step 5: Place the internal battery trays back into the Battery module
(See page 7)
CAUTION! The Battery module must be installed below the power
module.

Copyright © 2011 CyberPower Systems, Inc.
HARDWARE INSTALLATION
3
VERTICAL/TOWER INSTALLATION
Step 1: Rotate the Multifunction LCD Module
Unscrew the right panel of the power module. Separate the right panel
from the UPS. Gently lift the LCD module out. Rotate it to the tower
orientation. Reinstall it for a tower configuration.
Step 2: Attach the base stands
Secure the tie bracket with the screws (M5X8*4pcs). Tighten the screws
(M5X12*4pcs) of the base stands (rackmount ears) onto the bottom of
the power module and the Battery module.
Step 3: Attach dust covers
Insert dust covers into the rackmount ear, screw holes that are not being
used.
SAFETY PRECAUTIONS
CAUTION! Installation environment should be in a temperature and humidity controlled indoor area free of conductive contaminants. Do not install this
Battery module where excessive moisture or heat is present (Please see specifications for acceptable temperature and humidity range).
CAUTION! Never install a Battery module, or associated wiring or equipment, during a lightning storm.
CAUTION! Do not work alone under hazardous conditions.
CAUTION! In case of the risk of electric shock, do not remove the top cover.
CAUTION! The battery can energize hazardous live parts inside even when the AC input power is disconnected.

Copyright © 2011 CyberPower Systems, Inc.
4
BASIC OPERATION

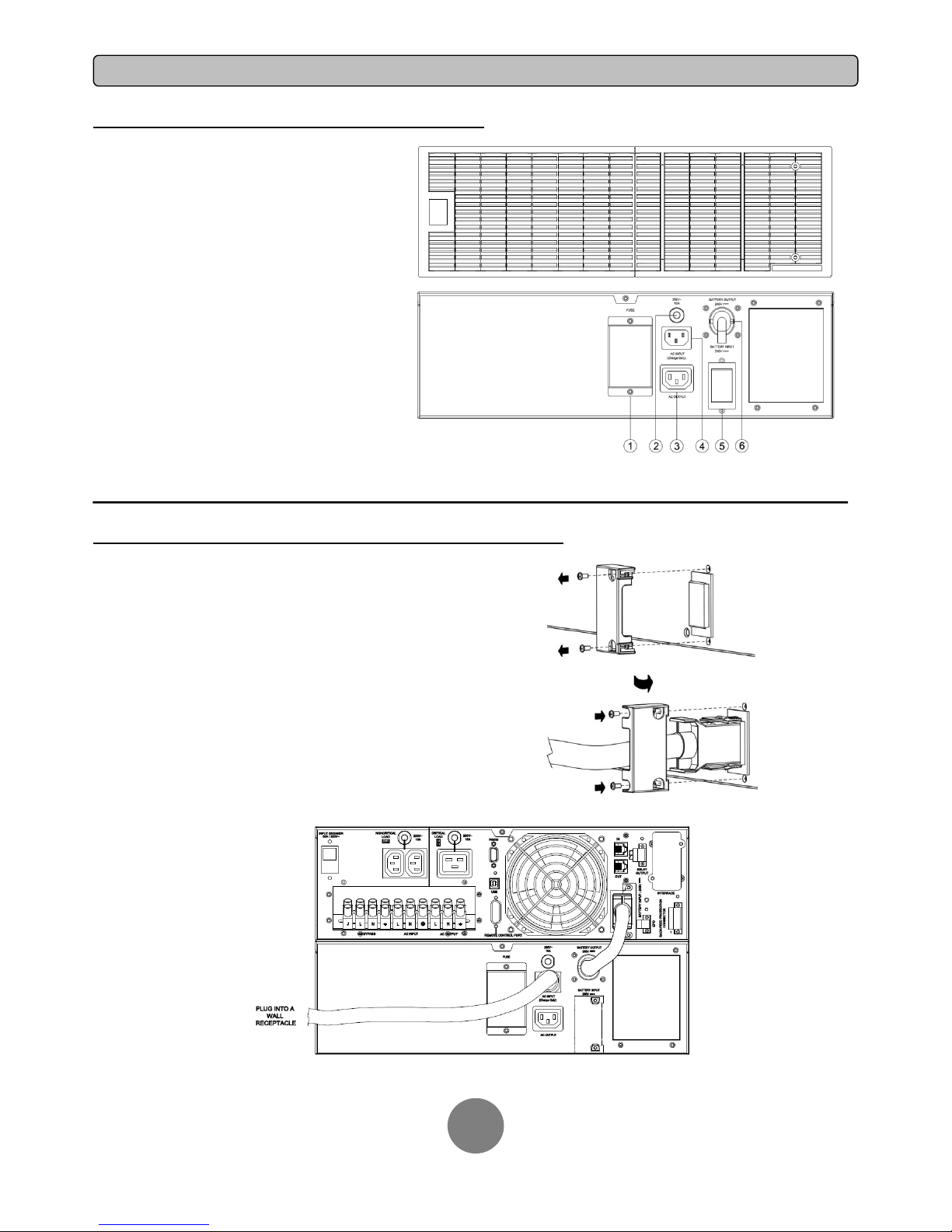

BATTERY MODULE FRONT/REAR PANEL DESCRIPTION
1. On-board Replaceable Fuse Cover
Replaceable fuse is accessible from the rear panel. It must
be done by qualified personnel.
2. AC Circuit Breaker
Provides overload and fault protection.
3. AC Output Outlet
Use this outlet to connect to the AC Input Inlet of a
downstream Battery module.
4. AC Input Inlet (Charge Only)
AC power connectivity to wall receptacle.
5. Input Connector
Use this input connector to daisy chain the next Battery
module. Remove the connector cover for access.
6. Output Cable
Use this output cable to connect the Battery module to the
Power module or to the next Battery module.
BPE240V30ART3U / BPE240V50ART3U
CONNECTION #1 : POWER MODULE WITH ONE BATTERY MODULE
Step 1: Loosen the two screws to remove the battery cable
retention bracket of the power module.
Step 2: Use the output cable of the Battery module to connect
the Battery module to the Power module.
Step 3: Rotate the battery cable retention bracket and tighten
the two screws to fix battery cable.
Step 4: Use a power cord to plug AC input inlet of the battery
module into a wall receptacle.

Copyright © 2011 CyberPower Systems, Inc.
BASIC OPERATION
5
CONNECTION #2 : POWER MODULE WITH MULTIPLE BATTERY MODULES
Step 1: Connect the 1st Battery module to the Power module
using the instructions above.
Step 2: Loosen the two screws to remove the battery cable
retention bracket of the 1st battery module.
Step 3: Use the output cable of the 2nd Battery module to
connect the 2nd Battery module to the 1st Battery
module.
Step 4: Rotate the battery cable retention bracket and tighten
the two screws to fix battery cable.
Step 5: Use a power cord to plug AC input inlet of the 2nd battery
module into AC output outlet of the 1st Battery module.

Copyright © 2011 CyberPower Systems, Inc.
6
BASIC OPERATION
EXTERNAL BATTERY MODULES CONFIGURATION
External Battery Modules can be configured by the user to display correct estimated battery runtimes.
1. Press the “ENTER” button to activate the “MAIN MENU”.
2. Press the “▲”and “▼”buttons to scroll to the “Configure”option.
3. Press the “ENTER” button to select the “Configure”submenu.
4. Press the “▲”and “▼”buttons to scroll to the “EBP Number”option.
5. Press the “ENTER” button to select the “EBP Number”submenu.
The first configuration number will be displayed on the second column of LCD display.
6. Press the “▲”and “▼”buttons to scroll through the number of attached Battery modules.
7. Press the “ENTER” button to select the number of Battery modules installed.
You may be prompted to save the selection, if so press the “ENTER” button to save the setting.
8. Press the “ESC” button to cancel or return to the previous LCD menu.
Configure Submenu
Available Settings
Default Settings
EBM Number
= [0] [1] [2] [3] [4] [5] [6] [7] [8] [9] [10]
0

Copyright © 2011 CyberPower Systems, Inc.
MAINTENANCE
7
Storage
To store your UPS for an extended period, cover it and store with the
battery fully charged. Recharge the battery every three months to ensure
battery life.
Battery Replacement
Please read and follow the Safety Instructions before servicing the
battery. Battery replacement should be performed by trained personnel
who are familiar with the procedures and safety precautions. Make a note
of the replacement Battery module number.
Safety Precautions
CAUTION! Only use replacement batteries which are certified by
CyberPower Systems. Use of incorrect battery type is an electrical
hazard that could lead to explosion, fire, electric shock, or short circuit.
CAUTION! Batteries contain an electrical charge that can cause
severe burns. Before servicing batteries, please remove any conductive
materials such as jewelry, chains, wrist watches, and rings.
CAUTION! Do not open or mutilate the batteries. Electrolyte fluid is
harmful to the skin/eyes and may be toxic.
CAUTION! To avoid electric shock, turn off and unplug the Battery
module from the wall receptacle before servicing the battery.
CAUTION! Only use tools with insulated handles. Do not lay tools or
metal parts on top of the UPS or battery terminals.
Replacement Batteries
Please refer to the front side of the Battery module for the model number
of the correct replacement batteries. For battery procurement, log onto
www.CPSww.com, or contact your local dealer.
Battery Disposal
Batteries are considered hazardous waste and must be disposed of
properly. Contact your local government for more information about
proper disposal and recycling of batteries. Do not dispose of batteries
in fire.
Battery Installation
Step 1: Remove the front panels Step 2: Remove the retaining screws from
the cable protection cover and then remove
the cover itself
Step 3: Pull the battery trays out slowly and
then put the new battery trays back into the
compartment
Step 4: Insert the battery connectors and tighten the screws of battery retaining cover Step 5: Install the front panels

Copyright © 2011 CyberPower Systems, Inc.
CONFORMANCE APPROVALS
8
CyberPower Systems Inc.
www.cpsww.com
Entire contents copyright©2011 CyberPower Systems Inc., All rights reserved. Reproduction in whole or in part
without permission is prohibited. PowerPanel®Business Edition and PowerPanel®Personal Edition are trademarks of
CyberPower Systems Inc.
Model
BPE240V30ART3U
BPE240V50ART3U
Configuration
AC Input Voltage
180~280Vac
DC Output Voltage
240Vdc
Amperage
30A
50A
Physical
Dimensions
L x W x H = 26 x 17 x 5.2in. (660 x 433 x 132mm)
Net Weight
167.2lbs(76Kg)
171.6lbs(78Kg)
Battery
Specifications
(20) 12V/7.2AH
(20) 12V/9.0AH
Recharge Time (Typically)
4 hours
5 hours
Interface
PP45
Sealed, Maintenance Free
Yes
Hot-Swappable
Yes
Built-in Charger
Yes
Environment
Operating Temperature
32℉to 104℉( 0℃to 40℃)
Operating Relative Humidity
0 to 90% Non-Condensing
Safety
Conformance Approvals
CE, C-tick
RoHS
RoHS Compliant
Warranty
Product Warranty
3-year limited warranty, Free Tech Support
Problem
Possible Cause
Solution
Warning
BAT Disconnected
Missing battery power.
Check battery connector and battery breaker.
Battery Failure
UPS has failed in Battery Test.
1. Check battery connector and battery breaker.
2. Contact technical support to replace the
battery.
Replace Battery
Battery will soon need to be replaced due to
insufficient runtime.
Contact technical support to replace the battery.
Fault
Over Charge
Battery is overcharged.
1. Remove battery connector and check
charger voltage.
2. Contact CyberPower for repair.
Charger Failure
Charger has failed.
TROUBLE SHOOTING
