CyberView RKP115 Series User manual

CyberView User Manual
RKP115
RKP117
1U Rackmount LCD monitor Keyboard drawer
Version 1.0
20 March 2004

User Manual
Table of Contents
1.0 General............................................................................................................ 3
1.1 Unit Introduction........................................................................................... 3
1.2 Unit Photograph............................................................................................ 3
1.3 Unit Features ................................................................................................ 3
1.4 Unit Packing Contents................................................................................... 3
1.5 Important Information & Safeguards ............................................................... 3
1.6 Preparation for Use....................................................................................... 4
2. LCD On Screen Display ......................................................................................... 5
2.1 Display & Navigation Using Membrane Keys................................................... 5
2.2 Customizing the LCD Settings......................................................................... 6
3. Miscellaneous Sub Menu ..................................................................................... 7
4. Setting OS Refresh Rate - Microsoft Windows® ..................................................... 9
5. LCD Technical Specification ............................................................................... 10
6. LCD Troubleshooting .......................................................................................... 12
6.1 The LCD does not function, the PC input is operational .................................. 12
6.2 The message ‘Check Cable’ appears on the LCD............................................ 12
6.3 The message ‘No Sync’ appears on the LCD .................................................. 12
6.4 The message ‘Signal out of Range’ appears on the LCD ................................. 12
7. Warranty ........................................................................................................... 13
7.1 Period & Conditions .................................................................................... 13
7.2 Manufacturers exclusions............................................................................ 13
8. Disclaimer......................................................................................................... 13
www.austin-hughes.co.uk
Page
2

User Manual
1.0 General
1.1 Unit Introduction
Thank you for purchasing the 1U Rackmount LCD monitor Keyboard drawer. The unit offers space
saving leading edge, flexible, features.

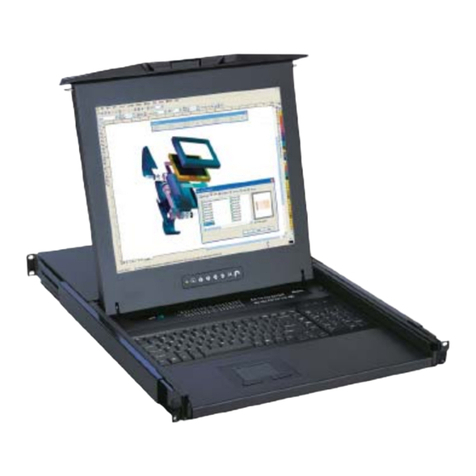

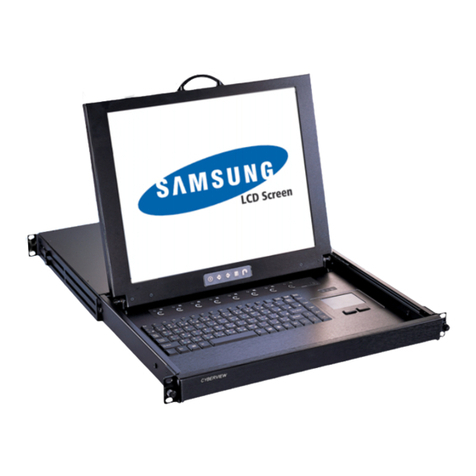

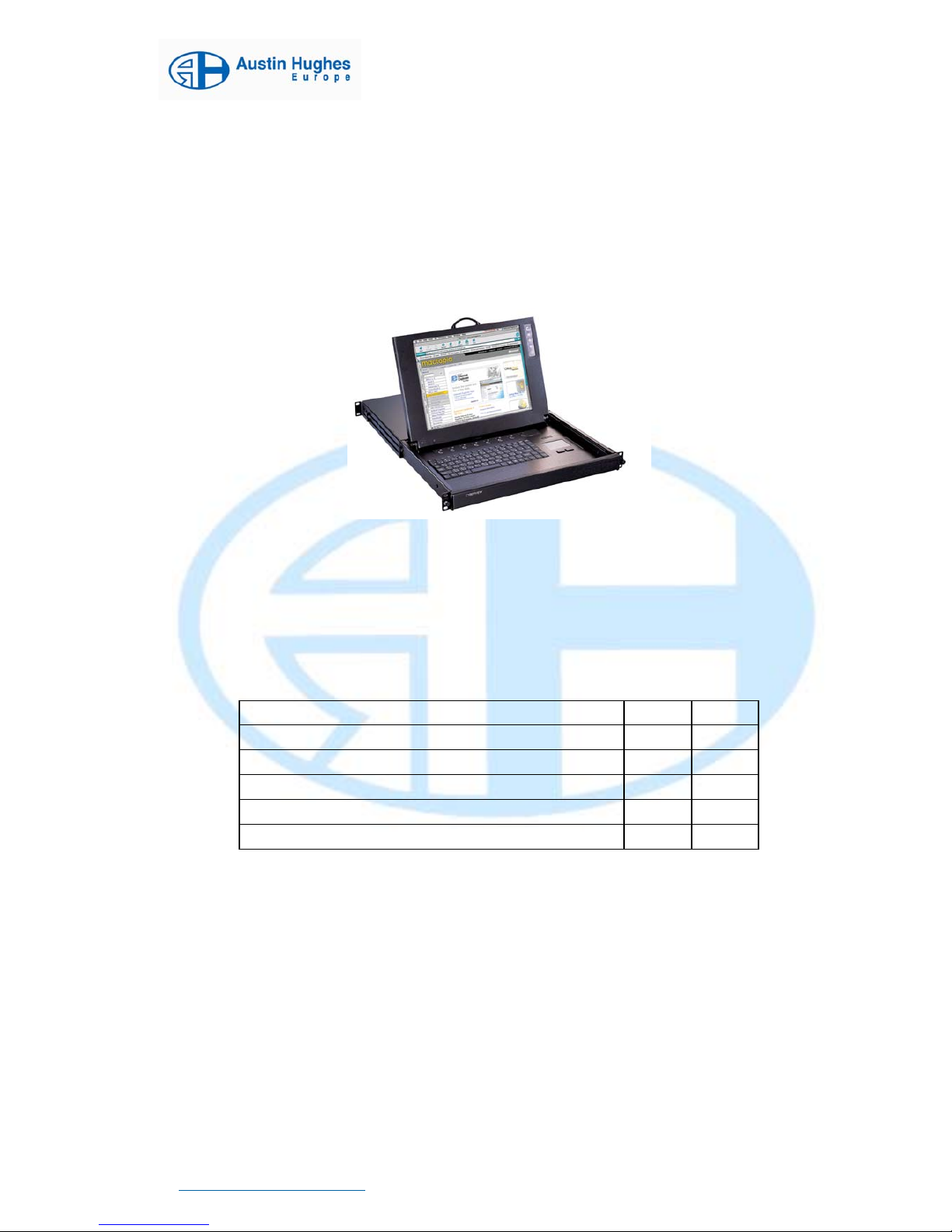

1.2 Unit Photograph
1.3 Unit Features
•15 or 17 inch TFT/LC active matrix color
•Built in OSD (On Screen Display) controlled by integral membrane keys
•Single external 12V 5A remote power adaptor, easy to replace and ensures only a single
power source is required to the unit , reducing the capacity of UPS outputs required
1.4 Unit Packing Contents
Model Number 115 117
RKP115 / 117 1U LCD Keyboard Drawer 1 1
User Manual CD 1 1
Quick Reference Guide 1 1
AC to DC Power Adaptor 1 1
Rack Mount Kit 1 1
1.5 Important Information & Safeguards
•Please read these safety instructions carefully
•Keep this user manual for later reference
•Disconnect the unit from the mains input power supply source before cleaning
•Do not spray aerosol or liquid cleaners directly on the unit, use only a soft cloth for cleaning
•Clean the LCD only with a soft anti static cloth
•Avoid placing pressure on the LCD to prevent permanent damage
•Rest the unit on a reliable surface when installing, a drop or fall may cause injury
•Please note all cautions and warnings on the equipment
•Never open the unit. Only qualified personnel should open the unit
www.austin-hughes.co.uk
Page
3

User Manual
•Refer to section 5.0 of this user manual regarding recommended storage and operating
conditions for the unit
•Refer to sections 6.0 of this user manual regarding troubleshooting of the unit
•Refer to section 7.0 of this user manual regarding improper use of the unit
1.6 Preparation for Use
•Carefully remove the unit from its packaging
•Please check that the unit and its accessories match the packing contents in section 1.4 of this
user manual
•Please read this user manual thoroughly familiarising yourself with the unit
•Place the unit on a protected work surface and carefully slide open the keyboard drawer
noting the friction stops on the slides to prevent movement of the keyboard whilst in use
•Carefully slide open and lift the LCD screen to a convenient viewing angle
•Plug up the DC power supply, whilst noting that the green LED on the external adaptor
should now be lit
•You should now be able to see the LED lights on the unit functioning you could also follow
section 2.0 to familiarise yourself with the OSD (On screen display) of the unit
•After removing the DC power input, carefully install the unit into the rack, noting section
1.5 of this user manual - important information and safe guards, and plug in all connecting
hardware (ensure all connecting hardware is powered down for this stage of the install)
•Further information regarding the use of this unit can be found in the following sections of
this user manual
www.austin-hughes.co.uk
Page
4

User Manual
2. LCD On Screen Display
2.1 Display & Navigation Using Membrane Keys
The On screen display built into the unit provides users with an efficient method of adjusting to the
display input signal. This section explains clearly how to navigate the OSD using the membrane

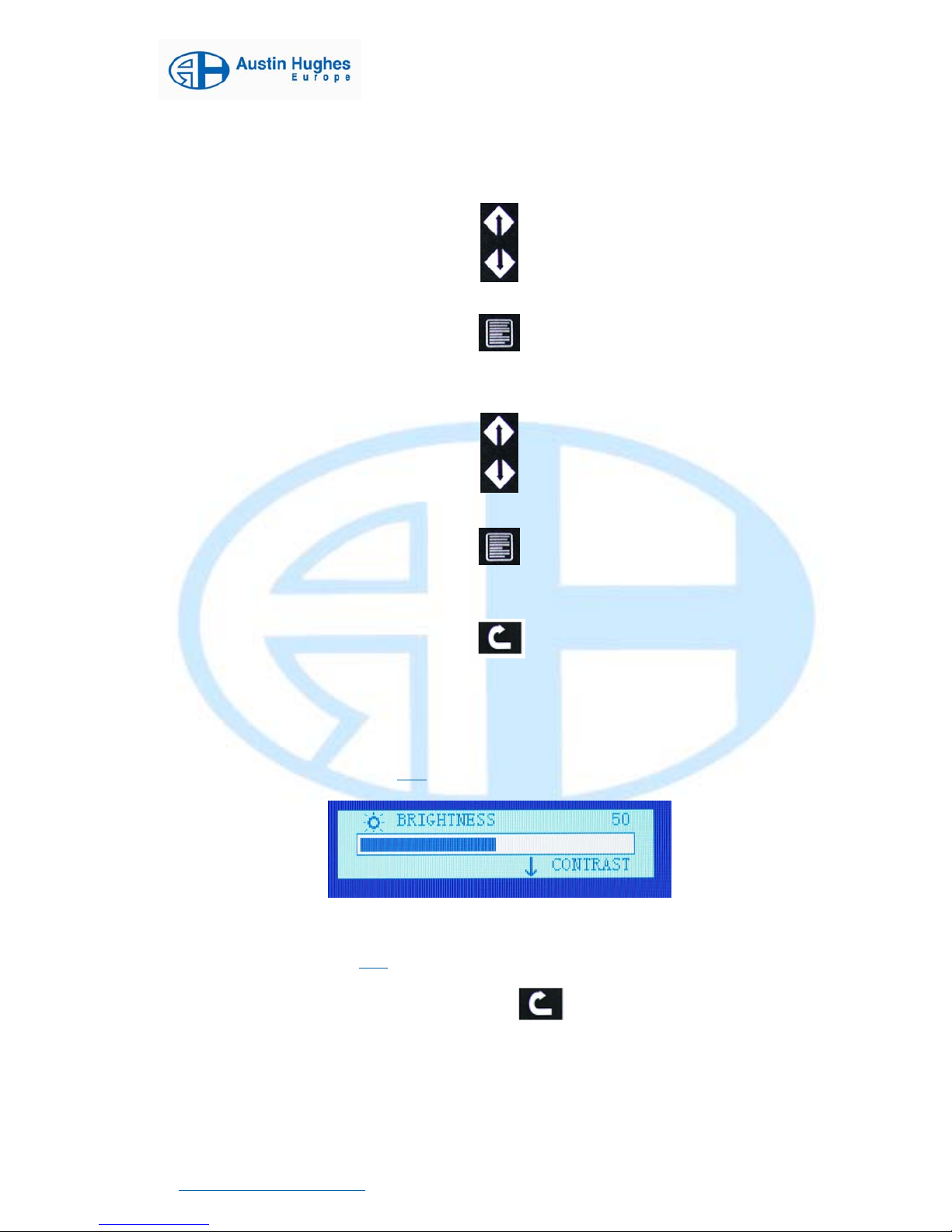

keys, shown below, that you will find on the unit to the right side of the LCD screen.
Exit Menu or sub menu
Display OSD or scroll / select
Input Value + or up / left scroll
Input Value – or down / right scroll
LCD Display On / Off
2.1.1 To display the OSD
Simply press the key marked
www.austin-hughes.co.uk
Page
5

User Manual
2.1.2 To Select a Menu Item
Simply press the key to scroll
2.1.3 To Enter the Sub Menu
Simply press the key marked
2.1.4 To Change an Input Value
Simply use the key marked
2.1.5 To Save the setting
Simply press the key marked
2.1.6 To Exit the Main Menu
Simply use the key marked
2.2 Customizing the LCD Settings
2.2.1 Brightness / Contrast
To adjust brightness - follow steps 2.1.1 through 2.1.5
2.2.2 Auto Adjust
To auto adjust - follow steps 2.1.1 through 2.1.5
NOTE -: While the OSD Menu is NOT displayed the key acts as Auto Adjust
www.austin-hughes.co.uk
Page
6

User Manual

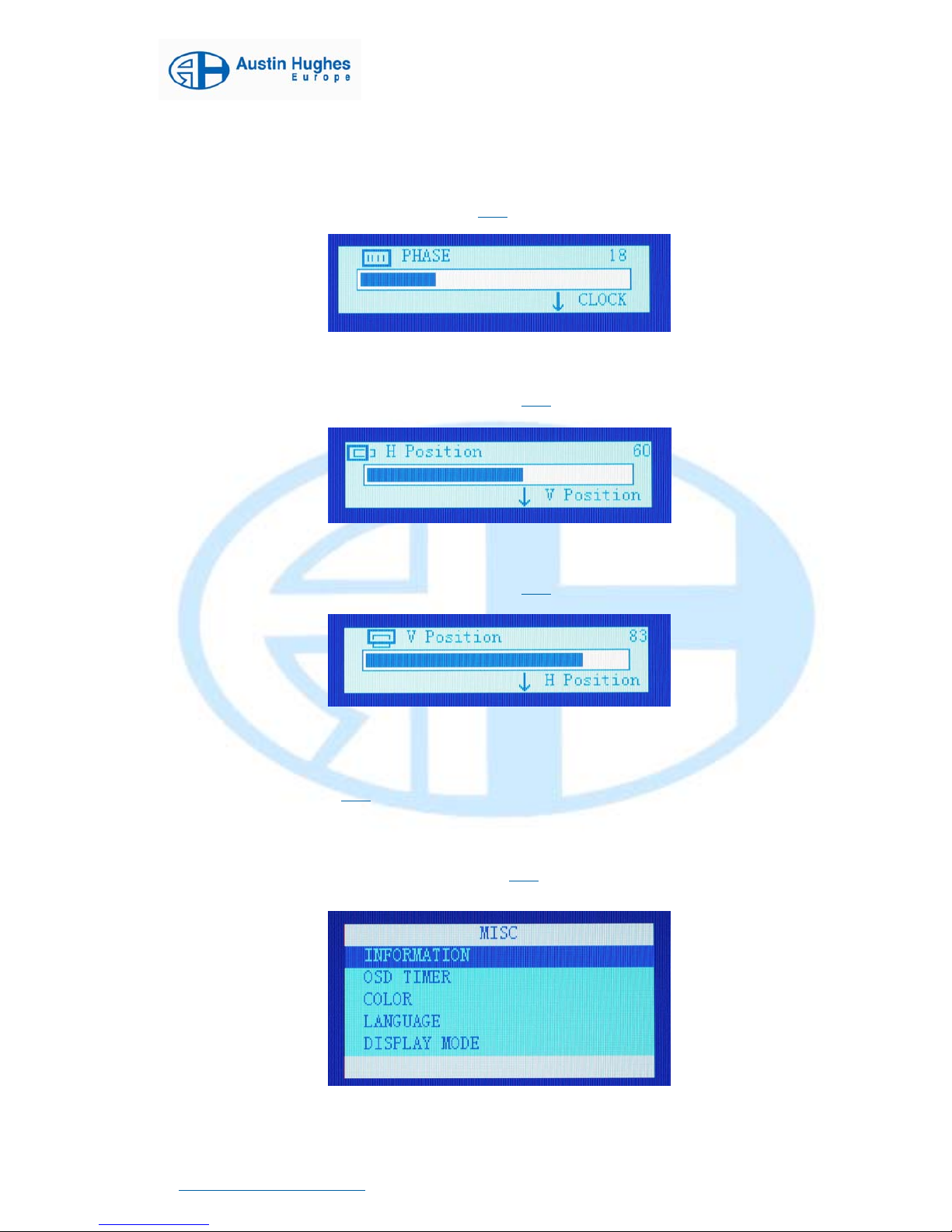

2.2.3 Phase / Clock
To optimize display qualities - follow the steps 2.1.1 through 2.1.5
2.2.4 Horizontal Screen Position
To adjust horizontal screen position - follow the steps 2.1.1 through 2.1.5
2.2.5 Vertical Screen Position
To adjust horizontal screen position - follow the steps 2.1.1 through 2.1.5
2.2.6 To reset to default factory setting
To reset - follow the steps 2.1.1 through 2.1.5
3. Miscellaneous Sub Menu
To select miscellaneous sub menu - follow the steps 2.1.1 through 2.1.5
www.austin-hughes.co.uk
Page
7

User Manual

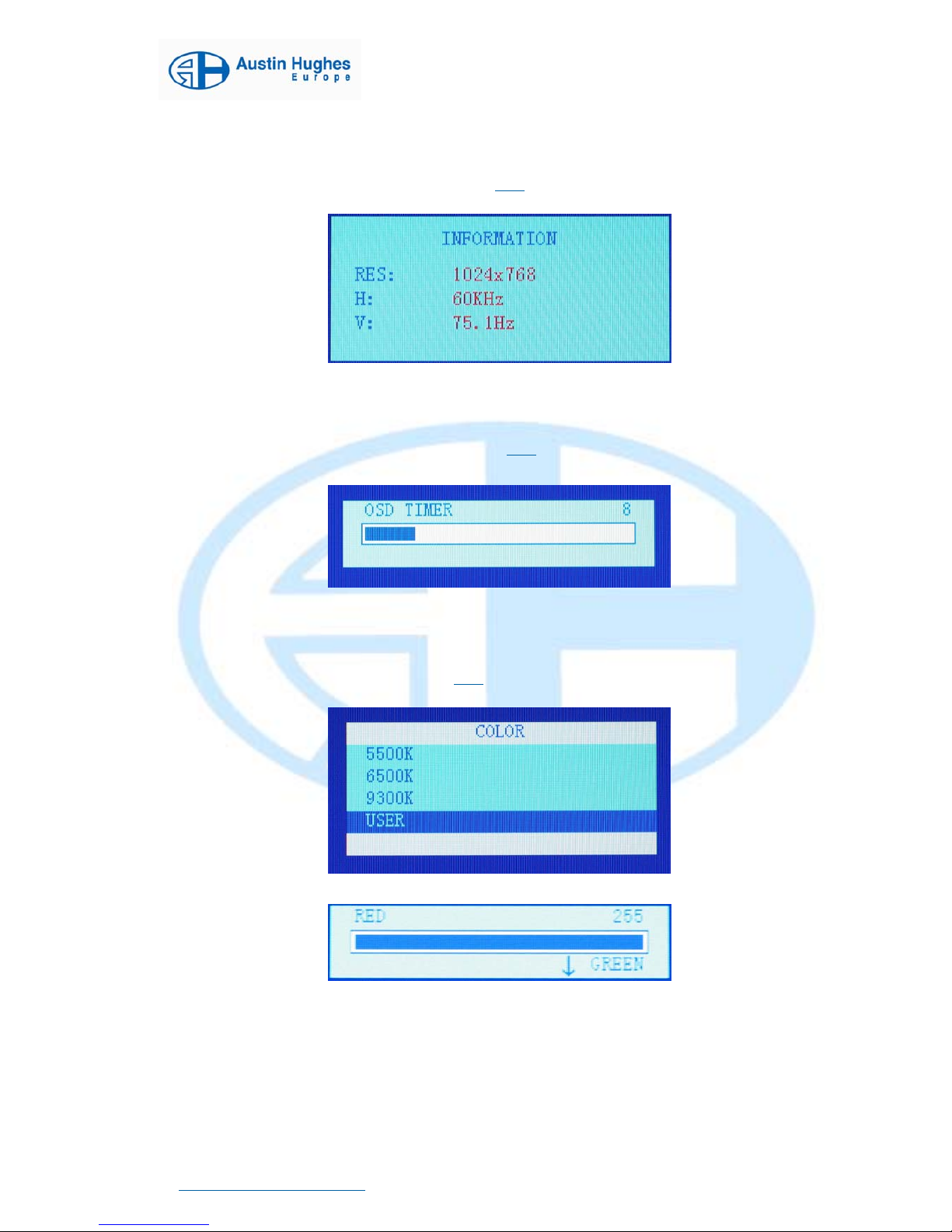

3.1.1 Information
To select information sub menu - follow the steps 2.1.1 through 2.1.5
3.1.2 OSD Timeout
To select OSD Timeout sub menu - follow the steps 2.1.1 through 2.1.5
3.1.3 Color
To select Color sub menu - follow the steps 2.1.1 through 2.1.5
www.austin-hughes.co.uk
Page
8

User Manual
www.austin-hughes.co.uk
3.1.4 OSD language
To select the OSD language sub menu - follow the steps 2.1.1 through 2.1.5
4. Setting OS Refresh Rate - Microsoft Windows®

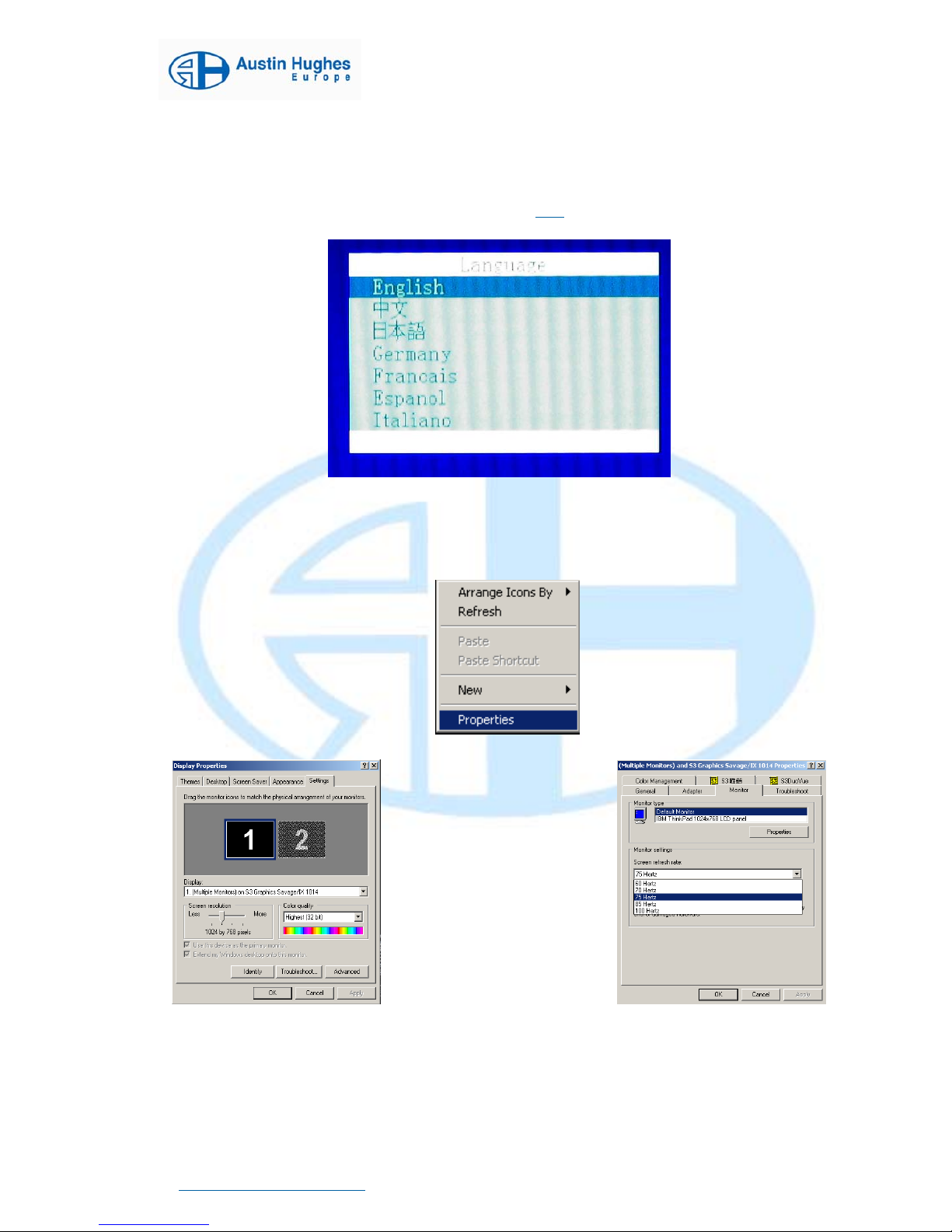

On the windows desktop ‘right click’ the mouse key and then select ‘properties’
Select ‘Settings’ from the tab menu
Page
9
Select ‘Monitor’ and then select a Screen refresh Rate of 75 Hertz – Press OK to save and exit

User Manual
5. LCD Technical Specification
LCD Size 15"
Screen Area TFT Active Matrix
Display Area 304.1mm (h) x 228.1mm (V)
Contrast Ratio 300:1
Viewing Angle 130 deg (H) z 115 deg (V) TYP
Resolution 1024 x 768 XGA
Pixel Pitch 0.297mm (H) x 0.297mm (W)
Response Time Tr = 5ms, TF = 20ms TYP
Brightness 250 cd/m2
Panel Color 16.2M Colors
Back Light 4 Lamps
Video Synchronization
Horizontal 48.36-60 KHz
Range Vertical 56-75 Hz
Input Signal Analog RGB 0.7Vp-p
Power
Management VESA DPMS
Power Micro on/off switch
OSD Control
Brightness, Contrast, Color, H
Position, V Position, Auto Config,
OSD Adjust, Dither, etc
Power Input 12V/5A DC Adaptor
Video Input 15-Pin D-sub connector
www.austin-hughes.co.uk
Page
10

User Manual
LCD Size 17"
Screen Area TFT Active Matrix
Display Area 337:92mm (h) x 270.336mm (V)
Contrast Ratio 350:1
Viewing Angle 150 deg (H) z 125 deg (V) TYP
Resolution 1280 x 1024 SXGA
Pixel Pitch 0.264mm (H) x 0.264mm (W)
Response Time Tr = 5ms, TF = 20ms TYP
Brightness 250 cd/m2
Panel Color 16.7M Colors
Back Light 4 Lamps
Video Synchronization
Horizontal 31-69 KHz
Range Vertical 56-75 Hz
Input Signal Analog RGB 0.7Vp-p
Power
Management VESA DPMS
Power Micro on/off switch
OSD Control
Brightness, Contrast, Color, H
Position, V Position, Auto Config,
OSD Adjust, Dither, etc
Power Input 12V/5A DC Adaptor
Video Input 15-Pin D-sub connector
www.austin-hughes.co.uk
Page
11

User Manual
6. LCD Troubleshooting
6.1 The LCD does not function, the PC input is operational
•Ensure that the Power adaptor is securely plugged in at both ends and has power feed from
the supply source; check that the Green led light is on on the adaptor unit
•Ensure the LCD is on by pressing the key
•Ensure that the LCD is pulled out past the micro switch threshold
6.2 The message ‘Check Cable’ appears on the LCD
•The VGA cable input cable is not connected properly
6.3 The message ‘No Sync’ appears on the LCD
•The message indicates that there is no input signals from the PC, make sure the PC is
functioning and that the graphics card is installed correctly.
6.4 The message ‘Signal out of Range’ appears on the LCD
•This message indicates that the input signal is beyond the LCD capability – The maximum
resolution for the screen is 1024 x 768 at 75 Hz Check PC and Operating System output refer
to step 4.0
www.austin-hughes.co.uk
Page
12

User Manual
www.austin-hughes.co.uk
Page
13
7. Warranty
7.1 Period & Conditions
Warranty is from the date of sale of the unit, subject to the terms and conditions of the Austin
Hughes Europe Authorised channel partner who supplied the unit, please refer to your authorised
channel partner for terms & conditions
7.2 Manufacturers exclusions
7.2.1 Any Unit on which the Austin Hughes serial number has been defaced, modified
or removed
7.2.2 Damage, deterioration, or malfunction resulting from – accident, misuse, neglect,
fire, water, lightening, or other acts of nature
7.2.3 Unauthorised unit modification
7.2.4 Unauthorised unit repair, by other than an Austin Hughes Europe authorised
channel partner
7.2.5 Damage to the unit caused by installation or removal, unless covered by Austin
Hughes Europe channel partner services warranty
7.2.6 Use of unauthorised parts not meeting Austin Hughes Europe specifications
7.2.7 Other causes of damage unrelated to product defect including wear and tear
7.2.8 Damage to the unit caused by transit
8. Disclaimer
This information is subject to change without notice. Austin Hughes Europe accept no responsibility
for damage or claims, resulting from misuse or misinterpretation of this information
