Cypress Semiconductor S6SAE100A00VA1001 User manual

S6SAE100A00VA1001
Energy Harvesting PMIC S6AE10xA
Evaluation Board Operation Guide
Doc No. 002-08728 Rev.*A
Cypress Semiconductor
198 Champion Court
San Jose, CA 95134-1709
Phone (USA): 800.858.1810
Phone (Intnl): 408.943.2600
http://www.cypress.com

Copyrights
S6SAE100A00VA1001 Evaluation Board Operation Guide, Doc No. 002-08728 Rev.*A 2
Copyrights
Copyright © 2010-2016 Cypress Semiconductor Corporation. All rights reserved.
Spansion®, the Spansion logo, MirrorBit®, MirrorBit® EclipseTM, ORNANDTM, Easy DesignSimTM, TraveoTM and
combinations thereof, are trademarks and registered trademarks of Cypress Semiconductor Corp. ARM and Cortex are the
registered trademarks of ARM Limited in the EU and other countries.
Purchase of I2C components from Cypress or one of its sublicensed Associated Companies conveys a license under the
Philips I2C Patent Rights to use these components in an I2C system, provided that the system conforms to the I2C Standard
Specification as defined by Philips. As from October 1st, 2006 Philips Semiconductors has a new trade name - NXP
Semiconductors.
The information in this document is subject to change without notice and should not be construed as a commitment by
Cypress. While reasonable precautions have been taken, Cypress assumes no responsibility for any errors that may appear
in this document. No part of this document may be copied or reproduced in any form or by any means without the prior
written consent of Cypress.
Disclaimer
CYPRESS MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARD TO THIS MATERIAL,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. Cypress reserves the right to make changes without further notice to the materials described
herein.
Cypress does not assume any liability arising out of the application or use of any product or circuit described herein. Cypress
does not authorize its products for use as critical components in life-support systems where a malfunction or failure may
reasonably be expected to result in significant injury to the user. The inclusion of Cypress’ product in a life-support systems
application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all
charges.
Flash Code Protection
Cypress products meet the specifications contained in their particular Cypress PSoC Data Sheets. Cypress believes that its
family of PSoC products is one of the most secure families of its kind on the market today, regardless of how they are used.
There may be methods, unknown to Cypress, that can breach the code protection features. Any of these methods, to our
knowledge, would be dishonest and possibly illegal. Neither Cypress nor any other semiconductor manufacturer can
guarantee the security of their code. Code protection does not mean that we are guaranteeing the product as “unbreakable.”
Cypress is willing to work with the customer who is concerned about the integrity of their code. Code protection is constantly
evolving. We at Cypress are committed to continuously improving the code protection features of our products.

S6SAE100A00VA1001 Evaluation Board Operation Guide, Doc No. 002-08728 Rev.*A 3
Preface
This manual explains how to use the evaluation board. Be sure to read this manual before using the product. For this
product, please consult with sales representatives or support representatives.
Handling and Use
Handling and use of this product and notes regarding its safe use are described in the manuals.
Follow the instructions in the manuals to use this product.
Keep this manual at hand so that you can refer to it anytime during use of this product.
Notice on This Document
All information included in this document is current as of the date it is issued. Such information is subject to change without
any prior notice.
Please confirm the latest relevant information with the sales representatives.

Preface
S6SAE100A00VA1001 Evaluation Board Operation Guide, Doc No. 002-08728 Rev.*A 4
Caution of the Products Described in This Document
The following precautions apply to the product described in this manual.
WARNING
Indicates a potentially hazardous situation which could result in death or serious injury and/or a
fault in the user’s system if the product is not used correctly.
Electric shock,
Damage
Before performing any operation described in this manual, turn off all the power supplies to the
system.
Performing such an operation with the power on may cause an electric shock or device fault.
Electric shock,
Damage
Once the product has been turned on, do not touch any metal part of it.
Doing so may cause an electric shock or device fault.
CAUTION
Indicates the presence of a hazard that may cause a minor or moderate injury, damages to this
product or devices connected to it, or may cause to loose software resources and other
properties such as data, if the device is not used appropriately.
Cuts, Damage
Before moving the product, be sure to turn off all the power supplies and unplug the cables.
Watch your step when carrying the product. Do not use the product in an unstable location such
as a place exposed to strong vibration or a sloping surface. Doing so may cause the product to
fall, resulting in an injury or fault.
Cuts
The product contains sharp edges that are left unavoidably exposed, such as jumper plugs.
Handle the product with due care not to get injured with such pointed parts.
Damage
Do not place anything on the product or expose the product to physical shocks. Do not carry the
product after the power has been turned on.
Doing so may cause a malfunction due to overloading or shock.
Damage
Since the product contains many electronic components, keep it away from direct sunlight, high
temperature, and high humidity to prevent condensation. Do not use or store the product where
it is exposed to much dust or a strong magnetic or electric field for an extended period of time.
Inappropriate operating or storage environments may cause a fault.
Damage
Use the product within the ranges given in the specifications.
Operation over the specified ranges may cause a fault.
Damage
To prevent electrostatic breakdown, do not let your finger or other object come into contact with
the metal parts of any of the connectors. Before handling the product, touch a metal object
(such as a door knob) to discharge any static electricity from your body.
Damage
When turning the power on or off, follow the relevant procedure as described in this document.
Before turning the power on, in particular, be sure to finish making all the required connections.
Furthermore, be sure to configure and use the product by following the instructions given in this
document. Using the product incorrectly or inappropriately may cause a fault.
Damage
Because the product has no casing, it is recommended that it be stored in the original
packaging. Transporting the product may cause a damage or fault. Therefore, keep the
packaging materials and use them when re-shipping the product.

S6SAE100A00VA1001 Evaluation Board Operation Guide, Doc No. 002-08728 Rev.*A 5
Table of Contents
Description ..........................................................................................................................................................................61.
Evaluation Board Specification............................................................................................................................................72.
Pin and Function Descriptions.............................................................................................................................................83.3.1. Input/Output Pin Descriptions .....................................................................................................................................8
3.2. Jumper/Switch Setting ..............................................................................................................................................11
3.3. Output Voltage Setting..............................................................................................................................................13
Setup and Verification .......................................................................................................................................................144.4.1. Contents in a Package..............................................................................................................................................14
4.2. Operation..................................................................................................................................................................14

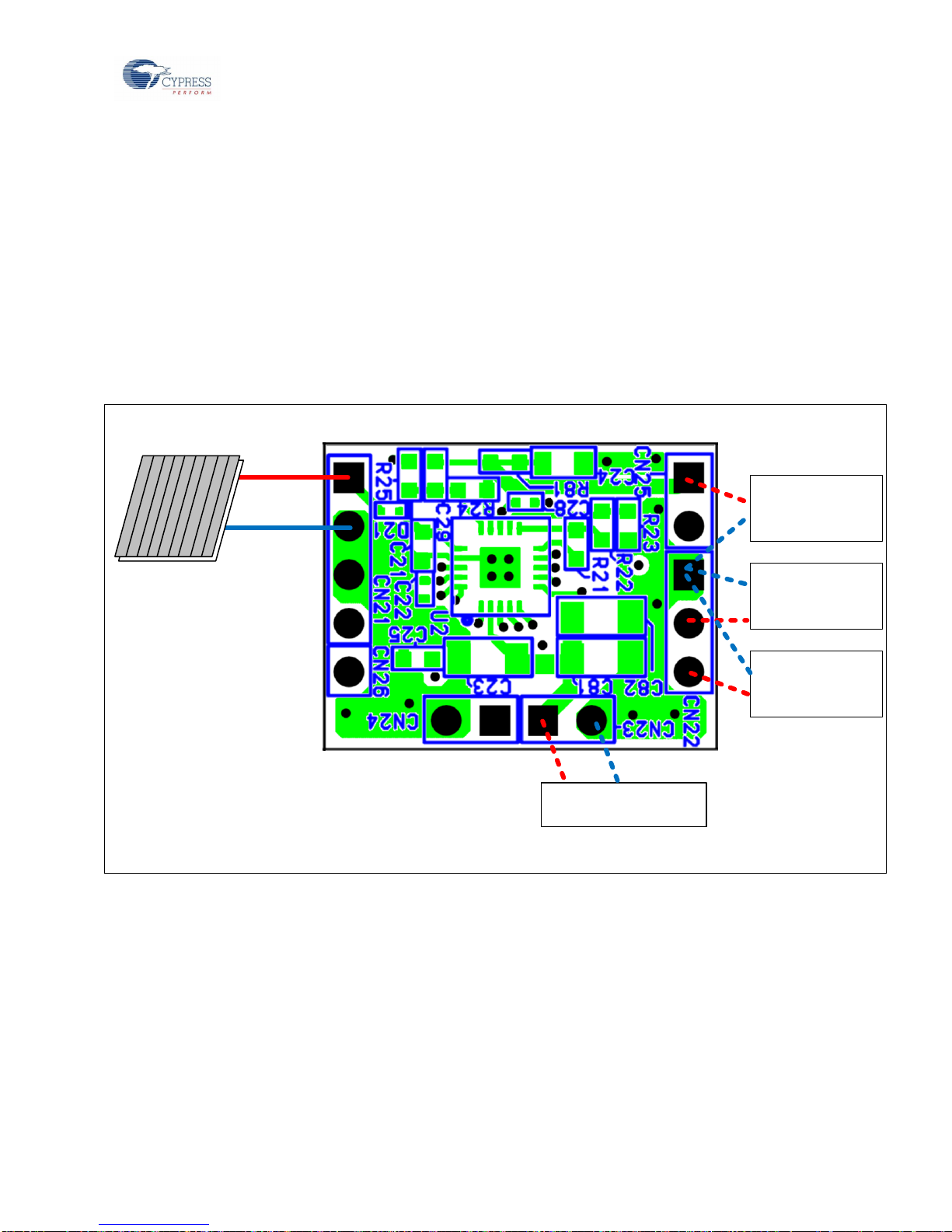

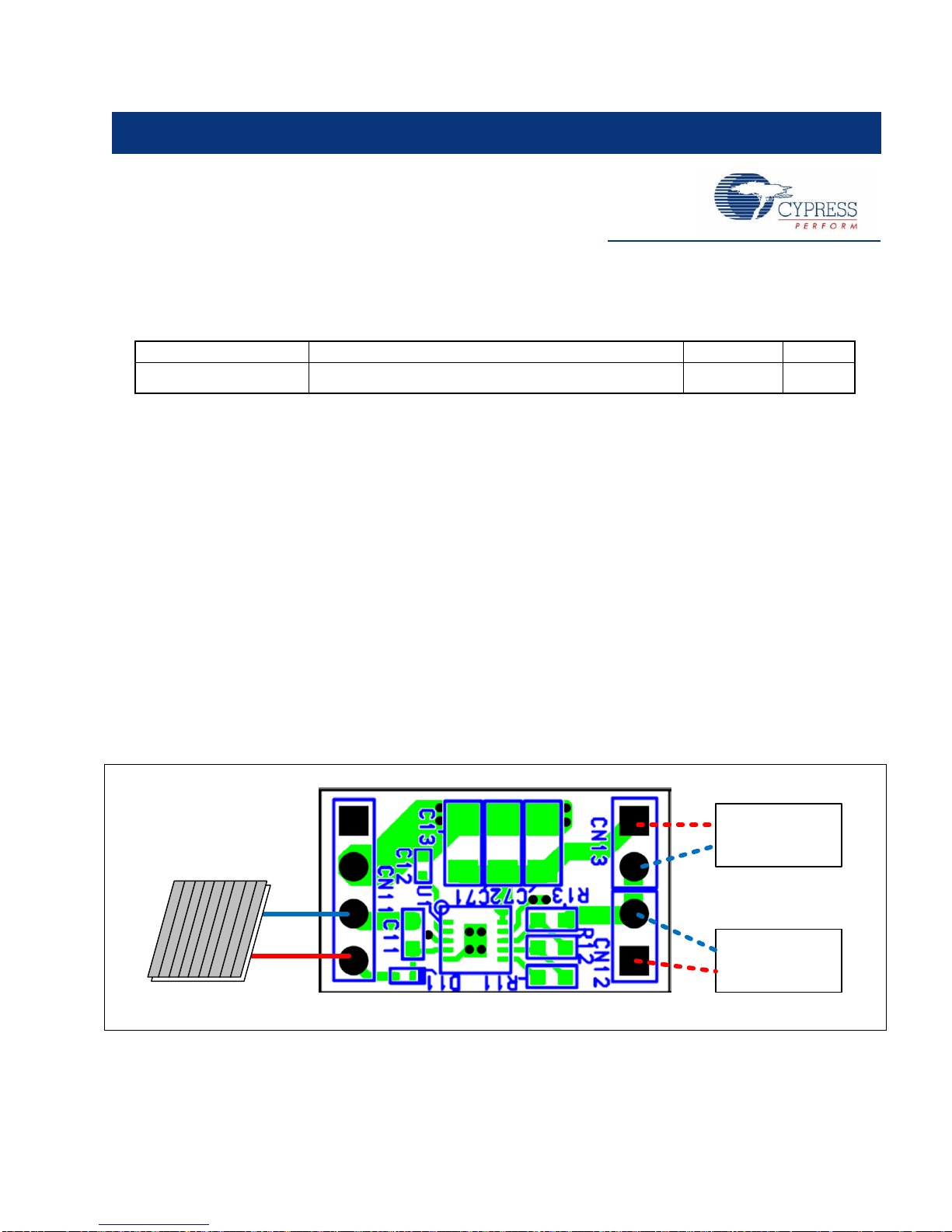

4.2.1. Connection of Indoor Type Solar Cell...............................................................................................................14

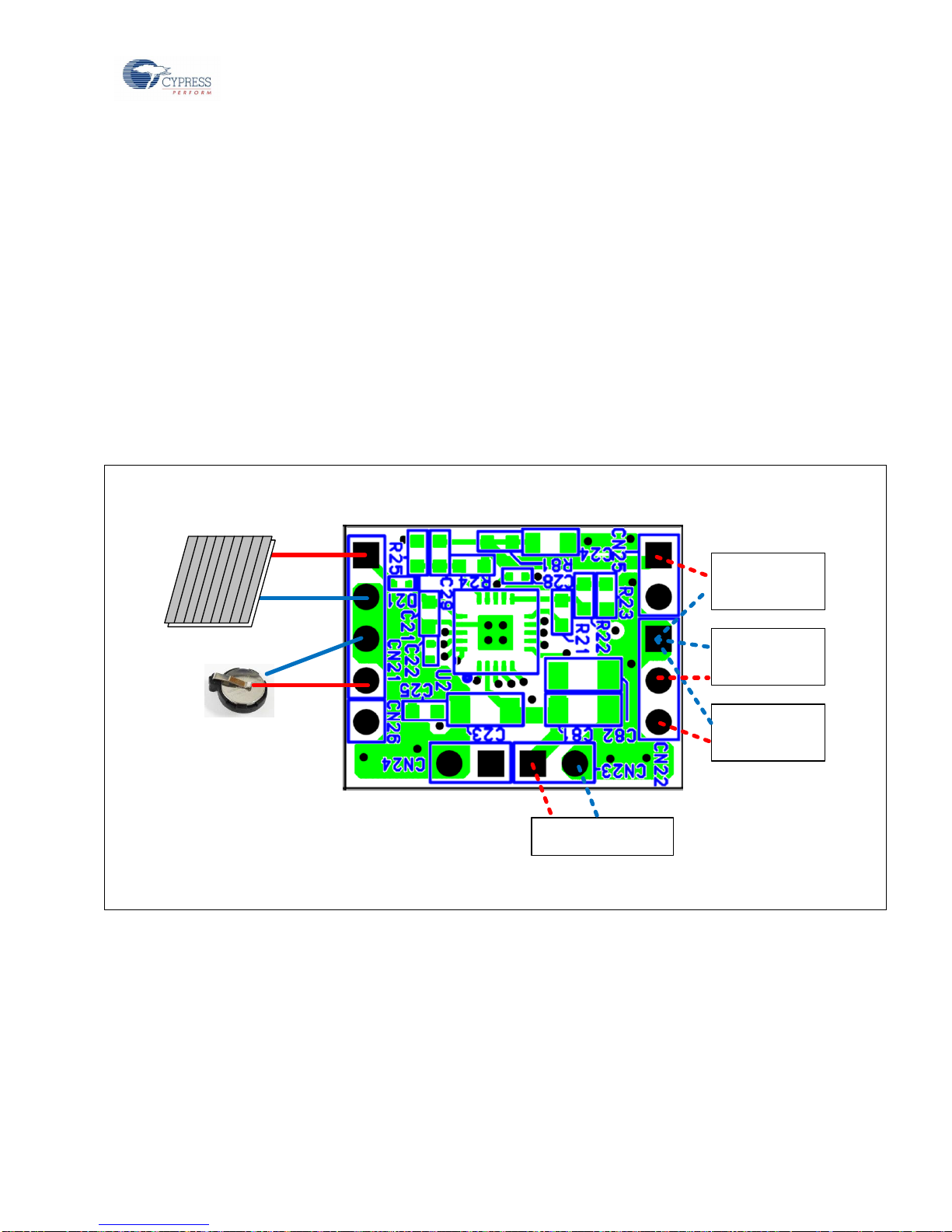

4.2.2. Hybrid Connection of Indoor Type Solar Cell and Primary Battery ...................................................................17
Circuit Schematic...............................................................................................................................................................205.
Component List .................................................................................................................................................................226.
Components Layout ..........................................................................................................................................................237.
Silk and Layout..................................................................................................................................................................248.
Board Splitting...................................................................................................................................................................26
9.
Ordering Information..........................................................................................................................................................2710.
Major Changes..................................................................................................................................................................2811.
Revision History......................................................................................................................................................................29

S6SAE100A00VA1001 Evaluation Board Operation Guide, Doc No. 002-08728 Rev.*A 6
Description
1.
The S6SAE100A00VA1001 is the tiny evaluation board for the ultra-low-power energy harvesting PMIC for indoor type solar
cell, S6AE100A series. This evaluation board consists of three independent boards for S6SAE101A, S6SAE102A and
S6SAE103A. This board is capable of supporting life extension of primary battery or becoming battery-less solution, and it is
for evaluation of diverse power management functions used for wireless sensor network.

S6SAE100A00VA1001 Evaluation Board Operation Guide, Doc No. 002-08728 Rev.*A 7
Evaluation Board Specification
2.
Table 2-1 Evaluation Board Specification
Parameter
Symbol
Conditions
Min.
Typ.
Max.
Unit
Power supply voltage 1(*1)
VVDD
VDD1,2,3 pin
3.4(*3)
−
5.5
V
Power supply voltage 2
VVBAT
VBAT1 pin (S6AE101A)
3.4(*3)
−
5.5
V
VBAT2,3 pin (S6AE102A, S6AE103A)
2.0
−
5.5
V
Output voltage 1
VVOUTH
Rx1=6.8MΩ, Rx2=2.7MΩ, Rx1=9.1MΩ
−
3.29
−
V
Output voltage 2
VVOUTL
Rx1=6.8MΩ, Rx2=2.7MΩ, Rx1=9.1MΩ
−
2.53
−
V
OVP detection voltage
VOVPH
VDD pin(*2)
5.2
5.4
5.5
V
OVP release voltage
VOVPL
5.1
5.3
5.4
V
OVP detection hysteresis
VOVPHYS
−
0.1
−
V
OVP protection current
IOVP
VDD pin(*2) input current
6
−
−
mA
*1: It is recommended to connect more than six cells in series when solar cells are used.
*2: IC (U1,U2,U3) pin
*3: Min. value of power supply voltage depends the output voltage setting.
Please refer the S6AE101A datasheet (002-08493) for more information.
Please refer the S6AE102A and S6AE103Adatasheet (002-08501) for more information.
Board size: 19 mm × 11 mm for S6AE101A, 20.5 mm × 16 mm for S6AE102A, 23 mm × 16 mm for S6AE103A.

S6SAE100A00VA1001 Evaluation Board Operation Guide, Doc No. 002-08728 Rev.*A 8
Pin and Function Descriptions
3.
3.1. Input/Output Pin Descriptions
Table 3-1 Input/Output Pin Descriptions
Pin Symbol
I/O
Function Descriptions
VBAT1
I
Primary battery input pin (when being not used, leave this pin open)
GND
-
Ground pin
GND
-
Ground pin
VDD1
I
Solar cell input pin (when being not used, leave this pin open)
VSTORE1_1
-
Storage output pin
GND
-
Ground pin
GND
-
Ground pin
VOUT1_1
O
Output voltage pin

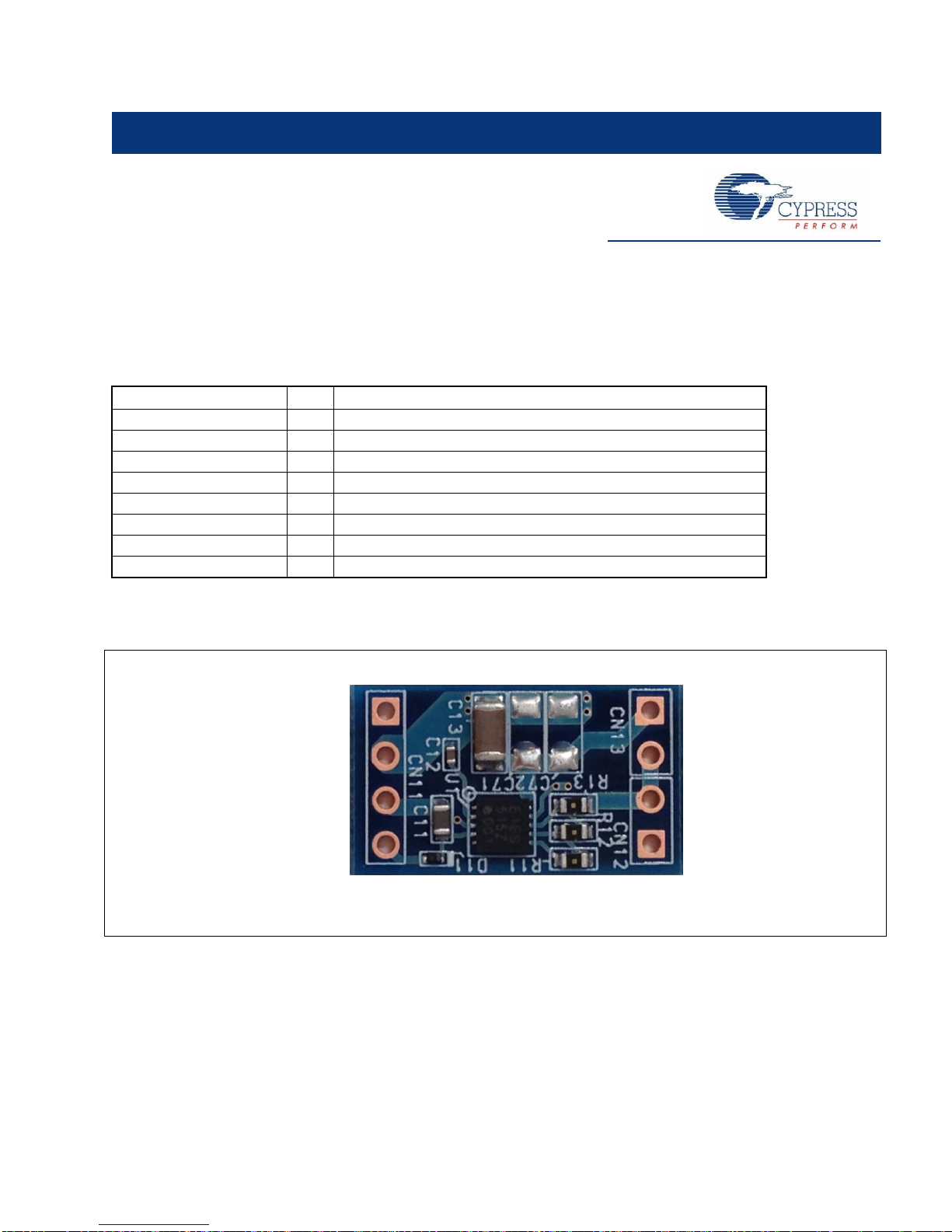

Figure 3-1 Pin Layout
VBAT1
GND
GND
VDD1
VSTORE1_1
GND
GND
VOUT1_1

3. Pin and Function Descriptions
S6SAE100A00VA1001 Evaluation Board Operation Guide, Doc No. 002-08728 Rev.*A 9
Table 3-2 Input/Output Pin Descriptions
Pin Symbol
I/O
Function Descriptions
VBAT2
I
Primary battery input pin (when being not used, leave this pin open)
GND
-
Ground pin
GND
-
Ground pin
VDD2
I
Solar cell input pin (when being not used, leave this pin open)
VSTORE1_2
-
Storage output pin
GND
-
Ground pin
VSTORE2_2
-
Storage output pin
GND
-
Ground pin
GND
-
Ground pin
VOUT1_2
O
Output voltage pin
VOUT2_2
O
Output voltage pin
VOUT_LDO2
O
LDO output pin
VIN_LDO2
I
LDO input pin
INT2
I
Control signal input for power gating mode
Figure 3-2 Pin Layout
VDD2
VSTORE2_2
GND
VSTORE1_2
GND
GND
VBAT2
GND
INT2
VOUT_LDO2
VIN_LDO2
GND
VOUT2_2
VOUT1_2

3. Pin and Function Descriptions
S6SAE100A00VA1001 Evaluation Board Operation Guide, Doc No. 002-08728 Rev.*A 10
Table 3-3 Input/Output Pin Descriptions
Pin Symbol
I/O
Function Descriptions
VBAT3
I
Primary battery input pin (when being not used, leave this pin open)
GND
-
Ground pin
GND
-
Ground pin
VDD3
I
Solar cell input pin (when being not used, leave this pin open)
VSTORE1_3
-
Storage output pin
GND
-
Ground pin
VSTORE2_3
-
Storage output pin
GND
-
Ground pin
GND
-
Ground pin
VOUT1_3
O
Output voltage pin
VOUT2_3
O
Output voltage pin
VOUT_LDO3
O
LDO output pin
VIN_LDO3
I
LDO input pin
INT3
I
Control signal input for power gating mode
COMPM3
I
Comparator input pin
COMPP3
I
Comparator input pin
Figure 3-3 Pin Layout
VDD3
VSTORE2_3
GND
VSTORE1_3
GND
GND
VBAT3
GND
INT3
VOUT_LDO3
VIN_LDO3
GND
VOUT2_3
VOUT1_3
COMPP3
COMPM3
