Cyrus CLS50 User manual

Cyrus CLS50
User Instructions

Cyrus CLS50
Cyrus CLS50 Loudspeakers
Congratulations on your choice of Cyrus CLS50 Loudspeakers. This
information sheet describes the special features of the CLS50 and
lists specifications. Please refer to the ‘Cyrus Loudspeakers’ user
instruction book for full instructions for your loudspeakers.
Cyrus CLS50 construction
The Cyrus CLS50 speaker is a stylish compact monitor housed in a
beautiful real wood veneer cabinet. In common with other Cyrus
products the components used in assembly of this design provide
quality without compromise. For the CLS50, Cyrus has specified close
tolerance drive units with a filter network constructed from heavy duty
inductors and solid dielectric capacitors.
Cyrus reserves the right to change specifications without notice.
E&OE.
Specifications
Recommended amplifier power .............................................40W-100W
Impedance ......................................................................................... 8Ω
Sensitivity ....................................................................................86dB/W
Frequency response.............................................................50Hz-20kHz
LF response (-3dB) ......................................................................... 55Hz
Bass drive unit...........................5” (125mm) diameter NRSC cone.
High linearity, low-loss suspension.
Vented magnet.
Treble drive unit......................... 1” (25mm) high dispersion textile
dome. Complex internal chamber for
low compression. Ferrofluid cooling for
the voice coil.
Cabinet design ..........................Reflex design with dual gas-flow reflex
port.
Finish ......................................... Choice of high quality real wood
veneers.
Cabinet volume .......................................................................... 8.5 litres
Dimensions (WxHxD)...............................................180 x 295 x 295mm
Weight (per speaker)...................................................................... 5.8Kg
Packed weight (pair)........................................................................ 14Kg
Cyrus Lautsprecher CLS50
Wir gratulieren Ihnen zu Ihrer Entscheidung für Cyrus Lautsprecher
CLS50. Dieses Informationsblatt beschreibt die besonderen
Eigenschaften des CLS50 und enthält technische Daten.
Weitergehende Hinweise und Erläuterungen finden Sie in der
Bedienungsanleitung Ihrer Lautsprecher.
Das Konstruktionsprinzip des Cyrus CLS50
Der CLS50 ist ein modisch-ansprechender Kompakt-Monitor mit
elegantem, Echtholz-furniertem Gehäuse. Wie bei allen anderen Cyrus
Produkten auch, stehen die verwendeten Bauelemente für eine
kompromisslose Qualität. Im CLS50 kommen engtolerierte
Lautsprecherchassis zum Einsatz, und die Frequenzweiche ist mit
überdimensionierten Induktivitäten und soliden Kondensatoren mit
hochwertigem Dielektrikum aufgebaut.
Technische Daten
Empfohlene Verstärkerleistung ..............................................40W-150W
Impedanz ........................................................................................... 8Ω
Schalldruck .................................................................................85dB/W
Frequenzgang .....................................................................50Hz-20kHz
Tiefton-Frequenzgang..................................................................... 55Hz
Tieftöner .................................... 125 mm NRSC-Membran. Hohe
Linearität, verlustarme Aufhängung,
belüfteter Magnetspalt.
Hochtöner .................................. 25 mm Gewebekalotte, breitstrahlend.
Komplexe Druckausgleichskammer.
Flüssigkeitsgekühlte Schwingspule
(Ferrofluid).
Gehäusekonstruktion ................ Bassreflex-Schallführung, Zweiweg-
Druckausgleich.
Finish ......................................... Ausgesuchte, hochwertige Echtholz-
Furniere.
Gehäuse-Volumen ......................................................................8.5 Liter
Abmessungen (BxHxT) ...........................................180 x 295 x 295 mm
Netto-Gewicht (pro Lautsprecher)................................................... 5.8kg
Brutto-Gewicht (beide Lautsprecher) ............................................... 14kg
Altavoces Cyrus CLS50
Enhorabuena por elegir los altavoces Cyrus CLS50. En esta hoja
informativa hallará la descripción de las funciones especiales del
CLS50 y la lista de especificaciones. En el manual de uso "Altavoces
Cyrus" encontrará todas las instrucciones necesarias.
Construcción del Cyrus CLS50
El altavoz Cyrus CLS50 es un elegante monitor compacto alojado en
una atractiva caja contrachapada en madera. Al igual que otros
productos Cyrus, los componentes utilizados en este sistema son de
una calidad incontestable. En el caso del CLS50, Cyrus incorpora
unidades de tolerancia bien definida, con un sistema de filtros
constituido por inductores de gran resistencia y condensadores
dieléctricos sólidos.
Especificaciones
Potencia de amplificador recomendada...............................40 W-100 W
Impedancia ....................................................................................... 8 Ω
Sensibilidad .................................................................................86dB/W
Respuesta en frecuencia......................................................50Hz-20kHz
Respuesta de bajas frecuencias ..................................................... 55Hz
Unidad de graves ...................... Cono NRSC de 5” (125 mm) de
diámetro. Alta linealidad, suspensión
de baja pérdida. Imán ventilado.
Unidad de agudos ..................... Cúpula textil de alta dispersión de 1”
(25 mm). Cámara interna compleja de
baja compresión. Bobina de voz
refrigerada por ferrofluido.
Diseño de caja...........................Diseño réflex y doble puerto con flujo
de gas.puerto de corriente gaseosa.
Acabado .................................... Contrachapados opcionales en
madera auténtica de alta calidad.
Volumen de caja......................................................................... 8.5 litros
Dimensiones (anch. x alt. x prof.)............................180 x 295 x 295 mm
Peso (por altavoz) ........................................................................... 5.8kg
Peso con embalaje........................................................................... 14kg
C
yrus
C
LS50
GB
GB
D
D
E
E

Cyrus CLS50
Cyrus CLS50 højttalere
Tillykke med dine Cyrus CLS50 højttalere. På dette ark kan du læse
om de funktioner Cyrus CLS50 har og dens specifikationer. Læs
venligst vejledningen i brugen af CLS50 i instruktionshæftet, der følger
med højttalerne.
Cyrus CLS50 konstruktion
Cyrus CLS50 højttaleren er en kompakt og stilfuld højttaler, med
kabinet af finér. I linje med de øvrige Cyrus produkter er alle
komponenter og samlinger fortaget helt kompromisløst. I CLS50´s
tilfælde har Cyrus nøje afvejet tolerancerne i højttalerenhederne og
delefilter-konstuktionen, der blandt andet har kraftige spoler og
elektrisk isolerede kondensatorer.
Specifikationer
Anbefalet forstærker-effekt.....................................................40W-100W
Impedans ........................................................................................... 8Ω
Følsomhed ..................................................................................86dB/W
Frekvensområde ...................................................................... 50-20kHz
Basenheden .............................. 5” (125mm) diameter NRSC membran.
Høj liniariet, blødt ophængt. Ventileret
magnet.
Diskantenheden ........................ 1” (25mm) tekstil dome med stor
spredning. Komplekst internt kammer
for lav kompression. Oliekølet
svingspole.
Kabinettet ................................ Refleks kabinet med dobbelt refleksport.
Finish.......................................................................Flere valg med finér.
Dimensioner (BxHxD)................................................... 180x295x295mm
Vægt (pr. højttaler) ......................................................................... 5.8Kg
Vægt, pakket ................................................................................... 14Kg
Haut-Parleurs Cyrus CLS50
Félicitations pour votre choix des enceintes Cyrus CLS50. Cette feuille
d’informations décrit les particularités de la CLS50 et ses
caractéristiques techniques. Merci de vous référer au manuel
d’utilisation des enceintes Cyrus pour les instructions complètes de
vos enceintes.
Conception des Cyrus CLS50
Le haut-parleur Cyrus CLS50 est une enceinte compacte élégante
logée dans un beau coffret au placage en bois véritable. Tout comme
les autres produits Cyrus, les composants utilisés pour l’assemblage
de ce produit apportent la qualité sans compromis. Pour la CLS50,
Cyrus a utilisé des haut-parleurs à tolérance serrée avec un filtre
construit à partir de selfs bobinés et des condensateurs de filtrage
solides
Spécifications :
Ampli recommandé ................................................................40W-100W
Impédance.......................................................................................... 8Ω
Sensibilité .................................................................................... 86dB/W
Réponse de fréquence (±3dB)............................................. 50Hz-20kHz
Réponse basse fréquence (-6dB) ................................................... 55Hz
Boomer...................................... Cône NRSC de 125mm de diamètre.
Haute linéarité, suspension souple.
Aimant ventilé.
Tweeter...................................... Dôme en textile à haute dispersion de
25mm. Chambre interne complexe
pour une faible compression. Bobine
refroidie par ferrofluide.
Coffret........................................ Conception reflex avec double évent.
Finition....................................... Choix de placage de haute qualité en
bois véritable.Volume efficace :
Dimensions (HxLxP)................................................. 180 x 295 x 295mm
Poids (par haut-parleur) .................................................................. 5.8kg
F
F
DK
DK

User Instructions Cyrus Loudspeakers
1
GB
GB
IMPORTANT CAUTIONS!
Read before installing this equipment!
•Do not expose your loudspeakers to excessive cold, heat, humidity
or sunlight - see Maintenance.
•Do not discard the original packaging. The original Cyrus packaging
is an important element of your warranty.
•Do not connect your loudspeakers to the mains electricity supply.

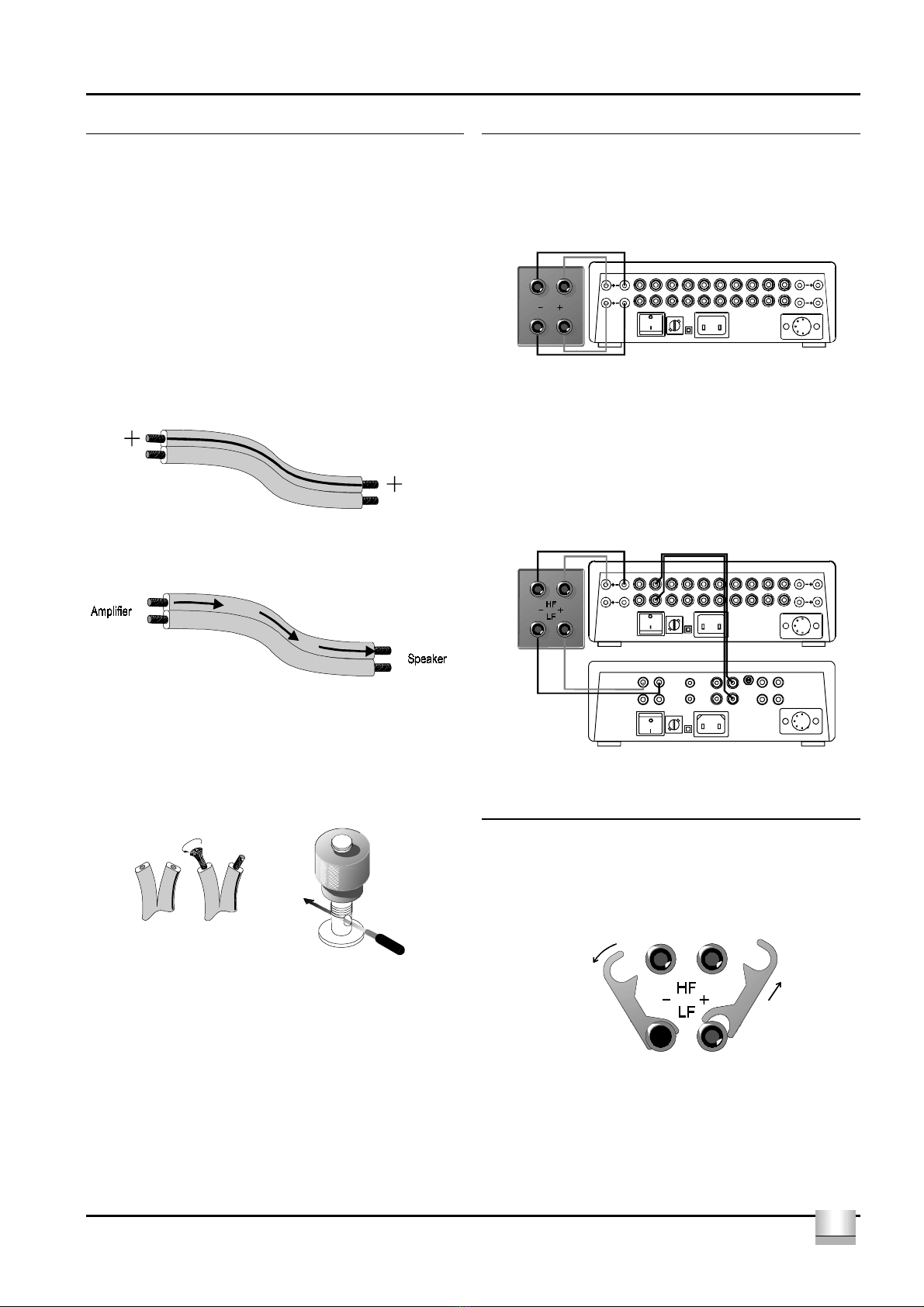

•Ensure that your loudspeakers are correctly wired and are in phase -
see ‘Connecting your loudspeakers’.
•Do not mount your loudspeakers by the rear panel. Wall brackets
must support the underside of the product.
When setting up the system or playing music it is always important to pay
particular attention to the following points-
•Do not change any component in your system without first switching
off your amplifier. Every time you change the connections from any
signal source to your amplifier, ensure that you first switch off the
amplifier.
•Do not use your amplifier at full power. This will 'clip' the amplifier
and may damage your loudspeakers. Full power with many
amplifiers can occur at around half volume setting.
•When switching on your system, do so with the volume control at
minimum and turn the level up gradually.
•When changing discs, adjusting tuners, rewinding tapes, etc., turn
the volume control down to its minimum.
•Filters, tone controls or graphic equalisers are not recommended for
use in a system with Cyrus speakers.
•Never use Cyrus speakers part supported on a shelf. All 3 feet must
be supported.
•It is recommended that Cyrus speakers should be attached securely
to stable loudspeaker stands. This will help performance as well as
stability.
Welcome to the world of Cyrus!
Congratulations on your choice of Cyrus loudspeakers. Our state-of-the-
art design technology and outstanding quality of manufacture has won
countless awards around the world. We are confident that you will derive
great pleasure from owning a product from one of the most recognised
and respected manufacturers of hi-fi equipment.
Please read these instructions carefully before commencing installation.
They provide full guidance to help you install your Cyrus loudspeakers
safely and correctly.
Unpacking Your Loudspeakers
CAUTION!- Take care not to touch the drive units when unpacking and
setting up the speakers. The drive units may be permanently damaged!
Retain all the packing materials so that your loudspeaker can be
repacked and shipped without damage.
To avoid damage to your system, always ensure that mains power is
disconnected from all system components until installation is complete.
Front Grilles
The front grilles of the speakers provide protection from accidental
damage to the sensitive drive units. If this protection is not required, the
grilles may be removed. For maximum performance we recommend
listening with the grilles removed.
To remove the grilles, grip the frame and ease the grille away from the
front of the speaker, starting from the top. The grille can be re-fitted by
lining up the four fixing pegs with the miniature sockets in the front of the
speaker.
The Cyrus Icon grille is attached with magnetic side strips. To remove the
grille from the Icon, gently pull the tab concealed at the base of the
speaker. To re-fit the Icon grille, align the bottom of the grille with the
base first, then slowly bring the grille towards the top of the cabinet. The
magnetic fixing system will draw the grille into the correct position
automatically.
Cyrus loudspeaker stands
Refer to the instruction sheet supplied with the stands.
Positioning your loudspeakers in a stereo system
The sound quality achieved by your speakers is greatly affected by the
position of the speakers and listener in the room. The most important
dimension is the distance between the speaker and the wall behind it (the
back wall). When first setting up the speakers we make the following
recommendations-
1. Where possible, locate the speakers at least 1m from the corners of
the room.
2. Place the speakers 2-3m apart and approximately 0.5m from the
wall.
3. Set the speakers with no ‘toe-in’ (square to the wall).
From this initial setting, small position adjustments can later be made to
tailor the sound to your requirements. Moving the speakers closer to the
wall will adjust the sound balance to give more bass but with a smaller
soundstage. Moving the speakers away from the wall will reduce bass but
will increase the size of the soundstage. Setting the speakers with a toe-in
towards the listener will reduce the depth of the image within the
soundstage, but may focus individual elements of the image.
Positioning your loudspeakers in an A/V system
Our guidelines for setting up the speakers in a A/V system are very
similar to those for a stereo system. If the system has a centre channel
dialogue speaker the front left and right speakers may be positioned
further apart to give a larger listening field for more people. When first
setting up the speakers in an A/V system we make the following
recommendations-
1. Where possible, locate the speakers at least 1m from the corners of
the room.
2. Place the front speakers 3-4m apart and 0.5m from the wall.
3. Place the centre channel speaker as close as possible to the
picture.
4. Set the rear surround channel speakers with a ‘toe-in’, angled
towards the listener.
From this initial setting, small position adjustments can later be made as
listed for stereo systems in the previous section.
For a system with a subwoofer the surround sound decoder may be set
for small speakers which will direct deep bass to the subwoofer and give
the system extra headroom.

Cyrus Loudspeakers User Instructions
2GB
GB
Connecting Your Loudspeakers
Choosing a speaker cable
There are many types of loudspeaker cable available which are suitable
to partner Cyrus speakers. We make general recommendations to choose
a cable which is simple in construction and which is made with high
quality materials for the conductors and insulation. A good dealer will be
able to advise a suitable cable and provide the correct terminations for the
amplifier and speakers.
Phasing
Correct phasing is essential when connecting a speaker to an amplifier.
All amplifiers and speakers are equipped with + (or red) and – (or black)
terminals for connection of the speaker cables. For the speaker system to
work correctly the + and – output terminals of the amplifier must connect
to the corresponding + and – terminals of the speaker. All speaker cables
have a polarity mark (plastic rib, coloured stripe or + markings) on one of
the wires. This wire is the + wire and should be connected to the
corresponding + terminals of both the amplifier and speaker.
Cable directionality
Most speaker cables are sensitive to the direction of signal flow. If so, the
cable will be marked with arrows which should point in the direction of the
signal (from amplifier to speaker).
Connecting cables with tags to the speakers
Unscrew the four terminal tops so that the tags can be tucked underneath.
Tighten the terminal tops securely to retain the tags.
Connecting cables without tags to the speakers
If the cables don’t have connection tags fitted they must first be stripped
as shown in the diagram below. The stripped ends can then be twisted
together and fitted into the hole drilled in the terminal pin.
Bi-wiring and Bi-amping
Bi-wiring
Cyrus speakers are designed to be used with bi-wired or bi-amped wiring
arrangements. Two cables (or a bi-wired pair) are necessary to connect
each speaker to the output terminals of your amplifier. Most Cyrus
amplifiers feature twin speaker outlets for the most effective bi-wiring
connection as shown in the schematic below.
NOTE:- Any bi-wire links must be removed from the terminal panel when
the speakers are connected to a bi-wired system.
Bi-amping
The benefits of bi-wiring can be further extended with the addition of
separate amplification for the bass and tweeter units of your speakers (bi-
amping). In this case the preamplifier output of the Integrated amplifier is
connected to the input of a power amplifier and separate connections are
made from the speaker outputs of each amplifier to the speaker drive
units. Bi-amplified wiring of a Cyrus amplifier is simple and is shown in the
schematic.
NOTE:- Any bi-wire links must be removed from the terminal panel when
the speakers are connected to a bi-amplified system.
Removing the bi-wire links
If the speakers are to be used in a bi-wired or bi-amplified system it is
essential to remove any bi-wire links from the terminal panel. To remove
the links unscrew all four terminals. The links can then be removed from
the terminal panel as shown in the diagrams below. The four connection
wires can then be fitted to the terminals.
HF
LF
Pre-out~Power in

User Instructions Cyrus Loudspeakers
3
GB
GB
Maintenance
Use a slightly dampened cloth to clean the cabinets. Do not use solvents
of any kind as they may damage the fine finishes. The grilles should be
removed from the speakers and brushed gently with a soft, clean brush to
remove dust.
Periodically check that the fixings on the bass drive units are tight to keep
them secure. Over-tightening will not improve performance. Do not touch
high frequency drive unit fixings. For Icon, the fixings for the main surface-
sound driver should be checked periodically.
CAUTION: High levels of magnetism will attract steel tools directly to the
sensitive tweeter dome. The tweeter dome is not covered against
distortion caused by accidental intrusion.
Product Service
Should your loudspeakers fail please return them as a pair, even if only
one unit appears to be faulty (excludes Icon). You must pack them using
the original packing to be eligible for any warranty claim. Replacement
packaging can be purchased from the Cyrus service department.
Product for service should be returned in the first instance to the
appointed dealer from whom you purchased the product. If you
experience difficulties or there is no Cyrus dealer in your area, contact the
Cyrus distributor for your country.
Warranty
The warranty card enclosed should be completed by the Dealer and
the purchaser and returned to CYRUS or its Distributor within 8 days
of purchase. No Dealer or Distributor may vary the terms of this
warranty which is personal to the original Purchaser and is not
transferable.
It is essential that you retain the sales receipt as proof of purchase.
Warranty claims must wherever possible be made through the Dealer
from whom the equipment was purchased.
This warranty excludes:
•Damage caused through neglect, accident, misuse, wear and tear,
or through incorrect installation, adjustment or repair by
unauthorised personnel. Any unauthorised servicing will result in
loss of guarantee.
•Liability for damage or loss occurring in transit to or from the
purchaser.
•Consequential damage, loss or injury, arising from or in
conjunction with this equipment.
Equipment for attention under warranty should be consigned return
carriage paid. If returned equipment is found to comply with the
published specification, CYRUS reserves the right to raise a charge.
The above conditions do not affect your statutory rights as a
consumer.
