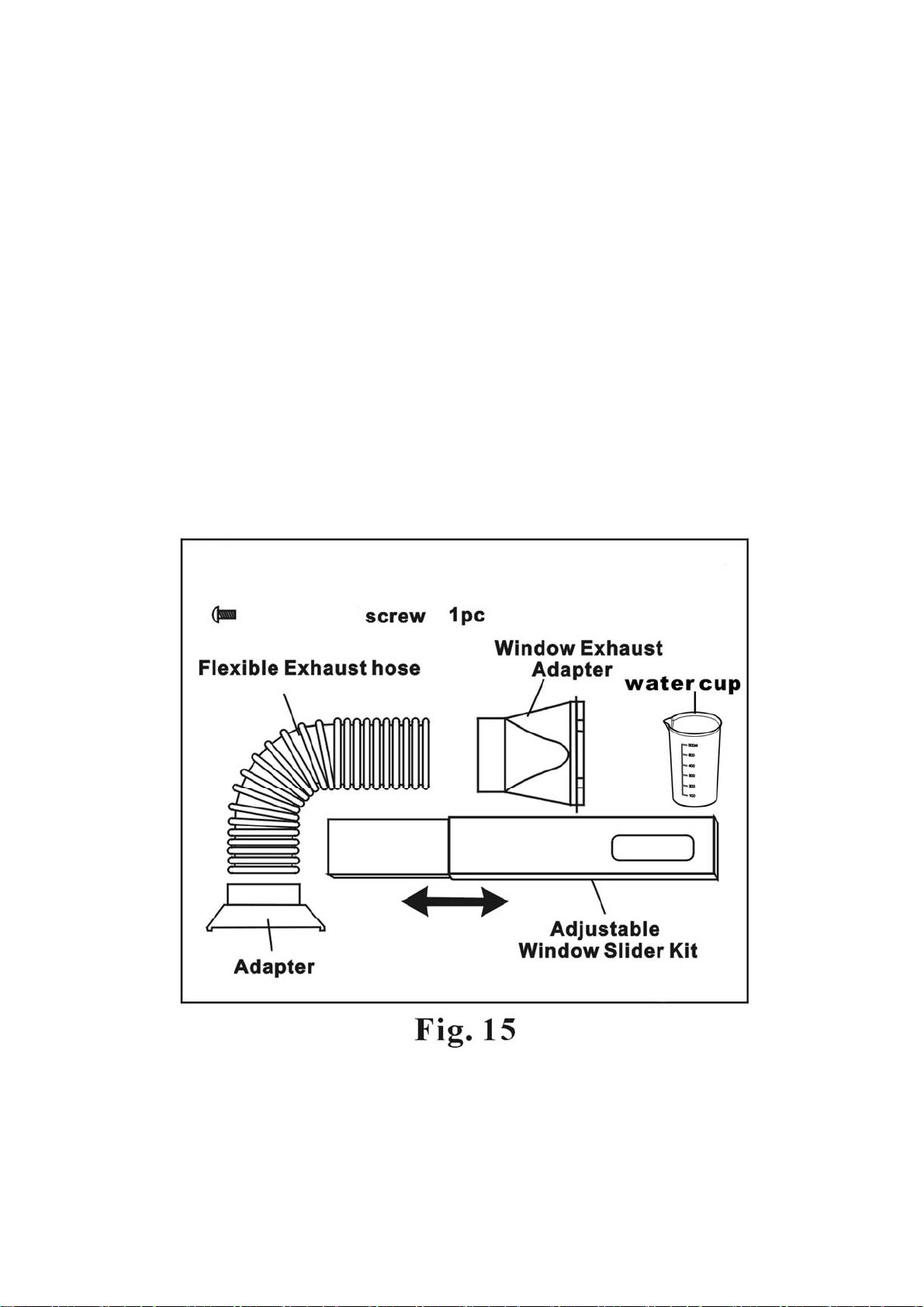

INSTALLATION ACCESSORIES........................................................................13
TROUBLE SHOOTING ........................................................................................... 12
APPENDIX...................................................................................................................14

2
IMPORTANT SAFEGUARDS
Important Safeguards.
•Read all instructions carefully.
•Disconnect the power plug before dismantling, assembling or before
cleaning.
•Avoid touching any of the appliance s moving parts .
•Never insert fingers, pencils or any other objects through the guards whenever
the power plug is connected, especially while running.
•The appliance is not intended for use by young children or uninformed persons
unless they are ade quately supervised by a responsible person to
ensure that they can use the unit safely.
•Young children should be supervised to ensure that they do not play with the
appliance.
•Do not use the appliance for any other purpose than its intended use.
•The appliance must not be used if the guards are not fastened according to
instructions.
•When the power cord is damaged, it must be replaced.
•Do not use your appliance with an extension cord unless it has been checked
and tested by a qualified electrician or electrical supplier.
•The air conditioning unit must always be stored and transported upright,
otherwise you may cause irreparable damage to the compressor; in
case of doubt we suggest to wait for at least 24 hours before you start
the air-conditioning unit.
•Avoid restarting the air conditioning unit unless 4 minutes have passed since
being turned off, or the compressor may get damaged.
•Never use the mains plug as a switch to start and turn off the air conditioning
unit. Use the provided ON/OFF switch located on the control panel.
•Always place the portable air conditioner on a dry stable surface.
’

3
Energy Saving Tips.
Do not cover or restrict the airflow from the Outlet or Inlet grills.
The minimum distance from furniture and walls should be 50cm.
Keep blinds and /or drapes closed during the sunniest part of the day.
Keep the filters clean. Under normal conditions, the filters should be
cleaned approximately every 30 days. Since the filters remove airborne
particles, more frequent cleaning maybe necessary, depending on the
indoor air quality.
Set the fan speed switch to high cool and the thermostat to the coolest
position for the initial start-up, then set the Fan switch to Low cool and
lower the thermostat to a comfortable setting.
40℃.
SSuggggeessttiioonn::
We suggest you do not use the machine if the ambient temperature
is higher than

4
FEATURES AND PARTS LIST
Features:
·No installation is required.
·Easily moved . The handle makes moving more convenient.
·LED colourful screen display.
·Water-cooled mode saves energy and is environment friendly..
·Low noise and strong performance.
·Unique economic function.
·Auto swing makes air flow from left to right automatically.
·Three-minute restart delay to protect compressor.
Parts list:
1. control panel
2. horizontal louvre
3. vertical louvre
4. air inlet grill
5. castor
6. exhaust duct
7. handle
8. air outlet grill
9. power cord and plug
10.water refill port
11.power cord hook
12.air filter

5
PANEL CONTROL
CAUTION: If the unit is turned off in cool /dry mode and restarted
immediately , then it will wait at least 3minutes before running again.
1. Buttons
Timer: press this button to set the timer
Swing: press this button to make the vertical louver swing automatically.
Press once again, the swing will stop.
Speed: press this button for 5 seconds to select high, middle or low fan
Speed.
Up/down: press up or down button to set temperature or adjust the time in
Timer mode. Press both buttons to vary from Celsius to Fahrenheit.
Mode: press this button to select cool,dry or fan mode.
Econ: press this button to a set energy saving mode.
The set temperature is 27℃in cool mode.
The fan sp eed is low. This data can’t be changed. The LED
display will flash . Press again to cancel it when is flashing.
Power: press this button to turn on/off the unit.
2. LED display
Timer indicator
Dry, cool, fan mode indicator.
High, middle and low fan speed indicator
Water Full indicator
Add Water indicator
IR receiver window
Indicate the time and te mperature. Display EX (X=2,3) when
there is something wrong (refer to Self diagnosis function).
Display E4 when coil is defrosted.
Celsius degree and Fahrenheit degree indicator.

6
REMOTE CONTROL
Power Press this button to turn on/off the unit.
Timer Press this button to set the timer.
Swing Press this button to make the vertical
louvre swing automatically.
Vary from Celsius degree to Fahrenheit
degree.
Cool Press this button to choose Cool mode.
Dry Press this button to choose Dry mode.
Fan Press this button to choose Fan mode.
Up Press Up or Down button to set temperature
Down or adjust the time in Timer mode.
High Press this button to select high fan speed.
Med Press this button to select middle fan speed.
Low Press this button to select low fan speed.
Econ Press this button to a set energy saving mode only in Cool.
The set temperature is 27℃in cool mode.
The fan speed is low. This data can’t be changed.
NOTE: To vary from Celsius to Fahrenheit press both Up
and Down buttons at least 2 seconds.
Fig.4
remote control
，

7
OPERATION METHODS
Timer set
1.Set timer -off
Press the Timer button when the unit is on. The LED will flash_ _five times.
During this period press Up or Down button to adjust set time from
0.5h to 24h. It will vary 0.5h each time in 3h and 1h each time hereafter. The
set time will flash 5 times after adjusting. When it will display temperature
again. Once the set time end, the unit will turn off automatically.
2. Change the set time
When Timer is on, you can check remaining time by pressing Timer button. It
will flash 5 times. Press Up or Down button to adjust set time. The set time
can also be cancelled if you press the Timer button once again during the
flashing time.
3.Set timer-on
Press the Timer button when the unit is off. Same as timer-off set. Once the
set time end, the unit will turn on automatically.
Cooling/ Dry Mode
1.Cooling mode
Press Mode button to choose Cool mode.
Press Up or Down button or to set a proper room temperature.
The range is 18~30℃(64-86°F). The temperature will increase or decrease
1℃or 1°F each time.
Press Speed button or to choose a proper fan speed.
Press Swing button or to adjust the direction of vertical louvre.
Adjust horizontal louvre by hand.
2.Dry mode
Press Mode button or to choose Dry mode. The fan speed is Low,
LED displays room temperature. These cannot be adjusted.
NOTE:
1. In cool mode, when the Add Water light illuminates, you can add
some water through the injection port before cooling operation．
2. You should drain water with the drainpipein dry mode.
The unit will stop working when water level exceeds the high level.
3. Do not use air exhaust duct when in Dry or Fan modes
4. If your room is directly exposed to the sun, draw the curtains please.
“
“

8
INSTALLATION

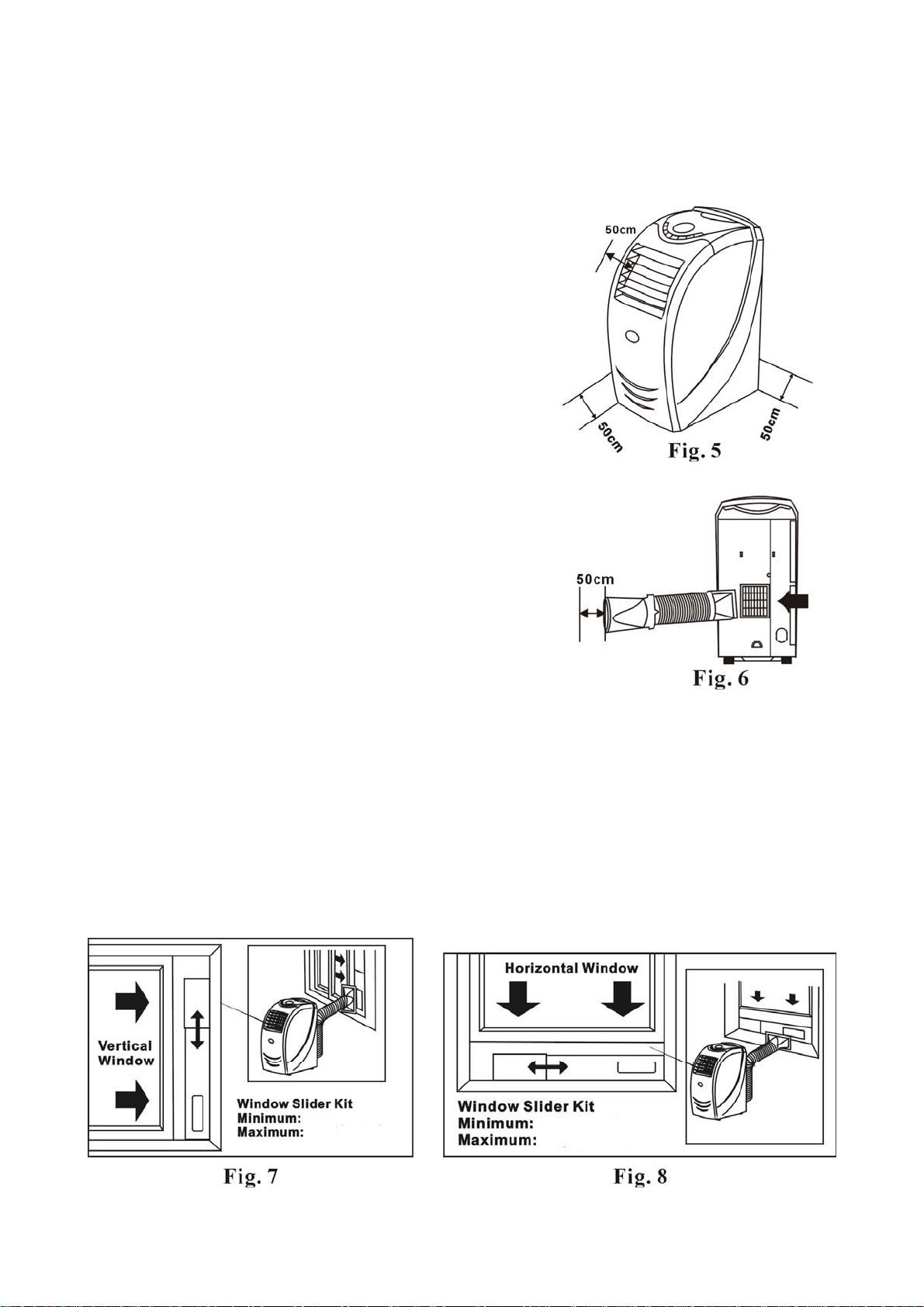

1.Selection of Installation Place
Install the unit on a flat and dry place.
Leave at least 50cm space around the
unit(when the hose is not connected).
(Fig.5)
2.AIR Exhaust Duct Mounting
1) Fix the square end of the exhaust duct to
the exhaust terminal of the unit.
2) Put the other end (discharge) in the
nearest window.
NOTE:
The length of the air exhaust duct is between
600cm to 1700cm or 1800cm (adapters included).
We suggest using the minimum length of the air
exhaust duct. It saves energy.
This length has been designed especially according to the
specifications of the air conditioner .Do not use an extension or
exchangefor adifferent hose asit may lead to malfunction.
3. Window Kit Installation
The window kit has been designed to fit most standard vertical and horizontal
windows. However, it may be necessary for you to modify some aspects of the
installation procedures for certain types of windows. Please refer to the
illustrations. (Fig.7 and Fig.8)
(90cm)
(130cm) (90cm)
(130cm)

9

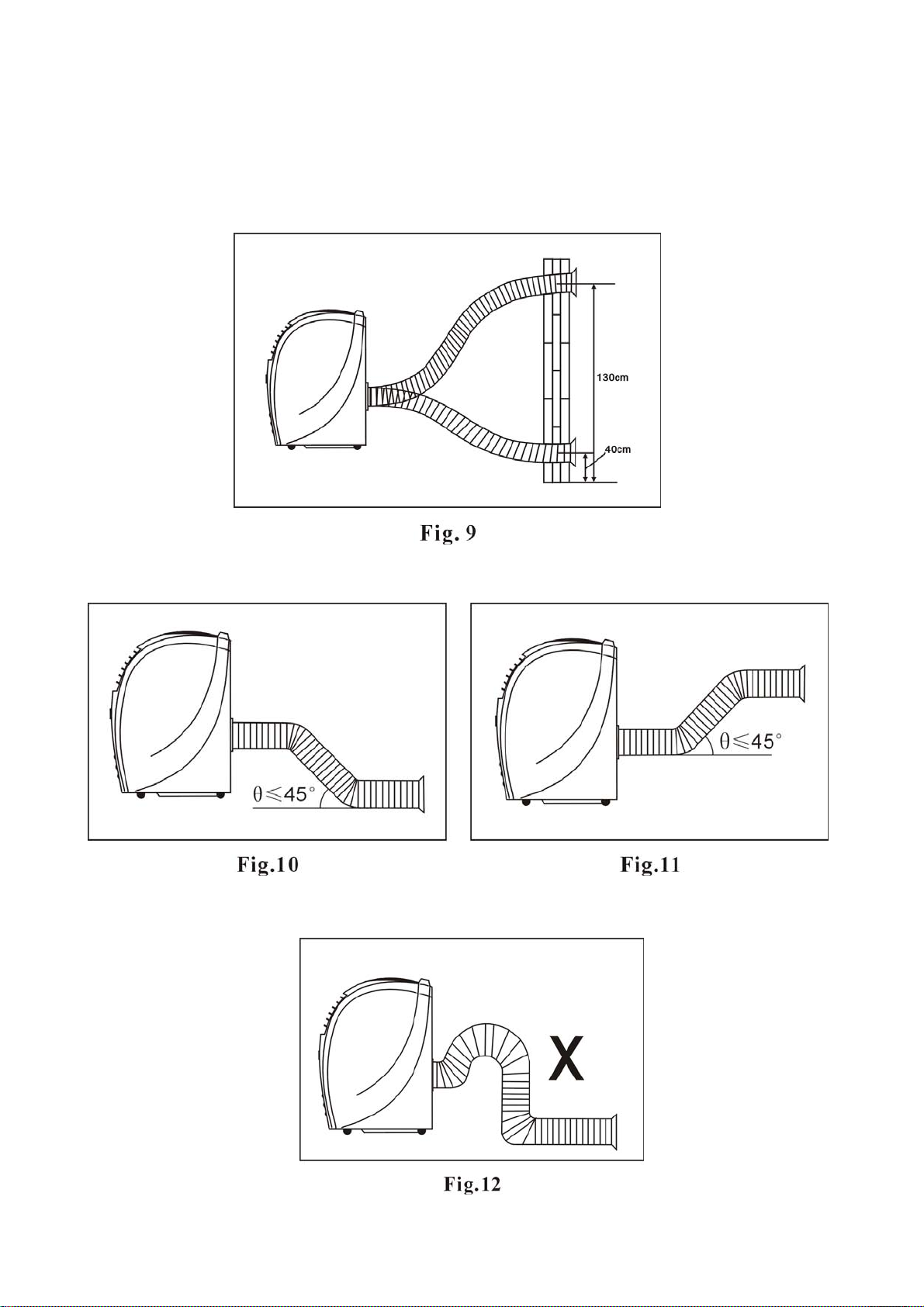

4.Mounting illustrations
1.mounting in the wall
2.correct bending
3.wrong bending

01
WATER DRAINAGE METHODS
This product has a self-evaporative system. The condensing water
will recycle to cool the condenser. This water-cooled mode will not
only improve cooling efficiency and decrease noise, but also save
energy .
* When in cooling mode, the water from the evaporator will flow into a inside
pan. When the water reaches the low level, the water pump will work until
the water is under the low level. When the water reaches the high level, the
compressor will stop working, and the water pump, lower fan motor and
upper fan motor will work all the time.
* When the water is full, the water full indicator will illuminate and the compressor
will stop working. The buzzer will buzz 10 times every 5 minutes until the
water is below the high level or drained by hand. When the alarm stops and
after the three-minutes restart delay, the unit will work normally.
* Before you empty the unit you will need to
turn the unit off and pull the plug out of the
power supply.Upcap the lid, remove the
rubber plug on the drainage port, then let the
water flow out.Once drained, put the rubber
plug back and screw the lid up and switch it on.
The compressor will delay restarting for three
minutes,then the unit will work normally.
* When the water in the tank is not enough
for pumping, the pump will stop working. At
the same time, the Add Water
control panel will illuminate indicator on the
water(Maximum 1800ml-3cups).Fill the tank with
().

11
MAINTENANCE
Cleaning
Turn off the unit and pull the plug out of the socket before cleaning.
1.Cleaning surfaces
Clean the surface of the unit with a duster or a moist soft cloth.
Do not use chemical solvents like benzene, alcohol, gasoline, etc.
2. Cleaning air filter
If the air filter is blocked with a lot of
dust, it will reduce efficiency.
1) Pull out the air filter. Fig.14.
2) Wash the air filter by immersing
it gently into warm(under 40°C).
water with neutral detergent. Rinse
the filter and dry it in a shaded place.
3) Push the air filter back into the
original position.
End of season
1.Upcap the lid, remove the rubber plug on the drainage to drain the water. You
can remove the water entirely by slanting the unit back.
Set on Fan mode, then press the Fan button for 5 seconds until the lower
fan works. Operate the unit in fan mode for half a day until the pipe is
dry. In this way the inside of the unit can be dried and the mildew growth can
be suppressed.
2.Switch off the unit and disconnect the plug from the power supply.
3.Tie the cable with sting.
4.Remove the air exhaust duct and store it carefully.
5.Wrap the unit with a plastic bag,
and keep it in a dry place.
6.Take the batteries out of the remote.

TROUBLE SHOOTING
Problem Check Solution
The unit doesn’t
operate at all.
Is there a power failure?
Is plug out?
Is power fuse or switch off?
Is the set time suitable?
Is water full alarm on?
Insert the plug into the socket
Change the fuse or switch on.
Change the set time.
Empty water tank.
Is air inlet or outlet blocked?
Is there any other heat source in
room?
Are air filters very dirty?
Is the set temperature suitable?
Is fan speed set at low?
Clear blockage..
Rmove the heat source.
Clean air filter .
Change temperature.
Select suitable fan speed.
andNoisy vibrating Is it inclined? Place on flat surface.
The unit starts and
stops frequently
Is the voltage normal?
Is the exhaust tube fixed correctly
or is it bended?
Have you added extra exhaust
tube?
Turn off the unit if the voltage is
abnormal.
Set the exhaust tube correctly.
Remove the extra tube.
Stop operation of the unit when :
·The power cord overheats or protection of the cord is broken.
·There is abnormal odour or smoke coming from the unit.
Self-diagnosis function
Check code Diagnosis of malfunction
E2 Room temperature faults
E3 Faulty coil temperature
Note: When display E4, it means that the coil is defrosted. That is normal .
21
Inefficient cooling
E4 Coil defrosted Normal

31
INSTALLATION ACCESSORIES
Description:
Flexible exhaust hose with adapter ……1/set
Window exhaust adapter (flat mouth)……1pc
Adjustable window slider kit ………………2/set
Screw ………………………
…………………
…1pc
Water cup ………………………………………1pc
90cm 130cm

41
APPENDIX
Fuse Parameter
Type: FSD
Voltage: 250V
Current: 3.15A
Disposal: Do not dispose this product as unsorted municipal waste. Collection
of such waste separately for special treatment is necessary.
