General information
10A/10A-D Manual
Version: 1.1 EN, 01/2011, D2610.EN .01
Copyright © 2011 by d&b audiotechnik GmbH; all rights
reserved.
Keep this manual with the product or in a safe place
so that it is available for future reference.
When reselling this product, hand over this manual to the new
customer.
d&b audiotechnik GmbH
Eugen-Adolff-Strasse 134, D-71522 Backnang, Germany
T [phone], F [phone]
[email protected], www.dbaudio.com

1. Safety precautions......................................................... 4
1.1. Information regarding the use of loudspeakers......... 4
2. 10A/10A-D loudspeaker.............................................. 5
2.1. Product description...................................................... 5
2.2. Connections................................................................. 6
2.3. Operation.................................................................... 7
2.3.1. Controller settings.................................................... 7
2.4. Dispersion characteristics............................................ 9
2.5. Technical specifications............................................ 11
3. Manufacturer's Declarations................................... 12
3.1. EU conformity of loudspeakers (CE symbol)........... 12
3.2. WEEE Declaration (Disposal).................................. 12
Contents
d&b 10A/10A-D Manual (1.1 EN) 3

1.1. Information regarding the use of loudspeakers
Potential risk of personal injury
Never stand in the immediate vicinity of loudspeakers driven at a
high level. Professional loudspeaker systems are capable of
causing a sound pressure level detrimental to human health.
Seemingly non-critical sound levels (from approx. 95 dB SPL) can
cause hearing damage if people are exposed to it over a long
period.
In order to prevent accidents when deploying loudspeakers on the
ground or when flown, please take note of the following:
– When setting up the loudspeakers or loudspeaker stands,
make sure they are standing on a firm surface. If you place
several systems on top of one another, use straps to secure
them against movement.
– Only use accessories which have been tested and approved
by d&b for assembly and mobile deployment. Pay attention to
the correct application and maximum load capacity of the
accessories as detailed in our specific "Mounting instructions"
or in our "Flying system and Rigging manuals".
– Ensure that all additional hardware, fixings and fasteners used
for installation or mobile deployment are of an appropriate
size and load safety factor. Pay attention to the manufacturers'
instructions and to the relevant safety guidelines.
– Regularly check the loudspeaker housings and accessories for
visible signs of wear and tear, and replace them when
necessary.
– Regularly check all load bearing bolts in the mounting devices.
Potential risk of material damage
Loudspeakers produce a static magnetic field even if they are not
connected or are not in use. Therefore make sure when erecting
and transporting loudspeakers that they are nowhere near
equipment and objects which may be impaired or damaged by an
external magnetic field. Generally speaking, a distance of 0.5 m
(1.5 ft) from magnetic data carriers (floppy disks, audio and video
tapes, bank cards, etc.) is sufficient; a distance of more than 1 m
(3 ft) may be necessary with computer and video monitors.
1. Safety precautions
d&b 10A/10A-D Manual (1.1 EN)4

2.1. Product description
The 10S, 10A and 10AL and their "D versions" are a family of high
performance 2-way loudspeakers employing a single 10” driver in
a bass-reflex enclosure and different HF sections for a wide range
of installed sound applications. All models are lightweight passive
designs using neodymium drivers and large horns for accurate
pattern control.
The 10A and 10A-D are the array versions of this family providing
rotatable dispersion characteristics of 75° x 50° (10A) or 110° x
55° (10A-D). Both loudspeakers employ a 1.4” exit compression
driver. The cabinets are equipped with an integrated rigging
system for the design of vertical arrays providing application
specific dispersion characteristics.
With a frequency response extending from 60 Hz to 18 kHz, the
cabinets can be used as full range systems or supplemented by
different subwoofers of the xS- or xA-Series.
The enclosures are constructed from marine plywood with an
impact resistant black paint finish. The fronts of the cabinets are
protected by a rigid metal grill backed by an acoustically
transparent foam.
The cabinets are Ball Impact Resistant according to DIN 18032-3.
Rigging components
10A/10A-D cabinets are connected to form a vertical array each
using the Z5416 Connector plates 10A. Splay angles can be set
between 25° and 60° with 5° increments. A vertical array may
consist of up to three 10A cabinets. 18A or 27A subwoofers can
be integrated into the array.
Vertical arrays are supported using the Z5414 Flying bar xA and
a pair of Z5413 Flying bar connector plates xA.
Note: For approved configurations as well as safety and
mounting instructions, refer to the respective rigging manual.
Cabinet options
The weather resistant version (WR) is suitable for outdoor use
(IP34, vertical aiming up to +15°). The cabinets have an impact
and weather protected black PCP (Polyurea Cabinet Protection)
finish.

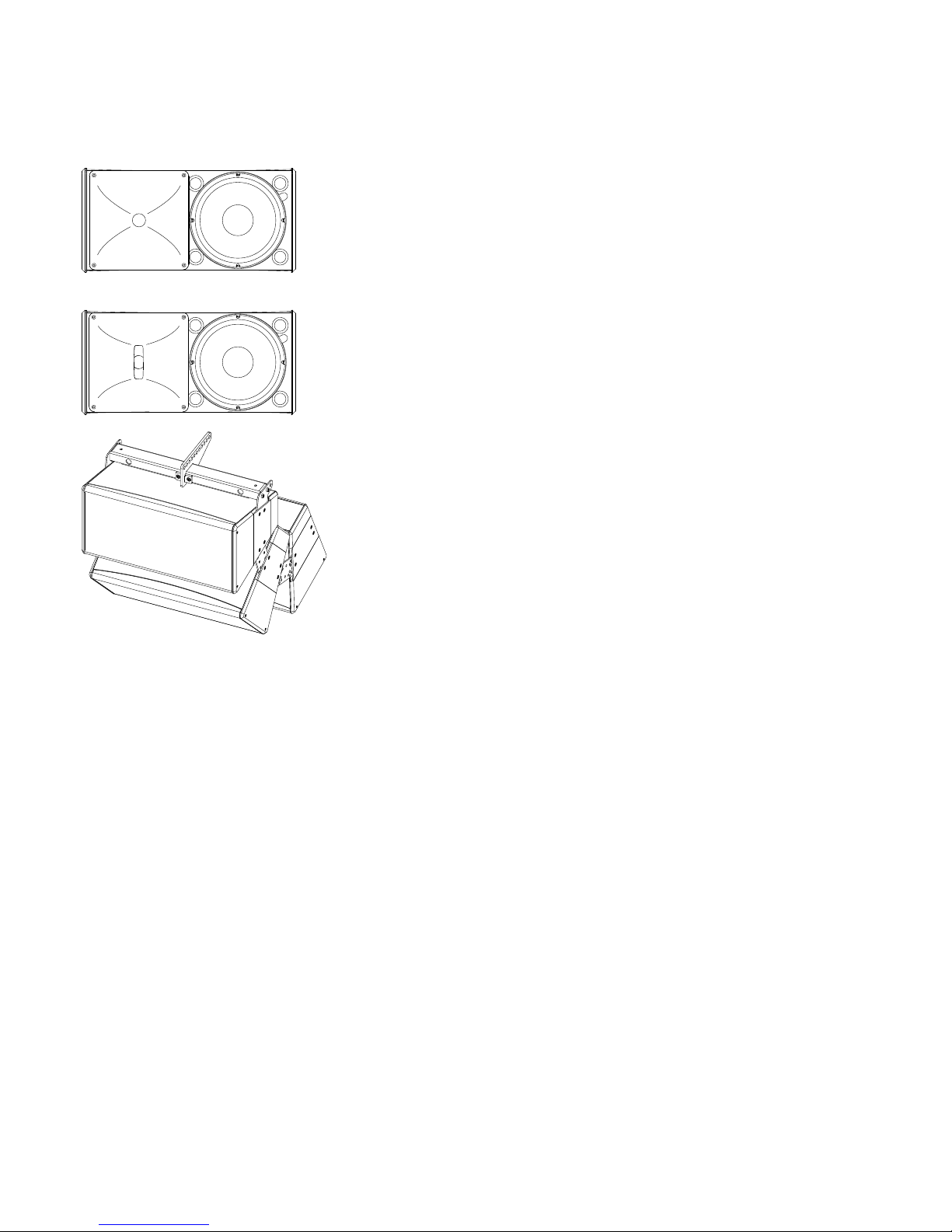

Fig. 1: 10A/10A-D loudspeaker
Rigging example:
10A array with Z5415 Flying bar adapter xA,
Z5414 Flying bar xA, Z5413 Flying bar connector plate xA
and Z5416 Connector plate 10A.
2. 10A/10A-D loudspeaker
d&b 10A/10A-D Manual (1.1 EN) 5

2.2. Connections
The cabinets are fitted with a pair of NL4 connectors and a two
pole screw terminal block (ST). All four pins of both NL4
connectors are wired in parallel. The cabinets use the pin
assignments 1+/1–. Pins 2+/2– are designated to active
subwoofers.
Cabinets with the weather resistant option (WR) are equipped with
a fixed input cable (PG type, H07-RN-F, 2 x 2.5 mm2 (AWG 13),
standard length 5.5 m (18 ft).
Pin equivalents of the applicable connector options are listed in the
table below.
NL4 1+ 1– 2+ 2–
ST + – n.a. n.a.
PG Brown (+) Blue (–) n.a. n.a.
Fixed cable connection
The 10A and 10A-D loudspeakers are each supplied with a cover
plate [1] and a rubber grommet feed through [2]. For indoor
operation, these items can be used to hide the connector panel, if
required. For unprotected outdoor operation, the connector panel
must be covered, i.e. both items must be used to achieve an IP
degree of protection of IP34.
To install the fixed cable connection, proceed as follows:
Tools required: Philips screw driver (#PH2).
1. Prepare the rubber grommet and the connection cable.
2. Remove the knockout opening in the cover plate and attach
the rubber grommet correspondingly.
3. Insert the connection cable through the rubber grommet and
connect the cable wires to the screw terminal.
Þ Observe the correct polarity!
4. Undo the four screws of the connector panel.
5. Push the cover plate towards the connector panel until it fits
into place.
6. Finally fix the cover plate together with the connector panel
using the four screws.
Fig. 4: Installing the fixed cable connection

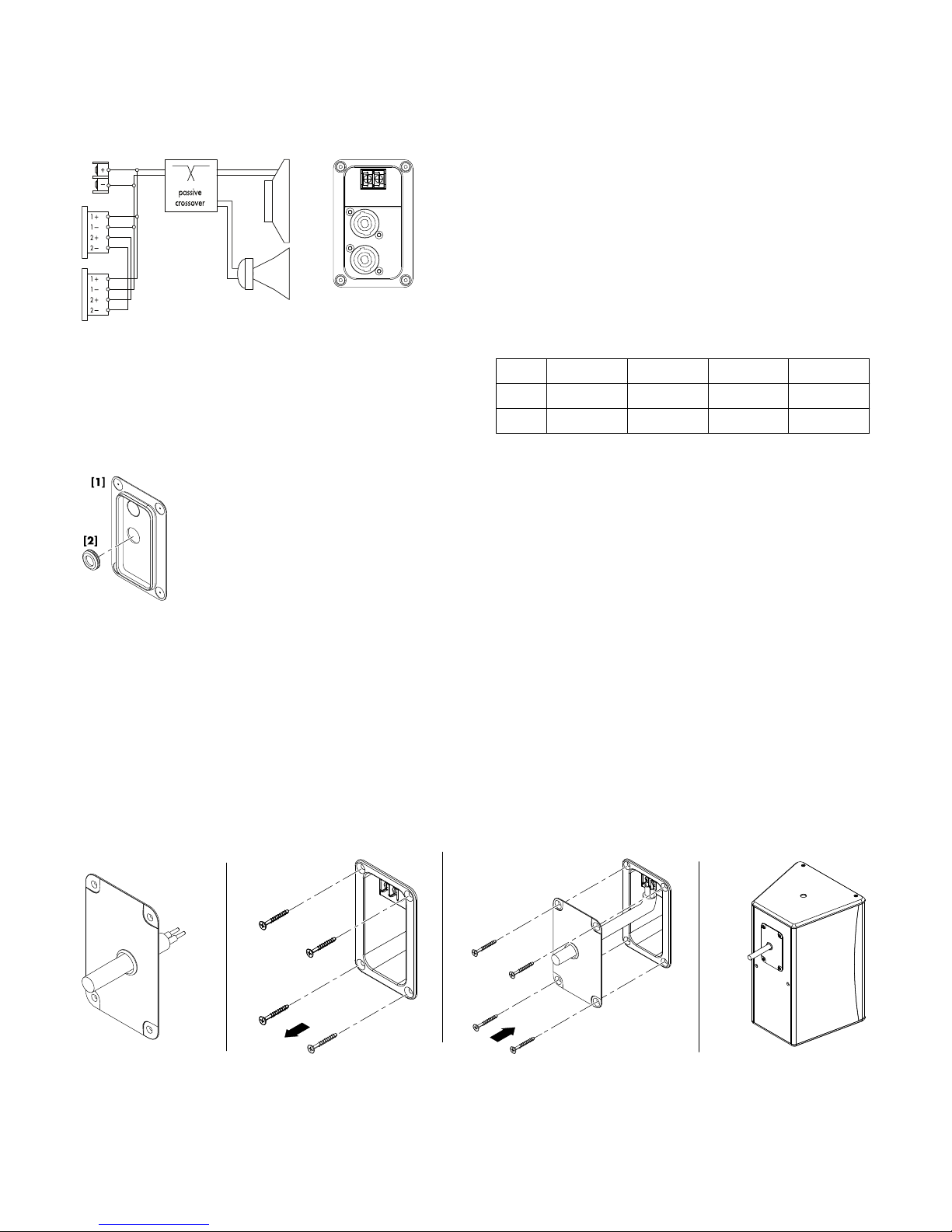

Fig. 2: Connector wiring
Fig. 3: Cover plate and rubber grommet
d&b 10A/10A-D Manual (1.1 EN)6

NL4 connection with cover plate
The two NL4 connector sockets of the cabinet's connector panel
are located in a recess to allow the use of the cover plate [1]
together with NL4 cable connectors, as shown in the graphic
opposite.
Note: Neutrik NL4FC type connectors must be used for this
option.
The cover plate is equipped with two knockout openings to allow
daisy chaining of the loudspeaker.
To use the NL4 connection, proceed in the same manner as
described above in the section entitled Þ "Fixed cable connection"
on page 6.
2.3. Operation
NOTICE!
Only operate d&b loudspeakers with a correctly configured d&b
amplifier, otherwise there is a risk of damaging the loudspeaker
components.
Operation with D6 or D12
Select the controller setup 10S/A for 10A loudspeakers.
Select the controller setup 10S/A-D for 10A-D loudspeakers.
Within the D12 amplifier they are available in "Dual Channel" or
"Mix TOP/SUB" mode. For combinations with active subwoofers
fed by a single 4-wire cable "Mix TOP/SUB" mode must be
selected.
Up to a total of three 10A or 10A-D loudspeakers can be driven
by each channel of the D6 or D12 amplifiers.
2.3.1. Controller settings
For acoustic adjustment the functions CUT, HFA and CPL can be
selected.
CUT circuit
Set to CUT, the cabinet low frequency level is reduced. The
cabinets are now configured for use with d&b active subwoofers.
Fig. 5: NL4 cable connection with cover plate [1]
d&b 10A/10A-D Manual (1.1 EN) 7

HFA circuit
In HFA mode (High Frequency Attenuation), the HF response of the
system is rolled off. HFA provides a natural, balanced frequency
response when a unit is placed close to listeners in near field or
delay use.
High Frequency Attenuation begins gradually at 1 kHz, dropping
by approximately 3 dB at 10 kHz. This roll off mimics the decline
in frequency response experienced when listening to a system from
a distance in a typically reverberant room or auditorium.
CPL circuit
The CPL (Coupling) circuit compensates for coupling effects
between the cabinets when building closely coupled arrays. CPL
begins gradually around 1 kHz, with the maximum attenuation
below 200 Hz. To achieve a balanced frequency response, the
CPL circuit can be set to dB attenuation values between 0 and –9.
Positive CPL values create an adjustable low frequency boost (0 to
+5 dB) and can be set when the system is used in full range mode
without subwoofers.
-5
0
5
10
-10
-15
-20
-25
-30
20 100 1k 10k 20k
Fig. 6: Frequency response correction of HFA circuit
Fig. 7: Frequency response correction of CPL circuit
d&b 10A/10A-D Manual (1.1 EN)8

2.4. Dispersion characteristics
The following graphs show dispersion angle over frequency of a
single cabinet plotted using lines of equal sound pressure (isobars)
at –6 dB and –12 dB.

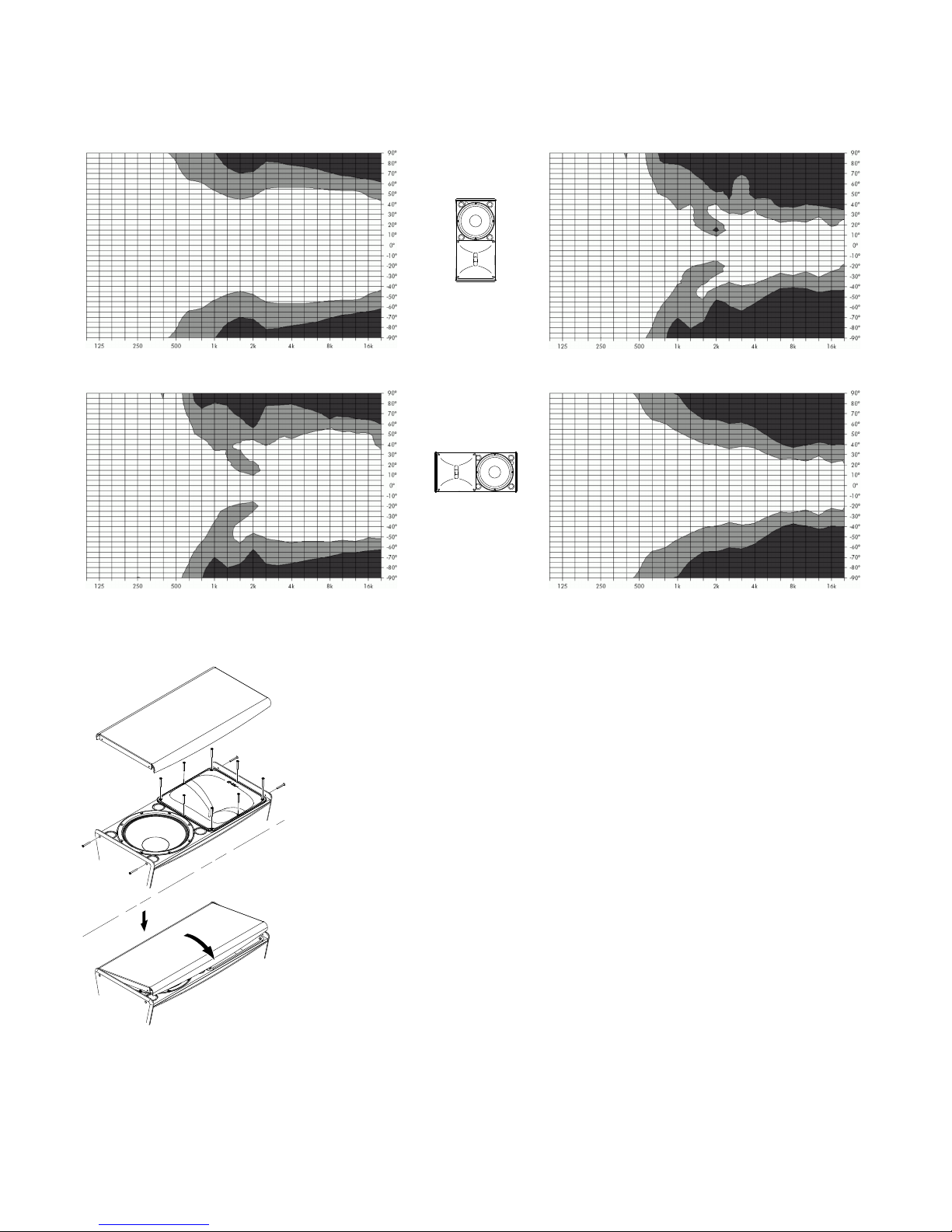

Fig. 8: Isobar diagram horizontal
10A
vertical setup
Fig. 9: Isobar diagram vertical
Fig. 10: Isobar diagram horizontal
10A
horizontal setup, horn
rotated
Fig. 11: Isobar diagram vertical
d&b 10A/10A-D Manual (1.1 EN) 9

Fig. 12: Isobar diagram horizontal
10A-D
vertical setup
Fig. 13: Isobar diagram vertical
Fig. 14: Isobar diagram horizontal
10A-D
horizontal setup, horn
rotated
Fig. 15: Isobar diagram vertical
Altering the HF horn dispersion
The HF horn can be rotated through 90°.
Tools required: Philips screwdriver, Torx wrench (T20).
1. Undo the 4 torx screws on the top and bottom panels of the
cabinet and remove the front grill.
2. Undo the screws holding the horn flange and rotate the horn.
3. Refit the horn as follows:
– Make sure the gasket of the horn is in place.
– Refit the horn.
– Insert all screws and carefully tighten them clockwise until
they fit precisely into the counter sunk holes..
4. Relocate the front grill as follows:
– Ensure the foam is properly attached to the back of the grill.
– Starting on one side, attach the grill to the recess of the
cabinet's side panel.
– Fold down the grill into the recess on the other side and
make sure it properly fits on all sides.
– Insert the 4 torx screws and tighten them until they fit
precisely into the counter sunk holes.
Fig. 16: Altering the HF dispersion
d&b 10A/10A-D Manual (1.1 EN)10

2.5. Technical specifications
10A/10A-D system data
Frequency response (–5 dB standard) 60 Hz - 18 kHz
Frequency response (–5 dB CUT mode) 100 Hz - 18 kHz
Max. sound pressure (1 m, free field)
10A with D6/D12 127 dB/130 dB
10A-D with D6/D12 127 dB/130 dB
(SPLmax peak, pink noise test signal with crest factor of 4)
Input level (100 dB-SPL/1 m) –12 dBu
10A/10A-D loudspeaker
Nominal impedance 12 ohms
Power handling capacity (RMS/peak 10 ms) 200/1200 W
Nominal dispersion angle (hor. x vert.) 10A 75° x 50°
Nominal dispersion angle (hor. x vert.) 10A-D 110° x 55°
Splay angle range 25° to 60° with 5° increments
Components 10“ driver with neodymium magnet
1.4” exit compression driver on rotatable waveguide
Passive crossover network
Connections 2 x NL4
1 x screw terminal (ST - up to 4 mm2/AWG 11)
Optional fixed cable (PG):
H07-RN-F, 2 x 2.5 mm2 (AWG 13), 5.5 m (18 ft)
Pin assignment NL4: 1+/1–
Fixed cable (PG): brown + / blue –
Weight 14 kg (31 lb)
Fig. 17: 10A frequency response, standard and CUT modes
Fig. 18: 10A-D frequency response, standard and CUT modes
Fig. 19: 10A/10A-D cabinet dimensions in mm [inch]
d&b 10A/10A-D Manual (1.1 EN) 11

3.1. EU conformity of loudspeakers (CE symbol)
This declaration applies to:
d&b 10A loudspeaker, Z1555
d&b 10A-D loudspeaker, Z1556
manufactured by d&b audiotechnik GmbH.
All production versions of these types are included, provided they
correspond to the original technical version and have not been
subject to any later design or electromechanical modifications.
We herewith declare that said products are in conformity with the
provisions of the respective EC directives including all applicable
amendments.
A detailed declaration is available on request and can be ordered
from d&b or downloaded from the d&b website at
www.dbaudio.com.
3.2. WEEE Declaration (Disposal)
Electrical and electronic equipment must be disposed of separately
from normal waste at the end of its operational lifetime.
Please dispose of this product according to the respective national
regulations or contractual agreements. If there are any further
questions concerning the disposal of this product, please contact
d&b audiotechnik.
3. Manufacturer's Declarations
d&b 10A/10A-D Manual (1.1 EN)12

D2610.EN .01, 01/2011 © d&b audiotechnik GmbH
www.dbaudio.com
