Performance 5.0
MANUAL

- 1 -
WARNING
Read all instructions carefully before using this product. Retain this owner’s manual for
future reference:
----When using this treadmill, keep attaching the safety pull pin rope to your clothes.
----When you are running, keep your hand swinging natural, stare frontward, never look adown at your
feet.
----Add the speed step by step when running.
----When emergency happens, take away the “emergent stop button” immediately.
----Leave the treadmill after the running belt stop stably.
Caution: Read the assembly instruction carefully, follow the instruction when
assemble.
ATTENTION
01- Before starting any exercise program, consult with your physician or health professional.
02- Check all the bolts locked.
03- Never put the treadmill in the wetness area, or it will cause troubles.
04- We take no responsibility for any troubles or hurts due to above reasons.
05- Dress sport clothes and shoes before running.
06- Do not do exercise in 40 minutes after meal.
07- To prevent hurts, please warm up before exercise.
08- Consult with doctor before exercise if you have high blood pressure.
09- The treadmill is only used for adults.
10- Provide the olds, children and handicapped with good care, guide and supervision.
11- Do not plug anything into any parts of this equipment, or it may damage.
12- Do not connect line to the middle of cable; do not lengthen cable or change the cable plug; do not put
any heavy thing on cable or put the cable near the heat source; forbid using socket with several
holes, these may cause fire or people may be hurt by the power.
13- Cut off the power when the equipment is not used. When the power is cut off , do not pull the power
line to keep the wire unbroken.
14. Maximum weight of user: 160 KGS.
15. Pulse monitor data may not be accurate, can not be used for medicine. Over-exercise may cause
injury, even death. If you have a feeling of dizziness, sickness or other abnormal symptoms, please stop

- 2 -
training and consult a doctor immediately.
IMPORTANT SAFETY PRECAUSTION
1. Plug the power cord of the treadmill directly into a dedicated grounded circuit. This product must be
grounded. If it has breakdown, grounding provides a path of least resistance for electric current to
reduce the risk of electric shock.
2. Position the treadmill on a clear, level surface. Do not place the treadmill on thick carpet as it may
interfere with proper ventilation. Do not place the treadmill near water or outdoors.
3. Position treadmill so that the wall plug is visible and accessible.
4. Never start the treadmill while you are standing on the walking belt. After turning the power on and
adjusting the speed control, there may be a pause before the walking belt begins to move, always stand
on the foot rails on the sides of the frame until the belt is moving.
5. Wear appropriate clothing when exercising on the treadmill. Do not wear long, loose fitting clothing
that may be caught in the treadmill. Always wear running or aerobic shoes with rubber soles.
6. Make sure the power supply is connected and the safety lock is effective before using the treadmill. Fit
one side of the safety lock on the treadmill and clip the other side on your clothes or belt, which will
enable you to pull off the safety lock promptly in an emergency.
7.Always unplug the power cord before remove the treadmill motor cover.
8. Make sure there is no less than 2*1m space behind the treadmill.
9. Keep small children away from the treadmill during operation.
10. Always hold the handrails when initially walking or running on the treadmill, until you are comfortable
with the use of the treadmill.
10. Always attach the safety pull pin rope to your clothing when using the treadmill. If the treadmill should
suddenly increase in speed due to an electronics failure or the speed being inadvertently increased, the
treadmill will come to a sudden stop when the pull pin is disengaged from the console.
12. In case of any abnormality during the use process, please remove the safety lock immediately,
grasping the handlebar and jumping onto the two edgings, then get off the treadmill after it stops.
13. When the treadmill is not being used, the power cord should be unplugged and the safety pull pin
removed.
14. Put the safety key away where can not be reached by the children. Minors must be accompanied by
the adults when using the treadmill.
15. Before starting any exercise program, consult with your physician or health professional. He or she
can help establish the exercise frequency, intensity (target heart zone) and time appropriate for your
particular age and condition. If you have any pain or tightness in your chest, an irregular heartbeat,
shortness of breath, feel faint or have any discomfort while you exercise, STOP! Consult your physician
before continuing.
16. If you observe any damage or wear on the mains plug or on any section of the mains lead then
please have these replaced immediately by a qualified electrician –do not attempt to change or repair
these yourself.

- 3 -
17. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
18. Put your feet on the side rail before using the treadmill, and always attach the safety pull pin rope to
your clothing. Hold the handle bar before the running belt moving well (feel the running speed by your
single foot before using it). To avoid loss balance, please slow down the speed to the lowest or take off
the safety. And hold the handle bar to jump to the side rail when emergency or the safety key is not
attached.
19. Make sure the treadmill has stopped before folding. Please don’t operate it after folding the treadmill.
ASSEMBLY STEPS

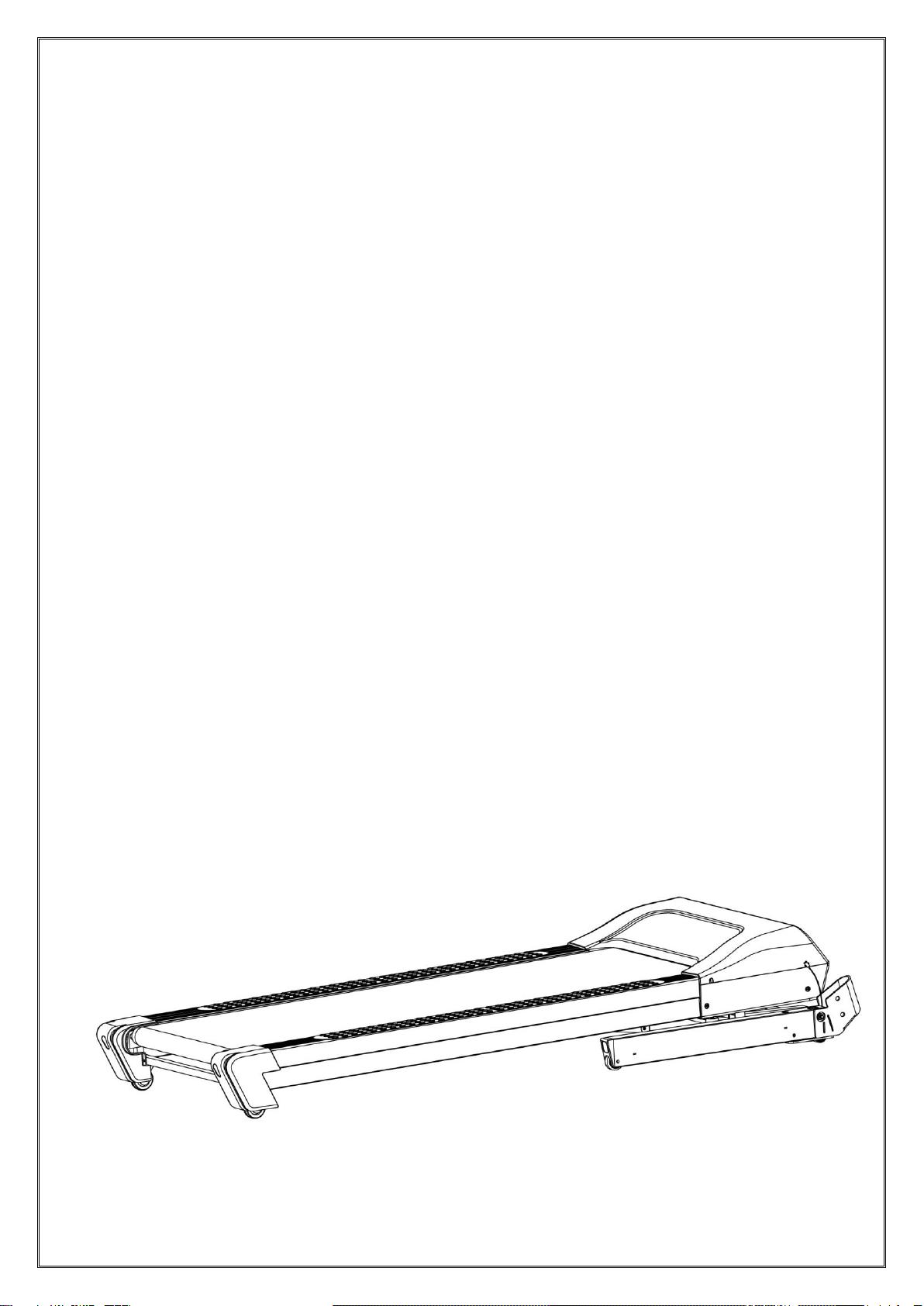

STEP 1:
Open the package, take out all parts and place the main frame on the flat ground.(NOTE: Please don’t
cut down the packing straps right now.)

- 4 -
STEP 2:
1. Cut down the straps when the main frame was placed well (Don’t move it any more).
2. Connect the computer lower wire（92）and computer extension lower wire (93).
3. Insert and lock the upright tube (3L/R) on the bottom frame (1) with the hex socket screws (55)(59)
and the Lock washer (80)(81).
NOTE: please don’t tighten the Hex socket screw (55)(59) for the time being.

- 5 -

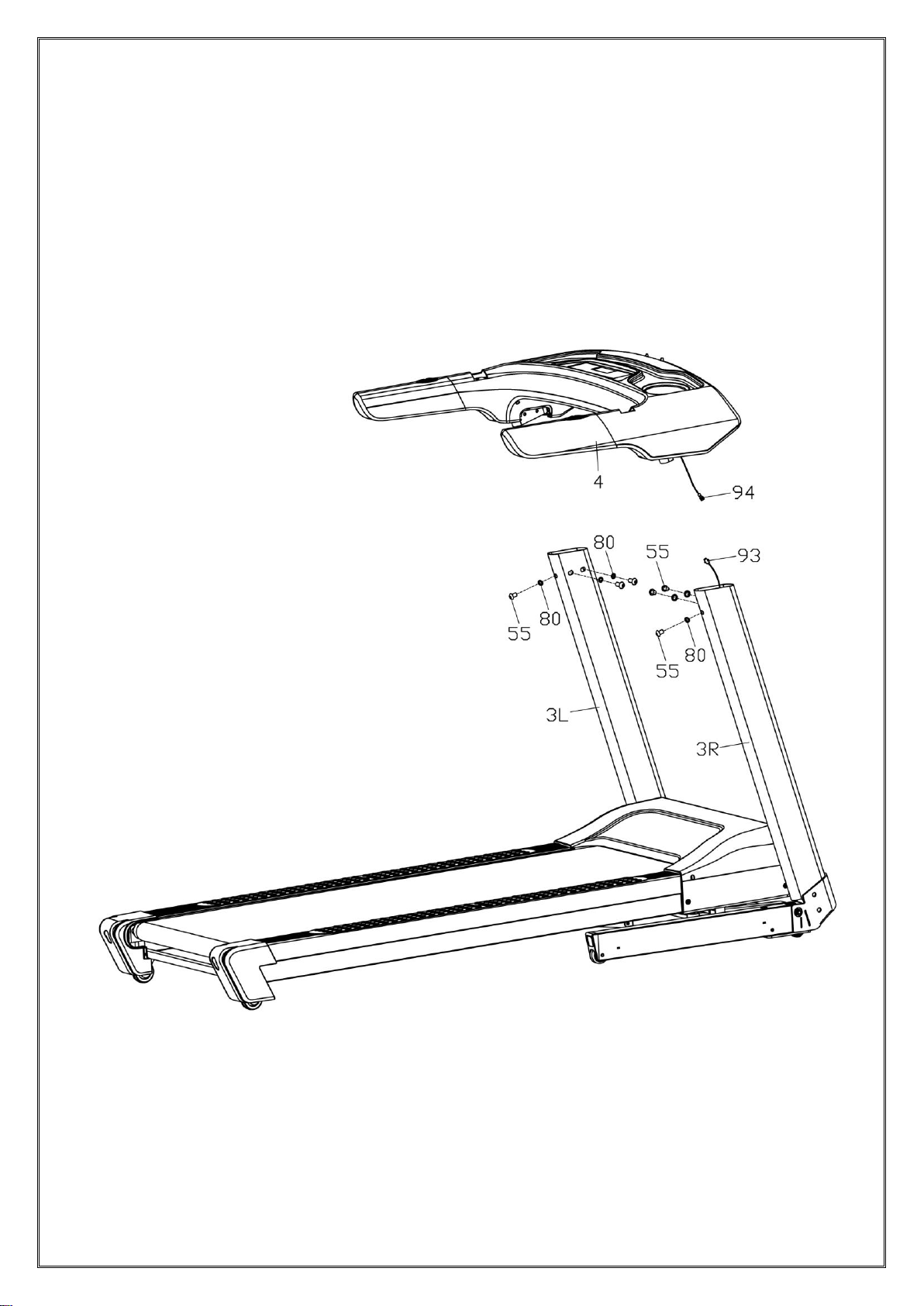

STEP 3:
1. Connect the computer extension upper wire (94) with the extension lower wire (93).
2. Lock the computer frame (4) on the upright tube (3L/R) with the hex socket screws (55) and Lock
washer (80).
NOTE: please don’t tighten the Hex socket screw (55) for the time being.

- 6 -
STEP 4:
1.Connect the wire of armrest (6) with the wire of computer frame(4) properly well.
2. Secure the armrest (6) to computer frame(4) with the hex socket screws (55) and Lock washer (80).
3. Separate armrest decorative cover(35L/R ) from the opening, then put on the joint of armrest (6) and
computer frame(4) respectively.
4. Tighten all hex socket screws which didn’t tighten in previous steps.

- 7 -

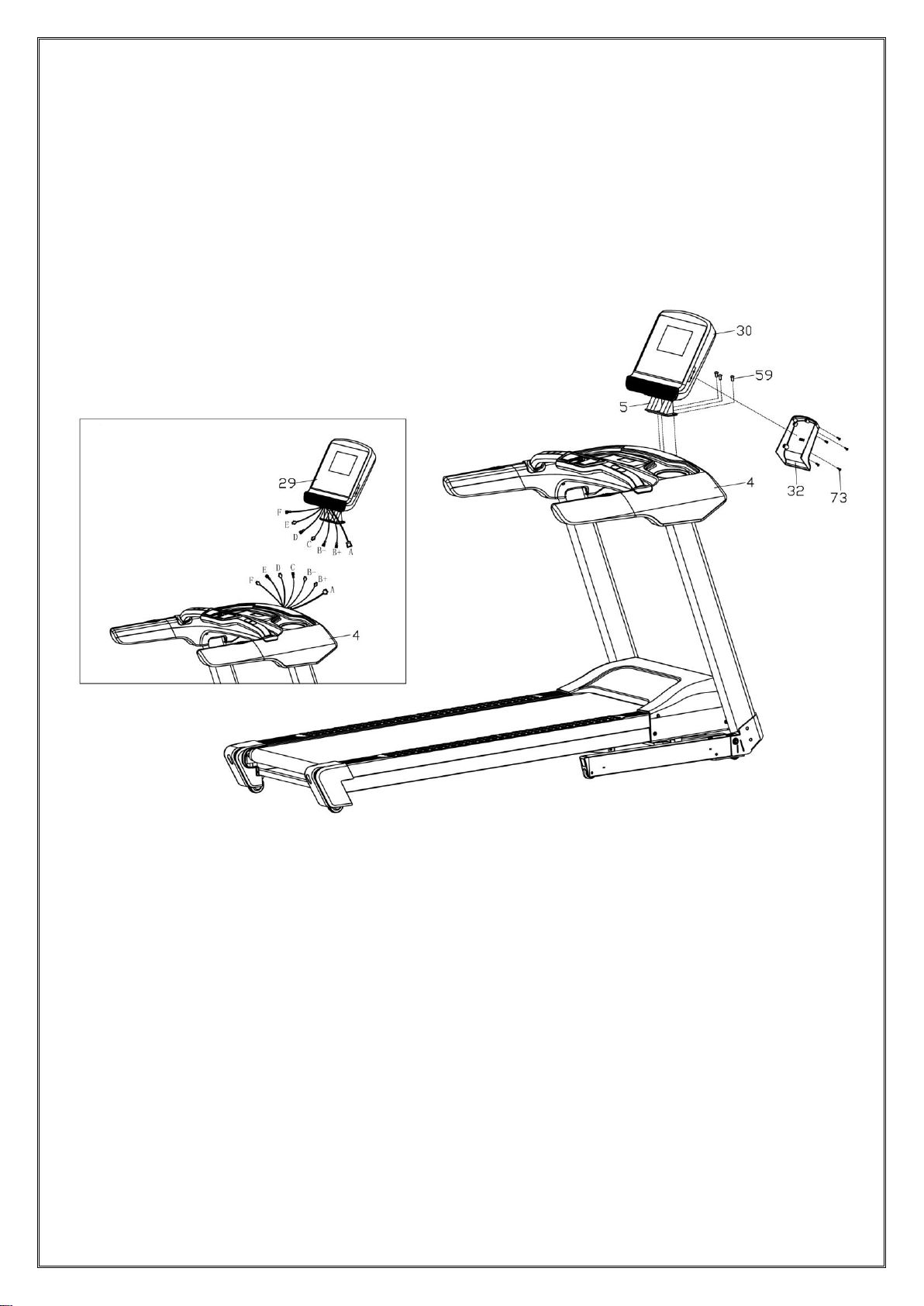

STEP 5 :
1.Connect the wire of Computer panel (29) and Computer frame (4) properly well.( Wires of the same
order are joined together as picture A shown)
2.Using Hex socket screw (59) to secure the Panel bracket (5) on Computer frame (4).
3.Using Cross tapping screw (73) to secure the Computer panel joint cover (32) to Computer panel lower
cover (30).
PICTURE A

- 8 -

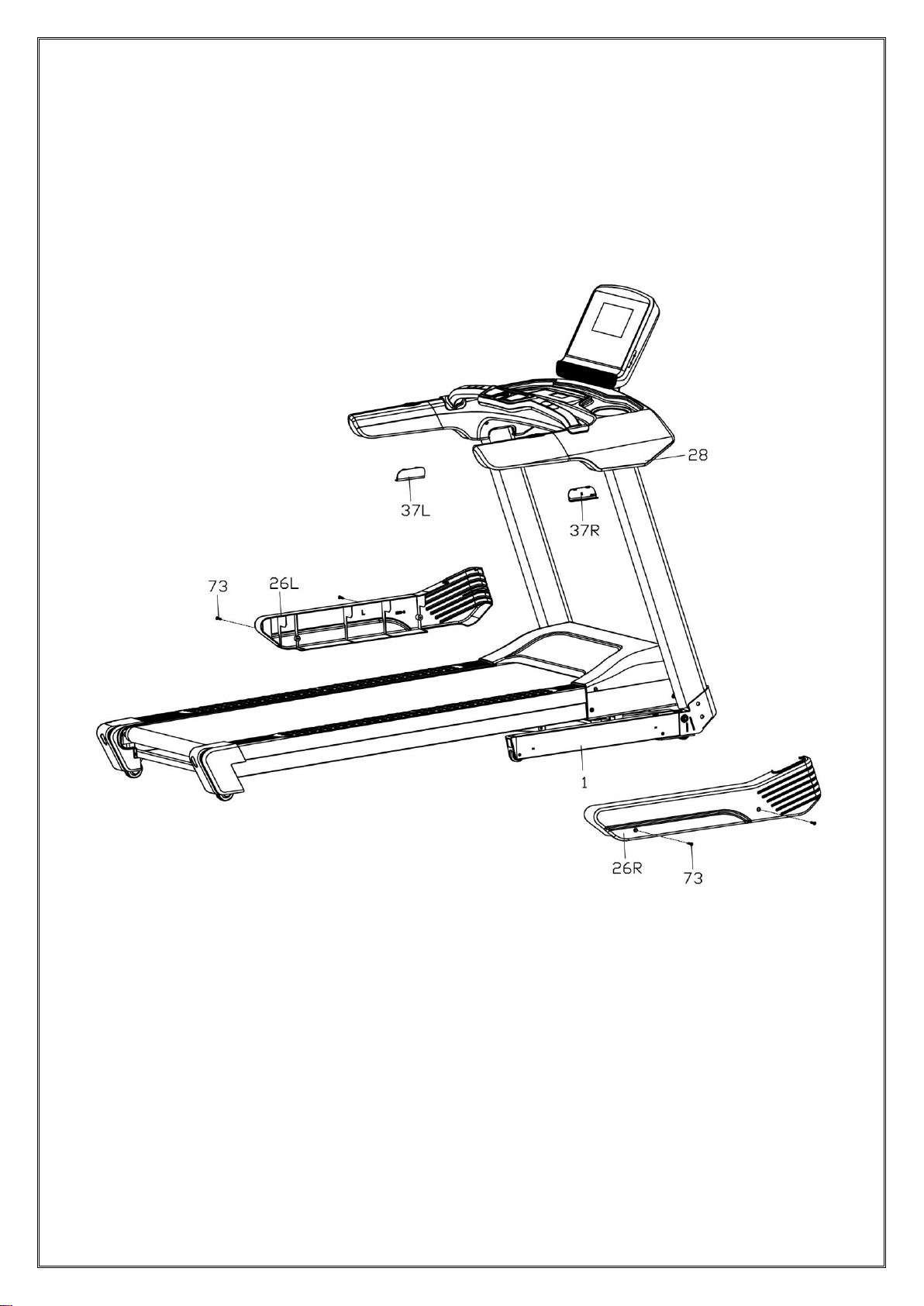

STEP 6 :
1. Secure the protective cover (26L /R ) to the bottom frame（1）with Cross tapping screw(73).
2. Stuck protective cover (37L /R ) to the card slot of computer lower cover.

- 9 -
When you fold the machine:
Put your hands on placeA, lift up the machine in the direction of the arrow until you hear the sound from
the cylinder (14).
Note: Please unplug the power cord and make sure treadmill stopping completely before folding
machine. Don’t operate the treadmill after folding
When you unfold the machine:
Grasp the place A by one hand, kick the place B of cylinder (14) with your right foot, pull the running
board to the level of place C, then the running board will get down automatically.

- 10 -
GROUNDING METHODS
This product must be grounded. If it should malfunction or breakdown, grounding provides
a path of least resistance for electric current to reduce the risk of electric shock.
This product is equipped with a cord having an equipment-grounding conductor and a
grounding plug. The plug must be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes and ordinances.
DANGER –Improper connection of the equipment-grounding conductor can result in a
risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as
to whether the product is properly grounded.
Do not modify the plug provided with the product –if it will not fit the outlet, have a proper
outlet installed by a qualified electrician.
This product is for use on a nominal 220-volt circuit and has a grounding plug that looks
like the plug illustrated in sketch A in following figure. Make sure that the product is
connected to an outlet having the same configuration as the plug.
No adapter should be used with this product.
TECHNICAL PARAMETER
ASSEMBLY SIZE
(mm)
1990*920*1490
POWER
AS ORDER
FOLDING SIZE
(mm)
1780*915*1680
MAX OUTPUT
POWER
AS ORDER
RUNNING
SURFACE (mm)
530x1510
INPUT CURRENT
220V
NET WEIGHT
105 KG
SPEED RANGE
1.0-20 KM/H
MAX WEIGHT
160 KG
INCLINE
0-15 LEVEL

- 11 -
OPERATION INSTRUCTIONS
1. Function specifications
1.1. Start
Normal startup after 3s counting backwards.
1.2. Number of programs
Manual Modes, 18 Preset programs, 3 User setting programs,HRC1-HRC3,FAT.
1.3. Safe lock function
Remove the safety lock in any modes could rapidly slow down the treadmill till stop.
“---” will be instantly displayed on the window, the buzzer buzz “Bi, Bi”sound
continuously. Buttons are invalid in this condition. When the safety lock is off, at the
same time press "PROG" + "MODE" key for 3s, the display switches between imperial
and metric systems.
Restore the safety lock, the window will display for 2s and then get into standby state,
wait for inputting commands.

- 12 -
1.4. LCD windows display functions:
A.Speed/pulse window:Display the current running speed or current pulse.
B.INCL./PROG. Window: Display the current incline or programs.
C.TIME Window:Display the running time under manual mode or the countdown running
time under mode and programmed mode.
D.DIS./CAL./STEPS Window:display distance，calorie or steps data.Display Switch every 5
seconds.
E. window: “Lubrication ”reminder. Display will light up the icon when
needed lubrication.
1.5. Key function
START, STOP, PROG, MODE, SPEED/+/-, INCLINE/+/-.
Speed shortcut: 3、6、9、12; slop shortcut: 3、6、9、12.
①“START” for startup, press SRATR the treadmill will run at minimal speed; “STOP”
for stop, the treadmill will stop when the key pressed.
②PROGAM KEY: In standby state, you can circle select the programs from Manual
Mode to “P1-P18, U1-U3,HRC1-HRC3 and FAT” by pressing this key; Manual
model is set for default, the default speed is 1.0 km/h, max speed set at 20km/h.
③MODE KEY: In standby state, press the key to select H-1 to H-3 three different
countdown modes; H-1 for time countdown mode; H-2 for distance countdown
mode; H-3 for cal. Countdown mode; SPEED/+/- key may be used to setup all the
countdown modes, after setting the data, press the START to run the treadmill.
④SPEED+/-: for increase or decrease the speed setting; when setting the
parameters, the motor runs, the keys can be used as parameter adjuster, when
the motor runs, the keys can be used as incline adjuster, up 0.1km per press;
when continuously press over 0.5s, it will continuously speed up or down.
⑤INCLINE+/-: “INCLINE+” and “INCLINE-” are for slop adjusting, which can be used
for the data setting; when the treadmill is in use, the key can be used to adjust the
slop, advance 1level per press; continuously press over 0.5s, it will continuously
incline or decline.
⑥SPEED shortcut: 3km/h，6km/h，9km/h，12km/h can be set under operation
condition.
⑦INCLINE SHORTCUT:3,6,9,12 can be set under operation condition
⑧VOLUME: adjust the music volume.
⑨UP/NEXT: select the music truck.
⑩Kilometer transform with mile: take off the safety key, press PROGRAM and
MODE for three seconds at the same time.
⑪Incline studying: Press the INCLINE+ and INCLINE-, two buttons for 3 seconds
in the condition of taking away the safety key, you could study the incline. Please
don’t do other operation during incline study as far as possible, otherwise you will be
failure.

- 13 -
1.6 Data display range of various parameters:
TIME: 0:00 –99.59(MIN)
DISTANCE: 0.00 –99.9(KM)
CALORIES: 0.0 –999 (KC)
SPEED: 1.0 –20.0(KM/H)
PULSE: 50 –200 (BPM)
1.7. Heart rate measurement function
While the treadmill is connected to the power, hold the pulse tester for 5s and the
heart rate value will be displayed. The initial value is the actually measured heart rate,
and its display range is: 50-200 times/ minutes. In the heartbeat measurement
process, there will be a heart shaped icon flashing.
Heart rate displayed is for reference only and can not be used as medical data.
1.8. Manual Modes
1.8.1. How to enter manual mode:
A. Switch on the power supply; then, directly enter normal mode under the manual
mode.
B. In stop state, press MODE to select Normal mode, Time Countdown, Calorie
Countdown and Distance Countdown modes under the manual mode.
1.8.2. Setting functions under manual mode: Time, Distance and Calorie Setting
A. When entering the manual mode, the time is displayed as 0:00;
B. In manual mode, press MODE to enter Time Countdown mode; the time window
will display the time and flicker; the initial time is 30:00; set countdown time by
SPEED +/ SPEED -. Time setting range: 5:00-99:00; each time of increase/
decrease will be 1: 00.
C. In time countdown mode, press MODE to enter Distance Countdown mode; the
initial distance will be displayed as 1.00 km; set the distance by SPEED +/ SPEED -
in the range of 1.0-99.0 km/mi; each time of increase/ decrease will be 1 km.
D. In distance countdown mode, press MODE to enter Calorie Countdown mode; the
initial distance will be displayed as 50.0kcal; set the calorie by SPEED +/ SPEED - in
the range of 20.0-990.0 kcal; each time of increase/ decrease will be 10.0 kcal.
1.8.3. Operation in manual mode:
A. Press START and the motor will start operating after 3s of countdown; the initial
speed will be 1.0km/h for metric system or 0.6mile/h for imperial system;
B. Press SPEED +/ SPEED - to adjust speed;
C. Press speed shortcuts to quickly set up to the speed marked on the key;
D. When the motor is running, press STOP and the motor will slow down and stop
finally;
E. Remove the safety lock to urgently stop motor running; then, LCD window will
display “---” and the buzzer will make short sound of Bi-Bi-Bi.
F. When the set time reduces to zero or when the set calorie reduces to zero, or the set
distance reduces to zero, the speed will gradually reduce till the stop of the machine,
the buzzer will make short alarm “Bi-Bi-Bi”, and the speed window will display END;
5s later, the machine will return to the standby state and the buzzer will make long

- 14 -
alarm “Bi-Bi”;
G. Parameters not set will increase forwards, and will be reset after reaching the upper
limit of the display range; in manual mode, the machine will stop when the time
accumulates to be more than 99: 59 (100min).
1.9. Preset Programs
Each program is divided into 16 sections; the operation time will be evenly distributed
to each program section. Here below is a 18section program running diagram.
No.
Setup time / 16 = each segment of the running time
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
P1
SPEED
2
5
5
5
10
10
5
5
5
3
3
2
5
5
3
2
INCLINE
0
0
1
1
1
1
2
2
2
2
3
3
3
2
2
0
P2
SPEED
2
2
7
2
2
7
7
12
4
4
12
4
4
12
4
2
INCLINE
0
1
2
2
3
3
2
2
3
3
2
2
3
2
2
0
P3
SPEED
2
4
9
9
4
4
8
8
10
10
12
4
4
8
4
2
INCLINE
0
1
2
3
4
5
4
5
4
2
1
2
3
2
1
0
P4
SPEED
2
6
6
6
12
12
12
12
6
6
3
3
3
5
5
2
INCLINE
0
1
2
3
4
5
6
7
6
6
5
4
3
2
1
0
P5
SPEED
2
4
6
12
12
12
3
3
3
3
12
12
12
6
4
2
INCLINE
0
2
4
6
4
2
1
0
1
1
2
2
2
2
3
0
P6
SPEED
2
4
5
5
6
6
8
8
6
6
8
8
6
9
6
2
INCLINE
0
1
3
4
4
3
3
1
2
1
2
1
2
1
2
0
P7
SPEED
2
7
7
9
9
4
4
12
12
4
4
8
8
4
4
2
INCLINE
0
1
1
2
2
3
3
4
4
3
3
2
2
1
1
0
P8
SPEED
2
2
6
6
6
8
9
10
11
12
9
5
5
5
3
2
INCLINE
0
1
2
4
2
1
2
4
2
1
2
4
2
1
2
0
P9
SPEED
2
4
8
10
2
4
8
10
2
4
10
2
4
10
4
2
INCLINE
0
1
2
3
4
5
6
7
8
9
8
6
4
2
1
0
P10
SPEED
2
5
6
7
8
9
10
11
10
9
8
6
7
5
4
2
INCLINE
0
1
2
4
6
6
6
4
4
4
2
2
2
1
1
0
P11
SPEED
2
5
6
7
9
9
6
9
6
9
6
10
6
10
7
2
INCLINE
0
2
2
2
3
3
3
4
4
4
5
5
5
4
4
0
P12
SPEED
2
6
8
10
8
6
4
6
8
12
8
6
8
12
12
2
INCLINE
0
1
1
3
3
5
5
7
7
5
5
3
3
1
1
0
P13
SPEED
2
12
4
12
4
12
4
12
4
12
4
12
4
12
4
2
INCLINE
0
8
10
13
4
8
10
13
4
8
10
13
4
8
10
0
P14
SPEED
2
8
10
12
4
8
10
12
4
8
10
12
4
8
10
2
INCLINE
0
8
12
13
4
8
12
13
4
8
12
13
4
8
12
0
P15
SPEED
2
12
10
8
12
12
10
8
12
12
10
8
12
12
10
2
INCLINE
0
3
4
5
6
8
7
8
8
7
7
6
5
4
3
0
P16
SPEED
2
12
4
12
4
12
4
12
4
12
4
12
4
12
4
2
INCLINE
0
4
5
6
2
4
5
6
2
4
5
6
2
4
5
0
P17
SPEED
2
4
6
8
10
12
12
2
4
6
8
12
12
10
6
2

- 15 -
INCLINE
0
4
6
8
10
12
13
12
13
12
13
10
8
6
4
0
P18
SPEED
2
6
8
4
6
8
4
6
8
4
6
8
4
6
8
2
INCLINE
0
6
8
2
6
8
1
6
8
2
6
8
1
6
8
0
1.10. User-setting programs:
Beside the 18 inner systems, the treadmill setup 3 user-defined programs: U1, U2, U3.
1. Setting the user-defined program:
Continuously press "PROG" key until the expected program (U1/U2/U3) display in the
standby condition, while the "time" window flash, display the setting time, press
“SPEED+”, “SPEED -”to set up expected run time, press "MODE" key to enter program
parameter, then set up the first time period parameter, by " SPEED +" /" SPEED -" key
or shortcut key to set the speed; press "mode" key to finish the first time period setting,
and entering the next time period setting, until all 16 time period setting. The parameter
will be kept permanently until resetting, and all parameter will not be lost when power
off.
2. Selection and start the user-defined program:
In the standby condition, continuously press "PROG" key until the expected
user-defined program U1/U2/U3 display, set up the run time, press "start" key to turn on
the treadmill.
1.11. Body Fat Test:
In standby state, press PROG to enter FAT (Physical fitness test) program. Press
MODE to enter the program of F—1, F—2, F—3, F—4, F—5 (F—1:gender, F—2:age,
F—3:height, F—4:weight, F—5:physical test), Press SPEED +/ SPEED - to set the parameter
of 01-04(see below detailed table), then press MODE to enter the program of F—5 for
physical test. At this state, hold the handle pulse board for 5-6 seconds and it will display
the FAT, check if the weight matches with your height.
FAT is to measure the relevance between height and weight, not the body proportion.
FAT is suitable for every man and woman, it provide the important grounds for adjusting the
weight with other health indicators. The perfect FAT is between 20-24, which means if less
than 19 is too thin, and if between 25-29 is overweight and if more than 30 is obesity.
F--1
Gender
01(man)
02(woman)
F--2
Age
10------------99
F--3
Height
100----------200
F--4
Weight
20------------200
F--5
FAT
≦19
Underweight
FAT
=(20--24)
Normalweight
FAT
=(25--29)
Overweight
FAT
≧30
Obesity
1.12.HRC：
DEFAULT is a particular set of instructions which the computer always uses unless the
person using the computer gives other instructions.
Lowest-Highest: the adjustable range in the heart rate from the lowest to the highest.

- 16 -
HRC program
AGE
Target zone (L-H)
AGE
Target zone (L-H)
lowest
default
highest
lowest
default
highest
15
170
175
180
48
137
142
147
16
169
174
179
49
136
141
146
17
168
173
178
50
135
140
145
18
167
172
177
51
134
139
144
19
166
171
176
52
133
138
143
20
165
170
175
53
132
137
142
21
164
169
174
54
131
136
141
22
163
168
173
55
130
135
140
23
162
167
172
56
129
134
139
24
161
166
171
57
128
133
138
25
160
165
170
58
127
132
137
26
159
164
169
59
126
131
136
27
158
163
168
60
125
130
135
28
157
162
167
61
124
129
134
29
156
161
166
62
123
128
133
30
155
160
165
63
122
127
132
31
154
159
164
64
121
126
131
32
153
158
163
65
120
125
130
33
152
157
162
66
119
124
129
34
151
156
161
67
118
123
128
35
150
155
160
68
117
122
127
36
149
154
159
69
116
121
126
37
148
153
158
70
115
120
125
38
147
152
157
71
114
119
124
39
146
151
156
72
113
118
123
40
145
150
155
73
112
117
122
41
144
149
154
74
111
116
121
42
143
148
153
75
110
115
120
43
142
147
152
76
109
114
119
44
141
146
151
77
108
113
118
45
140
145
150
78
107
112
117
46
139
144
149
79
106
111
116
47
138
143
148
80
105
110
115
a) The movement time of the heart rate speed was fixed at 22 minutes.
b)In standby mode, press “PROGRAME”key continually until the distance window
displays “HRC”.
Notes: If press “START “key directly under the HRC display window, the system will
automatically recommend a heart rate control parameter for the user as following: HRC can
reach a maximum speed of 9.0 km/H, age 30 years，the default setting is 160times/minute.

- 17 -
c)if press "MODE" key to enter age Settings, the speed window will display default age
30 .The user can press “SPEED+,SPEED-”key or“INCLINE+,INCLINE-”key to choose the
right age which is suitable. The adjustable age range is 15-80 years old. (The details please
see the HRC form)
c) After the user chooses the right age, press “MODE” key, the system will automatically
recommend a right target heart rate according to the chosen age displaying on the speed
window for reference.Also the user can choose the target heart rate on the basis of
personal physical condition by pressing “SPEED+,SPEED-”key or“INCLINE+,INCLINE-”key.
The select range is 95-180(The details please see the HRC form)
d) After the user chose the age and target heart rate, press “MODE” key into the home
screen.
e)On the state of HRC, pressing “SPEED+,SPEED-”key or“INCLINE+,INCLINE-”key can
adjust the speed and incline, but the system will automatically adjust the speed and incline
to make your heart rate close the target heart rate.
f) The front 3 minutes before movement is warm-up time, the system will not automatically
adjust the speed and incline but only manually adjust; After 3 minutes, the system will
adjust according to your current heart rate.
When the user’s actual heart rate<target heart rate, HRC will automatically increase
0.5KM/time per 1OS until the specified maximum speed. (At this moment, the user can
control the incline freely.)
When the user’s actual heart rate>target heart rate, HRC will automatically reduce
0.5KM/time per 10S until the minimum speed of HP2. (At this moment, the user can control
the incline freely.)
When the movement time exceeds 20 minutes , the system will enter into
“COOLDOWN”mode and the incline go to zero and the speed lower 0.5KM/H per 10
seconds. When the speed lower to 4KM/H or less, the speed stops lowering until the
movement ends. You can directly press “STOP” key or switch off the safety key to stop the
movement.
Notes: 1.HRC must use the chest belt to detect the heart rate and the chest belt must close
to the chest and skin.
2. The data collection may be imprecise while using HRC with music playing.

- 18 -
1.31. Others
1.13.1. When a countdown parameter run off, display "END", the alarm rings 0.5s every 2s,
until the treadmill full stop, then return to manual mode.
1.13.2. In setting a parameter, it can be roop-setting, for example, time range is
5:00--99:00, when set at 99:00, press "+" key, the time return to 5:00, and so on
recirculation, add or reduce by “+”“—”symbol.
1.13.3. Countdown time, countdown calorie and countdown distance can only be set up for
one of them. The last time setting will be implemented. The parameter set will be counted
backwards while other parameters will be counted forwards.
1.13.4. The standard calorie is about 70.3kcal/km.
1.13.5. The acceleration is 0.5Km/S and the deceleration is 0.5Km/S.
1.13.6. MP3 music audio amplification, input from the enter hole by the side.
1.13.7. In the process the un-set parameter will be up cumulative, the display clear when up
to the max range; in the manual mode when the time accumulation excess 99:59(100min)
the treadmill stops.
1.13Bluetooth for music (optimal):
1. Initiate Bluetooth function of phone, and then search for Bluetooth devices
2. Pair your phone with the treadmill via Bluetooth.
3. Turn on some music in your phone, then they will be played by speaker on the
treadmill.
1.14.“Lubrication”reminder:
Treadmill total working
after Every 300KM, the screen will light up the icon. Standby, remove
the safety key then hold the “Speed + ”and "Speed -" button
simultaneously till “Bi Bi”buzz comes will cancel this reminder. 300KMs later,the loop ru
ns again.
1.15. Meanings of error message codes
1.14. Meanings of error message codes:
Code
Fault description
Reasons
Solutions
E1
Computer and lower
controller communication
abnormality
The computer and lower controller
wires was not connected well
Check the wires of computer and
lower controller
Computer fault
Replace a computer
The lower controller fault
Replace a lower controller

- 19 -
E2
Over- heat protection
Temp Sensor short circuit
Replace inverter
Inverter fault
Fan fault
E3
Low-voltage protection
power voltage below 185V
Make sure the voltage in the right
range
power voltage normal
E4
Incline motor correction
failure or error
Incline motor correction failure
Re-check incline motor after power
on
Inverter connection loosed
Check the connection
Inverter broken
Change inverter and re-check it
Incline motor broken
Change the incline motor and
re-check
E5
Over-current protection
motor with over current
Lubricating oil to reduce the
resistance between running belt and
running board
IPM module short circuit
Replace inverter
E6
Lower controller and
inverter communication
abnormality
Lower controller and inverter was
not connected well
Check the Lower controller and
inverter whether connected well
Lower controller fault
Replace lower controller
Inverter fault
Replace inverter
E7
Over- load protection
parameter setup error
Replace inverter
over-loading
reduce loading
E9
Incline signal error
Incline sensor not connect well
Check the connecting of incline
sensor
Incline motor fault
Change incline motor
Inverter fault
Change inverter
