USER’S MANUAL
FIXATION UNIT
TELEIOS GRANDE H6
TITLE
OPERATOR’S MANUAL
PAGE
DEVICE
FIXATION UNIT (TELEIOS GRANDE H6)
2
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
25
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN
INDEX.
1. Important Safety Instructions ……………………………………………………………………………….
2. Instructions and considerations before installing the fixation unit ……………………………………….
3. Introducing the fixation unit ………………………………………………………………………………….
4. How to operate the fixation unit ……………………………………………………………………………..
5. Maintenance ………………………………………………………………………………………………….
6. Troubleshooting ……………………………………………………………………………………………...
3
5
10
13
20
24
THANK YOU FOR CHOOSING d·gen
Be sure to read this document carefully for a correct use of this printer.
The contents of this document are subject to change without notice.
Please inform us if any misprint or error is found in this document.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form
or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior
written permission of d∙gen Inc. International.
The information contained herein is designed only for use with this d∙gen printer. d∙gen is not
responsible for any use of this information as applied to other printers.
Neither d∙gen Inc. International nor its affiliates assumes no responsibility to the purchaser of this
product or third parties for damages, losses, costs, or expenses incurred by the purchaser or third
parties as a result of accident, misuse, or abuse of this product or unauthorized modifications, repairs,
or alterations to this product, or failure to strictly comply with d∙gen Inc. International’s operating and
maintenance instructions.
d∙gen Inc. International shall not be liable for any damages or problems arising from the use of any
options or any consumable products other than those designated as original d∙gen products or d∙gen
approved products.
d∙gen Inc. International shall not be held liable for any damage resulting from electromagnetic
interference that occurs from the use of any interface cables other than those designated as original
d∙gen products or d∙gen approved products.
d∙gen Inc. International
73, Bupyeong-daero 297 beon-gil
Bupyeong-gu, Incheon 21315
Republic of Korea
Phone: (+82) 32 510 3503
Web page: www.dgen.com
TITLE
OPERATOR’S MANUAL
PAGE
DEVICE
FIXATION UNIT (TELEIOS GRANDE H6)
3
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
25
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN
1. IMPORTANT SAFETY INSTRUCTIONS.
Improper handling or operation of this unit may result in injury or damage to property.
Read all of these instructions before using the fixation unit. Also, be sure to follow all warnings and
instructions marked on the machine
When choosing a location for this fixation unit.
Avoid places subject to rapid changes in temperature and humidity. Also keep it away from direct
sunlight, strong light, or heat sources.
Avoid places subject to shocks and vibrations.
Place this product near the fixation unit where the plug can be easily unplugged.
Keep this fixation unit away from dusty areas.
Place this machine on a flat, stable surface that is larger than this product. This product will not operate
properly if it is tilted or at an angle.
Connect to an electric outlet that complies with this machine's ratings (for voltage, frequency, and
current). Incorrect voltage or insufficient current may cause fire or electric shock.
Never use this fixation unit out of doors or in any location where exposure to water or high humidity
may occur. Never touch with wet hands. Doing so may result in fire or electric shock.
Never place any flammable object nearby. Never use a combustible aerosol spray nearby. Never use
in any location where gases can accumulate. Combustion or explosion may occur.
When using an extension cord or power strip, use one that adequately satisfies the machine's ratings
(for voltage, frequency, and current). Use of multiple electric loads on a single electric outlet or of a
lengthy extension cord may cause fire.
Connect it to ground. This can prevent fire or electric shock due to current leakage in the event of
malfunction.
Position it so that the power plug is within immediate reach at all times. This is to enable quick
disconnection of the power plug in the event of an emergency. Install the machine next to an electric
outlet. Also, provide enough empty space to allow immediate access to the electric outlet.
When setting up this fixation unit.
Avoid electrical outlets controlled by wall switches or automatic timers.
Connect all equipment to properly grounded power outlets. Avoid using outlets on the same circuit as
copiers or air control systems that regularly switch on and off.
Keep the entire computer system away from potential sources of electromagnetic interference, such
as loudspeakers or the base units of cordless telephones.
Use only the type of power source indicated on the product’s label.
Use only the power cord that comes with this product. Use of another cord may result in fire or electric
shock.
Do not use a damaged or frayed power cord.
This product’s power cord is for use with this product only. Use with other equipment may result in fire
or electric shock.
Connect all equipment to properly grounded power outlets. Avoid using outlets on the same circuit as
copiers or air control systems that regularly switch on and off.
Entrust operations such as transportation, unloading, and emplacement to trained technicians.
Handling requires special equipment and training. Performing operations in an unreasonable manner
may result in a major accident.
Install the fixation unit in a location that is level, stable, and able to bear the weight of the machine.
Installation in an unsuitable location may cause major accidents, including tip-over, fall, or collapse.
Be sure to anchor the stand to the floor. If the machine begins to topple, a major accident may follow,
including crushing of the appendages or the body.
TITLE
OPERATOR’S MANUAL
PAGE
DEVICE
FIXATION UNIT (TELEIOS GRANDE H6)
4
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
25
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN
When using this fixation unit.
Keep children away from the unit. The machine includes areas and components that pose a hazard to
children and may result in injury, blindness, choking, or other serious accident.
Never operate the machine while tired or after ingesting alcohol or any medication. Operation requires
unimpaired judgment. Impaired judgment may result in an accident.
Never use the machine for any purpose for which it is not intended, or use the machine in an undue
manner that exceeds its capacity. Doing so may result in injury or fire.
For accessories (optional and consumable items, AC adapter, power cord…), use only genuine articles
compatible with this machine. Incompatible items may lead to an accident.
When attempting cleaning, maintenance, or attachment or detachment of optional items, follow the
instructions given in this manual. Incorrect operation or handling may result in injury or electric shock.
Never attempt to disassemble, repair, or modify the fixation unit. Doing so may result in fire, electric
shock, or injury. Entrust repairs to a trained service technician.
Exercise caution to avoid being pinched or becoming caught. Inadvertent contact with certain areas
may cause the hand or fingers to be pinched or become caught. Use care when performing operations.
Never attempt operation while wearing a necktie, necklace, or loose clothing. Bind long hair securely.
Such items may become caught in the machine, resulting in injury.
Conduct operations in a clean, brightly lit location. Working in a location that is dark or cluttered may
lead to an accident, such as becoming caught in the machine as the result of an inadvertent stumble.
Never climb or lean on the machine. The machine is not made to support a person. Climbing or leaning
on the machine may dislodge components and cause a slip or fall, resulting in injury.
Always keep a safety distance of approximately 30 centimeters (12 inches) all around the fixation unit.
Never allow any foreign object to get inside. Never expose it to liquid spills. Inserting objects such as
coins or matches or allowing beverages to be spilled into the ventilation ports may result in fire or
electric shock. If anything gets inside, immediately disconnect the power cord and contact your
authorized dealer.
If sparking, smoke, burning odor, unusual sound, or abnormal operation occurs, immediately unplug
the power cord. Never use if any component is damaged. Continuing to use the machine may result in
fire, electric shock or injury. Contact your authorized dealer.
Caution: high temperatures. Exercise caution to avoid fire or burns.
Do not attempt to service this product yourself.
Do not insert objects through the slots. Take care not to spill liquid on this product.
Do not block or cover the openings in this product’s case.
TITLE
OPERATOR’S MANUAL
PAGE
DEVICE
FIXATION UNIT (TELEIOS GRANDE H6)
5
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
25
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN
2. INSTRUCTIONS AND CONSIDERATIONS BEFORE INSTALLING THE FIXATION UNIT.
Improper handling or operation of this unit may result in injury or damage to property.
Read all of these instructions before using the fixation unit. Also, be sure to follow all warnings and
instructions marked on the machine
The fixation unit is shipped to the user’s location in a carton box as shown in the picture below.
Is required the help of a forklift to unload the machine.
The dimensions and weight of the carton box is as follows:
Fixation unit + pallet
800 Kg
4750 x 1130 x 1180 mm
1764 lbs.
15’7” x 3’8.5’’ x 3’10’’
Caution
Use of safety gloves, safety shoes, goggles and helmet is recommended for unloading the fixation unit.
Power rating.
Teleios Hexa
Printer’s plug (source)
AC 220V 1Ø + N + PE, 2A (50Hz), 440 W
Fixation unit’s plug (source)
AC 380V 3Ø + N + PE, 26A (50Hz), 9.87 kW
Fume buster’s plug (source)
Connected to the fixation unit with a 4-pin connector (cable provided)
The installation requires a total of 2 power supplies. One single phase power supply for the printer and one
three phase power supply for the dryer.
TITLE
OPERATOR’S MANUAL
PAGE
DEVICE
FIXATION UNIT (TELEIOS GRANDE H6)
6
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
25
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN
Suggestions.
Installation of a UPS (uninterruptible power supply) in areas where blackouts are common.
Installation of a voltage stabilizer to avoid electrical instability and noise in the electronic boards.
Obtain a certificate from a qualified electrician recognizing the electric installation is in good shape
and well maintained.
Verify the line and phase voltages are as follows:
R-S
S-T
R-T
380~410 V
R-N
S-N
T-N
220~240 V
R-PE
S-PE
T-PE
220~240 V
N-PE
0 V
Connection to the electric power source.
The fixation unit can be connected directly to
a 3Ø + N 32 A molded case circuit breaker
(MCCB) similar as the one shown below.
Or to a 32 A three phase plug as the one shown below.
Make sure the R-S-T sequence is correct.
CAUTION.
The electrical installation in the user's facility must be correct and prepared before installing
the machine. d•gen cannot provide warranty if electric components in the printer or print
heads are damaged due to a faulty or poorly maintained electrical installation.
TITLE
OPERATOR’S MANUAL
PAGE
DEVICE
FIXATION UNIT (TELEIOS GRANDE H6)
7
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
25
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN

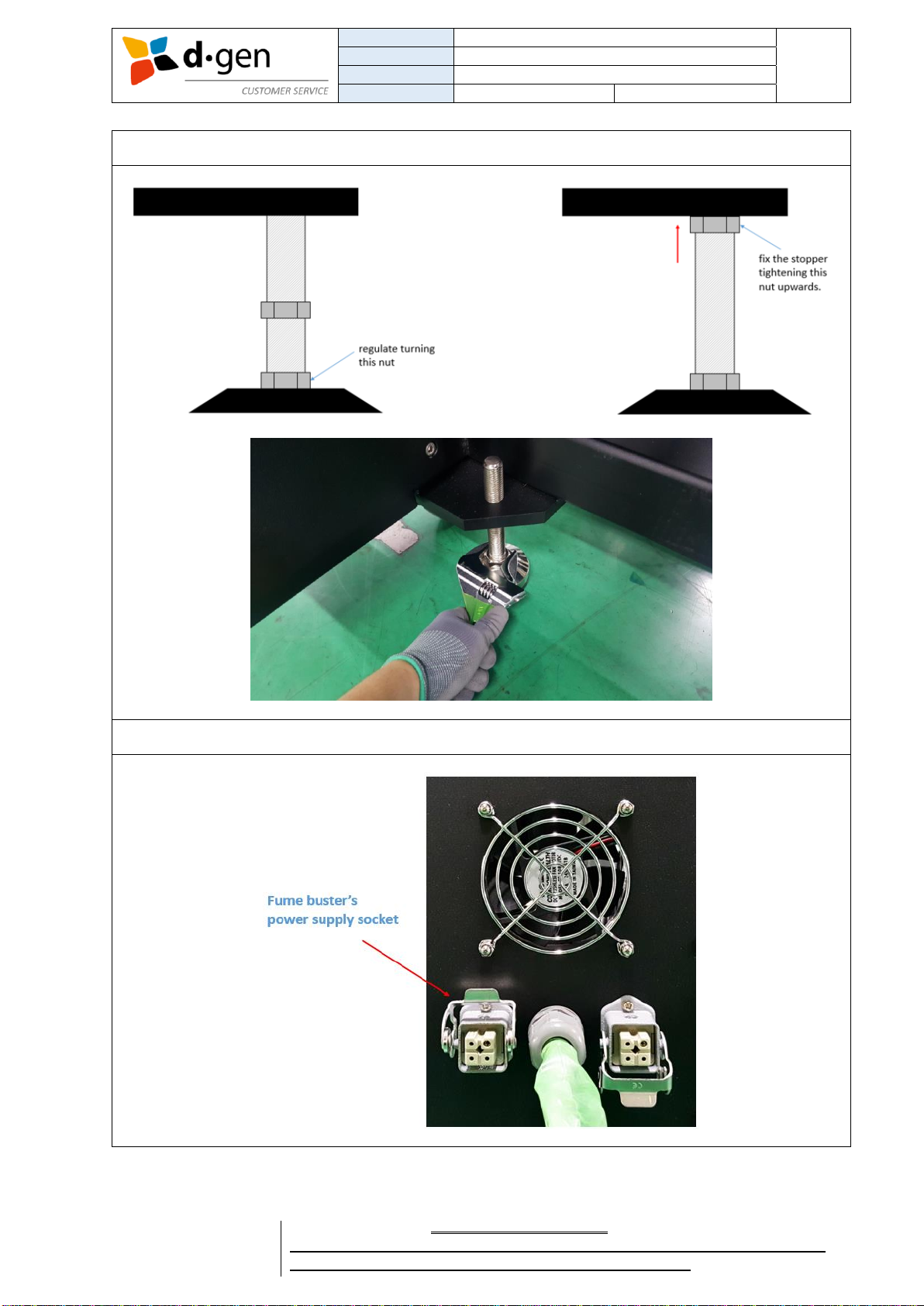

How to position the fixation unit.
The platform links the fixation unit with the printer.
Make sure the distance between the printer and the fixation unit is the same at both sides.
Also, make sure the fixation unit is perfectly horizontally leveled.
TITLE
OPERATOR’S MANUAL
PAGE
DEVICE
FIXATION UNIT (TELEIOS GRANDE H6)
8
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
25
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN
Use the unit’s stoppers to level up the fixation unit.
Connect the fume buster to the fixation unit.
TITLE
OPERATOR’S MANUAL
PAGE
DEVICE
FIXATION UNIT (TELEIOS GRANDE H6)
9
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
25
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN
The fume buster is provided with a 5m long 2-inch duct. Connect this duct to the fixation unit.
Recommended the use of a hose clamp.
TITLE
OPERATOR’S MANUAL
PAGE
DEVICE
FIXATION UNIT (TELEIOS GRANDE H6)
10
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
25
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN
3. INTRODUCING THE FIXATION UNIT.
Introducing the control panel.
1
Green LCD screen.
Fixation unit’s menu is displayed here.
2
AUTO/MANUAL button.
With this button is possible to select the mode between AUTO and MANUAL. AUTO mode basically
turns off the heaters and the fume buster and lowers the up/down roller automatically after a certain
adjustable time frame.
3
Up/down/left/right arrow keys.
The left and right arrow keys are for changing decimal places in the value. The up and down arrow
keys are for increasing or decreasing the value.
4
Enter button.
Once the new value is adjusted press the Enter button to save the new value.
5
Right arrow key’s second function.
The right arrow key has a second function. Turns on or off the selected function.
6
Function button.
Has no use in this machine.
7
Escape button.
Return to the previous screen by pushing this button.
8
BUSY indicator.
The “BUSY” green LED blinks when the machine is operational.
TITLE
OPERATOR’S MANUAL
PAGE
DEVICE
FIXATION UNIT (TELEIOS GRANDE H6)
11
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
25
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN
Introducing the control panel.
1
Fixation’s unit main switch.
Turn clockwise the switch to turn on all the fixation unit. Turn counter-clockwise the switch to turn off
all the fixation unit.
2
Heater ON/OFF indicator.
Green LED with by lit if the heating rods are in action.
3
Emergency push type switch.
Pushing this switch will bring the fixation unit into a complete stop by cutting the power supply to the
heating rods.
Heater ON/OFF indicator.
TITLE
OPERATOR’S MANUAL
PAGE
DEVICE
FIXATION UNIT (TELEIOS GRANDE H6)
12
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
25
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN
Unit’s left side.
1
Duct connection.
The fume buster is provided with a 5m long 2-inch duct. Connect this duct to the fixation unit.
Recommended the use of a hose clamp.
2
Up/down roller’s driving shaft.
Use the lever provided with the fixation unit to manually move the up/down roller.
3
Oil waste bottle.
This bottle collects most of the condensed waste oil in the fixation unit.
TITLE
OPERATOR’S MANUAL
PAGE
DEVICE
FIXATION UNIT (TELEIOS GRANDE H6)
13
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
25
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN
4. HOW TO OPERATE THE FIXATION UNIT.
1
Turn on the fixation unit by turning clockwise the main switch.
2
The green LCD display will show the welcome screen.
It is possible to control the machine in AUTO or MANUAL mode. For the correct functioning of the
fixation unit we recommend to leave the settings a shown in the image below. By pressing the
ENTER button the next main screen will be displayed.
TITLE
OPERATOR’S MANUAL
PAGE
DEVICE
FIXATION UNIT (TELEIOS GRANDE H6)
14
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
25
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN

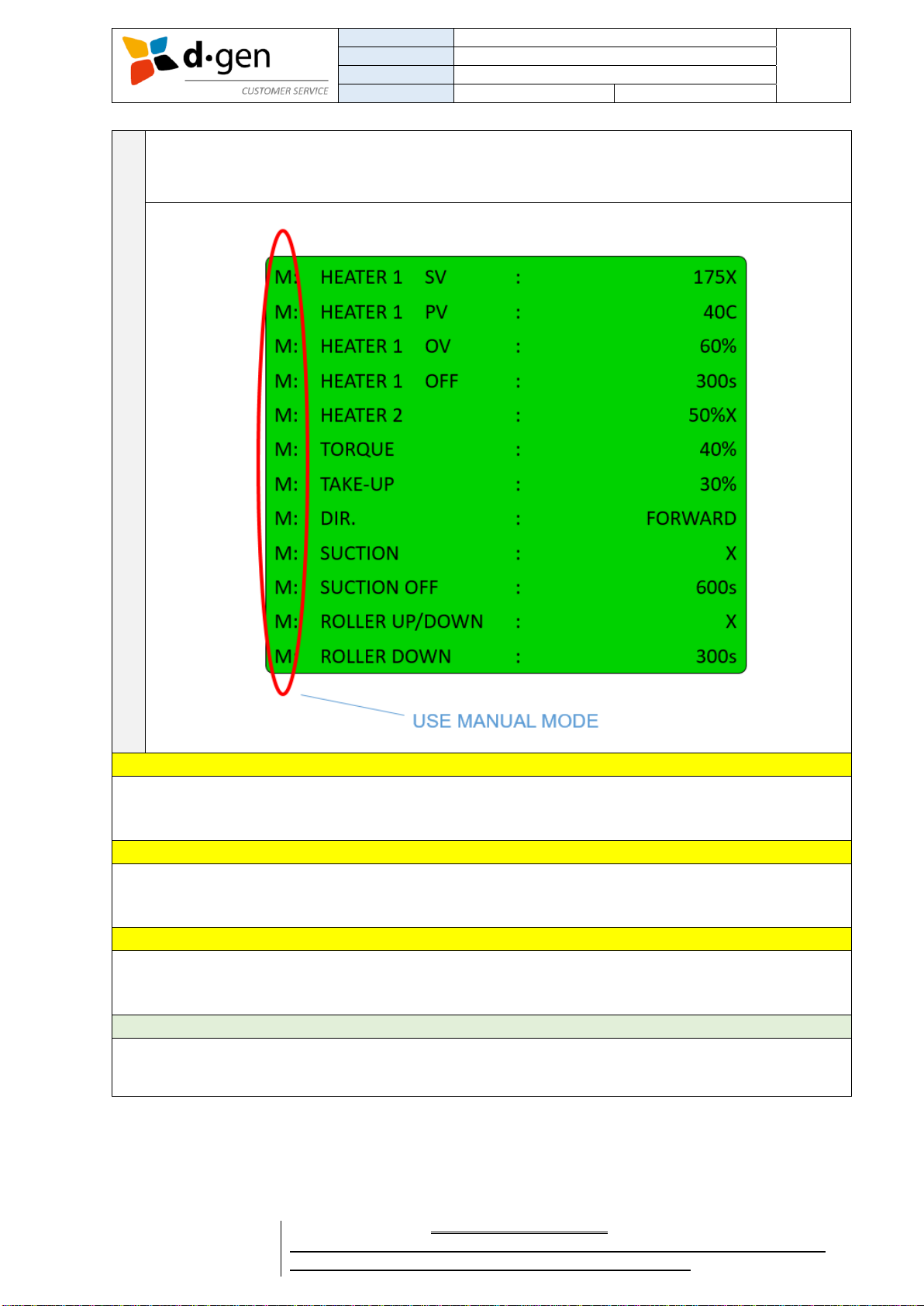

3
Since this printer doesn’t have the ability to run the fixation unit in AUTO mode, we suggest to
change it to MANUAL mode. By pushing the AUTO/MANUAL button is possible to make the fixation
unit to work under MANUAL conditions. You can see all the left arrow will change from A to M.
Caution
Please note that this printer doesn’t have the ability to send the carriage idle signal to the fixation unit.
Therefore, we strongly ask the user to avoid using AUTO mode.
Caution
Please note that under MANUAL conditions leaving the fixation unit unattended for a long period of time
may put at risk the integrity of the machine and the safety of the people around.
Caution
Under MANUAL condition when not printing we suggest the operator always to lower the up/down roller
to the lowest point. Risk of burning the media.
Important
We suggest the user to turn on the fixation unit for a while until it reaches the temperature set value.
Then start to print.
TITLE
OPERATOR’S MANUAL
PAGE
DEVICE
FIXATION UNIT (TELEIOS GRANDE H6)
15
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
25
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN
HEATER 1 SV.
This is the temperature set value. Press ENTER and modify this value using the arrow keys (Left/right to
change position and up/down to increase/decrease the value). Then press ENTER button again to
confirm. Press the right arrow key to turn the heater ON/OFF. X means OFF. O means ON.
HEATER 1 PV.
This is the present temperature value. This value is read by the thermocouple installed inside the
machine where the heating rods are located.
HEATER 1 OV.
Set temperature value’s over value in percentage. The thermostat allows the present temperature value
to fluctuate. The thermostat will switch off the heater if the PV exceeds the preset percentage of SV.
Example: SV=175°C / OV: 60%. The PV will vary from 175 to 175+105°C (60% of 175°C). The heater will
turn ON and OFF many times if the OV is very low. Increasing electric consumption.
HEATER 1 OFF.
Under AUTO conditions if the printer’s carriage goes back to the home position the fixation unit will
interpret that the printer is in standby. The heater will be turned off automatically after a certain period of
time (in seconds) from the moment the printer became idle.
HEATER 2.
The heater number two is basically a rubber heater located under the printing table for extra drying. The
power input to this rubber heater is shown in percentage. This printer does not include HEATER 2.
TORQUE.
Possible to regulate the torque value (in percentage) of the take-up unit located in the fixation unit. The
powder clutch equipped in the fixation unit is the device that regulates the torque.
TAKE-UP.
Possible to regulate the RPM (in percentage) of the take-up unit located in the fixation unit.
X means OFF. O means ON.
DIR.
Possible to change the direction of rotation of the take-up unit.
FORWARD: the lower rubber roller (traction) rotates counter-clockwise.
BACKWARD: the lower rubber roller (traction) rotates clockwise.
SUCTION.
Possible to switch ON/OFF the fume buster connected to the fixation unit.
X means OFF. O means ON.
SUCTION OFF.
Under AUTO conditions if the printer’s carriage goes back to the home position the fixation unit will
interpret that the printer is in standby. The fume buster will be turned off automatically after a certain
period of time (in seconds) from the moment the printer became idle.
ROLLER UP/DOWN.
Possible to higher/lower the up/down roller to make the media go through the heating rods for fixing.
X means DOWN. O means UP.
ROLLER DOWN.
Under AUTO conditions if the printer’s carriage goes back to the home position the fixation unit will
interpret that the printer is in standby. The up/down roller will be lowered automatically after a certain
period of time (in seconds) from the moment the printer became idle.
TITLE
OPERATOR’S MANUAL
PAGE
DEVICE
FIXATION UNIT (TELEIOS GRANDE H6)
16
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
25
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN
Caution
Before regulating values, we strongly suggest the user to check first under which conditions is the fixation
unit working in. Either in AUTO or MANUAL mode.
Note
We suggest the user to set a HEATER OV value greater than 40% in order not to have the fixation unit
turning ON/OFF many times in a short period of time.
Note
We suggest a SV of 175°C for most fabrics. Note that all fabrics are not the same. Please contact the
fabric manufacturer for more information regarding the recommended temperature for fixing.
Note
Note that some printers are not provided with HEATER 2 (rubber heater located in the printing table for
extra drying). Ask your local dealer if your machine is provided with HEATER 2 or not.
Note
We suggest the user to keep low torque and speed values at the take-up unit to avoid inverter errors and
prevent the inductive motor and power clutch from overheating.
Note
Suction cannot be turned ON manually under AUTO mode conditions.
TITLE
OPERATOR’S MANUAL
PAGE
DEVICE
FIXATION UNIT (TELEIOS GRANDE H6)
17
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
25
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN

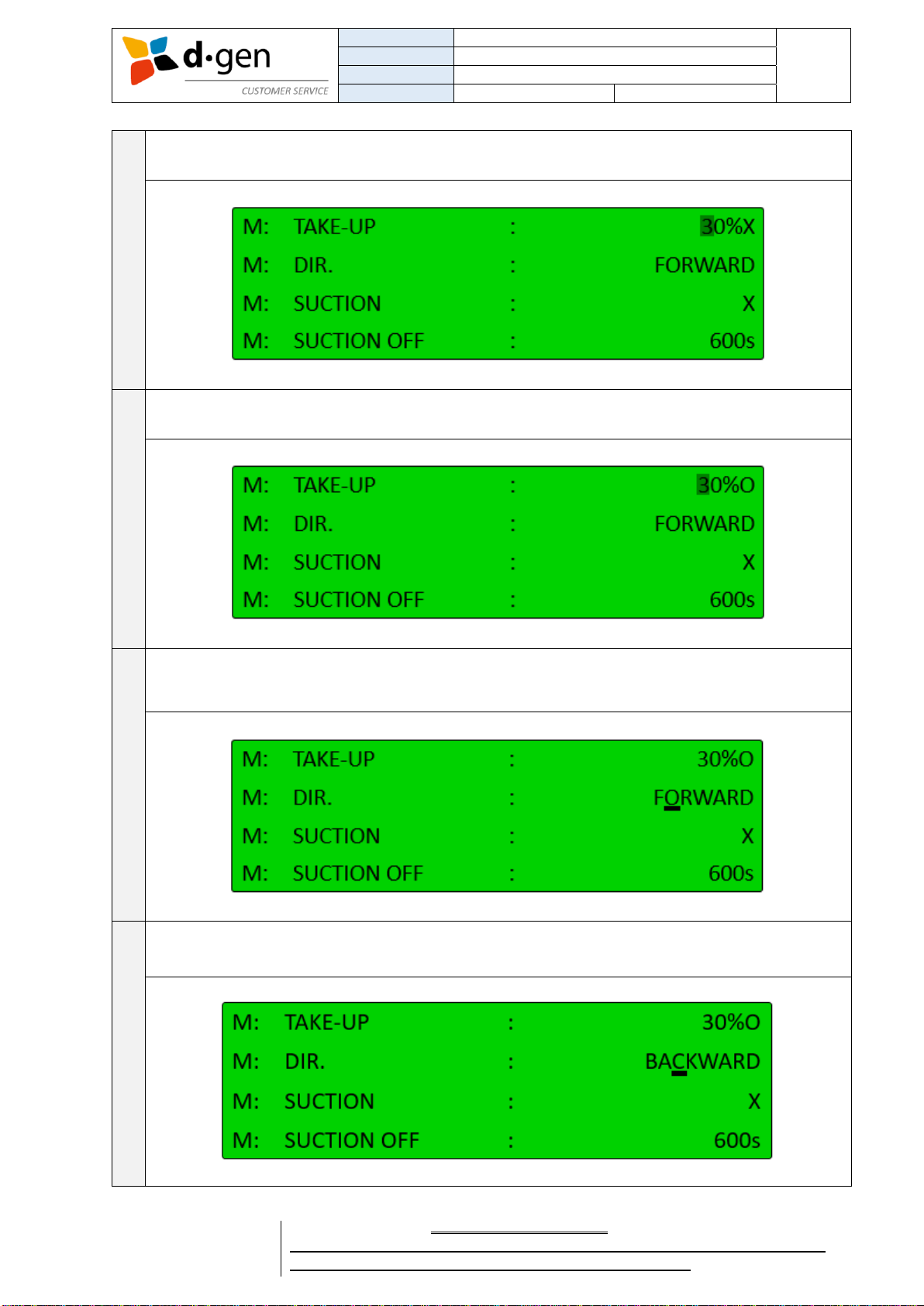

4
Lower the cursor until reaching the TAKE-UP function. Since the take-up unit is currently turned OFF
an “X” is displayed next by the percentage RPM.
5
At this point press the right arrow key ON/OFF to turn on the take-up unit. The “X” will change into
an “O”.
6
If the direction of rotation of the take-up unit is not the desired, is possible to change it at the “DIR.”
function. Move the cursor down to DIR. Then press the ENTER button. The cursor will turn into an
underscore.
7
At this point you may press the up/down arrow keys to change the direction of rotation of the lower
rubber roller. Press ENTER to validate the new change. The underscore will change into a cursor.
TITLE
OPERATOR’S MANUAL
PAGE
DEVICE
FIXATION UNIT (TELEIOS GRANDE H6)
18
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
25
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN
Note
Only possible to change the direction of rotation having the take-up in the OFF position. Turn off the take-
up. Change direction and then turn on the take-up again.
8
At this point you may press the right arrow key “ON/OFF” to switch on the heater. The green LED at
the control panel will turn on. To change the SV value, you may press the ENTER button. The
underscore will change into a cursor. Suppose I want to change from 175 to 190°C.
9
Change the 7 into an 9 by pressing the up-arrow key. Then move the underscore to the right by
pressing the right arrow key. Change the 5 into an 0 by pressing the down arrow key. Press the
ENTER button to validate the new change. The underscore will change into a cursor again.
TITLE
OPERATOR’S MANUAL
PAGE
DEVICE
FIXATION UNIT (TELEIOS GRANDE H6)
19
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
25
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN
10

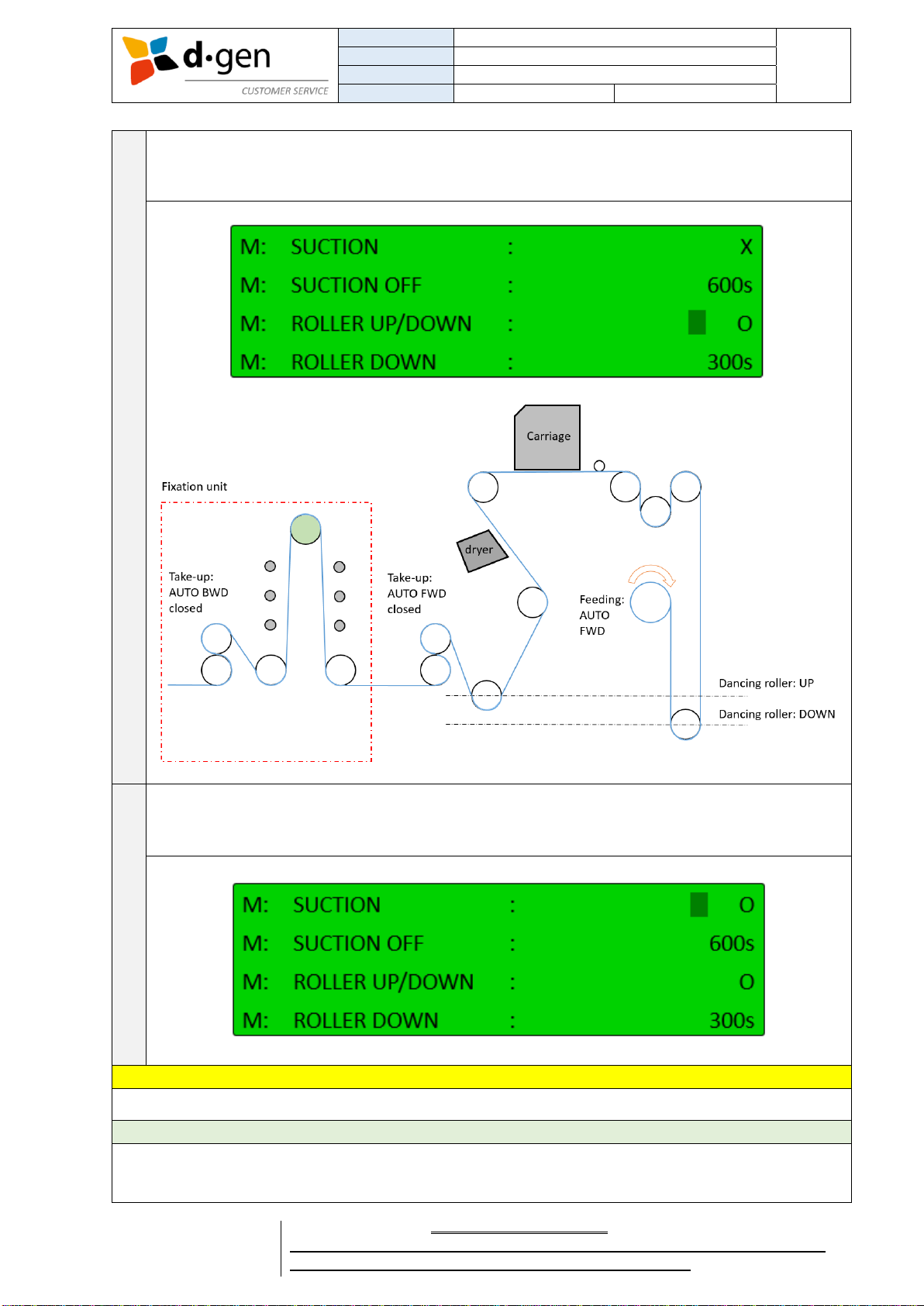

When the PV value reached the SV value you may raise the up/down roller. Move the cursor to
ROLLER UP/DOWN and then press the ON/OFF button. The X will change to an O when the
up/down roller reaches the highest point.
11
Once the up/down roller reached the highest point you can start to print. Or resume printing if the job
was paused. Turn on the fume buster by moving the cursor to SUCTION. Then press the right arrow
to turn it on.
Caution
Lower the UP/DOWN roller if the printer will remain idle for a long time.
Note
Before switching off the fixation unit we suggest to switch off the heater and leave the fume buster
running for a while to cool down.
TITLE
OPERATOR’S MANUAL
PAGE
DEVICE
FIXATION UNIT (TELEIOS GRANDE H6)
20
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
25
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN
5. MAINTENANCE.
To keep the fixation unit in a good condition we strongly recommend the operator to perform the following
inspections and cleanings every certain period of time.
Please, bear in mind, that the following maintenance periods are basically suggestions. It mostly depends
on how much the unit is used and the type of fabrics handled. If the unit is strongly used (24 hours run for
example), or fabrics with heavy coatings, we would recommend the user to shorten the suggested
maintenance periods.
[FIXATION UNIT] Components to be cleaned or checked
Frequency
Component
Every day
Machine’s exterior
Check oil drain bottle
Take-up rollers and up/down roller
Once a week
Keep the machine free of waste oil
Once a month
Machine’s electric panel
Every six months
Ball screw or chain
Every year
General inspection and deep cleaning
Other manuals for TELEIOS GRANDE H6
1
Table of contents
Other d.gen Printer manuals
