d.gen TELEIOS HEXA User manual

OPERATOR MANUAL

TITLE
OPERATOR MANUAL
PAGE
PRINTERS
TELEIOS HEXA
2
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
[email protected]
63
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN
INDEX.
1. Important Safety Instructions ……………………………………………………………………………….
2. Notes on Usage and Storage ……………………………………………...………………………………..
3. Presenting the printer ………………………………………………………………………………………..
4. Turning ON and OFF the printer ……………………………………………………………..…………......
5. Loading ink ……………………………………………………………………………………………………
6. Loading the media …………………………………………………………………………….…………......
7. Using the fixation unit …..…………………………………………………………….……..……………….
8. Using the fume buster ……………………………………………………………………………….……...
9. Nozzle check test print ………………………………………………………………………………………
10. Purge and Auto-cleaning ………………………………………………………………………..…………
11. Global bidirectional adjustment ………………………………………………………………….………..
12. Feed Adjustment ………………………………………………………….………………………………..
13. Exchanging media ……………….………………………………………………………………………...
14. Removing the Take-up roll ……………………………………………………………………..…………..
15. Problem solver ……………………………………………………………………………………………...
16. Appendix …………………………...……………………………...………………………………………..
3
3
5
14
16
18
31
41
43
48
51
54
57
59
61
64
THANK YOU FOR CHOOSING d·gen
Be sure to read this document carefully for a correct use of this printer.
The contents of this document are subject to change without notice.
Please inform us if any misprint or error is found in this document.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form
or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior
written permission of d∙gen Inc. International.
The information contained herein is designed only for use with this d∙gen printer. d∙gen is not
responsible for any use of this information as applied to other printers.
Neither d∙gen Inc. International nor its affiliates assumes no responsibility to the purchaser of this
product or third parties for damages, losses, costs, or expenses incurred by the purchaser or third
parties as a result of accident, misuse, or abuse of this product or unauthorized modifications, repairs,
or alterations to this product, or failure to strictly comply with d∙gen Inc. International’s operating and
maintenance instructions.
d∙gen Inc. International shall not be liable for any damages or problems arising from the use of any
options or any consumable products other than those designated as original d∙gen products or d∙gen
approved products.
d∙gen Inc. International shall not be held liable for any damage resulting from electromagnetic
interference that occurs from the use of any interface cables other than those designated as original
d∙gen products or d∙gen approved products.
d∙gen Inc. International
73, Bupyeong-daero 297 beon-gil
Bupyeong-gu, Incheon 21315
Republic of Korea
Phone: [phone]
Web page: www.dgen.com

TITLE
OPERATOR MANUAL
PAGE
PRINTERS
TELEIOS HEXA
3
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
[email protected]
63
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN
1. IMPORTANT SAFETY INSTRUCTIONS.
When using this product.
Take care not to spill liquid on this product.
Do not attempt to service this product yourself.
Do not block or cover the openings in the printer.
Unplug this product and refer servicing to qualified service personnel under the following conditions:
The power cord or plug is damaged; liquid has entered the product; the product has been dropped or
the cabinet damaged; the product does not operate normally or exhibits a distinct change in
performance.
Do not move the print head by hand; otherwise you may damage this product.
When handling the ink bottles.
Wear protective eyewear and gloves when refilling ink tanks or replacing the waste ink bottle.
Keep ink packs out of the reach of children and do not drink the ink.
If fluid adheres to your skin, immediately wash it off using large volumes of soapy water. Consult a
physician if the skin appears irritated or is discolored.
If fluid enters your eyes, rinse immediately with water. Failure to observe this precaution could result in
bloodshot eyes or mild inflammation.
If fluid enters your mouth, consult a physician immediately.
If fluid is swallowed, do not force the person to vomit, and consult with a physician immediately. If the
person is forced to vomit, fluid may get caught in the trachea, which can be dangerous.
2. NOTES ON USAGE AND STORAGE.
When using the printer.
Keep the printer running in a stable and controlled environment under these temperature and humidity
values: 20°C ~ 25°C (68°F ~ 41°F) and 45% ~ 65% of relative humidity.
Be sure the operating conditions suit the media. For more information, see the documentation supplied
with the media.
Also, when operating in dry areas, air-conditioned environment, or under direct sunlight, maintain the
appropriate humidity.
Do not bend or tug the waste ink tube. Ink could spill inside or around the printer.
Avoid using the printer in locations with heat sources or locations that are exposed to direct drafts from
ventilators or air conditioners. The print head nozzles could dry out and clog.
When the power is on, do not remove the power plug or cut the power at the breaker. The carriage may
not be capped properly. In this case, turn on the power and wait until capping is performed
automatically.
Be sure that the waste ink bottle is installed whenever the printer is on.

TITLE
OPERATOR MANUAL
PAGE
PRINTERS
TELEIOS HEXA
4
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
[email protected]
63
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN
When not using the printer.
If you do not print for a long time, the print head nozzles may become clogged. Turn the printer on at
least once a week to prevent the print head clogging.
Leaving the printer for too long without turning it on may result in a malfunction. Repair work for such
malfunction will be charged.
If you will not be using the printer for more than 2 weeks, maintenance must be performed by a service
engineer before and after this period. This maintenance work will be charged.
Note that even if proper maintenance has been done before a long period of non-use, repair may be
necessary when doing maintenance for reusing the printer, depending on the period and conditions of
storage. In such a case, the repair work will also be charged. Contact your local dealer or
[email protected] for more information.
The media may also become wavy or curled, causing jams or resulting in the media coming into contact
with the print head. Remove the media before storing the printer.
Store the printer after confirming that the print head has been capped. If the print head is left uncapped
for a long time, the print quality may decline.
Close all covers before placing the printer in storage. If you are not using the printer for a long time, put
the gray anti-static cover (provided with the printer) on the printer to prevent dust build-up. The print
head nozzles are very small, and they can become clogged easily if fine dust gets on the print head,
and you may not be able to print properly.
If you have not used the printer for a long time, check the print head for clogging before you start
printing. Perform head cleaning if the print head is clogged.
When storing the printer, be sure that it is level: do not store it on an angle, on end, or upside down.
When handling the ink bottles.
Store the ink bottles at room temperature out of direct sunlight.
To ensure print quality, use all the ink in the ink bottle before the expiry date. (One year after the
manufacture date).
If the ink bottle has been stored in a cold location for a long period of time, keep at room temperature
for at least 24 hours before using.
Be sure not to leave any ink in the ink bottle after refilling the Big Ink System.
Refill the Big Ink System as soon as possible after opening the ink bottle.
When handling the media before printing.
Do not fold the media or damage the printable surface.
Do not touch the printable surface. Moisture and oils from your hands can affect print quality.
When handling media, hold it by both edges. We recommend wearing cotton gloves.
Keep the media dry.
Packaging materials can be used to store media and should not be thrown away.
Avoid locations that are subject to direct sunlight, excessive heat, or humidity.
When not in use, media should be removed from the printer, rewound, and inserted in its original
packaging for storage. Leaving media in the printer for extended periods may cause it to deteriorate.
When handling the media just after being printed.
Do not rub or scratch the printed surface. If it is rubbed or scratched, the ink may peel off.
Do not touch the printed surface, as this may remove the ink.
Make sure printouts are completely dry before folding or stacking, as otherwise discoloration or other
marks may appear where the prints touch. These marks will disappear if the prints are immediately
separated and dried but will become permanent if the surfaces are not separated.
Avoid direct sunlight.
To prevent discoloration, display and store prints as instructed in the documentation supplied with the
media.

TITLE
OPERATOR MANUAL
PAGE
PRINTERS
TELEIOS HEXA
5
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
[email protected]
63
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN

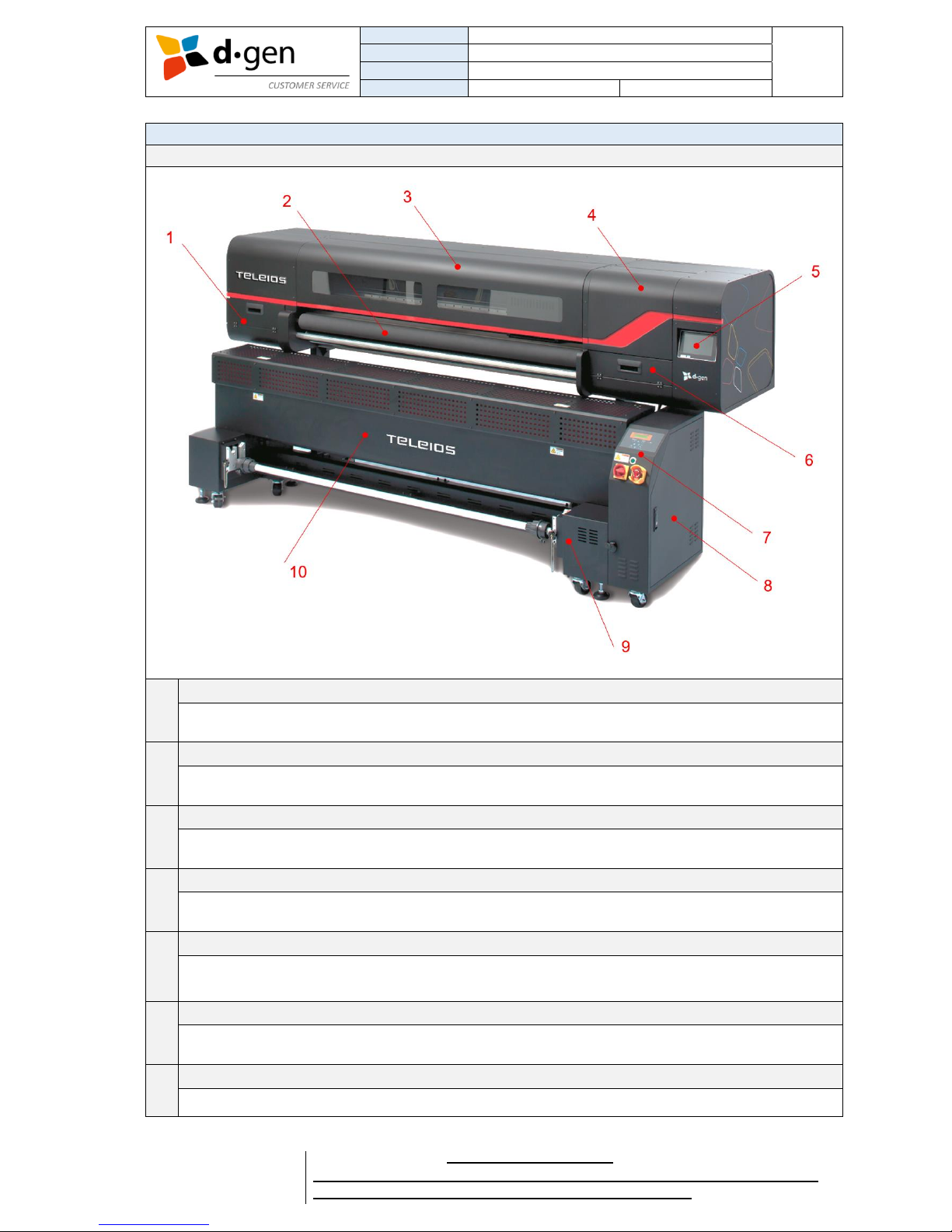

3. PRESENTING THE PRINTER.
FRONT
1
Left side maintenance front cover.
Open this cover to clean the area around the print head. It is normally closed when the printer is in
use.
2
Front rubber roller.
This roller and the rear rubber roller provides the sufficient traction to move the media forward in a
stable way.
3
Front cover.
Open when loading media, cleaning the inside of the printer, or removing jammed media. Normally
closed when using the printer.
4
Carriage cover.
This cover is opened for maintenance purposes, such as manual purge of the print heads, cleaning
of the wipers and the capping station, etc.… Normally closed when using the printer.
5
Touch operating panel.
For a full control of the printer without using a computer. See chapter 4 in this user’s manual for
more information.
6
Lower carriage cover.
This cover is opened for maintenance purposes taken in the capping station. Also, to switch on the
control PC by pressing the green led button. Normally closed when using the printer.
7
Fixation unit’s control panel.
Designed for a full control of the fixation unit to provide a uniform color fixation to the printed media.

TITLE
OPERATOR MANUAL
PAGE
PRINTERS
TELEIOS HEXA
6
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
[email protected]
63
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN
8

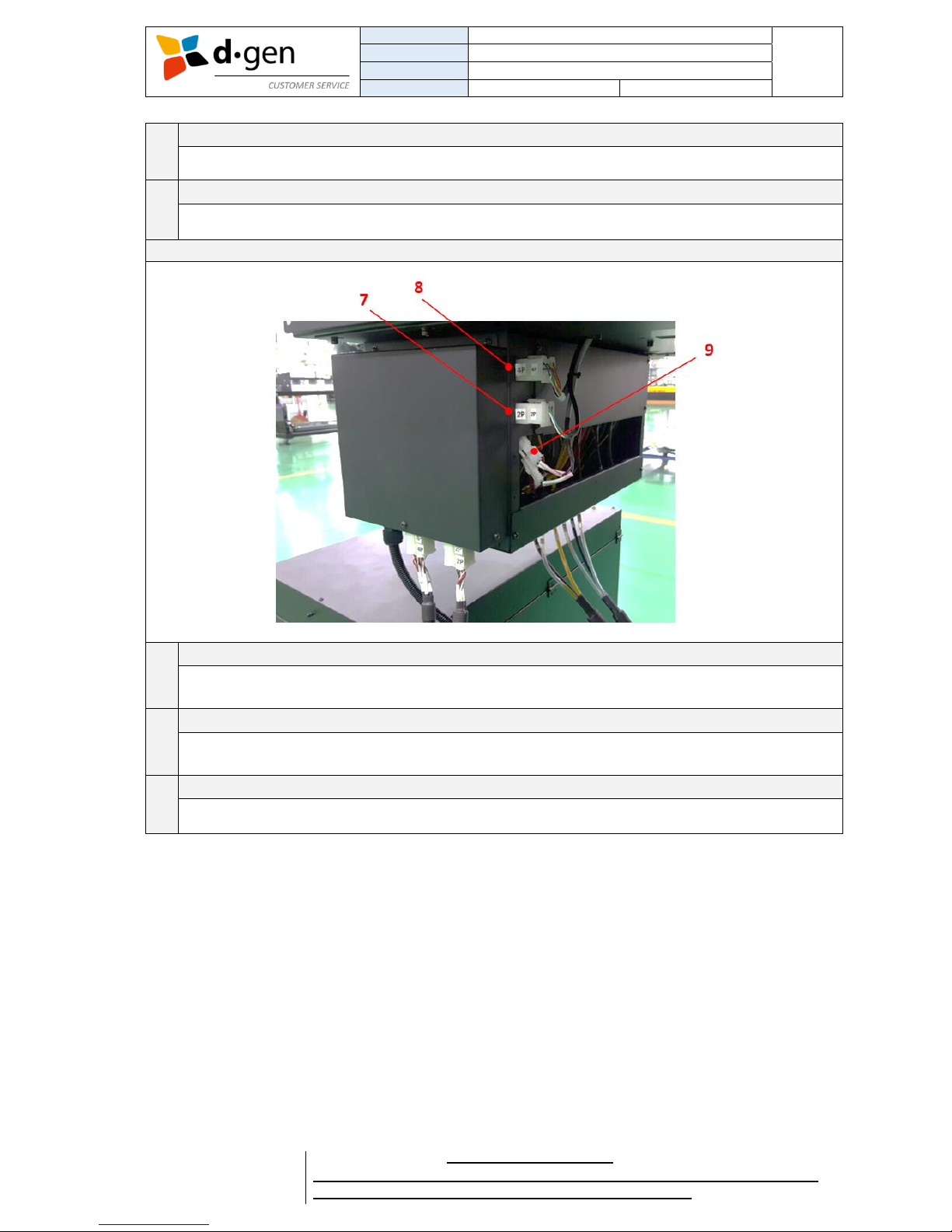

Fixation unit’s electric cabinet.
This electrical panel contains hazardous components. Risk of Electrical Shock. It is used for
maintenance purposes. Only qualified technicians can access this electric panel. Normally closed
when using the printer.
9
Fixation’s take up unit.
Provides enough traction to move the media forward in a stable way. Comes in two configurations.
Two rubber rollers pulling the media towards a separate take-up reel or just one take-up shaft (like in
the picture).
10
Fixation unit.
Even the upper part of the fixation unit is protected against high temperatures, there is still a risk to
get burned if exposed to this heat for a long period of time. Please maintain this area clear from
foreign objects.

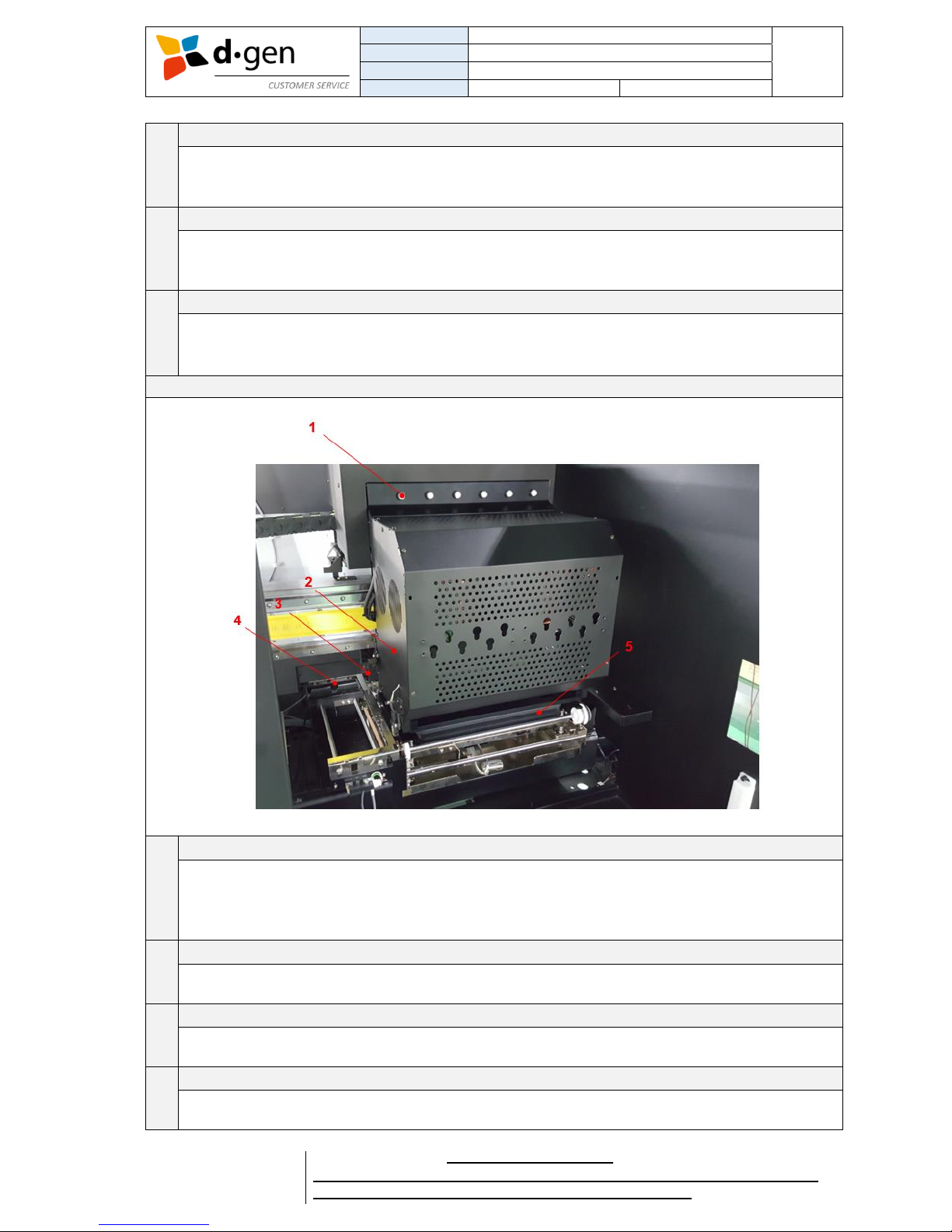

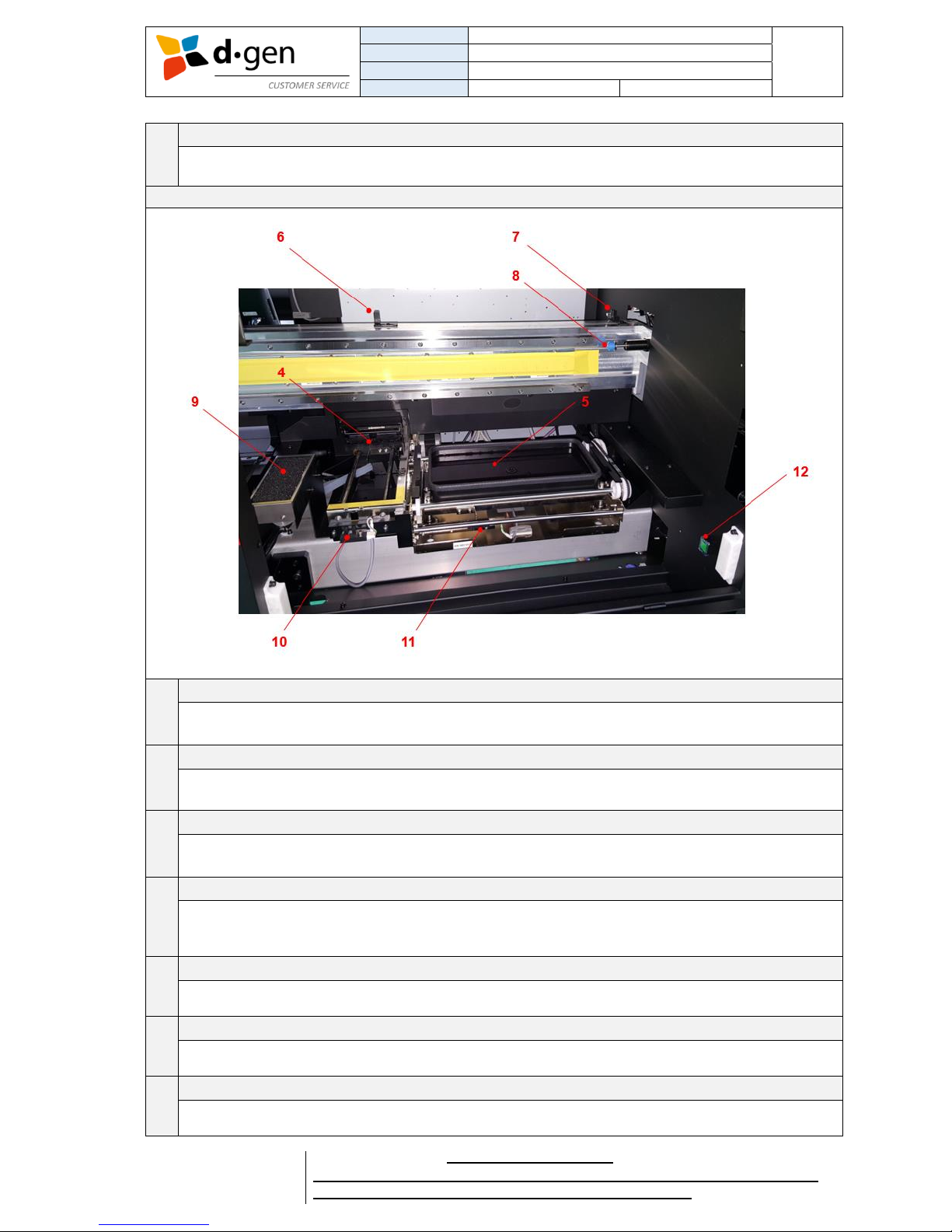

INTERIOR (CARRIAGE)
1
Solenoid valves.
The solenoid valve is opened if the LED is turned on. Having the solenoid valve opened allows free
circulation of negative air pressure between the vacuum pump and the head. Making the heads to
bleed for long purging is possible by closing the solenoid valve (LED switched off) right after the
purge button is pressed in the touch panel.
2
Carriage.
The carriage prints by moving left and right while firing ink. Periodical cleaning is required.
3
Carriage height adjustment lever.
This lever regulates the carriage height in 3 positions. Low, medium and high. Depending the
thickness of the media. There is a difference of 1 mm between positions.
4
Automated wiper unit.
If user executes Auto cleaning, this wiper will work automatically. To increase the wiper’s
performance, remove ink residue on wiper periodically.

TITLE
OPERATOR MANUAL
PAGE
PRINTERS
TELEIOS HEXA
7
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
[email protected]
63
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN
5
Automated capping unit.
Except during printing, this capping station covers the print head nozzles to prevent them from
drying out. Cleaning may be required.
INTERIOR (CAPPING)
6
Home position sensor.
The carriage as soon as it gets to this sensor will adjust its speed to match its print heads with the
capping station’s location.
7
Right limit sensor.
For safety, this sensor brings the machine in an emergency state if the carriage crashes against the
right stopper.
8
Right stopper.
This machine is provided with 2 side stoppers to prevent the carriage damaging the side limit
sensors.
9
Flushing stage.
The flushing unit is used to keep the print heads unclogged. Every time the carriage leaves the
home position for printing right to left, the heads flush a very small quantity of ink in order to keep
the nozzles always unclogged.
10
Automated wiper unit’s front limit sensor.
Also, provided with a rear sensor. Brings the wipers to a complete stop reached this limit sensor.
11
Automated capping unit’s down limit sensor.
Brings the capping unit to a complete stop when reached its lowest point.
12
PC control box’s main switch.
To turn ON/OFF the software side of the printer.

TITLE
OPERATOR MANUAL
PAGE
PRINTERS
TELEIOS HEXA
8
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
[email protected]
63
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN
BACK
1
Power input.
Single phase AC 220V 1Ø + N + TE (2A) power source need to power up just the printer.
2
Printer’s main ON/OFF switch.
This switch turns ON/OFF just the printer.
3
LAN port.
Connects the LAN cable. Use a shielded twisted pair cable (category 5 or higher).
4
Electric panel.
This electrical panel contains hazardous components. Risk of Electrical Shock. It is used for
maintenance purposes. Only qualified technicians can access this electric panel. Normally closed
when using the printer.
5
Rear roller.
This roller and the front rubber roller provides the sufficient traction to move the media forward in a
stable way.
6
Press roller.
This free roller can be lowered and rest on the media to apply tension at the printing table.
7
Negative/Positive pressure system.
Behind this cover there are a series of pumps and valves to create enough negative pressure in the
heads for stable printing or enough positive pressure to purge the heads for cleaning its nozzles.
When printing, is normal to hear the pump functioning. Cover normally closed when using the
printer.

TITLE
OPERATOR MANUAL
PAGE
PRINTERS
TELEIOS HEXA
9
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
[email protected]
63
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN
8
Dancing bar.
The dancing bar provides tension to the media for a solid feeding stability. You can regulate the
weight of this dancing bar by adding or subtracting its weights.

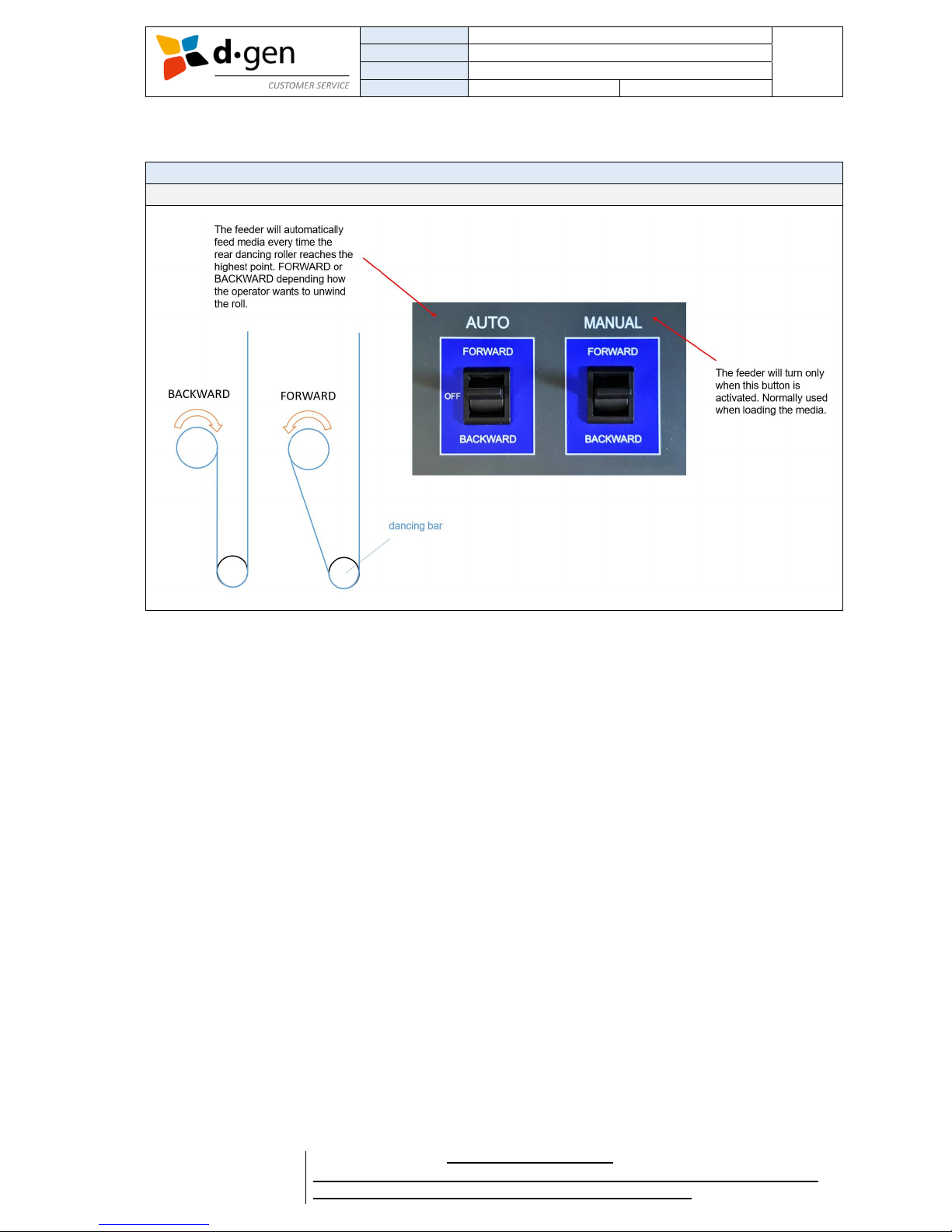

9
Feeder control panel.
Possible to switch ON/OFF the unit. Control the direction of rotation and the operarion mode
MANUAL/AUTO.
10
Ink supply system.
Equipped with ink filters, ink supply pumps, solenoid valves and ink level indicators. (More
information shown in the next point).
RIGHT SIDE
1
Ink filter.
One ink filter for color to supply filtered ink to the print heads. This filter needs to be replaced
periodically or when changing the chemistry/color of the ink.
2
Ink LED indicator.
Two LED lights per color. The red LED turns on when the level of ink in the Big Ink System is
critically low. Green LED is turns on if refilled. Buzzer will sound to indicate low level of ink in one of
the ink cylinders.
3
Big Ink System K C M Y sensor level cables.
These cables come from the photo reflecting sensors located in the Big Ink System activating the
green LED indicator when full, and activating the red LED indicator when empty.
4
Big Ink System SP1 SP2 sensor level cables.
These cables come from the photo reflecting sensors located in the Big Ink System activating the
green LED indicator when full, and activating the red LED indicator when empty.

TITLE
OPERATOR MANUAL
PAGE
PRINTERS
TELEIOS HEXA
10
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
[email protected]
63
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN
5
Big Ink System’s white LED power supply cord.
To power up the white LED in the Big Ink System.
6
Ink inlets.
Ink hoses from the Big Ink System are connected to this side of the printer.
RIGHT SIDE (BACK)
7
Connector for SP1 and SP2 ink supply pumps.
This connector comes from the Ink Supply System board located in the rear electric panel. Activates
SP1 and SP2 ink pumps when the sub-tanks are needed to be refilled.
8
Connector for K C M Y ink supply pumps.
This connector comes from the Ink Supply System board located in the rear electric panel. Activates
K C M Y ink pumps when the sub-tanks are needed to be refilled.
9
White LED and Ink sensor level board DC 24 V power supply.
These cables power up both Ink sensor level board and the white LED lamp in the Big Ink System.

TITLE
OPERATOR MANUAL
PAGE
PRINTERS
TELEIOS HEXA
11
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
[email protected]
63
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN

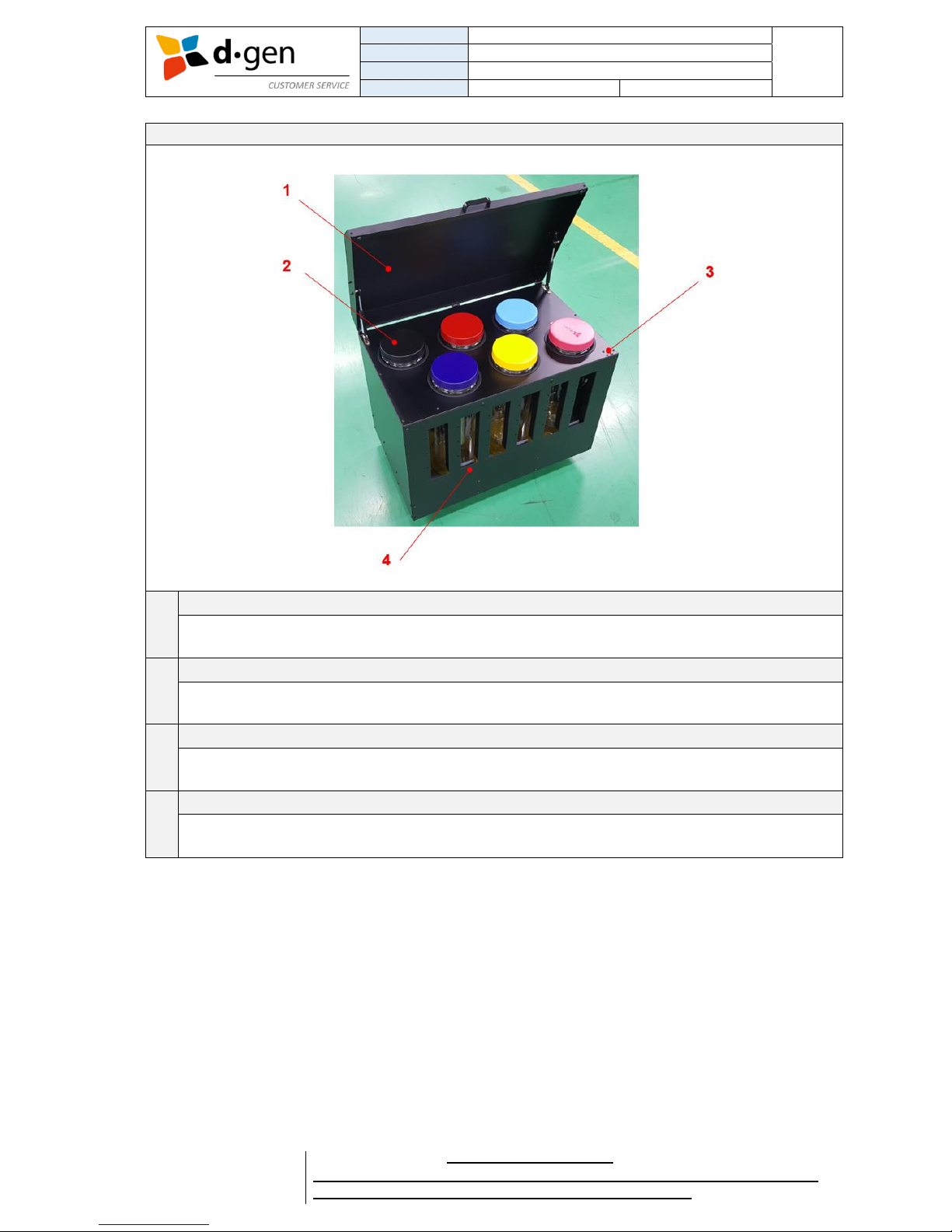

BIG INK SYSTEM
1
Cover.
Buzzer can be heard if this cover is opened. Cover normally closed when using the printer.
2
Lid and ink filter.
We suggest to pour the ink on the filter. Also, is suggested not to close the lid totally to let the air
flow in while the cylinder is getting empty.
3
Cover switch.
This device activated the buzzer when the cover is opened for refilling the inks.
4
Ink level photo sensor.
This photo sensor measures the ink level with a laser beam. Keep this area always free of ink.

TITLE
OPERATOR MANUAL
PAGE
PRINTERS
TELEIOS HEXA
12
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
[email protected]
63
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN

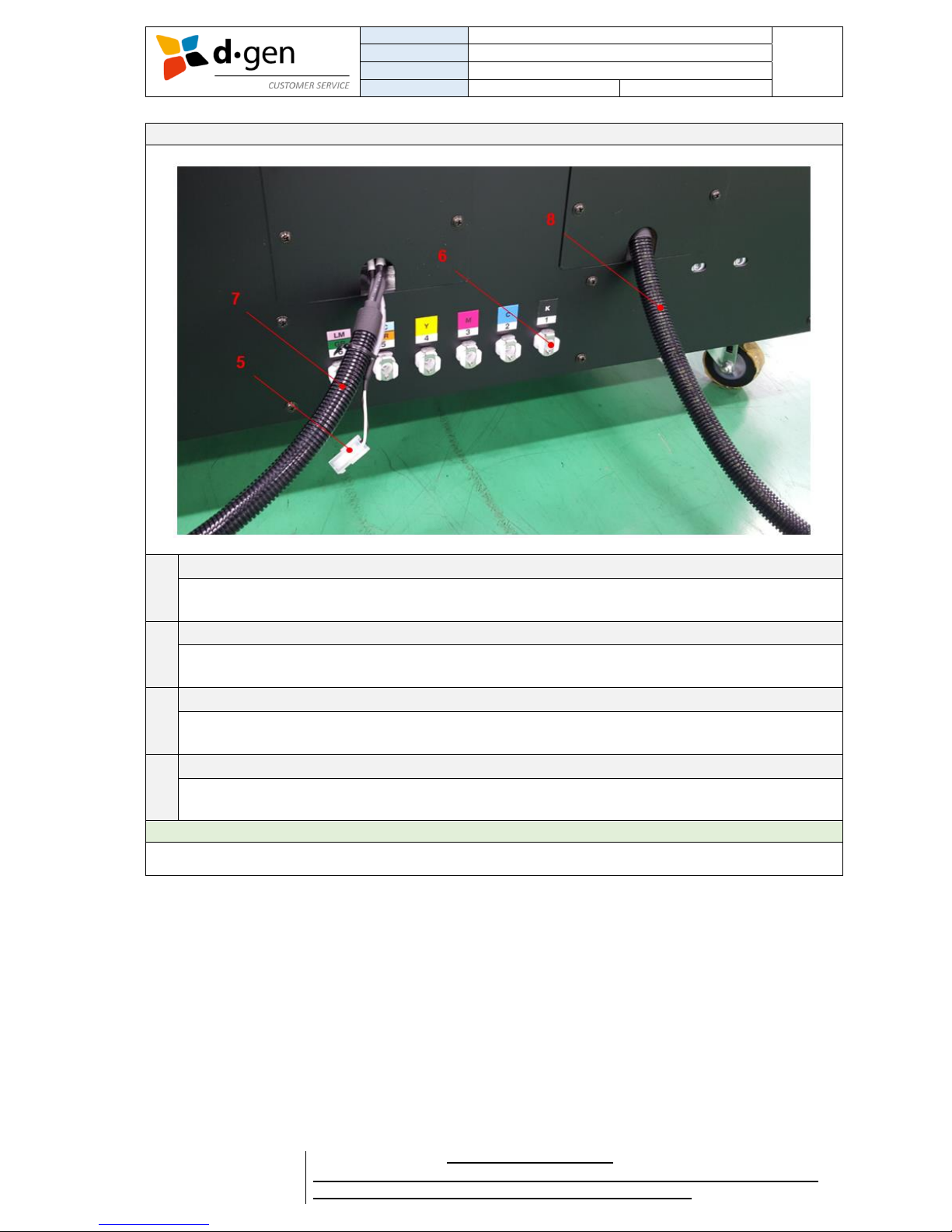

BIG INK SYSTEM (BACK SIDE)
5
White LED bar’s power connector.
This cable powers up the white LED light bar in the Big Ink System.
6
Ink outlets.
By pushing down the silver fastening is possible to release or insert the ink line without spilling ink.
7
Sensor level connector (K C M Y inks).
This connector sends the signal from the photo-sensors located in the Big Ink System (to measure
the ink level in the cylinder) to the LED ink level indicators.
8
Sensor level connector (SP1 and SP2 inks).
This connector sends the signal from the photo-sensors located in the Big Ink System (to measure
the ink level in the cylinder) to the LED ink level indicators.
Important
Keep always the ink level’s photo sensor emitter and reflector free of ink and dust.

TITLE
OPERATOR MANUAL
PAGE
PRINTERS
TELEIOS HEXA
13
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
[email protected]
63
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN

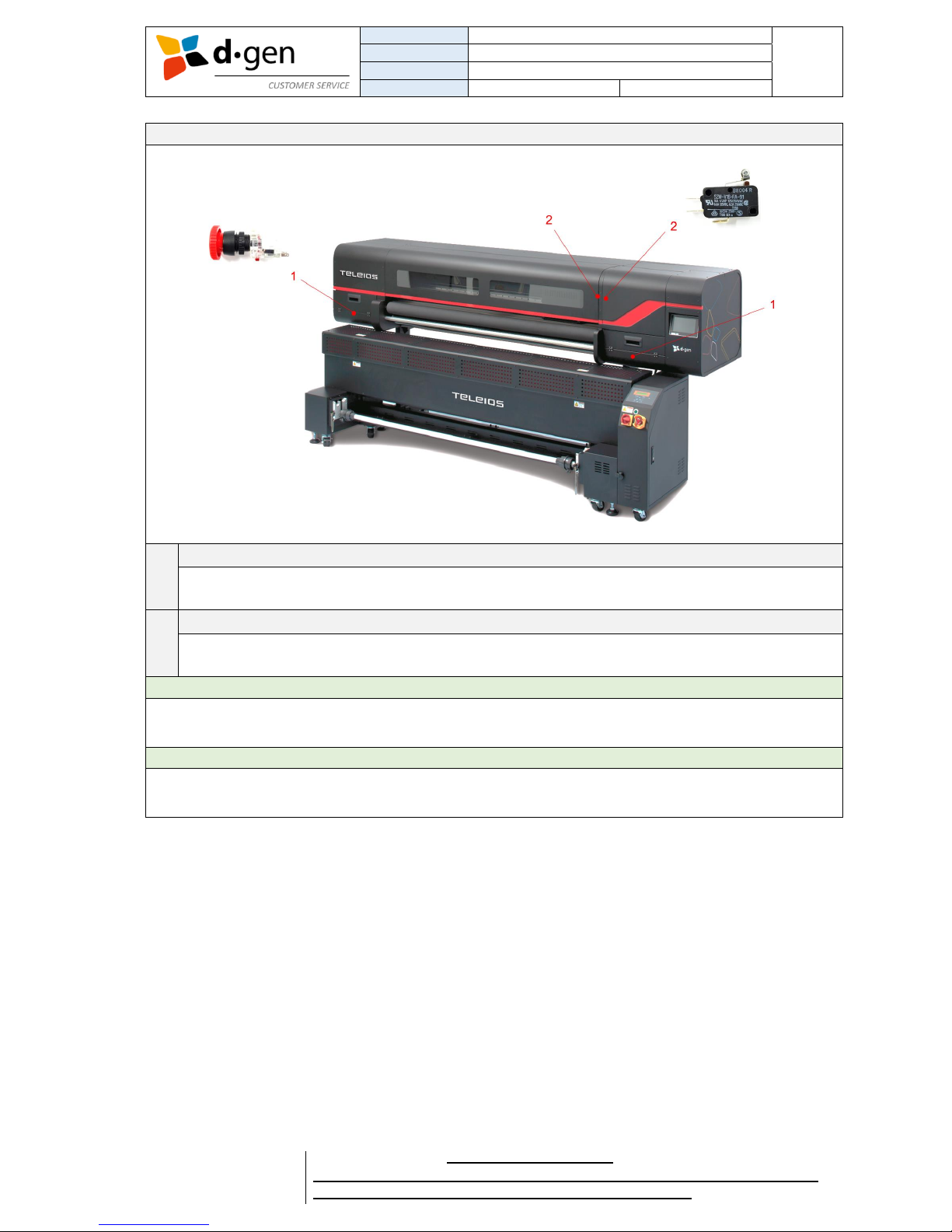

SAFETY DEVICES
1
Emergency push type switch for the printer.
Two at the front on each side. Pushing one of the switches will bring a total stop the carriage and
other moving elements.
2
Open cover switch.
Opening either the front or carriage cover will activate the emergency switch bringing the carriage to
a pause state returning to the home position.
Note
In case the printer exceeds its operation limits such as over-speed, operational temperature, etc., the
operator may use the emergency switches to bring the printer into an emergency stop.
Note
In case one of the safety devices is broken we strongly recommend the user to replace it with the help of
a qualified technician.

TITLE
OPERATOR MANUAL
PAGE
PRINTERS
TELEIOS HEXA
14
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
[email protected]
63
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN

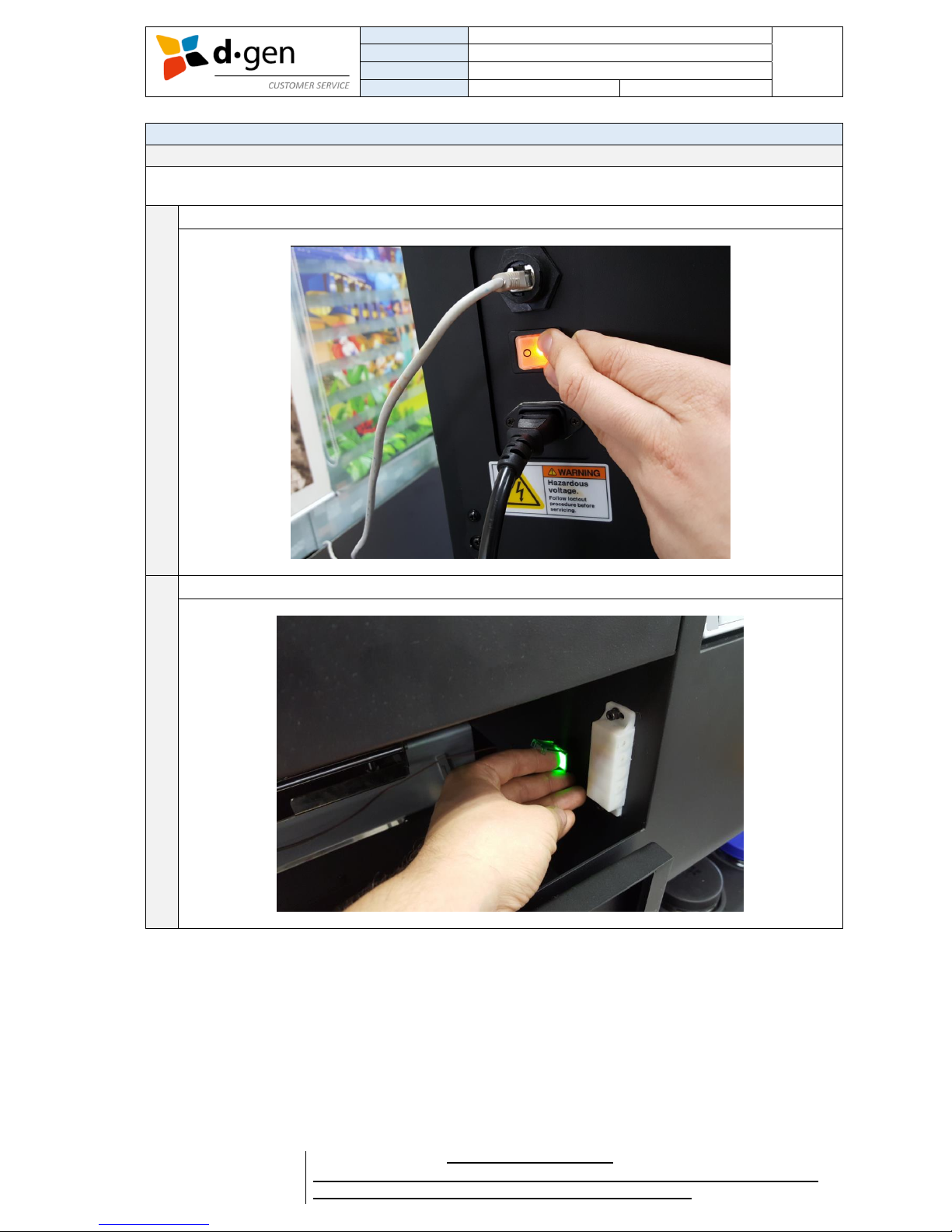

4. TURNING ON AND OFF THE PRINTER.
Turning ON the printer.
The operator must follow the following steps to correctly turn ON the printer.
1
Turn on the printer by pressing the white switch at the back of it.
2
Turn on the PC control box by pressing the green switch.

TITLE
OPERATOR MANUAL
PAGE
PRINTERS
TELEIOS HEXA
15
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
[email protected]
63
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN
3
Turn on the FEEDER unit by pressing the black switch at the grey box.
4
Wait for the touch panel to display “Jetting”.
Turning OFF the printer.
The operator must follow the following steps to correctly turn OFF the printer.
1. Turn off the PC control box by pressing the green switch.
2. As soon as a beep is heard turn off the printer by pressing the white switch at the back of it.
3. Turn off the FEEDER unit.

TITLE
OPERATOR MANUAL
PAGE
PRINTERS
TELEIOS HEXA
16
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
[email protected]
63
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN
5. LOADING INK.
The operator must follow the following steps to correctly load with ink the Big Ink System.
1
Open the Big Ink System’s cover. Buzzer will be activated.
2
Open the lid. Make sure the filter is present and correctly positioned.

TITLE
OPERATOR MANUAL
PAGE
PRINTERS
TELEIOS HEXA
17
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
[email protected]
63
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN
3
Pour gently to avoid spilling ink outside the cylinder. Do not pour the ink too fast. Leave some time
to let the ink go through the filter before pouring some more.
4
Close the lid. Do not close the lid too tight to let the air go into the cylinder as it gets empty when
printing.
Important
Do not wait until the cylinder gets completely empty. Risk of clogging the ink filter / damaging the heads
with the deposited ink sediments at the bottom. We strongly suggest to refill the tank as soon as the
buzzer is heard.
Important
When pouring ink, foam will be created. Do not let the foam get into the printer. This may negatively
affect the quality of your printings. Therefore, we suggest to refill the tank as soon as the buzzer is heard.

TITLE
OPERATOR MANUAL
PAGE
PRINTERS
TELEIOS HEXA
18
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
[email protected]
63
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN
6. LOADING THE MEDIA.
Introducing the feeder control panel.

TITLE
OPERATOR MANUAL
PAGE
PRINTERS
TELEIOS HEXA
19
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
[email protected]
63
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN
1
Release the latches at both sides of the feeding unit to remove the feeder shaft.
2
Remove the feeder shaft.

TITLE
OPERATOR MANUAL
PAGE
PRINTERS
TELEIOS HEXA
20
VERSION
2017JAN23/1
OUT OF
REVISED BY
MUNOZ, ANTONIO
[email protected]
63
FOR THE USER
d·gen International, Inc. - COMPANY PRIVATE (LEVEL 1)
NOT TO BE DISCLOSED TO UNAUTHORIZED PERSONS – PROHIBIDA SU DIVULGACIÓN A PERSONAS NO AUTORIZADAS
DO NOT REPRODUCE WITHOUT AUTHORIZATION – NO REPRODUCIR SIN AUTORIZACIÓN
3
Use the left media flange as the origin/guide. Located as close as possible to the carriage. Set it
once. Then no need to move it any more. Remove the right flange by untightening its knobs.
4
Place the roll in a way that the printable area will face upwards when on the printing area. Insert the
right media flange pushing against the roll’s core. Tighten both knobs. Make sure the roll is well
secured.
