D-Link AirPlus Xtreme G DWL-G650 User manual

1
AirPlus Xtreme G 2.4GHz
Wireless Cardbus Adapter
DWL-G650
©2004 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and
specifications subject to change without notice.
If any of the above items are missing, please contact your reseller.
CD-ROM (containing Drivers, Manual and Warranty)
This product works with the following operating
system software: Windows XP, Windows
2000, Windows Me, Windows 98SE
Before You Begin
DWL-G650 AirPlus Xtreme G 2.4GHz Wireless
Cardbus Adapter
Check Your Package Contents
These are the items included with your DWL-G650 purchase:
Turn on the computer and Insert the D-Link
AirPlus Xtreme DWL-G650 Driver CD in the
CD-ROM drive.
The step-by-step instructions that follow are shown in
Windows XP. The steps and screens are similar for
the other Windows operating systems
Insert the D-Link CD-ROM Into Your
Computer
Do NOT install
the DWL-G650
Cardbus Adapter into
your computer before
installing the driver
software from the
D-Link CD!
You must have at least the following:
• A laptop computer with an available 32-bit Cardbus slot
• At least a 300 MHz processor and 32MB of memory
• Cardbus Controller properly installed and working in the laptop computer
• An 802.11g or 802.11b Access Point (for Infrastructure Mode) or another 802.11g
or 802.11b wireless adapter (for Ad-Hoc; Peer-to-Peer networking mode.)

2

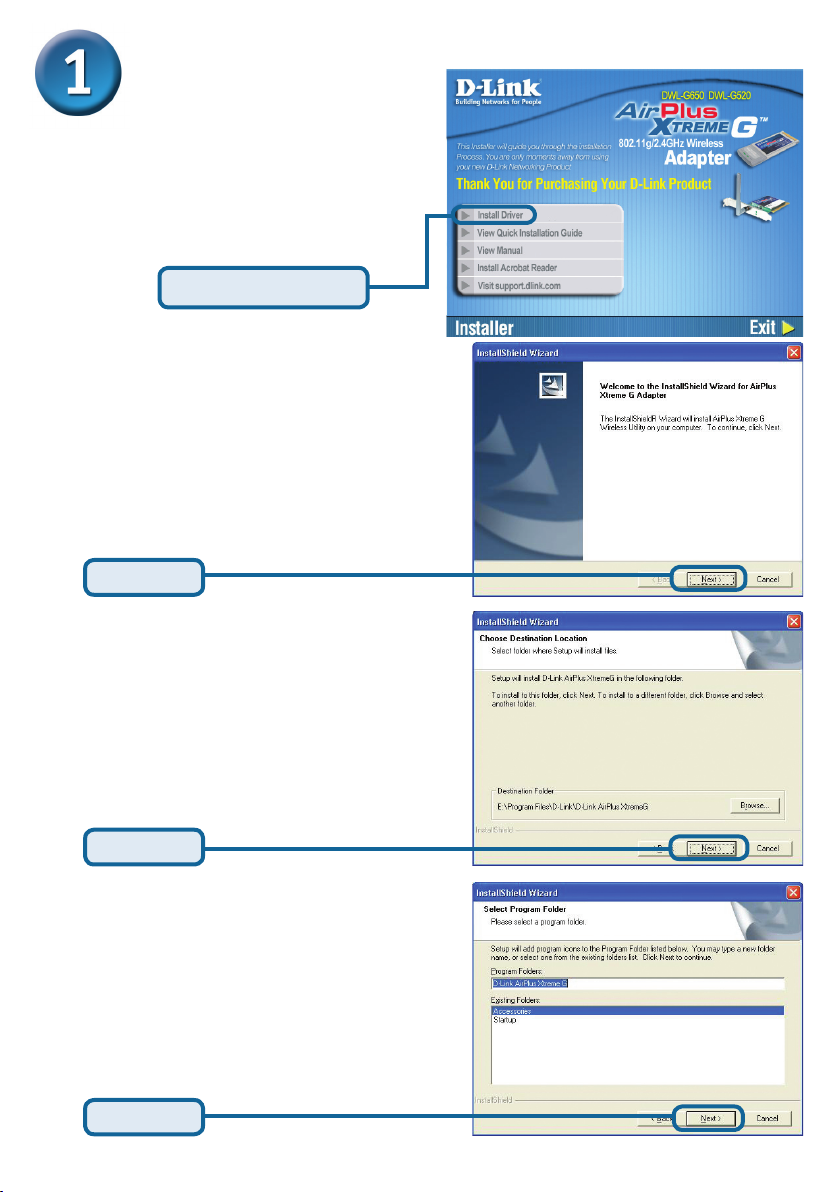

Click Next
Click Next
Click Next
Click Install Driver
Continued...
If the CD Autorun function does not
automatically start on your computer ,
type “D:\Drivers\setup.exe.” If it does
start, proceed to the next screen.

3

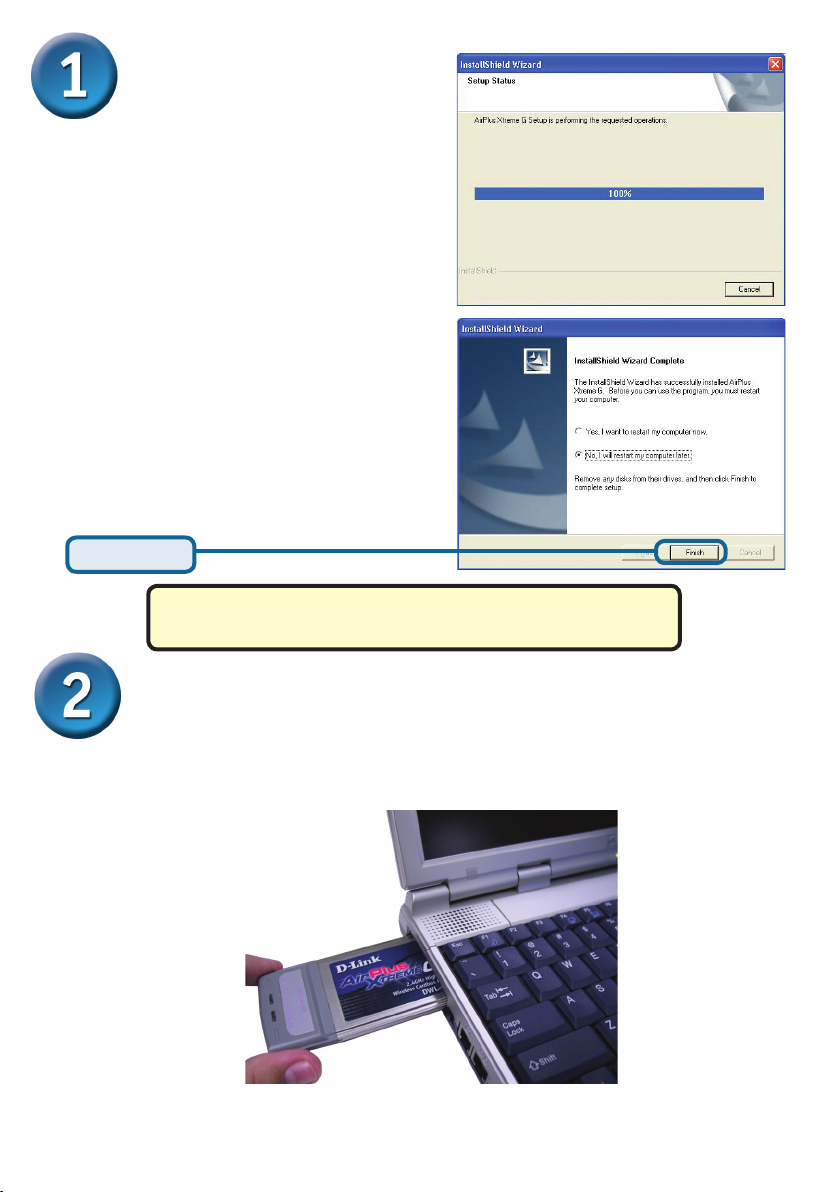

Shut down your computer
Click Finish
Continued...
Remember to leave the DWL-G650 Driver CD in the CD-ROM drive.
Installing the DWL-G650 Wireless
Cardbus Adapter in Your Computer
A. Make sure to turn off the laptop computer.
B. Locate the Cardbus slot on your laptop computer.
C. Gently insert the DWL-G650 into the Cardbus slot in your laptop
computer (as shown.)

4

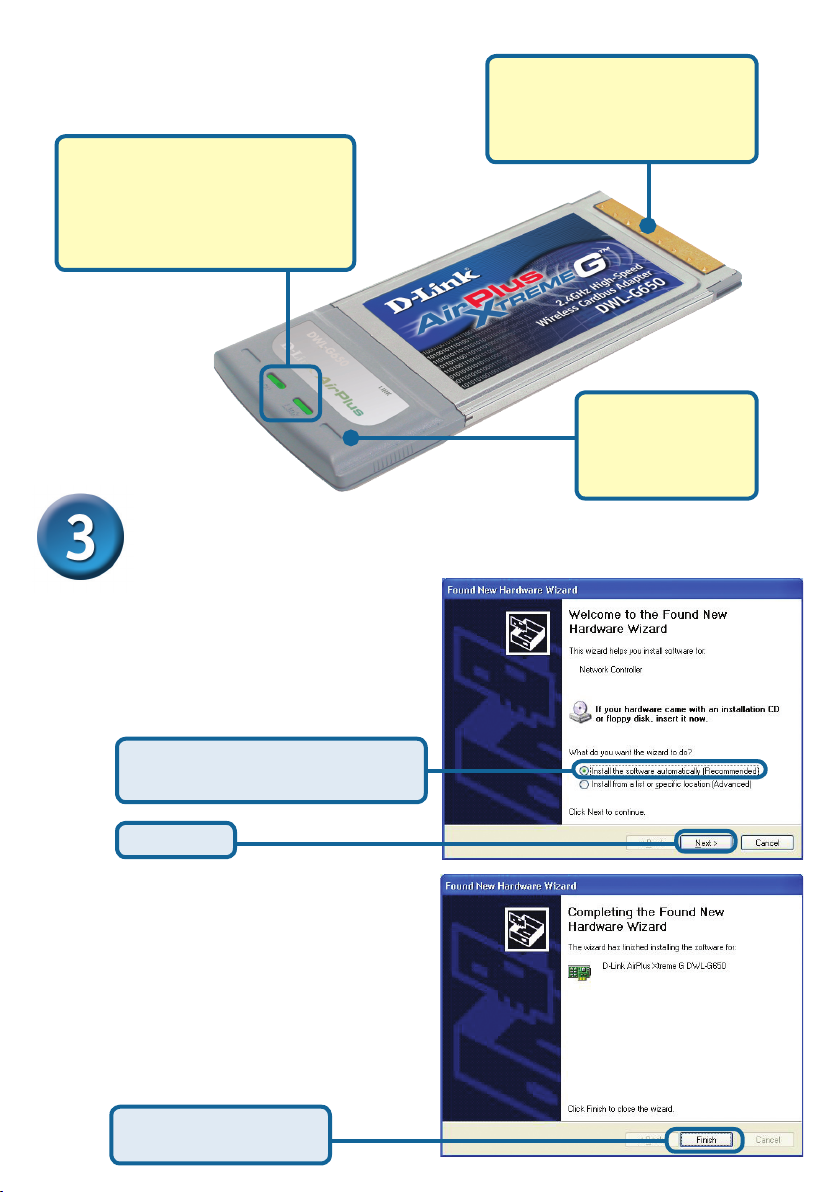

Restart Your Computer
When you restart your computer
this Found New Hardware
Wizard (Windows XP) screen
may appear:
Click Next
Select Install the software
automatically (Recommended)
Click Finish to finalize
the installation.
Link/Activity LED
Indicates that the DWL-G650
is properly installed when the
computer is on and blinks when
data is being transmitted
Antenna
Used to wirelessly
connect to 802.11g
networks.
32-bit connector
This is the connector that fits
into the Cardbus slot of your
laptop.

5

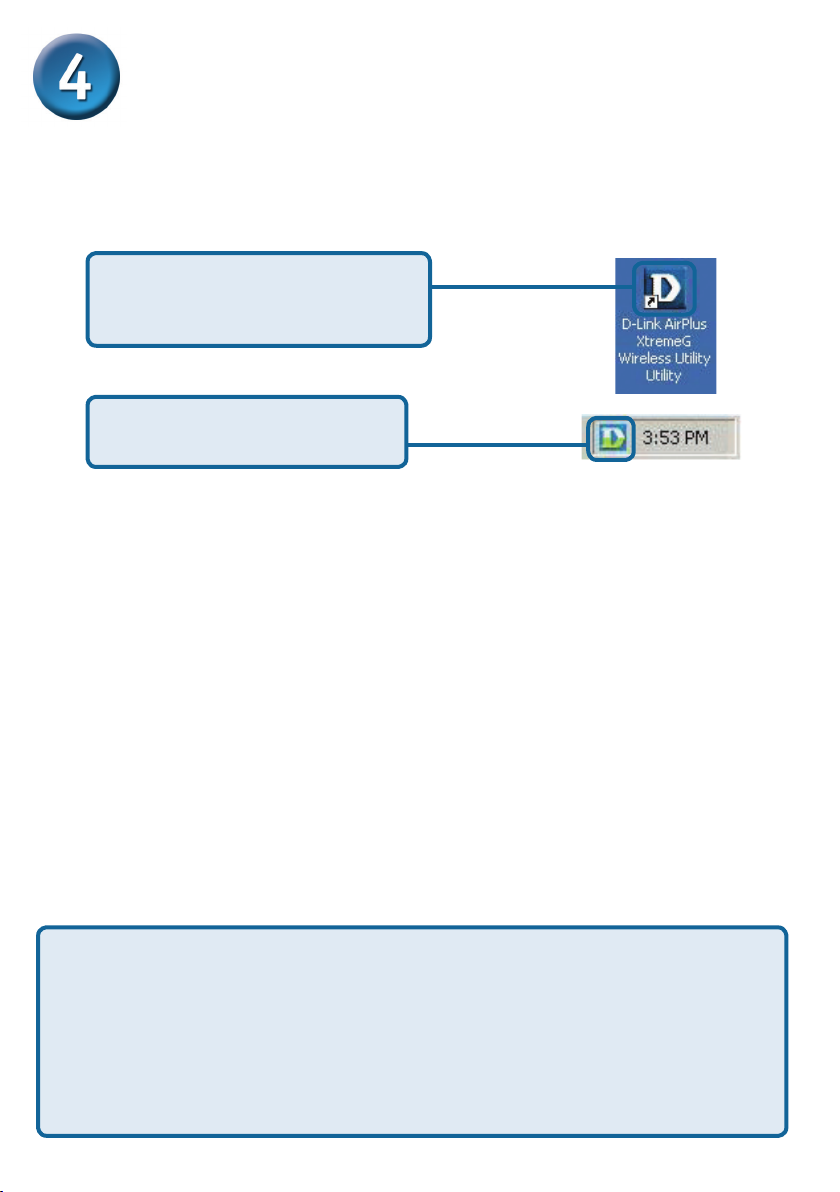

Your Installation is Complete!
After you’ve continued in Windows XP, 2000, Me, or 98SE, the D-Link AirPlus
Xtreme G DWL-G650 Configuration Utility will automatically start and the utility
icon will appear in the bottom right hand corner of the desktop screen (systray).
If this icon appears GREEN, then you have successfully installed the DWL-
G650, are connected to a wireless network and are ready to communicate!
Double-click the utility icon to
use the configuration utility.
If the utility icon does not appear,
double-click the shortcut icon that
has appeared on your desktop.
Appendix
Wi-Fi Protected Access (WPA), is a Wi-Fi standard that was designed to
improve upon the security features of WEP. The technology is designed to work
with existing Wi-Fi products that have been enabled with WEP (i.e., as a software
upgrade to exiting hardware), but the technology includes two improvements
over WEP:
1) Improved data encryption through Temporal Key Integrity Protocol (TKIP)
2) User authentication using Extensible Authentication Protocol (EAP) via a
RADIUS server.
Note that WPA is an interm standard that will be replaced with the IEEE’s 802.11i
standard upon its completion.
WPA - Wi-Fi Protected Access authorizes and authenticates users onto the
wireless network. WPA uses stronger security then WEP and is based on a key
that changes automatically at a regular interval. This mode requires a RADIUS
server in the network.
WPA-PSK - Pre-Shared Key mode means that the wireless client and the
router must have the same passphrase in order to establish the wireless
connection. A RADIUS server is not required with this mode.

6
Appendix (Cont.)

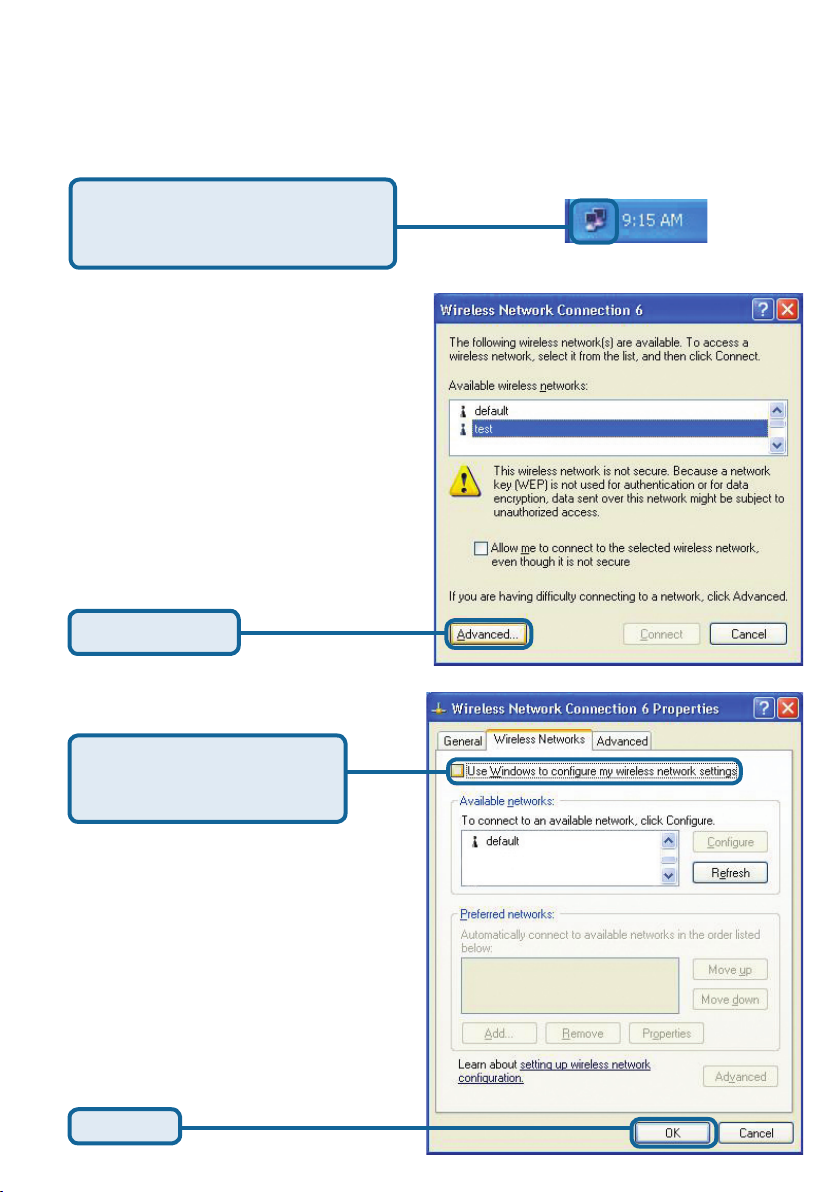

Click the XP Networking icon
to use the Zero Configuration
Wireless Settings.
Click Advanced
Uncheck “Use Windows
to configure my wireless
network settings.
Click OK
For Windows XP, if you wish to use the AirPlus Xtreme G utility, please do the
following steps.

7
Appendix (Cont.)

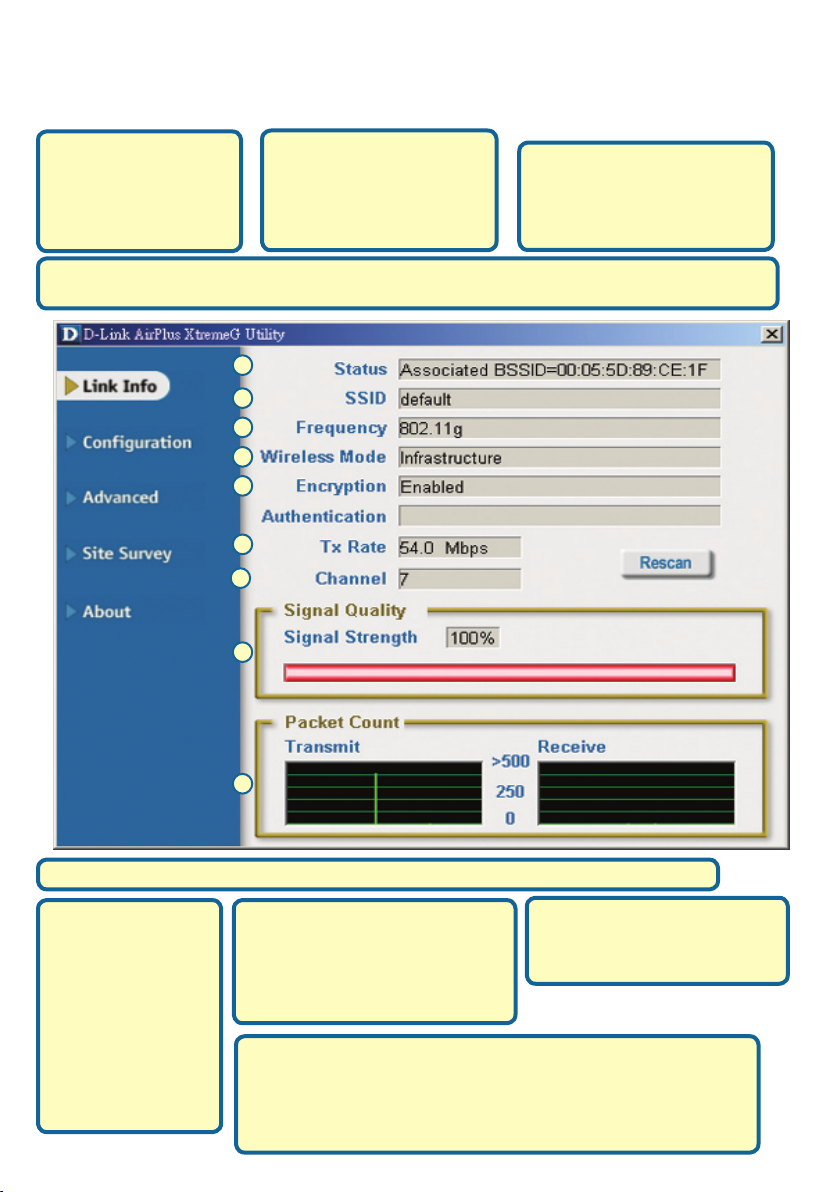

Using the Configuration Utility
A. Status: Displays
the MAC Address of
the Access Point that
is associated with the
DWL-G650.
B. SSID: The Service
Set Identifier is the name
assigned to the wireless
network. The factory SSID
setting is set to default.
C. Frequency: Displays the
current frequency used by
the current connection to the
access point.
E. Encryption: Displays the current encryption status of the wireless connection.
D. Wireless Mode: The factory setting is set to Infrastructure. Ad-Hoc mode is used for
peer-to-peer networking.
F. TxRate: The
default setting is
Auto; meaning,
TxRate settings
are automatically
determined by
the DWL-G650
depending on the
distance from the
access point.
E
C
D
B
A
G. Channel: Displays the
channel information. By default,
the channel is set to 6 and
selection is automatically
determined by the DWL-G650.
H. Signal Quality: Displays the Link Quality for the DWL-G650
wireless connection to the access point. The Signal Strength
represents the wireless signal between the access point and the
DWL-G650. The percentage coincides with the graphical bar.
I. Packet Count: Graphically
displays the statistics of data
transmitted and received.
F
H
G
I

8
L
K
J

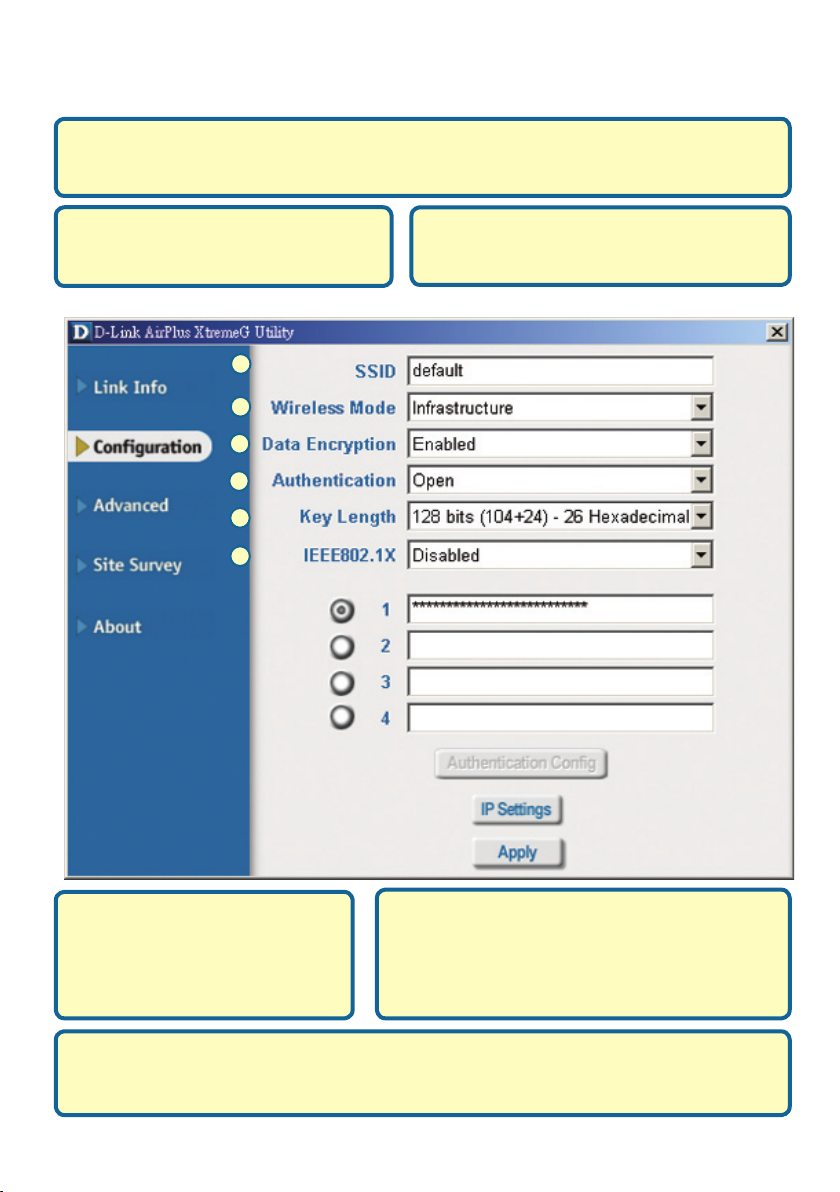

J. SSID: The Service Set Identifier is the name assigned to the wireless network. The
factory SSID setting is set to default. Make changes here to match the SSID on existing
Wireless Router or Access Point.
K. Wireless Mode: The factory setting
is set to Infrastructure. Ad-Hoc mode is
used for peer-to-peer networking.
L. Data Encryption: The default setting is
set to Disable. The adapter supports WEP
and AES when encryption is enabled.
N. Key Length: When encryption is enabled,
you will have the option to specify the level and
key format of the encryption used. Select the
appropriate Key Index: 1-4 and enter ACSII or
hexadecimal digits in the appropriate field.
M. Authentication: You can
specify the authentication mode
for the wireless network. The
default setting is set to Open
Authentication.
O. IEEE 802.1X: When encryption is enabled, you will have the option to specify the level
and key format of the encryption used. Select the appropriate Key Index: 1-4 and enter
ACSII or hexadecimal digits in the appropriate field.
Appendix (Cont.)
M
N
O

9

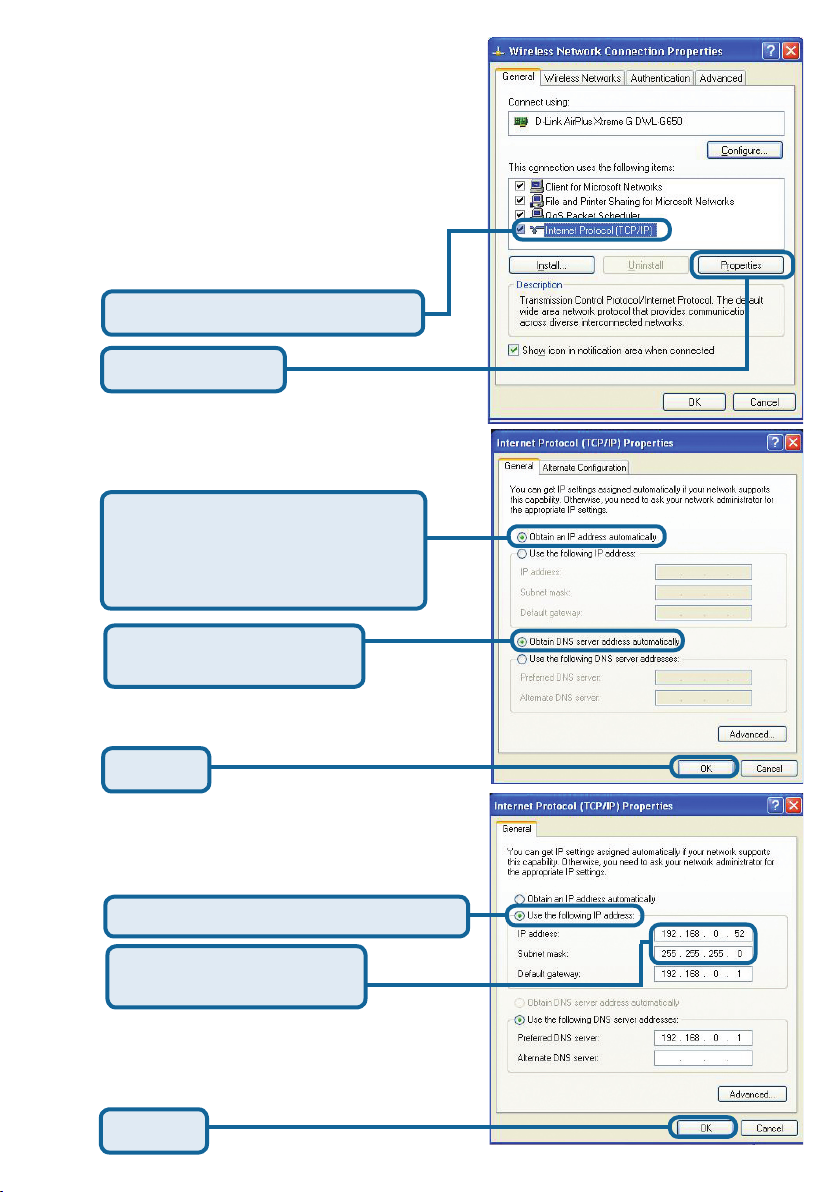

IP Address Configuration
To connect to a network, make sure
the proper network settings are
configured for DWL-G650.
For Microsoft Windows XP:
Go to Start > right click on
My Network Places >
select Properties > Double-click on
the Network Connection associated
with the DWL-G650.
Input a static IP address in the same
range as the Wireless Router or
Access Point.
Static IP address setup
Click OK
IP address: 192.168.0.52
Subnet mask: 255.255.255.0
Click OK
Click Internet Protocol (TCP/IP)
Click Properties
Select Obtain an IP address
automatically (if the Wireless
Router or Access Point has DHCP
server enabled)
Select Obtain DNS server
address automatically
Dynamic IP address setup
Used when a DHCP server is available on
the local network. (i.e. Router)
Used when a DHCP server is not available
on the local network.
Select Use the following IP address

10

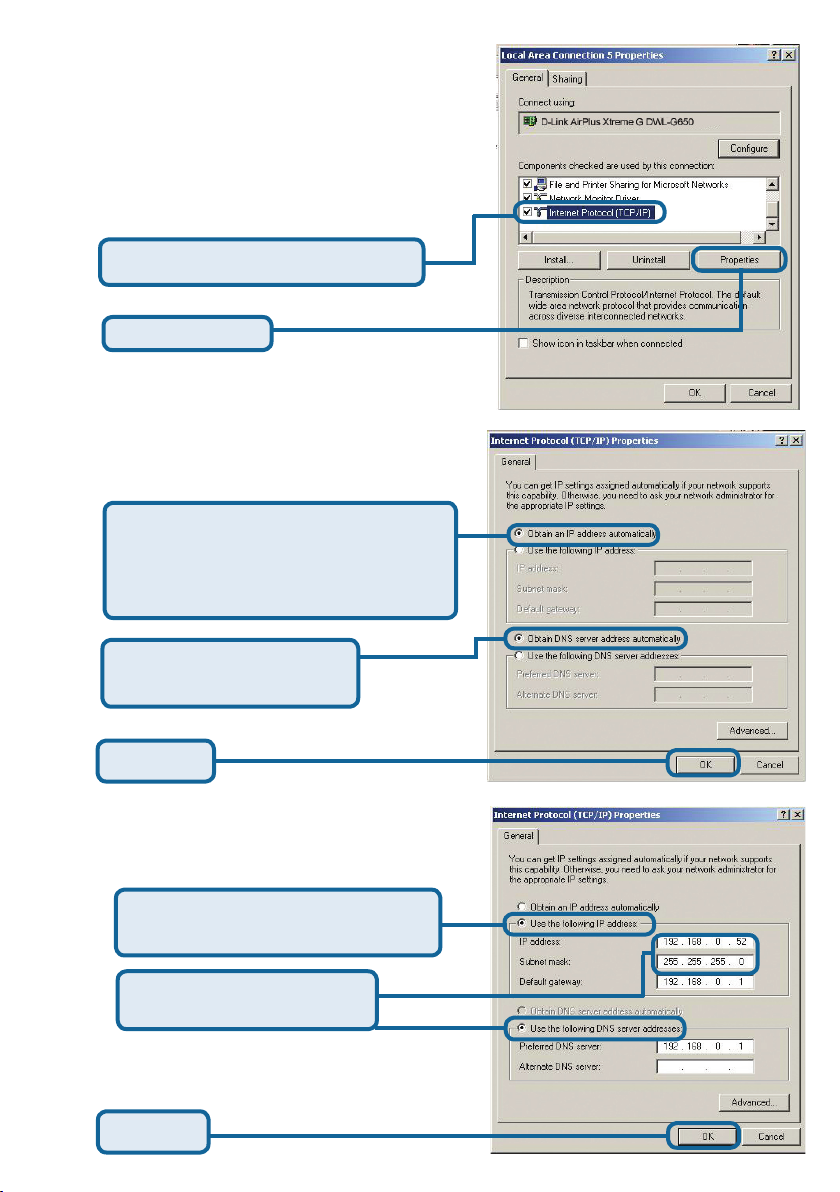

For Windows 2000 users:
Go to Start > Settings > Network and
Dial-up Connections > Double-click on
the Local Area Connection associated
with the DWL-G650 > select Properties
Used when a DHCP server is available on
the local network. (i.e. Router)
Static IP address setup
Input a static IP address in the same
range as the Wireless Router or
Access Point.
Click Properties
Click OK
Click OK
Click Internet Protocol (TCP/IP)
Select Obtain an IP address
automatically (if the Wireless Router
or Access Point has DHCP server
enabled)
Select Obtain DNS server
address automatically
Select Use the following IP
address
Dynamic IP address setup
Used when a DHCP server is not available
on the local network.
IP address: 192.168.0.52
Subnet mask: 255.255.255.0

11
