FAQ: Configuring PPPoE Connection with WPA Encryption using the Setup Wizard –Version 1.00
Technical Support Setup Procedure
FAQ : Configuring PPPoE Connection with WPA Encryption
using the Setup Wizard
Release date : 27/05/2013
Model Support : DSL-2750E
H/W: T1
S/W:1.04

-2-
FAQ: Configuring PPPoE Connection with WPA Encryption using the Setup Wizard –Version 1.00
Technical Support Setup Procedure
PPPoE Connection WPA
Setup Wizard

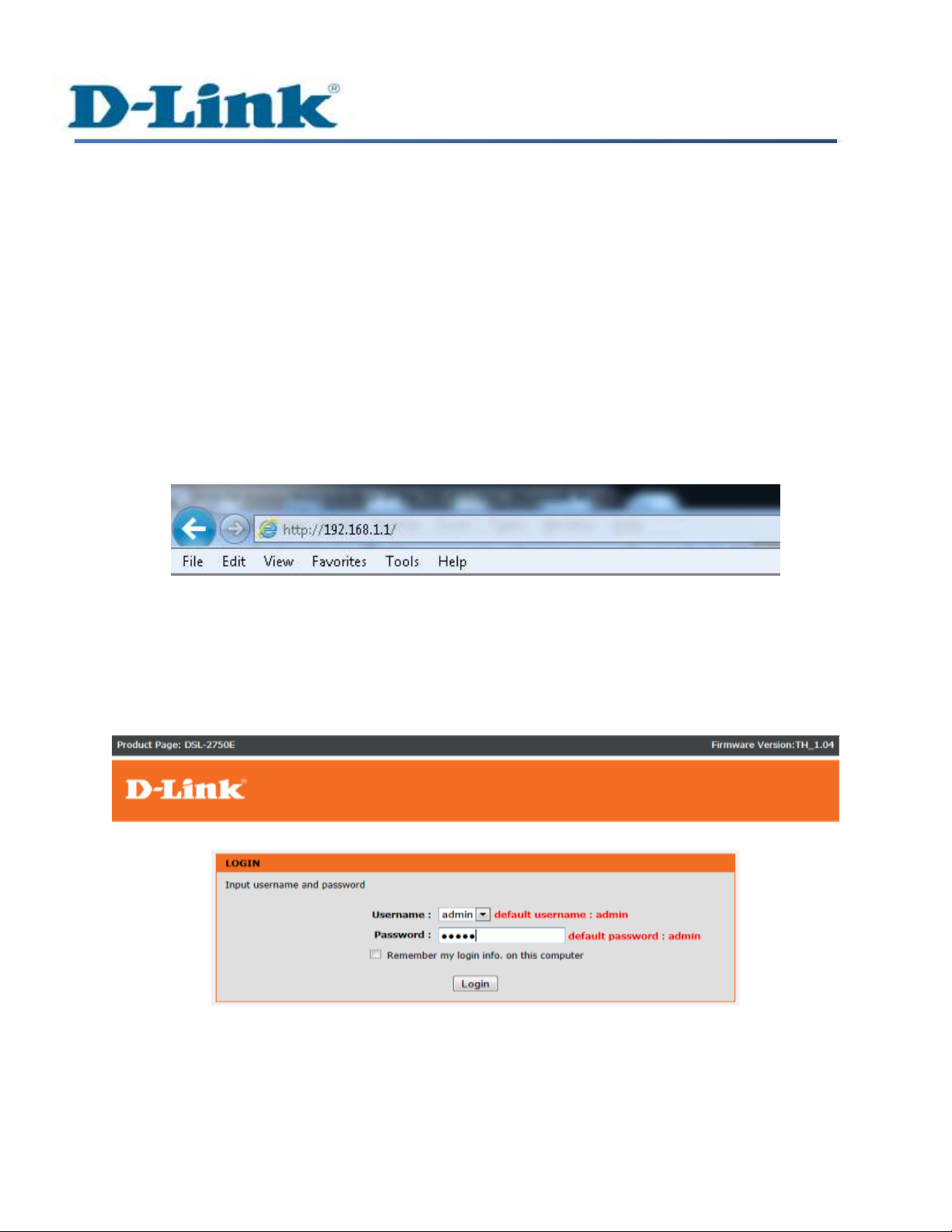

1: ,  ,  , 
Address IP Address DSL-2750E 192.168.1.1 
Enter  IP Address 

2: (User Name) 
(Password) “admin” 
Log In

-3-
FAQ: Configuring PPPoE Connection with WPA Encryption using the Setup Wizard –Version 1.00
3: 
SETUP WIZARD INTERNET CONNECTION
WIZARD Setup Wizard
4: Wizard DSL-2750E 
Next
1
2
3

-4-
FAQ: Configuring PPPoE Connection with WPA Encryption using the Setup Wizard –Version 1.00
5: (Enabled) (Disable) Daylight
Saving Time Zone NTP (Network Time Protocol)
Manual Setup Time  Next

-5-
FAQ: Configuring PPPoE Connection with WPA Encryption using the Setup Wizard –Version 1.00
6: 
1. Country : 
2. ISP (Internet Service Provider) : 

3. Protocol :  PPPoE
4. Encapsulation Mode : LLC
5. VPI : VPI 
6. VCI : VCI 
7. 
8. NEXT

-6-
FAQ: Configuring PPPoE Connection with WPA Encryption using the Setup Wizard –Version 1.00
7: 
1.Enable Your Wireless Network
2. SSID 
3.  WPA-PSK WPA2-PSK Security Level
4. PRE-SHARED KEY (8-63 
5. Next

-7-
FAQ: Configuring PPPoE Connection with WPA Encryption using the Setup Wizard –Version 1.00

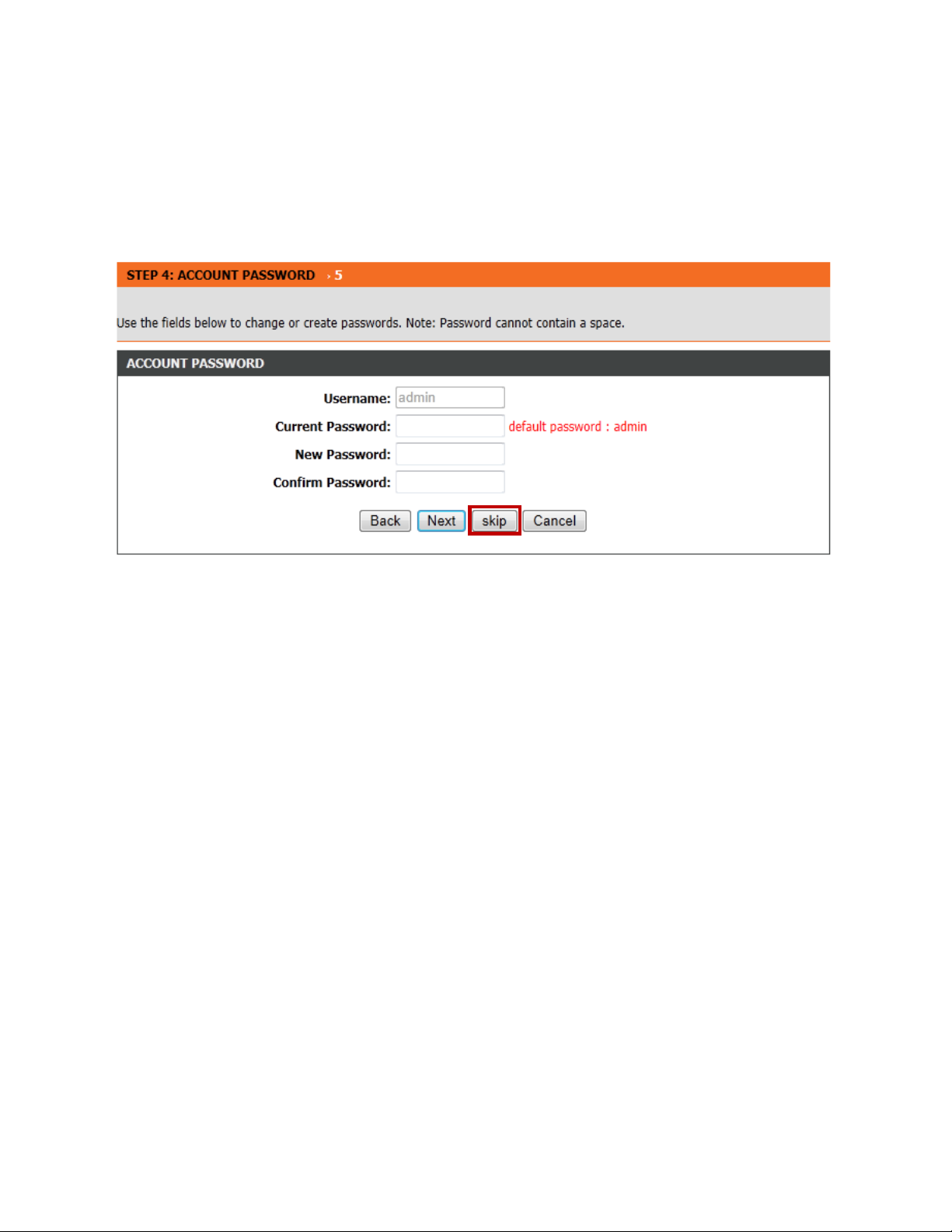

8: admin 
New Password 
Skip 

-8-
FAQ: Configuring PPPoE Connection with WPA Encryption using the Setup Wizard –Version 1.00
9: Apply 

-9-
FAQ: Configuring PPPoE Connection with WPA Encryption using the Setup Wizard –Version 1.00
Technical Support Setup Procedure
Configuring Bridge Mode with WPA Encryption using the Setup Wizard

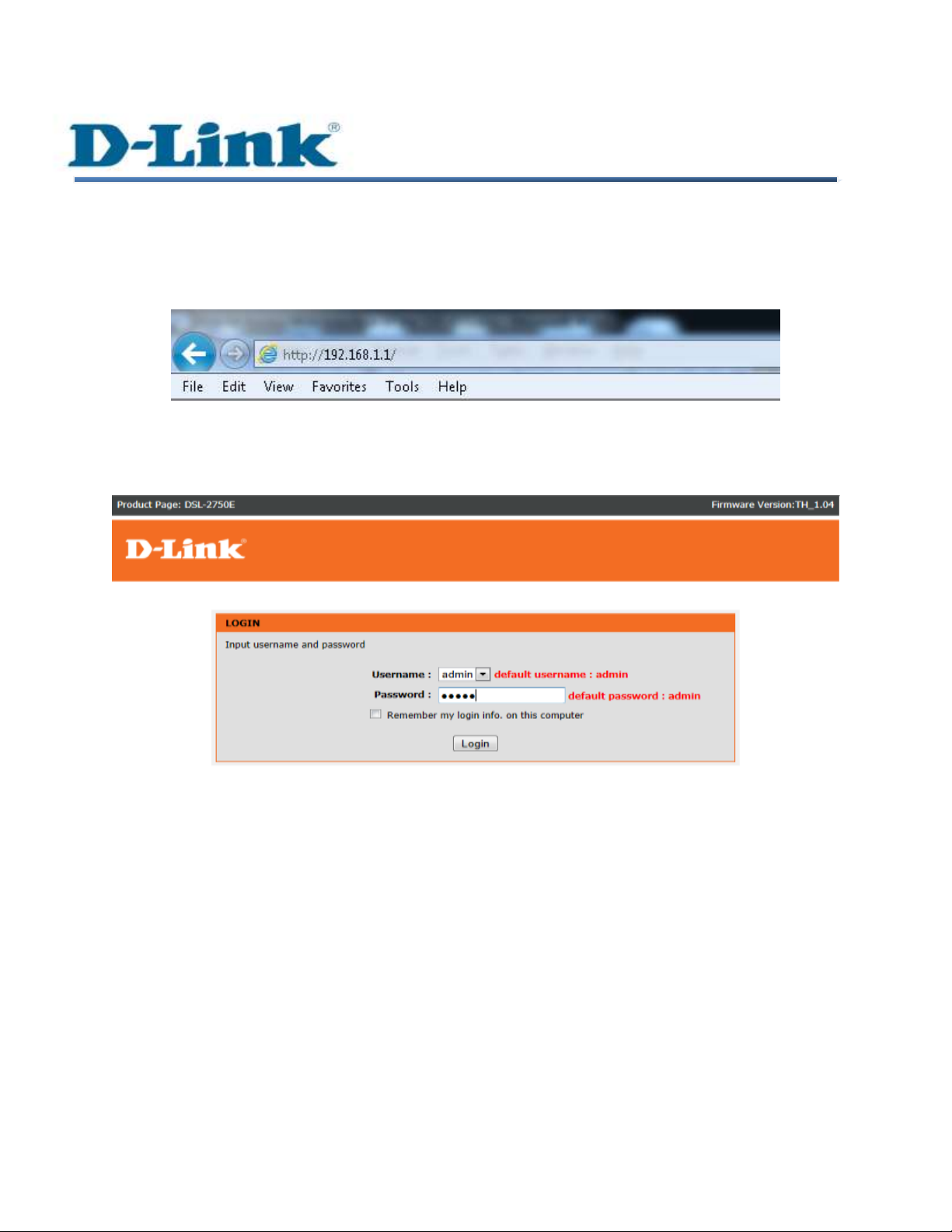

Step 1: Open a web browser such as Internet Explorer, Mozilla Firefox, Safari and etc. On the Address
bar, enter the LAN IP Address of the DSL-2750E. The default ip address is 192.168.1.1. Press ‘Enter’
key on your keyboard. Please enter the new ip address of the router if you have changed it.
Step 2: A login screen will appear, type in the User Name and Password as “admin” all in lower case
(This is the default setting, please enter the new username and password if you have changed it).
Click on the Log In button.

-10-
FAQ: Configuring PPPoE Connection with WPA Encryption using the Setup Wizard –Version 1.00

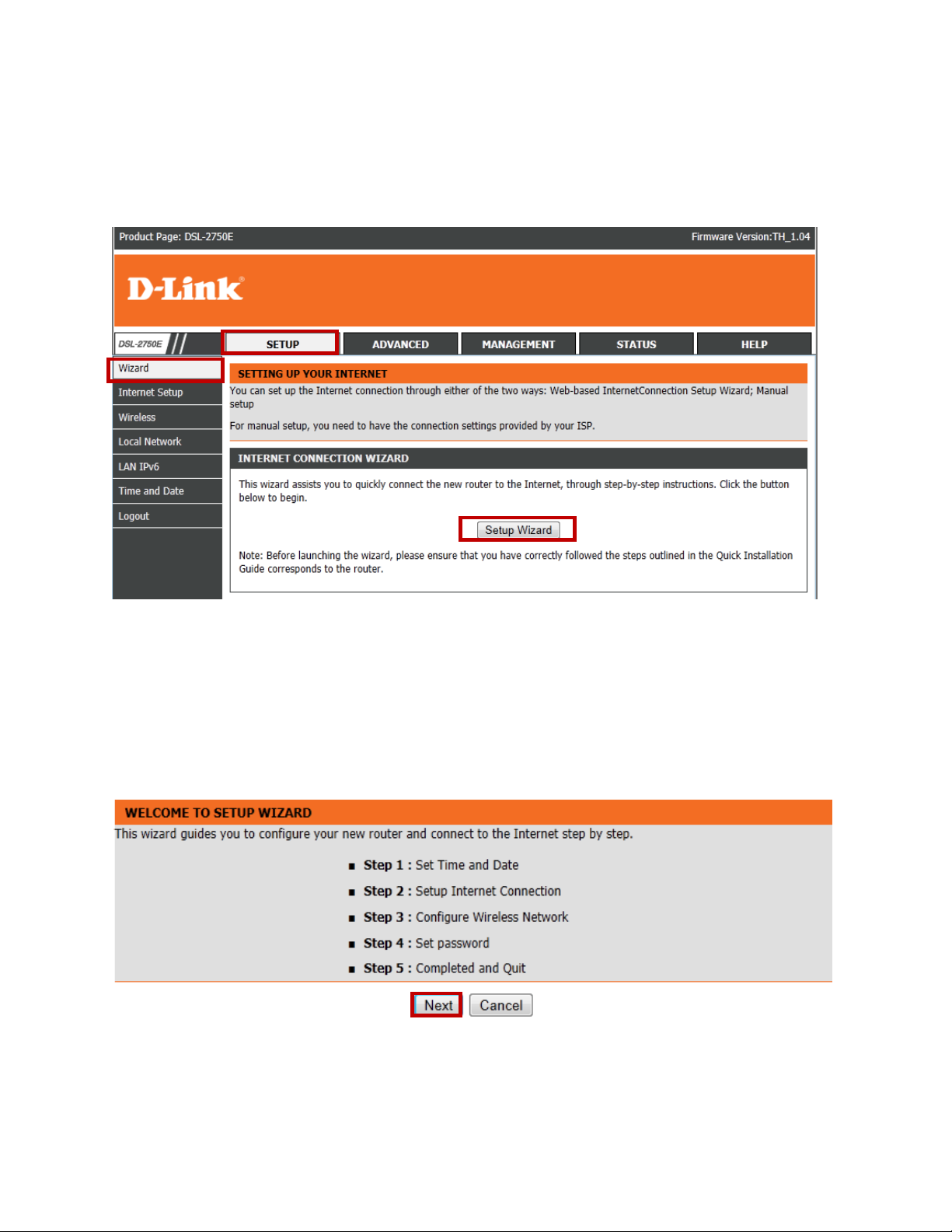

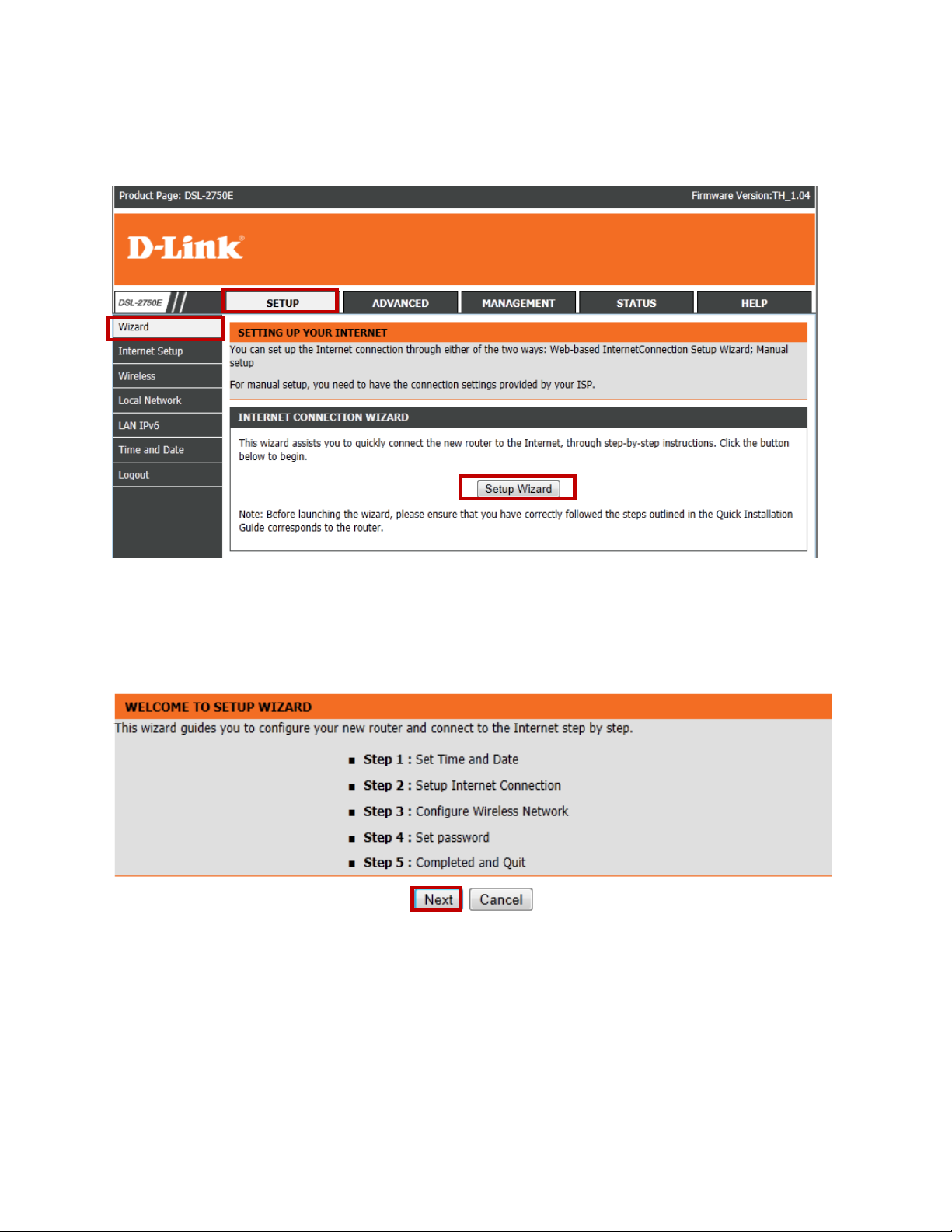

Step 3: You are now at the DSL-2750E web interface. Click on the SETUP tab, select Wizard on the
left. Under INTERNET CONNECTION WIZARD, click on the Setup Wizard button.
Step 4: This wizard will guide you through a step-by-step process to configure your DSL-2750E to
connect to the Internet. Click on Next button.
1
2
3

-11-
FAQ: Configuring PPPoE Connection with WPA Encryption using the Setup Wizard –Version 1.00

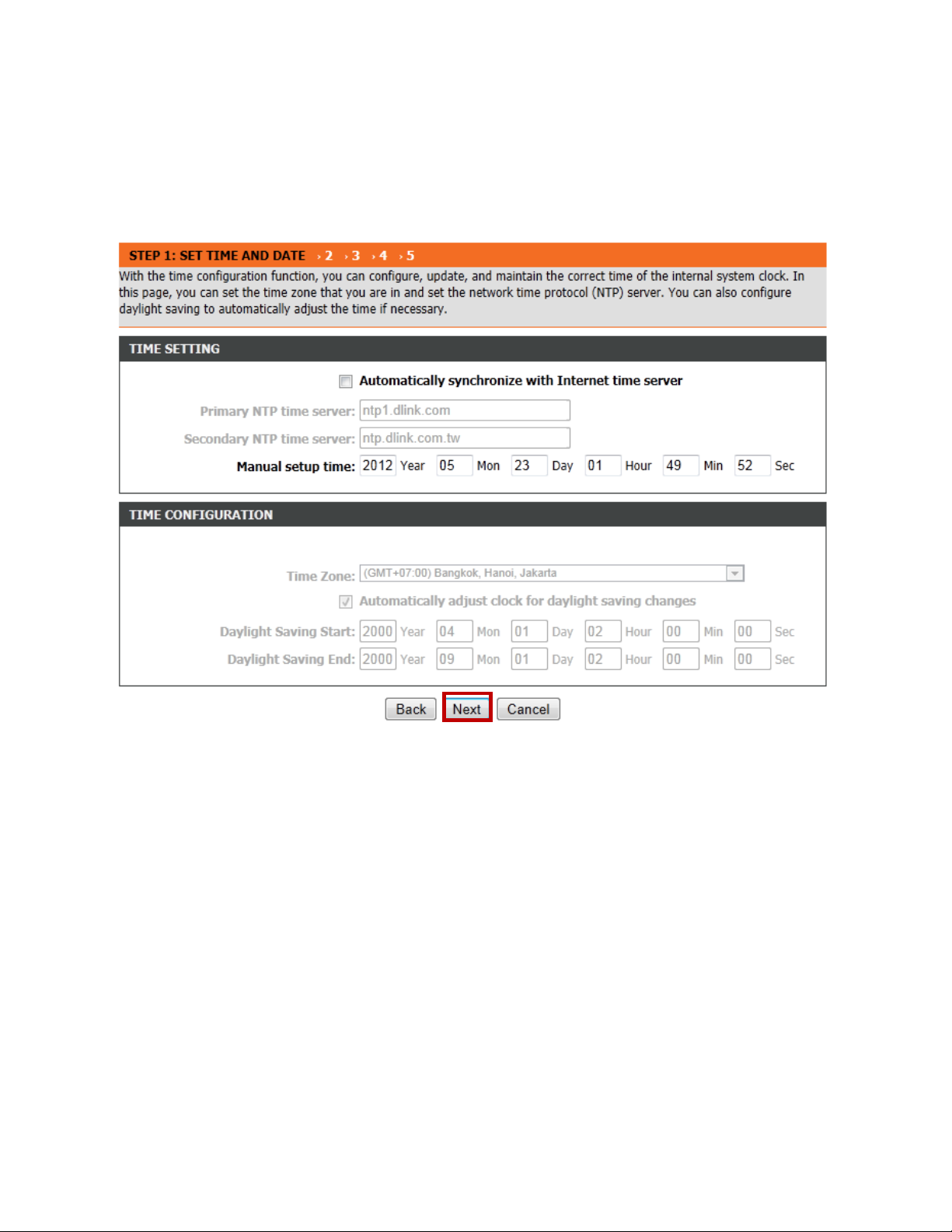

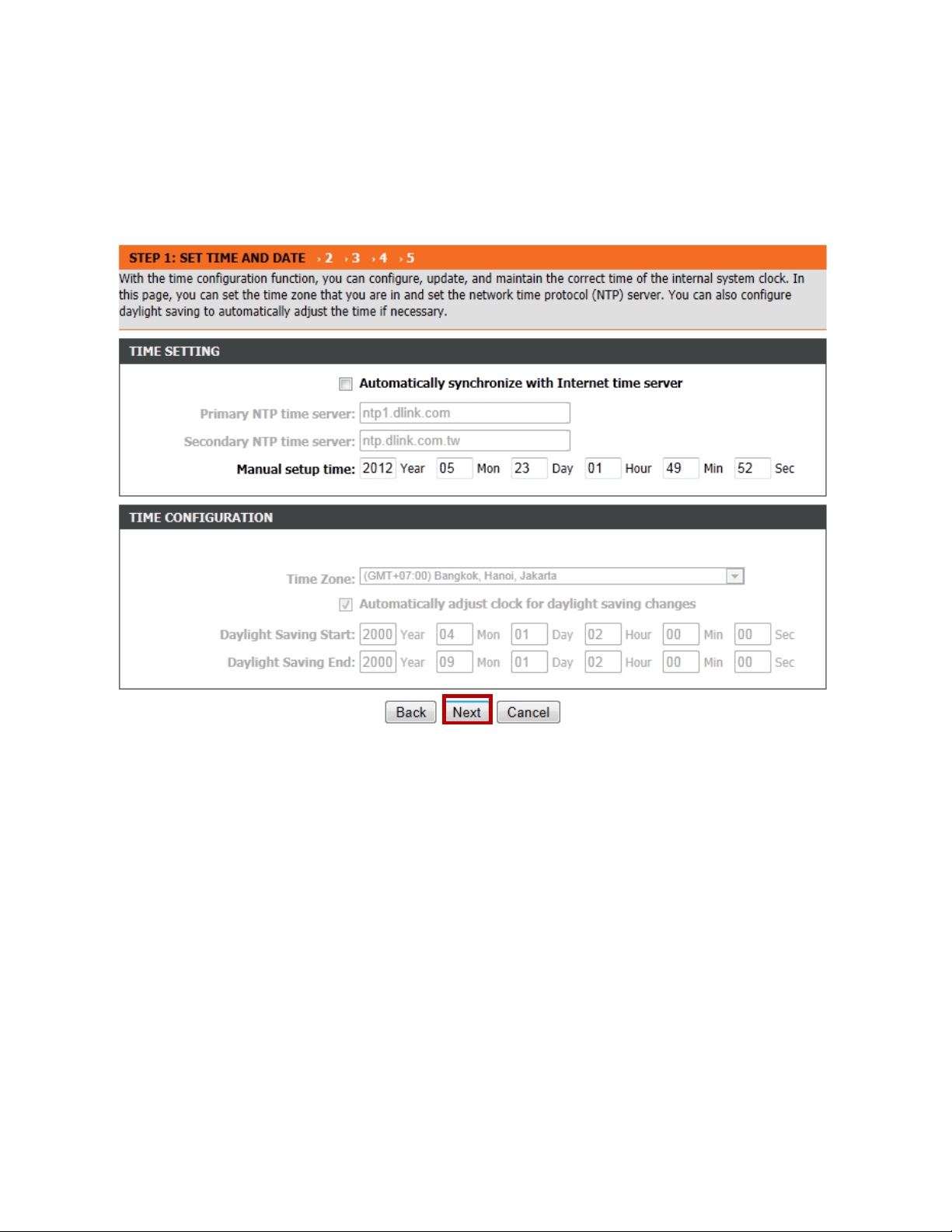

Step 5: From this section, you can enable or disable Daylight Saving and set the time zone that you
are in and set the NTP (Network Time Protocol) Server. You can also adjust the time through 'Manual
setup time' when needed. Click Next to continue.

-12-
FAQ: Configuring PPPoE Connection with WPA Encryption using the Setup Wizard –Version 1.00

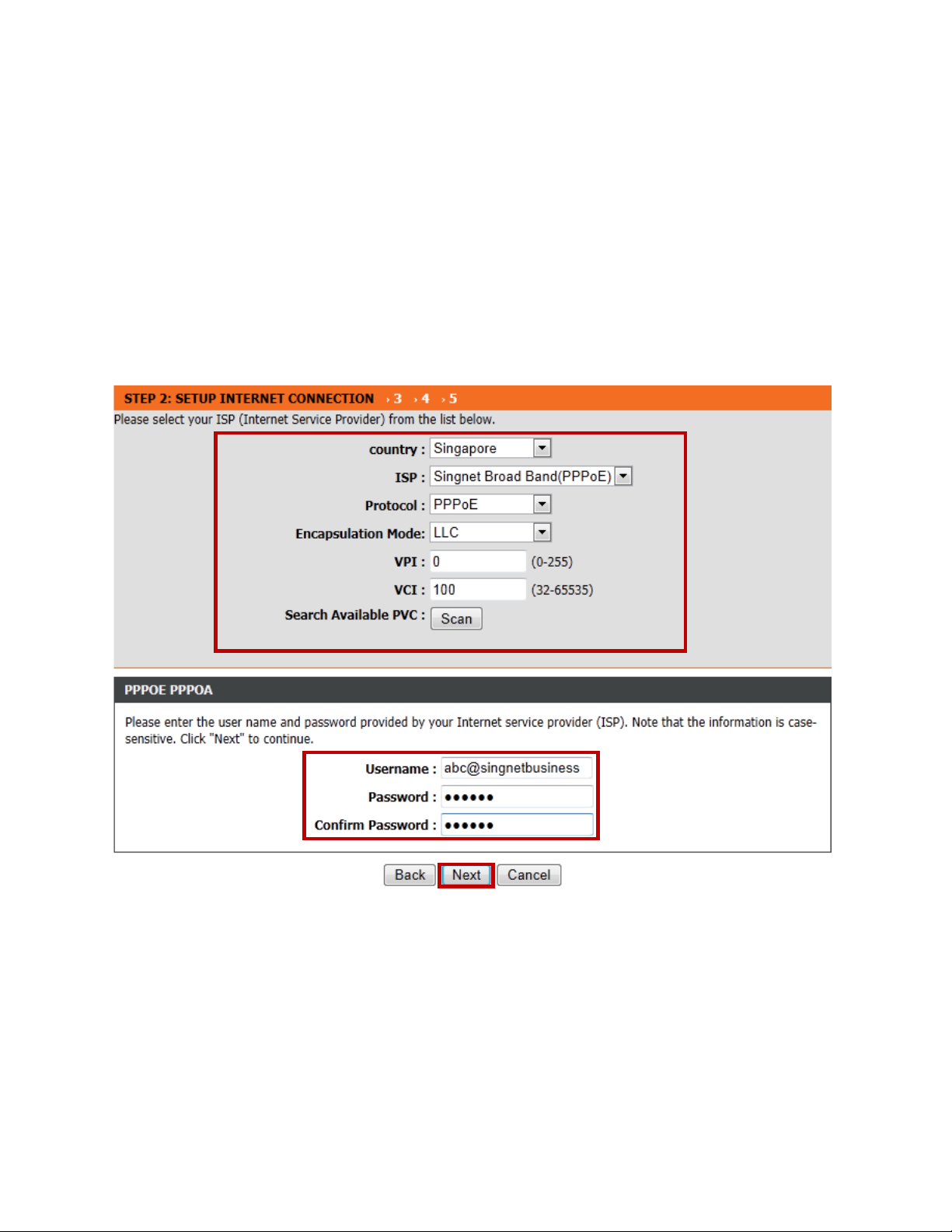

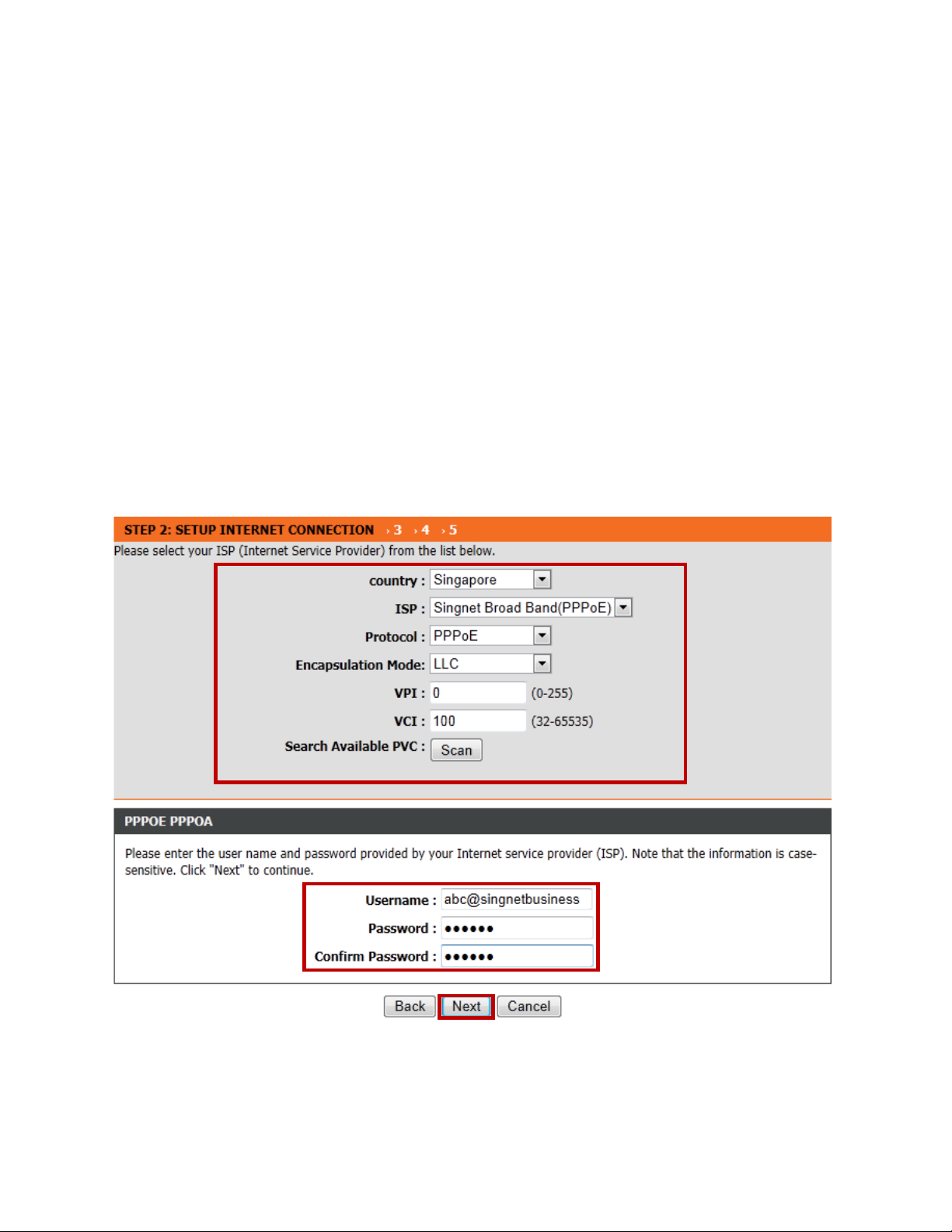

Step 6: The next step is to Setting up the Internet Connection, configure the following;
1. Country: Select the country where you are currently located
2. ISP (Internet Service Provider): Select from the drop down box the name of the
service provider who provide the Internet Connection
3. Protocol: Select PPPoE
4. Encapsulation Mode: Select LLC
5. VPI: Enter the VPI required by the Internet Provider (ISP)
6. VCI: Enter the VCI required by the Internet Provider (ISP)
7. Username/Password: Enter the username and password provided by your ISP
8. Click on the Next button.

-13-
FAQ: Configuring PPPoE Connection with WPA Encryption using the Setup Wizard –Version 1.00

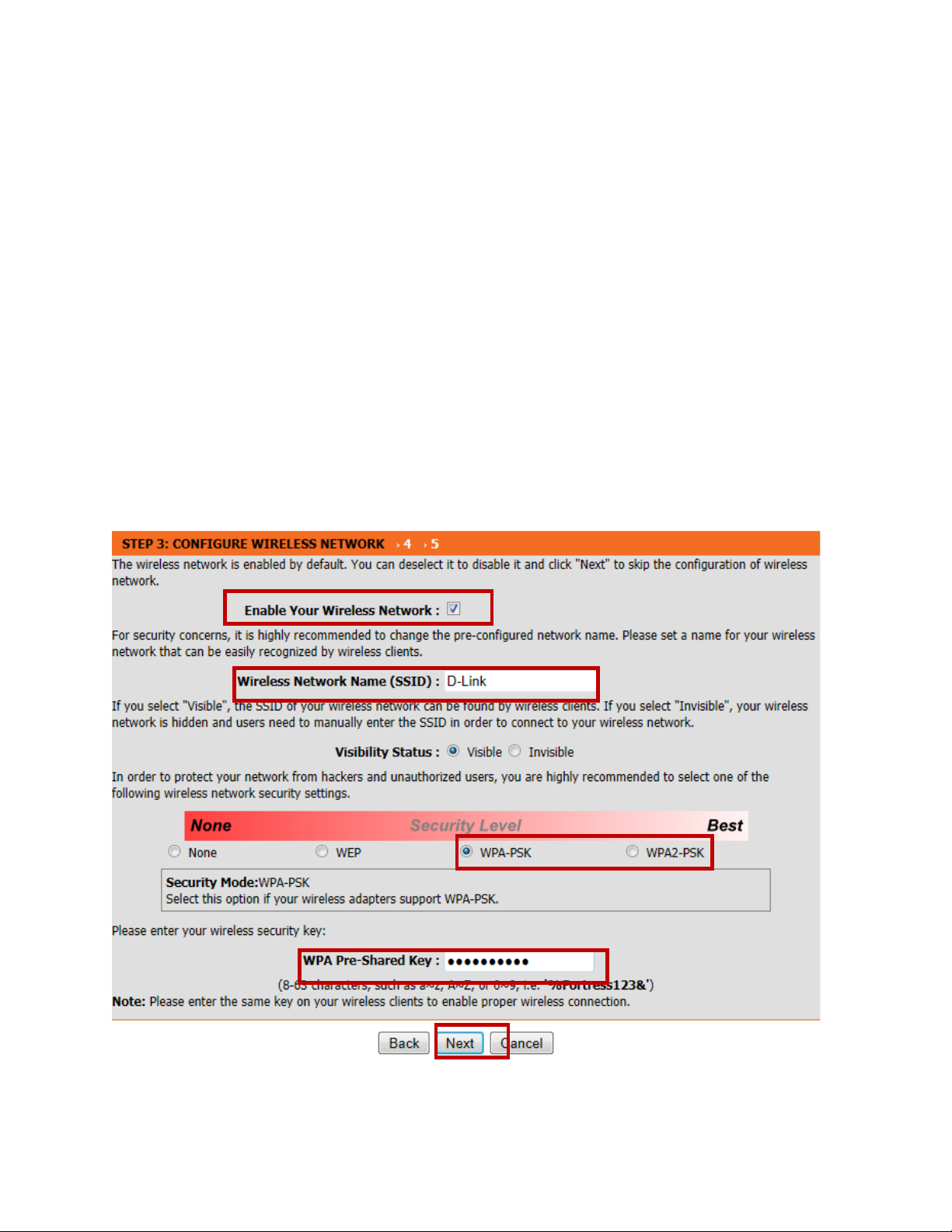

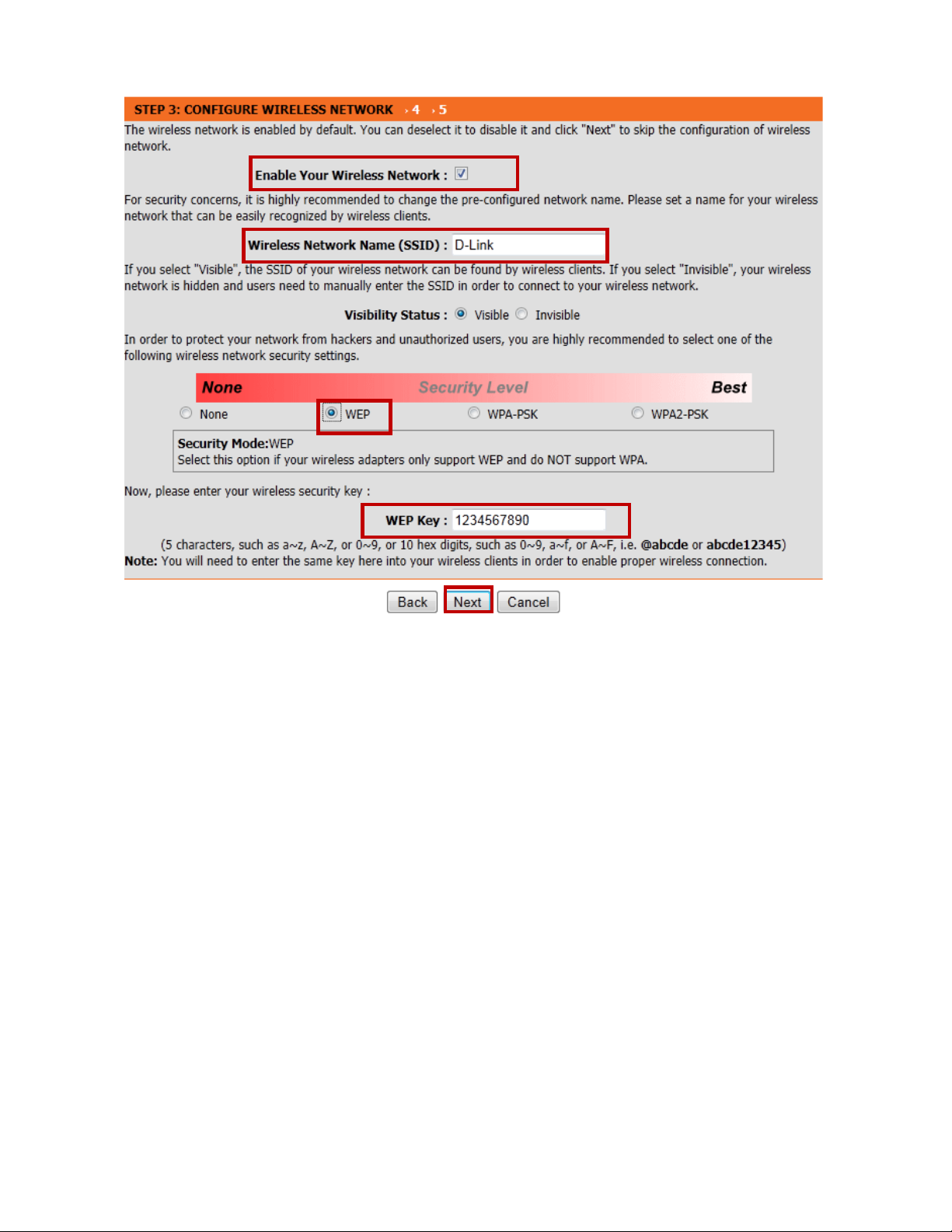

Step 7: The next step is to Setting up the Wireless Network, configure the following;
1. Put a check mark on Enable Your Wireless Network
2. Enter your desired name (SSID) for the Wireless Network
3. Select WPA-PSK or WPA2-PSK on the Security Level
4. Enter a pre-shared key (8-63 characters) which will serve as the password for the
wireless network.
5. Click on the Next button

-14-
FAQ: Configuring PPPoE Connection with WPA Encryption using the Setup Wizard –Version 1.00

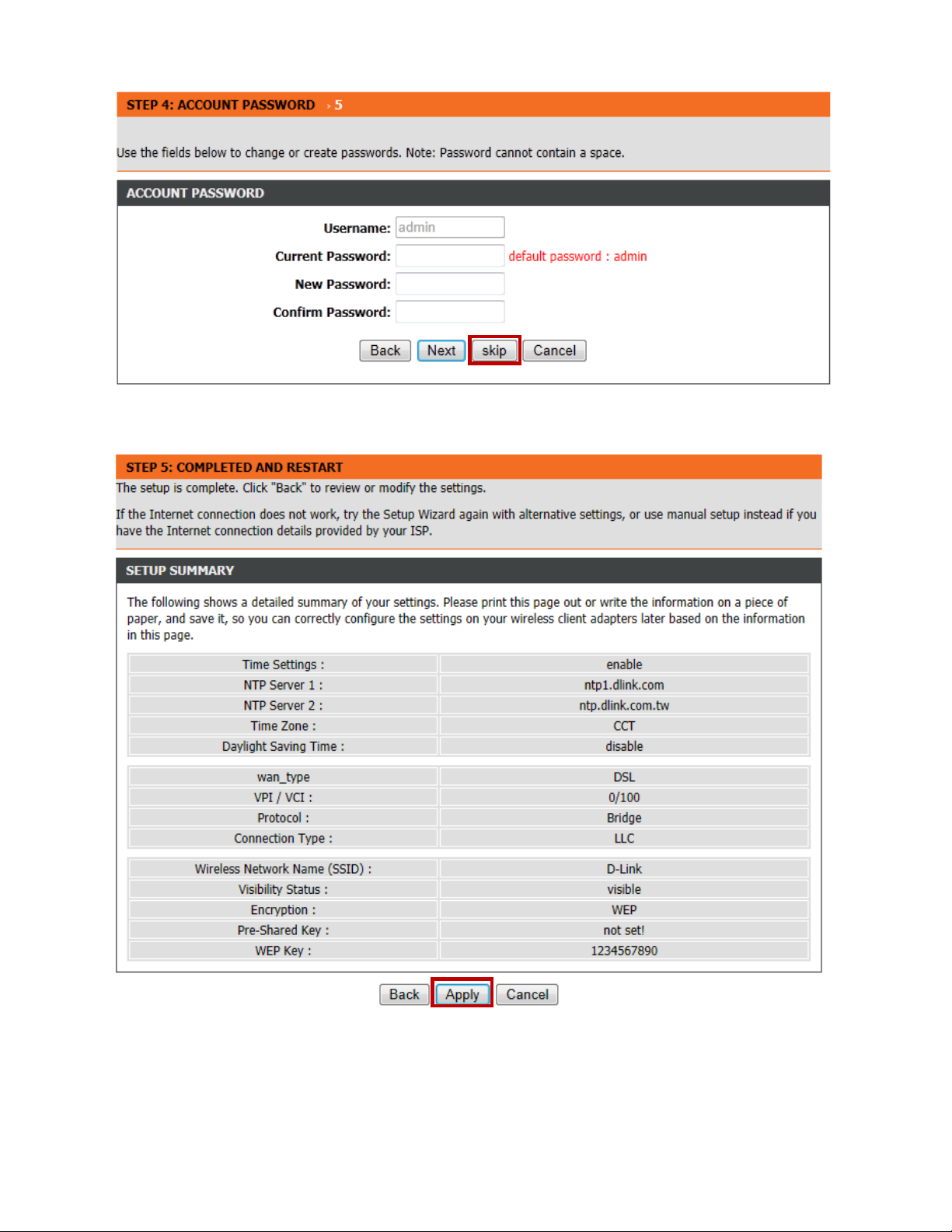

Step 8: The factory default password of this router is admin. To help secure your network, D-Link
recommends that you should choose a new password. If you do not wish to choose a new password
now, just click "Skip" to continue. Click "Next" to proceed to next step.

-15-
FAQ: Configuring PPPoE Connection with WPA Encryption using the Setup Wizard –Version 1.00

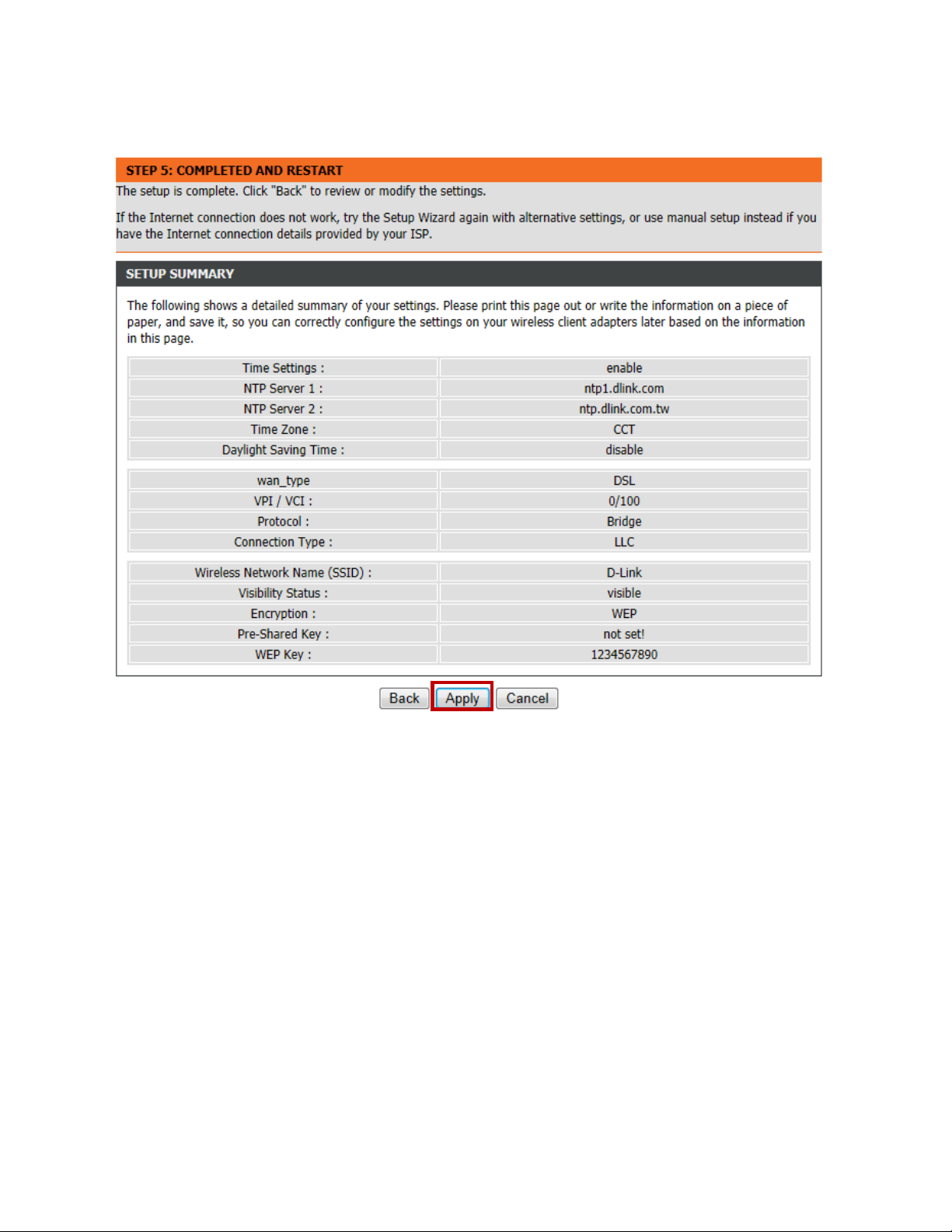

Step 9: Setup is now completed, click on the Apply button to save the settings.

-16-
FAQ: Configuring PPPoE Connection with WPA Encryption using the Setup Wizard –Version 1.00
 
Call Center  02-6617997
: 9.00 –18.00 
Thai: Mon –Fri : Time 9.00 –18.00.
: 18.00 
English : Sat –Sun , Public Holiday and after 18.00 weekday.
Website : www.dlink.co.th
email: [e-mail]
Facebook : http://www.facebook.com/DLinkThailandFans

-17-
FAQ: Configuring PPPoE Connection with WPA Encryption using the Setup Wizard –Version 1.00

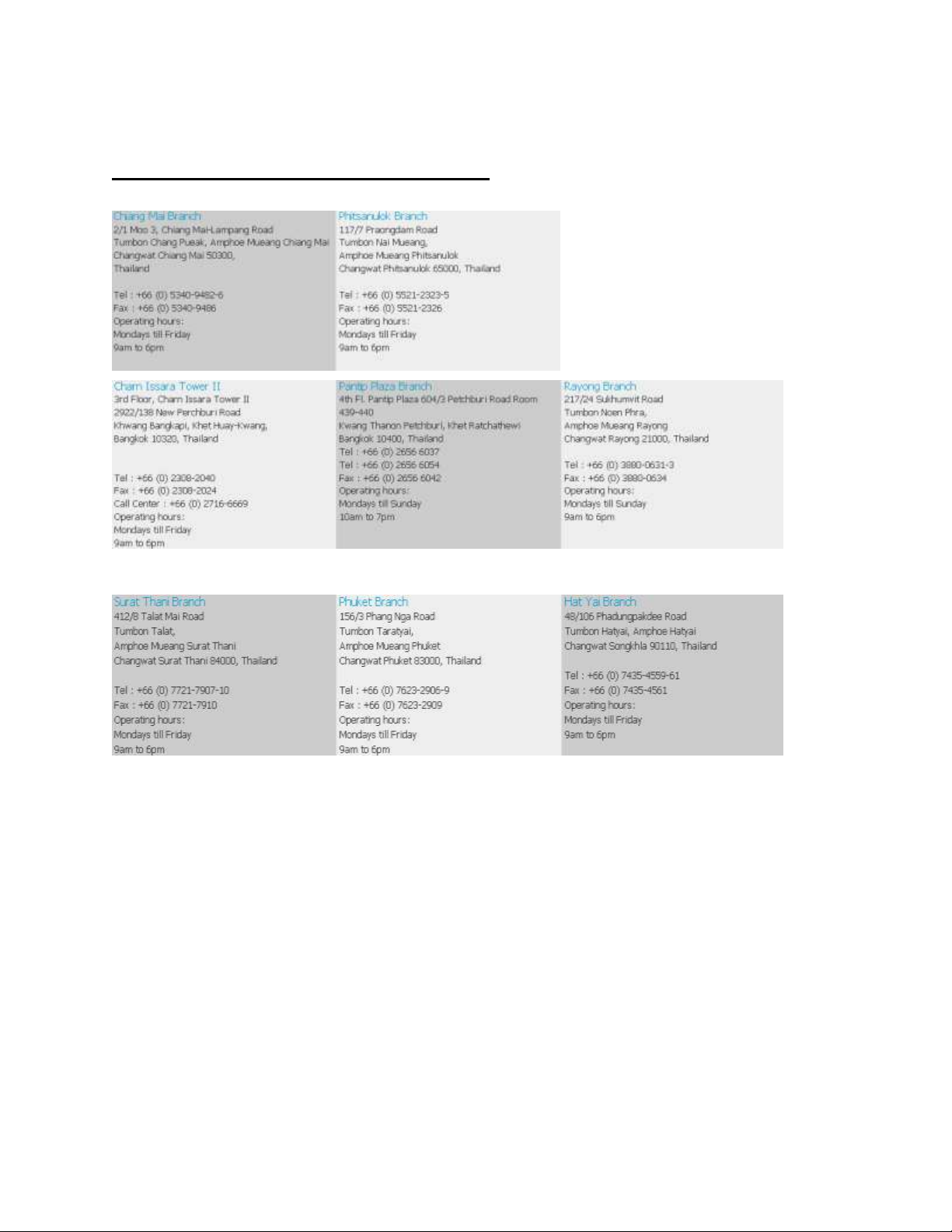

Nationwide D-Link Service Centres
