D-Link DP-313 - Air 802.11b Wireless Print Server User manual

DP-313
Wireless Print Server
Quick Installation Guide
TCP/IP Printing
(LPR for Windows 95/98/Me)
Rev. 02 (March, 2001)

Copyright Statement
Copyright ©1997
No part of this publication may be reproduced in any form or by any
means or used to make any derivative such as translation,
transformation, or adaptation without permission from the authors, as
stipulated by the United States Copyright Act of 1976.
Trademarks
All trademarks are the property of their respective owners.

Setting up Windows 95/98/Me TCP/IP Printing
The Print Server can provide print services to TCP/IP networks using
the LPR/LPD network printing protocol. Most UNIX systems are
capable of supporting LPD, as is Windows NT/2000.
The LPR for TCP/IP Printing client gives Windows 95/98/Me
workstations the ability to print using the LPR/LPD printing protocol.
Though it is possible to print to Print Servers from Windows 95/98/Me,
LPR printing is primarily used in networks with UNIX based
implementation or if the user wants to print from workstations that are
only accessible through IP routing.
Installing the LPR for TCP/IP Printing Client
Before your Windows 95/98/Me workstation can print using the LPR
protocol, you will need to install the client program, as follows:
1. Make sure that you have installed the TCP/IP protocol, and have
properly configured the Windows 95/98/Me TCP/IP settings.
You can install the protocol from the Network control panel if
necessary.
2. From the Start menu, choose the Settings submenu, then the
Control Panel item within it. Windows will display the Control
Panel folder.

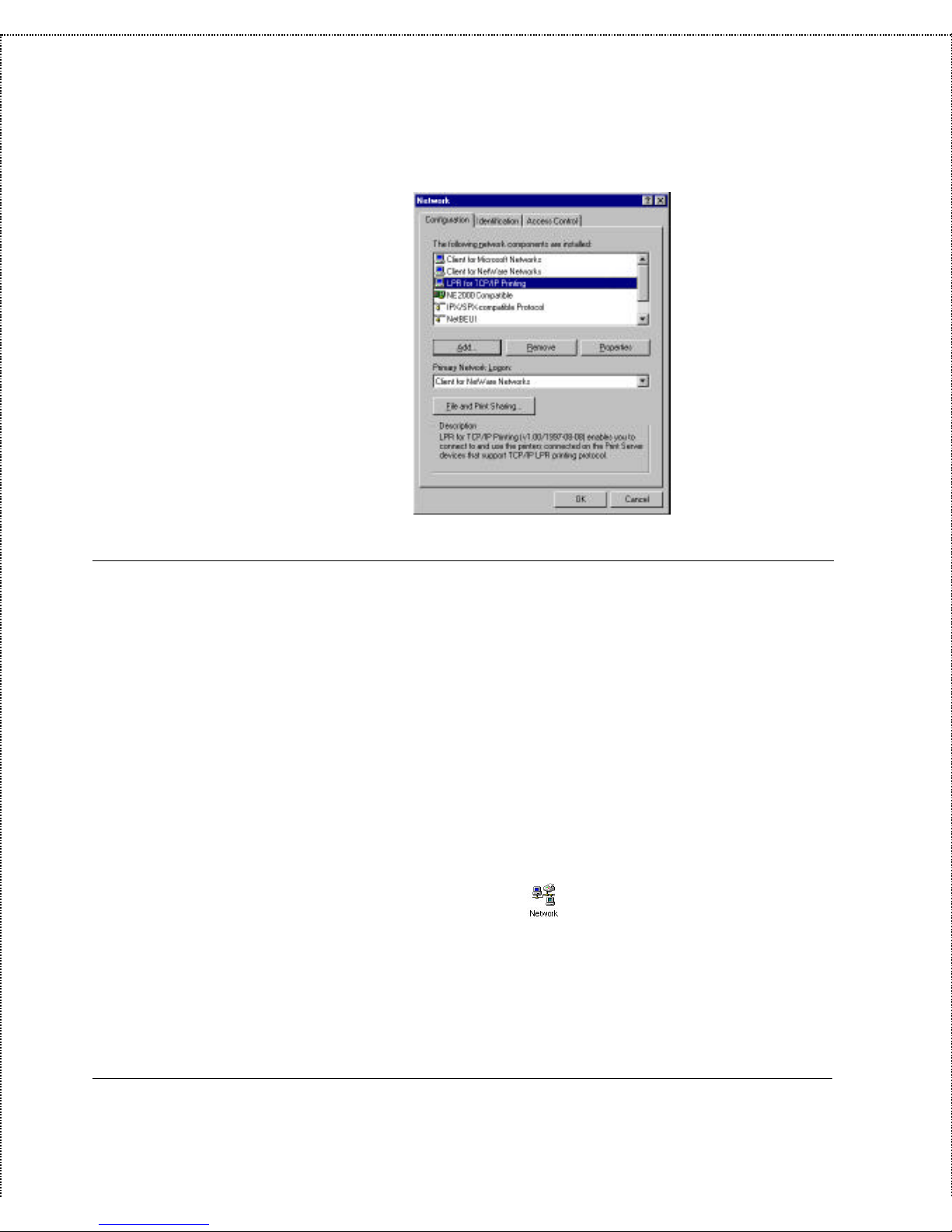

3. Double-click on the Network icon in the Control Panel folder.

LPR for Windows 95/98/Me TCP/IP Printing User’s Guide
2Setting up Windows 95/98/Me TCP/IP Printing
4. Click on the Add... button on the Configurationtab.

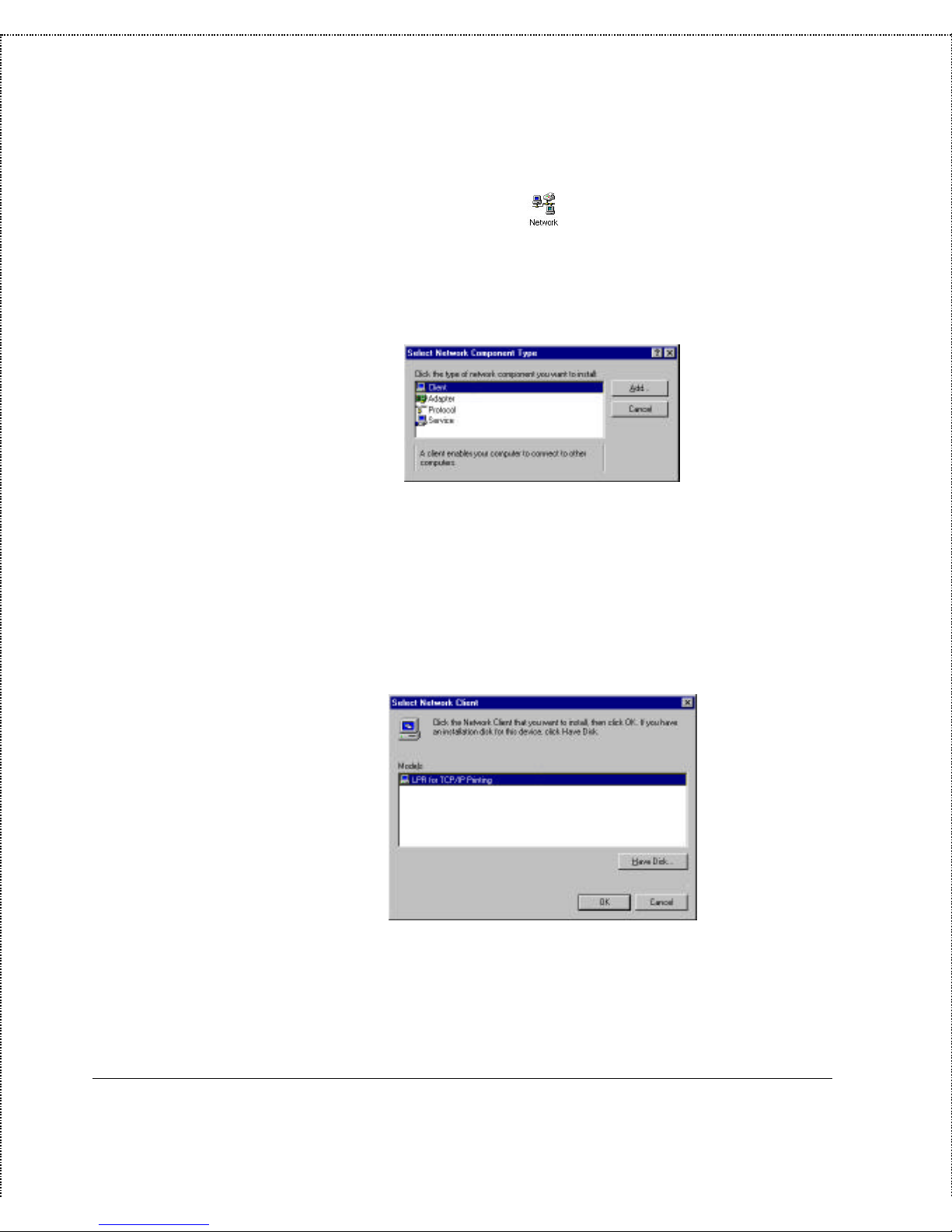

5. Windows will ask for the type of component to add. Select
Client and click Add... to continue.
6. When Windows asks you to select a network client, click the
Have Disk... button.
7. Insert the Print Server installation CD in your computer’s CD-
ROM , enter the proper pathname (for example , D:\lpr), and
click OK.
8. Select the LPR for TCP/IP Printing client and click OK.
9. Windows will copy the necessary files, and return to the
Network dialog. Click OK to let Windows restart.

LPR for Windows 95/98/Me TCP/IP Printing User’s Guide
Setting up Windows 95/98/Me TCP/IP Printing 3
Adding LPR Printer Ports
Once you have installed the client, and have enabled TCP/IP printing
for the Print Servers, then you will need to add a printer port for each
printer you will be printing to using the LPR/LPD protocol. To add a
printer port,
1. From the Start menu, choose the Settings submenu, then the
Control Panel item within it. Windows will display the Control
Panel folder.
2. Double-click on the Network icon in the Control Panel folder.
3. Choose the LPR for TCP/IP Printing client and click the
Properties button.

LPR for Windows 95/98/Me TCP/IP Printing User’s Guide
4Setting up Windows 95/98/Me TCP/IP Printing
4. Click the Add Port... button to add a new LPD-accessible
printer port.

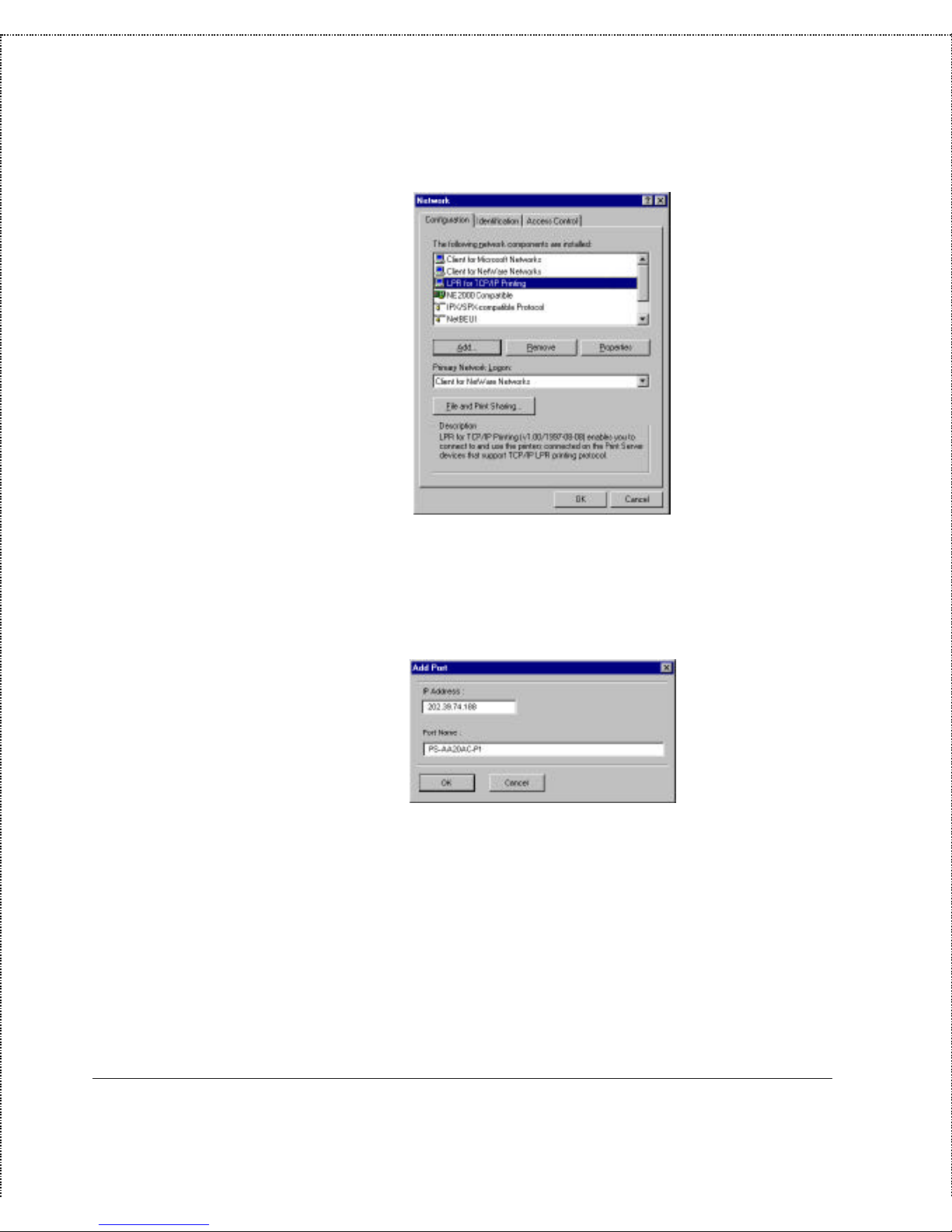

5. Enter the IP address of the Print Server and the name of the
printer port that you will be printing to, and then press OK.
6. Click OK to leave the LPR for TCP/IP Printing Properties
window.

LPR for Windows 95/98/Me TCP/IP Printing User’s Guide
Setting up Windows 95/98/Me TCP/IP Printing 5
Printing from Windows 95/98/Me
After you have added the necessary printer ports, you can add a printer
device for printing to the port. To enable printing to an LPR-accessible
printer port from Windows 95/98/Me,
1. From the Start menu, choose the Settings submenu, then the
Printers item within it. Windows will display the Printers folder.

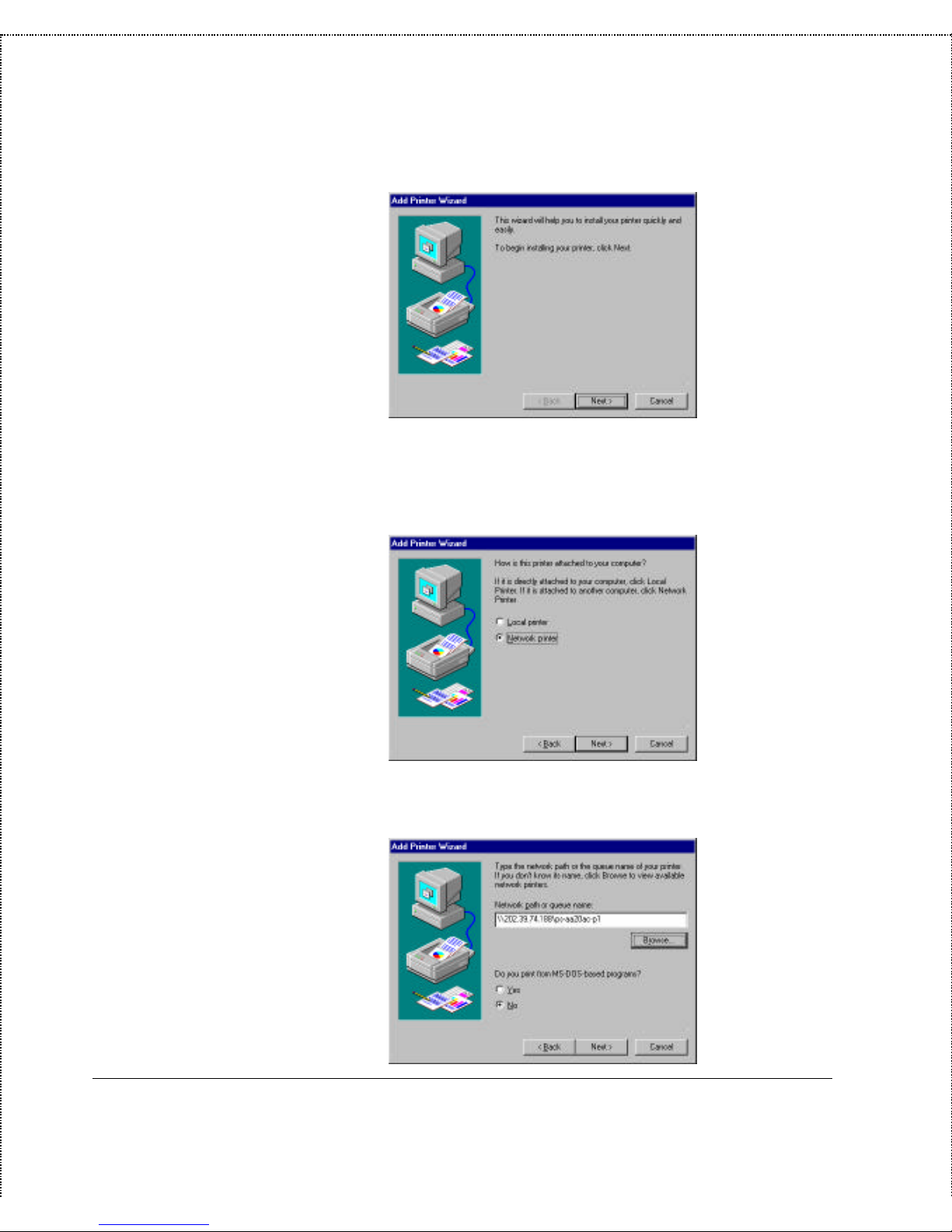

2. Double-click on the Add Printer icon in the Printers folder.
Windows will start the Add Printer Wizard.

LPR for Windows 95/98/Me TCP/IP Printing User’s Guide
6Setting up Windows 95/98/Me TCP/IP Printing
Click the Next > button to continue to the next screen.
3. Choose the Network Printer selection and click the Next >
button to continue.
4. Enter the name of the port, as displayed in the LPR for TCP/IP
Printing Port List.

LPR for Windows 95/98/Me TCP/IP Printing User’s Guide
Setting up Windows 95/98/Me TCP/IP Printing 7

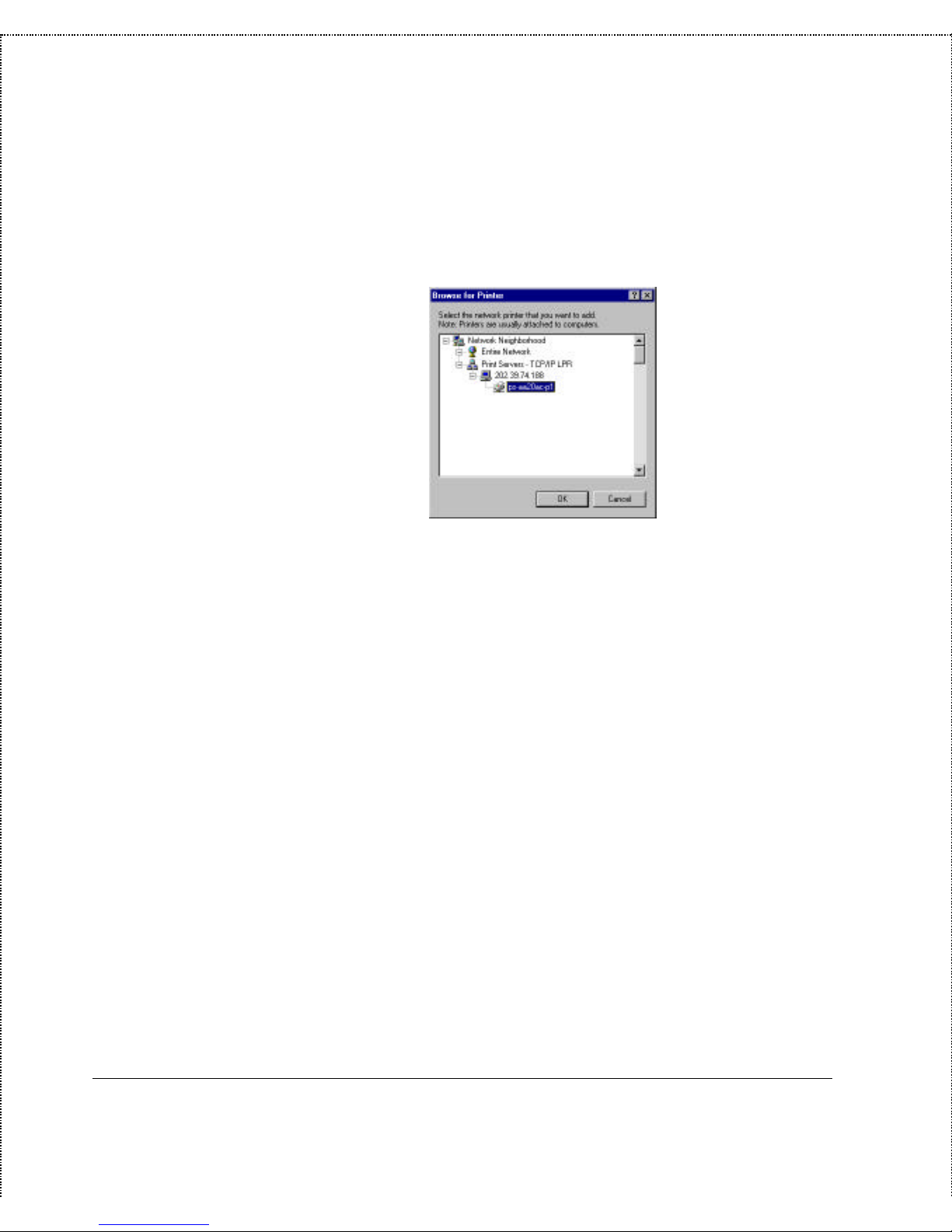

Alternatively, you can click Browse... and locate the printer port.
TCP/IP printing ports are located under the Entire Network icon,
within the Print Servers -TCP/IP LPR icon.
Press OK when you have located the proper printer port.
Click Next > to continue to the next step.
5. At this point Windows will ask you to choose the correct printer
driver for the printer. Choose you printer’s make and model
from the list, or use the driver disk included with the printer.
When you have chosen the correct printer, click Next >to
continue.

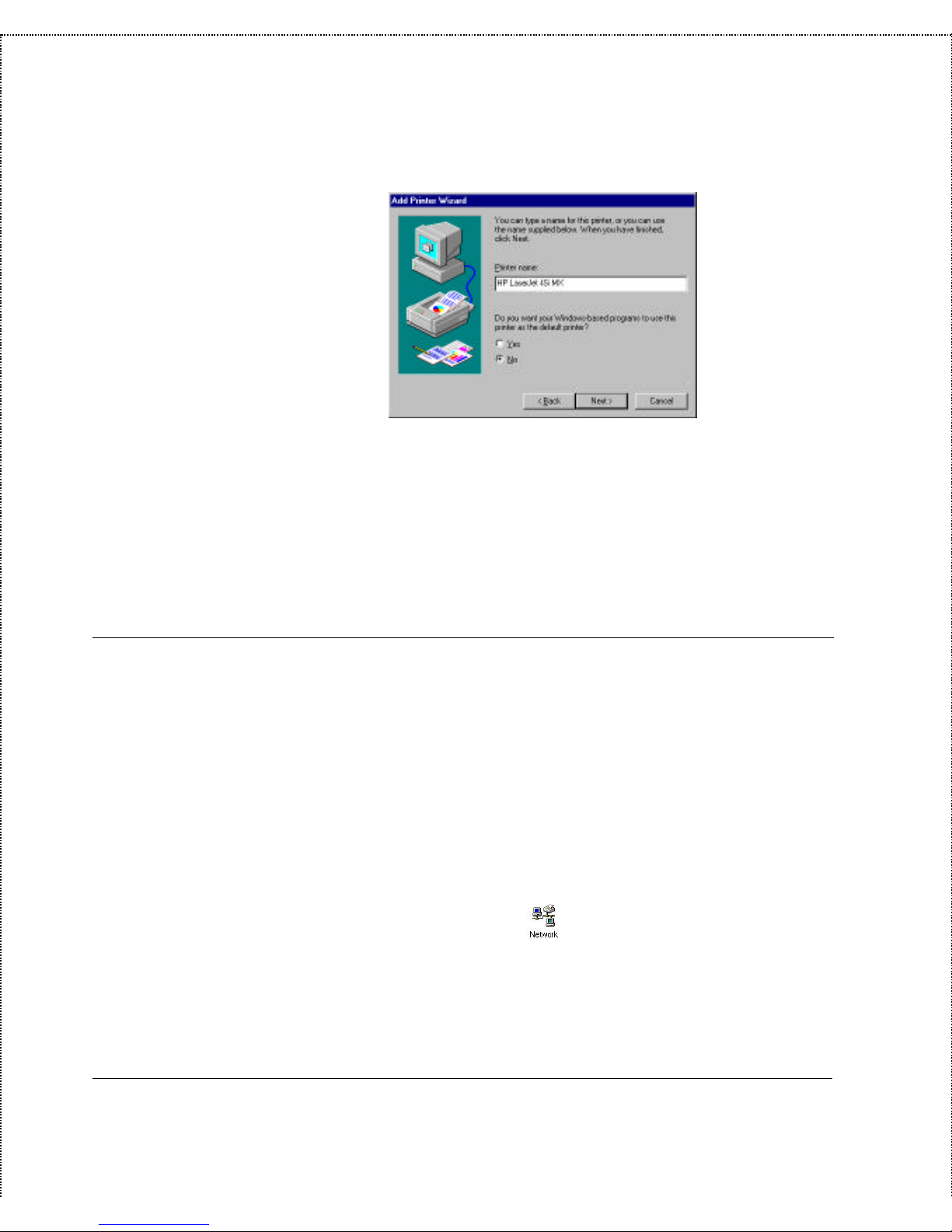

6. Windows will then ask for a name for the new printer, and ask
whether or not you want to set the printer as the Windows
default printer. Click Finish(or Next >) to continue.

LPR for Windows 95/98/Me TCP/IP Printing User’s Guide
8Setting up Windows 95/98/Me TCP/IP Printing
7. Windows will prompt whether to print a test page to make sure
that the printer that the printer is functioning properly. Windows
will then prompt whether the test page printed.
Setting TCP/IP Printing Settings
The LPR client’s Properties dialog allows you to change several of the
client’s settings. To change these settings,
1. From the Start menu, choose the Settings submenu, then the
Control Panel item within it. Windows will display the Control
Panel folder.
2. Double-click on the Network icon in the Control Panel folder.
3. Choose the LPR for TCP/IP Printing client and click the
Properties button.

LPR for Windows 95/98/Me TCP/IP Printing User’s Guide
Setting up Windows 95/98/Me TCP/IP Printing 9

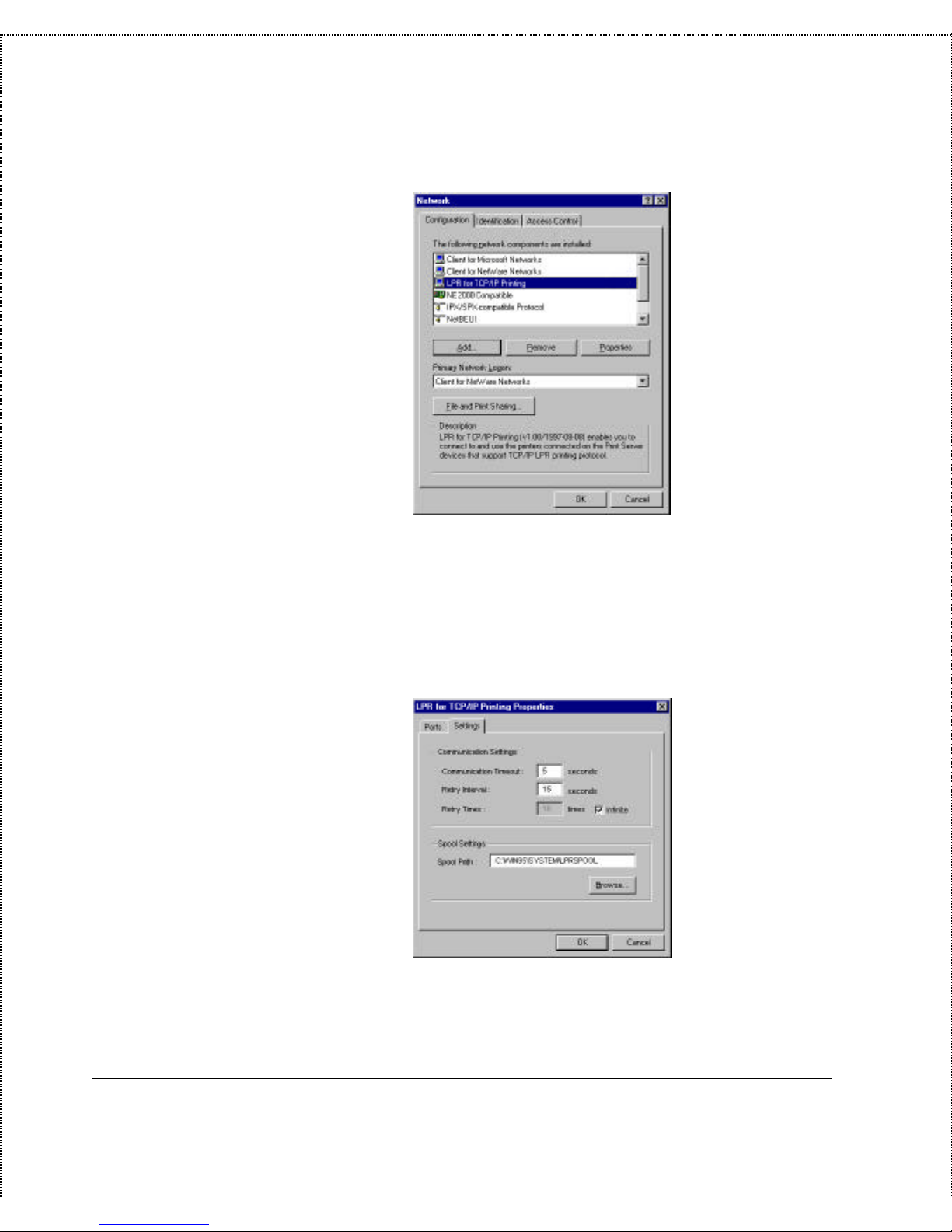

4. Click on the Settings tab to access the LPR client settings.
Change the settings as necessary, and press OK to let the
changes take effect.

LPR for Windows 95/98/Me TCP/IP Printing User’s Guide
10 Setting up Windows 95/98/Me TCP/IP Printing
The parameters are as follows:
♦Communication Timeout -Determines how long, in seconds,
the system will wait before determining that it has lost connection
with LPR/LPD print servers.
♦Retry Interval -Determines how long, in seconds, the system
will wait before retrying a lost connection.
♦Retry Times -Determines how many times the system will retry
a lost connection with an LPR/LPD print server. If Infinite is
checked, it will retry indefinitely.
♦Spool Path -Gives the directory path where the system will
temporarily store LPR/LPD print server job files.
