D-Link AirPlus G DP-G310 User manual

Manual
Wireless USB Print Server
D-Link DP-G310
AirPlus G

2
Contents
Package Contents ................................................................................ 3
Introduction ........................................................................................... 4
Wireless Basics .................................................................................... 8
Installation Considerations ................................................................... 9
Setting up the DP-G310 .................................................................... 10
Power On Self Test ..............................................................................11
Using the Web Configuration .............................................................. 12
TCP/IP Printing for Windows XP ....................................................... 30
TCP/IP Printing for Windows 2000 .................................................... 39
TCP/IP Printing for Windows 98SE/Me ............................................. 49
Unix/Linux Printing (See PS Admin Manual on CD-ROM) ................ 61
Setting up AppleTalk or LPR Printing in MAC OSX ............................ 62
Setting up AppleTalk Printing in MAC OS9 ........................................ 67
Printing from Mac OS Client Workstation ........................................... 68
Networking Basics .............................................................................. 70
Technical Specifications ..................................................................... 82
Contacting Technical Support ............................................................. 83
Warranty ............................................................................................. 84
Registration ........................................................................................ 87
Appendix: DP-G310 Printer Compatibility List .................................... 88

3
D-Link DP-G310 Wireless USB Print Server
Manual and Warranty on CD
Printed Quick Installation Guide



Package Contents
If any of the above items are missing, please contact your reseller.
System Requirements:
A computer with an installed Ethernet adapter for initial
confi guration purposes only

Windows XP/2000/ME/98SE, Mac OS with AppleTalk , or
Linux

Internet Explorer 6.0, or Netscape Navigator version 6.0 or
above, with JavaScript enabled

The printer must support the required Operating System

Contents of Package:
A computer or a network of computers with wireless
capability


4

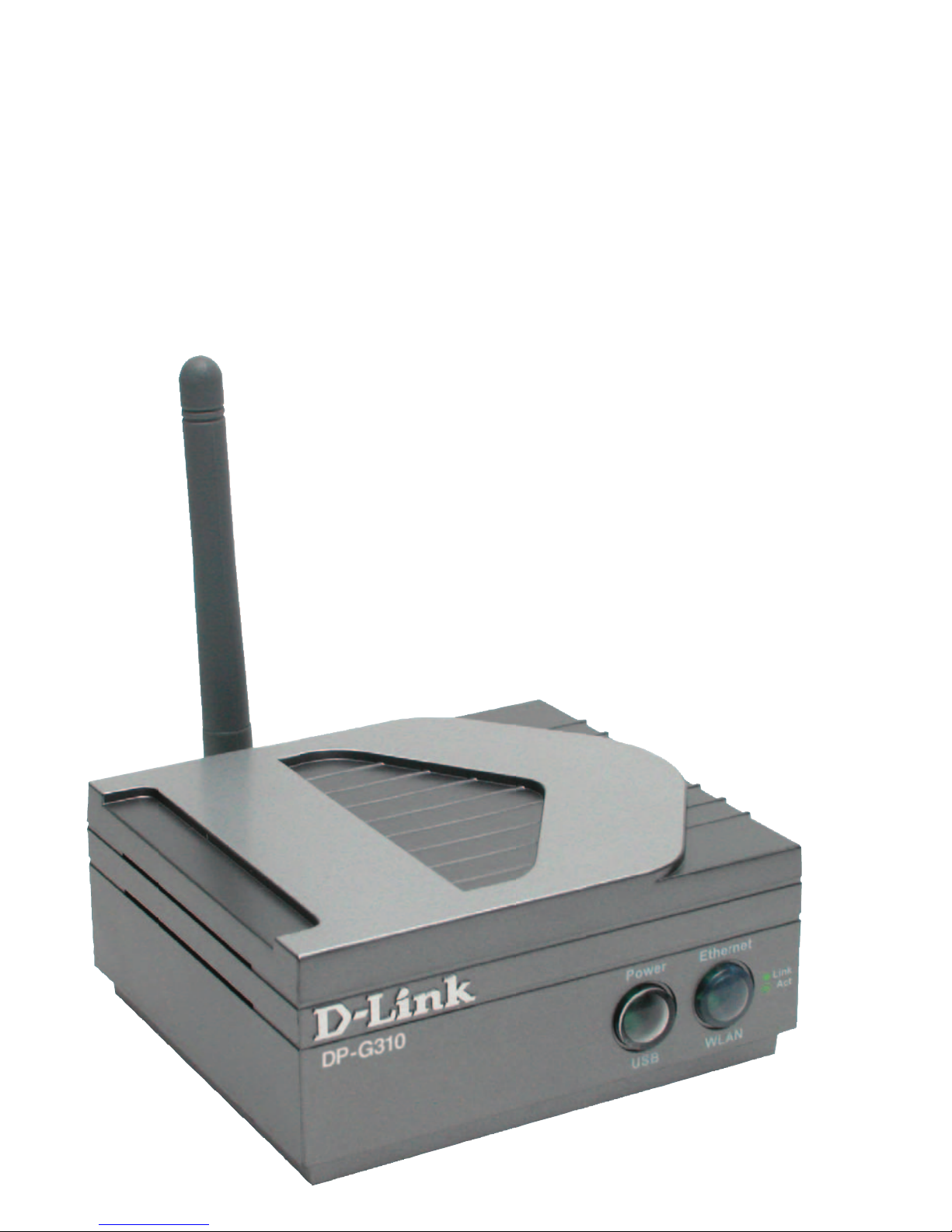

The D-Link DP-G310 Print Server is an 802.11g wireless USB 2.0 high-speed
Print Server that can also connect to your Ethernet/Fast Ethernet network. Now
you can locate USB printer services virtually anywhere in your home or office.
The DP-G310 manages the flow of print files from workstations or file servers to
connected printers, delivering print jobs to printers much faster than a file server
on a PC. With one USB 2.0 port, the DP-G310 can connect to almost any printer
with a USB port.
The DP-G310 includes easy-to-use software to install on most Windows-based
networks. Protocol support for TCP/IP, NetBEUI, and AppleTalk are provided to
ensure seamless connection to major networking operating systems.
The DP-G310 has a built in Web-based management feature that allows users
to easily configure and manage print queues through TCP/IP. The DP-G310 also
supports Telnet as an alternative method to configure the unit.
The DP-G310 improves network printing services in the following ways:
The DP-G310 delegates print jobs to the connected USB printer. This
provides workload relief to your file servers and allows the file servers’ full
capacity to be used for file access or other direct services to network users.
On peer-to-peer networks, workstations can print directly to the Print Server
without increasing the load of another workstation or server.
Because the DP-G310 is very portable and inexpensive compared to a
PC-based print server, and the Print Server connects to your file servers
through the network, printers can be deployed to locations of maximum
convenience to users.
Introduction


* Maximum wireless signal rate based on IEEE Standard 802.11g specifications. Actual data throughput will
vary. Network conditions and environmental factors, including volume of network traffic, building materials
and construction, and network overhead lower actual data throughput rate.

5
External Features
Port Connectors
The DP-G310’s USB port is located on its rear panel. The USB can be configured
using the PS Admin program or the print server’s Telnet interface. (See the
PS Admin User’s Guide, available on the CD that came with the DP-G310, for
information about configuring the print server’s ports.) The Print Server also
supports web configuration permitting users to configure settings through the web
browser. The default IP Address is as follows:
 Default IP Address – 192.168.0.10
 Subnet Mask – 255.255.255.0
The DP-G310 offers extraordinary flexibility, operating with all major network
operating systems and protocols:
TCP/IP
UNIX lpr/lpd
Windows NT/2000, Windows 95/98SE/ME, Windows XP
NetWare 5.x NDPS LPR Remote Printing
NetBEUI
Windows 2000/XP, Windows 95/98SE/ME, Microsoft LAN
Manager, IBM LAN Server
AppleTalk
MacOS EtherTalk
Windows-based setup and administration software, PS Admin, is supplied with
the Print Server, making configuration and management quick and easy. The
Print Server also supports configuration and management via the Telnet protocol
for networks without Windows-compatible systems.
Note:
The PC’s IP Address must be in the same subnet as the Print Server’s IP Address for
the two devices to communicate. (For example, if your Print Server’s IP Address is
192.168.0.10, with a subnet mask of 255.255.255.0, then your computer’s IP Address
should be 192.168.0.x, where x is a value between 1-254, excluding 10.)




6
USB
Ethernet
WLAN
Power

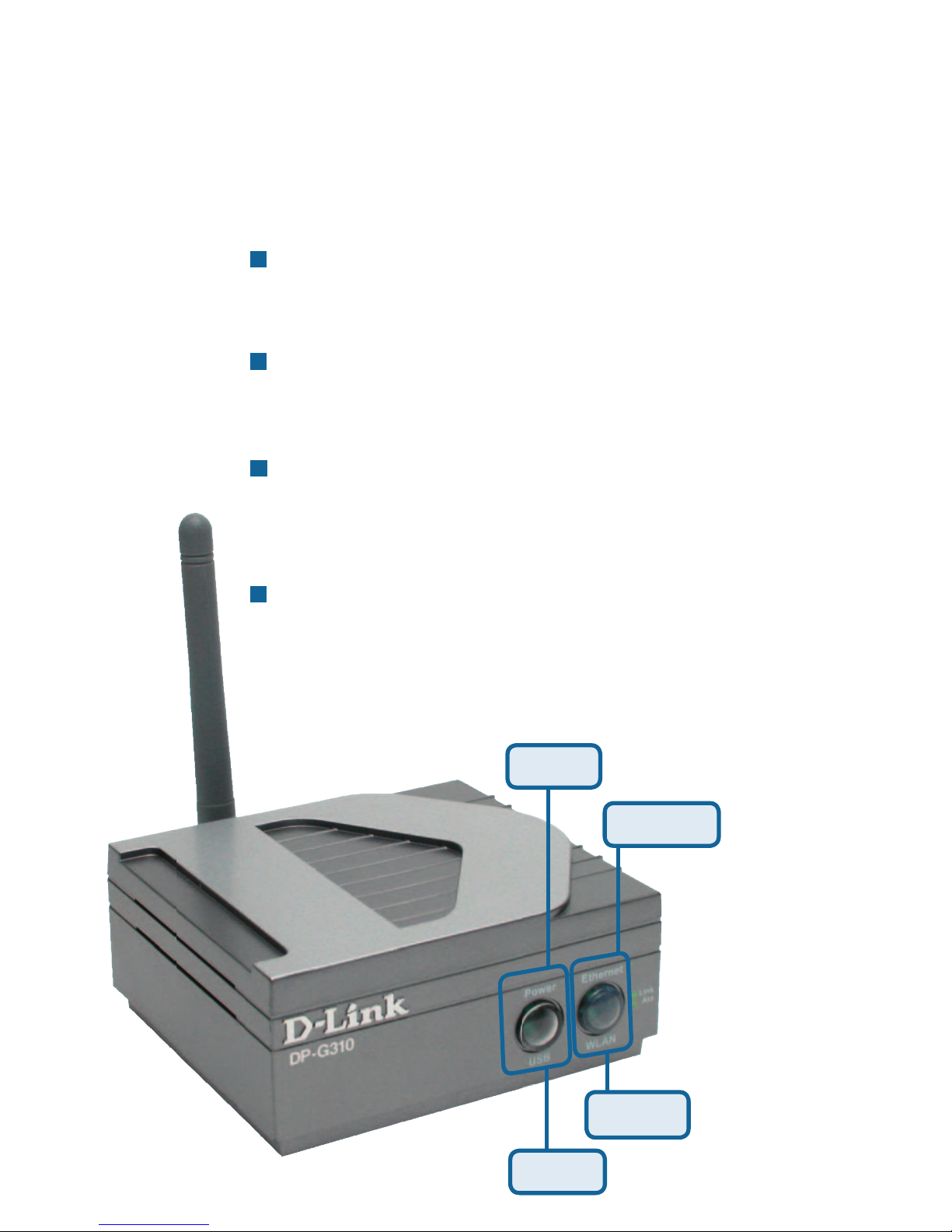

Front Panel LED Indicators
There are two front panel indicators, each holding two separate LEDs (aligned in a
vertical position). As shown below, the fi rst indicator holds the Power and the USB
LED. The second indicator holds the Ethernet and WLAN LED. Upon boot-up, the
Power light stays on continuously and all other LEDs light up momentarily one-by-one,
then turn off.
Power
A steadily lit LED indicates proper operation of the Print
Server.
USB
A steadily lit LED indicates your USB printer is printing;
otherwise, this LED is off.
Ethernet
A steadily lit LED indicates proper network connection; no lit
LED indicates an unsuccessful network connection. A blinking
LED indicates activity (confi guration or printing).
WLAN
A steadily lit LED indicates a proper wireless network
connection; no lit LED indicates an unsuccessful wireless
network connection. A blinking LED indicates activity
(confi guration or printing).

7
Network Cable Connector
The Print Server’s rear panel has a LAN port for CAT5 Ethernet
cabling. The port supports the NWay protocol, allowing the Print
Server to automatically detect or negotiate the transmission speed
of the network.
DC Power Connector
The DC power input connector is located on the Print Server’s
rear panel and is labeled DC 5V.

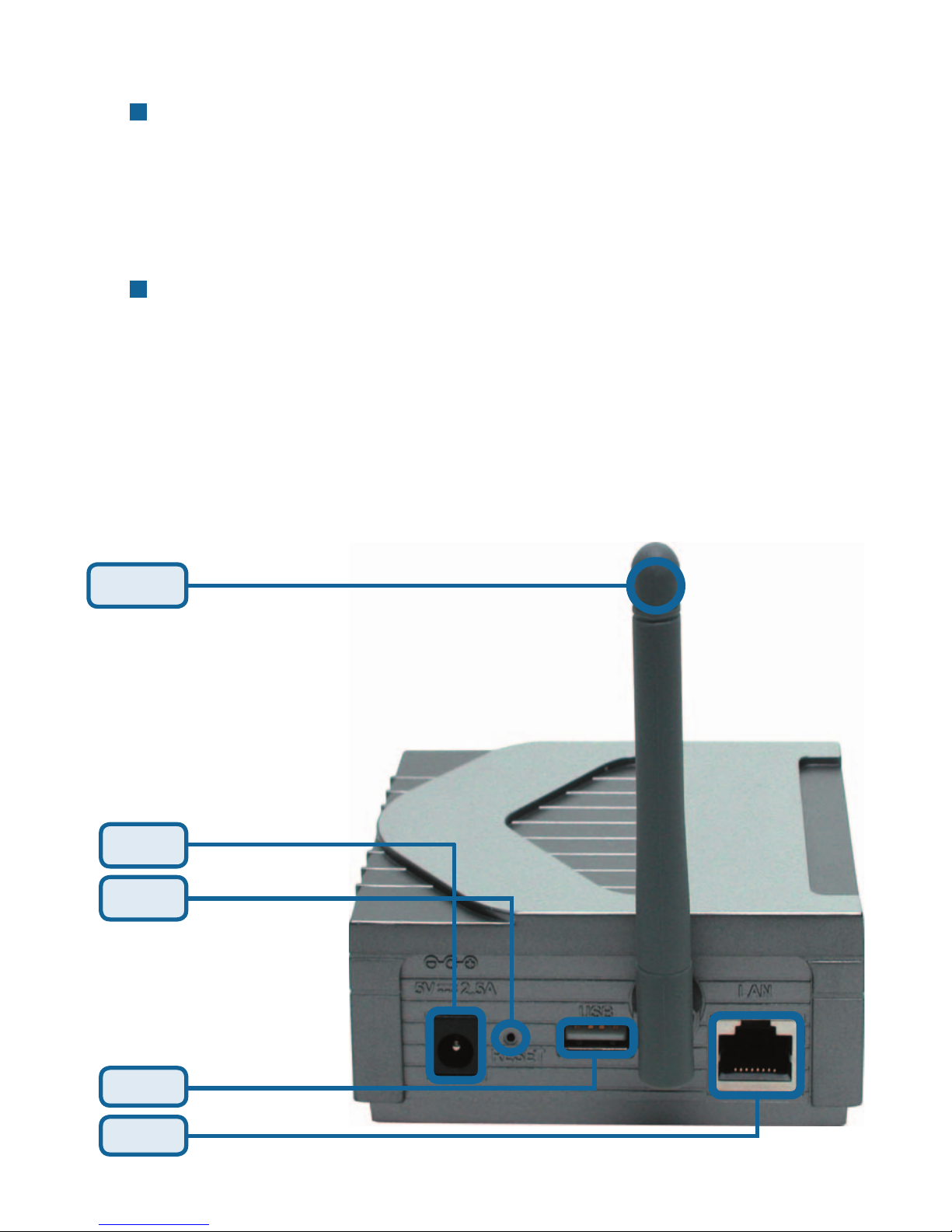

Rear Panel Connectors
USB
LAN
Power
Reset
Antenna

8
D-Link wireless products are based on industry standards to provide easy-to-use
and compatible high-speed wireless connectivity within your home, business or
public access wireless networks. D-Link wireless products will allow you access
to the data you want, when and where you want it. You will be able to enjoy the
freedom that wireless networking brings.
A wireless LAN (WLAN) is a cellular computer network that transmits and receives
data with radio signals instead of wires. WLANs are used increasingly in both
home and office environments, and public areas such as airports, coffee shops and
universities. Innovative ways to utilize WLAN technology are helping people to work
and communicate more efficiently. Increased mobility and the absence of cabling
and other fixed infrastructure have proven to be beneficial for many users.
Wireless users can use the same applications they use on a wired network.
Wireless adapter cards used on laptop and desktop systems support the same
protocols as Ethernet adapter cards.
Wireless Basics
People use wireless LAN technology for many different purposes:
Mobility - Productivity increases when people have access to data in any location
within the operating range of the WLAN. Management decisions based on real-
time information can significantly improve worker efficiency.
Low Implementation Costs – WLANs are easy to set up, manage, change
and relocate. Networks that frequently change can benefit from WLANs ease of
implementation. WLANs can operate in locations where installation of wiring may
be impractical.
Installation and Network Expansion - Installing a WLAN system can be fast and
easy and can eliminate the need to pull cable through walls and ceilings. Wireless
technology allows the network to go where wires cannot go - even outside the
home or office.
Scalability – WLANs can be configured in a variety of topologies to meet the
needs of specific applications and installations. Configurations are easily changed
and range from peer-to-peer networks suitable for a small number of users to
larger infrastructure networks to accommodate hundreds or thousands of users,
depending on the number of wireless devices deployed.
Inexpensive Solution - Wireless network devices are as competitively priced as
conventional Ethernet network devices.

9
Standards-Based Technology
Based on the IEEE 802.11g standard, the DP-G310 is interoperable with existing
compatible 2.4GHz wireless technology with data transfer speeds of up to 54Mbps*
when used with other D-Link AirPlus G devices.
Wireless Basics (cont.)
Installation Considerations
The D-Link AirPlus G DP-G310 lets you print through your network, using a wireless
connection, from virtually anywhere within its operating range. Keep in mind,
however, that the number, thickness and location of walls, ceilings, or other objects
that the wireless signals must pass through, may limit the range. Typical ranges
vary depending on the types of materials and background RF (radio frequency)
noise in your home or business. The key to maximizing wireless range is to follow
these basic guidelines:
Keep the number of walls and ceilings between the DP-G310 and other
network devices to a minimum - each wall or ceiling can reduce your D-Link
wireless product’s range from 3-90 feet (1-30 meters.) Position your devices
so that the number of walls or ceilings is minimized.
2.
Be aware of the direct line between network devices. A wall that is 1.5 feet thick
(.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick.
At a 2-degree angle it looks over 42 feet (14 meters). Position devices so that
the signal will travel straight through a wall or ceiling (instead of at an angle)
for better reception.
3.
Keep your product away (at least 3-6 feet or 1-2 meters) from electrical
devices or appliances that generate extreme RF noise.
5.
Building materials can impede the wireless signal - a solid metal door or
aluminum studs may have a negative effect on range. Try to position wireless
devices and computers with wireless adapters so that the signal passes
through drywall or open doorways and not other materials.
4.
Keep the antenna of the DP-G310 in an upright position.
1.
* Maximum wireless signal rate based on IEEE Standard 802.11g specifications. Actual data throughput will
vary. Network conditions and environmental factors, including volume of network traffic, building materials
and construction, and network overhead lower actual data throughput rate.

10
Setting up the DP-G310
Installing the Print Server
WARNING: Configuration problems may result if the Print Server is powered up without
first establishing its network connection. Follow this procedure to avoid complications at
the configuration stage.
Confirm proper operation of your printer before connecting the DP-G310.
1.
When you have confirmed proper operation of your USB printer, turn your
printer power OFF.
2.
Confirm that your network is operating normally.
3.
Connect the DP-G310 to your network, using a straight-through CAT5 cable.
4.
While the printer is powered OFF, use the USB printer cable to connect the
DP-G310 to your USB printer.
5.
Switch ON your USB printer.
6.
Plug the DC power adapter into the DC 5V power socket on the rear panel of
the Print Server.
7.
Plug the power adapter into a power outlet. This will supply power to the DP-
G310, as it has no external power switch. The green Power LED on the Print
Server’s front panel should illuminate steadily, and the Print Server’s Self-
Test will proceed.
8.

11
4. Getting Started
Below is a sample network using the DP-101P+. The DP-101P+ has a built-
in Web-based management feature that allows users to easily configure and
manage multiple print queues through TCP/IP.
Immediately after power-up, three of the green LEDs should illuminate steadily for
several seconds. Then the USB LED should flash three times. Irregularity of the
LED during this LED test may mean there is a problem with the LED itself.
The actual component tests immediately follow the LED tests. A normal (no fault)
result is signaled by a flashing of the USB LED, followed by a darkened LED.
If the Self-Test routine detects any component error, then following the LED tests
the Self-Test will halt and the LEDs will continuously signal the error according to
the following table.
When the DP-G310 is powered ON, it also automatically performs a Self-Test on
each of its major components. The final result of the Self-Test is signaled by the
state of the USB LED indicator following the Self-Test. Preliminary to the actual
component tests, the LED indicators are tested to confirm their steady and flashing
operation.
Power ON Self-Test
USB LED Faulty Component
low speed flashing Need to reload firmware
steady ON DRAM error
1 long 2 short
1 long 3 short
1 long 5 short
1 long 6 short
1 long 7 short
1 long 11 short LAN I/O base error
LAN memory error
LAN Controller error
Flash Erase/Program error
Flash Protected
Timer INT error
1 long 18 short USB error
1 long 15 short
1 long 16 short
1 long 17short
Wireless LAN card detect error
Wireless LAN card CIS error
Wireless LAN card I/O error

12
Please use an Ethernet connection for the configuration of the DP-G310. Using
a CAT5 cable, connect the DP-G310 to the Ethernet-adapter equipped computer
in your network that you will be using for configuration. Open your web browser
and type http://192.168.0.10 in the address box, and press Enter. This set of
numbers is the default IP Address of your Print Server. Please note that the PC’s
IP Address must correspond with the Print Server’s IP Address in the same
segment for the two devices to communicate.

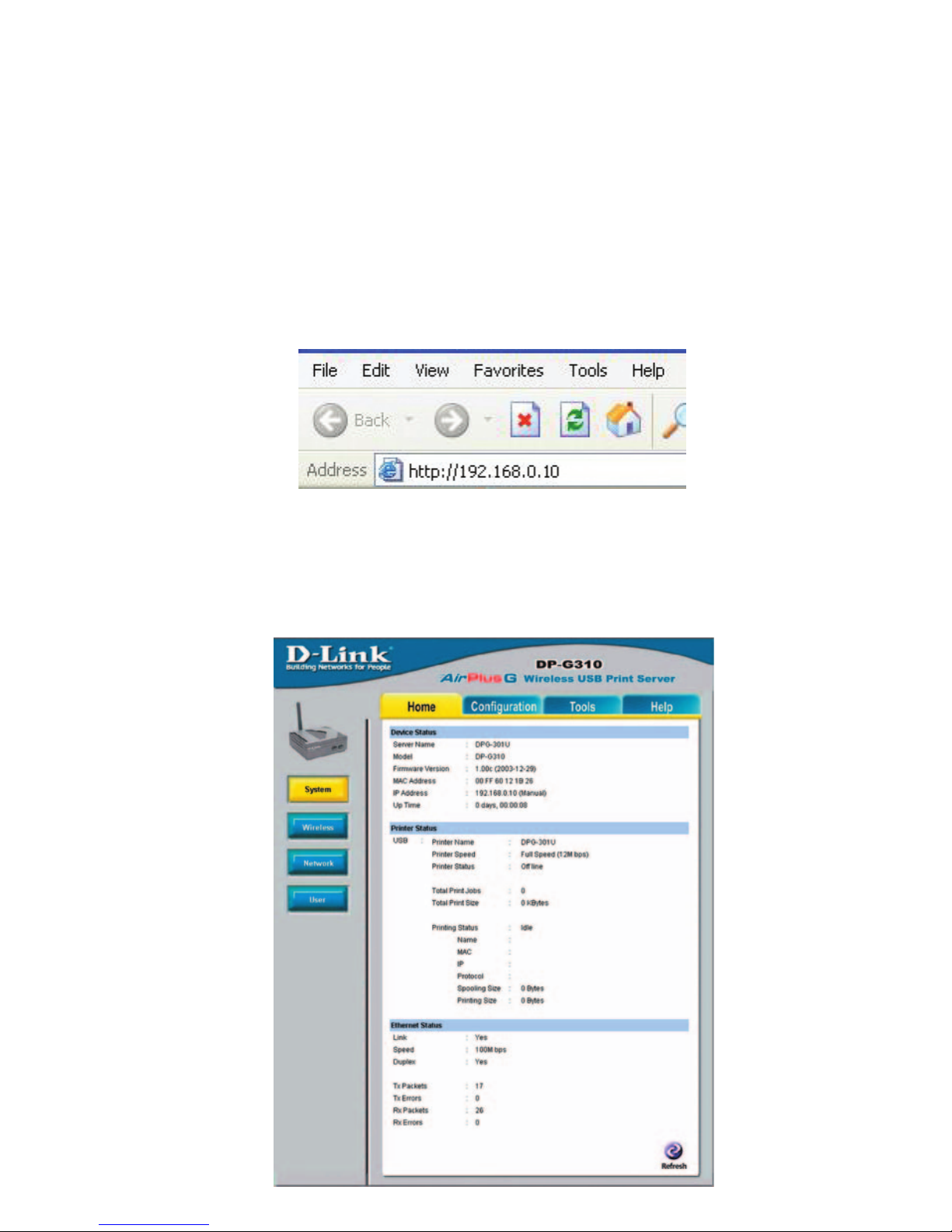

When you enter the default IP address, the main screen of the Print Server’s configuration
will appear (see below). In addition to the product information, you can access and control
the Print Server’s configuration through four links on the top of this main screen: Home,
Configuration, Tools, and Help.
Using the Web Configuration

13
Home
Click on the Home tab from the tools bar of the main screen to display information
about the DP-G310’s System Status and Printer Status.
As shown below, the System displays the status of your print server, printer and
network. Clicking Refresh will update the information.

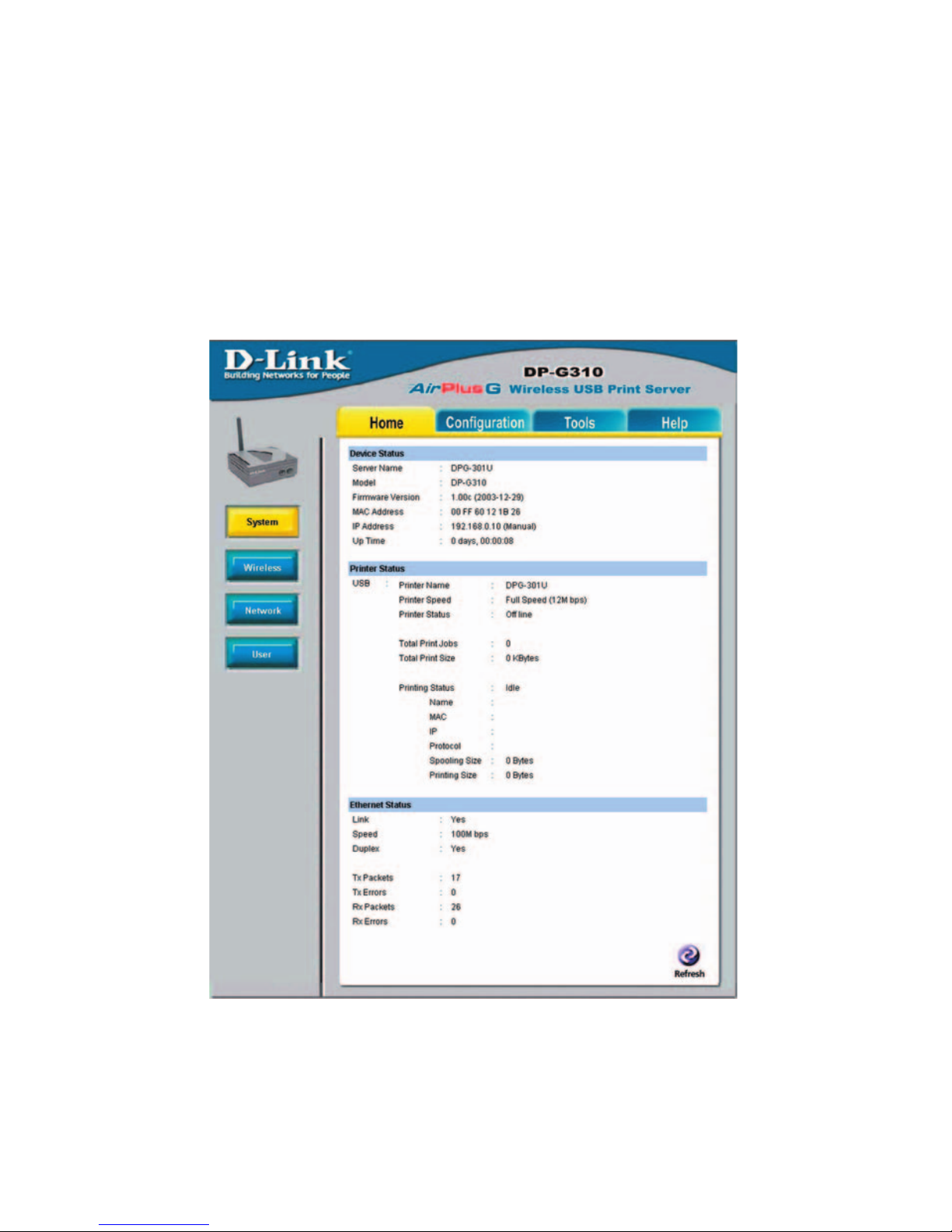

Home > System
Device Status: Information about the print server, including the firmware version,
MAC/IP address, and the “up time” can be found in this field.
Printer Status: The items in this field display information about the printer, such as
the given name of the printer, speed, printer status, and the status of your printing
tasks, etc.
Ethernet Status: You can monitor the networking status in this field, including the
network connection, speed, and the packets status.
Using the Web Configuration (continued)

14
Using the Web Configuration (continued)

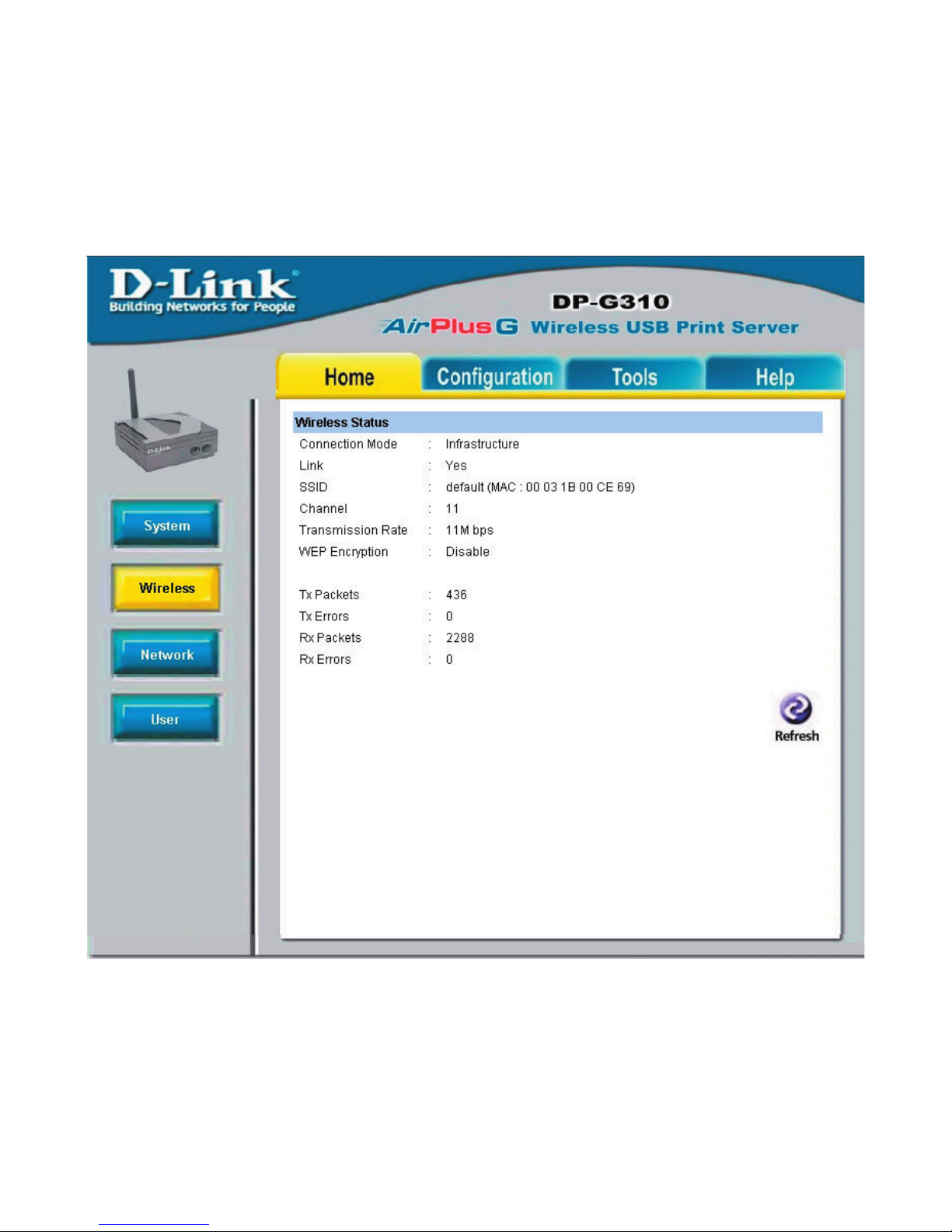

Home > Wireless
Click the Wireless button in the left column to display information about the wireless
LAN. Clicking Refresh will update the information.
Wireless Status: The items in this field display information about the wireless
LAN, such as the connection mode (Infrastructure or Ad-Hoc), SSID, channel, data
transfer rate, WEP encryption, and the packets status.

15
Click the Network button in the left column to display information about the wireless
LAN. Clicking Refresh will update the information.
Using the Web Configuration (continued)

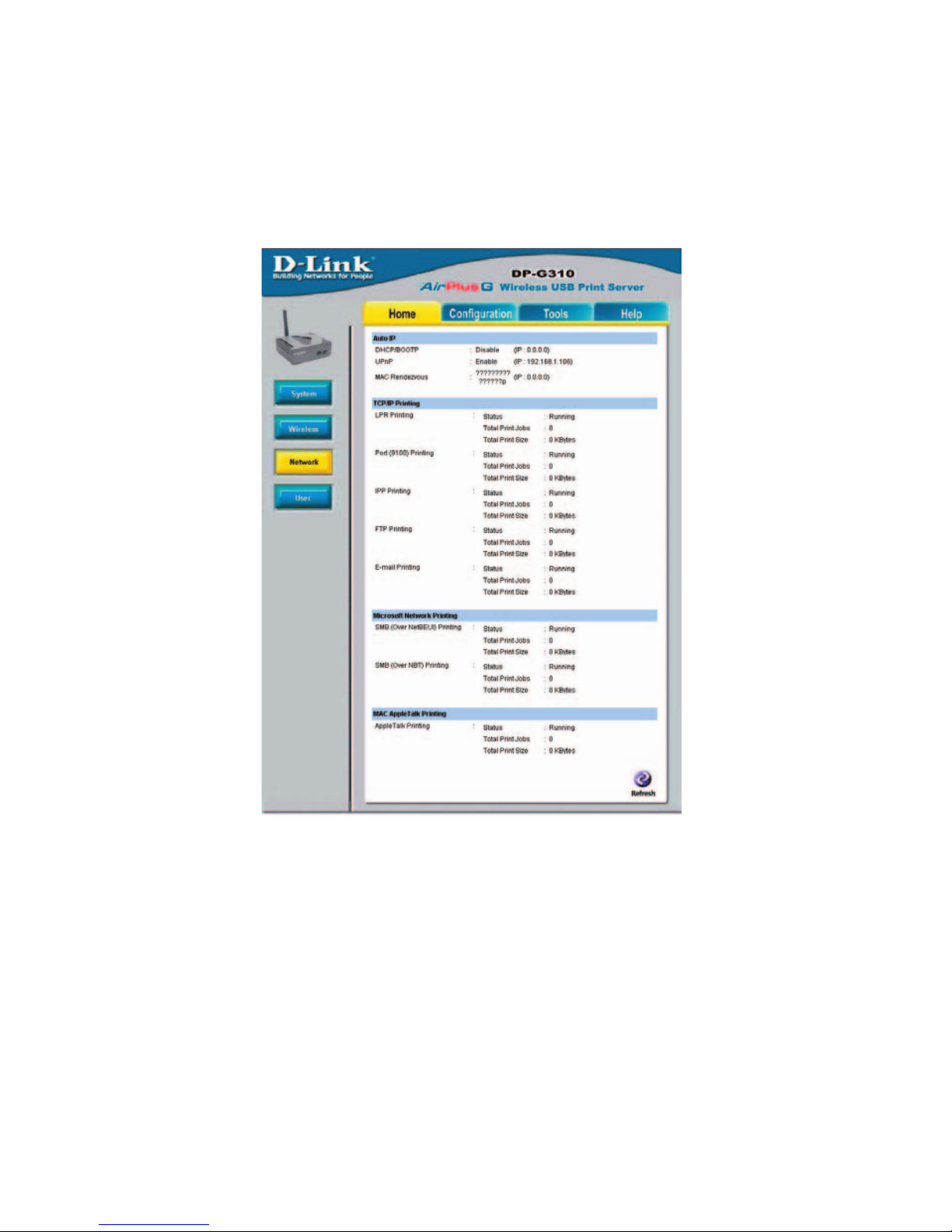

Home > Network
Auto IP: This field contains the current settings of TCP/IP, including DHCP/BOOTP,
UPnP, and MAC Rendezvous. The items in this field are configured in Configurat
ion>Network>TCP/IP.
TCP/IP Printing: In this field, you can monitor the status of your printing tasks
through TCP/IP.
Microsoft Network Printing: In this field, you can monitor the status of your
printing tasks through Microsoft Network.
Mac AppleTalk Printing: In this field, you can monitor the status of your printing
tasks through Mac AppleTalk.

16
Click the User button in the left column to display the user’s information.
Using the Web Configuration (continued)

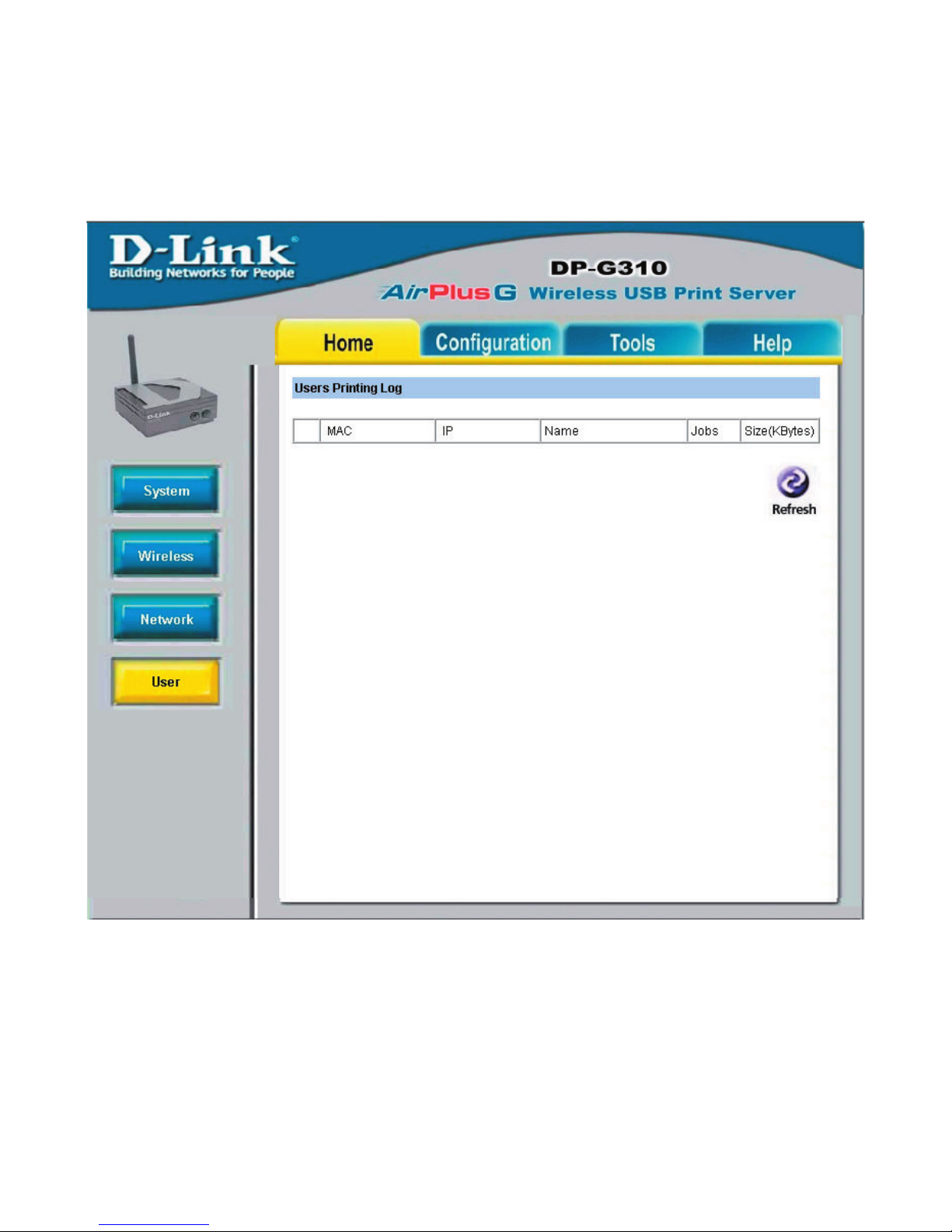

Home > User
Users Printing Log: The items in this field display the user(s) information, which
include the user(s) Mac address, IP address, name, and status of printing tasks.

17
Configuration
Click on the Configuration tab from the tools bar of the main screen to enter the
configuration page; it provides the configuration options that include System Device
and Port Setting
System Device and Port Setting
This option will show you settings required to configure the DP-G310 Print Server.
Consult your printers owner manual for the PJL(Printer Job Language) and print
speed supported on your printer. Click the Save button on the bottom of the con-
figuration page to ensure the settings are updated and saved.
Using the Web Configuration (continued)

18
Using the Web Configuration (continued)

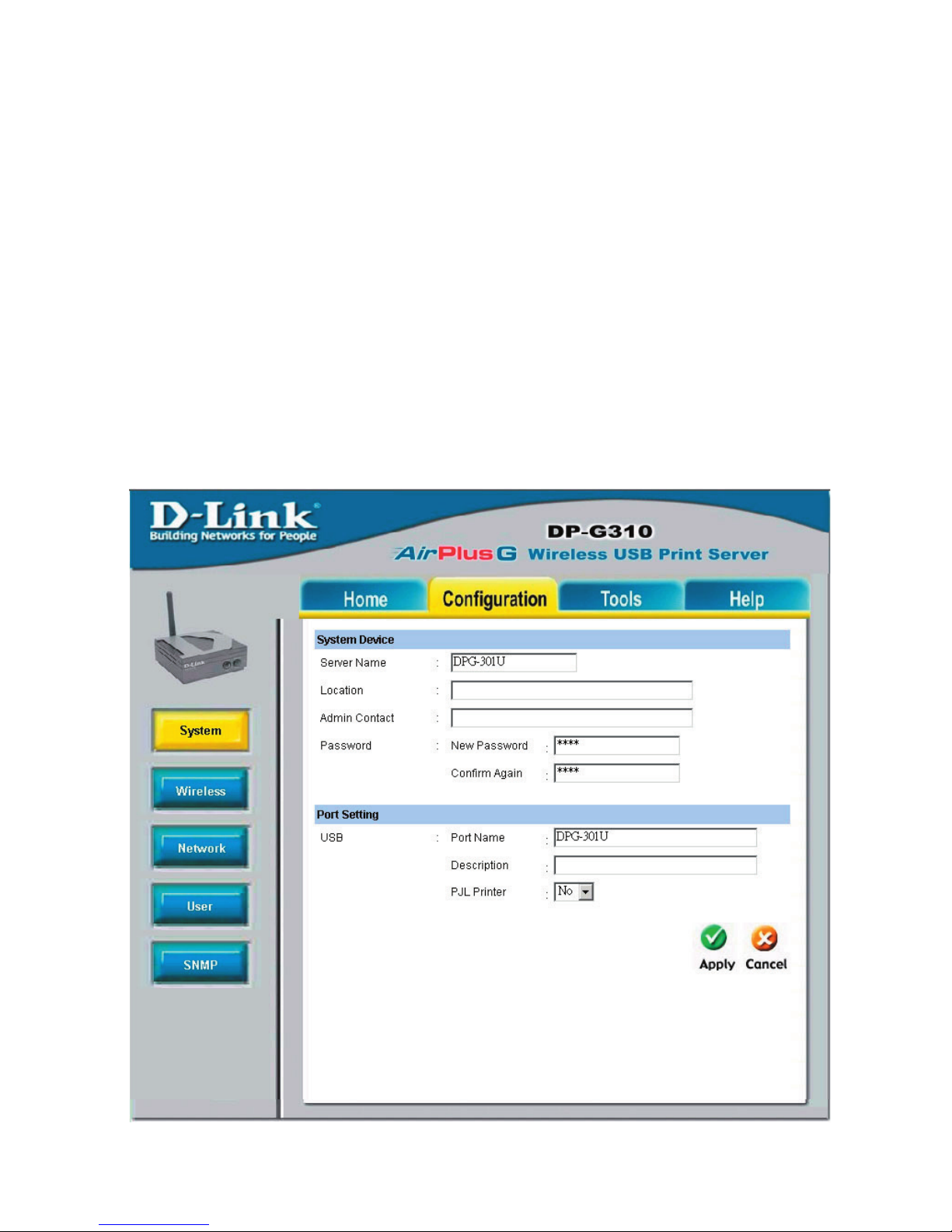

Configuration > System Device and Port Setting
Server Name: Assign a name to the print server.
Location (optional): Assign a location for the print server.
Admin contact (optional): Assign the Admin’s contact name for the print server.
Port Settings
In this field, you can assign the Port Name for the print server, and the description
for the USB port. It also allows you to select the PJL Printer setting (Yes or No).
System Device
In this field, you can configure the basic information of your print server.
Password: Enter the Administrator password (3-8 characters). To set up the
password, please enter the password in the New Password box, and then enter
the same one again in the Confirm Again box.
NOTE: PJL (Print Job Language) has certain job requirements that must be met to
work correctly. for more information, please refer to your printer’s manual.

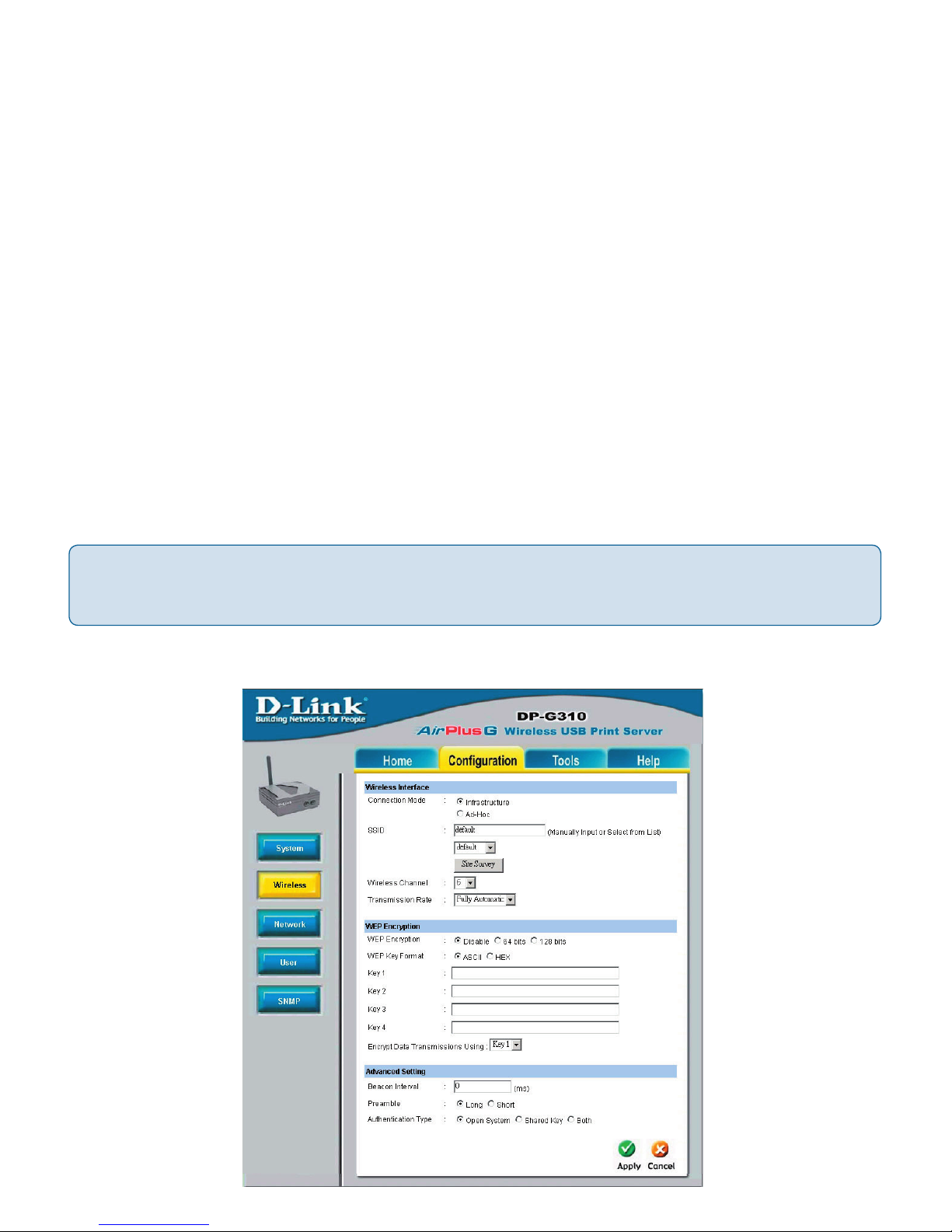

Configuration > Wireless

19
Connection Mode: Select one of two connection modes:
 Infrastructure (default): Connect to an existing wireless AP or
router in a WLAN.
 Ad-Hoc: Connect to wireless clients in the Peer-to-Peer mode.
Using the Web Configuration (continued)
Configuration > Wireless
SSID: Assign the SSID in this box. You can manually input the name or select one
from the pull-down menu. To search the available print server within the network,
click the Site Survey button.
Wireless Channel: Select the channel from the pull-down menu. The default
setting is 6.
Transmission Rate: Select the data transmit rate from the pull-down menu. The
default setting is Fully Automatic.
Wireless Interface
WEP Encryption
This field allows you to configure the settings of data encryption. Please remember
that the WEP key must be set before the data encryption is enforced.
WEP Encryption: This option allows you to select Disable, 64-bit, and 128-bit for
encryption setting.
WEP Key Format: You can decide the network key to be encoded by ASCII
(ASCII characters) or HEX (hexadecimal digitals). 64-bit WEP encryption uses a 10
hexadecimal character key. The WEP encryption key must match the WEP settings
on your AP or wireless router to connect properly.
Then, enter the key(s) for the network in the Key box (1-4).
Advanced Setting
Beacon Interval: Enter the number for the beacon interval in milliseconds.
Preamble: This option allows you to set the length of the preamble. Setting options
are:
 Long: set to 144 bits
 Short: set to 72 bits.
Authentication Type: You can set the authentication type by selecting the settings:
Open System, Shared Key, and Both.

20
Using the Web Configuration (continued)

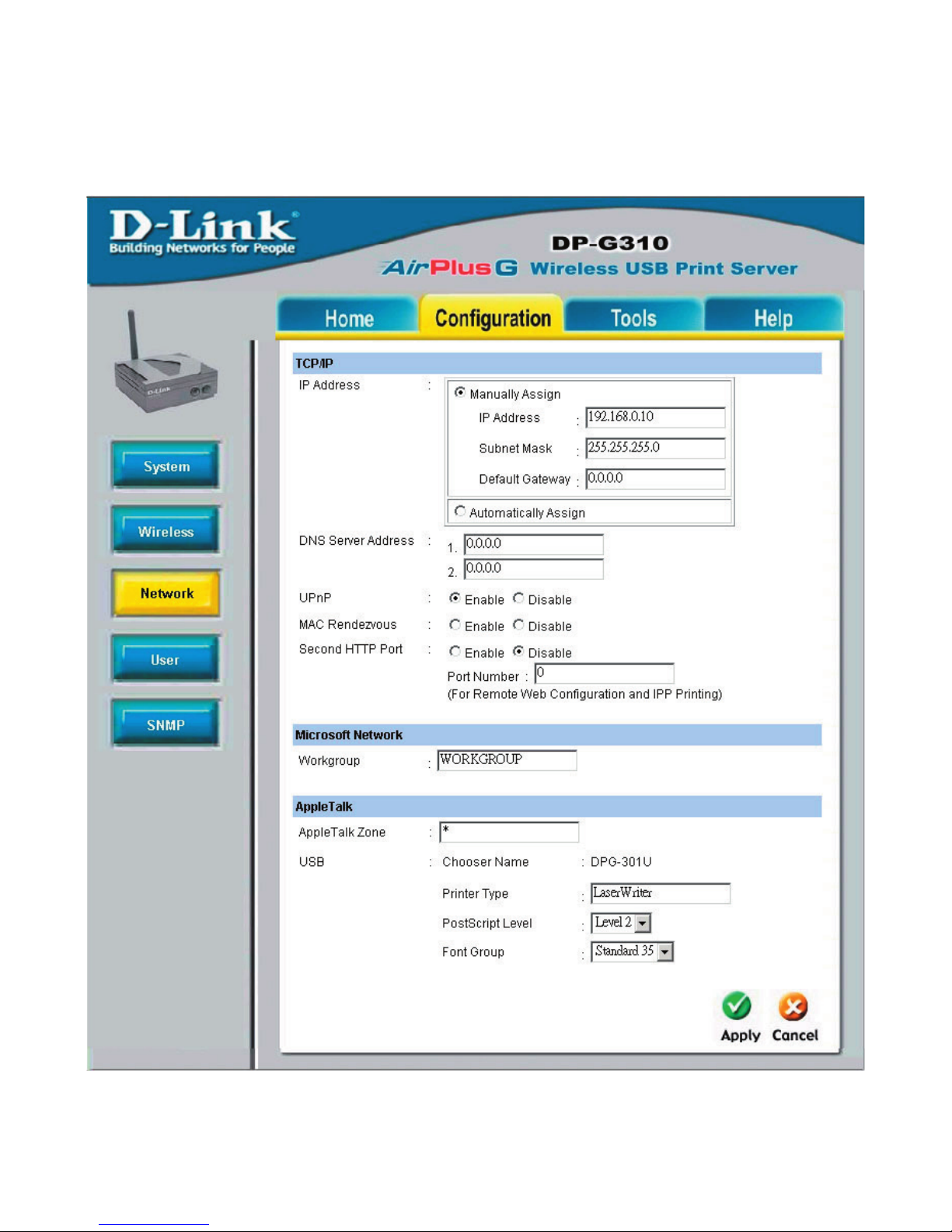

Network
