D-Link DPR-1260 - RangeBooster G Multifunction Print... User manual

2D-Link DPR-1260 User Manual
Table of Contents
Chapter 1 - Product Overview ....................................3
Safety Precautions .........................................................3
Package Contents ..........................................................4
System Requirements....................................................4
Introduction ....................................................................5
Hardware Overview........................................................6
Connections .............................................................6
LEDs ........................................................................7
Chapter 2 - Installation................................................8
Setting up the DPR-1260 ...............................................8
Wireless Installation Considerations ..............................9
UPnP Setup .................................................................10
UPnP Installation ...................................................13
Chapter 3 - Configuration .........................................14
Web-based Configuration Utility...................................14
Status.....................................................................15
Device Information .............................................15

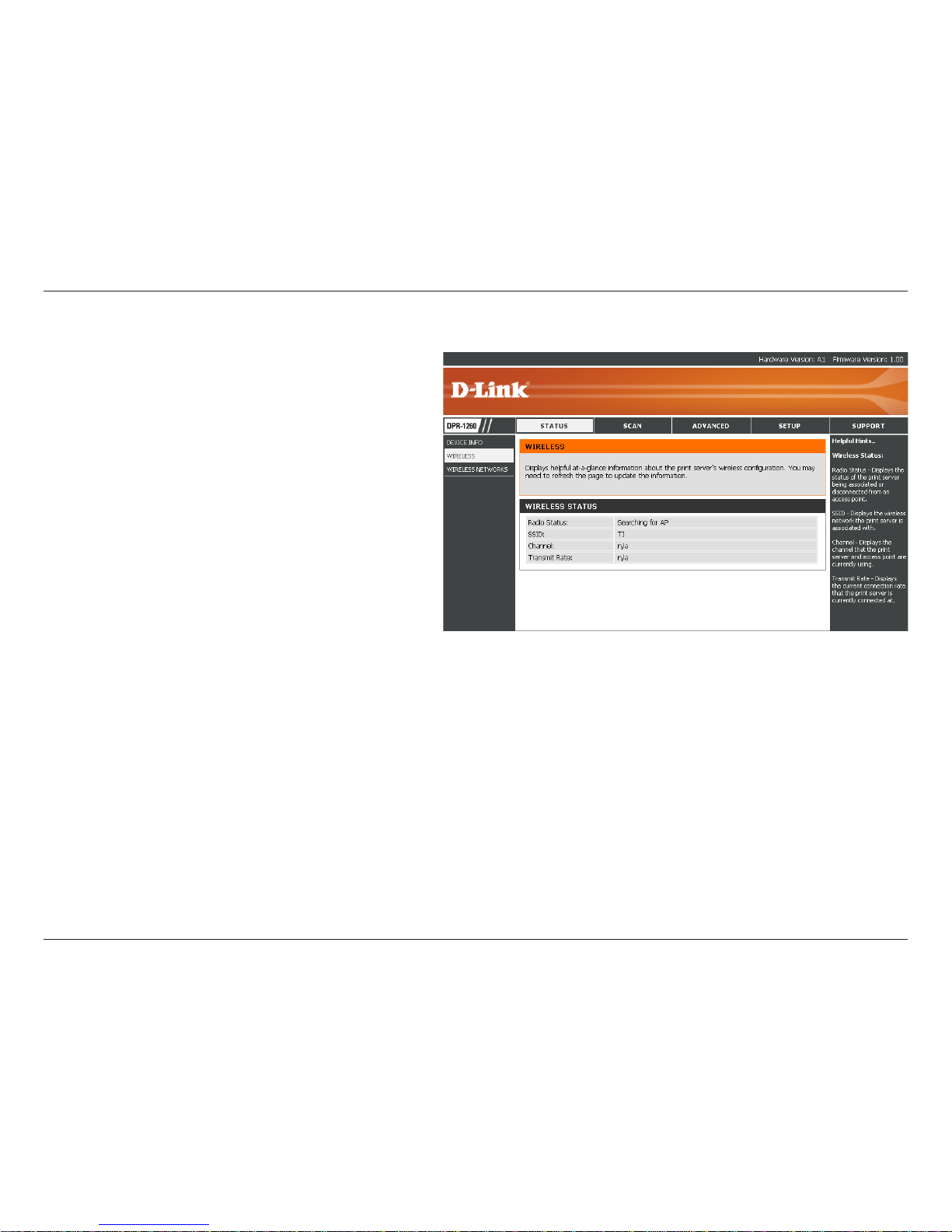

Wireless Status ..................................................16
Wireless Networks .............................................17

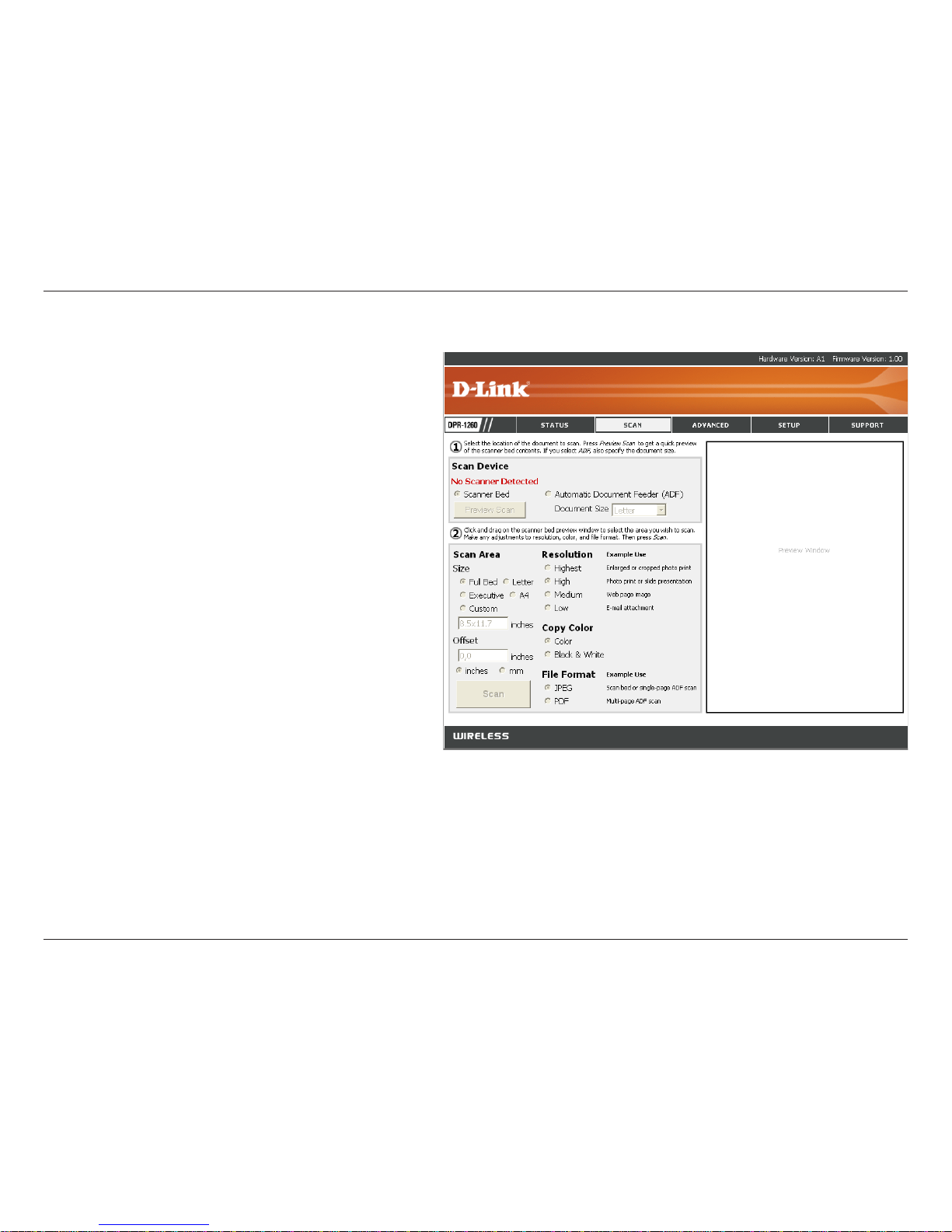

Scan.......................................................................18
Advanced Settings .................................................19

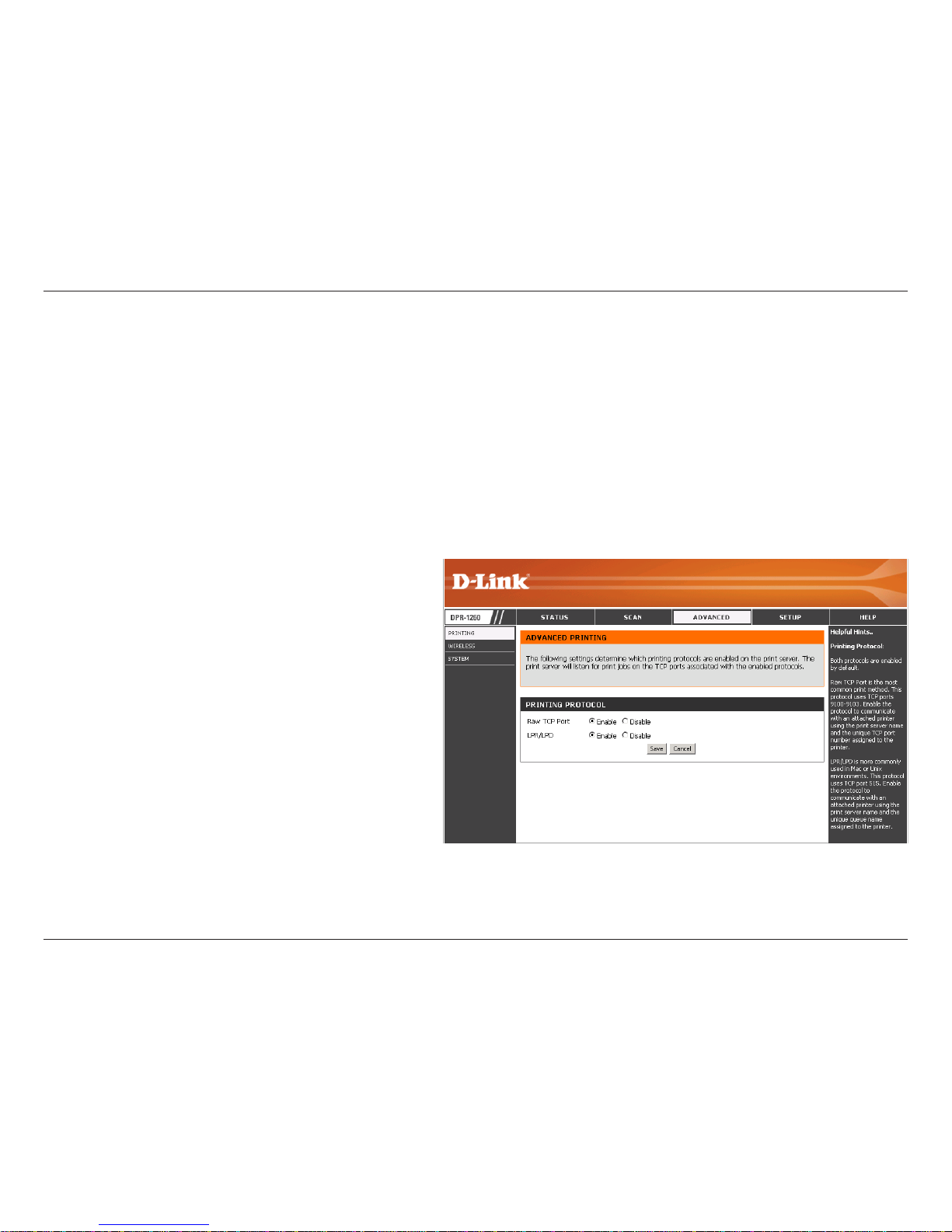

Printer ................................................................19

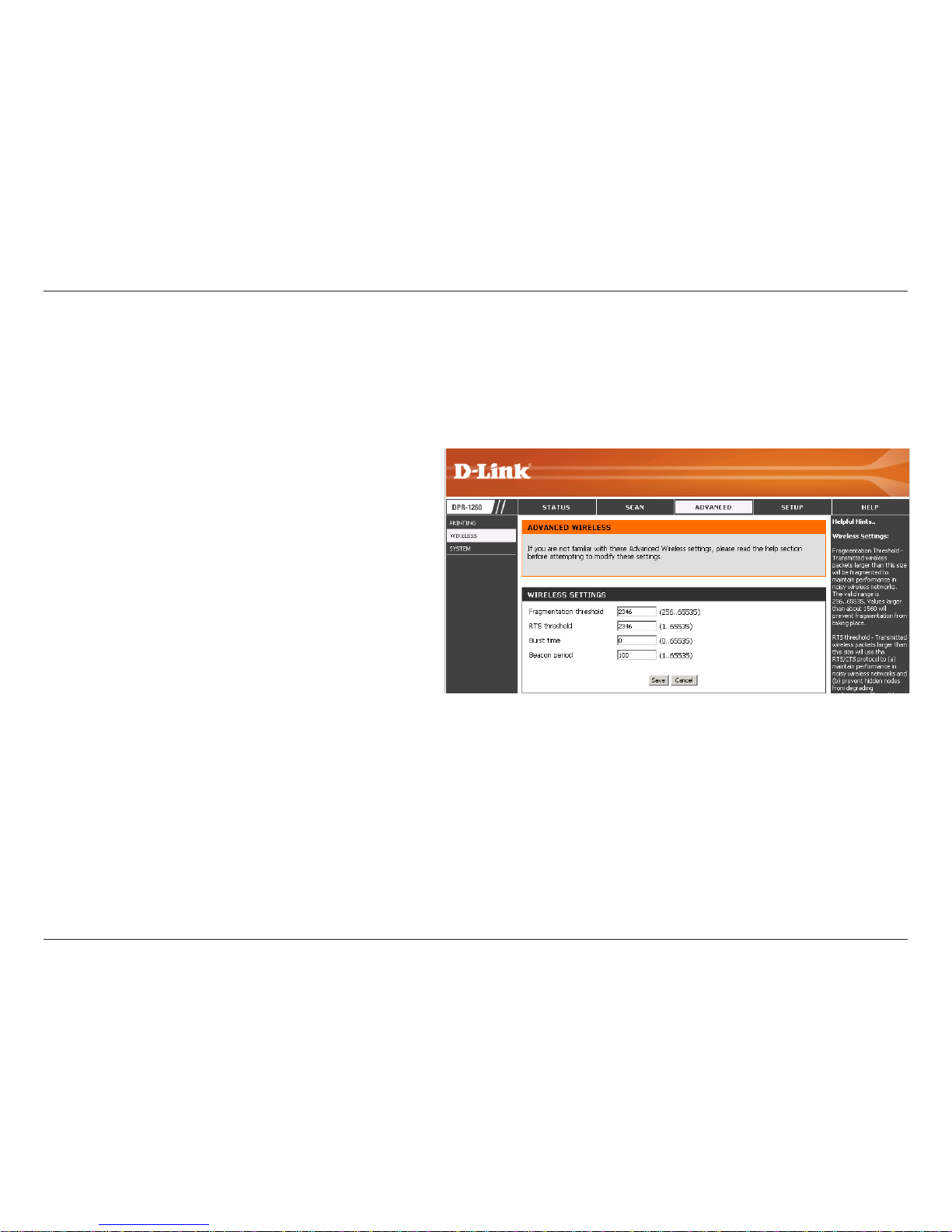

Wireless .............................................................20
System ...............................................................21
Setup......................................................................22
Setup Wizard......................................................22
Network Settings................................................25
Wireless Settings ...................................................26
Administration Settings ..........................................28
Update Firmware ...................................................29
Support ..................................................................30
Menu ..................................................................30
Supported Devices.............................................31
Glossary.............................................................31
Chapter 4 - Wireless Security ...................................32
What is WEP? ..............................................................32
What is WPA?...............................................................33
Configure WEP.............................................................34
Configure WPA-PSK.....................................................35
Chapter 5 - Troubleshooting .....................................36
Appendix A - Wireless Basics ..................................39
What is Wireless?.........................................................40
Tips ..............................................................................42
Wireless Modes............................................................43
Appendix B - Networking Basics .............................44
Check your IP address .................................................44
Statically Assign an IP address....................................45
Appendix C - Technical Specifications .................... 46
Appendix D - Contact Technical Support ................48
Appendix E - Warranty ..............................................49
Appendix F - Registration.........................................55
Table of Contents

3D-Link DPR-1260 User Manual
Section 1 - Product Overview
Chapter 1 - Product Overview
This chapter provides a physical and functional overview of the DPR-1260.
Safety Precautions
• Unplug this device from its power source before cleaning. Use only a slightly dampened cloth for cleaning. Do not use
liquid or aerosol cleaners.
• Avoid using this device near water. Exposure to water may cause an electric-shock.
• Do not place the Wireless Print Server on an unstable surface. The device may fall causing serious damage to the
device.
• This device should only be used with the power supply included with this product.
• Do not pinch, crimp or otherwise damage the power cord. If exposed to foot traffic, ensure that the cable is properly
shielded and does not pose a tripping hazard.
• If using an extension cord, make sure the total current rating of the products using the cord does not exceed the
extension cord’s current rating.
• Do not attempt to service this device. Opening or removing the case may expose you to dangerous voltage points or
other risks.

4D-Link DPR-1260 User Manual
Section 1 - Product Overview
• RangeBooster G™Multi-Function Print Server
• Detachable Antenna
• CAT5 Ethernet Cable
• Power Adapter
• CD-ROM with Manual and Warranty
System Requirements
• 10/100 Fast Ethernet Wired or 802.11b/g Wireless Network
• Printer with USB Port*
• Computer with:
• Windows®XP (SP2) or Windows®2000 (SP4)
• Internet Explorer 6.0 or Mozilla Firefox 1.5 or higher
• CD-ROM Drive
• Network Interface Card
* For a list of compatible printers, visit http://support.dlink.com.
Package Contents
Note: Using a power supply with a different voltage rating than the one
included with the DPR-1260 will cause damage and void the warranty for
this product.

5D-Link DPR-1260 User Manual
Section 1 - Product Overview

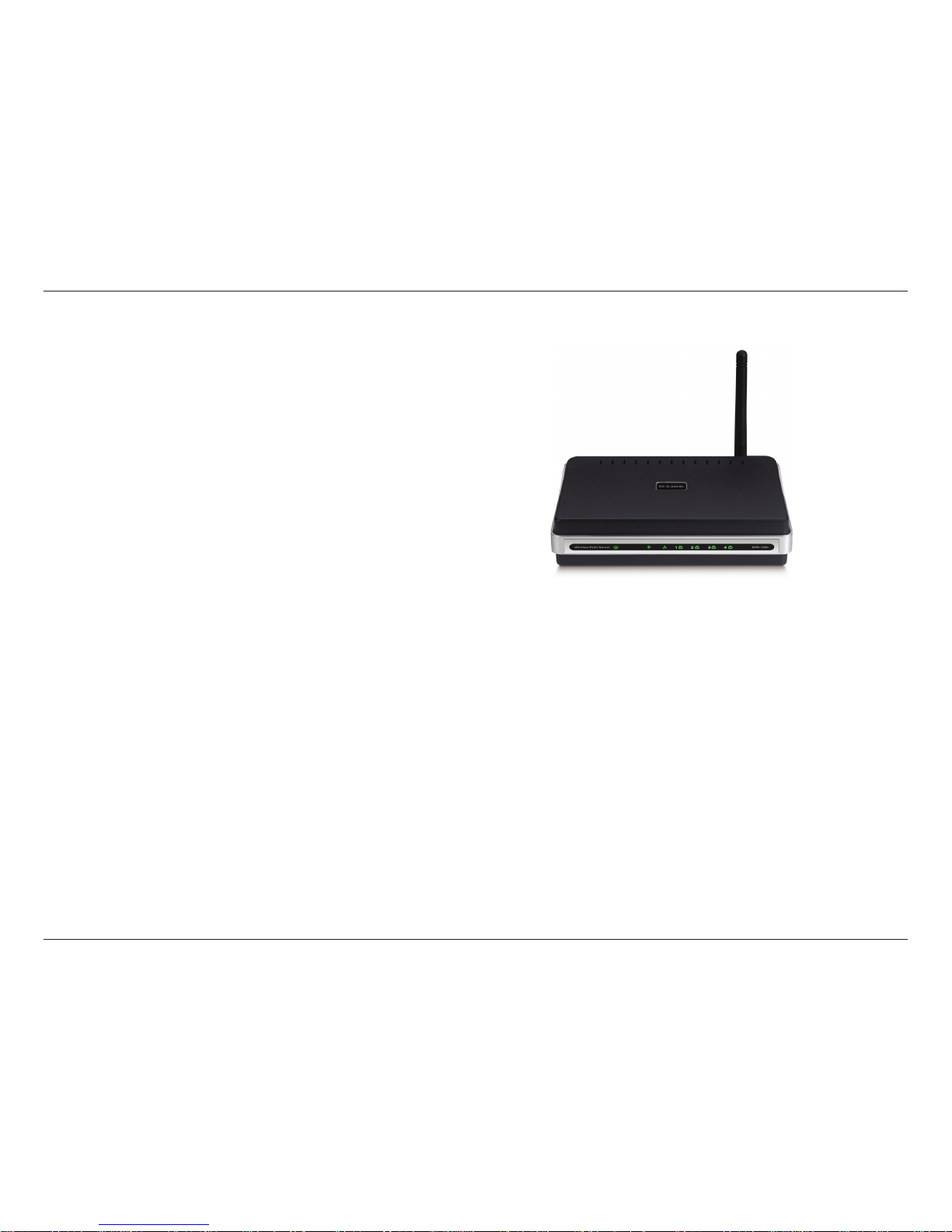

Introduction
D-Link’s new Rangebooster G™Multi-Function Print Server (DPR-1260) allows you to wirelessly share up to 4 USB
Multi-Function Printers (MFP) on your network. This innovative new print server allows multiple users to Print or Scan
using one of the four connected MFP printers. By supporting multiple MFP Printers over a wireless connection, this
new print server is the ideal solution for your home, the classroom, or office.
Simply plug your USB printer into one of the four ports, run the automatic configuration wizard, and you are ready to
start printing and scanning over your wireless network. For extra network connectivity, you can also use the Ethernet
port on the DPR-1260 to provide wireless connectivity to any Ethernet-enabled device, such as a computer or Network-
Attached Storage (NAS)
* Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput
rate. Environmental conditions will adversely affect wireless signal range.

6D-Link DPR-1260 User Manual
Section 1 - Product Overview
Hardware Overview

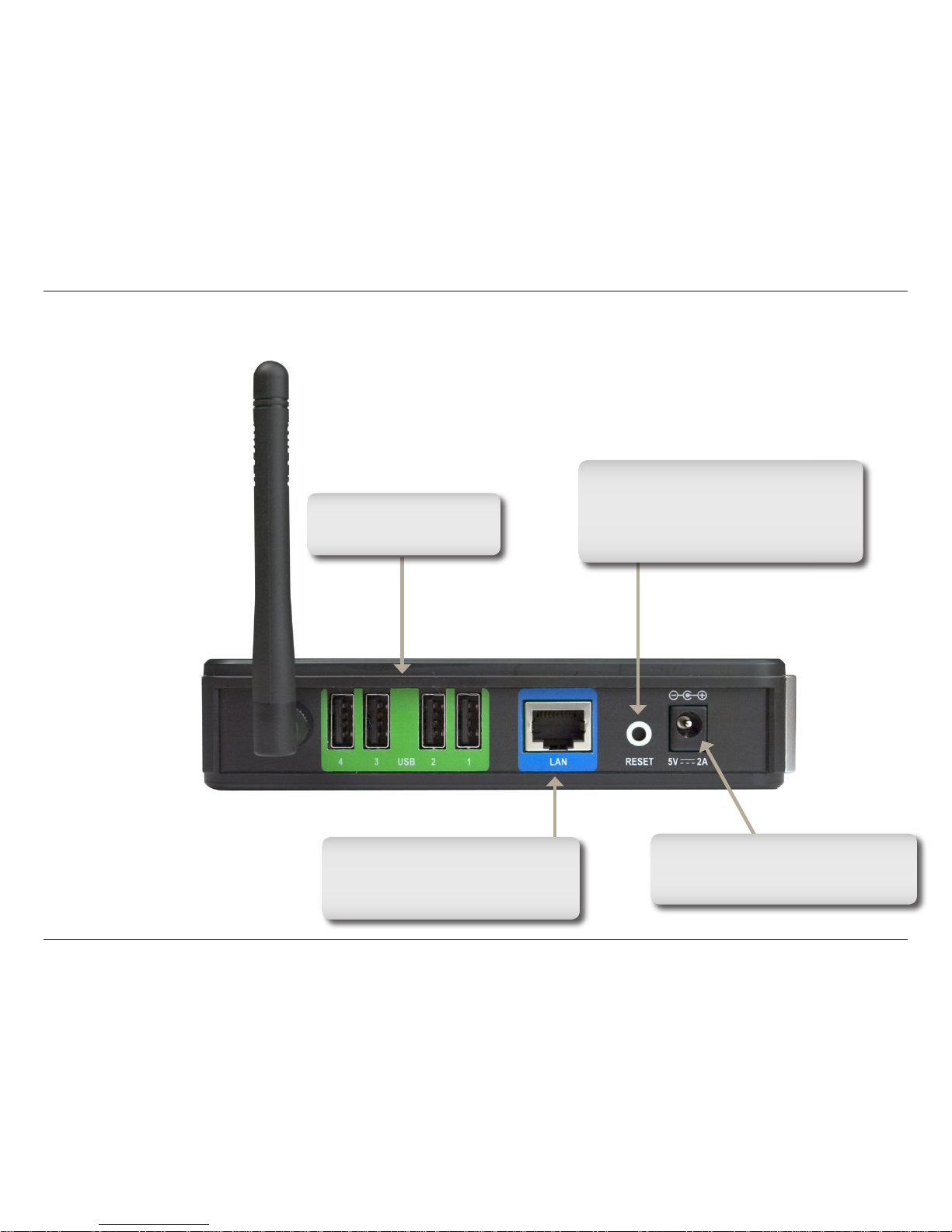

Connections
Reset Button
Pressing the Reset Button restores
the router to its original factory
default settings.
Power Receptor
Receptor for the Power Adapter.
LAN Port
Connect to a network using an
Ethernet cable.
USB Ports
Connect USB printers.

7D-Link DPR-1260 User Manual
Section 1 - Product Overview
Hardware Overview

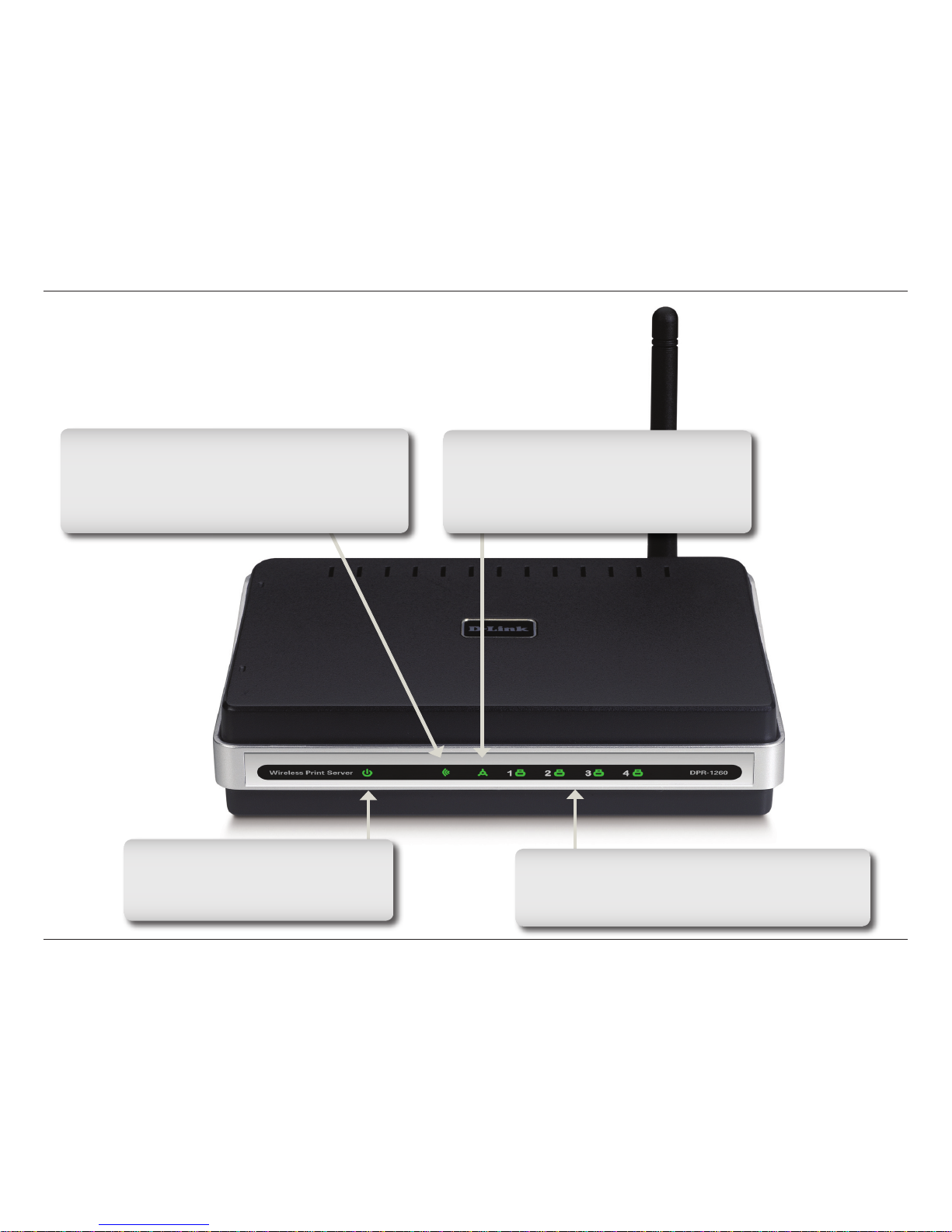

LEDs
WLAN LED
A solid light indicates that the wireless
segment is ready. This LED blinks during
wireless data transmission.
LAN LED
A solid light indicates connection on
the LAN port. This LED blinks during
data transmission.
Power LED
A solid light indicates a proper
connection to the power supply.
USB LEDs (1-4)
A solid light indicates connectivity to an USB
printer or scanner.

8D-Link DPR-1260 User Manual
Section 2 - Installation
Chapter 2 - Installation
This section will walk you through the installation process. Placement of the print server is very important. Do not place
the print server in an enclosed area such as a closet or cabinet.
Setting up the DPR-1260
WARNING: Configuration problems may result if the Print Server is powered up without first establishing its network
connection. Follow this procedure to avoid complications at the configuration stage.
1. Confirm proper operation of your printer before connecting the DPR-1260.
2. When you have confirmed proper operation of your USB printer, turn your printer power OFF.
3. Confirm that your network is operating normally.
4. Connect the DPR-1260 to your network, using a straight-through CAT5 cable. It is required that an Ethernet cable is
used during initial setup. Once your wireless configuration is set, you may disconnect the Ethernet cable and begin
communicating wirelessly with your DPR-1260.
5. While the printer is powered OFF, use the USB printer cable to connect the DPR-1260 to your USB printer.
6. Switch ON your USB printer.
7. Plug the DC power adapter into the DC 5V power socket on the rear panel of the Print Server.
8. Plug the power adapter into a power outlet. This will supply power to the DPR-1260, as it has no external power
switch. The green Power LED on the Print Server’s front panel should illuminate steadily, and the Print Server’s
Self-Test will proceed.

9D-Link DPR-1260 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless print server lets you access your network using a wireless connection from virtually anywhere
within the operating range of your wireless network. Keep in mind, however, that the number, thickness and location
of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary
depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to
maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link print server and other network devices to a
minimum - each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position
your devices so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a
45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet
(14 meters) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead
of at an angle) for better reception.
3. Building Materials make a difference. A solid metal door or aluminum studs may have a negative effect on
range. Try to position access points, wireless routers, and computers so that the signal passes through
drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water
(fish tanks), mirrors, file cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that
generate RF noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and
home security systems), your wireless connection may degrade dramatically or drop completely. Make
sure your 2.4GHz phone base is as far away from your wireless devices as possible.The base transmits
a signal even if the phone in not in use.

10D-Link DPR-1260 User Manual
Section 2 - Installation
UPnP Setup

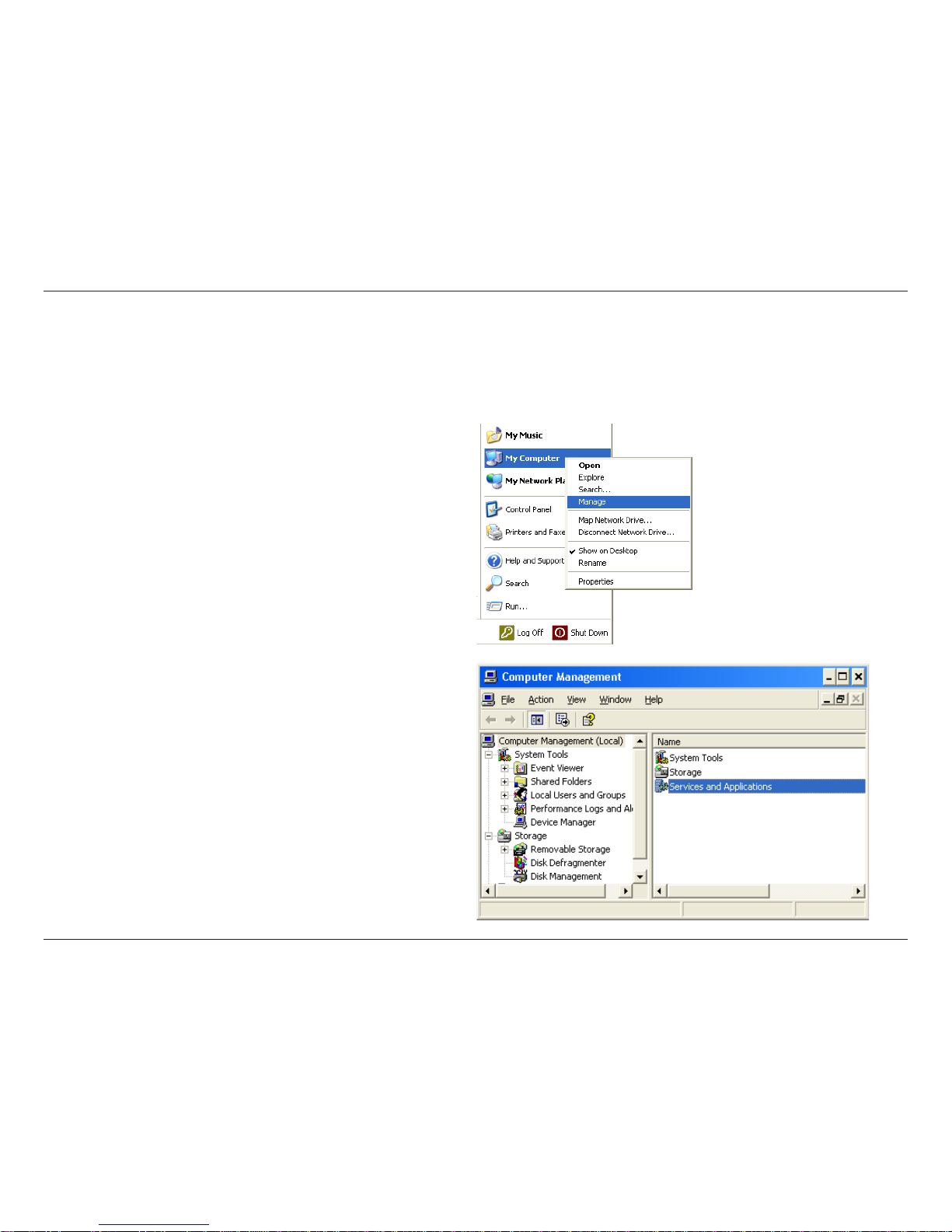

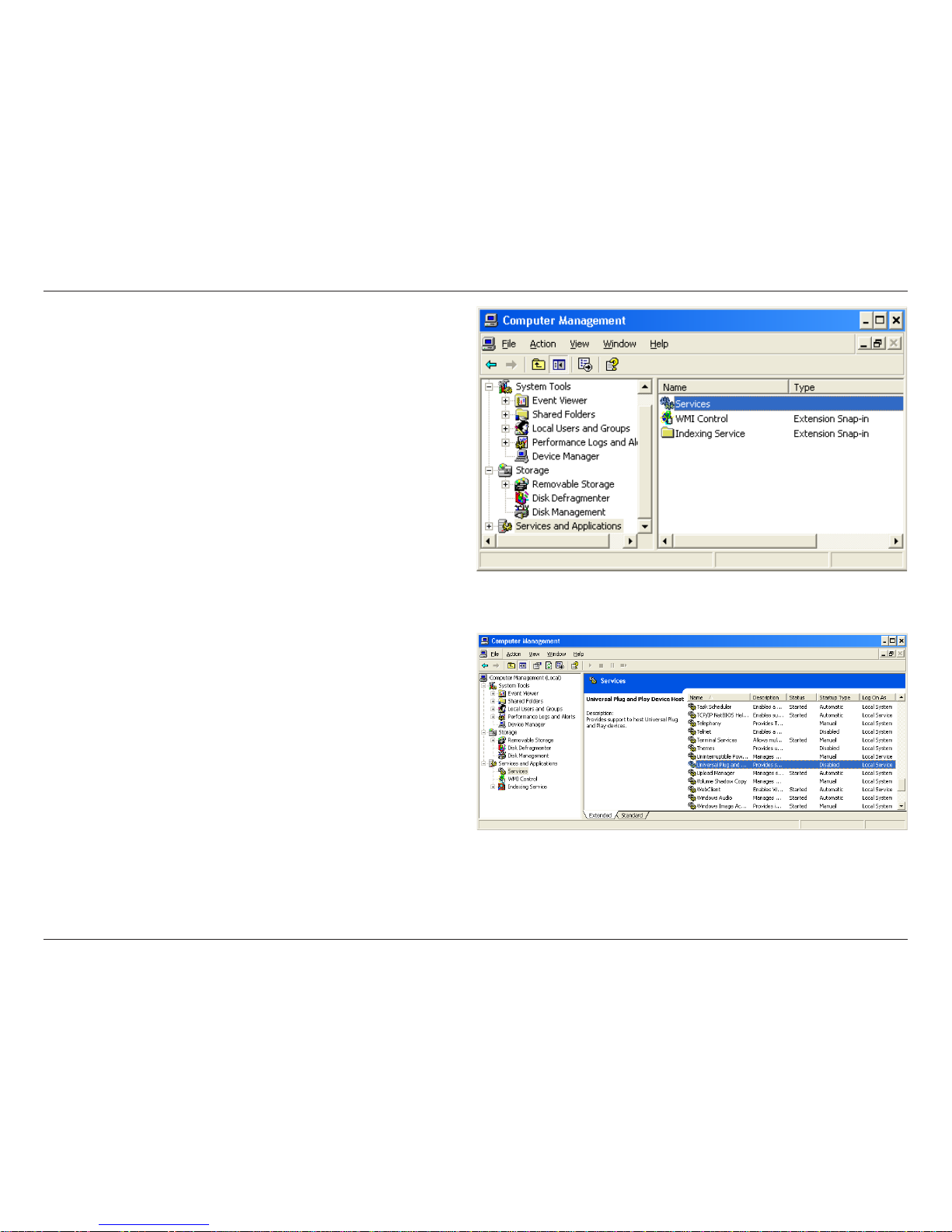

1. Click on Start, right-click on My Computer, and then
click Manage.
2. Double-click on Services and Applications.
UPnP (Universal Plug and Play) is only available on Windows®Me and XP. To enable UPnP or to check if you do have
UPnP enabled, follow the steps below:

11D-Link DPR-1260 User Manual
Section 2 - Installation

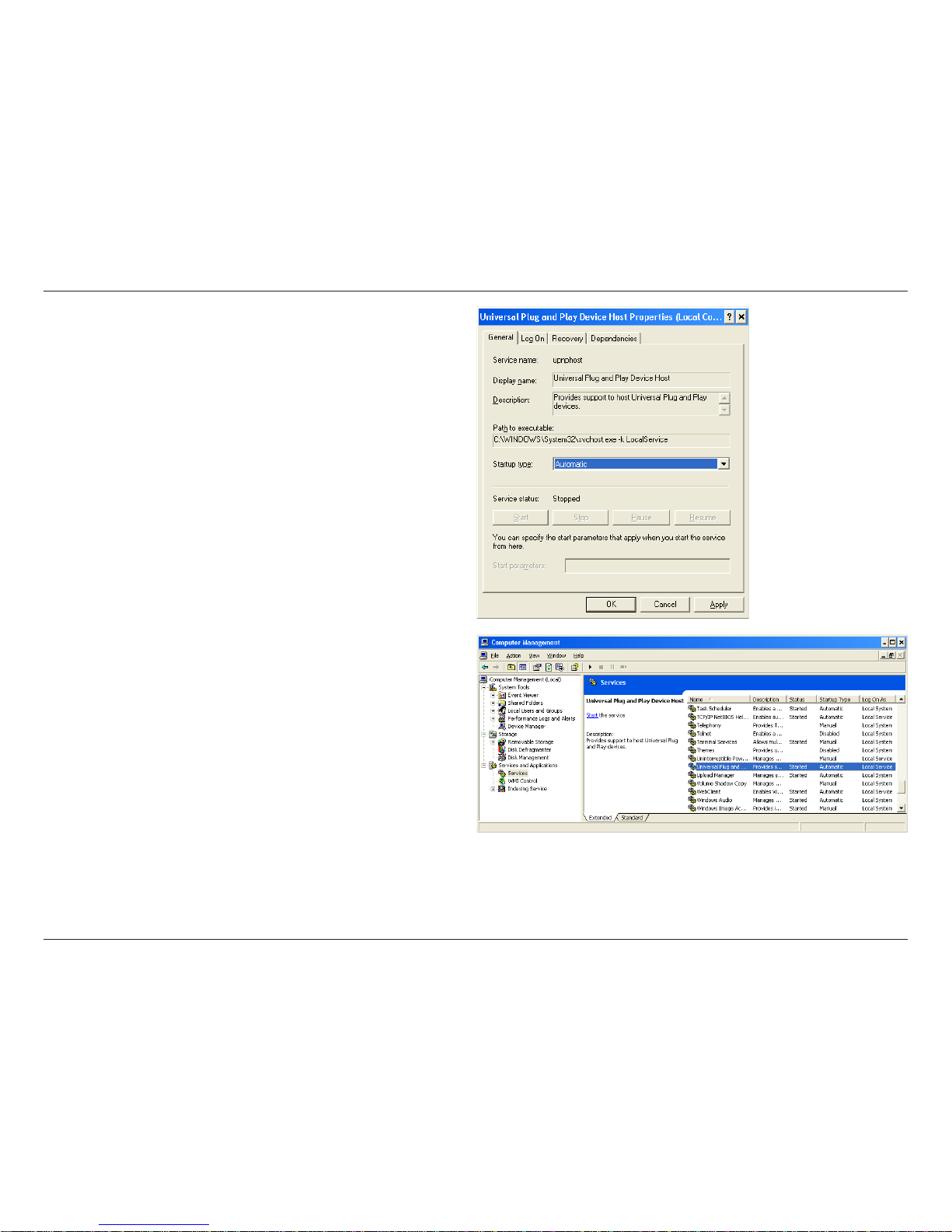

3. Double-click on Services.
4. In the right pane, locate the service named Universal
Plug and Play Device Host. Right-click the service
and select Properties.
If the status is set to Started, UPnP is already installed
and is running.
If the Universal Plug and Play service is not listed, skip
to page 13 to install.

12D-Link DPR-1260 User Manual
Section 2 - Installation
5. Make sure that the Startup type is set to Automatic.
6. Click Start and then click on OK once the service has
finished starting.
7. Locate the service named SSDP Discovery Service, right-click the service, and select Properties.
8. Repeat Steps 5 and 6 for the SSDP Discovery Service.

13D-Link DPR-1260 User Manual
Section 2 - Installation
UPnP Installation

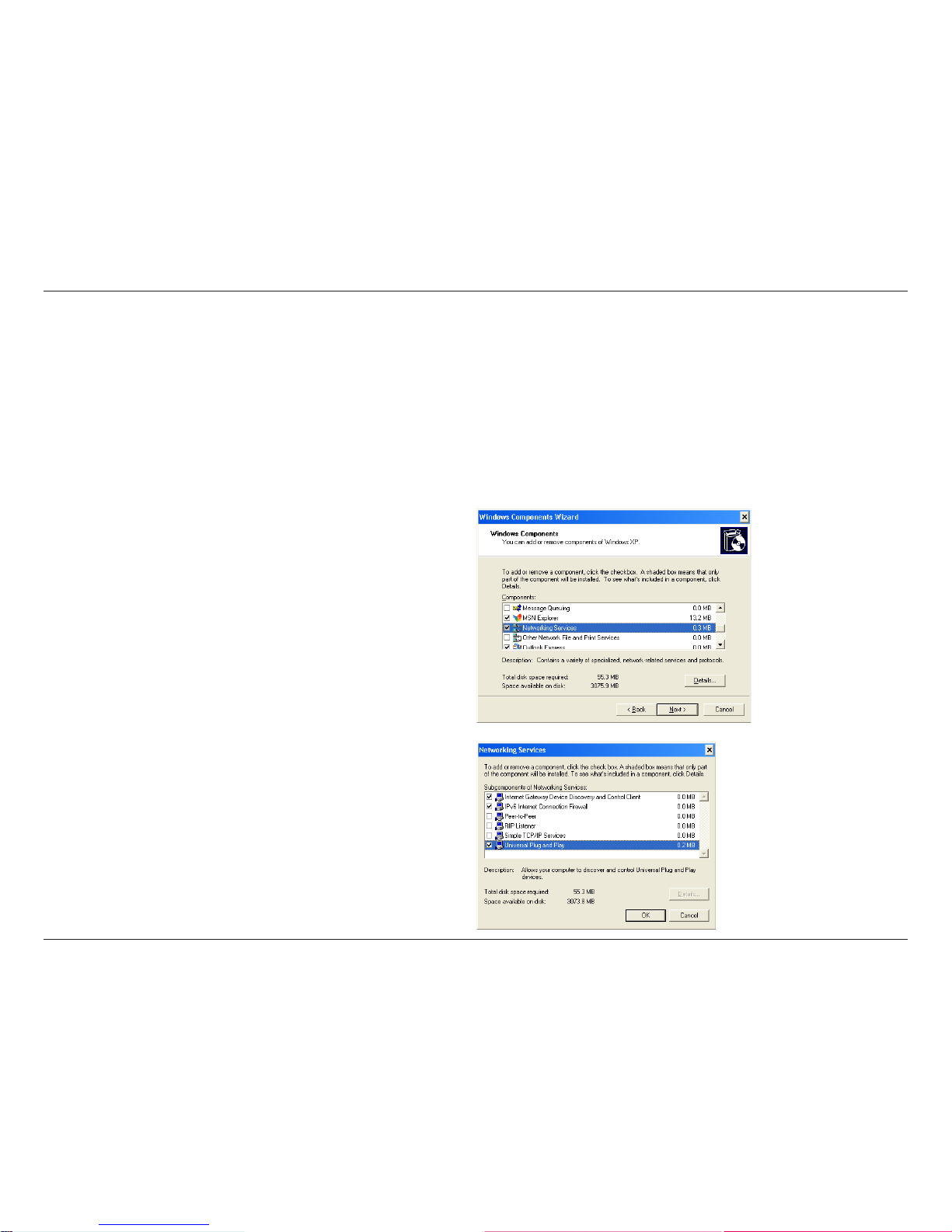

1. Click Start and then click Control Panel. Double-click Add/Remove Programs.
2. Click Add/Remove Windows Components on the left side. Please wait while the list of Windows Components
loads.
3. Scroll down to Networking Services. Select Network
Services and then click Details.
4. Check Universal Plug and Play and then click OK.
Follow the steps below to install UPnP on your Windows®XP machine. You may need your original Windows XP
installation CD.

14D-Link DPR-1260 User Manual
Section 3 - Configuration
Chapter 3 - Configuration
This section will show you how to configure your new D-Link wireless print server using the web-based configuration
utility.
Web-based Configuration Utility
The IP address of your print server will be automatically assigned by your router.

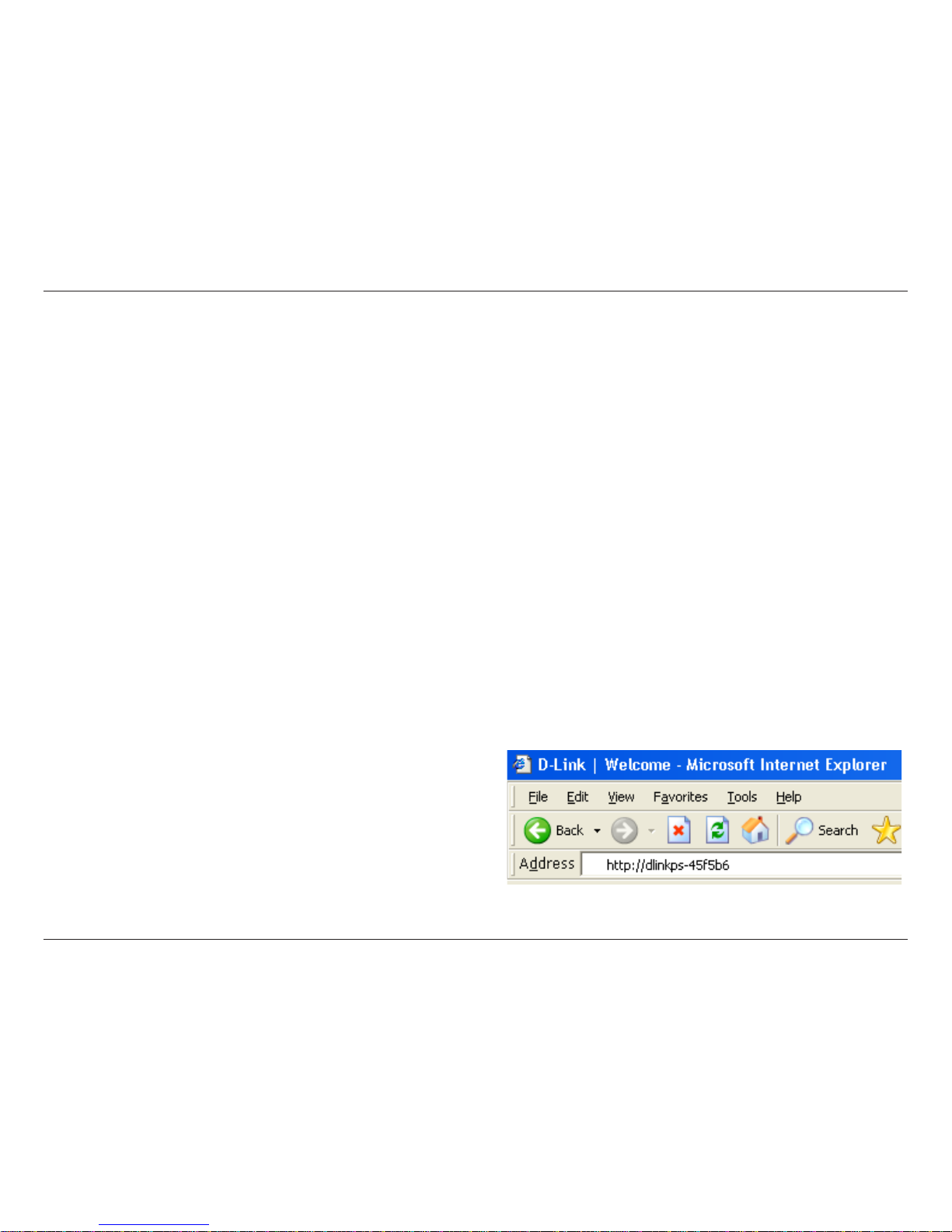

To access the print server’s web-based configuration interface:
Windows®XP users:
Double-click on the My Network Places icon on your desktop. Your print server will be displayed as “DPR-1260:
dlinkps-xxxxxx” (where xxxxxx is the last 6 characters of your print server’s MAC address). If you do not see the print
server or have UPnP enabled, please refer to page 13.
Windows®2000 users:
You will need to write down the MAC address located on the bottom of the print server (E.G. 00-54-23-45-f5-b6). Open
a web browser and enter the following:
http://dlinkps-XXXXXX
XXXXXX = the last six characters of your MAC address.
Note: Some printer software features may not work
while connected to the print server such as ink level display.

15D-Link DPR-1260 User Manual
Section 3 - Configuration
The print server name, IP address, MAC address,
and firmware version are displayed here.
Server Name: The network name assigned to
the print server.
IP Address: The print server’s current IP
address.
MAC Address: The print server’s MAC
address.
Firmware: The print server’s current firmware
version.
Any attached printers and scanners will be
displayed here.
Identification:
Status
Attached Devices:
Device Information
The Status section displays helpful at-a-glance information about the print server and how it is currently configured. It
also displays the printers attached to the print server.You may need to refresh the page to update the information.

16D-Link DPR-1260 User Manual
Section 3 - Configuration
Radio Status: Displays the status of the print
server being associated or disconnected from
an access point.
SSID: Displays the wireless network the print
server is associated with.
Channel: Displays the channel that the print
server and access point are currently using.
Transmit Rate: Displays the current connection
rate that the print server is currently connected
at.
Wireless Status:
Wireless Status

17D-Link DPR-1260 User Manual
Section 3 - Configuration
This screen will show all the wireless networks
that the DPR-1260 detects. The MAC address,
SSID, and channel will be displayed.
Wireless Networks
Discovered:
Wireless Networks

18D-Link DPR-1260 User Manual
Section 3 - Configuration
Select Scanner Bed (most common) or
Automatic Document Feeder (ADF). If you
select ADF, select the document size from the
drop-down menu.
Select Full Bed, Letter, Executive, A4, or enter
a custom size.
Enter an offset in inches or millimeters.
Select the resolution from Low to Highest.
Select color or black & white.
Select JPEG or PDF format.
Click the Scan button to scan the document.
Scan Device:
Scan
Size:
Offset:
Resolution:
Color Copy:
File Format:
Scan Button:
For more information regarding your scanner, please refer to
the scanner’s documentation.
Unfortunately not all scanners will operate or be detected
when connected to the D-Link print server.
Please visit http://support.dlink.com for an updated
compatibility list.

19D-Link DPR-1260 User Manual
Section 3 - Configuration
Both protocols are enabled by default.
Raw TCP Port is the most common print method.
This protocol uses TCP ports 9100-9103. Enable
the protocol to communicate with an attached
printer using the print server name and the unique
TCP port number assigned to the printer.
LPR/LPD is more commonly used in Mac or
Unix environments. This protocol uses TCP
port 515. Enable the protocol to communicate
with an attached printer using the print server
name and the unique queue name assigned to
the printer.
Printing Protocols:
Raw TCP Port:
LPR/LPD:
Printer
The following settings determine which printing protocols are enabled on the print server. The print server will listen for
print jobs on the TCP ports associated with the enabled protocols.
To access this page, you will be prompted to enter your administrator password. If you have not set up a password,
leave the password blank. Please refer to page 28 for setting up an administrator password.
Advanced Settings

20D-Link DPR-1260 User Manual
Section 3 - Configuration
Transmitted wireless packets larger than this
size will be fragmented to maintain performance
in noisy wireless networks. The valid range is
256-65535. Values larger than about 1560 will
prevent fragmentation from taking place.
Transmitted wireless packets larger than this size
will use the RTS/CTS protocol to (a) maintain
performance in noisy wireless networks and
(b) prevent hidden nodes from degrading
performance.The valid range is 1-65535.Values
larger than about 1560 will prevent RTS/CTS
from taking place.
Set the time duration here for transmission
burst mode, in microseconds.The valid range is
0-65535 with 0 to disable bursting. Burst mode
can increase data throughput by occupying
the channel for an extended duration. Typical
values are in the range of several milliseconds
(ie. 3000).
In adhoc mode beacons are sent out periodically.
This is the number of milliseconds between
each beacon. The valid range is 1 - 65535.
Fragmentation
Threshold:
If you are not familiar with these Advanced Wireless settings, please read the help section before attempting to modify
these settings. To access this page, you will be prompted to enter your administrator password. If you have not set up
a password, leave the password blank. Please refer to page 28 for setting up an administrator password.
RTS Threshold:
Burst Time:
Beacon Period:
Wireless
