2D-Link DPR-1260 Quick Install Guide
Package Contents
System Requirements
If any of the above items are missing, please contact your reseller.
Manual and Software on CD
D-Link DPR-1260
Multi-Function Print Server
CAT5 Ethernet Cable Power Adapter
Note: Using a power supply with a different voltage rating than the one included with
the DPR-1260 will cause damage and void the warranty for this product.
• 10/100 Fast Ethernet Wired or 802.11b/g Wireless Network
• Printer with USB Port*
• Computer with:
• Windows® XP (SP2) or Windows 2000 (SP4) or
Mac OS® X (v10.4/v10.3)
• Internet Explorer v6 or Mozilla Firefox
• CD-ROM Drive
• Network Interface Card
* For a list of compatible printers, visit http://support.dlink.com.

3 D-Link DPR-1260 Quick Install Guide
Hardware Overview

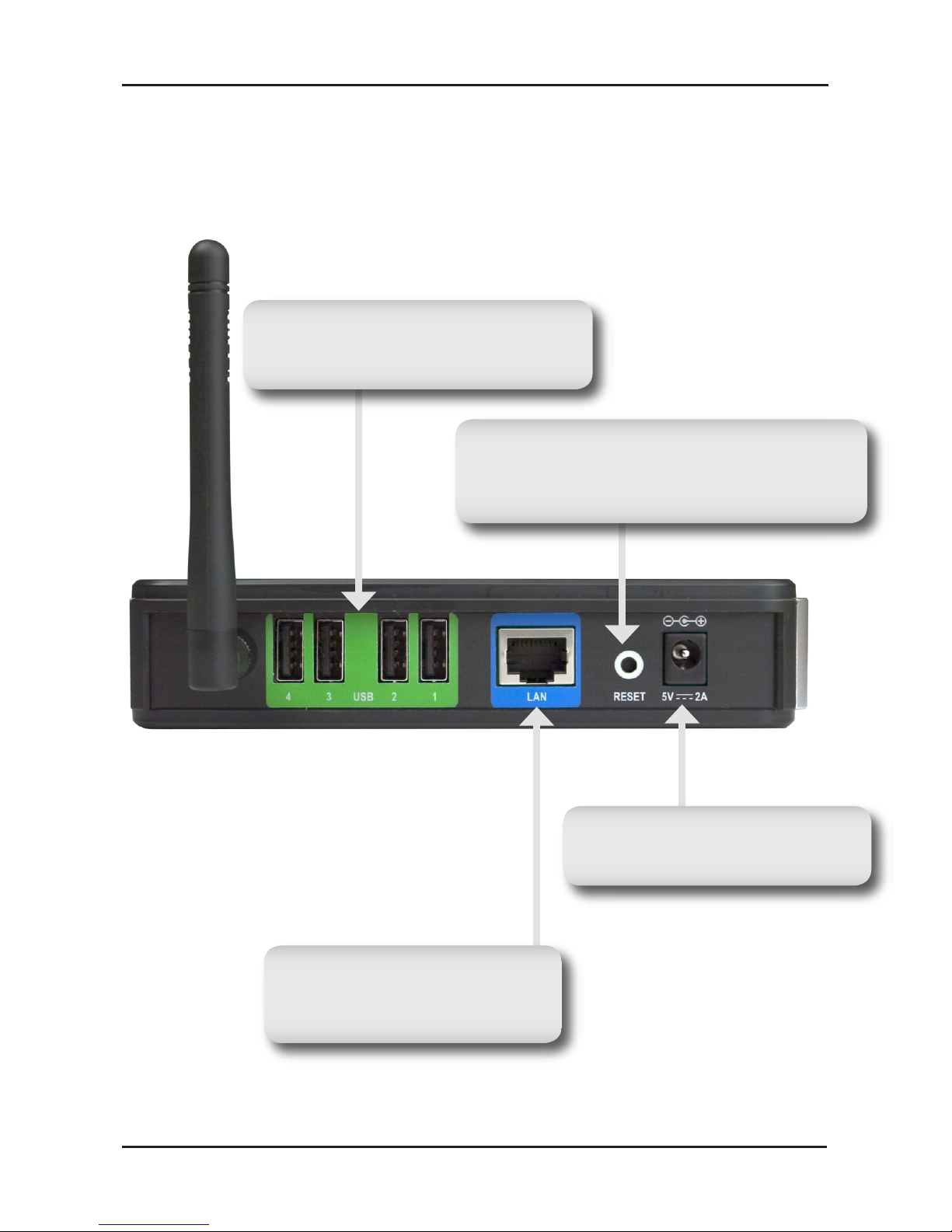

Connections
Power Receptor
Receptor for the Power Adapter.
LAN Port
Connect to a network using an
Ethernet cable.
USB Ports
Connect USB printers using an USB
cable.
Reset Button
Pressing the Reset Button restores the router
to its original factory default settings.

4D-Link DPR-1260 Quick Install Guide
Hardware Overview

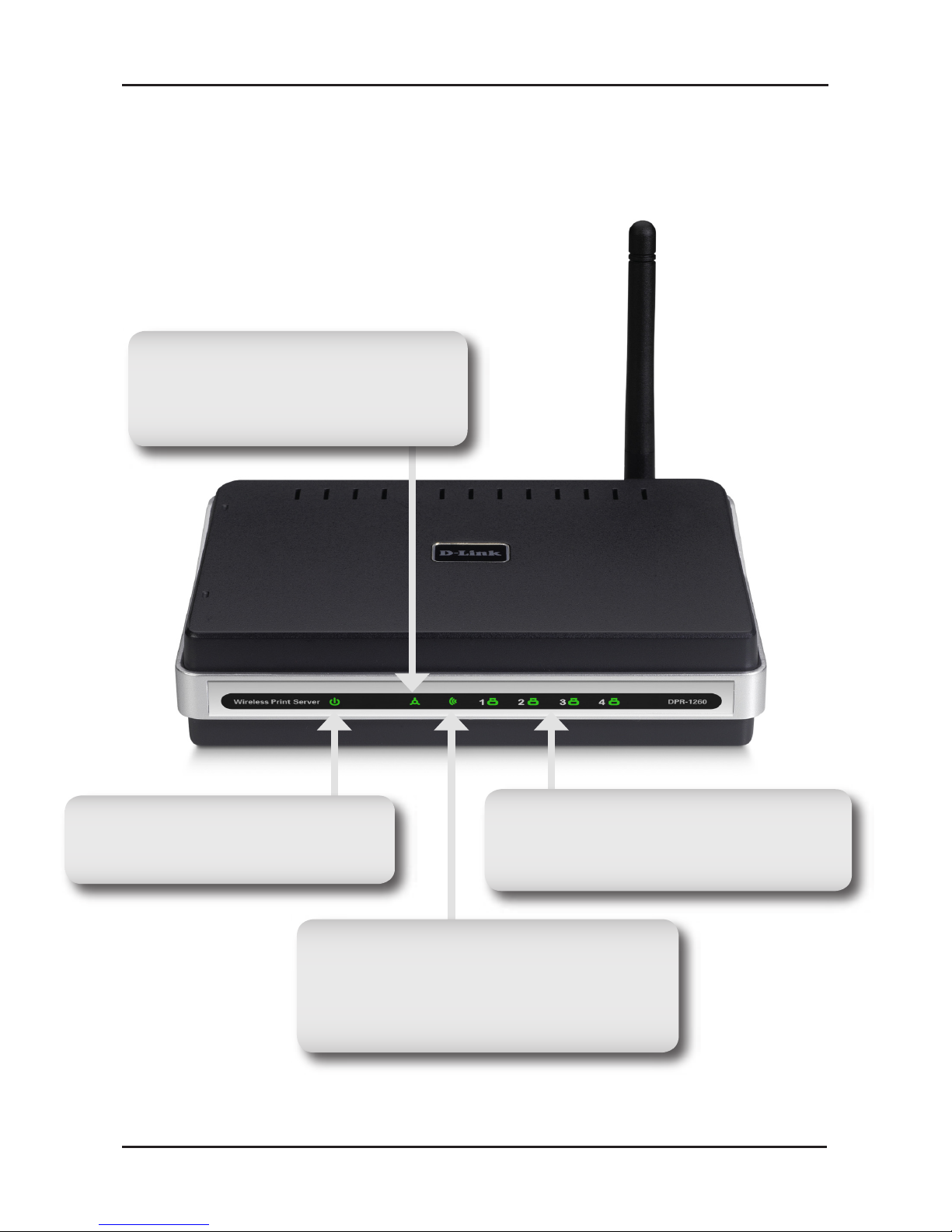

LEDs
Power LED
A solid light indicates a proper
connection to the power supply.
LAN LED
A solid light indicates connection on
the LAN port. This LED blinks during
data transmission.
WLAN LED
A solid light indicates that the wireless
segment is ready. This LED blinks during
wireless data transmission.
USB LEDs (1-4)
A solid light indicates connectivity to an
USB printer or scanner.

5 D-Link DPR-1260 Quick Install Guide
Connect an Ethernet cable to the Ethernet connector located on the
Print Server’s back panel and attach it to the network.
Note: It is required that an Ethernet cable is used during initial
setup. Once your wireless configuration is set, you may disconnect
the Ethernet cable and begin communicating wirelessly with your
DPR-1260.
Attach the external power supply to the DC power input connector
located on the Print Server’s bottom panel and connect it to a power
outlet or power strip.
The factory default IP address of the DPR-1260 is 192.168.0.10.
The IP address of the DPR-1260 must be in the same range as your
network. You can change the IP address of the DPR-1260 to match
the IP address scheme of your existing network. To access the Print
Server’s Web configuration interface, assign an IP address on one
of the wired PCs on your network to the same IP scheme as the
Print Server.
Note: Some printer software features may not work while connected
to the print server such as ink level display.
Installation

6D-Link DPR-1260 Quick Install Guide

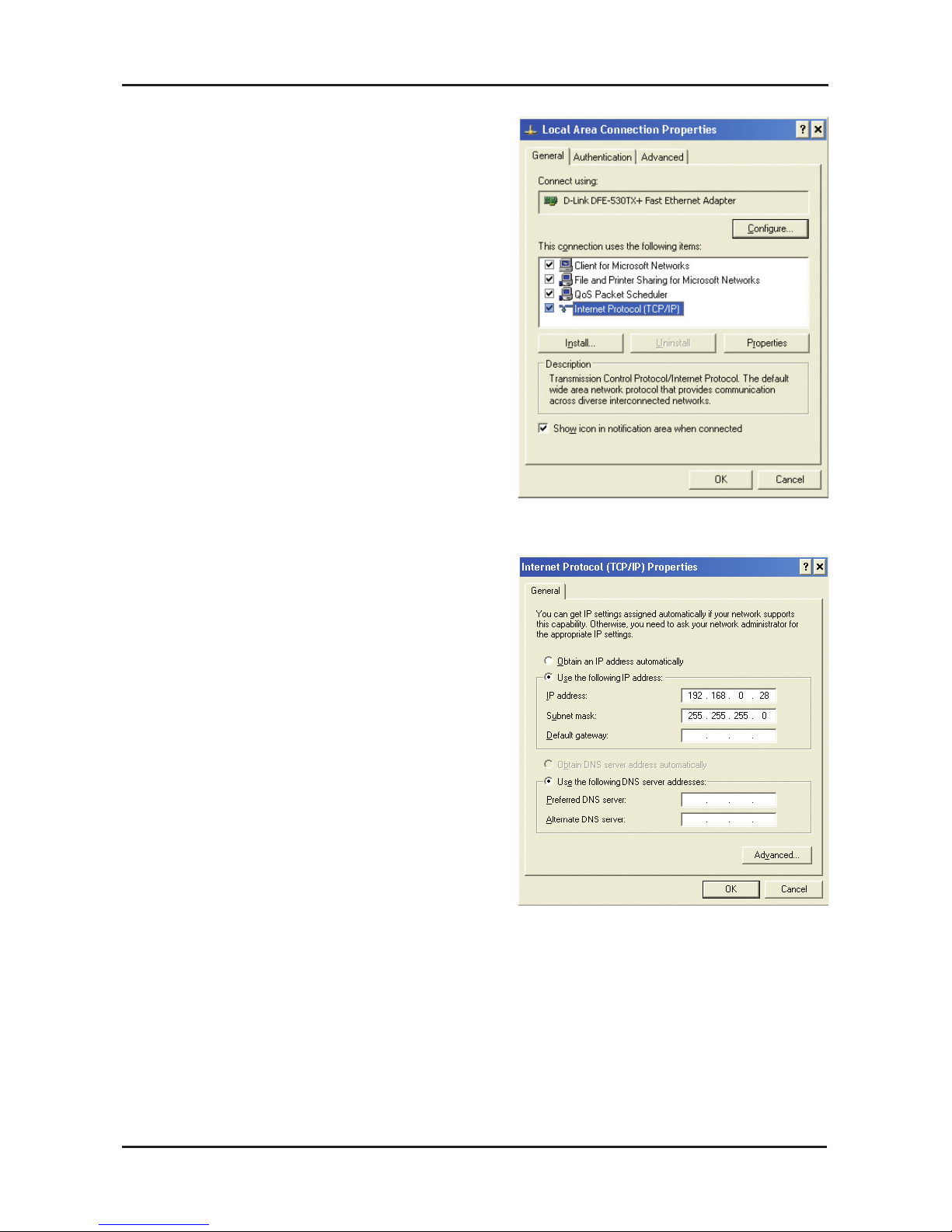

Go to Start > right-click on My
Network Places > select
Properties > right-click on the
Network Connection associated with
your Network Adapter and select
Properties
Click Internet Protocol (TCP/IP)
and click Properties.
Input a static IP address in the
same range as the print server
(192.168.0.xx).
Select Use the Following IP
Address and enter an IP address
(192.168.0.28) and a Subnet Mask
(255.255.255.0). Click OK to save
the new IP address.
Once you are finished configuring
your print server, you can change
the settings back.

7 D-Link DPR-1260 Quick Install Guide
D-Link Setup Wizard

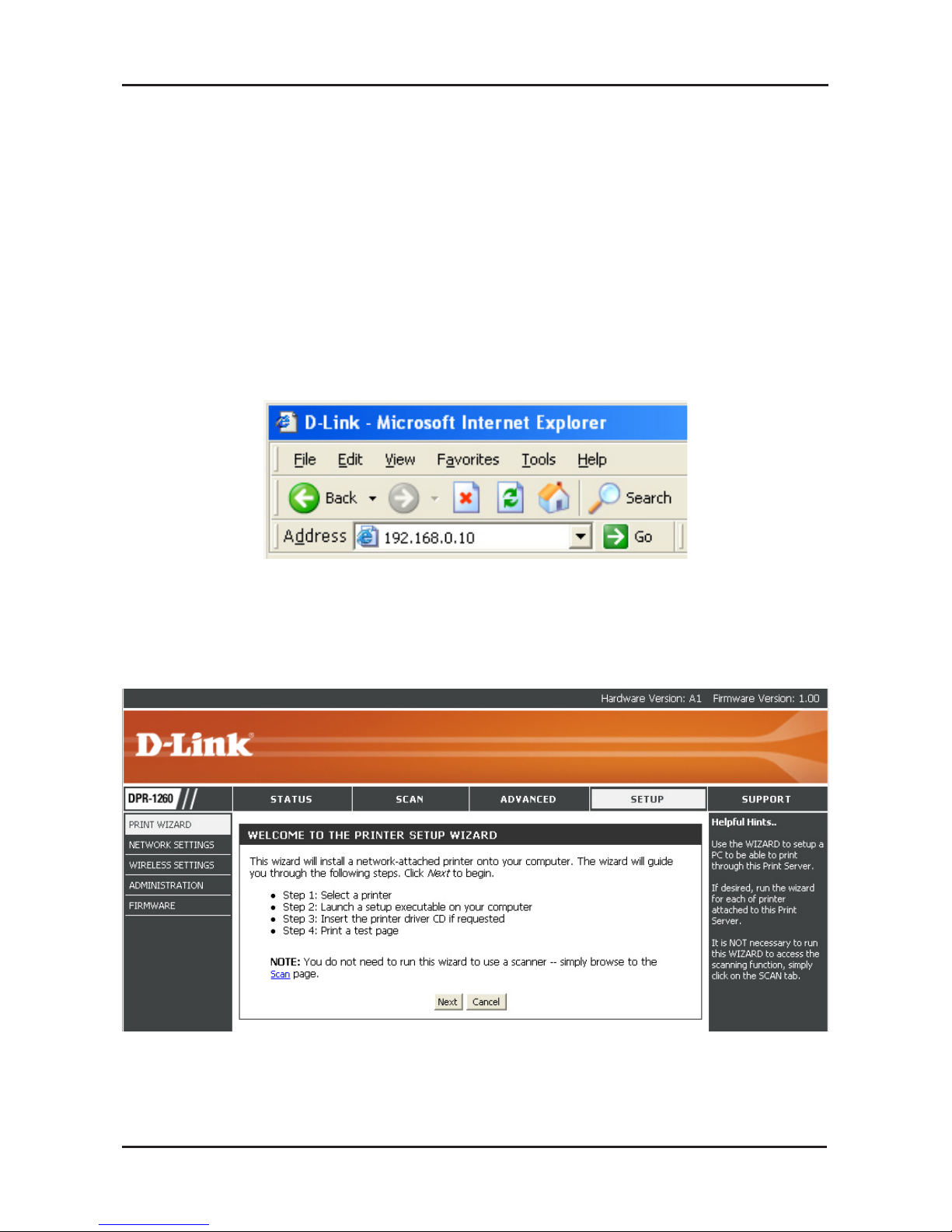

To access the configuration utility, open a web-browser such as
Internet Explorer and enter the IP address of the print server
(192.168.0.10).
If you get a Page Cannot be Displayed error, please refer to the
Troubleshooting section of the manual for assistance.
Click Next to continue.

8D-Link DPR-1260 Quick Install Guide

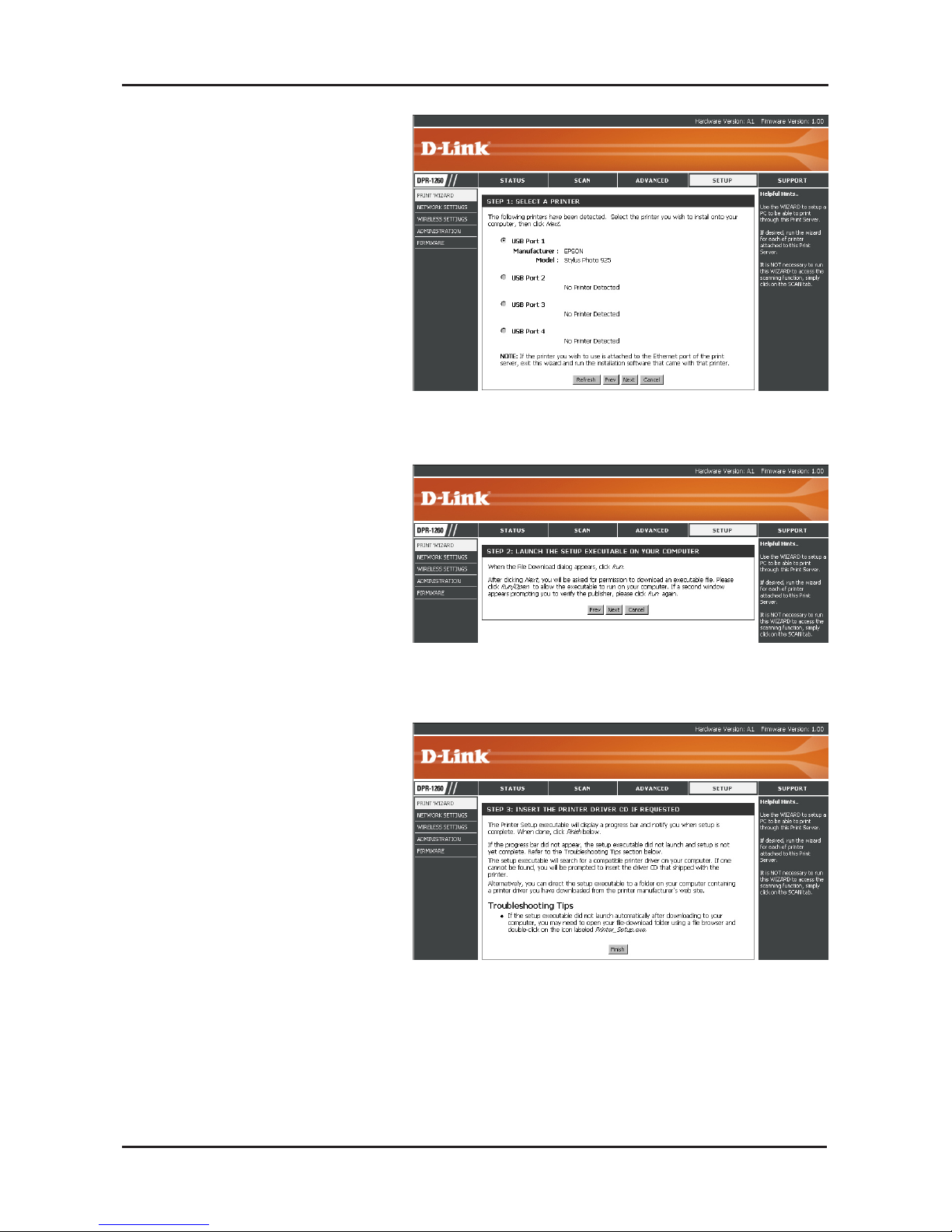

Click the radio button next
to the printer you want to
configure. Click Next to
continue.
Click Next to continue.
You may need to insert
your printer driver CD to
load the drivers to your
computer.
Click Finish to complete
the setup wizard.

9 D-Link DPR-1260 Quick Install Guide

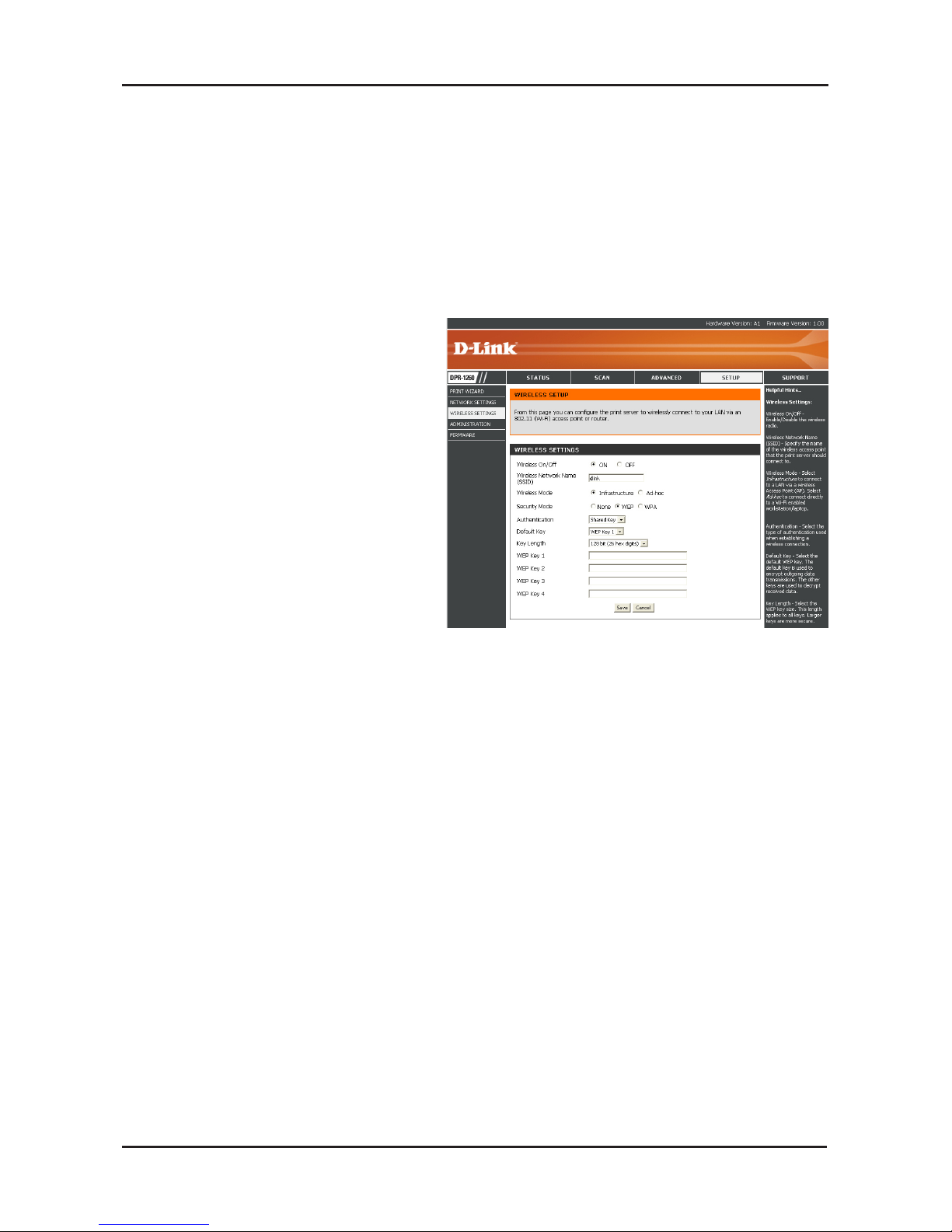

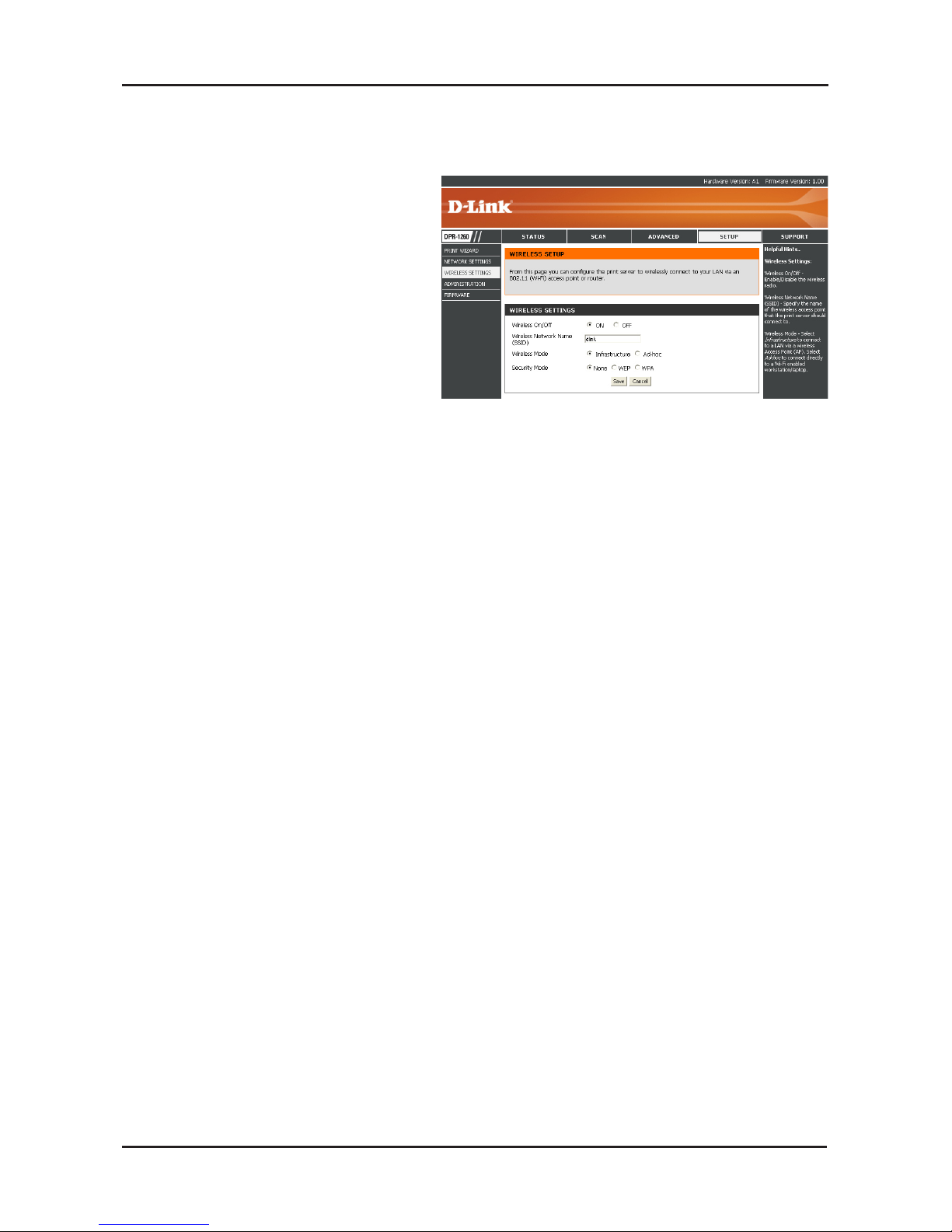

Wireless Settings
If you want to connect to a
wireless network, click on
Setup and then click Wireless
Settings on the left side.
Set the Wireless on/off to
On. If you want to disable the
wireless feature, select Off.
Enter the Wireless Network Name (SSID) of your wireless network.
If you are connecting to an access point or wireless router, select
Infrastructure. If you are connecting directly to a computer with a
wireless adapter, click Ad-Hoc.
Select None (to use connect to an unsecure network), WEP, or
WPA.

10D-Link DPR-1260 Quick Install Guide

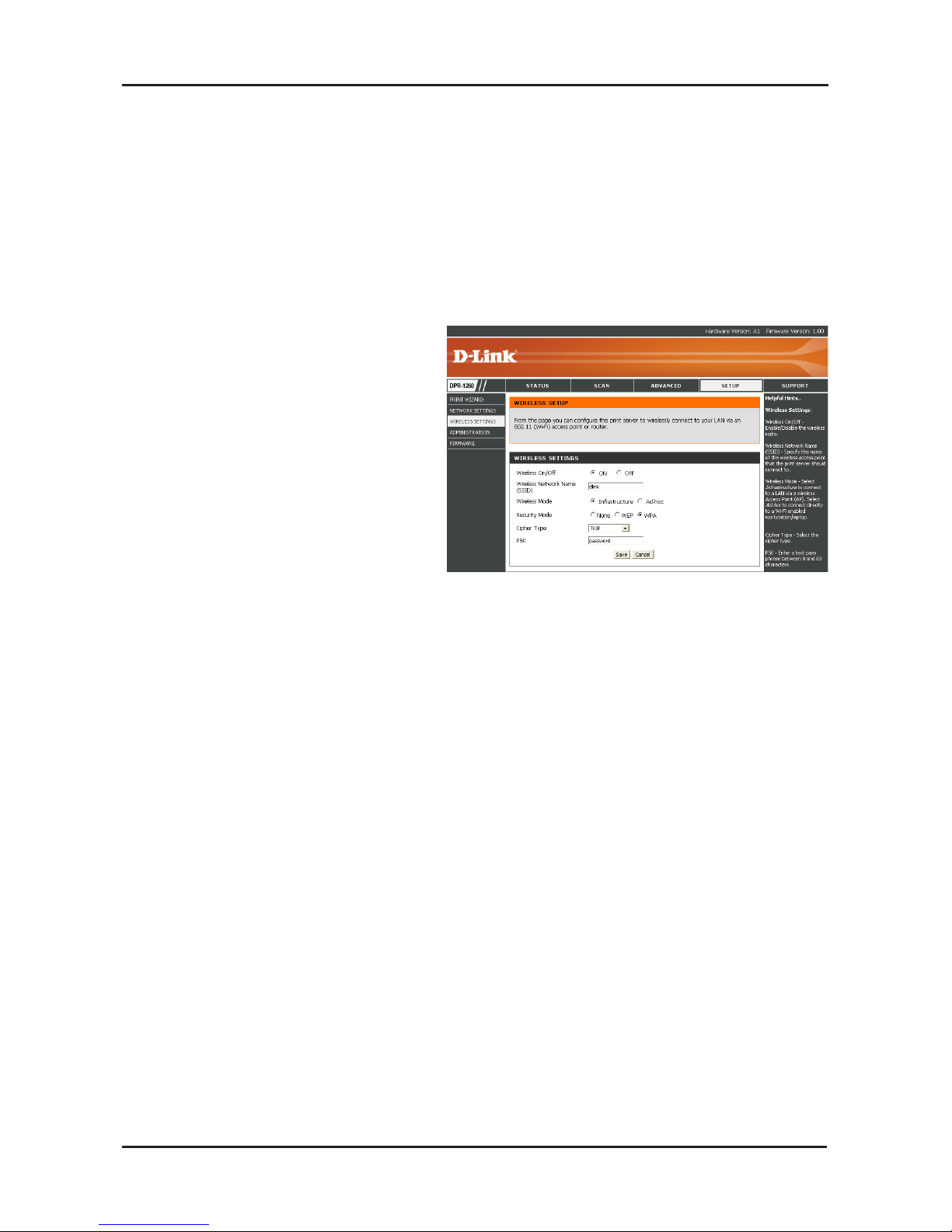

WEP Encryption
It is recommended to enable encryption on your wireless router before
your wireless print server. Please establish wireless connectivity
before enabling encryption. Your wireless signal may degrade when
enabling encryption due to the added overhead.
1. Log into the web-based
configuration by opening a
web browser and entering
the IP address of the print
server (192.168.0.10).
Click on Setup and then
Wireless Settings on the
left side.
2. Next to Security Mode,
select WEP.
3. Next to Authentication, select Shared Key.
4. Select either 64-bit or 128-bit encryption from the drop-down
menu next to WEP Encryption.
5. Next to Key Type, select either Hex or ASCII.
Hex (recommended) - Letters A-F and numbers 0-9 are valid.
ASCII - All numbers and letters are valid.
6. Next to Key 1, enter a WEP key that you create. Make sure you
enter this key exactly on all your wireless devices. You may enter
up to 4 different keys.
7. Click Save Settings to save your settings. If you are configuring
the router with a wireless adapter, you will lose connectivity until
you enable WEP on your adapter and enter the same WEP key
as you did on the router.

11 D-Link DPR-1260 Quick Install Guide
WPA Encryption
It is recommended to enable encryption on your wireless router before
your wireless network adapters. Please establish wireless connectivity
before enabling encryption. Your wireless signal may degrade when
enabling encryption due to the added overhead.
1. Log into the web-based
configuration by opening a
web browser and entering
the IP address of the router
(192.168.0.1). Click on
Wireless Settings on the
left side.
2. Next to Security Mode,
select WPA.
3. Next to Cipher Mode, select TKIP, AES, or TKIP and AES.
4. Next to PSK, enter a key (passphrase). The key is an
alpha-numeric password between 8 and 63 characters long. The
password can include symbols (!?*&_) and spaces. Make sure
you enter this key exactly the same as on your wireless router or
access point.
5. Click Save to save your settings.

12D-Link DPR-1260 Quick Install Guide
Technical Support
D-Link’s website contains the latest user documentation and
software updates for D-Link products.
U.S. and Canadian customers can contact D-Link Technical
Support through our website or by phone.
United States
Telephone
[phone]
Twenty four hours a day, seven days a week.
World Wide Web
http://support.dlink.com
E-mail
suppor[email protected]
Canada
Telephone
[phone]
Monday through Friday, 7:30am to 9:00pm EST.
World Wide Web
http://support.dlink.ca
E-mail
suppor[email protected]
Version 1.0
Revised 02/14/2006
Copyright ©2006 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link and the D-Link logo are registered
trademarks of D-Link Corporation or its subsidiaries in the United States and other countries. Other trademarks are the property
of their respective owners. Maximum wireless signal rate based on IEEE Standard 802.11g specifications. Actual data throughput
will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction,
and network overhead lower actual data throughput rate. Product specifications, size and shape are subject to change without
notice, and actual product appearance may differ from that depicted on the packaging. Visit www.dlink.com for more details.
