D-Link AirPlus DP-G321 User manual

©2004 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders.
Software and specifications subject to change without notice. DP-G321.06152004
If any of the above items are missing, please contact your reseller.
CD-ROM (Software, Manual and Warranty)
Before You Begin:
DP-G321 AirPlus G Wireless Multi-Port Print Server

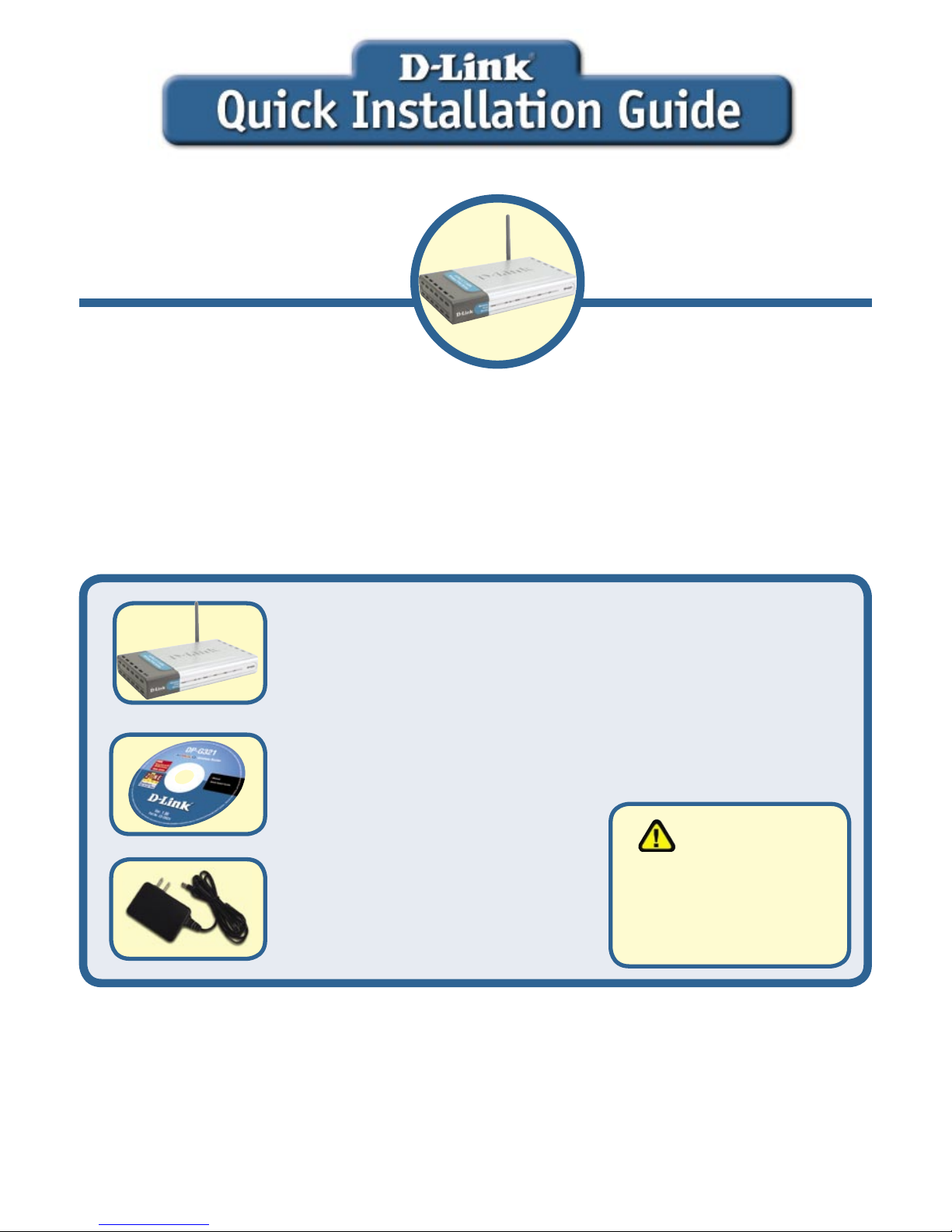

Check Your Package Contents
AirPlus™ G 802.11g/2.4GHz
Wireless Multi-Port
Print Server
5V DC, 2.5A Power Adapter
Using a power
supply with a
different voltage
rating will damage this
product and void its
warranty.
This product can be setup using
any current Web browser, i.e.,
Internet Explorer 6 or Netscape
Navigator 7.0
You will need an Ethernet-enabled device, such as a laptop or desktop computer and
a USB or LPT printer that will connect to the DP-G321.
IMPORTANT: TURN OFF the power to the printer BEFORE installing the DP-G321
TM
DP-G321

2
Connecting the DP-G321 to Your Network

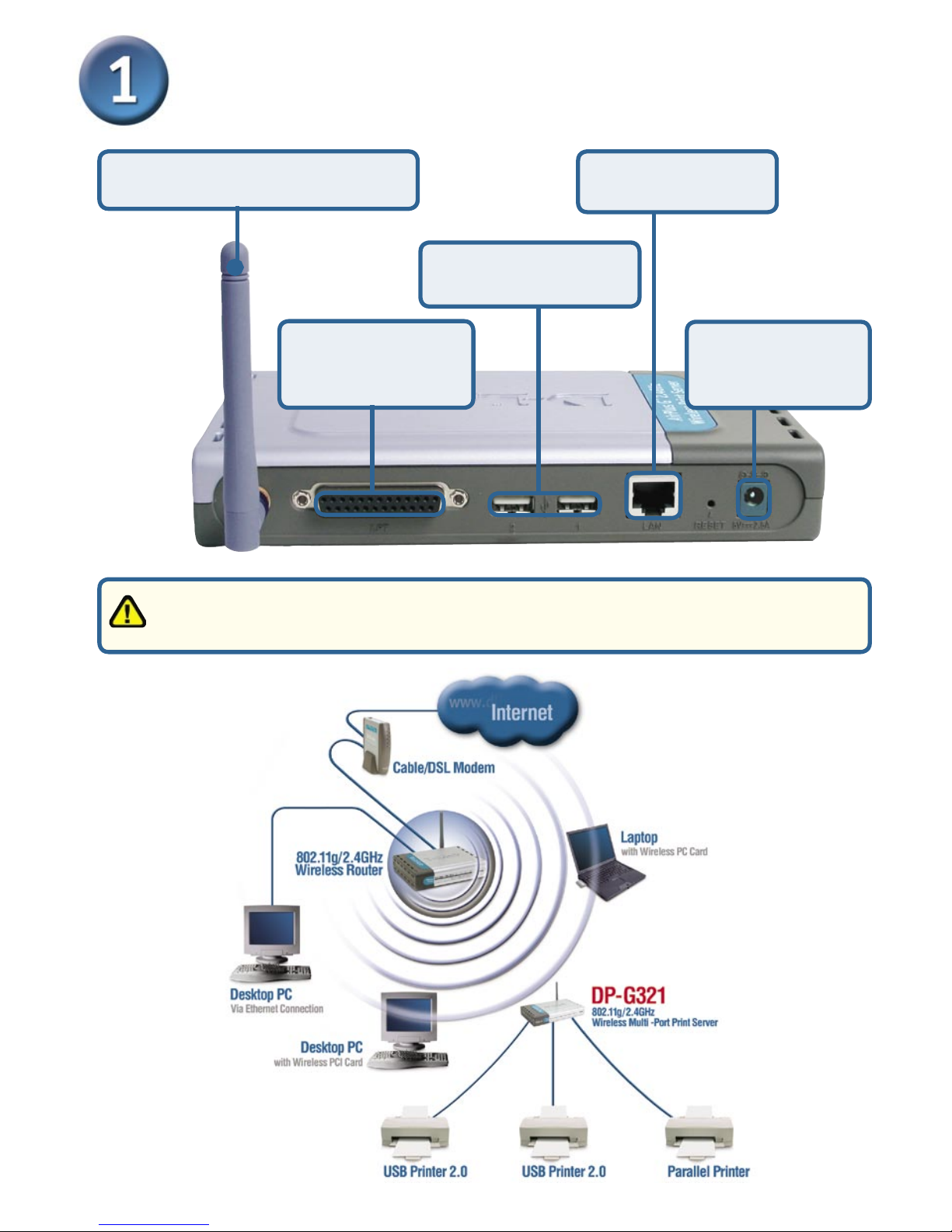

USB Ports: Used to
connect USB printers.
Power Receptor:
Connects the AC
Power Adapter
LAN Port: Connects
to a router or switch.
Warning!
Only attach USB printers to the USB ports of the DP-G321. Do not connect any other USB device
to the DP-G321’s USB port! Other devices may damage the unit and void the warranty.
Antenna: Used to wirelessly
connect to 802.11b/g adapters.
LPT Port: Used to
connect a standard
parallel printer.

3
For Mac OS printing, please refer to manual (.pdf) located on the CD-ROM.
A. Insert one end of a straight-through CAT5 Ethernet cable into the DP-G321’s LAN Port.
Connect the other end to an Ethernet port on your gateway or switch.
B. Make sure that your Printer is turned OFF.
C. Attach one end of your printer cable to the appropriate port on the DP-G321 and the
other end to the corresponding port on your printer.
D. Turn ON the printer. Repeat steps B-D for each printer before proceeding to step E.
E. Plug one end of the power adapter into the DP-G321 and the other end into your electric
outlet. The DP-G321 will turn on and begin a self-test.
Note: Don’t connect the power cord to the DP-G321 until you are advised to do so.
Connecting the DP-G321 to Your
Network (continued)
The factory default IP address of the DP-G321 is 192.168.0.10. The IP address of the
DP-G321 must be in the same range as your network. You can change the IP address
of the DP-G321 to match the IP address scheme of your existing network. To access
the Print Server’s Web configuration interface, assign an IP address on one of the wired
PCs on your network to the same IP scheme as the Print Server.
For additional Windows operating system setup or information on the Web-
management interface, refer to the manual located on the CD-ROM.
Configuring the DP-G321

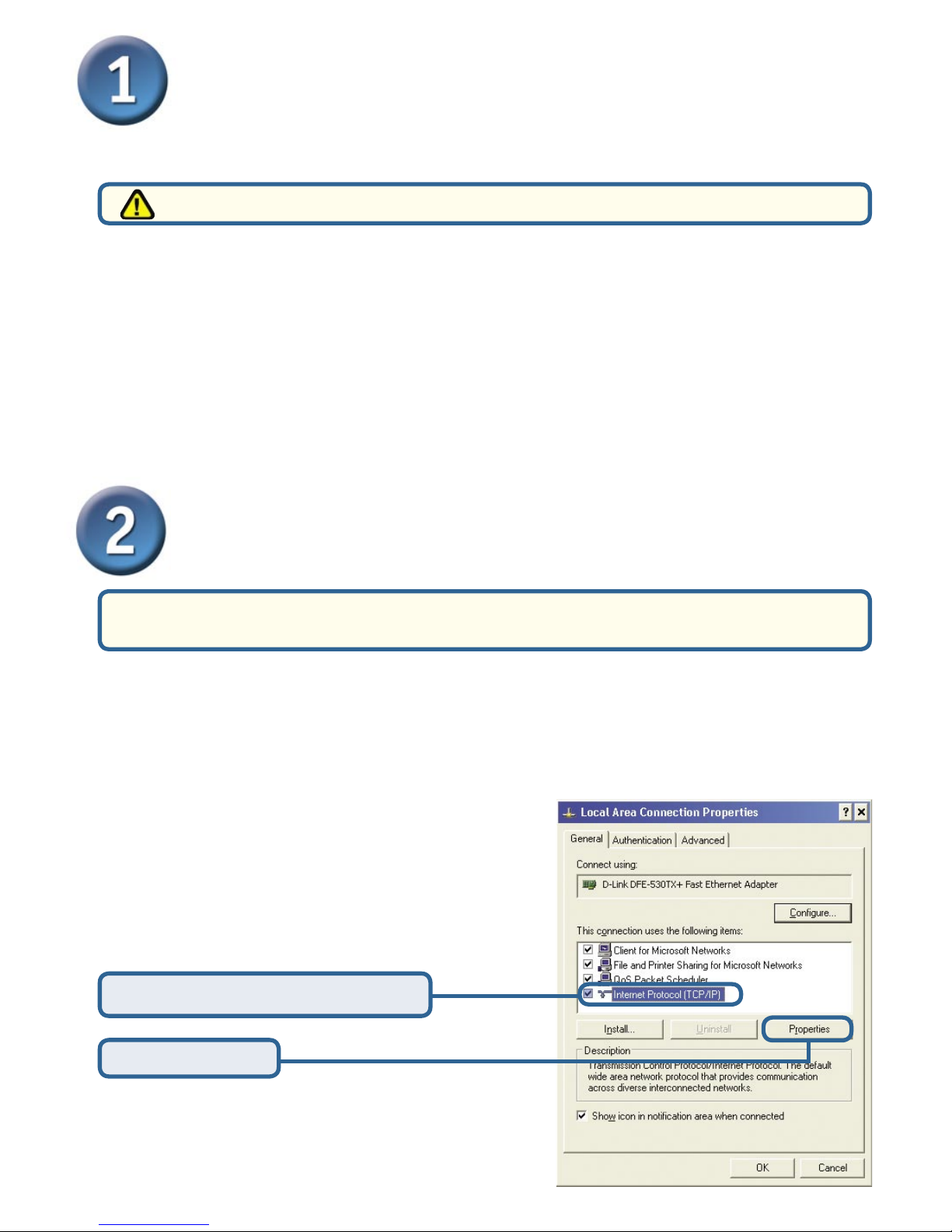

Go to Start > Right-click on
My Network Places > select Properties >
Right click on the Network Connection
associated with your Network Adapter and
select Properties.
Click Internet Protocol (TCP/IP)
Click Properties

4
Open your Web browser and
type http://192.168.0.10 into the
URL address box. Then press
the Enter or Return key.
Click OK to apply
the new settings
Configuring the DP-G321 (continued)

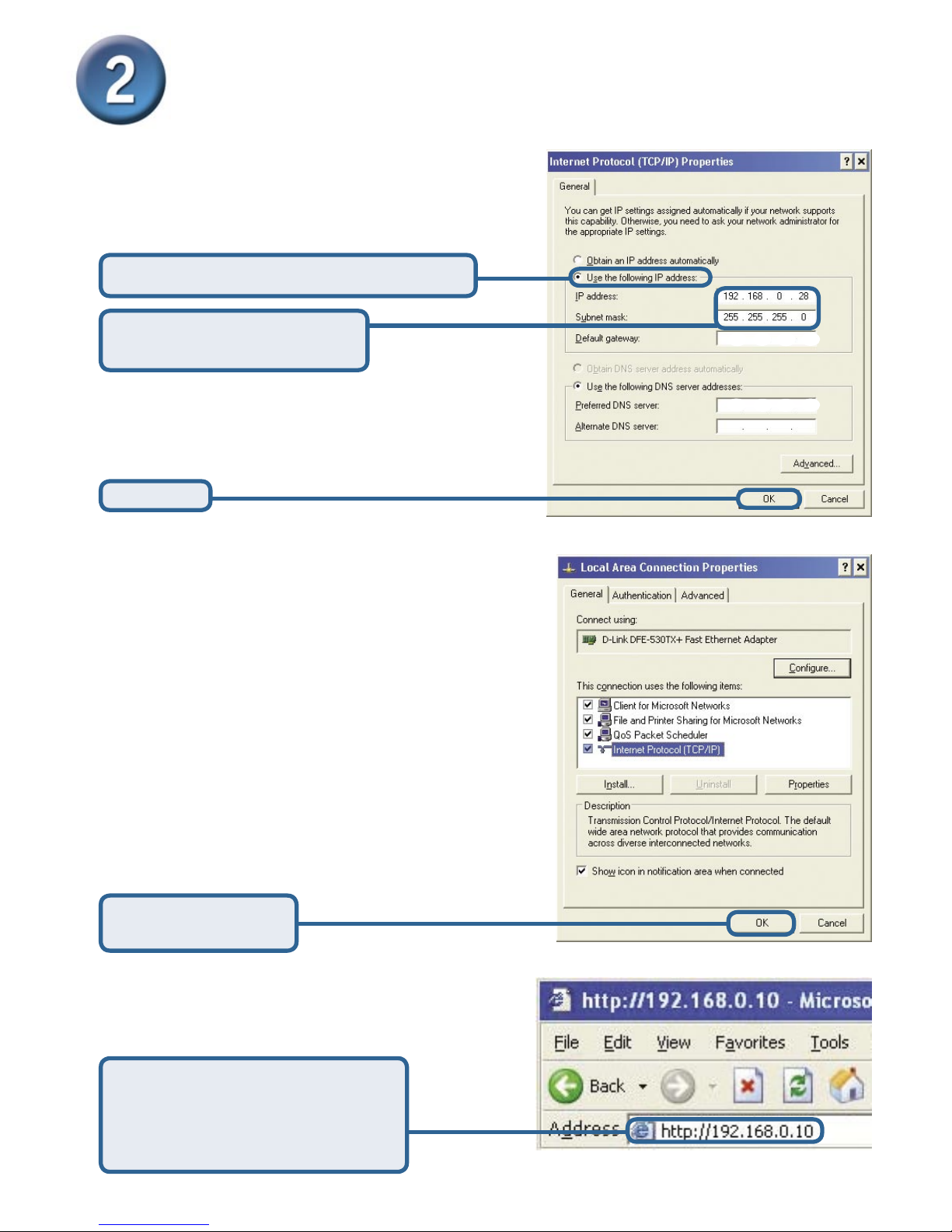

Input a static IP address in the
same range as the print server.
(192.168.0.xx)
Click OK
Select Use the following IP address
IP address: 192.168.0.28
Subnet mask: 255.255.255.0

5
Configuring the DP-G321 (continued)

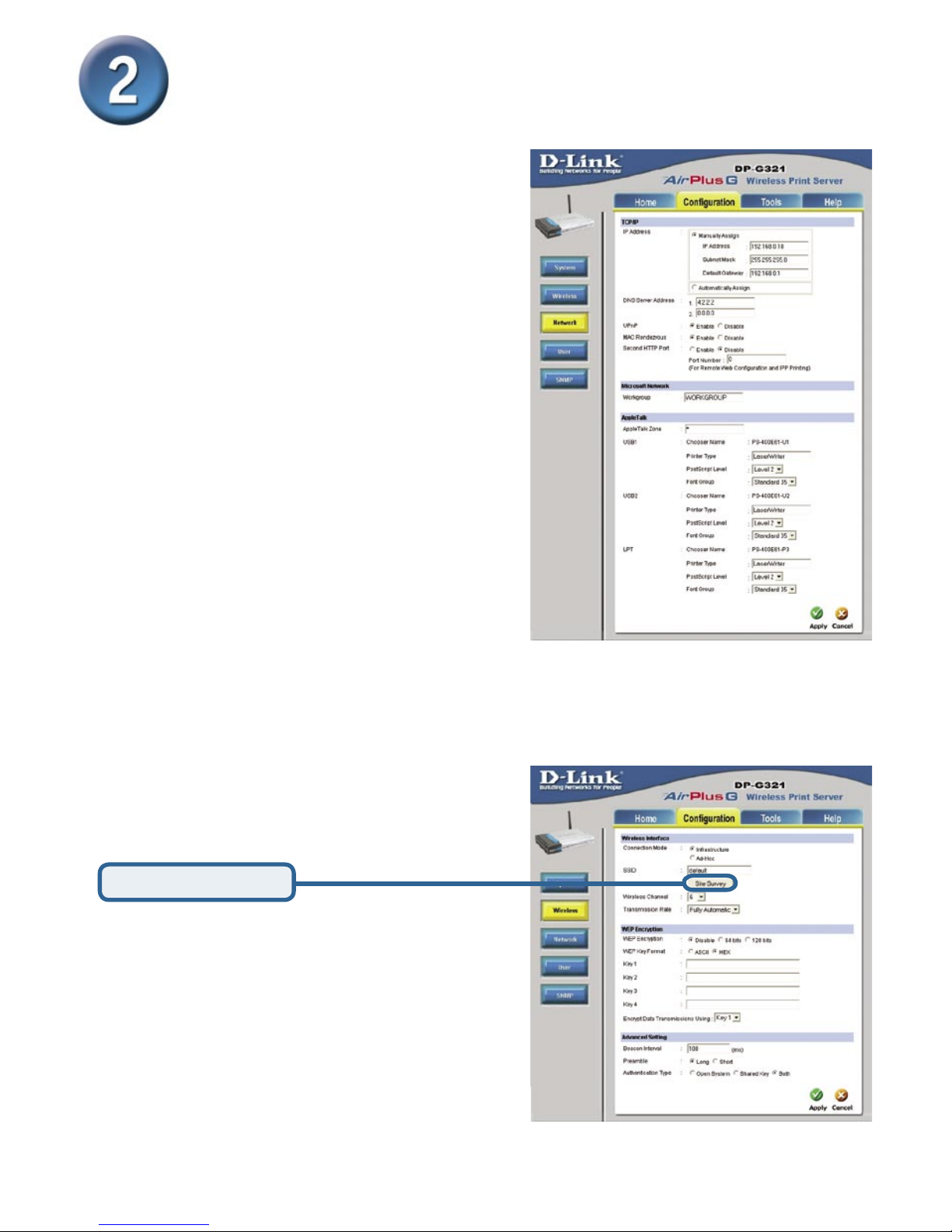

The IP address of the DP-G321 can
be modified from the Network option
under the Configuration tab.
This Quick Installation Guide will use
the Print Server’s default IP address
in all examples. Make the appropriate
changes if you have modified the DP-
G321’s IP address.
Click Site Survey
Click on the Wireless button under
the Configuration tab to view the
wireless settings.

6
Configuring the DP-G321 (continued)
Select the System button under the
Configuration tab to view the Print
Server and Port names. If you change
the names of the ports, please make
note of them as they will be needed
during the Add Printer Wizard.

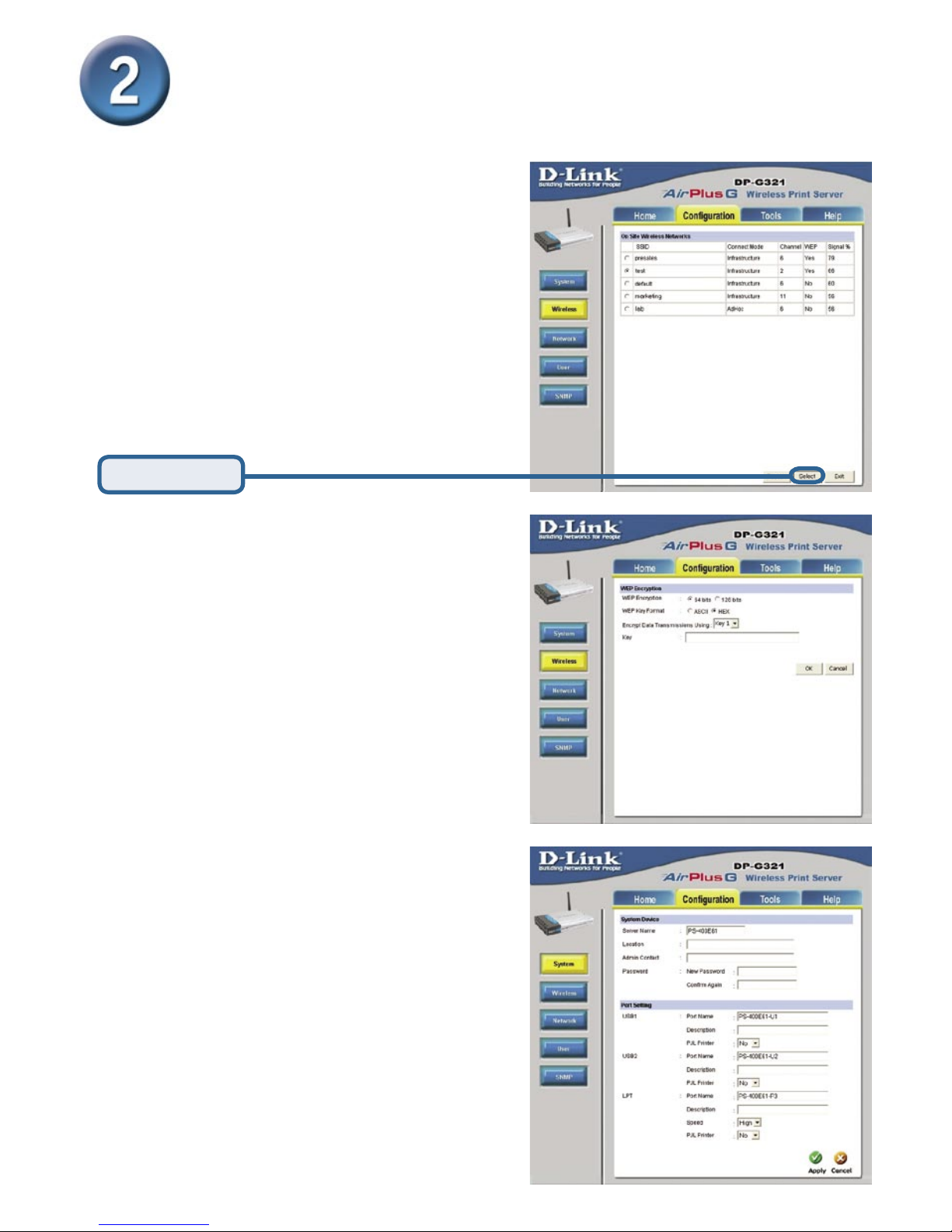

A list of available wireless networks will
appear. If you do not see the network
you are looking for, click Rescan at the
bottom of the page.
This screen only appears if you selected
a wireless network with WEP enabled.
If so, you must enter the encryption
information and click OK.
Click Select

7
Click Next
Select Local Printer and
uncheck Automatically
detect and install my
Plug an Play printer.
The Add Printer Wizard
Click Next
For Windows XP:

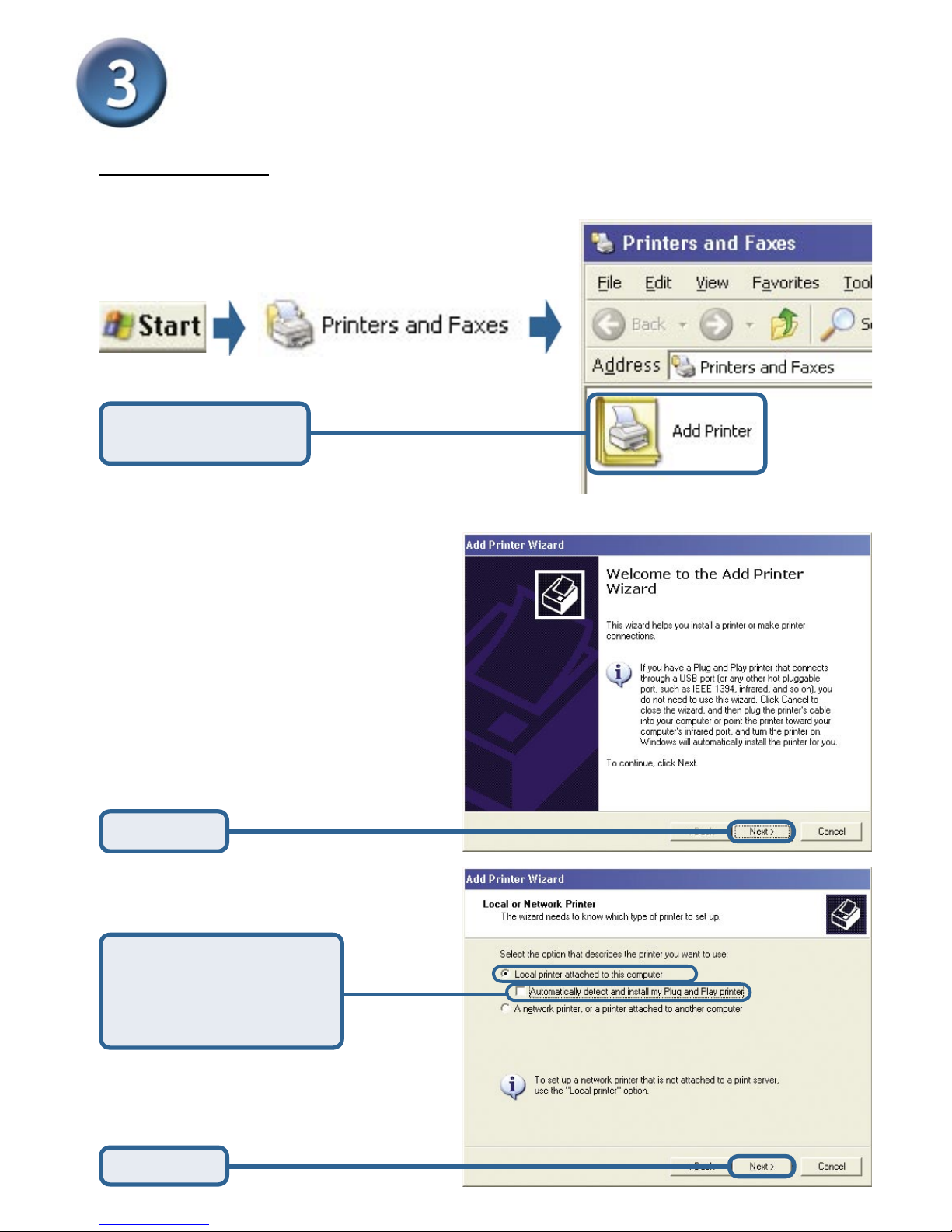

Go to the Start menu> Printers and Faxes> Add a Printer
Double-click on the
Add Printer icon

8
The Add Printer Wizard (continued)
Click Next
Click Next
The Port Name will fill in automatically.
Click Next

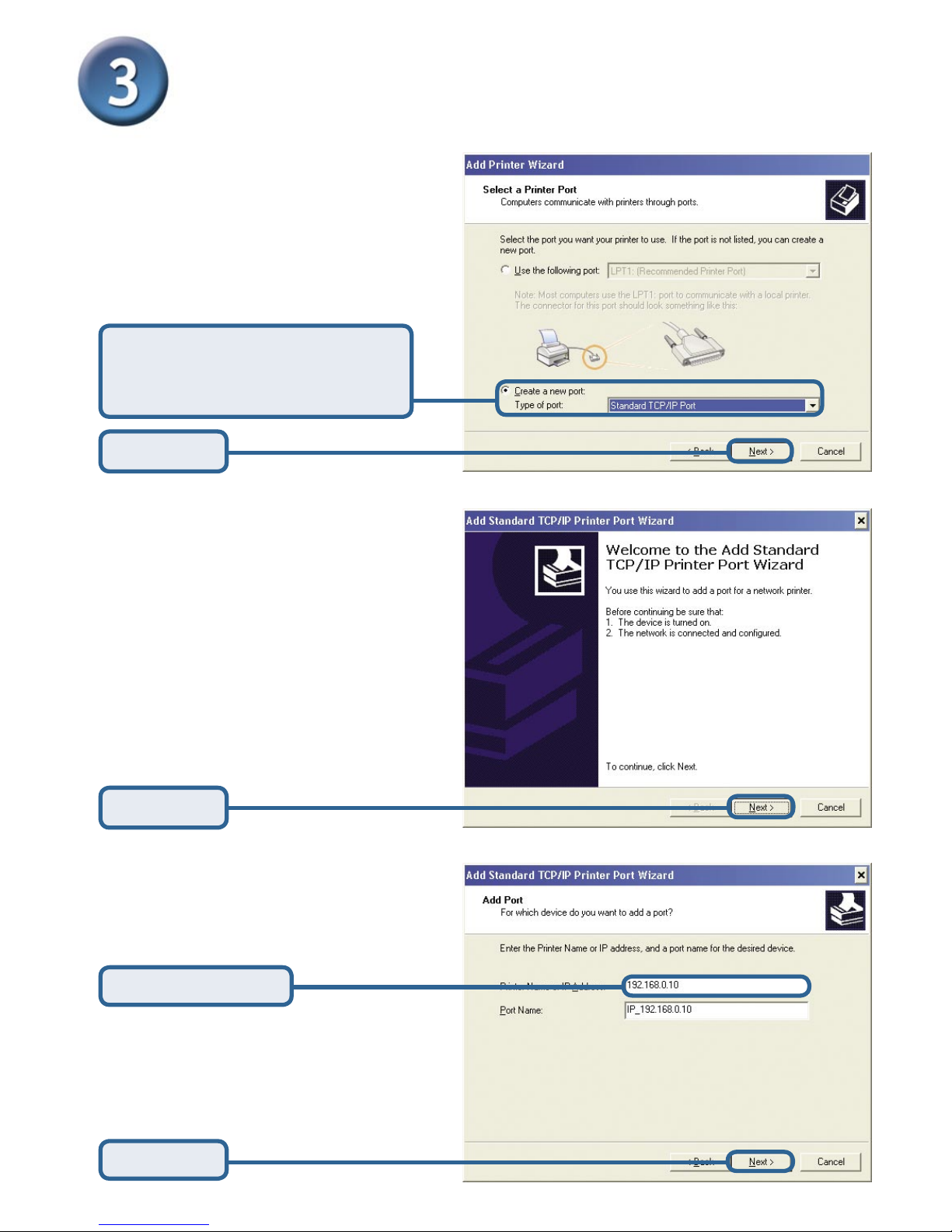

Select Create a new port and
choose Standard TCP/IP Port
from the drop-down menu.
Type 192.168.0.10

9
Click Next
Click OK
Enter the Port name for the port
the printer is attached to.
Select LPR
Select Custom
and click the
Settings button
Default port names differ with the device MAC ID:
PS-xxxxxx-U1 (for USB Port 1)
PS-xxxxxx-U2 (for USB Port 2)
PS-xxxxxx-P3 (for LPT Port)
The Add Printer Wizard (continued)

10

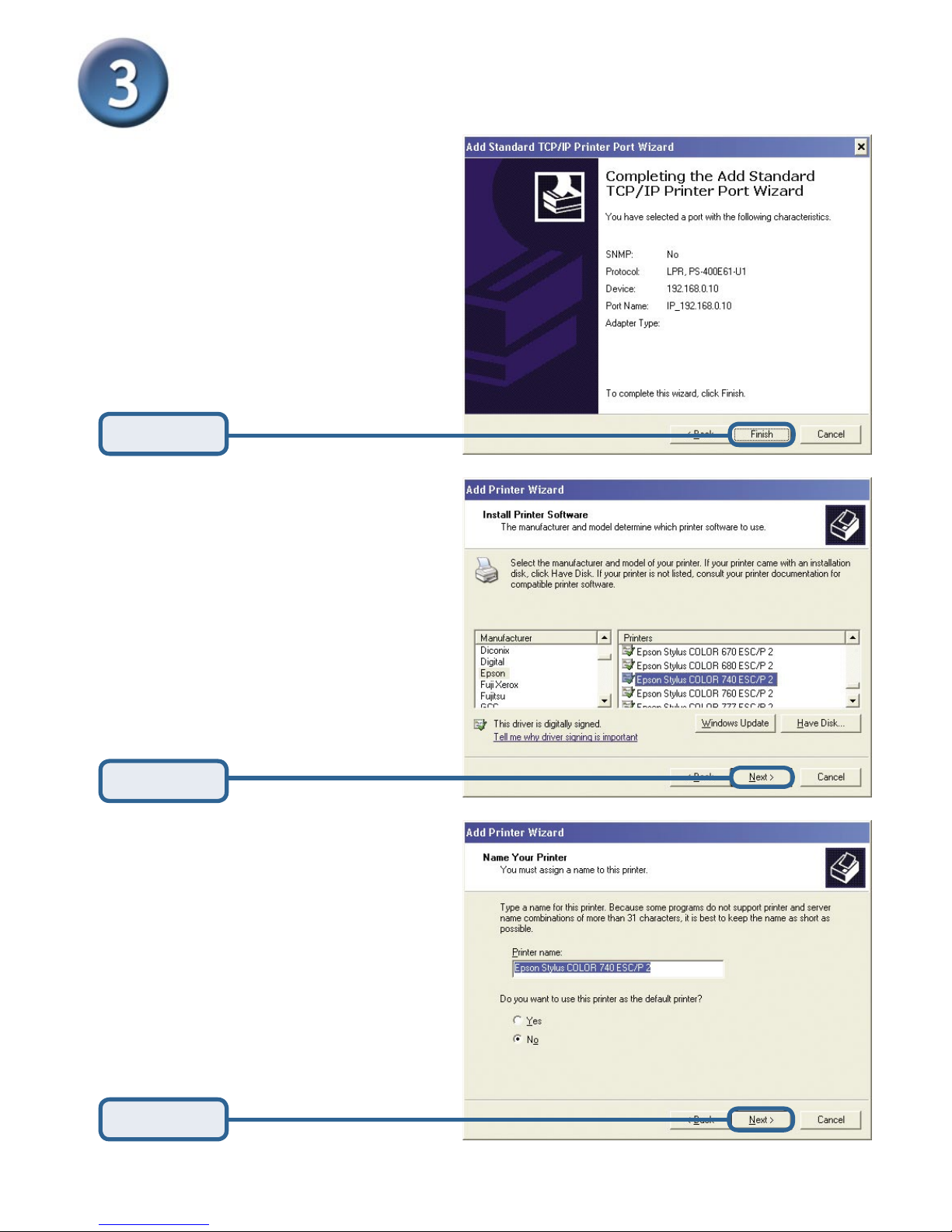

In this window, scroll down and select
your printer manufacturer and model.
(If it is not listed, insert the driver
CD or diskette that came with your
printer and click Have Disk.)
Click Next
Click Finish
The printer name and default printer
settings are configured here.
Click Next
The Add Printer Wizard (continued)

11
Your Setup is now complete!
Click Finish
Click Next
Select Yes to print a test page
Click Next
The Add Printer Wizard (continued)
Click Finish to complete the Add
Printer Wizard.
Repeat the Add Printer Wizard
steps for each Printer/Port and
repeat the entire process on each
system that will be printing.

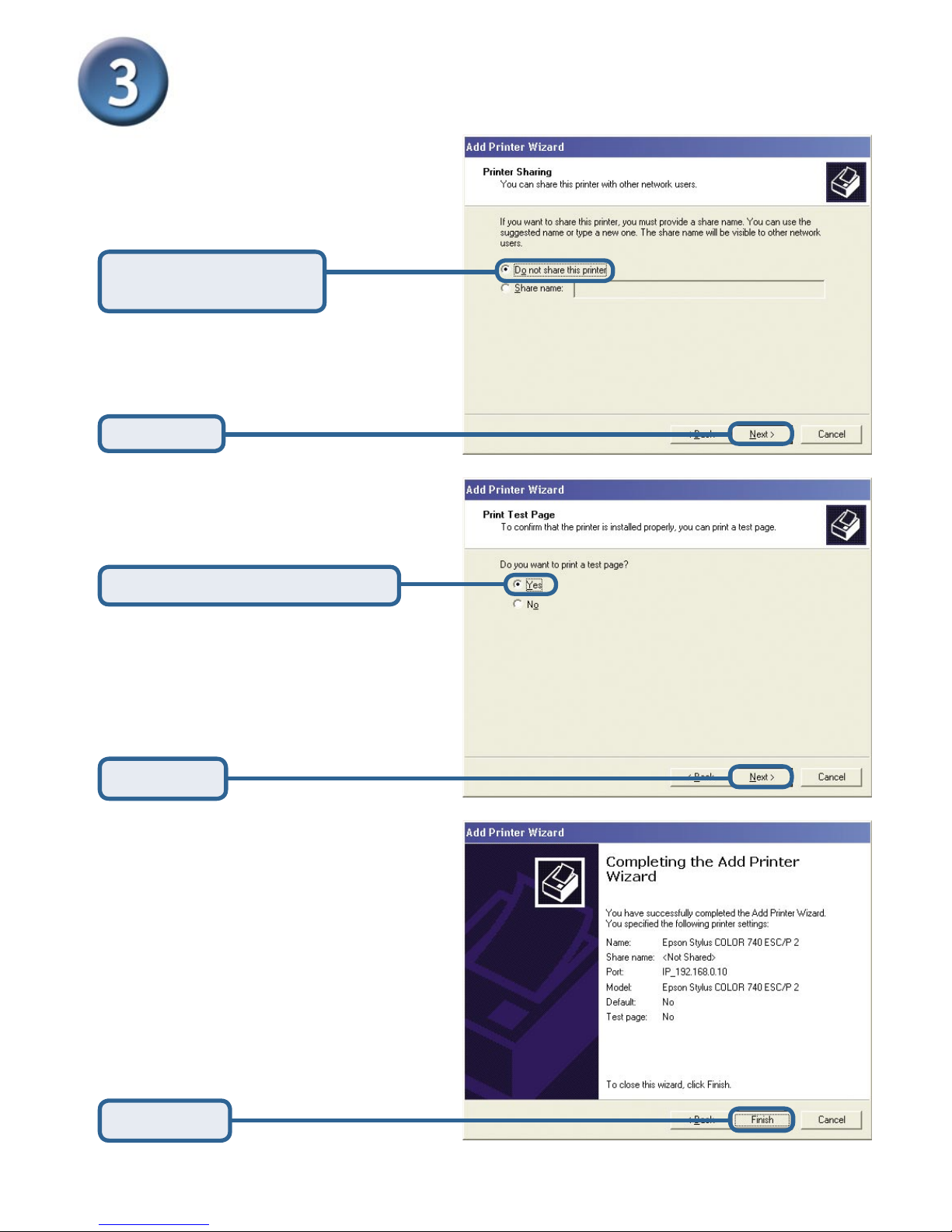

Select Do not share
this printer
By opting to not share the printer,
each system will print directly to
the print server.
If the test page doesn’t print
successfully, please check the
Frequently Asked Questions in the
User Manual on the CD-ROM.
