D-Link AirPlus DI-614+ User manual

Before You Begin
1. If you purchased this router to share your high-speed Internet connection with
other computers, you must have either an Ethernet-based Cable or a DSL modem
with an established Internet account from an Internet Service Provider (ISP).
2. It’s best to use the same computer that is connected to your modem for
configuring the DI-614+ Wireless Router. The DI-614+ acts as a DHCP server and
will assign all the necessary IP address information on your network. See

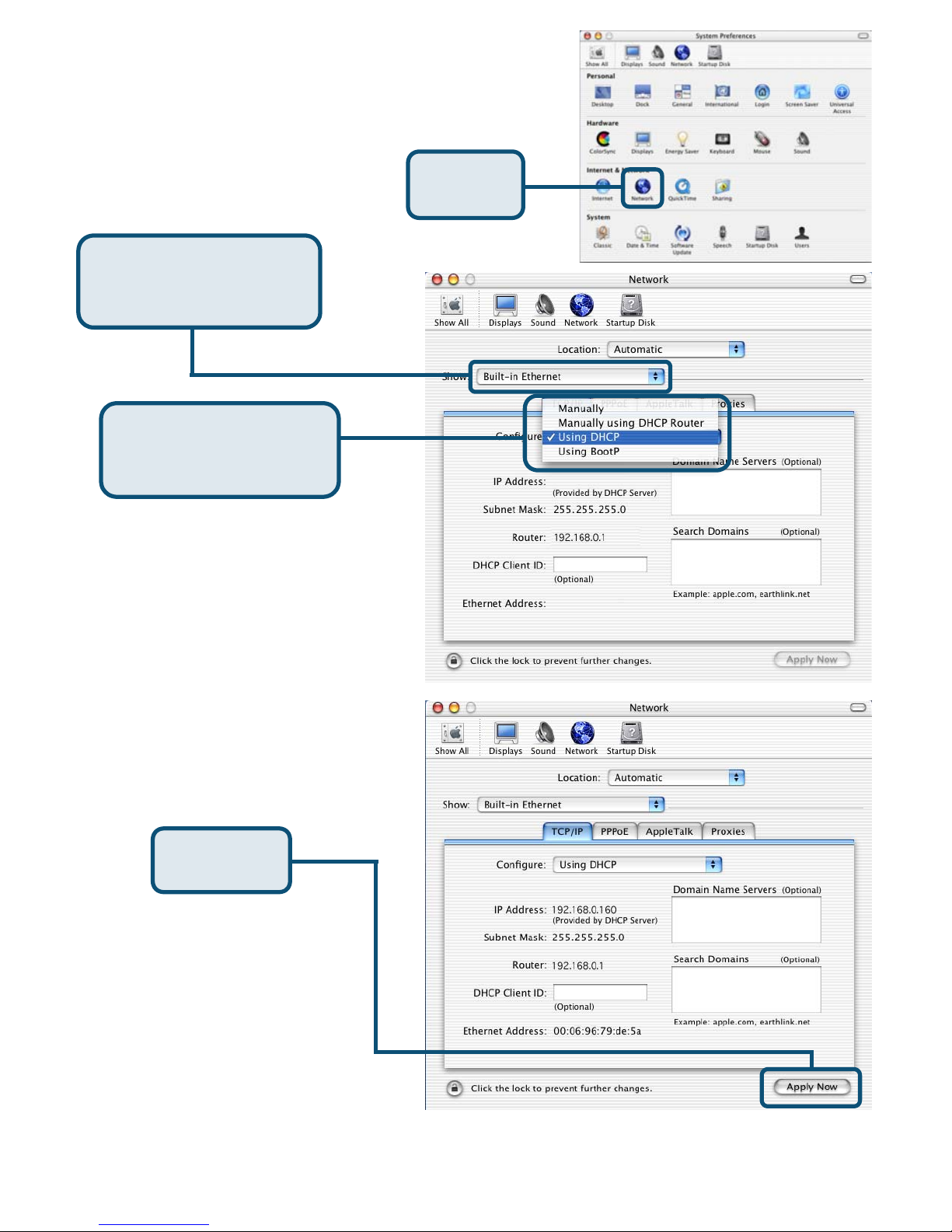

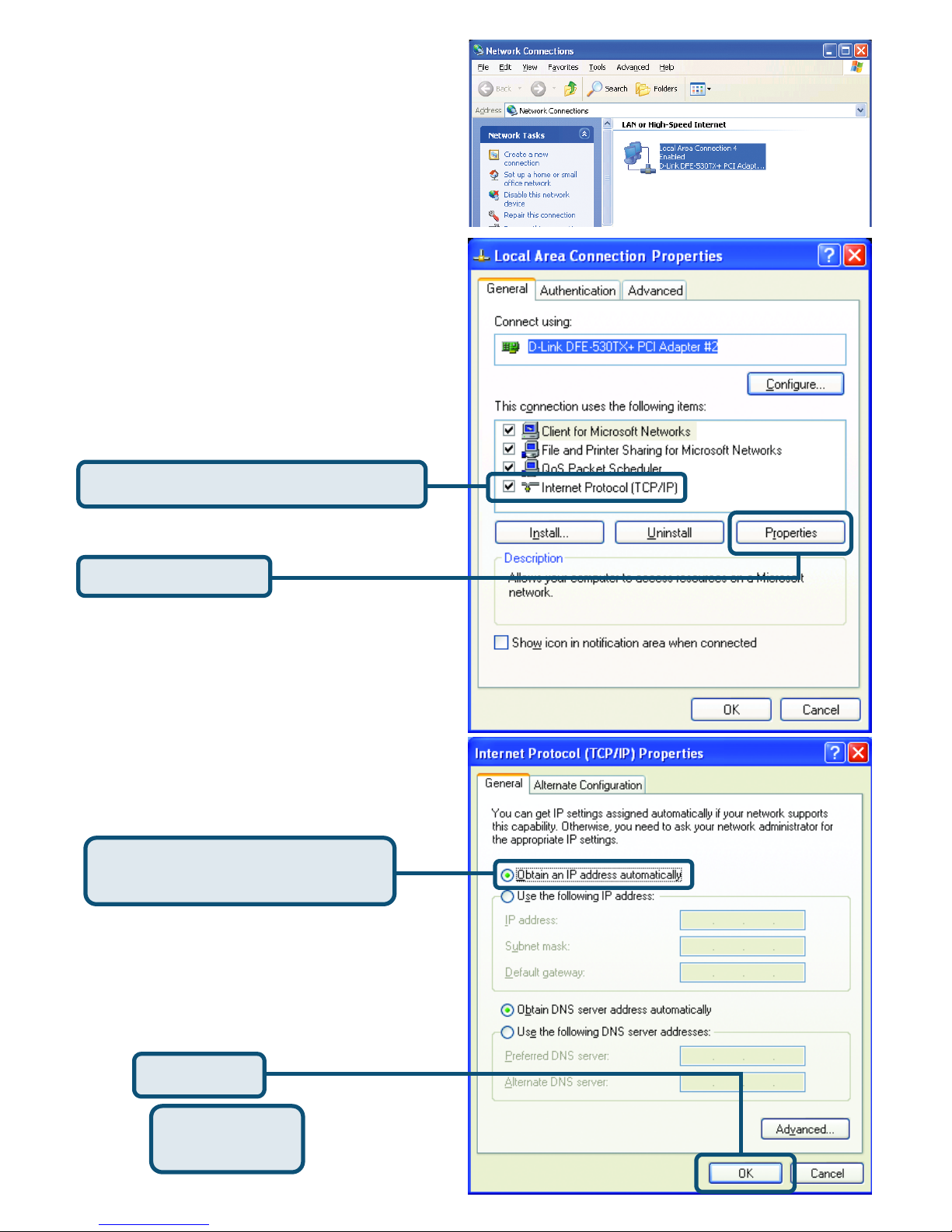

Appendix at the end of this Quick Installation Guide or the Manual on the CD-
ROM for setting each network adapter to automatically obtain an IP address.

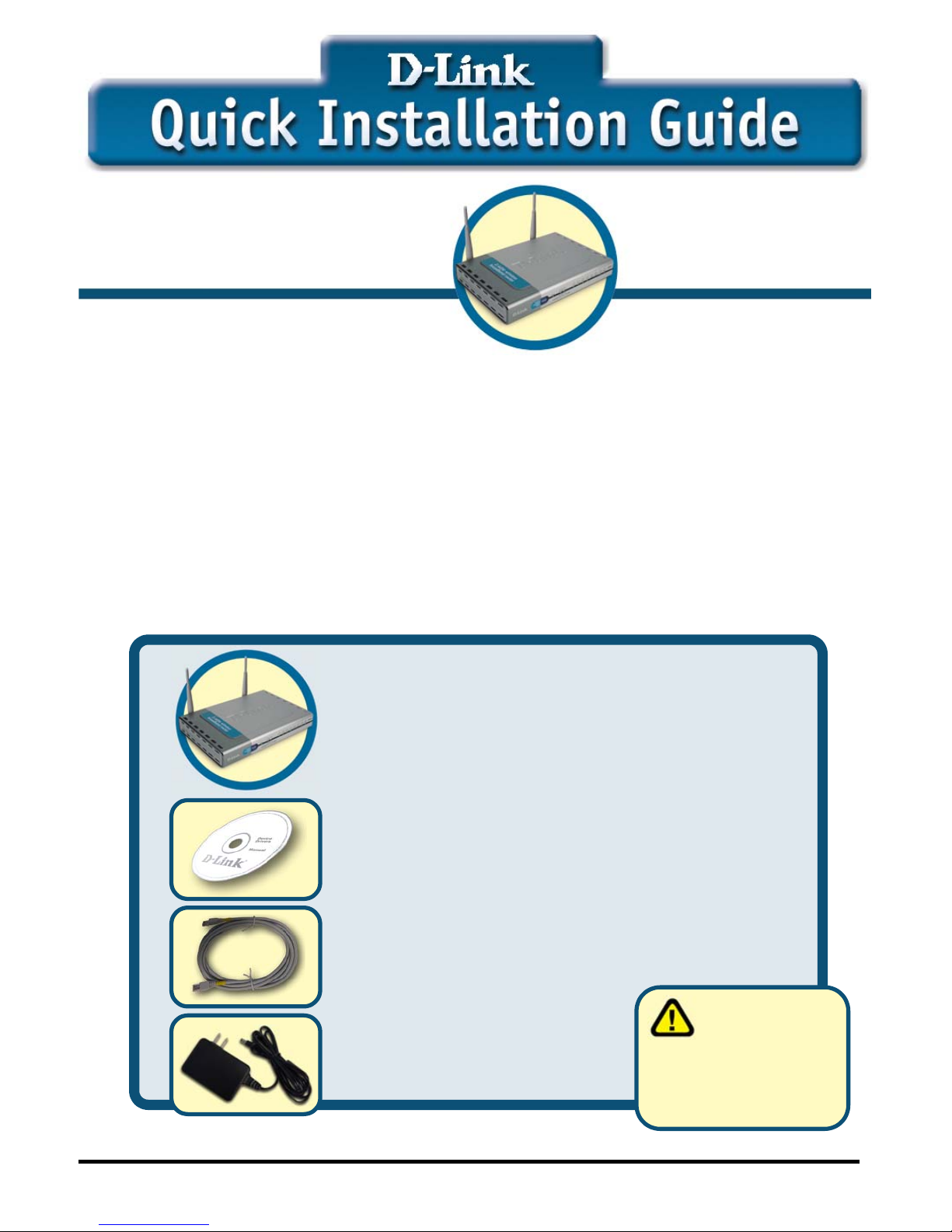

Check Your Package Contents
These are the items included with your DI-614+ purchase:
If any of the above items are missing, please contact your reseller.
©2002 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the
property of their respective holders. Software and specifications subject to change without
notice. DI-614+.05082002
This product can be set up using any
current web browser, i.e., Internet
Explorer 5x, Netscape Navigator 4x.
DI-614+
D-Link AirPlus™
Wireless Broadband Route
r
• DI-614+ Wireless Broadband Router
• CD-ROM (containing Manual and Warranty)
• Ethernet (CAT5 UTP/Straight-Through) Cable
• 5V DC, 2.5A Power Adapter
Using a power
supply with a
different voltage rating
will damage and void
the warranty for this
product.

Connecting The DI-614+ Wireless Router
To Your Network
A. First, connect the power adapter to the receptor at the back panel of
the DI-614+ and then plug the other end of the power adapter to a wall
outlet or power strip. The Power LED will turn ON to indicate proper
operation.
B. Insert one end of an Ethernet cable to the WAN port on the back
panel of the DI-614+ and the other end to the Ethernet port located on
your Cable or DSL modem. The WAN LED light will illuminate to
indicate proper connection.
C. Insert an Ethernet cable to LAN port 1 on the back panel of the DI-
614+ and an available Ethernet port on the network adapter in the
computer you will use to configure the DI-614+. The LED light for LAN
Port 1 will illuminate to indicate proper connection. (Note: Some
computers already have network adapters pre-installed.)
D. Computers equipped with 802.11b wireless adapters will be able to
connect to the DI-614+. The DWL-650+ AirPlus Wireless Cardbus
Adapter and the DWL-520+ AirPlus Wireless PCI Adapter will be able
to connect out of the box with the router using their default wireless
settings.
Restart Your Computer
Reset Button
Pressing this button restores
the router to its original factory
default settings.

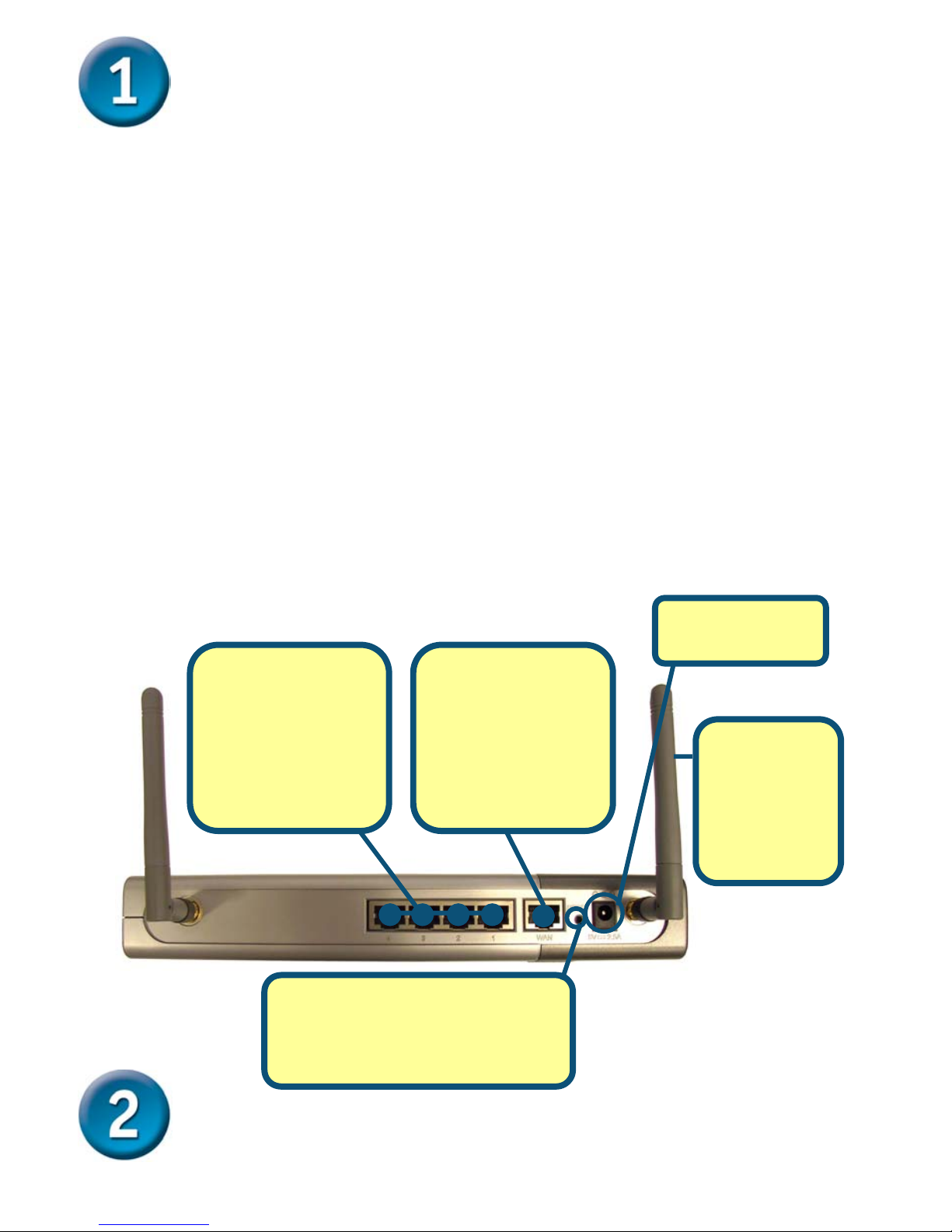

A.Receptor for
Power Ada
p
ter
B.WAN Port
This is the
connection for the
Ethernet Cable to
Ethernet Port on
the Cable or DSL
Modem.
C.LAN Port
These are the
connections for
Ethernet cables to
your Ethernet-
enabled
computers.
D.Antennas
Used to
wirelessly
connect to
802.11b
adapters.

Connecting Additional Computers To The
DI-614+ Wireless Router
Using additional Ethernet (CAT5 UTP) cables, connect your Ethernet-
equipped computers to the remaining Ethernet LAN ports on the back
panel of the DI-614+.

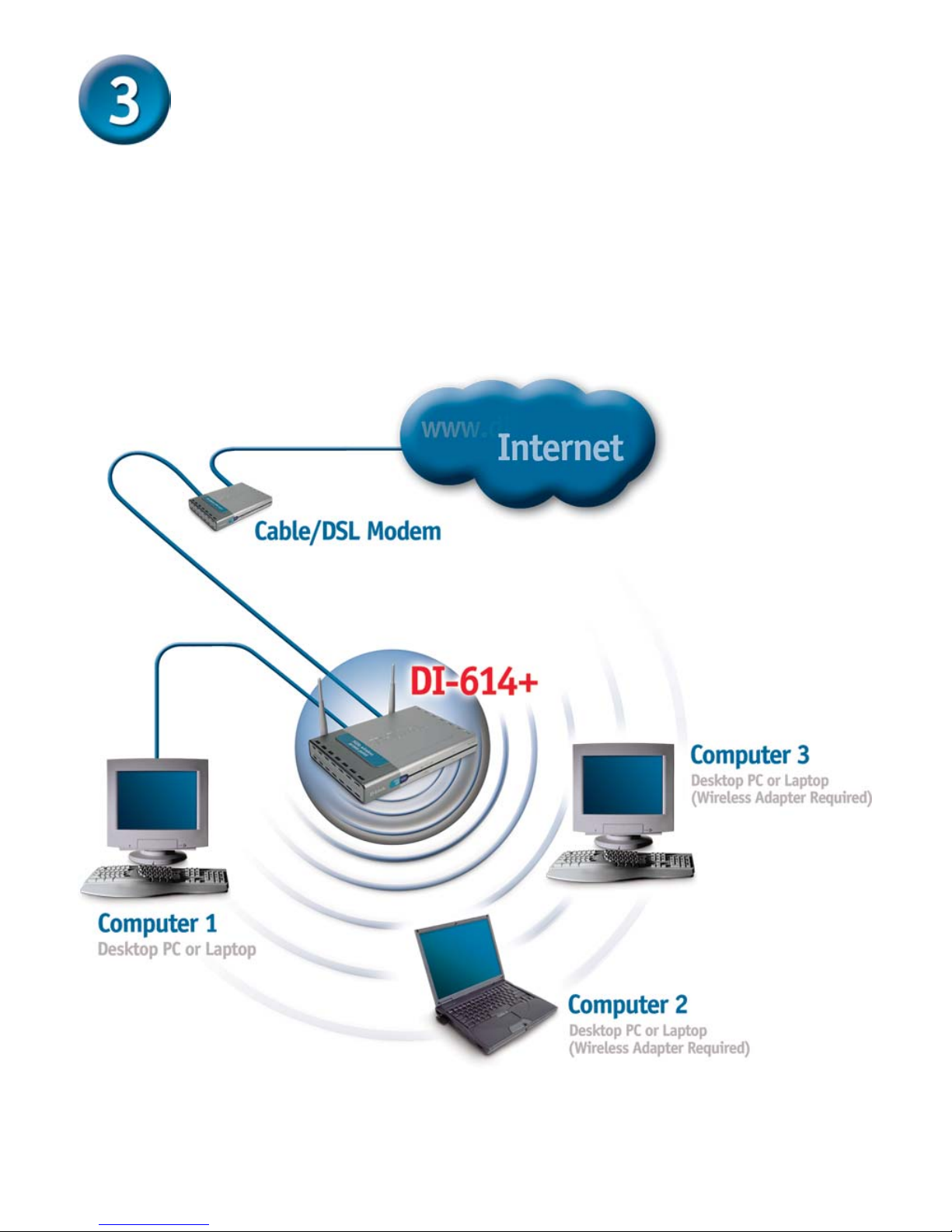

When you have completed the steps in this Quick Installation Guide, your
connected network should look similar to this:

Using The Setup Wizard
The logon pop-up
screen will appear.
Once you have
logged in, the
Home screen
will appear.

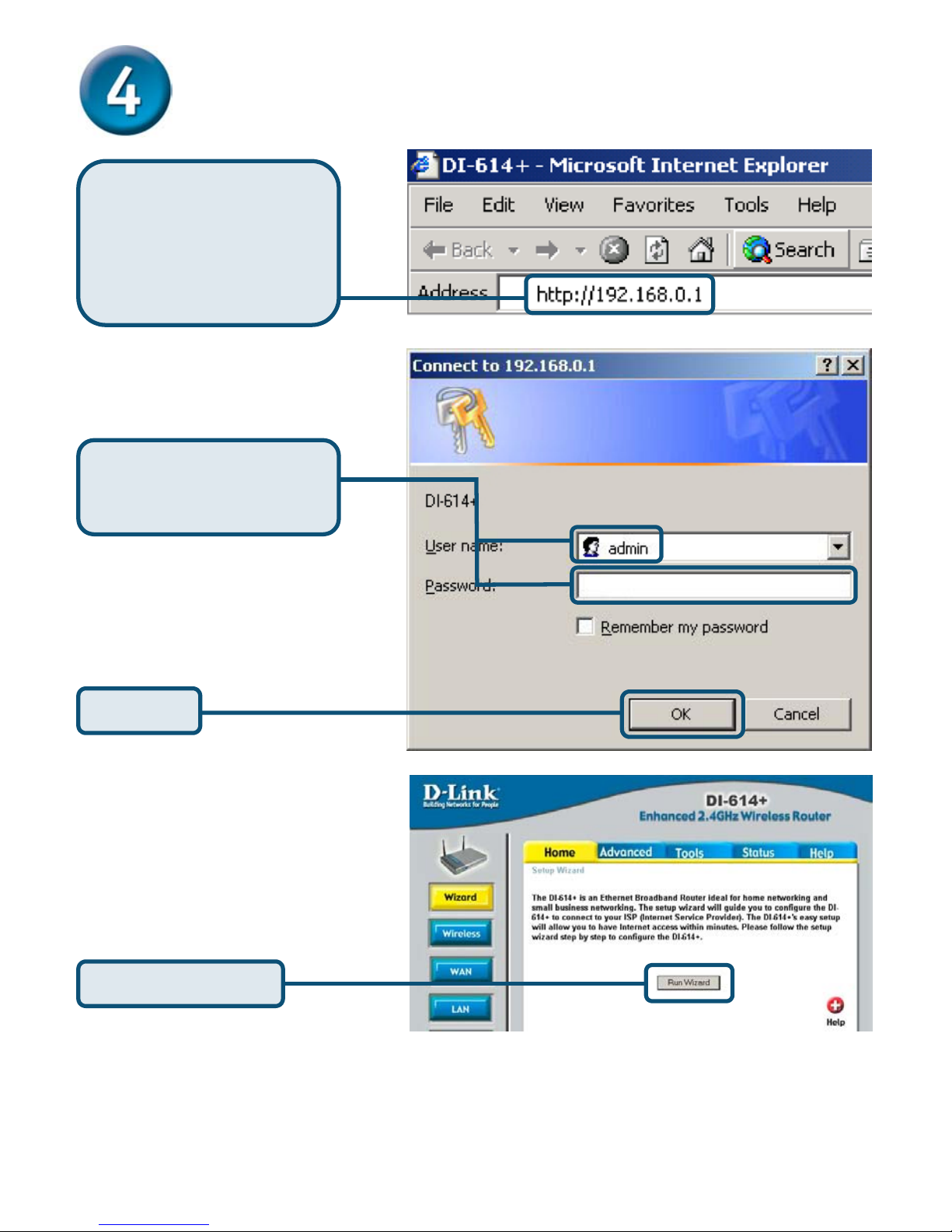

Open your Web
browser and type
“http://192.168.0.1” into
the URL address box.
Then press the Enter or
Return key.
Type “admin” for the
username and leave the
password field blank.
Click OK
Click Run Wizard

You will see the following screens.

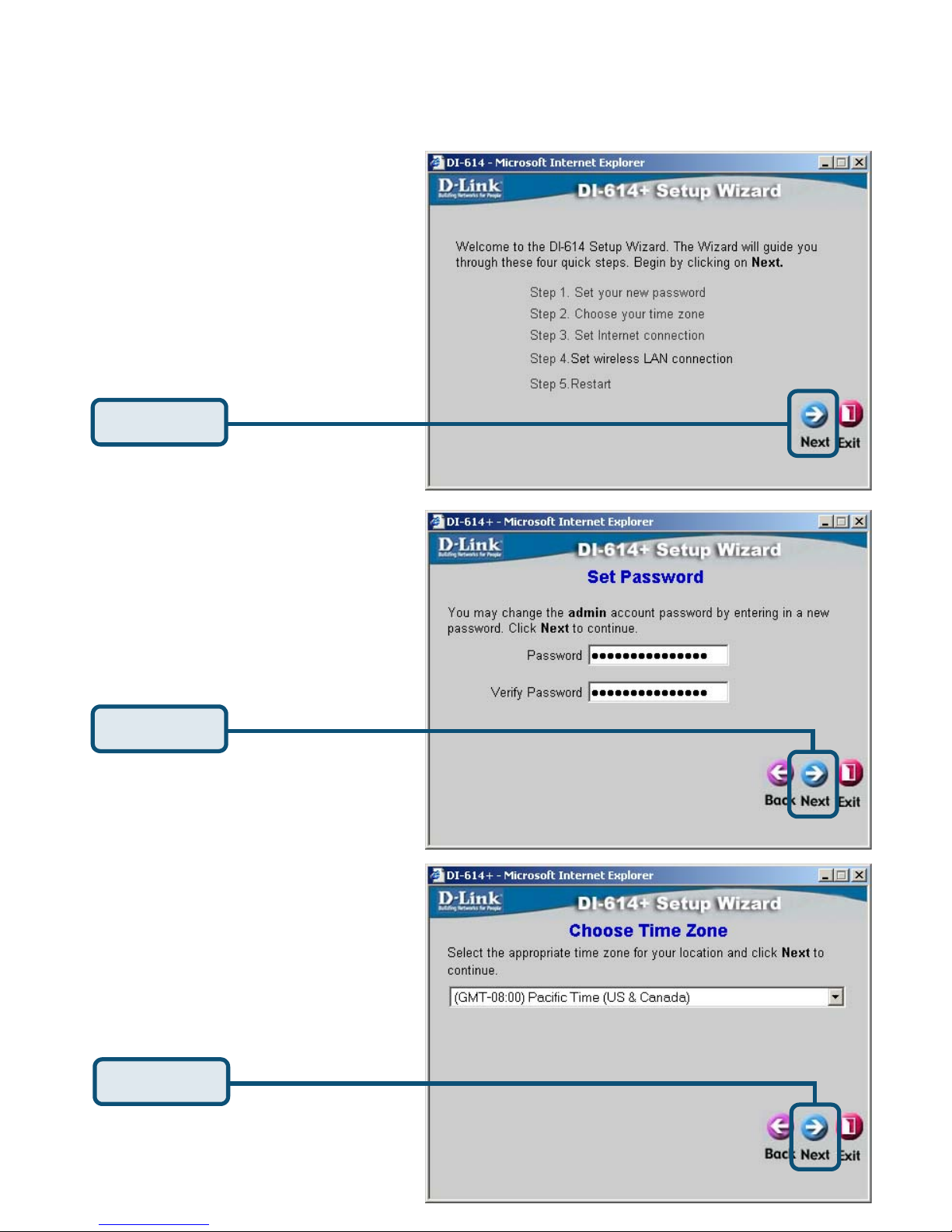

Step 1 - Set up your new
password.You have the option to
establish a password.
Step 2 - “Choose your time
zone”, you will be prompted to
select the type of Internet
connection for your router (see next
page).
Click Next
Click Next
Click Next

The Setup Wizard (continued)

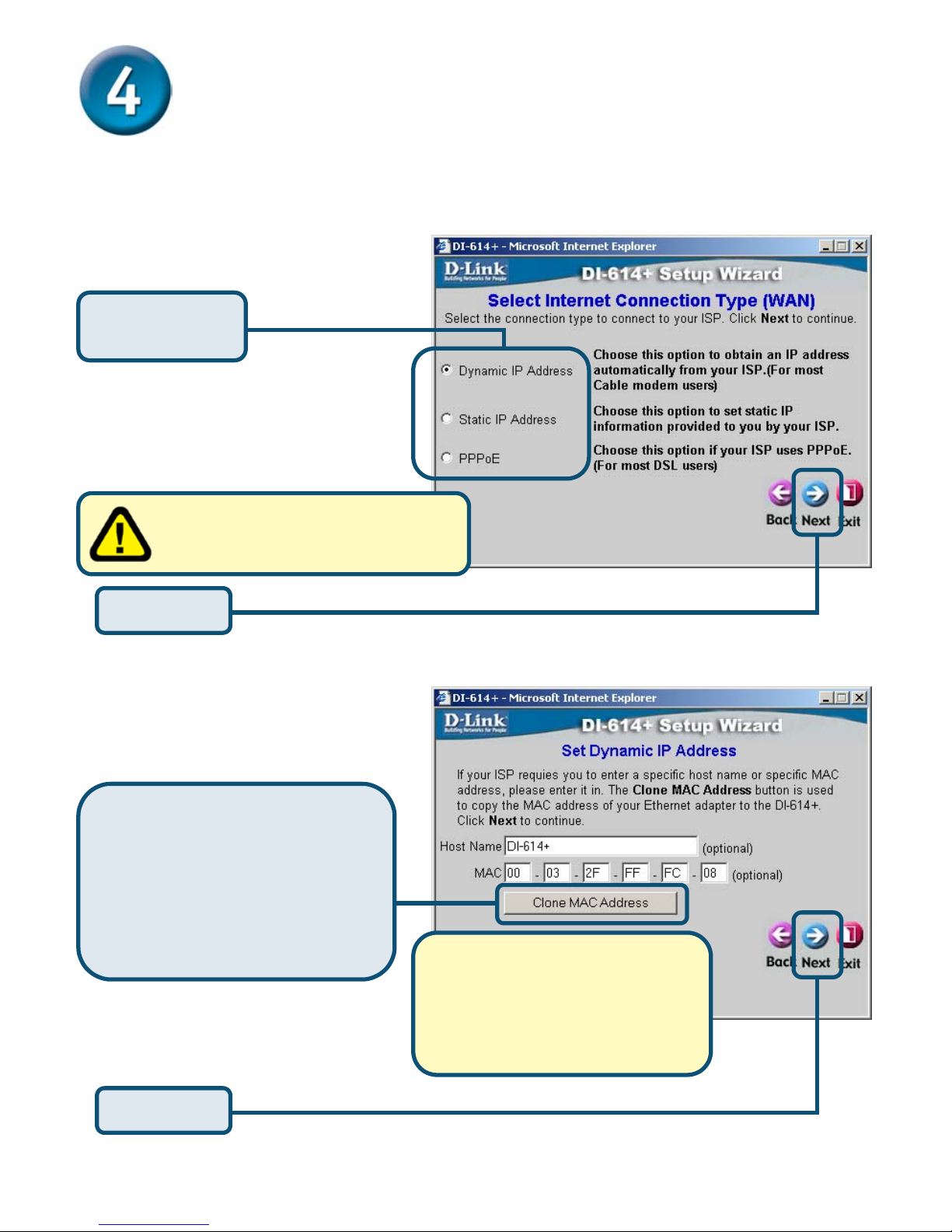

Select the type of Internet connection for your router.
If you selected Dynamic IP
Address, this screen will
appear:
Select one of
these settings
If you are unsure of which setting to
select, please contact your Internet
Service Provider.
Click the “Clone MAC
Address” button to
automatically copy the MAC
address of the network adapter
in your computer. You can also
manually type in the MAC
address. What is a MAC address? Each
network adapter has a discrete
Media Access Control (MAC)
address. Note that some computers
and peripherals may already include
built-in network adapters.
Click Next
Click Next

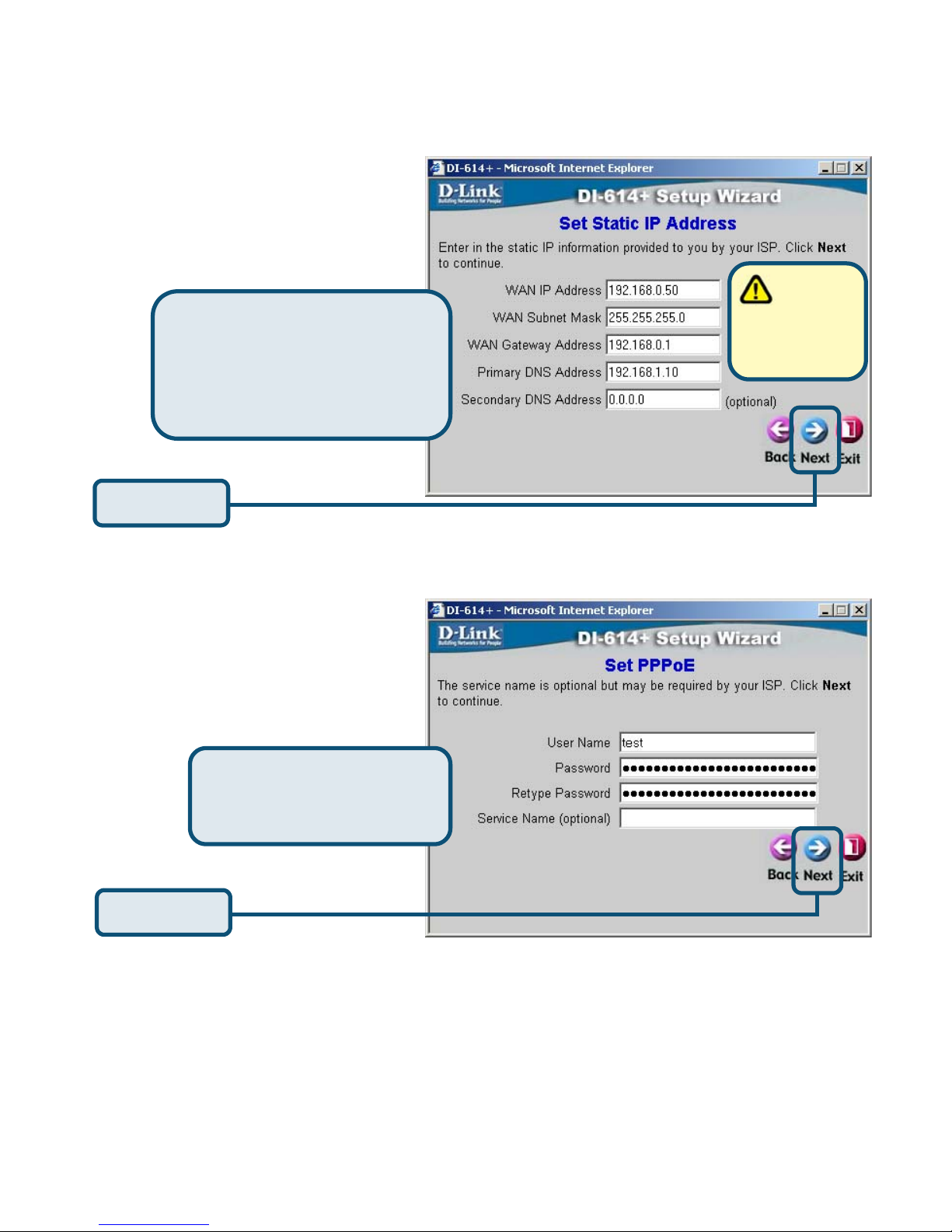

If your ISP requires a Static IP
Address, and this option is
selected, then this screen will
appear:
If your ISP uses PPPoE (Point-to-
Point Protocol over Ethernet), and
this option is selected, then this
screen will appear:
Enter the IP address
information originally
provided to you by your ISP.
You will need to complete all
the required fields.
Enter in the username
and password provided
to you by your ISP.
Click Next
Click Next
Do not use
the numbers
displayed in these
fields. They are only
shown as an example.

The Setup Wizard (continued)

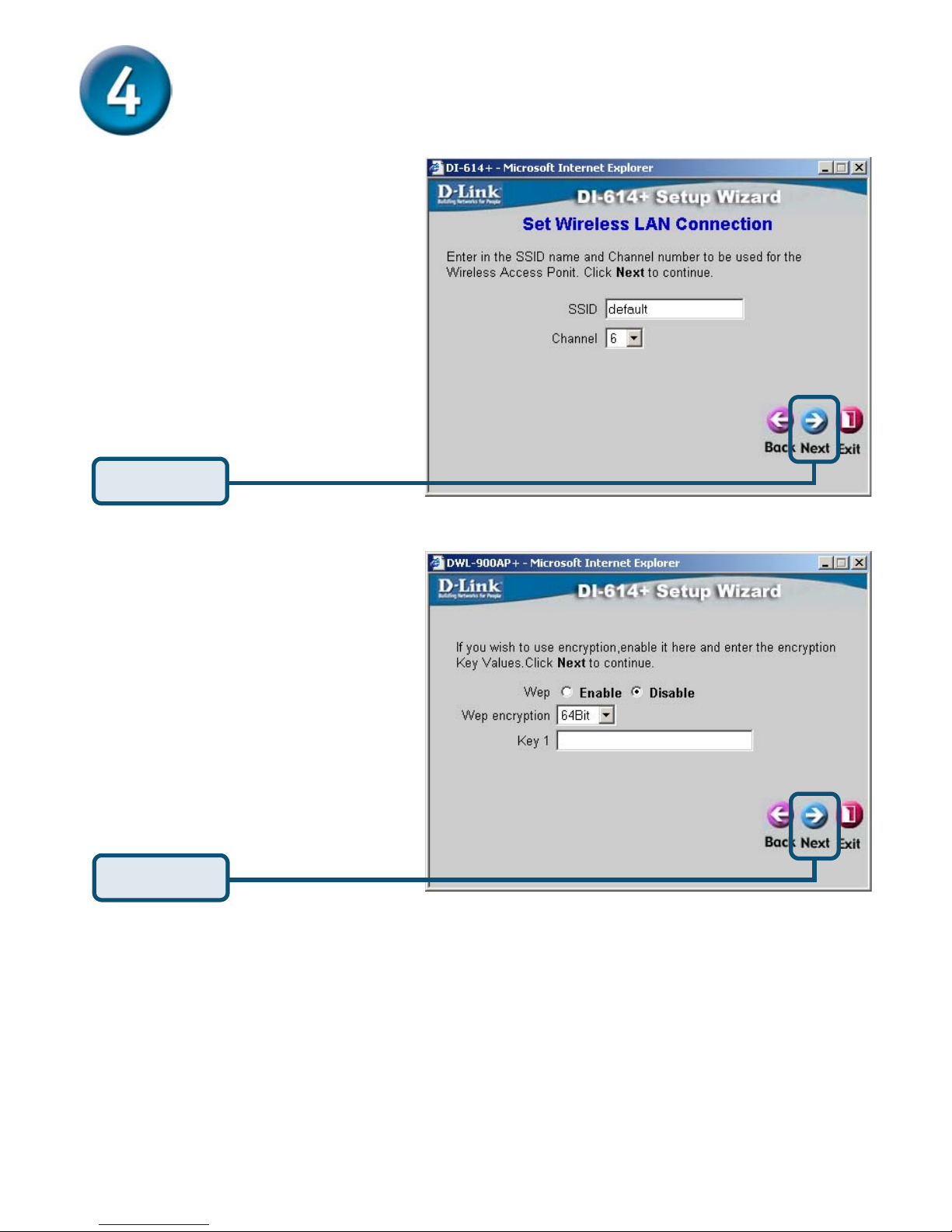

Wireless Setup
The default wireless settings are:
SSID = default
Channel = 6
You can change these settings to
match an existing wireless network.
Encryption
The DI-614+ is capable of three
levels of wireless encryption - 64-
bit, 128-bit, and 256-bit. By default
the encryption is disabled. You
can change the encryption settings
for more secure wireless
communication.
Click Next
Click Next

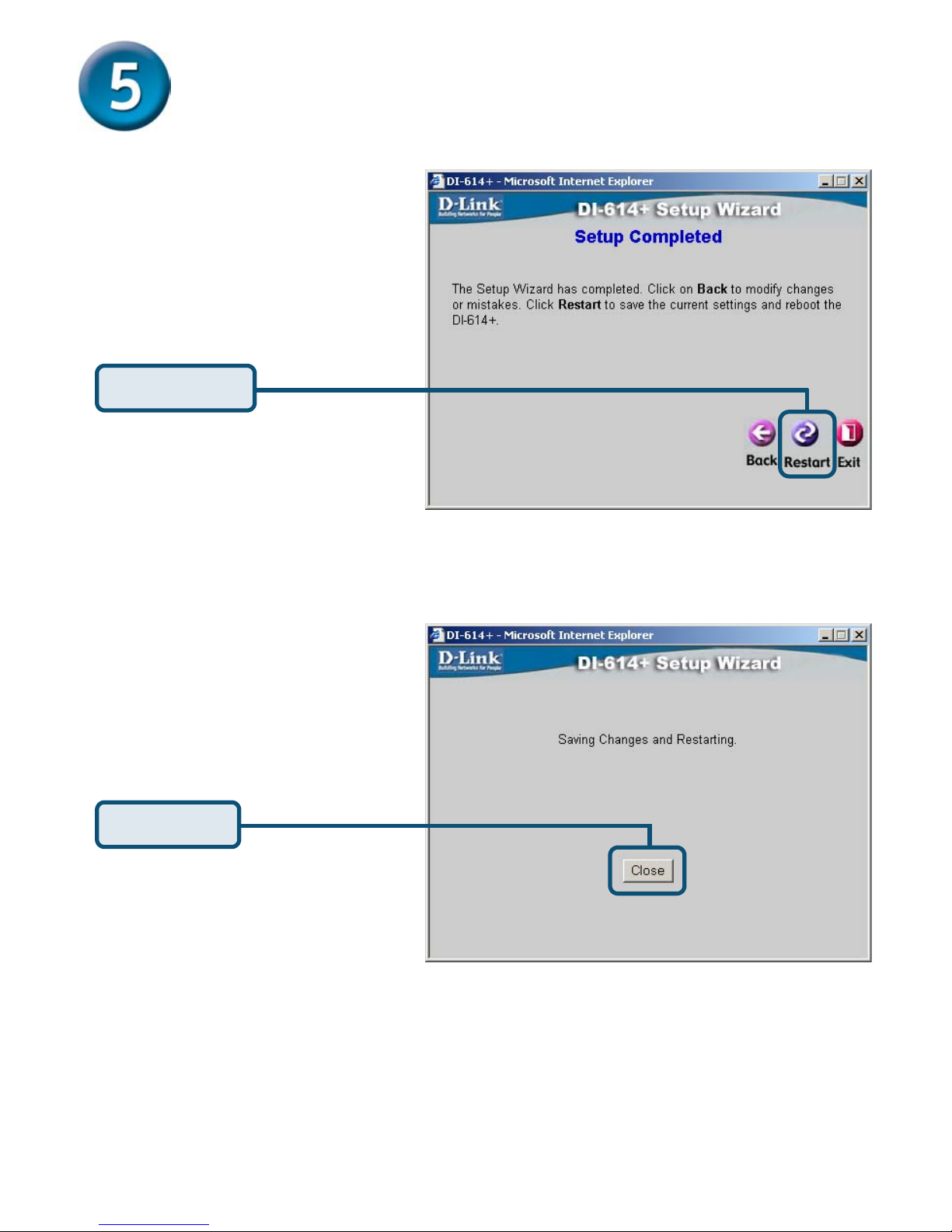

Your Setup is Complete!
You will be returned to the Home tab.
Click Restart
Click Close

Test Your Internet Connection
Then relaunch your Web browser
(i.e., Internet Explorer or
Netscape Navigator), to link to
your favorite Web site to test your
Internet connection.

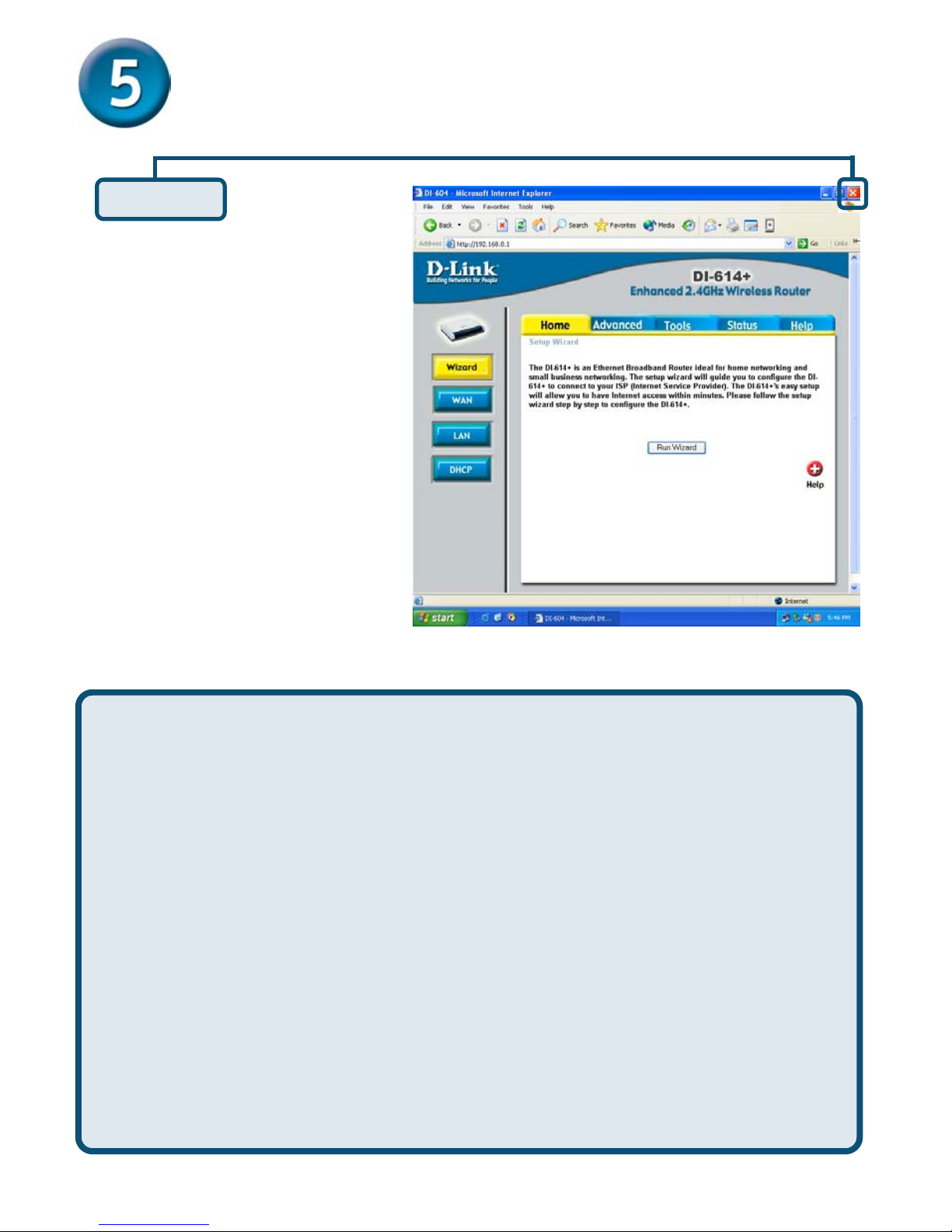

For additional settings or
information, refer to the
Advanced, Tools, or Status tabs
on the web-management
interface; or to the manual located
on the CD-ROM.
Click Exit
Technical Support
You can find the most recent software and user documentation on the D-Link
website.
D-Link provides free technical support for customers within the United States
for the duration of the warranty period on this product.
U.S. customers can contact D-Link technical support through our web site or
by phone.
D-Link Technical Support over the Telephone:
[phone]
24 hours a day, seven days a week
D-Link Technical Support over the Internet:
http://support.dlink.com
email: [email protected]
