D-Link DIR-620 User manual

User Manual
DIR-620
Multifunction Wireless Router
Supporting WiMAX, 3G GSM/CDMA
ith Built-in S itch
December 2011

DIR-620 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in Switch
User M nu l
Contents
Chapter 1. Introduction..........................................5
Contents and Audience.......................................................5
Conventions.................................................................5
Document Structure..........................................................5
Chapter 2. Overview..............................................6
General Information.........................................................6
Specifications..............................................................

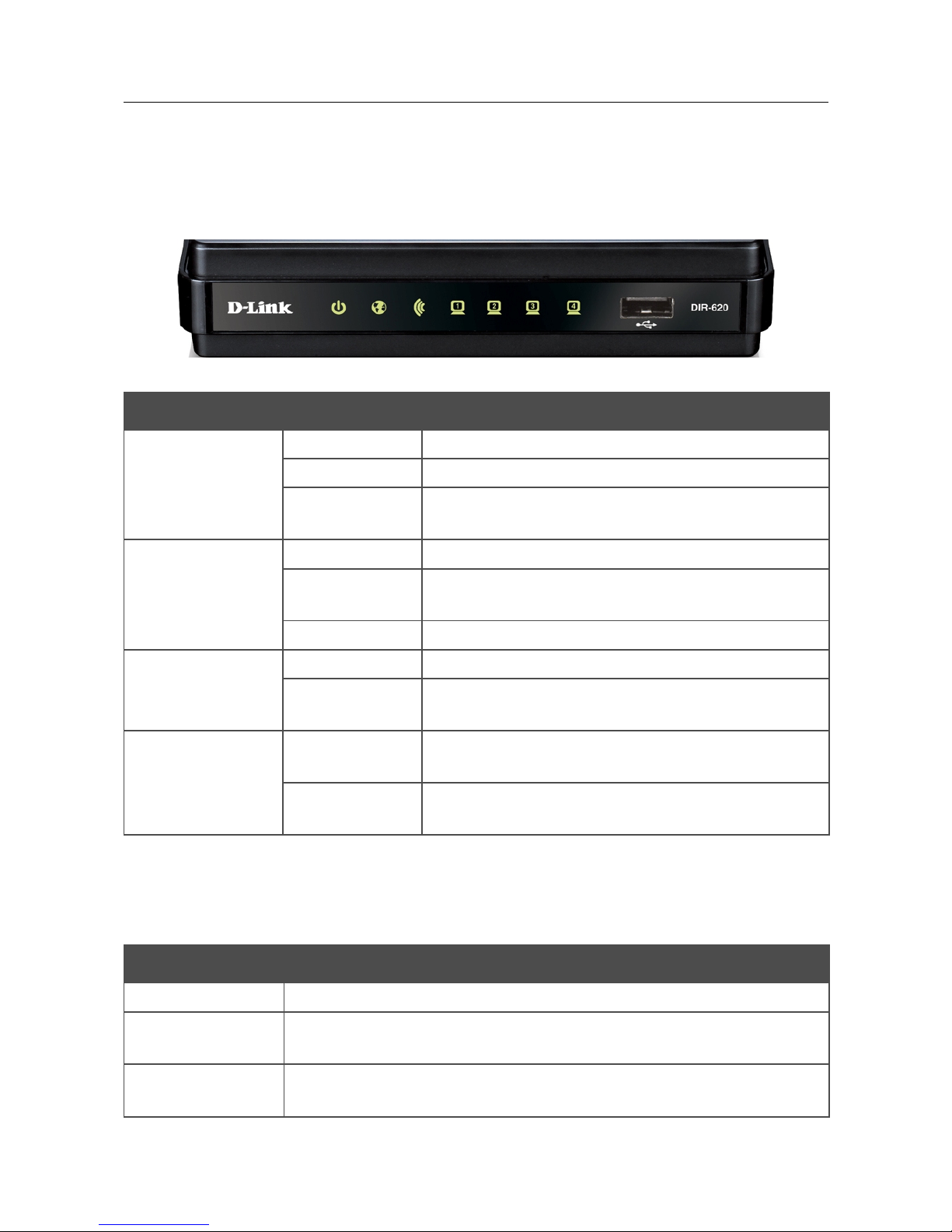

Product Appearance.........................................................10
Front Panel and Right Side Panel.........................................10

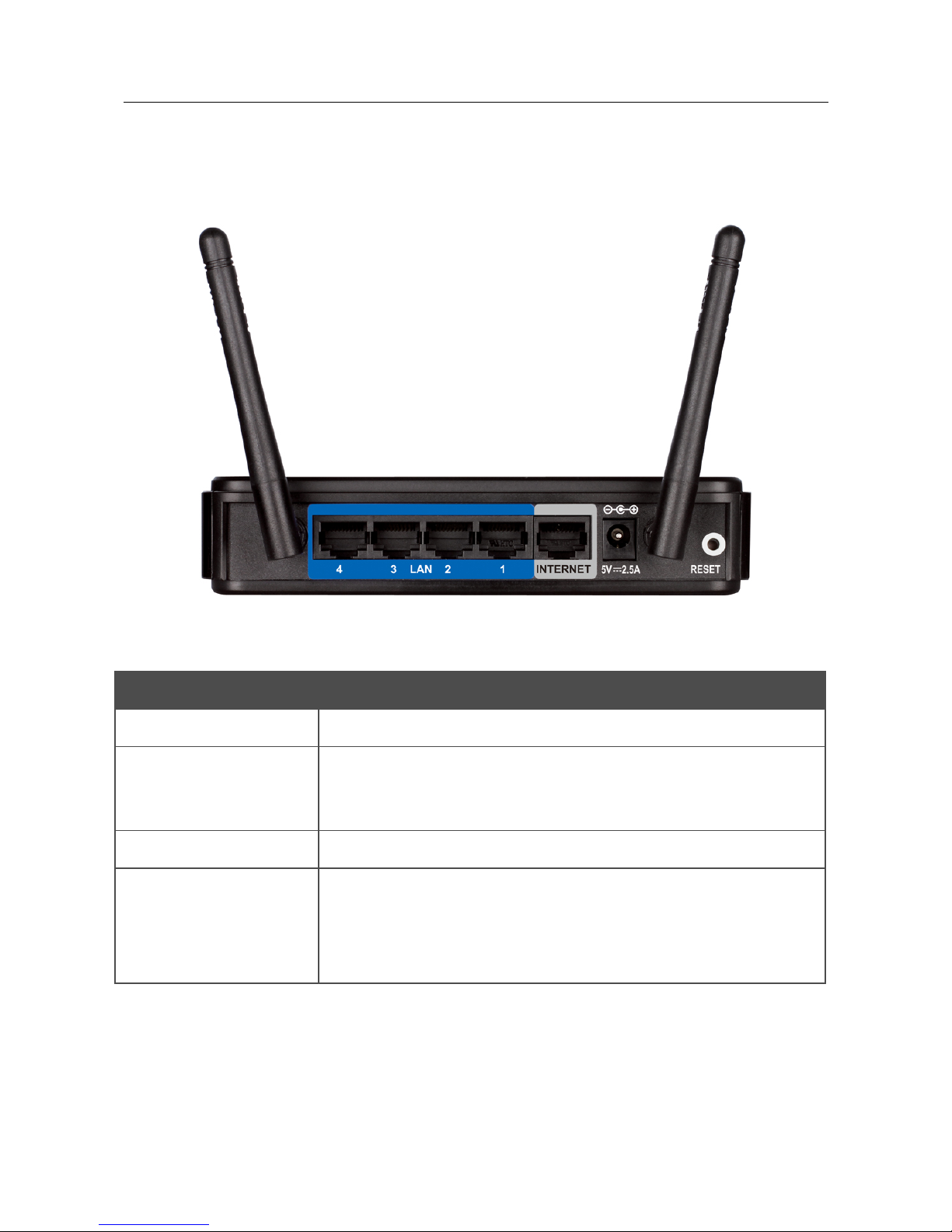

Back Panel...............................................................11
Delivery Package...........................................................12
Chapter 3. Installation and Connection..........................13
Before You Begin...........................................................13
Connecting to PC...........................................................15
PC with Ethernet Adapter.................................................15

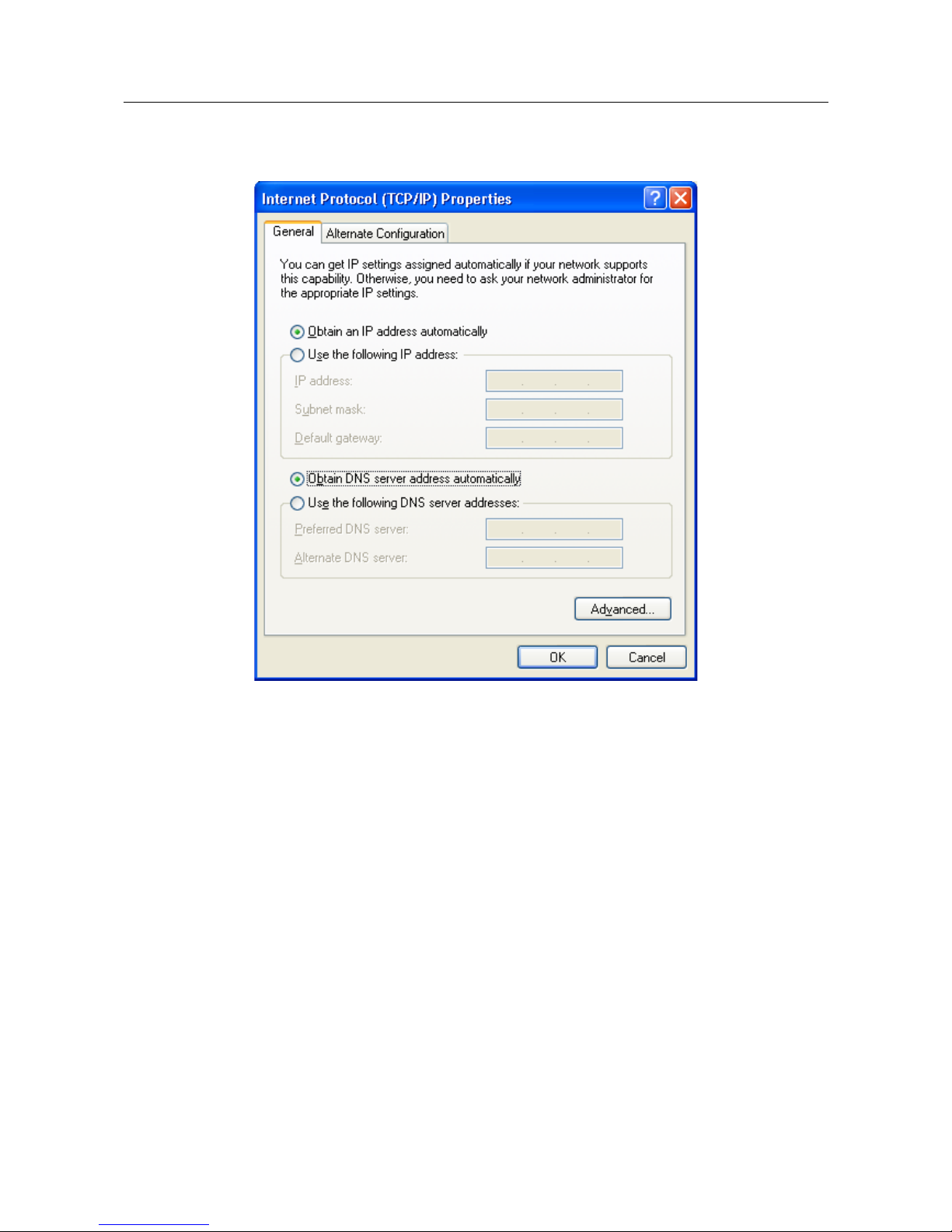

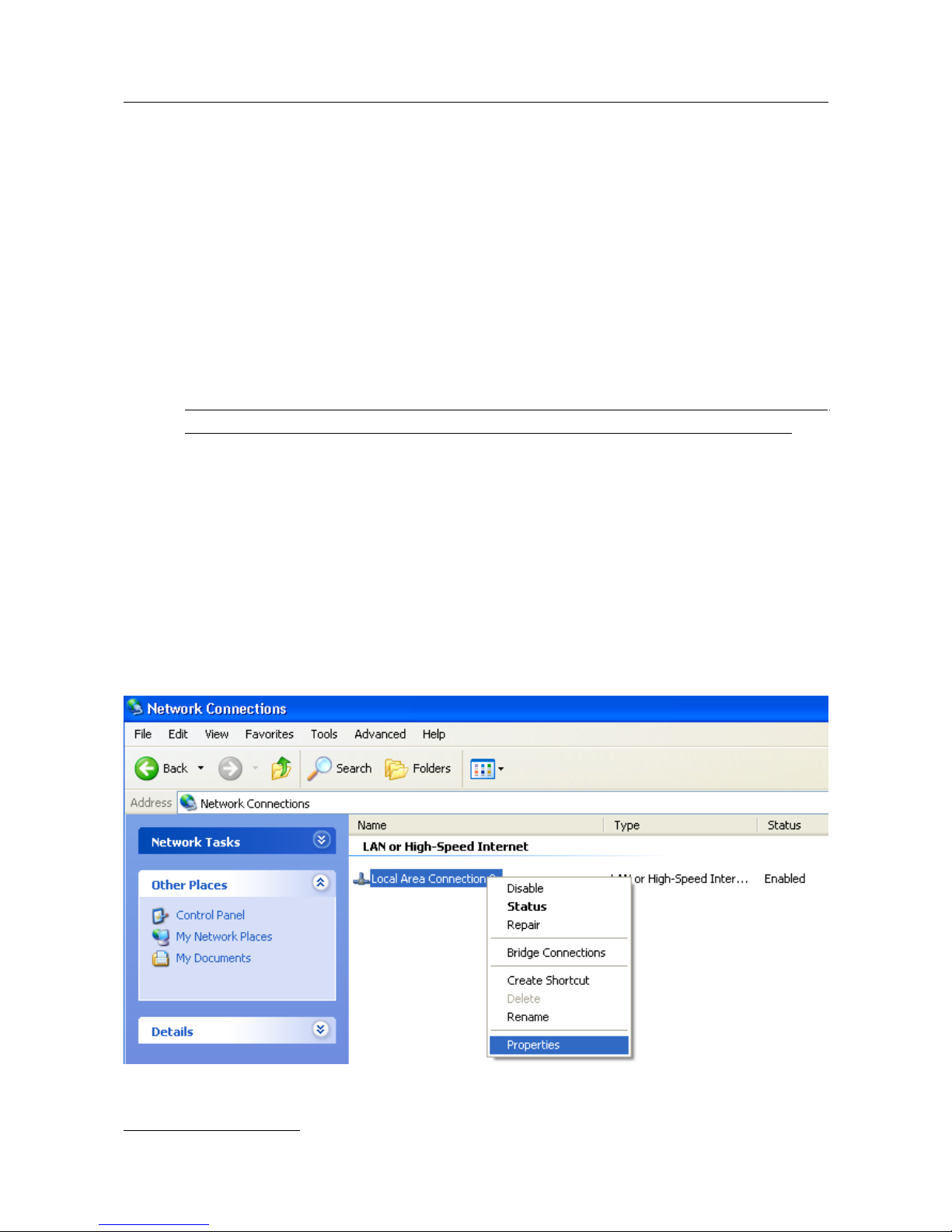

Obtaining IP Addre Automatically in OS Window XP......................15

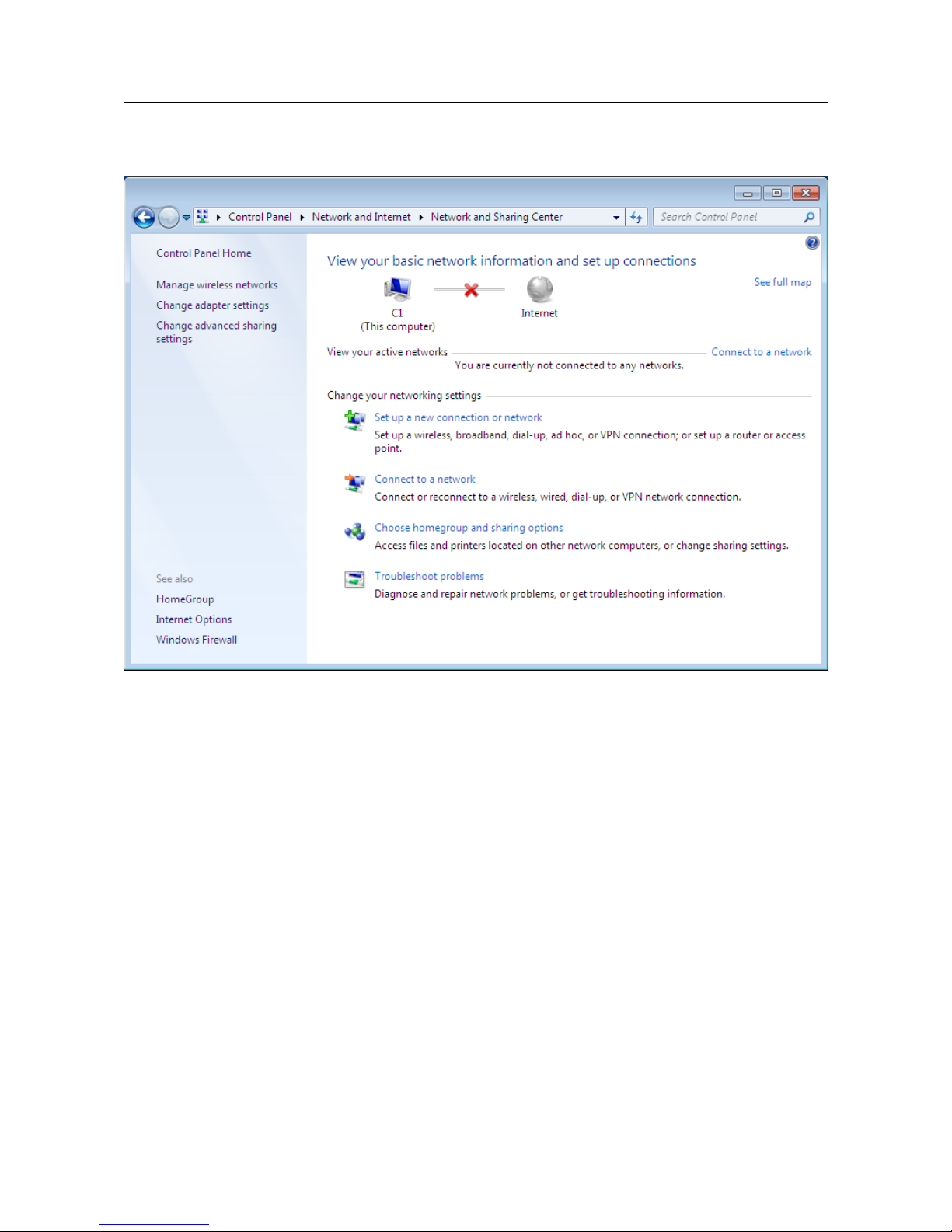

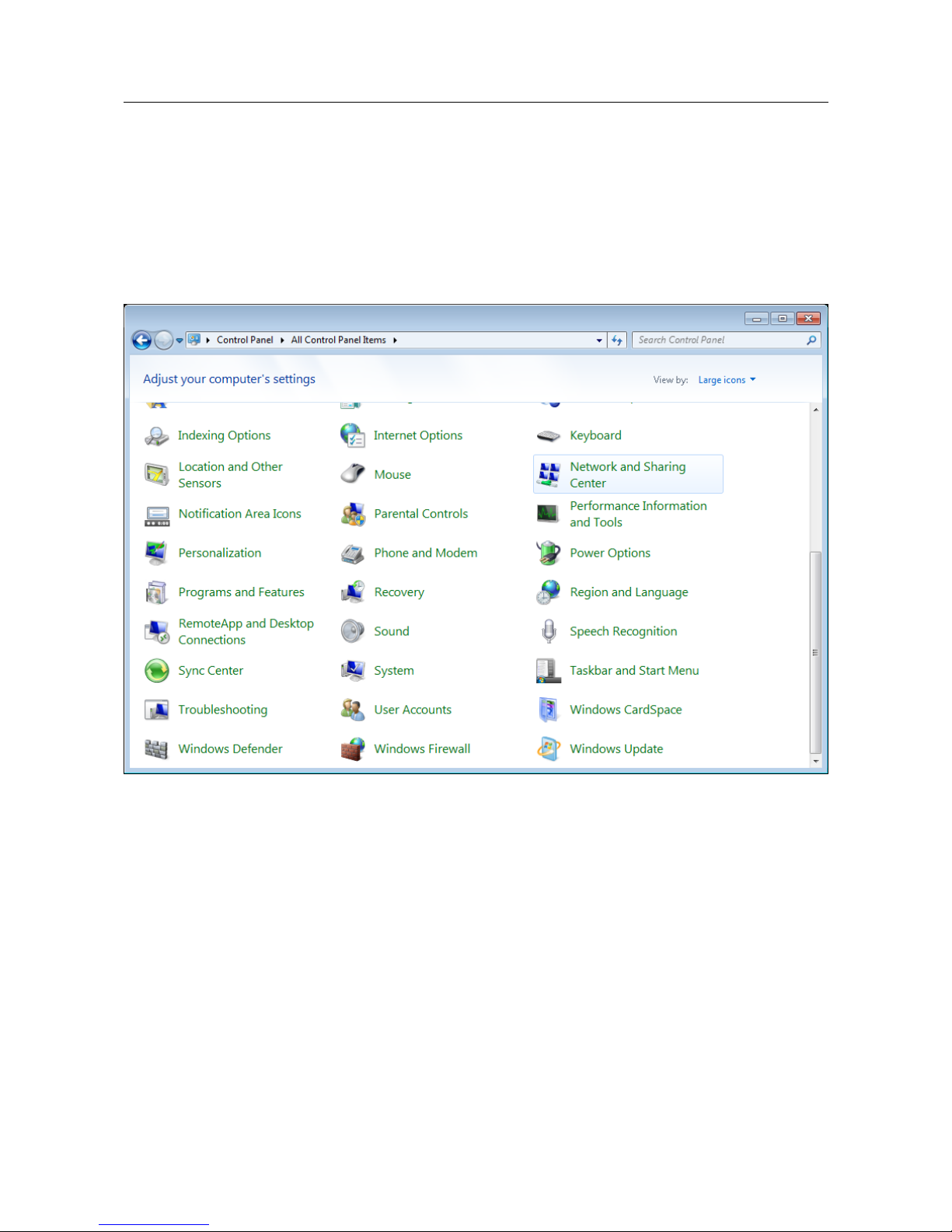

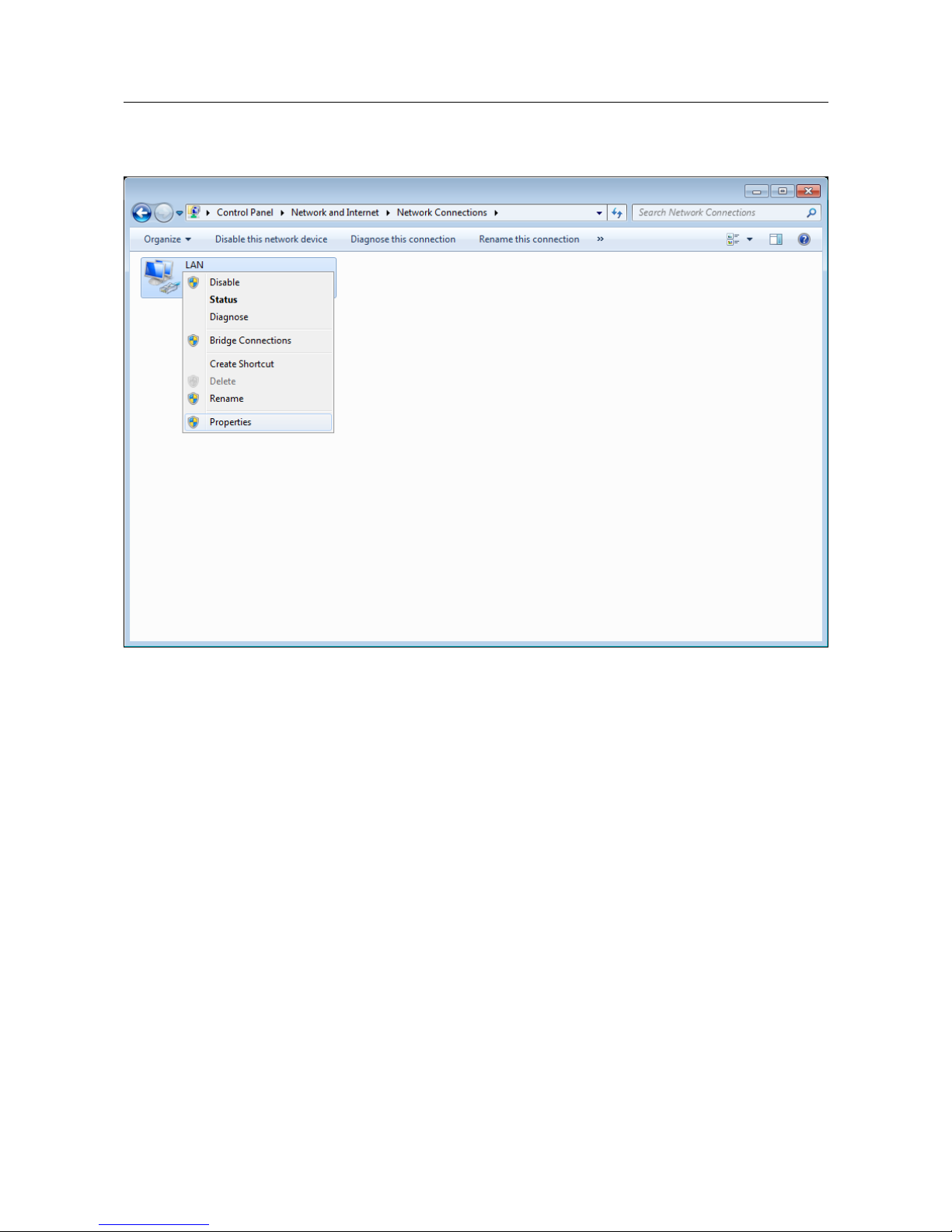

Obtaining IP Addre Automatically in OS Window 7.......................18
PC with Wi-Fi Adapter....................................................23
Configuring Wi-Fi Adapter in OS Window XP...............................24
Configuring Wi-Fi Adapter in OS Window 7................................25
Connecting to Web-based Interface..........................................2
Saving and Restoring Settings..............................................31
Chapter 4. Configuring via Web-based Interface..................33
Setup Wizards..............................................................33
Internet Setup Wizard....................................................33
PPPoE Connection.......................................................35
Static IP Connection...................................................39
Dynamic IP Connection..................................................42
PPTP + Static IP or L2TP + Static IP Connection........................44
PPTP + Dynamic IP or L2TP + Dynamic IP Connection......................50
3G Connection..........................................................55
Site Setup Wizard........................................................58
Wi-Fi Setup Wizard.......................................................59
IPTV Setup Wizard........................................................65
Status.....................................................................66
Network Stati tic .......................................................66
DHCP.....................................................................67
Routing Table............................................................68
LAN Client ..............................................................69
P ge 2 of 159

DIR-620 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in Switch
User M nu l
Net........................................................................ 0
WAN......................................................................70
Creating 3G WA Connection.............................................71
Creating PPPoE WA Connection..........................................74
Creating Static IP WA Connection......................................78
Creating Dynamic IP WA Connection.....................................81
Creating PPTP + Static IP or L2TP + Static IP WA Connection...........84
Creating PPTP + Dynamic IP or L2TP + Dynamic IP WA Connection.........89
LAN......................................................................93
Wi-Fi......................................................................95
Common etting ..........................................................95
Ba ic Setting ...........................................................96
Security Setting ........................................................97
MAC Filter..............................................................102
Station Li t............................................................104
WPS.....................................................................105
Using WPS Function via Web-based Interface............................107
Using WPS Function without Web-based Interface........................107
Additional Setting .....................................................109
WMM.....................................................................111
Client..................................................................113
Advanced..................................................................116
VLAN....................................................................116
UPnP....................................................................119
DDNS....................................................................120
DNS.....................................................................122
Routing.................................................................123
Remote Acce ...........................................................125
IGMP....................................................................126
Firewall..................................................................12
IP Filter ..............................................................127
Virtual Server .........................................................130
DMZ.....................................................................132
MAC Filter..............................................................133
USB Modem.................................................................134
Information.............................................................134
PIN.....................................................................135
WiMAX.....................................................................136
Information.............................................................136
USB Storage...............................................................138
Information.............................................................138
Filebrow er.............................................................139
FTP.....................................................................140
U er ...................................................................141
P ge 3 of 159

DIR-620 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in Switch
User M nu l
Torrent...................................................................142
Torrent-client..........................................................142
Setting ................................................................143
Control...................................................................145
URL Filter..............................................................145
System....................................................................14
Admini trator Pa word..................................................147
Configuration...........................................................148
Sy tem Log..............................................................149
Firmware Upgrade........................................................151
NTP Client..............................................................152
Ping....................................................................153
Telnet..................................................................154
Chapter 5. Operation Guidelines................................155
Supported USB Modems......................................................155
Safety Instructions.......................................................156
Wireless Installation Considerations......................................156
Connecting to Cable or DSL Modem..........................................15
Chapter 6. Abbreviations and Acronyms..........................158
P ge 4 of 159

DIR-620 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in Switch
User M nu l
Introduction
CHAP ER 1. IN RODUC ION
Contents and Audience
This manual describes the router DIR-620 and explains how to configure and operate it.
This manual is intended for users familiar with basic networking concepts who create an in-home
local area network and system administrators who install and configure networks in offices.
Conventions
Example Description
text The body text of the manual.
Before You Begin A reference to a chapter or section of this manual.
“Quick Installation
Guide” A reference to a document.
Change A name of a menu menu item control (field checkbox drop-down
list button etc.).
192.168.0.1 Data that you should enter in the specified field.
!Information An important note.
Document Structure
Chapter 1 describes the purpose and structure of the document.
Chapter 2 gives an overview of the router's hardware and software features describes its
appearance and the package contents.
Chapter 3 explains how to install the router DIR-620 and configure a PC in order to access its web-
based interface.
Chapter 4 describes all pages of the web-based interface in detail.
Chapter 5 includes safety instructions and tips for networking and connecting additional equipment.
Chapter introduces abbreviations and acronyms used in this manual.
P ge 5 of 159

DIR-620 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in Switch
User M nu l
Overview
CHAP ER 2. OVERVIEW
General Information
The DIR-620 device is a multifunction wireless router supporting WiMAX 3G GSM and CDMA
with a built-in switch. It provides a fast and simple way to create a wireless and wired network at
home or in an office.
The router is equipped with a USB port for connecting a USB modem1 which can be used to
establish connection to the Internet. In addition to the USB port of the router you can connect a
USB storage device which will be used as a network drive.
Also you are able to connect the multifunction wireless router DIR-620 to a cable or DSL modem
or to a private Ethernet line and use a high-speed Internet connection to successfully fulfill a wide
range of professional tasks. The built-in 4-port switch enables you to connect Ethernet-enabled
computers game consoles and other devices to your network.
Using the DIR-620 device you are able to quickly create a wireless network at home or in your
office which lets your relatives or employees connect to your wireless network virtually anywhere
(within the operational range of your wireless network). The router can operate as a base station
for connecting wireless devices of the standards 802.11b 802.11g and 802.11n (at the rate up to
300Mbps).
The router supports multiple functions for the wireless interface: several security standards (WEP
WPA/WPA2) MAC address filtering WPS WMM.
The multifunction wireless router DIR-620 includes a built-in firewall. The advanced security
functions minimize threats of hacker attacks prevent unwanted intrusions to your network and
block access to unwanted websites for users of your LAN.
You can configure and manage the settings of the multifunction wireless router DIR-620 via the
user-friendly web-based interface (the interface is available in several languages).
1 Not included in the delivery package. D-Link does not guarantee compatibility with all USB modems. Please refer
to the Supported USB Modems section page 155.
P ge 6 of 159

DIR-620 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in Switch
User M nu l
Overview
Specifications*
WAN Interface:
•1 10/100BASE-TX Ethernet port for cable or DSL modem or private Ethernet line.
LAN Interface:
•4 10/100BASE-TX Ethernet ports.
WLAN Interface:
•IEEE 802.11b/g/n.
USB Interface:
•USB 2.0 type A port for USB modem or USB storage.
Network Functions:
•WAN connection types:
◦3G
◦PPPoE
◦Static IP
◦Dynamic IP
◦PPTP/L2TP + Static IP
◦PPTP/L2TP + Dynamic IP
•DHCP server and client
•DNS relay
•VPN pass-through (PPTP/L2TP)
•Dynamic DNS
•Static IP routing
•Remote management
•Network statistics for each interface
•IGMP Proxy
•RIP
•UPnP
•Support of VLAN.
* The device features are subject to change without notice. For the latest versions of the firmware and relevant
documentation visit www.dlink.ru.
P ge 7 of 159

DIR-620 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in Switch
User M nu l
Overview
USB Modem:
•Auto connection to available type of supported network (3G/2G)
•Enabling/disabling PIN code check changing PIN code2.
USB Storage:
•Built-in FTP server
•Access to storage via accounts
•Access control (for ext2/3 file systems).
Wireless Connection:
•WLAN splitting (up to 4 SSIDs)
•Supported security settings:
◦WEP
◦WPA/WPA2 Personal
◦WPA/WPA2 Enterprise
•MAC filter
•Managing connected stations
•PIN and PBC methods of WPS
•WMM (Wi-Fi QoS)
•Advanced settings
•Support of client mode.
Torrent Client:
•Uploading/downloading files from/to USB storage.
Firewall Functions:
•Network Address Translation (NAT)
•Stateful Packet Inspection (SPI)
•IP filters
•URL filter
•MAC filter
•DMZ
•Prevention of ARP and DDoS attacks
•Virtual servers.
2 The listed functions are available for some models of 3G USB modems.
P ge 8 of 159

DIR-620 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in Switch
User M nu l
Overview
Configuration and Management:
•Multilingual web-based interface for configuration and management
•Access via TELNET
•Firmware update via web-based interface
•Saving/restoring configuration to/from file
•Support of remote logging
•Automatic synchronization of system time with NTP server
•Ping function.
L Ds:
•Power
•Internet
•WLAN
•4 LAN LEDs
•WPS.
Power:
•External power adapter DC 5V/2.5А
•Reset to Factory Defaults button.
Operating Temperature:
•from 0 to 40 0C (from 32 to 104 0F).
Storage Temperature:
•from -20 to 65 0С (from -4 to 149 0F).
Operating Humidity:
•from 10% to 90% non-condensing.
Storage Humidity:
•from 5% to 95% non-condensing.
P ge 9 of 159

DIR-620 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in Switch
User M nu l
Overview
Product Appearance
Front Panel and Right Side Panel
Figure 1. Front panel view.
LED Mode Description
Power
Solid green The router is powered on.
No light The router is powered off.
Solid yellow When powered on: the router is being loaded; when
loaded: a malfunction of the router.
Internet
Solid green The Internet connection is on.
Blinking green The WAN interface is active (upstream or downstream
traffic).
Solid yellow The Internet connection is off.
WLAN
Solid green The router's WLAN is on.
Blinking green The WLAN interface is active (upstream or downstream
traffic).
LAN 1-4
Solid green A device (computer) is connected to the relevant port
the connection is on.
Blinking green The LAN port is active (upstream or downstream
traffic).
In addition a port for connecting a USB modem is located on the front panel of the router (the USB
port).
The WPS button located on the right side panel of the router is designed to quickly add wireless
devices to the router's WLAN. A separate LED is located on the WPS button.
Mode Description
Blinking blue Attempting to add a wireless device via the WPS function.
Solid blue The wireless device is connected to the router's WLAN (lights for several
minutes).
Solid yellow Failed to add the wireless device via the WPS function or the WPS function
is not used and a USB modem is connected to the router.
P ge 10 of 159

DIR-620 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in Switch
User M nu l
Overview
Back Panel
Figure 2. Back panel view.
Port Description
LAN 1-4 4 Ethernet ports to connect computers or network devices.
IN ERNE
A port to connect to a cable or DSL modem or to a private Ethernet
line (it is recommended to use the cable included in the delivery
package).
5V-2.5A Power connector.
RESE
A button to restore the factory default settings.
Power off the device. Push the RESET button. Power on the device
keeping the RESET button pushed and after 5 seconds release the
button.
P ge 11 of 159

DIR-620 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in Switch
User M nu l
Overview
Delivery Package
The following should be included:
•Wireless router DIR-620
•Power adapter 5V/2.5A
•Ethernet cable (CAT 5E)
•CD-ROM with “User Manual” and “Quick Installation Guide”
•“Quick Installation Guide” (brochure).
!Using a power supply with a different voltage rating than the one included will cause
damage and void the warranty for this product.
P ge 12 of 159

DIR-620 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in Switch
User M nu l
Installation and Connection
CHAP ER 3. INS ALLA ION AND CONNEC ION
Before You Begin
Please read this manual prior to installing the device. Make sure that you have all the necessary
information and equipment.
Operating System
Configuration of the multifunction wireless router DIR-620 supporting WiMAX 3G GSM and
CDMA with a built-in switch (hereinafter referred to as “the router”) is performed via the built-in
web-based interface. The web-based interface is available from any operating system that supports a
web browser.
Web Browser
The following web browsers are recommended: Windows Internet Explorer Mozilla Firefox or
Opera.
For successful operation JavaScript should be enabled on the web browser. Make sure that
JavaScript has not been disabled by other software (such as virus protection or web user security
packages) running on your computer.
Wired or Wireless NIC ( thernet or Wi-Fi Adapter)
Any computer that uses the router should be equipped with an Ethernet or Wi-Fi adapter (NIC). If
your computer is not equipped with such a device install an Ethernet or Wi-Fi adapter prior to using
the router.
Wireless Connection
Wireless workstations from your network should be equipped with a wireless 802.11b g or n NIC
(Wi-Fi adapter). In addition you should specify the values of SSID channel number and security
settings defined in the web-based interface of the router for all these wireless workstations.
P ge 13 of 159

DIR-620 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in Switch
User M nu l
Installation and Connection
USB Modem
To connect to a WiMAX 3G GSM or CDMA network you should use a USB modem. Connect it to
the USB port of the router then access the web-based interface of the router and you will be able to
configure a connection to the Internet3.
!
WiMAX USB modem
Some WiMAX operators require subscribers to activate their WiMAX USB modems prior
to using them. Please refer to connection guidelines provided by your operator when
concluding the agreement or placed on its website.
3G USB modem
Your USB modem should be equipped with an active identification card (SIM or R-UIM)
of your operator.
It is recommended to disable the PIN code check on the identification card prior to
connecting the USB modem to the router.
3 Contact your operator to get information on the service coverage and fees.
P ge 14 of 159

DIR-620 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in Switch
User M nu l
Installation and Connection
Connecting to PC
PC with Ethernet Adapter
1. Make sure that your PC is powered off.
2. Connect an Ethernet cable between any of LAN ports located on the back panel of the router
and the Ethernet port of your PC.
3. To connect via a WiMAX 3G GSM or CDMA network: connect your USB modem to the
USB port4 located on the front panel of the router.
!If you need to connect or change a USB modem to another one when the router is powered
on power off the router connect the modem to the USB port and power on the router.
4. Connect the power cord to the power connector port on the back panel of the router then
plug the power adapter into an electrical outlet or power strip.
5. Turn on your PC and wait until your operating system is completely loaded.
Obtaining IP Address Automatically in OS indows XP
1. Click the Start button and proceed to the Control Panel > Network and Internet
Connections > Network Connections window.
2. In the Network Connections window right-click the relevant Local Area Connection
icon and select the Properties line in the menu displayed.
Figure 3. The Net ork Connections window.
4 It is recommended to use a USB extension cable to connect a USB modem to the router.
P ge 15 of 159

DIR-620 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in Switch
User M nu l
Installation and Connection
3. In the Local Area Connection Properties window on the General tab select the
Internet Protocol ( CP/IP) line. Click the Properties button.

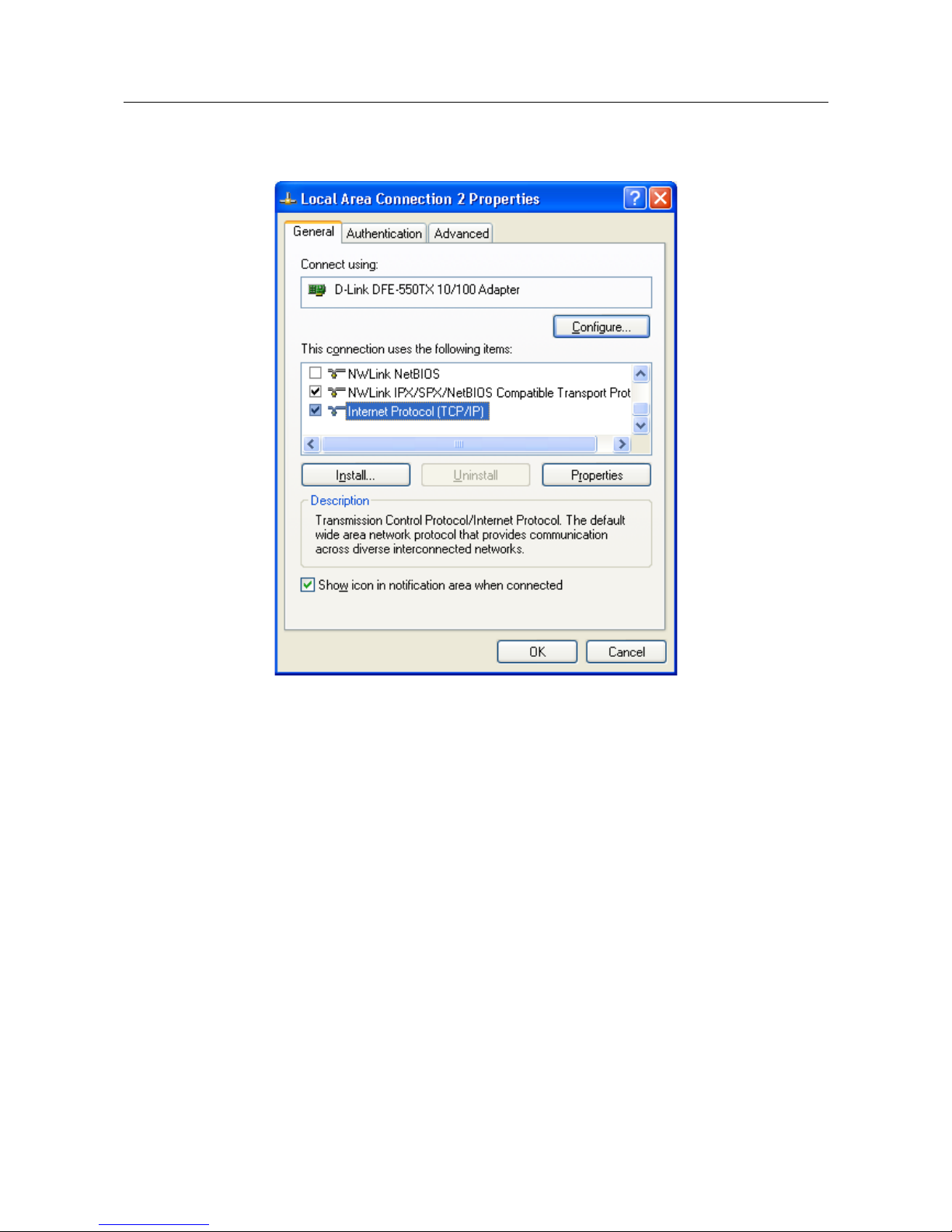

Figure 4. The Local Area Connection Properties window.
P ge 16 of 159

DIR-620 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in Switch
User M nu l
Installation and Connection
4. Select the Obtain an IP address automatically and Obtain DNS server address
automatically radio buttons. Click the OK button.
Figure 5. The Internet Protocol (TCP/IP) Properties window.
5. Click the ОК button in the connection properties window.
Now your computer is configured to obtain an IP address automatically.
P ge 17 of 159

DIR-620 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in Switch
User M nu l
Installation and Connection
Obtaining IP Address Automatically in OS indows 7
1. Click the Start button and proceed to the Control Panel window.
2. Select the Network and Sharing Center section. (If the Control Panel has the category
view (the Category value is selected from the View by drop-down list in the top right
corner of the window) choose the View network status and tasks line under the
Network and Internet section.)
Figure . The Control Panel window.
P ge 18 of 159

DIR-620 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in Switch
User M nu l
Installation and Connection
3. In the menu located on the left part of the window select the Change adapter settings
line.
Figure 7. The Net ork and Sharing Center window.
P ge 19 of 159

DIR-620 Multifunction Wireless Router Supporting WiMAX,
3G GSM/CDMA with Built-in Switch
User M nu l
Installation and Connection
4. In the opened window right-click the relevant Local Area Connection icon and select
the Properties line in the menu displayed.
Figure 8. The Net ork Connections window.
P ge 20 of 159
