D-Link DIR-890L User manual

Version 1.0 | December 17, 2014
User Manual
DIR-890L
Wireless AC3200
Ultra Wi-Fi Router

iD-Link DIR-890L User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
© 2014 D-Link. All Rights Reserved. D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation
or its subsidiaries. All other third-party marks mentioned herein may be trademarks of their respective owners.This publication
may not be reproduced, in whole or in part, without prior express written permission from D-Link Systems, Inc..
Revision Date Description
1.0 December 17, 2014 • Initial release for revision A1
Preface

iiD-Link DIR-890L User Manual
Table of Contents
Preface................................................................................. i
Manual Revisions........................................................................... i
Trademarks ...................................................................................... i
Product Overview.............................................................. 1
Package Contents......................................................................... 1
Minimum Requirements............................................................ 2
Introduction ................................................................................... 3
Features............................................................................................ 4
Hardware Overview..................................................................... 5
Connections ........................................................................... 5

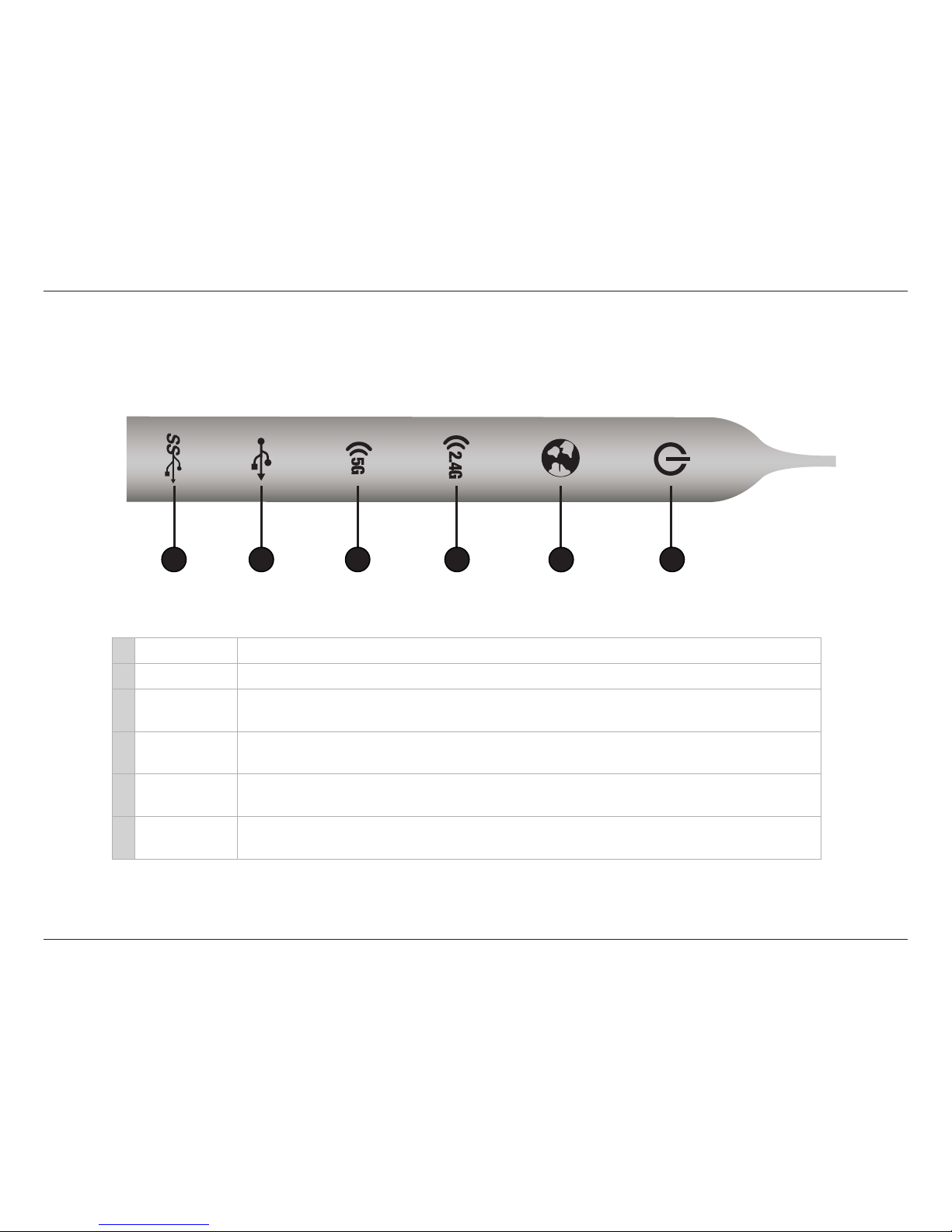

LEDs........................................................................................... 6
Installation ......................................................................... 7
Before you Begin........................................................................... 7
Wireless Installation Considerations...................................... 8

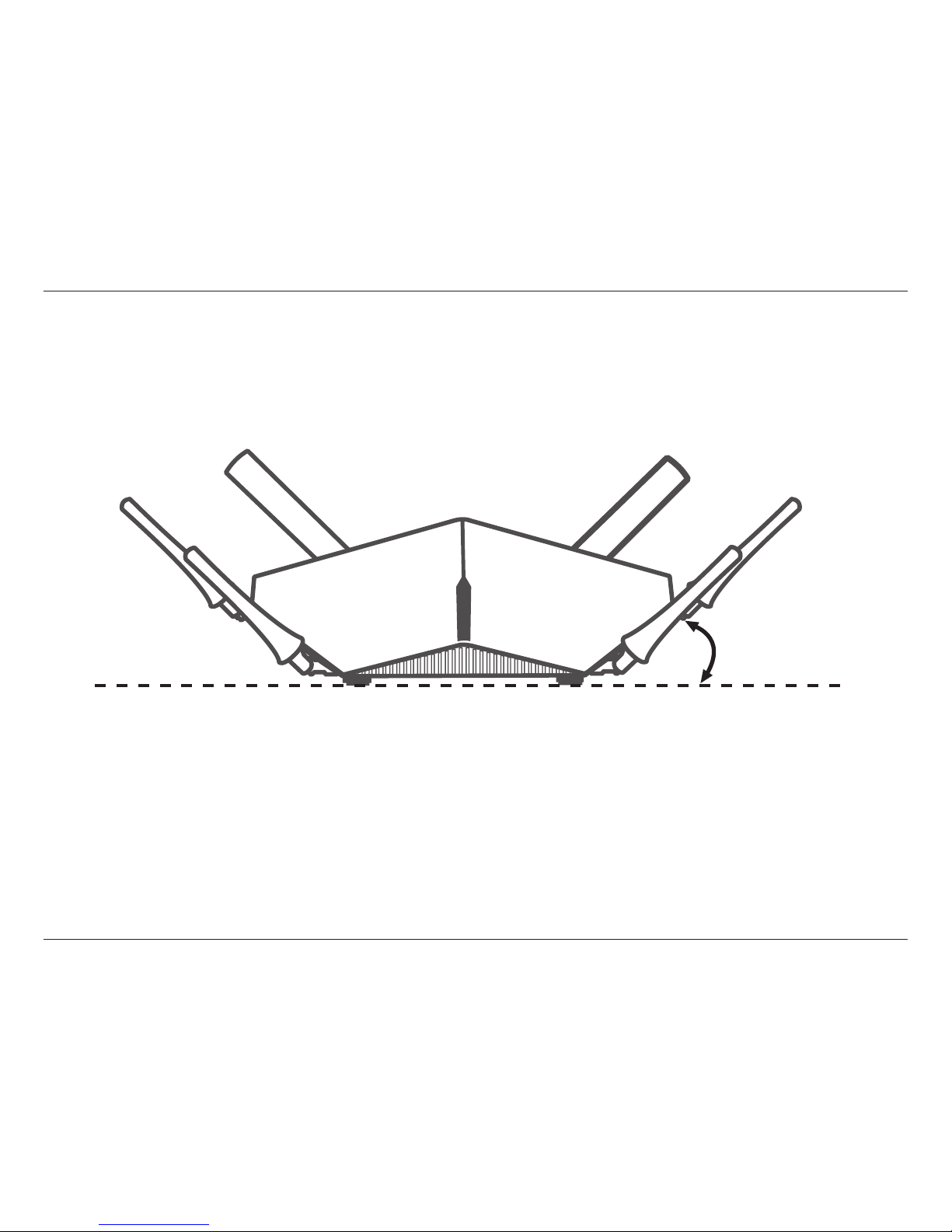

Antenna Setup............................................................................... 9

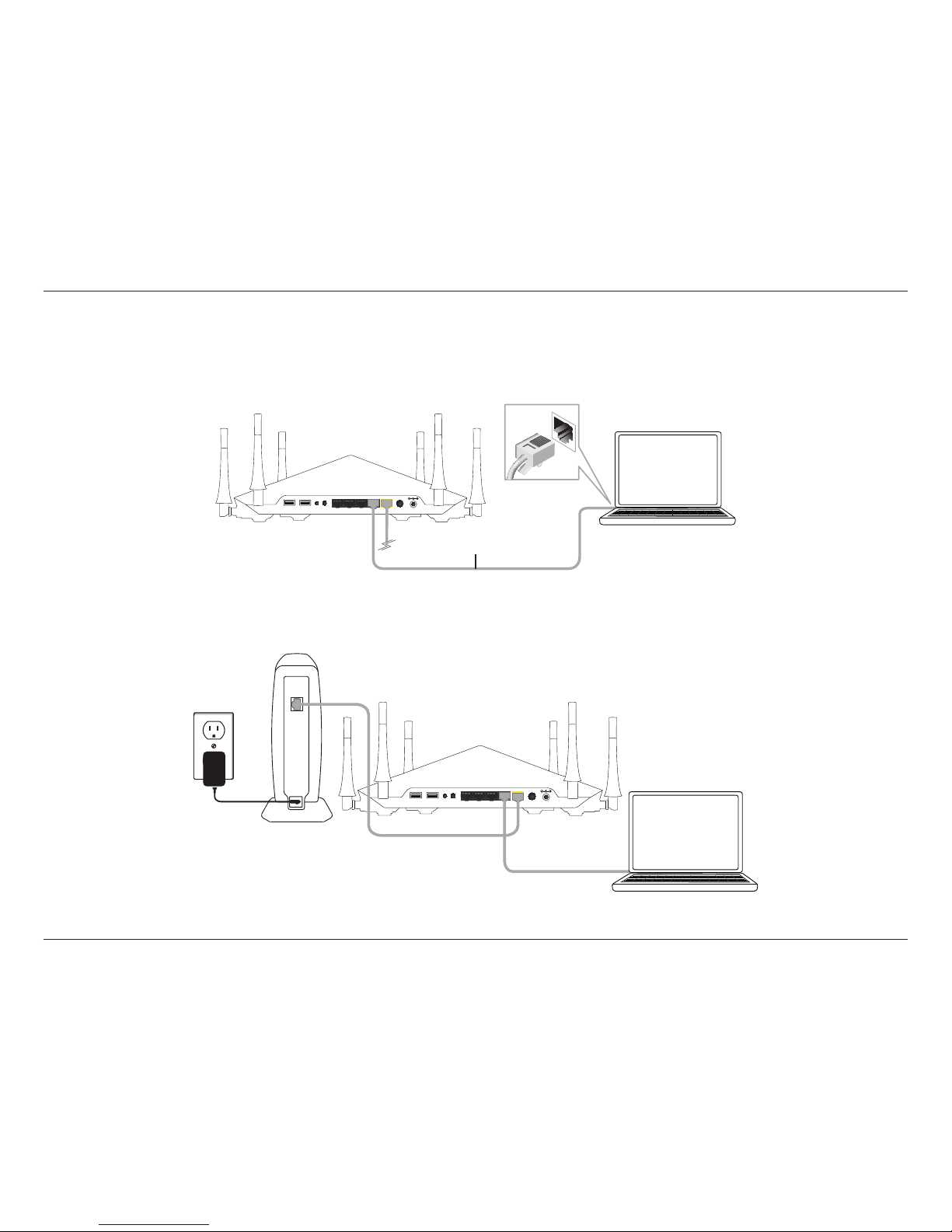

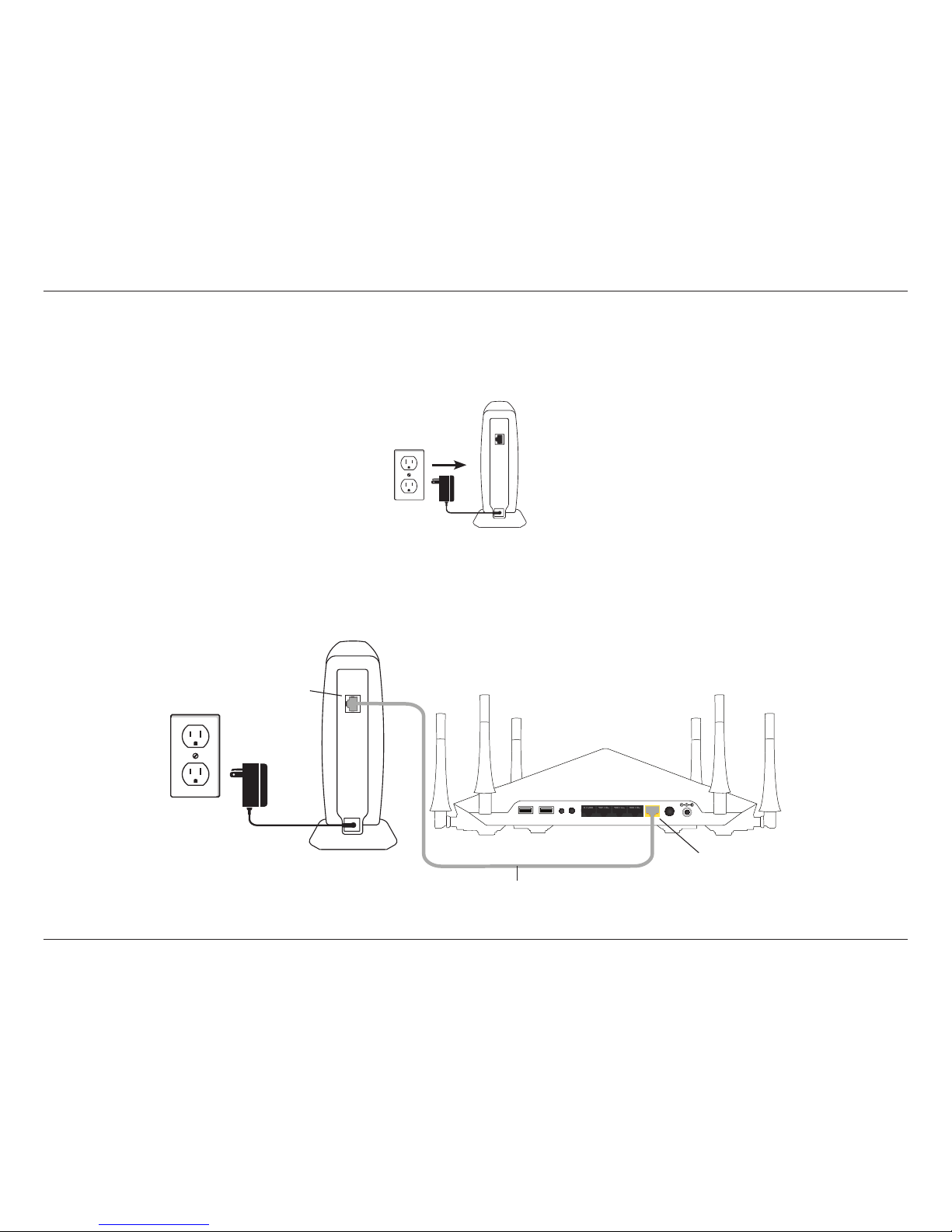

Manual Setup...............................................................................10
Conguration...................................................................13

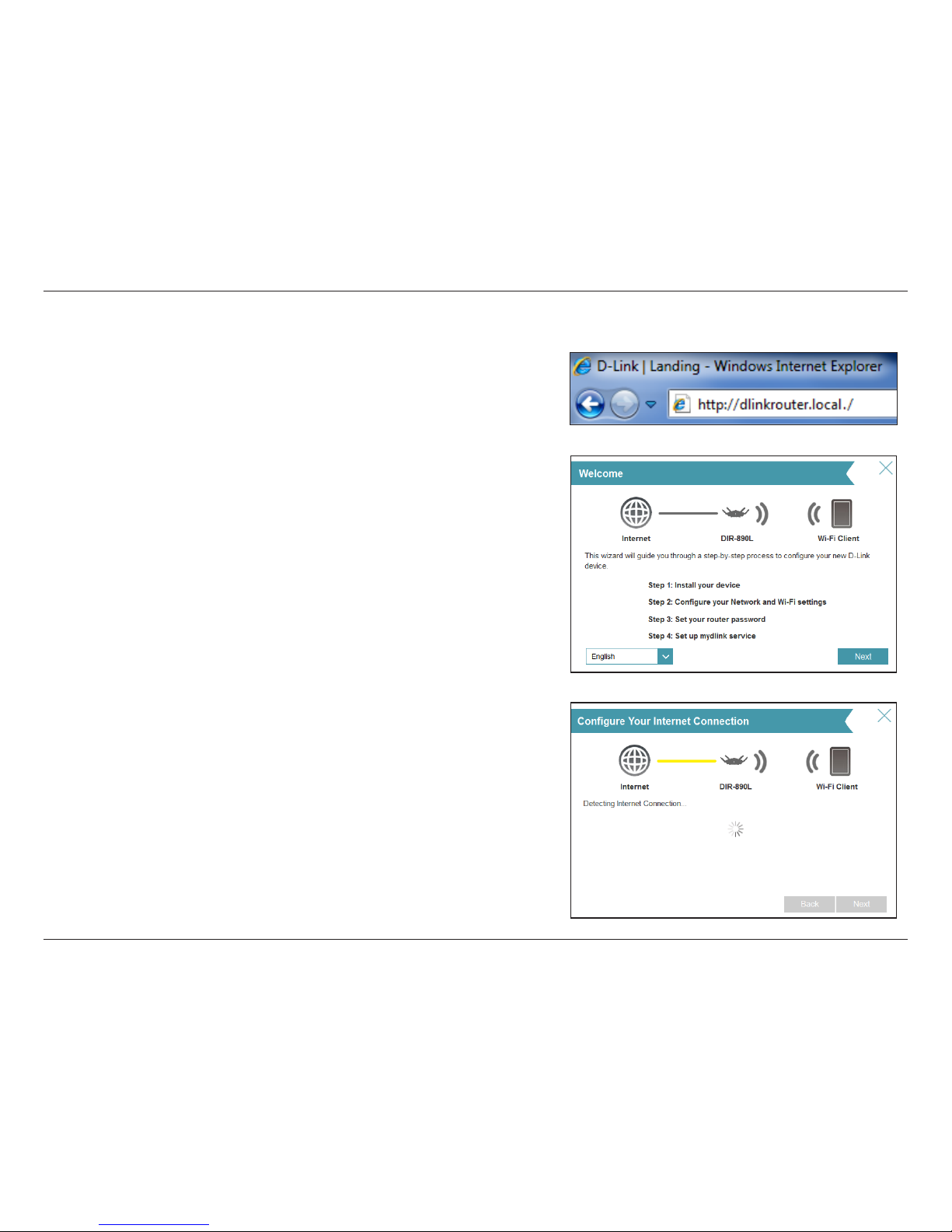

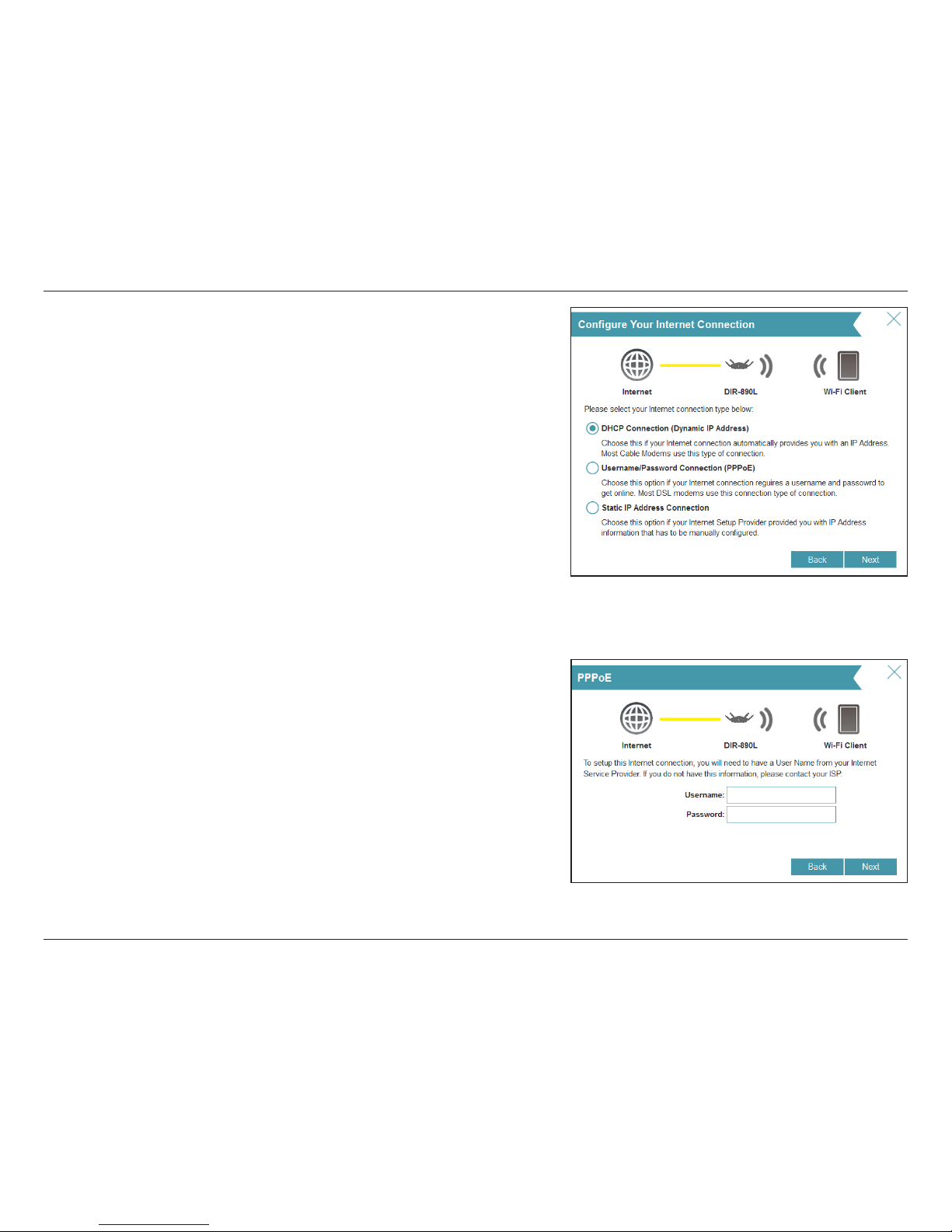

Setup Wizard ................................................................................14
QRS Mobile App..........................................................................21
Web-based Conguration Utility..........................................26
Home.......................................................................................27
Internet..............................................................................27
DIR-890L............................................................................28
Connected Clients .........................................................29
USB Device .......................................................................30
Settings ..................................................................................31
Wizard ................................................................................31
Internet..............................................................................31
Dynamic IP (DCHP)..................................................32
Static IP ........................................................................33
PPPoE............................................................................34
PPTP..............................................................................35
L2TP ..............................................................................36
DS-Lite..........................................................................37
IPv6 .....................................................................................38
Auto Detection .........................................................39
Static IPv6 ...................................................................40
Auto Conguration .................................................42
PPPoE............................................................................43
IPv6 in IPv4 Tunnel...................................................45
6 to 4.............................................................................47
6rd .................................................................................48
Local Connectivity Only.........................................50
Wireless..............................................................................51
Smart Connect..........................................................51
2.4GHz..........................................................................52
Primary and Secondary 5GHz..............................53
Guest Zone.................................................................54
Network.............................................................................55
SharePort ..........................................................................57
Create User.................................................................58
mydlink..............................................................................59
Table of Contents

iiiD-Link DIR-890L User Manual
Table of Contents
Features..................................................................................60
QoS Engine.......................................................................60
Firewall Settings.............................................................61
IPv4/IPv6 Rules..........................................................63
Port Forwarding........................................................64
Virtual Server .............................................................65
Website Filter.............................................................66
Static Routes..............................................................67
IPv6................................................................................68
Dynamic DNS ............................................................69
IPv6 Host .....................................................................70
QuickVPN ....................................................................71
Management........................................................................72
Time & Schedule ............................................................72
Time ..............................................................................72
Schedule .....................................................................73
System Log.......................................................................74
Admin.................................................................................75
System..........................................................................76
Firmware Upgrade.........................................................77
Statistics ............................................................................78
Using the mydlink SharePort™ App ...............................79
The mydlink SharePort™ App iOS Devices ........................79
Main Menu ............................................................................83
Documents............................................................................84
Pictures...................................................................................86
Videos .....................................................................................88
Music .......................................................................................90
Folders ....................................................................................93
Favorites.................................................................................96
Using the mydlink SharePort™ app for Android™...........97
Main Menu ......................................................................... 101
Documents......................................................................... 102
Pictures................................................................................ 104
Videos .................................................................................. 106
Music .................................................................................... 108
Folders ................................................................................. 111
Favorites.............................................................................. 115
Using SharePort Mobile for Windows® 8/RT .................. 116
Main Menu ......................................................................... 118
Documents......................................................................... 119
Pictures................................................................................ 120
Movies.................................................................................. 122
Music .................................................................................... 124
Folder ................................................................................... 127
Favorite................................................................................ 130
Connect a Wireless Client to your Router ....................131
WPS Button................................................................................ 131
Windows® 8................................................................................ 132
WPA/WPA2 ......................................................................... 132
Windows® 7................................................................................ 134
WPA/WPA2 ......................................................................... 134
WPS....................................................................................... 137
Windows Vista®......................................................................... 141
WPA/WPA2 ......................................................................... 142

ivD-Link DIR-890L User Manual
Table of Contents
Troubleshooting ............................................................144
Wireless Basics ...............................................................147
What is Wireless?...................................................................... 148
Tips................................................................................................ 150
Wireless Modes......................................................................... 151
Networking Basics.........................................................152
Check your IP address............................................................ 152
Statically Assign an IP address............................................ 153
Wireless Security...................................................................... 154
What is WPA? ..................................................................... 154
Technical Specications ................................................155
Contacting Technical Support ......................................156
GPL Code Statement......................................................157
Warranty.........................................................................169
Registration ...................................................................176

1D-Link DIR-890L User Manual
Section 1 - Product Overview
Product Overview

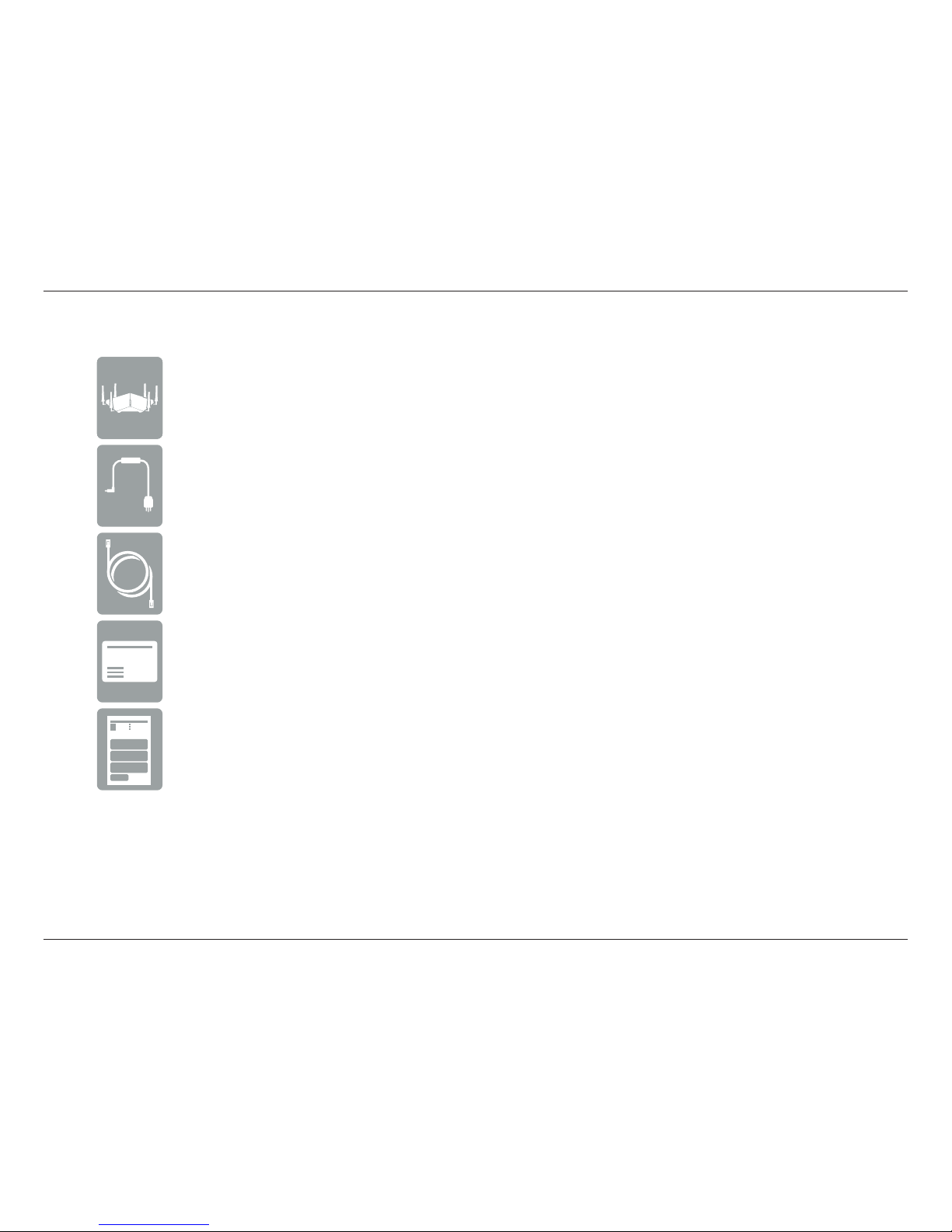

Package Contents
Note: Using a power supply with a dierent voltage rating than the one included with the DIR-890L will cause damage and void the warranty
for this product.
If any of the above items are missing, please contact your reseller.
DIR-890L Wireless AC3200 Ultra Wi-Fi Router
Power Adapter and Cable
Ethernet Cable
Wi-Fi Conguration Card
Quick Install Guide

2D-Link DIR-890L User Manual
Section 1 - Product Overview
Network Requirements • An Ethernet-based broadband modem
Web-based Conguration
Utility Requirements
Computer with the following:
• An installed Ethernet adapter or wireless adapter
Browser Requirements:
• Internet Explorer® 8
• Mozilla® Firefox® 28 or higher
• Google Chrome™ 33 or higher
• Safari® 5.1 or higher
Windows®Users: Make sure you have the latest version of Java installed. Visit
www.java.com to download the latest version.
mydlink Requirements For mydlink and mydlink app requirements refer to http://www.mydlink.com
Minimum Requirements

3D-Link DIR-890L User Manual
Section 1 - Product Overview
Introduction
The DIR-890 uses advanced AC beamforming technology to maximize the speed and range of your wireless signal, so it can
outperform other 802.11ac devices. It also comes equipped with four Gigabit ports to provide speeds up to 10x faster than
standard 10/100 ports. With the addition of Advanced Quality of Service (QoS), data streams are separated, which helps organize
and prioritize your network trac so your video streaming, gaming, and VoIP calls run smoother over both your wired and
wireless network.
The DIR-890L supports a host of cloud features including QRS Mobile, which allows you to setup and congure the router using
a mobile app. You can set up your router right from anywhere, no PC required.
The DIR-890L is also mydlink-enabled, which gives you access to your home network no matter where you are. Now you can
monitor and manage your home network right from your laptop, iPhone®, iPad®, or Android™ device. mydlink-enabled routers
can be congured to send an email to keep you informed anywhere, anytime when new devices are connecting to your network
or unwanted access is detected. Monitor websites that are being visited in real-time, with recent browser history displayed on
the mydlink™ Lite app, which is a useful tool for parents.
SharePort technology lets you take advantage of the USB 3.0 port located on the side of your DIR-890L, as well as an additional
USB 2.0 port located on the back. Plug in a USB storage drive and you can use the mydlink SharePort™ app for iPad®, iPhone®,
iPod Touch®, and Android™ devices to access les, stream videos, view photos, or listen to music on your laptop or mobile
devices. Plug in a printer and you can use the mydlink SharePort app to share that printer with all of your devices.
The DIR-890L provides incredible speeds, smart antenna technology, fast ports, cloud features, and excellent security features.
It also features an innovative design and easy installation.
* Maximum wireless signal rate derived from IEEE Standard 802.11ac, 802.11a, 802.11g, and 802.11n specications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely aect wireless signal range.

4D-Link DIR-890L User Manual
Section 1 - Product Overview
Features
* Maximum wireless signal rate derived from IEEE Standard 802.11ac, 802.11a, 802.11g, and 802.11n specications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely aect wireless signal range.
Super-Charged with Smarter Wireless AC Features
Create a blazing fast home network that connects all of your computers and mobile devices to your broadband Internet connection.
The newly introduced SmartConnect technology ensures that older wireless devices do not degrade the overall performance of
the DIR-890L and allows wireless AC devices to have a total throughput of 3200 Mbps. The Advanced AC SmartBeam technology
that is also in the DIR-890L brings you the future of high-bandwidth wireless connectivity, vastly increasing the speed and coverage
of your network.
Use mydlink to Monitor Your Network
The AC3200 Ultra Wi-Fi Router is mydlink Cloud enabled, so you can eortlessly access and view your network no matter where
you are. See who is connected to your router, change settings, or block someone from using your network connection, all from
an Internet connected PC, tablet, or smartphone. Parents can monitor what sites their children are visiting, to stay informed and
in control on the go.
File Sharing at Your Fingertips
The mydlink SharePort app allows you to connect a USB storage device to the DIR-890L and instantly share documents, movies,
pictures, and music with mobile devices. Put your music library on a USB drive and share it with everyone else in your home, or
show photos on the living room TV while a family member watches a movie on their mobile device.
Easy to Set Up and Use
Get the DIR-890L up and running in no time right from your couch using the QRS (Quick Router Setup) Mobile app on your
smartphone or tablet. Simply plug in the router, open the app, and follow a few easy steps to get your home network connected
without having to touch a computer.You can also set up a secure network with the touch of a button usingWi-Fi Protected Setup.

5D-Link DIR-890L User Manual
Section 1 - Product Overview

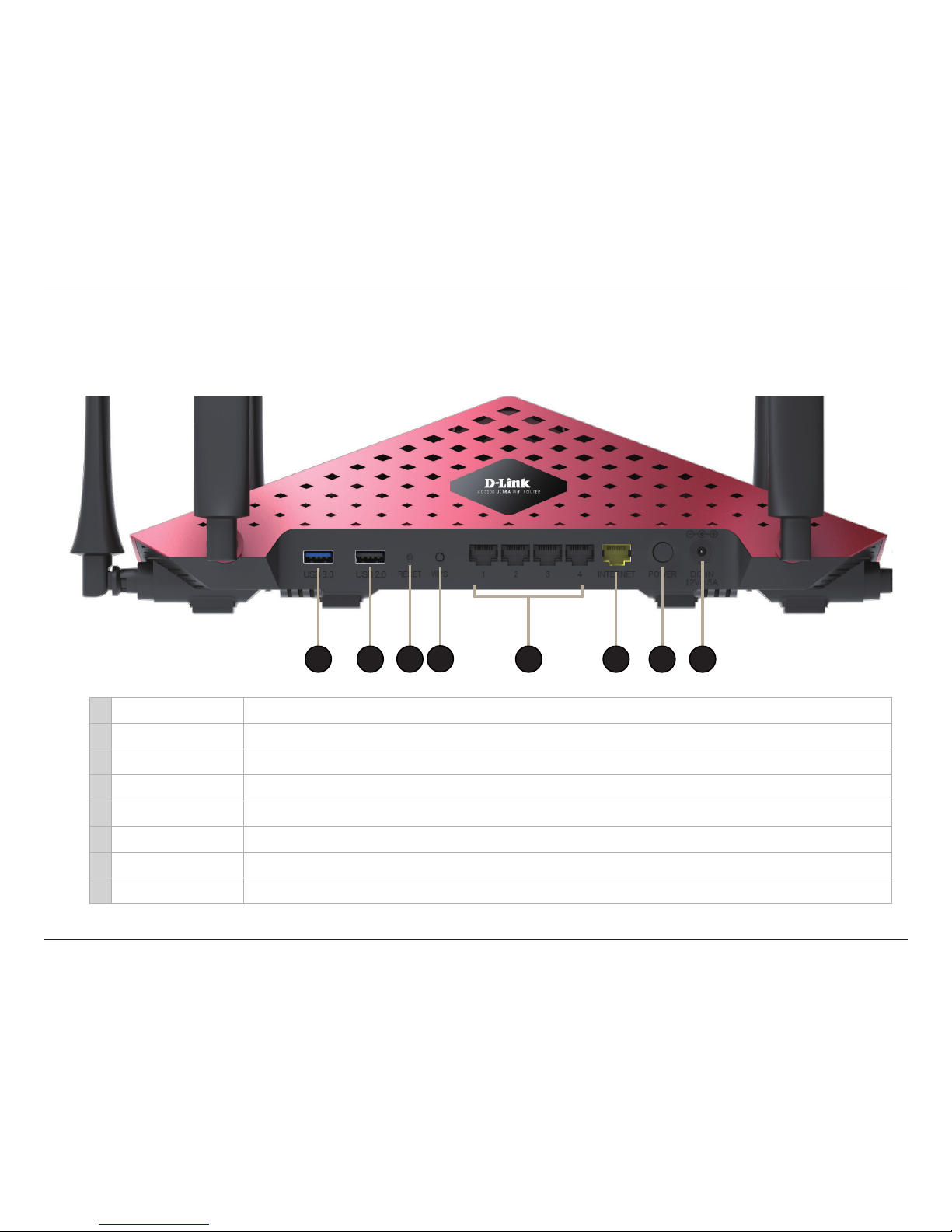

Hardware Overview
Connections
453 71
1USB 3.0 Port Connect a USB ash drive to share content throughout your network. Port supports USB 3.0 and USB 2.0 devices.
2USB 2.0 Port Connect a USB ash drive to share content throughout your network. Port supports USB 2.0 devices.
3Reset Button Press and hold the reset button with a paper clip for ten seconds to reset the router to the factory default settings.
4WPS Button Press to start the WPS process. The 2.4G or 5G LED will blink fast.
5LAN Ports (1-4) Connect Ethernet devices such as computers, switches, and game consoles.
6Internet Port Connect a broadband modem to this port using an Ethernet cable.
7Power Button Press to power the router on and o.
8Power Port Connect the supplied power adapter.
26 8

6D-Link DIR-890L User Manual
Section 1 - Product Overview
Hardware Overview
LEDs
1 32 4 56
1SS USB LED A solid white light indicates a USB 3.0 device is connected.
2USB LED A solid white light indicates a USB 2.0 device is connected.
35G LED A solid white light indicates the 5GHz wireless function is working properly. During the WPS process,
this light will blink quickly.
42.4G LED A solid white light indicates the 2.4GHz wireless function is working properly. During theWPS process,
this light will blink quickly.
5Internet LED A solid white light indicates a connection to the Internet port. If the LED is orange, the connection is
good but the router cannot connect to the Internet.
6Power LED A solid white light indicates a proper connection to the power supply. The light will be solid orange
during boot-up.

7D-Link DIR-890L User Manual
Section 2 - Installation
Before you Begin
Installation
This section will walk you through the installation process. Placement of the router is very important. Do not place the router
in an enclosed area such as a closet, cabinet, or in the attic or garage.
• Users with DSL providers - If you are using a PPPoE connection, you will need your PPPoE user name and password.
If you do not have this information, contact your Internet provider. Do not proceed until you have this information.
Also, make sure you disable or uninstall any PPPoE software such as WinPoET, BroadJump, or EnterNet 300 from
your computer or you will not be able to connect to the Internet.
• Users with Cable providers - Make sure you unplug the power to your modem. In some cases, you may need to turn
it o for up to ve minutes.
•Advanced Users - If your ISP provided you with a modem/router combo, you will need to set it to “bridge” mode
so the DIR-890L can work properly. For details, contact your ISP or refer to the user manual for your modem/router
device.

8D-Link DIR-890L User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the operating
range of your wireless network. Keep in mind that the number, thickness and location of walls, ceilings, or other objects that the
wireless signals must pass through may limit the range.Typical ranges vary depending on the types of materials and background
RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum -
each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that
the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree
angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick!
Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better
reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range.
Try to position access points, wireless routers, and computers so that the signal passes through drywall or open
doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le
cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4 GHz phone
base is as far away from your wireless devices as possible. The base transmits a signal even if the phone is not
in use.

9D-Link DIR-890L User Manual
Section 2 - Installation
Antenna Setup
The DIR- 890L is designed to give you the fastest, most stable network connection possible. In order to maximize performance,
orient the antennas at an angle, pointing outward and away from the base unit.
45°

10D-Link DIR-890L User Manual
Section 2 - Installation
1 2 3 4
USB 2.0USB 3.0
POWER
WSP DCN IN
12V
SA
...
-
RESET INTERNET
1. Turn o and unplug the power to your cable or DSL modem. This is required.
Manual Setup
2. Connect an Ethernet cable from the Internet port of the router to the Ethernet port on your cable or DSL modem.
Modem
Ethernet Port
Modem
Ethernet Cable
DIR-890L
Internet Port (yellow)

11D-Link DIR-890L User Manual
Section 2 - Installation
1 2 3 4
USB 2.0USB 3.0
POWER
WSP DCN IN
12V
SA
...
-
RESET INTERNET

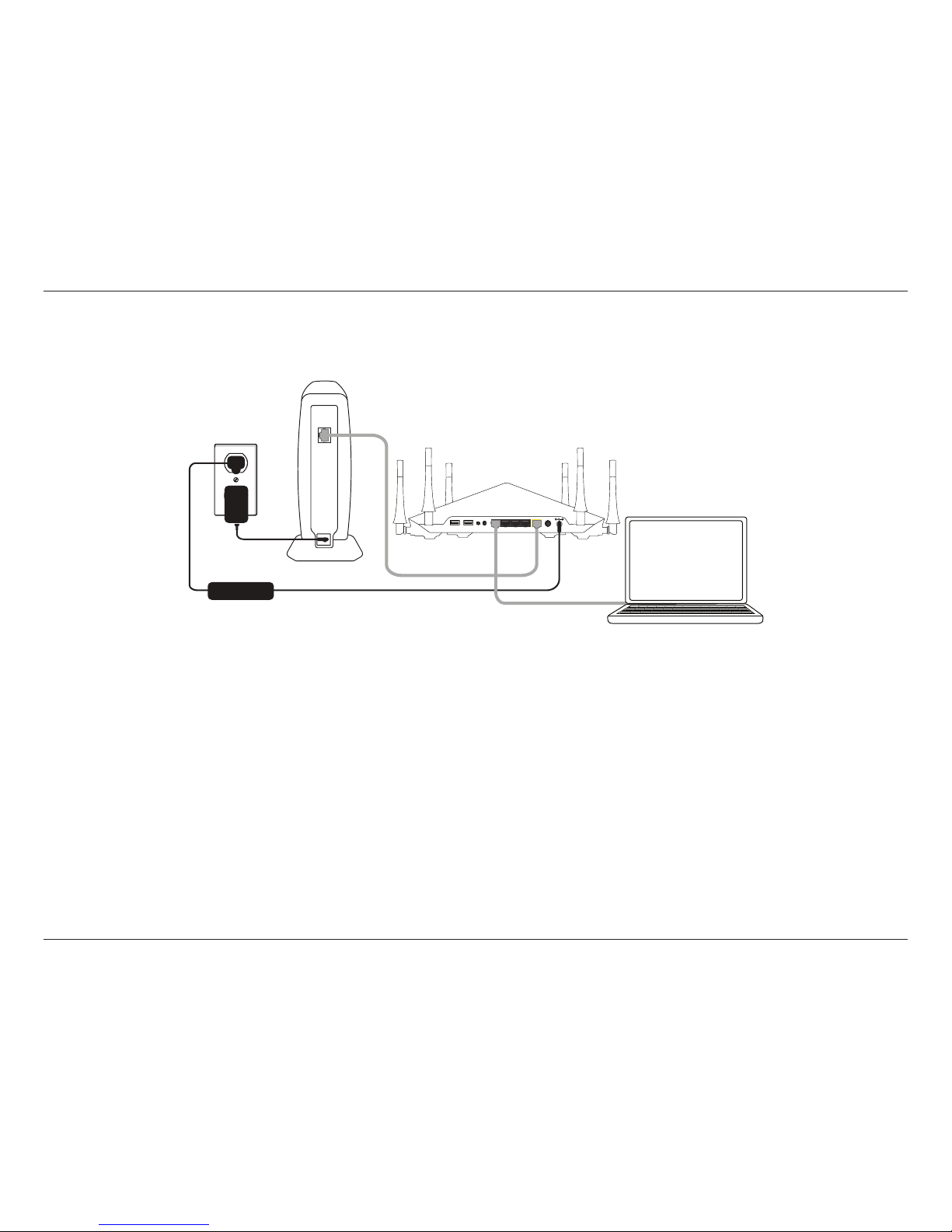

4. Plug the power back into your cable or DSL modem and wait for about one minute before continuing.
3. Connect another Ethernet cable from the Ethernet port on your computer to one of the LAN ports on the router.
Computer
Ethernet Cable
DIR-890L
1 2 3 4
USB 2.0USB 3.0
POWER
WSP DCN IN
12V
SA
...
-
RESET INTERNET
Computer
Modem
DIR-890L

12D-Link DIR-890L User Manual
Section 2 - Installation
5. Plug the power adapter into your router and connect to an available power outlet or surge protector. If the
Power LED does not light up, press the Power button on the back of the router.
6. After the router has powered up, verify that the Power (white) and Internet (white or orange) LEDs are both lit.
Proceed with router conguration.
1 2 3 4
USB 2.0USB 3.0
POWER
WSP DCN IN
12V
SA
...
-
RESET INTERNET
Modem
DIR-890L

13D-Link DIR-890L User Manual
Section 3 - Conguration
There are several dierent ways you can congure your router to connect to the Internet and connect to your clients:
• D-Link Setup Wizard - This wizard will launch when you log into the router for the rst time. Refer to page 14.
• QRS Mobile App - Use your iPhone, iPad, or iPod Touch to congure your router. Refer to page 21.
• Manual Setup - Log into the router and manually congure your router. Refer to page 26
Conguration

14D-Link DIR-890L User Manual
Section 3 - Conguration
The wizard will guide you through a step-by-step process to congure
your new D-Link router and connect to the Internet.
Click Next to continue.
Setup Wizard
If this is your rst time installing the router, open your web browser (e.g.,
Internet Explorer, Chrome, Firefox, or Safari).This will automatically launch
the Setup Wizard. If the wizard does not start automatically, enter http://
dlinkrouter.local./ or the IP address of the router (http://192.168.0.1).
Wait a few moments while your router is detecting your Internet connection
type. After the router detects your Internet connection, you may need to
enter ISP information such as username and password.

15D-Link DIR-890L User Manual
Section 3 - Conguration
If the router does not detect the type of Internet connection you have, a
list of connection types will be displayed. Select your Internet connection
type (this information can be obtained from your Internet Service Provider).
You can select DHCP Connection (Dynamic IP Address) if your Internet
connection automatically provides you with an IP address.
Click Next to continue.
If the router detected PPPoE or you selected Username/Password
Connection (PPPoE), enter your PPPoE username and password and click
Next to continue.
Note: Make sure you remove your PPPoE software from your computer. The
software is no longer needed and will not work through a router.
