D-Link DIR-867 User manual

Version 1.00| 2017/08/23
User Manual
DIR-867

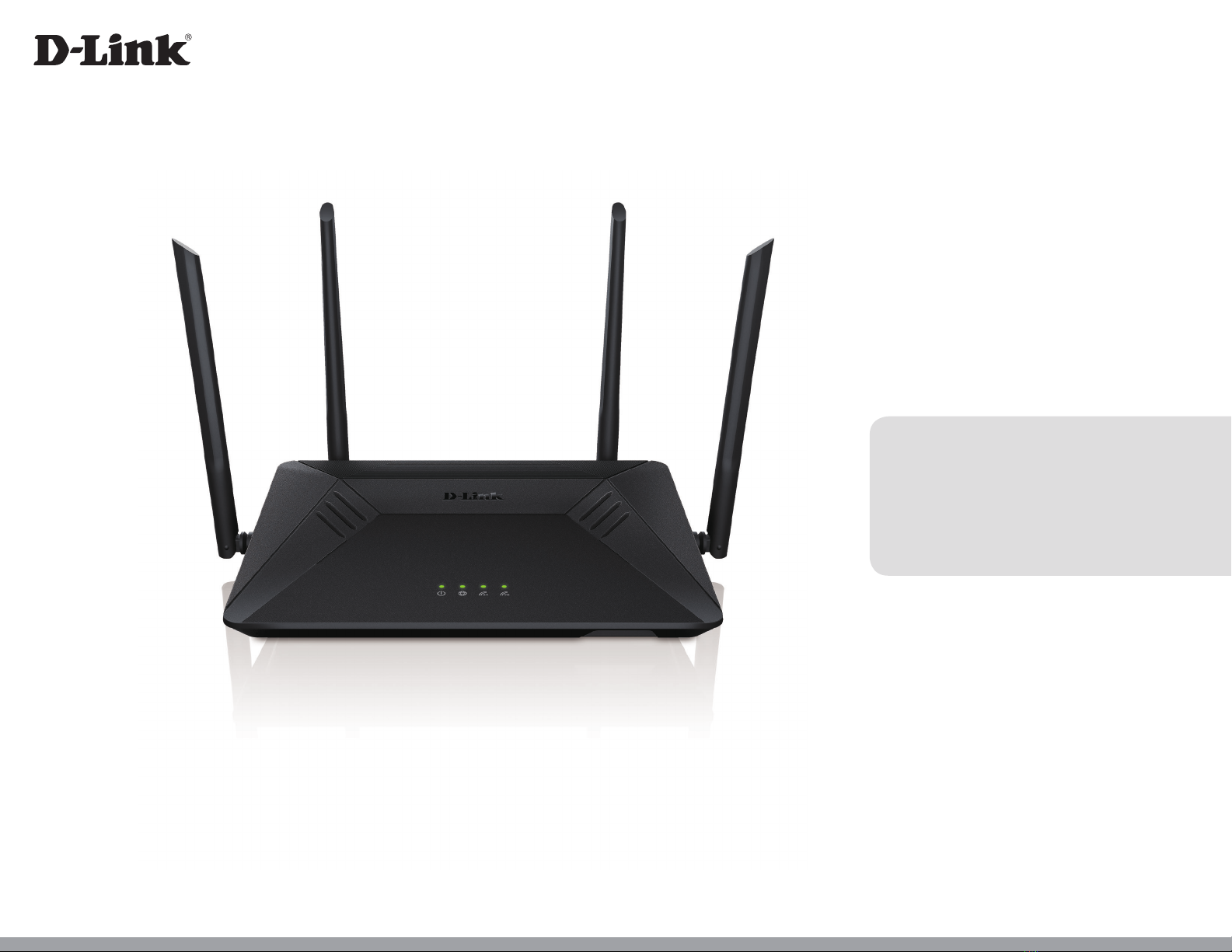

AC1750+ MU-MIMO Wi-Fi Gigabit Router

iD-Link DIR-867 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Apple®, Apple logo®, Safari®, iPhone®, iPad®, iPod touch® and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries.
App StoreSM is a service mark of Apple Inc.
Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc.
Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2017 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation, Inc.
Power Usage
This device is an Energy Related Product (ErP) with High Network Availability (HiNA), and automatically switches to a power-saving Network
Standby mode within 1 minute of no packets being transmitted. It can also be turned o through a power switch to save energy when it is not
needed.
Network Standby: 4.85 watts
Switched O: 0.06 watts
Preface
Revision Date Description
1.00 May 15, 2017 Initial release.

iiD-Link DIR-867 User Manual
Table of Contents
Table of Contents
Product Overview.............................................................. 1
Package Contents......................................................................... 1
System Requirements................................................................. 2
Introduction ................................................................................... 3
Features............................................................................................ 5
Hardware Overview..................................................................... 6
LED Indicators........................................................................ 6
Back Panel ............................................................................... 7
Installation ......................................................................... 8
Before you Begin........................................................................... 8
Wireless Installation Considerations...................................... 9
Hardware Setup ..........................................................................10
Completing Setup......................................................................13
Setup Wizard ........................................................................14
Conguration...................................................................18
Home ..............................................................................................19
Internet...................................................................................19
DIR-867...................................................................................20
Connected Clients..............................................................21
Settings ..........................................................................................22
Wizard.....................................................................................22
Internet...................................................................................22
IPv6 .....................................................................................32
VLAN...................................................................................52
Wireless ..................................................................................54
Guest Zone.......................................................................57
Network..................................................................................58
Features..........................................................................................60
QoS Engine............................................................................60
Firewall Settings..................................................................61
IPv4/IPv6 Rules ...............................................................63
Port Forwarding ..................................................................64
Virtual Server...................................................................65
Website Filter........................................................................66
Static Routes.........................................................................67
IPv6 .....................................................................................68
Dynamic DNS .......................................................................69
IPv6 Host ...........................................................................70
Quick VPN..............................................................................71
Management................................................................................73
Time & Schedule .................................................................73
Time....................................................................................73
Schedule ...........................................................................74
System Log............................................................................75
System Admin......................................................................77
System ...............................................................................78
Upgrade .................................................................................79
Statistics .................................................................................80
Quick VPN.........................................................................81
Important Information .............................................................82
Quick VPN Server Setup Instructions ..................................83

iiiD-Link DIR-867 User Manual
Table of Contents
iOS Devices ...................................................................................84
Mac OS X........................................................................................88
Windows 7.....................................................................................91
Windows 8.1/8.............................................................................95
Windows 10 ............................................................................... 101
Android ....................................................................................... 104
Connect a Wireless Client to your Router ....................108
WPS Button................................................................................ 108
Windows® 10............................................................................. 109
Windows® 8................................................................................ 111
WPA/WPA2 ......................................................................... 111
Windows® 7................................................................................ 113
WPA/WPA2 ......................................................................... 113
WPS....................................................................................... 116
Windows Vista®......................................................................... 120
WPA/WPA2 ......................................................................... 121
Troubleshooting ............................................................123
Wireless Basics ...............................................................127
What is Wireless?...................................................................... 128
Tips................................................................................................ 130
Wireless Modes......................................................................... 131
Networking Basics.........................................................132
Check your IP address............................................................ 132
Statically Assign an IP address............................................ 133
Wireless Security ......................................................... 134
What is WPA? ................................................................ 134
Technical Specications ................................................135
Regulatory Statements .................................................136

1D-Link DIR-867 User Manual
Section 1 - Product Overview
Product Overview
Package Contents
Note: Using a power supply with a dierent voltage rating than the one included with the DIR-867 will cause damage and void the warranty
for this product.
If any of the above items are missing or damaged, please contact your local reseller.

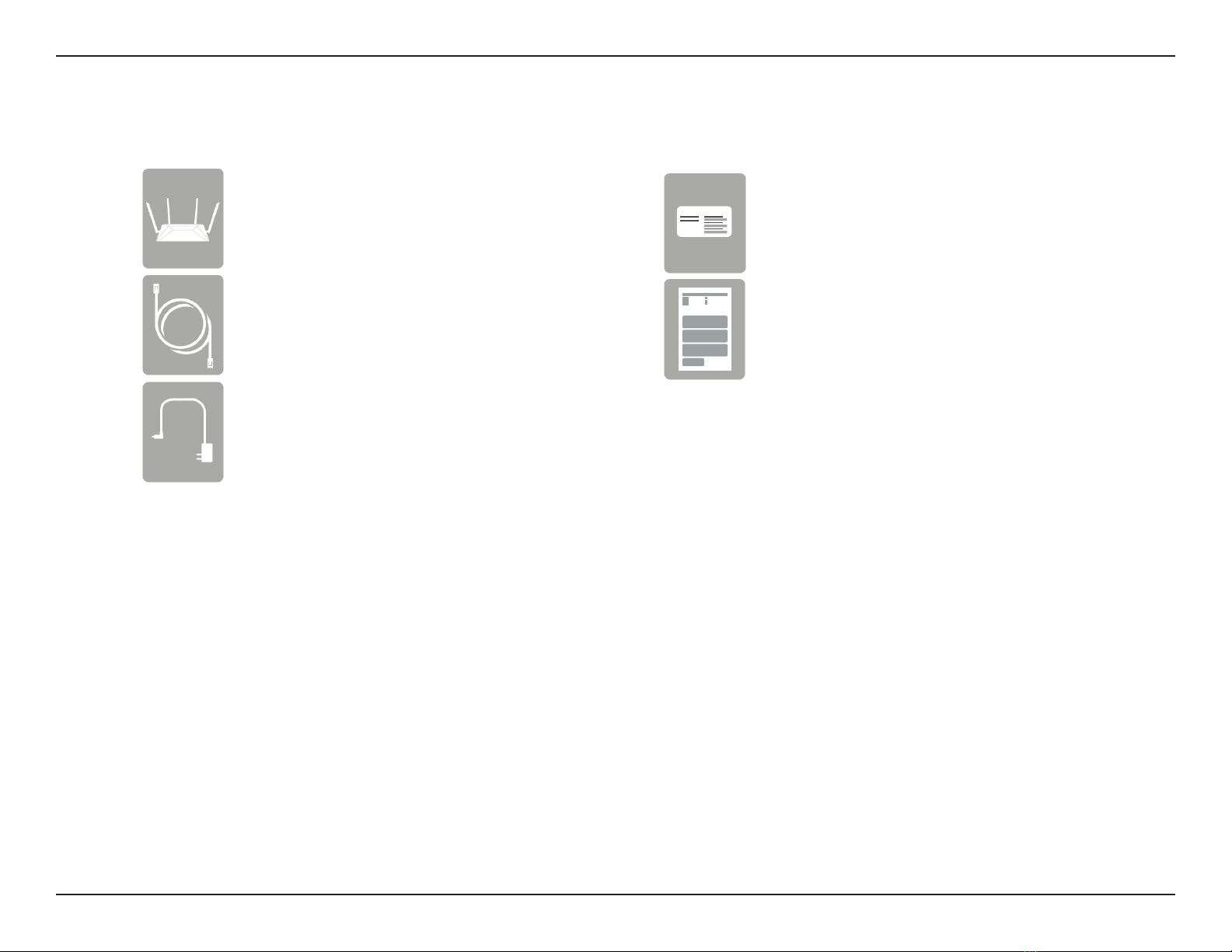

DIR-867
Ethernet Cable
Power Adapter
Quick Installation Guide
Wi-Fi Conguration Note Wi-Fi Conguration Card

2D-Link DIR-867 User Manual
Section 1 - Product Overview
Network Requirements
• An Ethernet-based cable or DSL modem
• IEEE 802.11ac/n/g/b/a wireless clients
• 10/100/1000 Ethernet
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 10 or higher
• Firefox 28 or higher
• Safari 6 or higher
• Chrome 28 or higher
Windows®Users: Make sure you have the latest version of Java
installed. Visit www.java.com to download the latest version.
D-Link Wi-Fi APP
Requirements
• iPhone®/iPad®/iPod Touch®, Android™, or Windows smartphone
or tablet. (Please refer to the mobile app's store page to check
whether your device is compatible)
System Requirements

3D-Link DIR-867 User Manual
Section 1 - Product Overview
Introduction
The D-Link DIR-867 AC1750+ MU-MIMO Wi-Fi Gigabit Router shares your Internet connection over a blazing-fast Gigabit
Wireless AC connection of up to 1750+ Mbps (Up to 1300 Mbps 5 GHz Wireless AC and up to 450+ Mbps 2.4 GHz Wireless N)1,
using advanced AC beamforming technology to signicantly outperform 802.11n and other 802.11ac devices. Equipped with
one Gigabit WAN/Internet port and four Gigabit LAN ports to provide wired speeds of up to 10 times faster than standard
10/100 ports, the DIR-867 creates the best networking experience to date.
Featuring four antennas and a 3 x 3 Multiple In Multiple Out (MIMO) antenna conguration, the DIR-867 oers better
data rates, fewer dead-spots, more coverage, and higher reliability. Operating exclusively in the 5 GHz band, the DIR-867's
802.11ac wireless connections avoid the crowded 2.4 GHz band, allowing you faster speeds while still maintaining backwards
compatibility with older 802.11n/g/b devices. The DIR-867 prepares your home to become a Connected Home by bringing Wi-
Fi to places your old signal can’t reach. A stronger Wi-Fi signal means you can install more wireless surveillance cameras, baby
monitors, sensors, and alarms in the places where you need them.
The DIR-867's Smart Connect Technology makes connecting to wireless networks easy by eliminating the confusion of multiple
networks. Ever since the introduction of 5 GHz multi-band wireless technology, users have had to guess whether the 5 GHz
or 2.4 GHz band network would provide them with better range and speed. Smart Connect simplies this by only presenting
a single wireless network for you to connect to. Behind the scenes, when a connection is initiated, the DIR-867's advanced
algorithms determine the best band for your device to connect to, automatically distributing devices to the optimal band,
thereby ensuring a faster, more reliable, and hassle-free experience for all of your users and devices.
This router is equipped with D-Link's Quick VPN technology. Using Quick VPN allows you to securely connect your computer
or mobile device to places with free, untrusted Wi-Fi hotspots by encrypting and relaying your connection through your home
Internet connection. This extra 'hop' reduces the chances of hackers stealing your information, such as logins, passwords, and
credit card numbers. When traveling, Quick VPN lets you watch sports and use video streaming services without experiencing
blackouts or ltering. You can surf the whole Internet unltered and unblocked, just as you would at home.

4D-Link DIR-867 User Manual
Section 1 - Product Overview
The DIR-867 supports the latest wireless security features to help prevent unauthorized access, be it from over a wireless
network or the Internet. Support for WPA™ and WPA2™ standards ensure that you will be able to use the best possible
encryption regardless of your client devices. In addition, this router is equipped with a dual-active rewall (SPI and NAT) to
prevent potential attacks over the Internet.
The DIR-867 AC1750+ MU-MIMO Wi-Fi Gigabit Router provides incredible speeds, smart antenna technology, fast ports, cloud
features, and terric security features. It also features an innovative design and easy installation options.
1 Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11g, 802.11n and 802.11ac specications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate.
Introduction (continued)

5D-Link DIR-867 User Manual
Section 1 - Product Overview
• Superior Wireless Networking - The DIR-867 provides Gigabit wireless speeds of up to a combined 1750+ Mbps (1300
Mbps 802.11ac 5 GHz, plus 450+ Mbps 802.11n 2.4 GHz)1. This capability rivals wired connections, allowing users to
participate in real-time activities online, such as HD video communication, online gaming, and use mobile devices from
anywhere in your home while still oering full 802.11n/g/b backward compatibility.
• Extreme Wired LAN and WAN Networking - With four 10/100/1000 Gigabit Ethernet LAN ports, and a 10/100/1000
Gigabit Ethernet WAN port, the DIR-867 has an enormous amount of bandwidth to take full advantage of the highest
speed broadband connections available.
IPv6 Support - The DIR-867 fully supports IPv6 and includes support for a variety of IPv6 connection types including:
SLAAC/DHCPv6, 6to4, 6rd, Static IPv6, IPv6 PPPoE, IPv6 in IPv4 tunneling, and local connectivity.
• Smart Connect - Creates a 'single' wireless network for your devices to connect to. Behind the scenes, the DIR-867
automatically determines whether to connect a device to the 2.4 or 5 GHz band, thereby providing the best speed and
range for each device and optimally distributing devices to each network.
• Advanced Firewall Features - The web-based user interface displays a number of advanced network management
features. Easily apply content ltering based on MAC address, URL, and/or domain name. Schedule these lters to be
active on certain days or for a duration of hours or minutes.
• Secure Multiple/Concurrent Sessions - The DIR-867 can pass through VPN sessions. It supports multiple and
concurrent IPSec and PPTP sessions, so users behind the DIR-867 can access corporate networks through encrypted
channels.
• User-friendly Setup Wizard - Through its easy-to-use web-based user interface or Wi-Fi APP, the DIR-867 lets you
quickly congure and secure your router to your specic settings in minutes.
1 Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11g, 802.11n and 802.11ac specications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely aect wireless signal range.
Features

6D-Link DIR-867 User Manual
Section 1 - Product Overview
Hardware Overview
LED Indicators

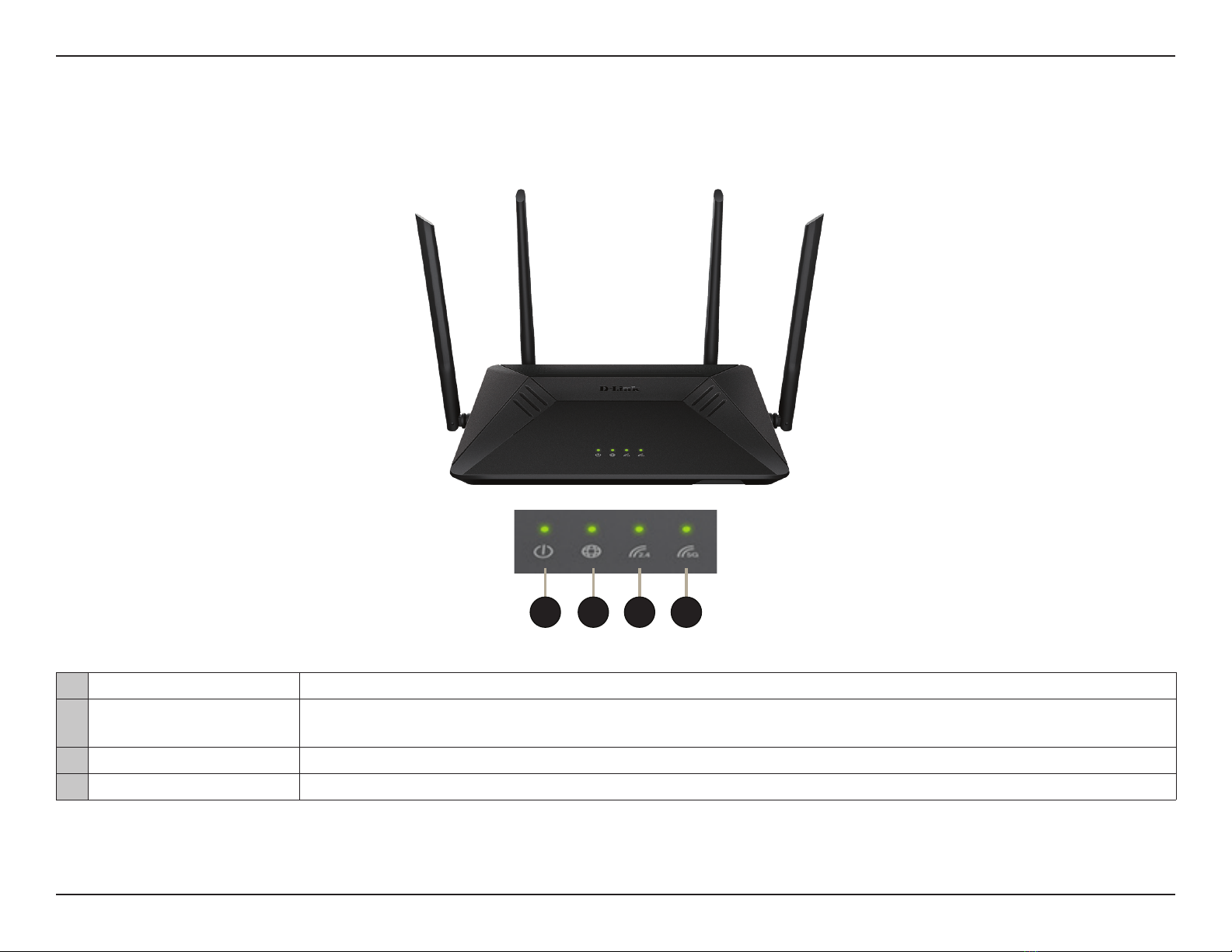

1 Power LED A solid light indicates a proper connection to the power supply. The light will be solid orange during boot up.
2 Internet LED A solid light indicates a connection on the Internet port. If the LED is orange, the router cannot connect to the
Internet.
3 Wireless (2.4 GHz LED) A solid light indicates that the 2.4 GHz wireless band is enabled.
4 Wireless (5 GHz LED) A solid light indicates that the 5 GHz wireless band is enabled.
3 421

7D-Link DIR-867 User Manual
Section 1 - Product Overview
Hardware Overview
Back Panel

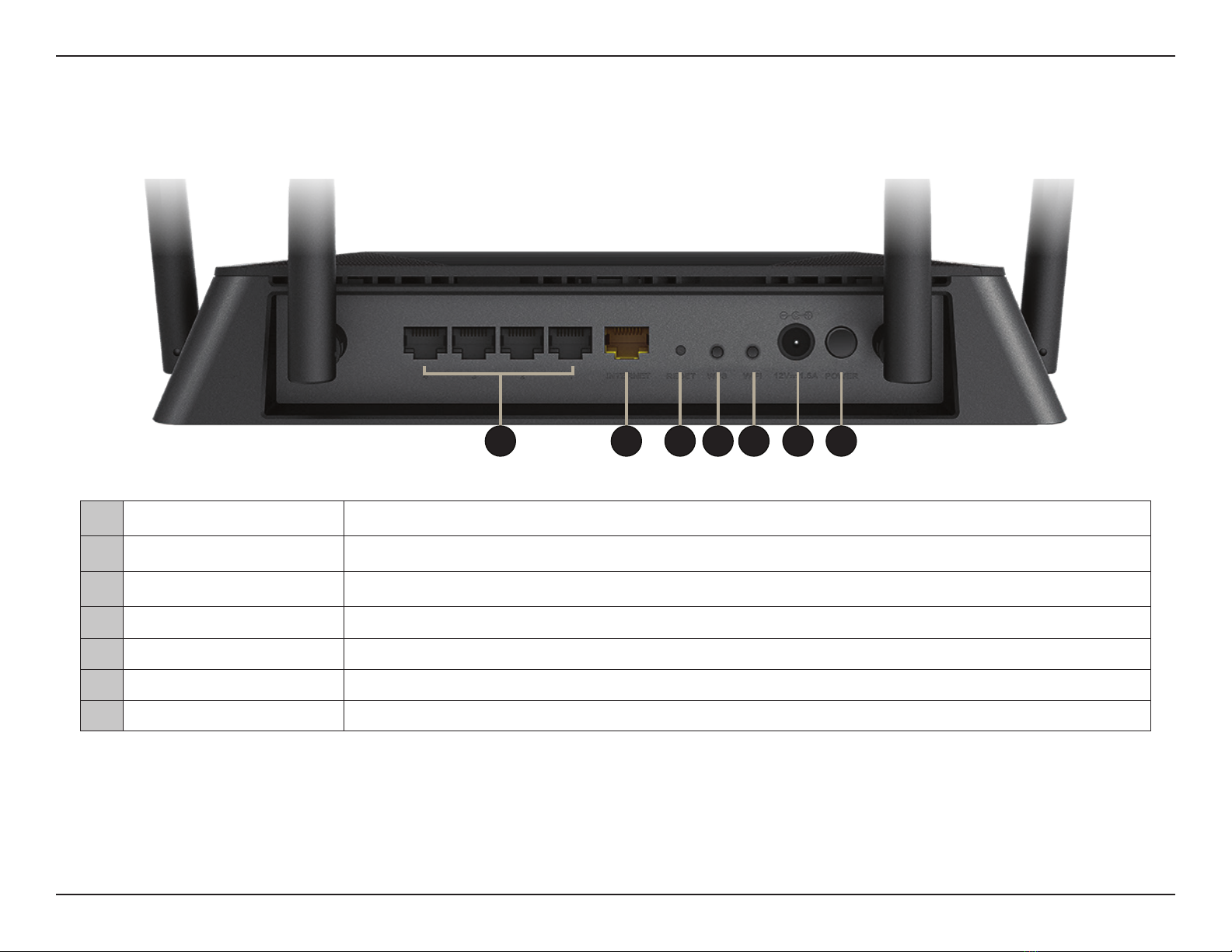

1 Gigabit LAN Ports (1- 4) Connect Ethernet devices such as computers, switches, storage (NAS) devices, and game consoles.
2Gigabit WAN Port Using an Ethernet cable, connect your broadband modem to this port.
3 Reset Button Insert a paperclip in the hole, wait for 10 seconds, and release to reset the router to default settings.
4 WPS Button Press to start the WPS process and automatically create a secure connection to a WPS client.
5 Wi-Fi Button Press this button turn o or turn on the wireless networks.
6 Power Connector Connector for the supplied power adapter.
7 Power Button Press the power button to power the device on or o.
3 4 5 6 721

8D-Link DIR-867 User Manual
Section 3 - Installation
Before you Begin
• Placement of the router is very important. Do not place the router in an enclosed area such as a closet, cabinet,
attic, or garage.
• Congure the router with the computer that was last connected directly to your Internet connection. Verify that it
is connected to the Internet before connecting additional devices.
• If your ISP provided you with a modem/router combo, you will need to set it to“bridge”mode so the router can
work properly. Please contact your ISP or refer to the user manual for your modem/router device.
• You can only use the Ethernet port on your modem. If you were using the USB connection before using the router,
then you must turn o your modem, disconnect the USB cable and connect an Ethernet cable to the Internet
port on the router, and then turn the modem back on. In some cases, you may need to call your Internet Service
Provider (ISP) to change connection types (USB to Ethernet).
• If connecting to a DSL modem, make sure to have your DSL service information provided by your Internet Service
Provider handy. This information is likely to include your DSL account's Username and Password. Your ISP may also
supply you with additional WAN conguration settings which might be necessary to establish a connection.
• If you are connecting a considerable amount of networking equipment, it may be a good idea to take the time to
label each cable or take a picture of your existing setup before making any changes.
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as
WinPoET, BroadJump, or EnterNet 300 from your computer or you will not be able to connect to the Internet.
This section will walk you through the installation of the DIR-867.
Installation

9D-Link DIR-867 User Manual
Section 3 - Installation
Wireless Installation Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind that the number, thickness and location of walls, ceilings, or other
objects that the wireless signals must pass through may limit the range. Typical ranges vary depending on the types of
materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum -
each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that
the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree
angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick!
Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better
reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on
range. Try to position access points, wireless routers, and computers so that the signal passes through drywall or
open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors,
le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home
security systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4
GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the
phone is not in use.

10D-Link DIR-867 User Manual
Section 3 - Installation

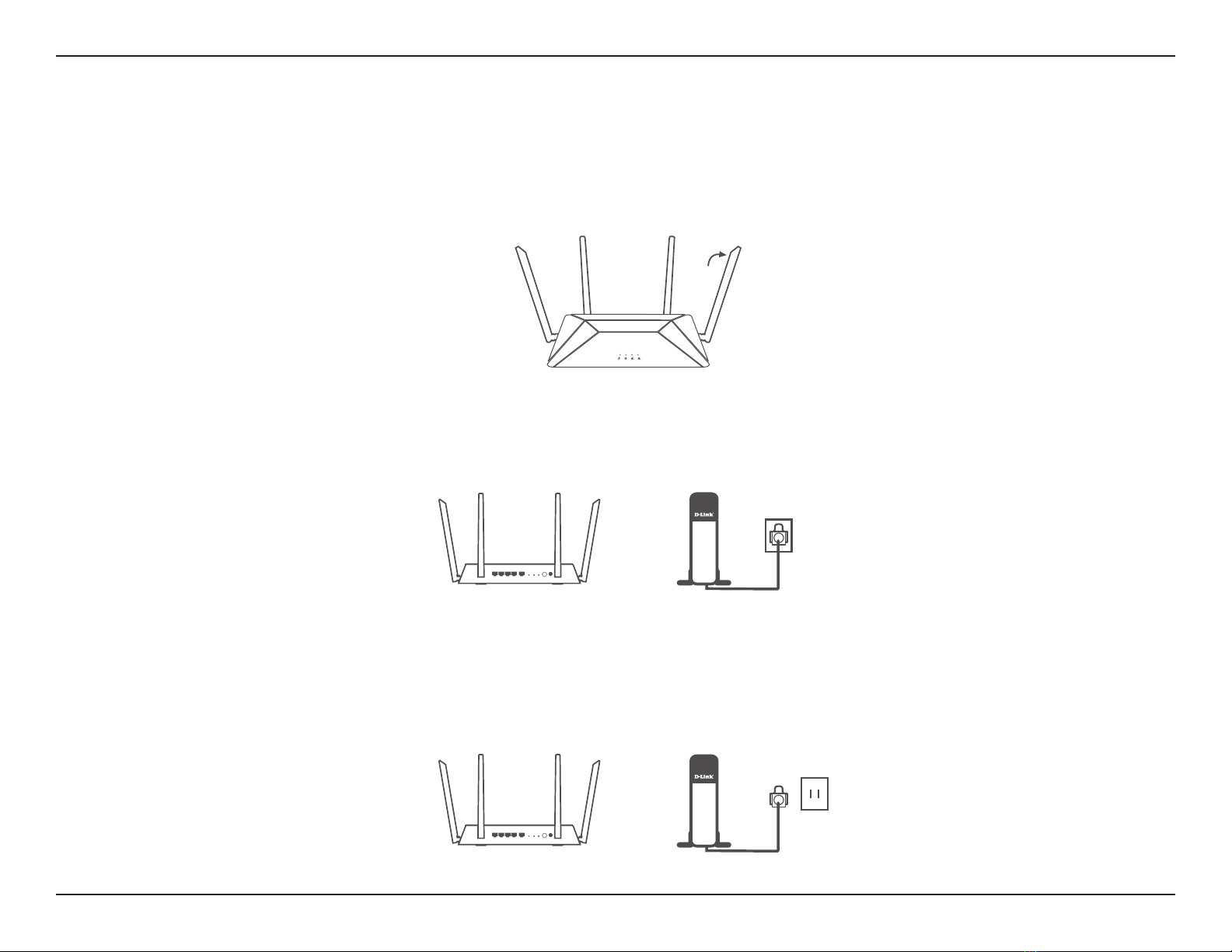

2. Position your DIR-867 near your Internet-connected modem. Place it in an open area for better wireless coverage.
1. The DIR-867 is designed to give you the fastest, most stable network connection possible. In order to maximize
performance, fully extend the antennas into a 105 degree angle to provide optimal wireless coverage. Keep the router
in an open area for better wireless coverage.

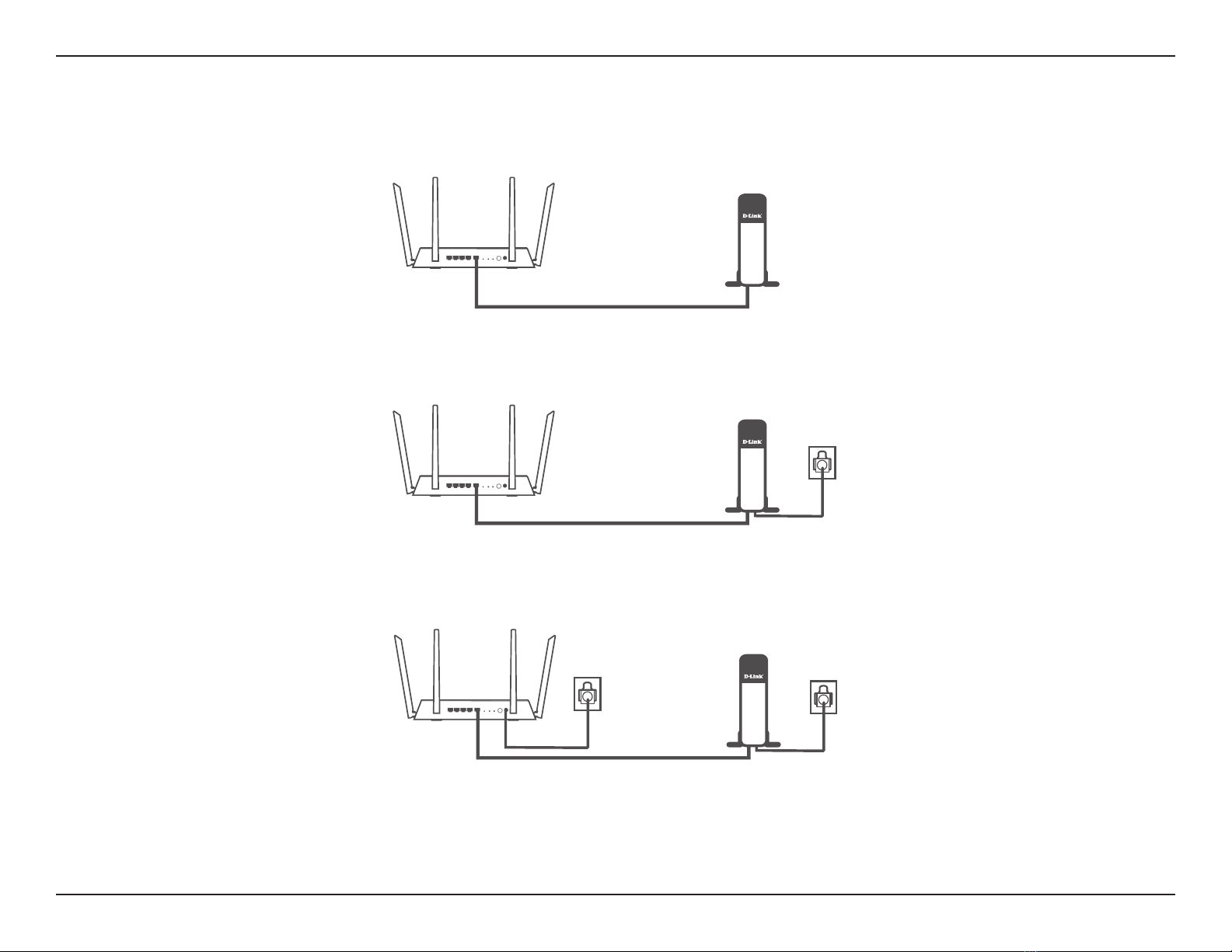

3. Turn o and unplug the power and Ethernet cable to your cable or DSL broadband modem. This is required. In some
cases, you may need to turn it o for up to ve minutes.
Modem
Modem
Hardware Setup
105°
DIR-867
DIR-867

11D-Link DIR-867 User Manual
Section 3 - Installation
DIR-867
DIR-867
DIR-867
5. Turn on or plug your modem back in and wait approximately one minute before proceeding onward.
6. Connect the supplied power adapter to the router and a power outlet, press the power button, and wait approximately
one minute until the LED indicator on the front of the device changes from orange to solid white.
Modem
4. Use the included Ethernet cable to connect your modem to the yellow port labeled INTERNET on the router.
Modem
Note: This unit is to be used with power supply model DA-60N12.
Modem

12D-Link DIR-867 User Manual
Section 3 - Installation
DIR-867
DIR-867

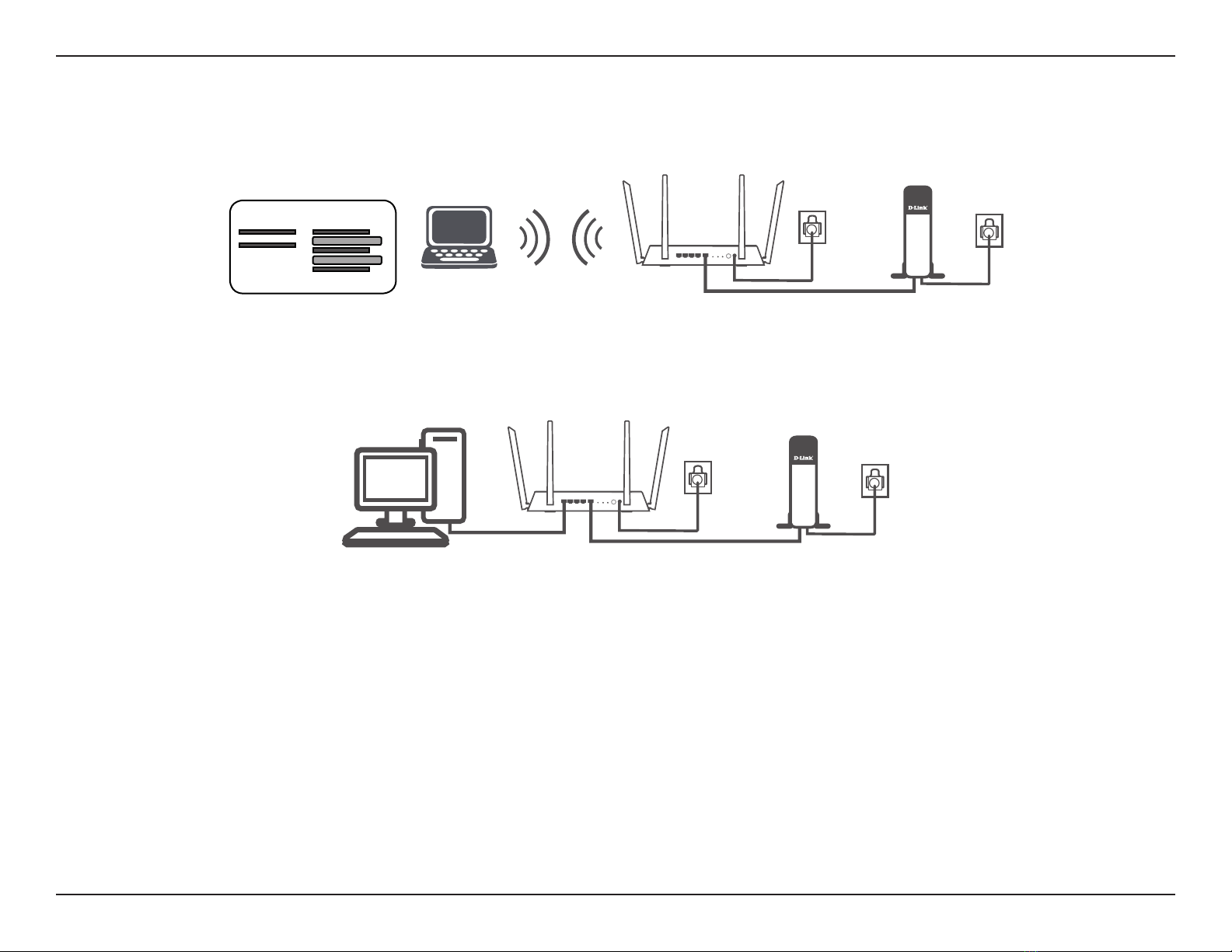

If you are conguring the DIR-867 from a PC with a wired Ethernet connection, plug one end of an Ethernet cable
into the port labeled 1 on the back of the router, and the other end into the Ethernet port on your computer.
Wi-Fi Conguration Note
Modem
7. If you are conguring the DIR-867 wirelessly from a PC, connect to a Wi-Fi network printed on the included Wi-Fi
Conguration Card. You can also nd the Wi-Fi network names and passwords printed on the label attached to the
bottom your router.
Modem
8. If you are connecting to a broadband service that uses a dynamic connection (not PPPoE), you may be online already.
Try opening a web browser and connecting to a website. If the website does not load, proceed to Completing Setup
on page 13.

13D-Link DIR-867 User Manual
Section 3 - Installation
Completing Setup
There are several dierent ways you can congure your router to connect to the Internet and connect to your clients:
• D-Link Setup Wizard - This wizard will launch when you log into the router for the rst time.
Refer to Setup Wizard on page 14.
• Manual Setup - Log in to the router and manually congure your router.
Refer to Conguration on page 18.

14D-Link DIR-867 User Manual
Section 3 - Installation
The wizard is designed to guide you through a step-by-step process to congure
your new D-Link router and connect to the Internet.
Click Next to continue.
Setup Wizard

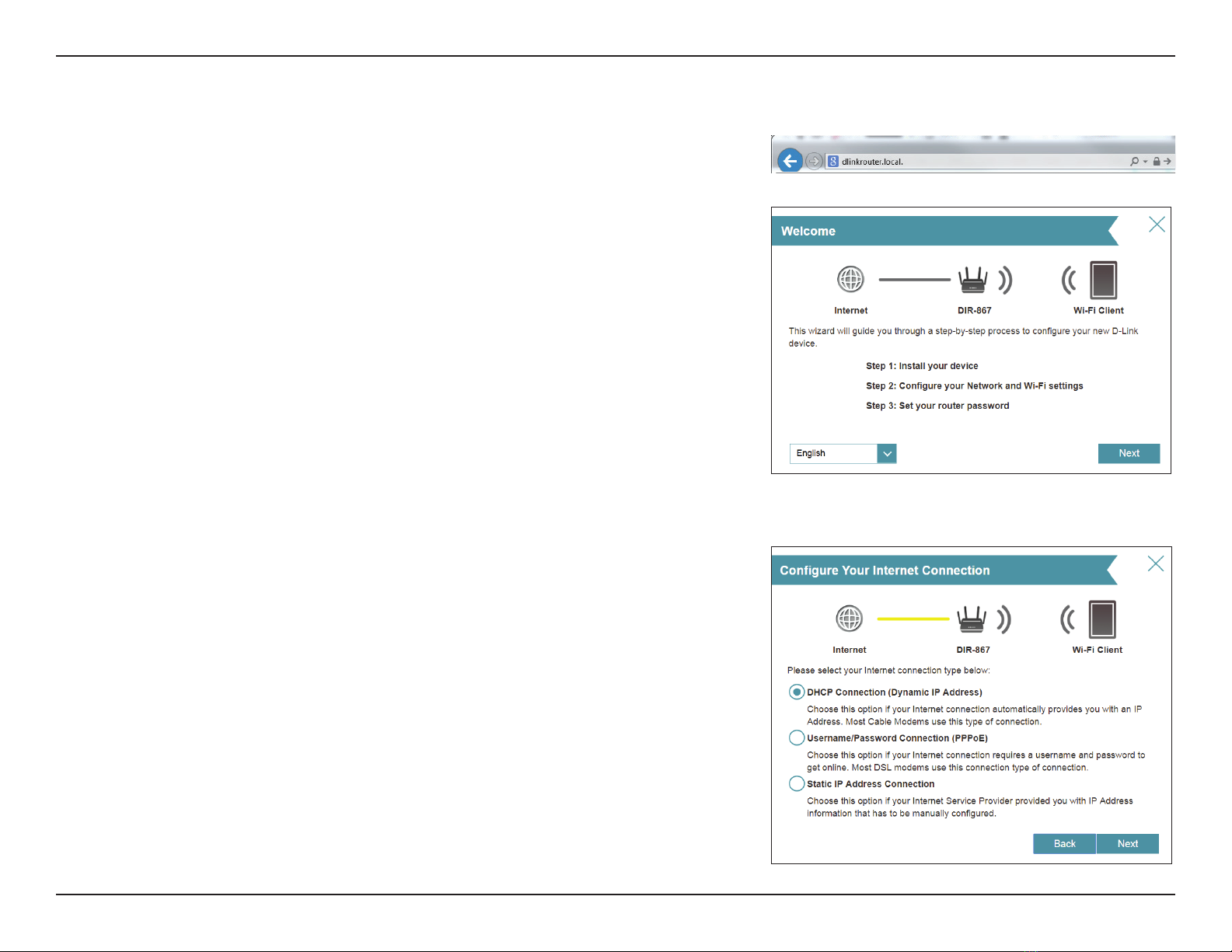

If this is your rst time installing the router, open your web browser and enter
http://dlinkrouter.local./ in the address bar. Alternatively, enter the IP address
of the router (default: http://192.168.0.1).
Please wait while your router detects your Internet connection type. If the router
detects your Internet connection, you may need to enter your ISP information
such as username and password.
If the router does not detect a valid Internet connection, a list of connection
types to choose from will be displayed.
Select your Internet connection type (this information can be obtained from
your Internet Service Provider) and click Next to continue.

15D-Link DIR-867 User Manual
Section 3 - Installation

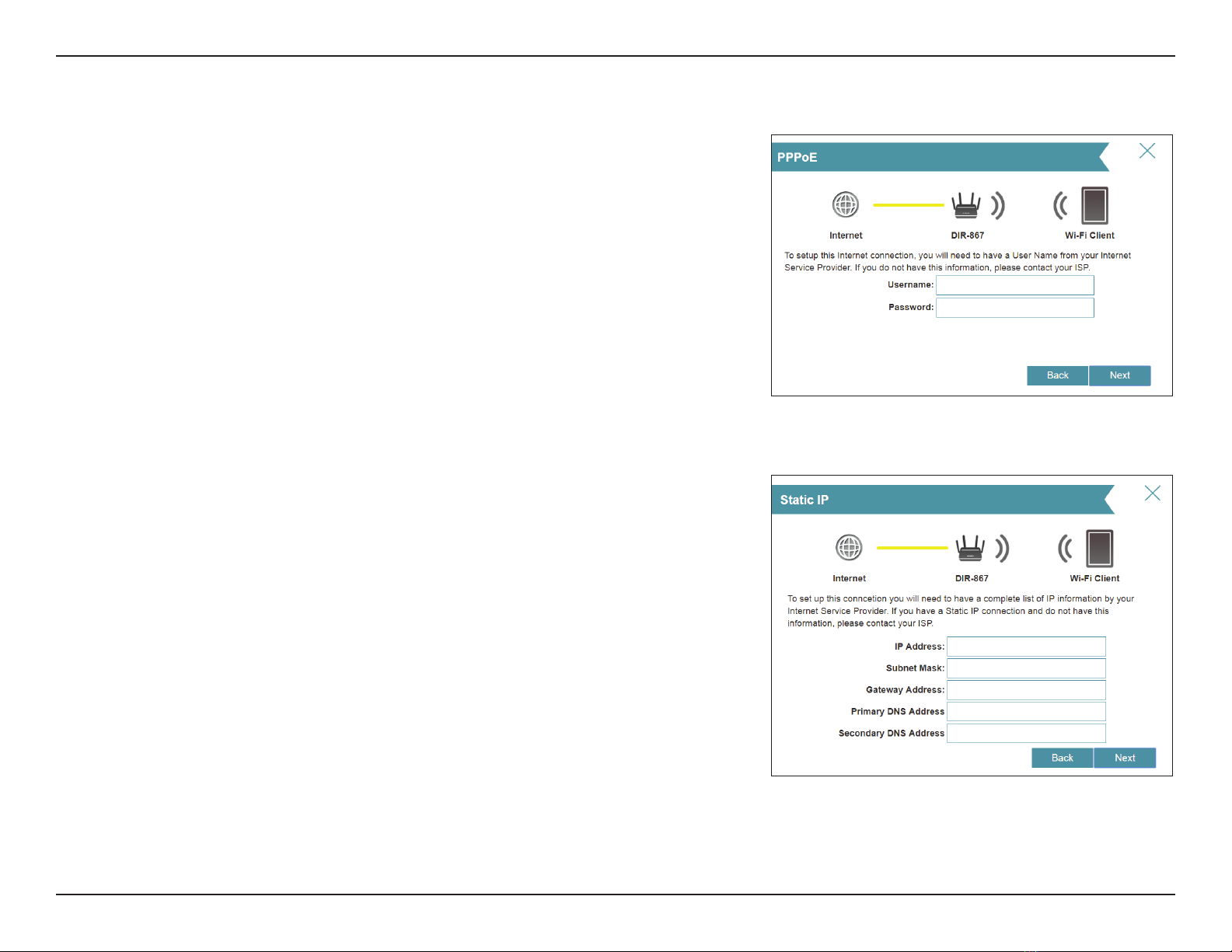

If the router detected or you selected PPPoE, enter your PPPoE username and
password and click Next to continue.
Note: Make sure to remove your PPPoE software from your computer. The software
is no longer needed and will not work through a router.
If the router detected or you selected Static, enter the IP and DNS settings
supplied by your ISP. Click Next to continue.
Setup Wizard (continued)

16D-Link DIR-867 User Manual
Section 3 - Installation
Create a Wi-Fi password (between 8-63 characters). Your wireless clients will
need to have this passphrase or key entered to be able to connect to your
wireless network.
Click Next to continue.
Note:The DIR-867's Smart Connect feature presents a single wireless network.
When connecting clients to an extension network, they will be automatically
added to the best band, either 2.4 GHz or 5 GHz. To disable the Smart Connect
feature and individually congure 2.4 GHz and 5 GHz networks, refer to Wireless
on page 54.
In order to secure the router, please enter a new password.You will be prompted
for this password every time you want to use the router’s web conguration
utility. Click Next to continue.
Setup Wizard (continued)
