D-Link DIR-320 User manual

Quick Installation Guide
DIR-320
Wireless N150 Router with 3G/CDMA/LTE Su ort
and USB Port

DIR-320 Quick Installation Guide
BEFORE YOU BEGIN
Delivery Package
•Router DIR-320
•Power adapter DC 12V/1A
•Ethernet cable
•“Quick Installation Guide” brochure).
If any of the items are missing, please contact your reseller.
The “User Manual” and “Quick Installation Guide” documents are available
on D-Link website see www.dlink.ru).
!Using a power supply with a different voltage rating than the one
included will cause damage and void the warranty for this product.
Default Settings
IP address o wireless router 192.168.0.1
Username (login) admin
Password admin
Name o wireless network (SSID) DIR-320
Network key (PSK)
see WPS PIN on the
barcode label on the
bottom panel of the
device
For security reasons, router DIR-320 with default settings cannot connect to
the Internet. To get started, please set your own password used to access the
web-based interface and, if needed, configure other settings recommended by
your ISP.
2

DIR-320 Quick Installation Guide
System Requirements and Equipment
•A computer with any operating system that supports a web browser.
•A web browser to access the web-based interface of the router:
◦Apple Safari 5 and later
◦Google Chrome 5 and later
◦Microsoft Internet Explorer 8 and later
◦Mozilla Firefox 5 and later
◦Opera 10 and later.
•A NIC Ethernet or Wi-Fi adapter) to connect to the router.
•An 802.11b, g, or n Wi-Fi adapter to create a wireless network.
•A USB modem when it is necessary to connect to the Internet via mobile
operators' networks)1.
!
Your USB modem should be equipped with an active identification
card SIM or R-UIM) of your operator.
Some operators require subscribers to activate their USB modems prior
to using them. Please, refer to connection guidelines provided by your
operator when concluding the agreement or placed on its website.
For LTE and CDMA USB modems, it is required to disable the PIN
code check on the identification card prior to connecting the USB
modem to the router.
1 Contact your operator to get information on the service coverage and fees.
3

DIR-320 Quick Installation Guide
Supported USB Modems
GSM modems
•Alcatel X500
•D-Link DWM-152C1
•D-Link DWM-156A6
•D-Link DWM-156A7
•D-Link DWM-156C1
•D-Link DWM-157B1
•D-Link DWM-157B1 Velcom)
•D-Link DWM-158D1
•Huawei E150
•Huawei E1550
•Huawei E156G
•Huawei E160G
•Huawei E169G
•Huawei E171
•Huawei E173 Megafon)
•Huawei E220
•Huawei E352 Megafon)
•Huawei E367 3G mode)
•Huawei E392 3G mode)
•ZTE MF112
•ZTE MF192
•ZTE MF626
•ZTE MF627
•ZTE MF652
•ZTE MF667
•ZTE MF668
•ZTE MF752
4

DIR-320 Quick Installation Guide
CDMA modems2
•Airplus MCD-650
•Airplus MCD-800
•AnyDATA ADU-300A
•AnyDATA ADU-500A
•AnyDATA ADU-510A
•Huawei EC306
•ZTE AC5710
•ZTE AC5730
L E modems
•Huawei E3131
•Huawei E3272
•Huawei E3351
•Huawei E367
•Huawei E392
•Megafon M100-1
•Megafon M100-3
•Megafon M100-4
•Megafon M150-1
•MTS 824F
•Yota LU-150
•Yota WLTUBA-107
•ZTE MF823
•ZTE MF827
!The manufacturer does not guarantee proper operation of the router
with every modification of the firmware of USB modems.
2 Performance of CDMA USB modems is not tested for the current firmware version.
5

DIR-320 Quick Installation Guide
CONNECTING TO PC
PC wit Et ernet Adapter
1. Make sure that your PC is powered off.
2. Connect an Ethernet cable between any of LAN ports located on the back
panel of the router and the Ethernet port of your PC.
3. To connect via an LTE, 3G GSM or CDMA network: connect your USB
modem to the USB port3 located on the left side panel of the router.
!If you need to connect or change a USB modem to another one when
the router is powered on, power off the router, connect the modem to
the USB port, and power on the router.
4. Connect the power cord to the power connector port on the back panel of
the router, then plug the power adapter into an electrical outlet or power
strip.
5. Turn on the router by pressing the ON/OFF button on its back panel.
6. Turn on your PC and wait until your operating system is completely
loaded.
Now you should configure your PC to obtain an IP address automatically as
DHCP client).
3 It is recommended to use a USB extension cable to connect a USB modem to the
router.
6

DIR-320 Quick Installation Guide
Obtaining IP Address Automatically
in OS Windows XP
1. Click the Start button and proceed to the Control Panel > Network
and Internet Connections > Network Connections window.

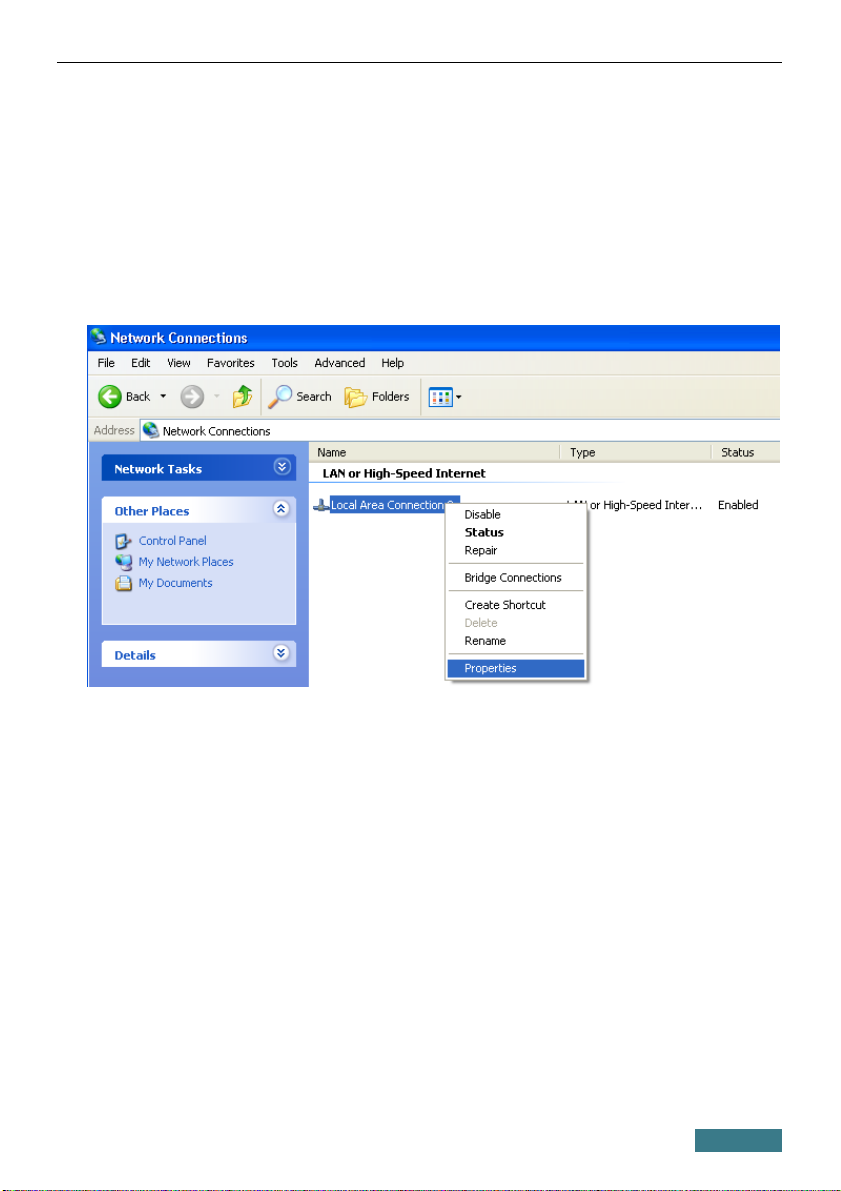

2. In the Network Connections window, right-click the relevant Local
Area Connection icon and select the Properties line in the menu
displayed.
3. In the Local Area Connection Properties window, on the General
tab, select the Internet Protocol (TCP/IP) line. Click the Properties
button.
7

DIR-320 Quick Installation Guide

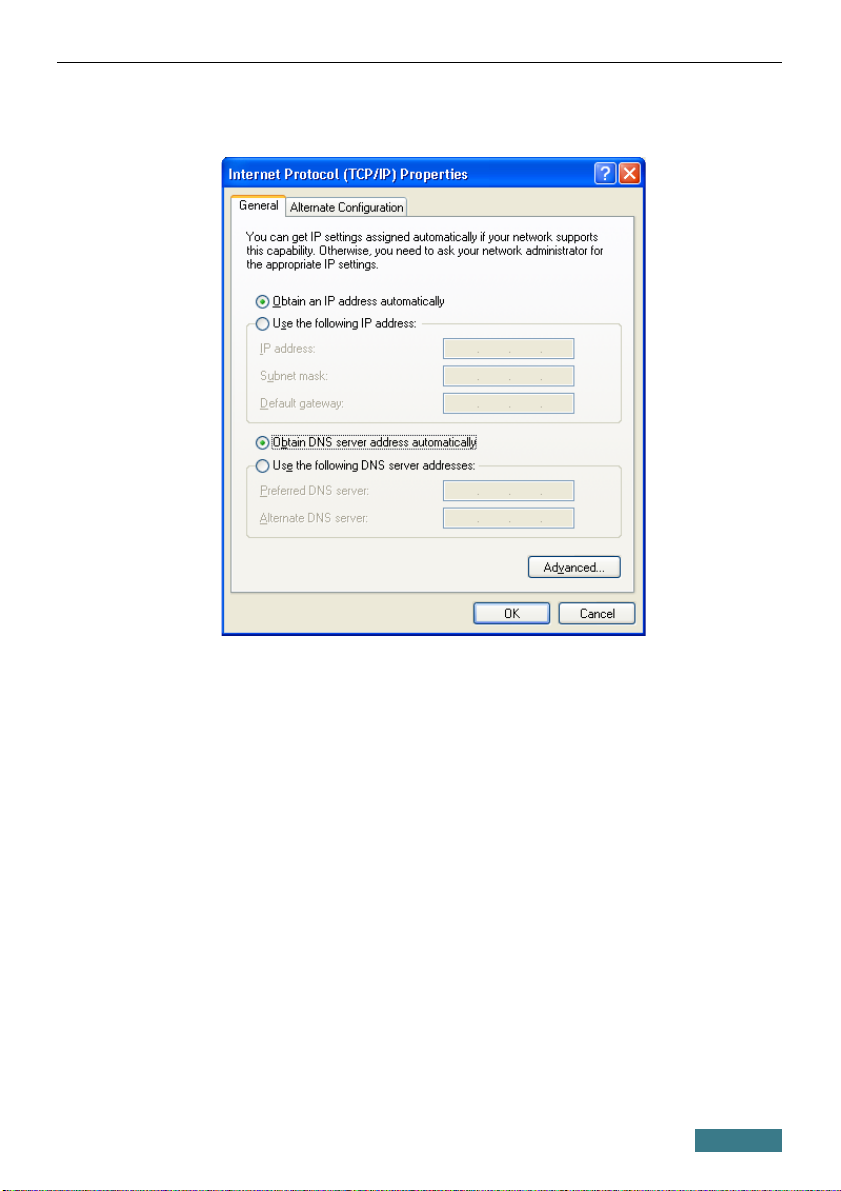

4. Select the Obtain an IP address automatically and Obtain DNS
server address automatically radio buttons. Click the OK button.
5. Click the ОК button in the connection properties window.
Now your computer is configured to obtain an IP address automatically.
8

DIR-320 Quick Installation Guide
Obtaining IP Address Automatically
in OS Windows 7
1. Click the Start button and proceed to the Control Panel window.
2. Select the Network and Sharing Center section. If the Control Panel
has the category view the Category value is selected from the View by
drop-down list in the top right corner of the window), choose the View
network status and tasks line under the Network and Internet
section.)
3. In the menu located on the left part of the window, select the Change
adapter settings line.

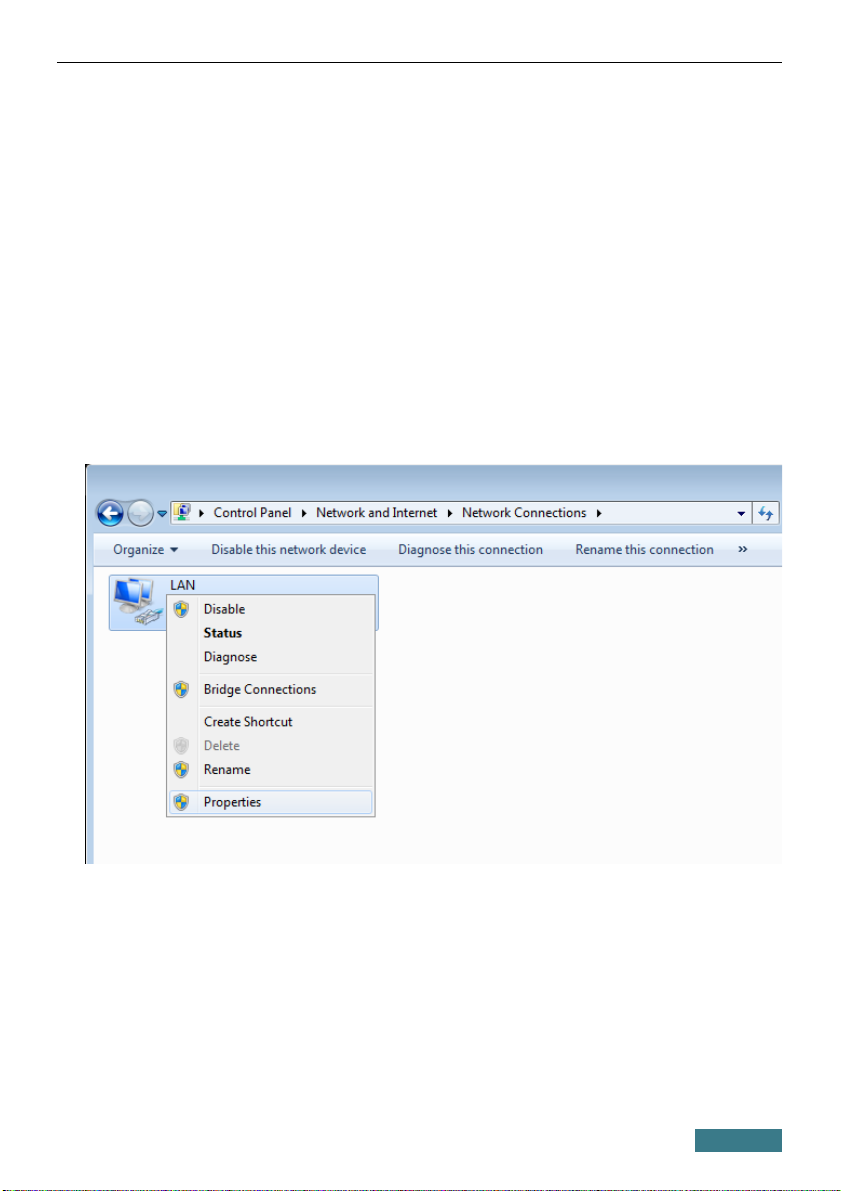

4. In the opened window, right-click the relevant Local Area Connection
icon and select the Properties line in the menu displayed.
5. In the Local Area Connection Properties window, on the
Networking tab, select the Internet Protocol Version 4 (TCP/IPv4)
line. Click the Properties button.
9

DIR-320 Quick Installation Guide

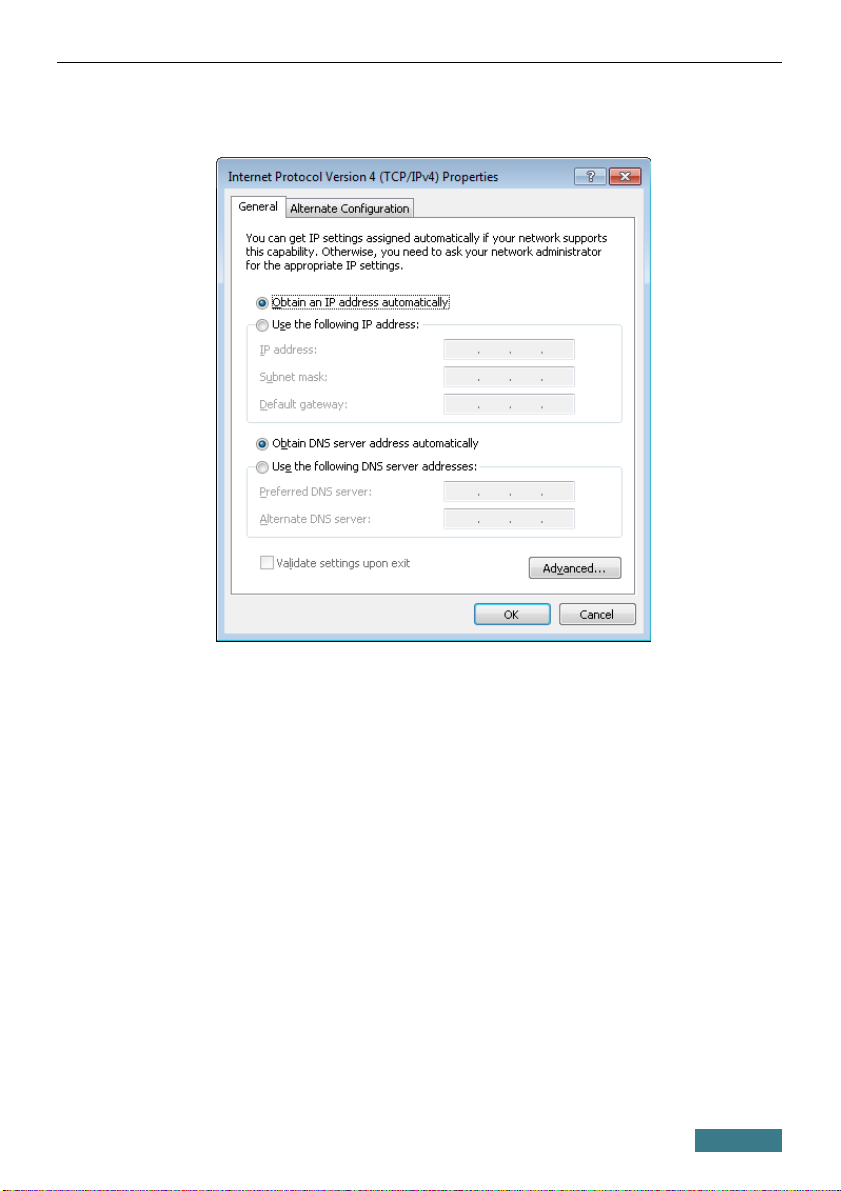

6. Select the Obtain an IP address automatically and Obtain DNS
server address automatically radio buttons. Click the OK button.
7. Click the OK button in the connection properties window.
Now your computer is configured to obtain an IP address automatically.
10

DIR-320 Quick Installation Guide
PC wit Wi-Fi Adapter
1. To connect via an LTE, 3G GSM or CDMA network: connect your USB
modem to the USB port4 located on the left side panel of the router.
!If you need to connect or change a USB modem to another one when
the router is powered on, power off the router, connect the modem to
the USB port, and power on the router.
2. Connect the power cord to the power connector port on the back panel of
the router, then plug the power adapter into an electrical outlet or power
strip.
3. Turn on the router by pressing the ON/OFF button on its back panel.
4. Turn on your PC and wait until your operating system is completely
loaded.
5. Turn on your Wi-Fi adapter. As a rule, modern notebooks with built-in
wireless NICs are equipped with a button or switch that turns on/off the
wireless adapter refer to your PC documents). If your PC is equipped
with a pluggable wireless NIC, install the software provided with your
Wi-Fi adapter.
Now you should configure your Wi-Fi adapter.
4 It is recommended to use a USB extension cable to connect a USB modem to the
router.
11

DIR-320 Quick Installation Guide
Configuring Wi-Fi Adapter in OS Windows XP
1. Click the Start button and proceed to the Control Panel > Network
and Internet Connections > Network Connections window.

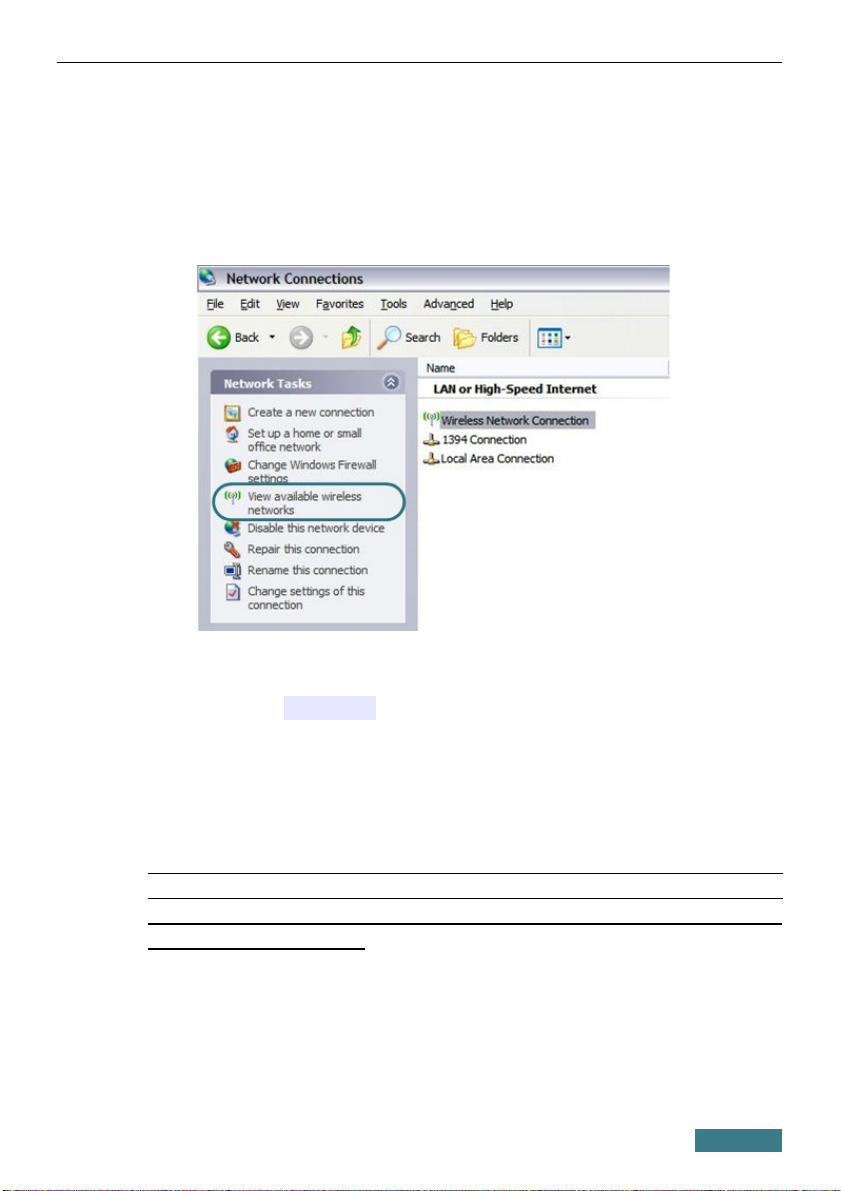

2. Select the icon of the wireless network connection and make sure that
your Wi-Fi adapter is on.
3. Search for available wireless networks.
4. In the opened Wireless Network Connection window, select the
wireless network DIR-320 and click the Connect button.
5. In the opened window, enter the network key see WPS PIN on the
barcode label on the bottom panel of the device) in the Network key and
Con irm network key fields and click the Connect button.
After that the Wireless Network Connection Status window appears.
!
If you perform initial configuration of the router via Wi-Fi connection,
note that immediately after changing the wireless default settings of the
router you will need to reconfigure the wireless connection using the
newly specified settings.
12

DIR-320 Quick Installation Guide
Configuring Wi-Fi Adapter in OS Windows 7
1. Click the Start button and proceed to the Control Panel window.
2. Select the Network and Sharing Center section. If the Control Panel
has the category view the Category value is selected from the View by
drop-down list in the top right corner of the window), choose the View
network status and tasks line under the Network and Internet
section.)
3. In the menu located on the left part of the window, select the Change
adapter settings line.
4. In the opened window, select the icon of the wireless network connection
and make sure that your Wi-Fi adapter is on.
5. To open the list of available wireless networks, select the icon of the
wireless network connection and click the Connect To button or left-
click the network icon in the notification area located on the right side of
the taskbar.
13

DIR-320 Quick Installation Guide

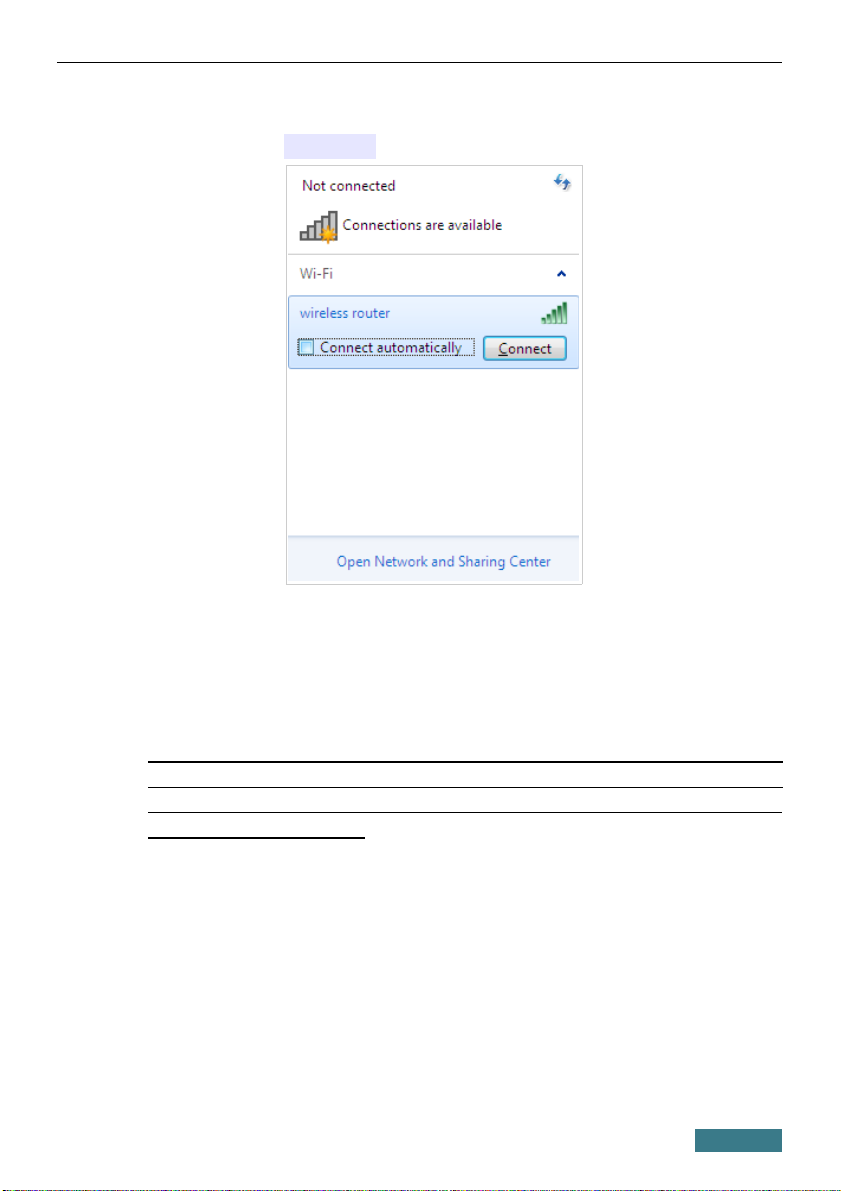

6. In the opened window, in the list of available wireless networks, select the
wireless network DIR-320 and click the Connect button.
7. In the opened window, enter the network key see WPS PIN on the
barcode label on the bottom panel of the device) in the Security key
field and click the OK button.

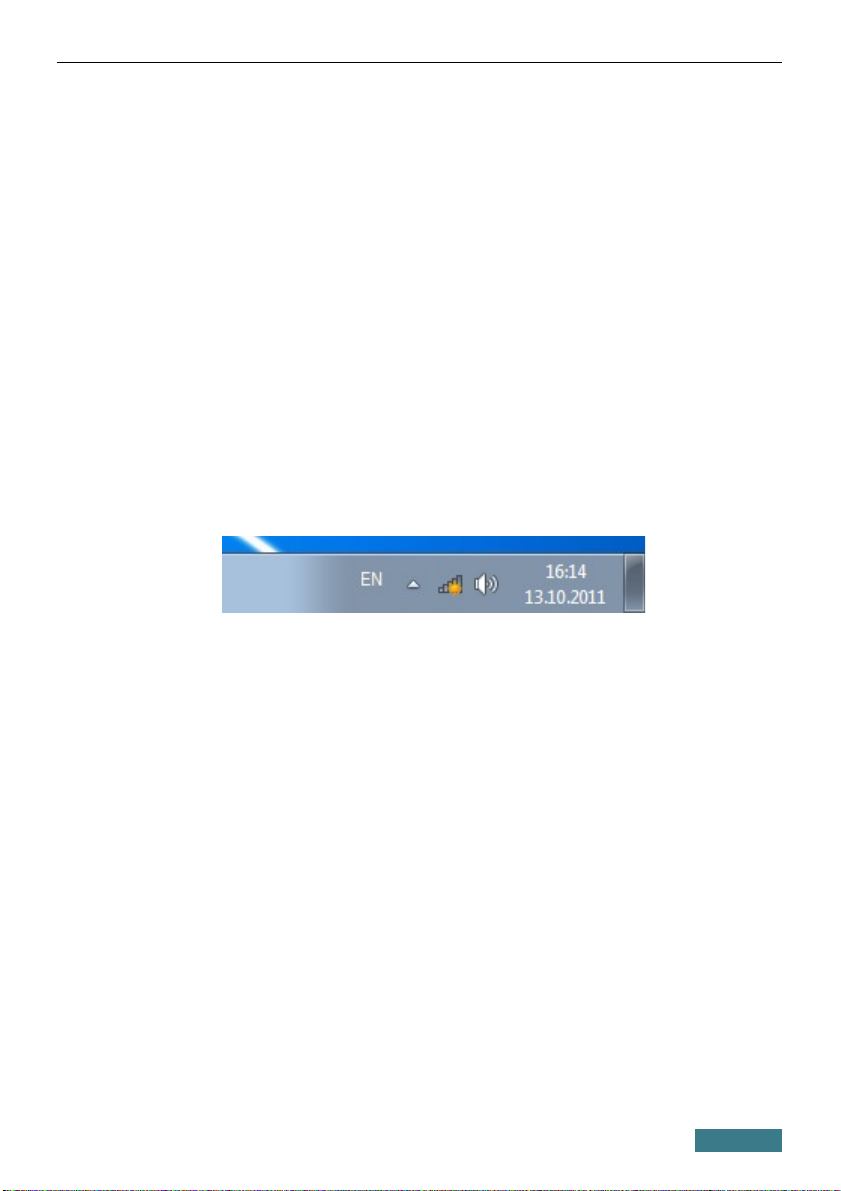

8. Wait for about 20-30 seconds. After the connection is established, the
network icon will be displayed as the signal level scale.
!
If you perform initial configuration of the router via Wi-Fi connection,
note that immediately after changing the wireless default settings of the
router you will need to reconfigure the wireless connection using the
newly specified settings.
14

DIR-320 Quick Installation Guide
CONFIGURING ROUTER
Connecting to Web-based Interface
Start a web browser. In the address bar of the web browser, enter the IP
address of the router by default, the following IP address is specified:
192.168.0.1). Press the Enter key.
!
If the error “ The page cannot be displayed ” or “ Unable to display the
page ”/“ Could not connect to remote server ”) occurs upon connecting to
the web-based interface of the router, make sure that you have properly
connected the router to your computer.

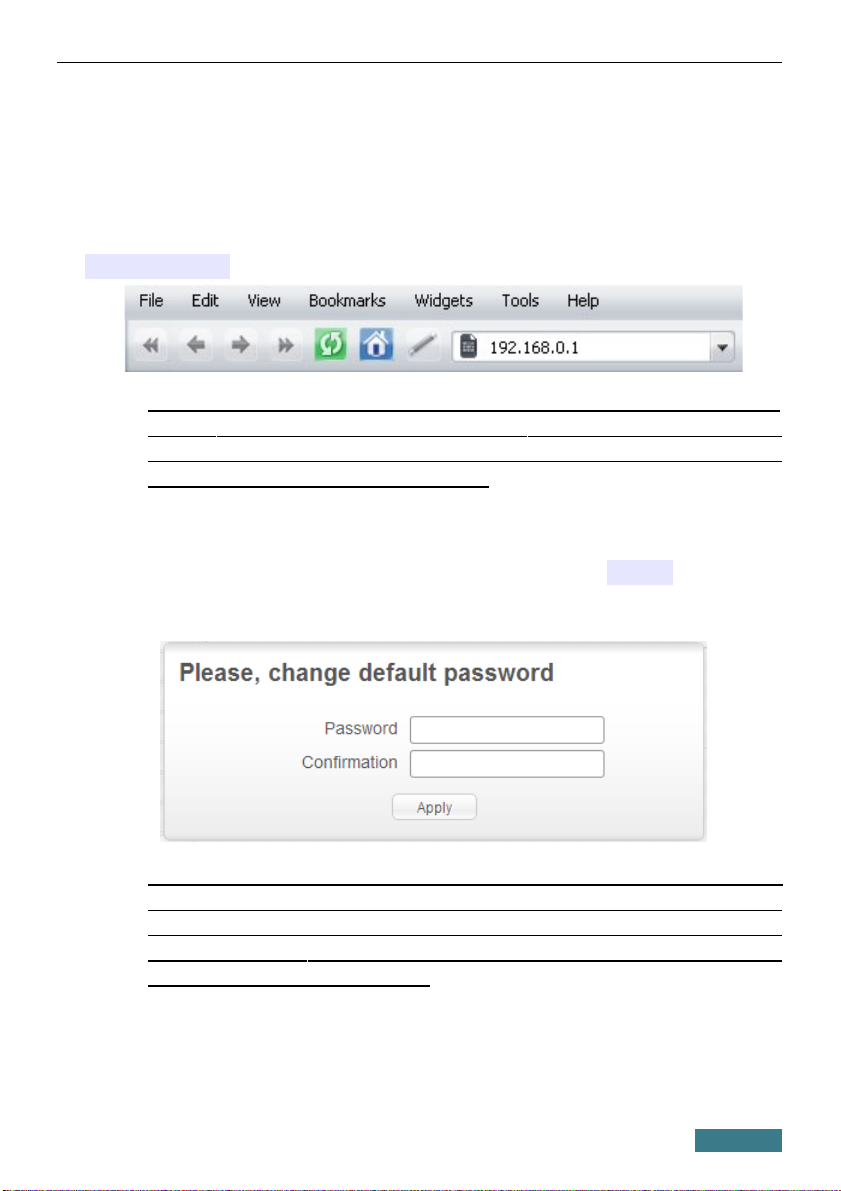

After the first access to the web-based interface you need to change the default
administrator password. Enter the new password in the Password and
Con irmation fields. You may set any password except admin. Use digits,
Latin letters uppercase and/or lowercase), and characters available on the
keyboard. Then click the Apply button.
!
Remember or write down the new password for the administrator
account. In case of losing the new password, you can access the settings
of the router only after restoring the factory default settings via the
hardware RESE button. This procedure wipes out all settings that you
have configured for your router.
15

DIR-320 Quick Installation Guide

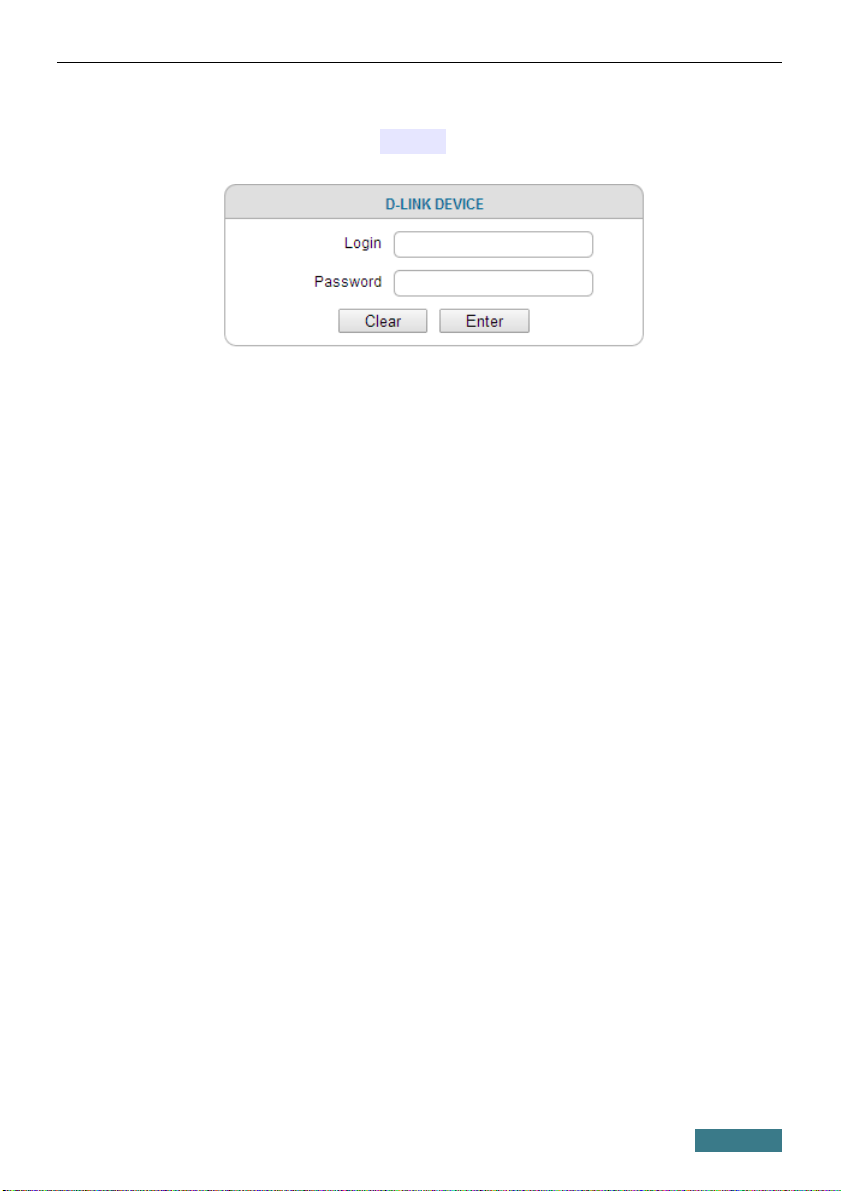

When the web-based interface is accessed the next time and after, the login
page opens. Enter the username admin) in the Login field and the password
you specified in the Password field, then click the Enter button.
16

DIR-320 Quick Installation Guide

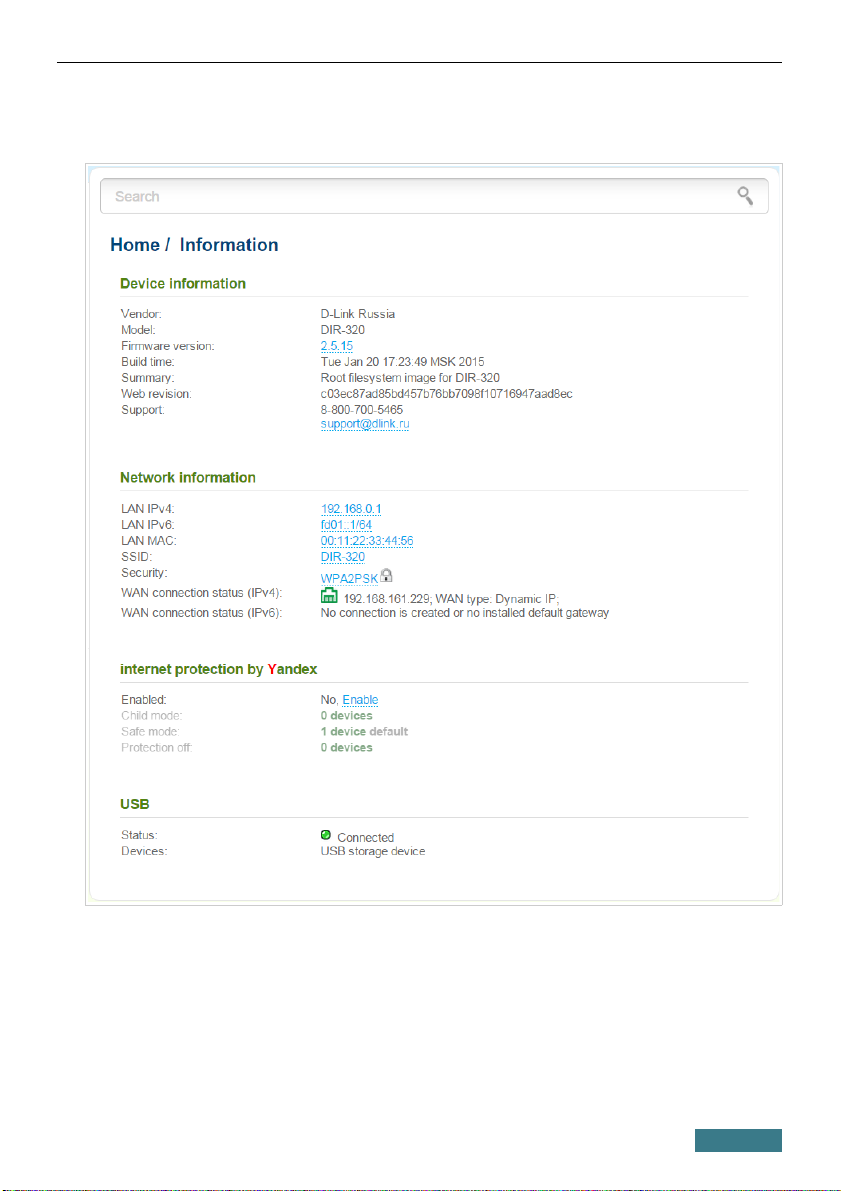

After successful registration the Home / In ormation page opens. The page
displays general information on the router and its software.
17

DIR-320 Quick Installation Guide

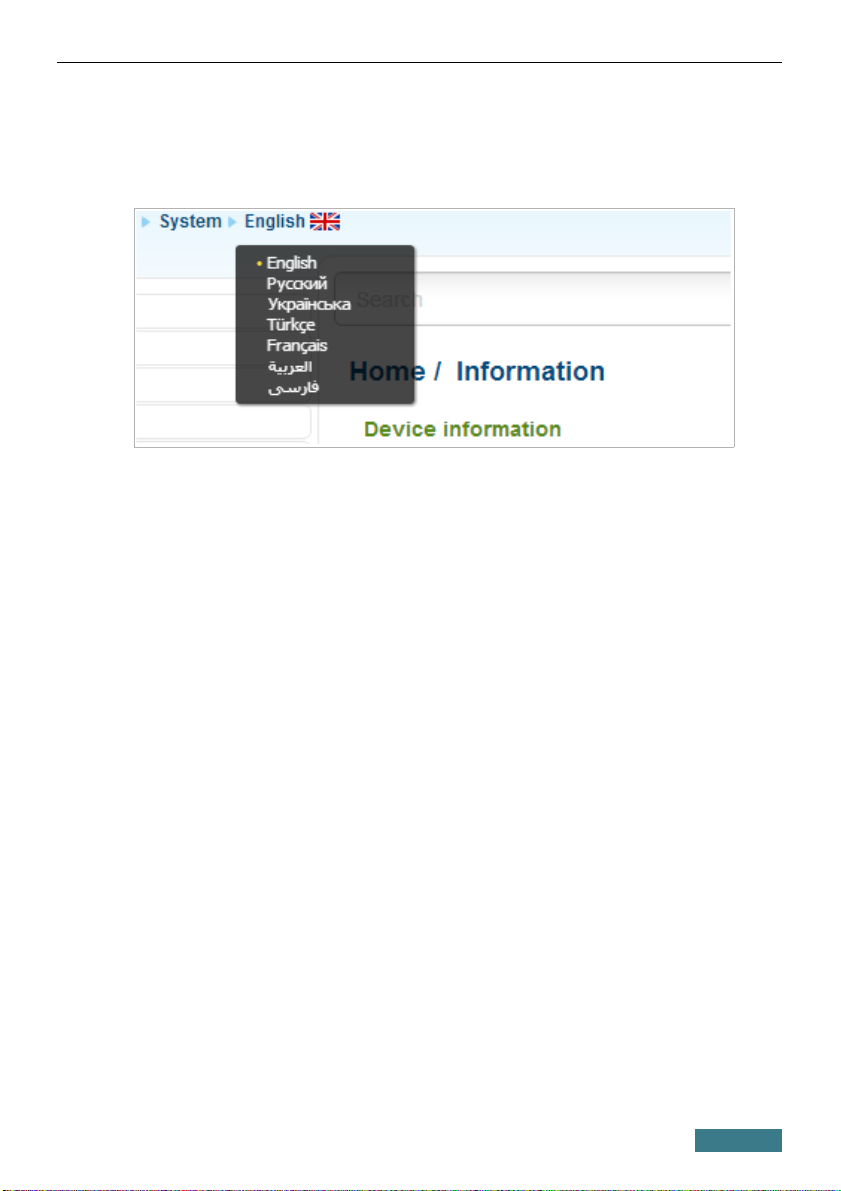

The web-based interface of the router is multilingual. If you need to select
another language for the web-based interface, place the mouse pointer over the
English caption in the top part of the page and select a language from the
menu displayed.
To configure the router use the menu in the left part of the page. Go to the
relevant section and select the needed page or run the needed Wizard in the
Home section.
Also you can find a specific page via search. To do this, enter the name of the
page, wholly or partly, in the search bar in the top part of the web-based
interface page, and then select a needed link in the search results.
18

DIR-320 Quick Installation Guide
Configuring Connection to t e Internet
!
You should configure your WAN connection in accordance with data
provided by your Internet service provider ISP). Make sure that you
have obtained all necessary information prior to configuring your
connection. Otherwise contact your ISP.
LTE WAN Connection
If the PIN code check is enabled for the SIM card inserted into your LTE USB
modem, it is required to disable the PIN code check on the identification card
prior to connecting the USB modem to the router.
An active LTE WAN connection will be automatically created on the Net /
WAN page when connecting a USB modem to the router. If the connection has
not been created automatically, create a new connection manually.
!For the USB modem Megafon M100-1, please reboot the router after
creating the WAN connection.

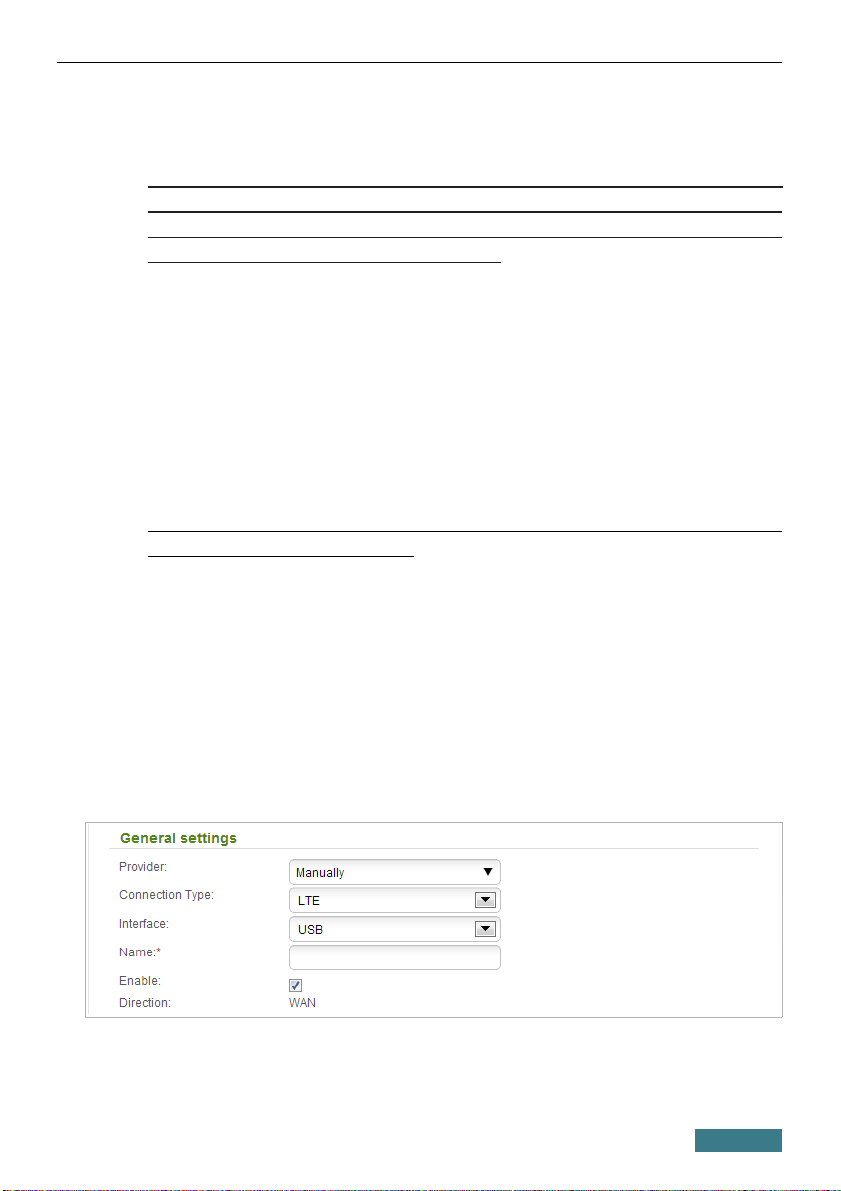

1. Go to the Net / WAN page and click the Add button.
2. In the General settings section, in the Provider drop-down list, leave
the Manually value.
3. From the Connection Type drop-down list, select the LTE value.
4. Make sure that the USB value is selected from the Inter ace drop-down
list.
5. Specify a name for your connection any name for easier identification) in
the Name field.
19

DIR-320 Quick Installation Guide

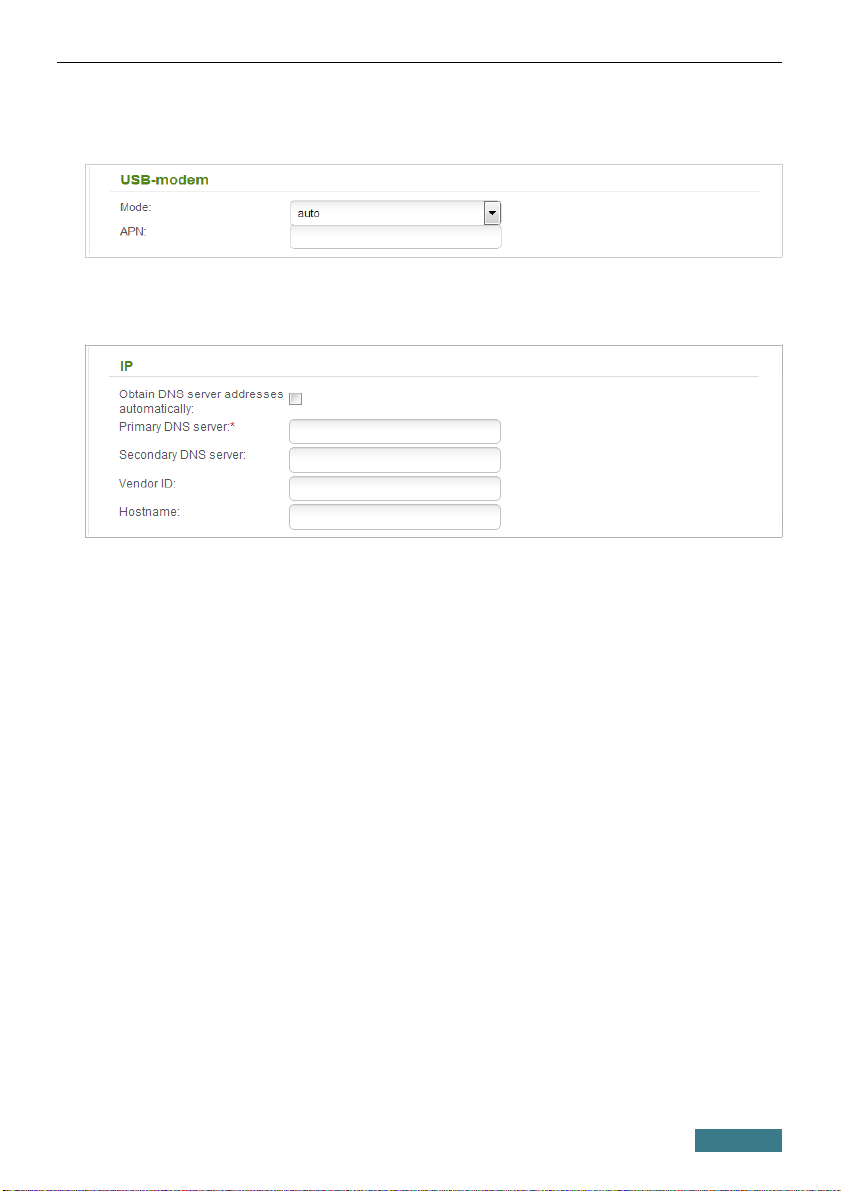

6. If your operator requires to specify the access point name, in the USB
modem section, fill in the APN field.
7. If your operator has provided the address of the DNS server, in the IP
section, deselect the Obtain DNS server addresses automatically
checkbox and fill in the Primary DNS server field.
8. Click the Apply button.
9. On the Net / WAN page, select the choice of the De ault gateway radio
button corresponding to the new LTE WAN connection.
20
