D-Link DWR-118 User manual

Version 1.00 | 05/08/2015
User Manual
DWR-118
Wireless AC750 Dual-Band Multi-WAN Router

iD-Link DWR-118 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of
their respective companies.
Copyright © 2015 by D-Link Corporation. All rights reserved. This publication may not be reproduced, in whole or in part,
without prior expressed written permission from D-Link Corporation.
ErP power usage
1. a. User can deactivate the wireless network connection by shortly pressing the WLAN button.
b. DUT can be automatically into network standby mode in 1 minute when main function was not provided.
c. The power management function can be deactivated if any of network ports is activated.
2. Network Standby mode is around 3.37W ~ 3.56W
Revision Date Description
1.00 May 08, 2015 • Initial release
Preface

iiD-Link DWR-118 User Manual
Table of Contents
Product Overview..............................................................1
Package Contents.........................................................................1
System Requirements.................................................................1
Introduction ...................................................................................2
Hardware Overview.....................................................................3
Front View................................................................................ 3
LEDs...........................................................................................4
Back View.................................................................................5
Installation.........................................................................6
Before You Begin........................................................................... 6
Wireless Installation Considerations...................................... 7
Conguration..................................................................... 8
Getting Started..............................................................................8
Internet.............................................................................................9
WAN Service ...........................................................................9
Dynamic IP (DHCP)........................................................10
Static IP..............................................................................11
PPPoE .................................................................................12
PPTP....................................................................................13
L2TP ....................................................................................14
4G LTE/3G .........................................................................15
Failover ...................................................................................17
IPv6 .....................................................................................18
Wi-Fi.................................................................................................22
Device List .............................................................................22
Wi-Fi Settings .......................................................................23
WPS..........................................................................................25
Wi-Fi Advanced....................................................................26
LAN ..................................................................................................28
Device List .............................................................................28
LAN Settings.........................................................................28
DHCP.......................................................................................29
Advanced ......................................................................................30
DNS..........................................................................................30
Applications..........................................................................31
DMZ (Exposed Host)..........................................................32
Virtual Server........................................................................33
Parental Control ..................................................................34
Routing...................................................................................35
QoS...........................................................................................36
MAC Address Filter.............................................................37
Outbound Filter...................................................................38
Inbound Filter ......................................................................39
SNMP.......................................................................................40
Advanced Network ............................................................41
System ............................................................................................42
Time Settings .......................................................................42
Administration.....................................................................43
Reboot & Reset ....................................................................44
Firmware Upgrade..............................................................45
System Logs..........................................................................46
Table of Contents

iiiD-Link DWR-118 User Manual
Table of Contents
Schedules ..............................................................................47
Connect a Wireless Client to your Router ......................48
WPS Button...................................................................................48
Windows® 8...................................................................................49
WPA/WPA2 ............................................................................49
Windows® 7...................................................................................51
WPA/WPA2 ............................................................................51
WPS..........................................................................................54
Windows Vista®............................................................................58
WPA/WPA2 ............................................................................59
Windows® XP................................................................................61
WPA/WPA2 ............................................................................62
Troubleshooting..............................................................64
Wireless Basics.................................................................68
What is Wireless?.........................................................................69
Tips...................................................................................................71
Wireless Modes............................................................................72
Networking Basics...........................................................73
Check your IP address...............................................................73
Statically Assign an IP address...............................................74
Wireless Security ............................................................75
What is WPA? ...................................................................75
Technical Specications..................................................76
Regulatory Information ..................................................77

1D-Link DWR-118 User Manual
Section 1 - Product Overview
Product Overview
Package Contents
If any of the above items are missing, please contact your reseller.
System Requirements
* Subject to services and service terms available from your carrier.
• A compatible 3G / 4G USB dongle with service.*
• Computer with Windows, Mac OS, or Linux-based operating system with an installed
Ethernet adapter
• Java-enabled browser such as Internet Explorer 9, Safari 6.0, Chrome 28, or Firefox 23 or
above (for conguration)
Power Adapter
DWR-118 Wireless AC750 Dual-Band Multi-WAN Router
RJ45 cable

2D-Link DWR-118 User Manual
Section 1 - Product Overview
Introduction
The D-Link Wireless AC750 Dual-Band Multi-WAN Router allows users to access worldwide mobile broadband networks.
Once connected, users can transfer data, stream media, and send SMS messages. Simply insert a 3G / 4G USB dongle, and
share your 3G / 4G Internet connection through a secure 802.11n wireless network or using any of the four 10/100/1000
Ethernet ports.
Keep your wireless network safe with WPA/WPA2 wireless encryption. The DWR-118 utilizes dual-active rewalls (SPI and
NAT) to prevent potential attacks across the Internet, and includes MAC address ltering to control access to your network.
The Wireless AC750 Dual-Band Multi-WAN Router can be installed quickly and easily almost anywhere. This router is
great for situations where an impromptu wireless network must be set up, or wherever conventional network access is
unavailable.

3D-Link DWR-118 User Manual
Section 1 - Product Overview
Hardware Overview

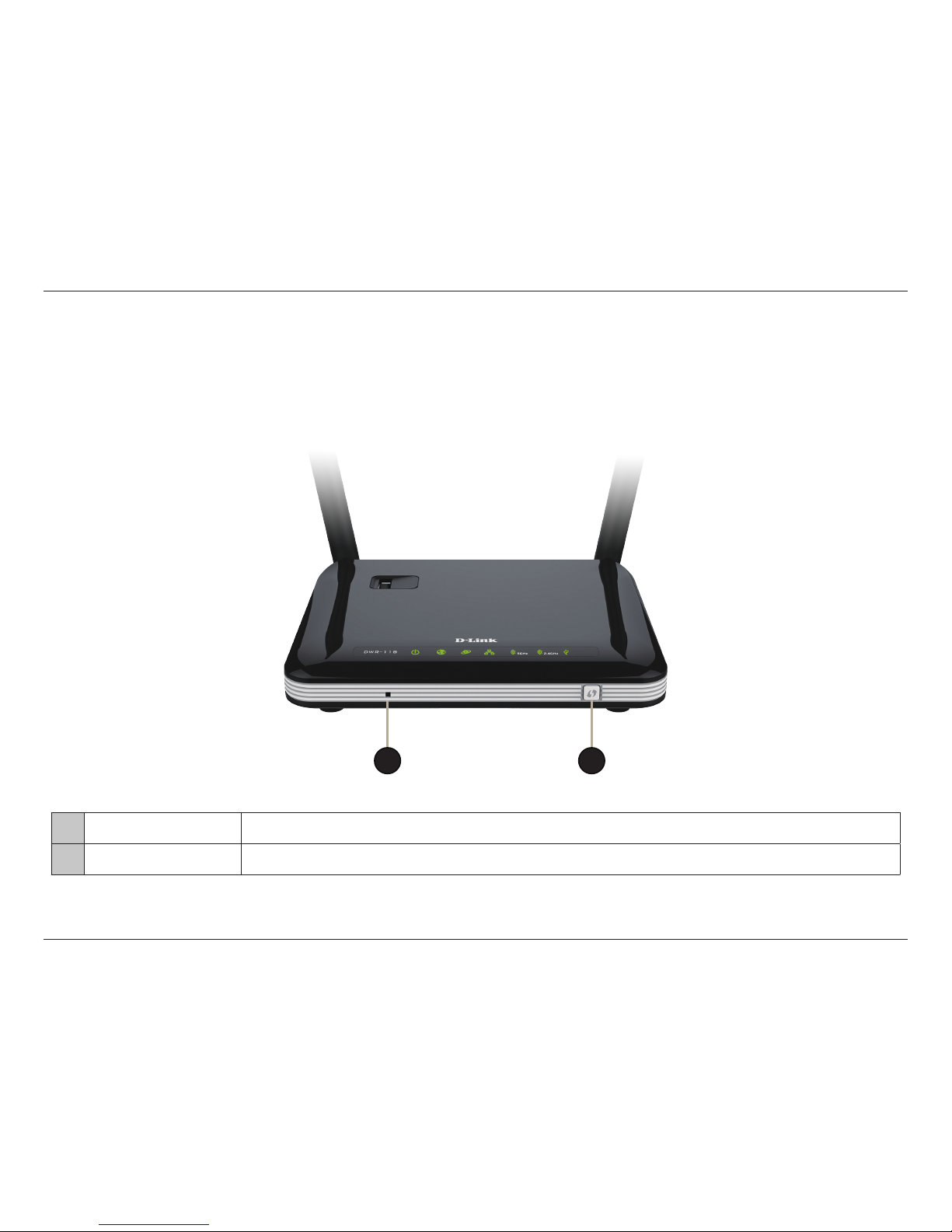

Front View
1 Reset Button Press this button with an unfolded paperclip and hold for ten seconds to reset the device.
2 WPS Button Press this button to initiate a new WPS connection. See WPS Button on page 48 for details.
1 2

4D-Link DWR-118 User Manual
Section 1 - Product Overview

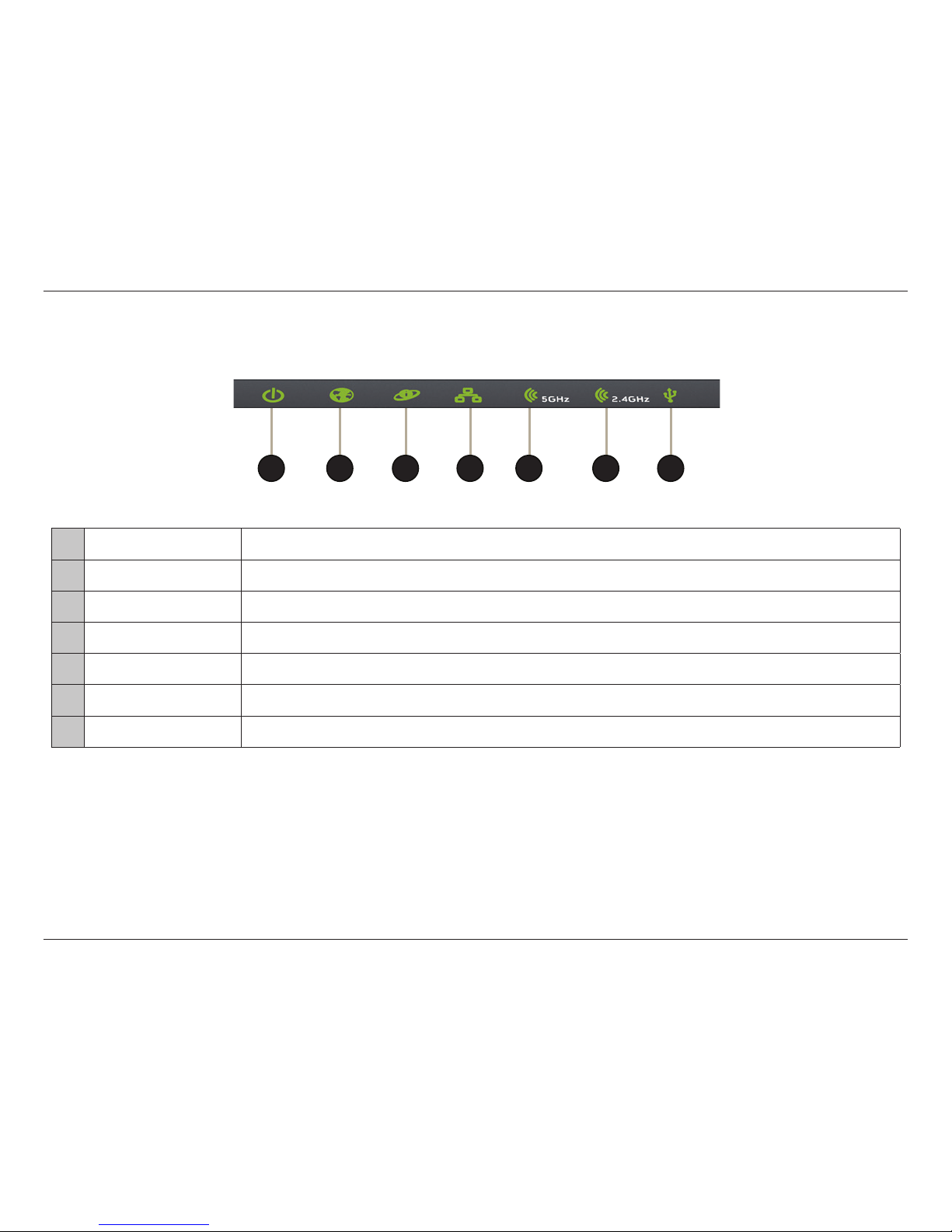

LEDs
1 Power LED Will be lit if the device is powered on and working.
2 WAN LED Will be lit if a WAN Ethernet connection is established.
3 Internet LED Will be lit if an Internet connection is established.
4 LAN LED Will be lit if an Ethernet connection is established, and will blink when data is being transferred.
5 5 GHz WLAN LED Will be lit if the 5 GHz wireless function is enabled, and will blink when wireless data is being transferred.
6 2.4 GHz WLAN LED Will be lit if the 2.4 GHz wireless function is enabled, and will blink when wireless data is being transferred.
7 USB LED Will be lit if a USB dongle is successfully connected.
1 3 4 5 762

5D-Link DWR-118 User Manual
Section 1 - Product Overview

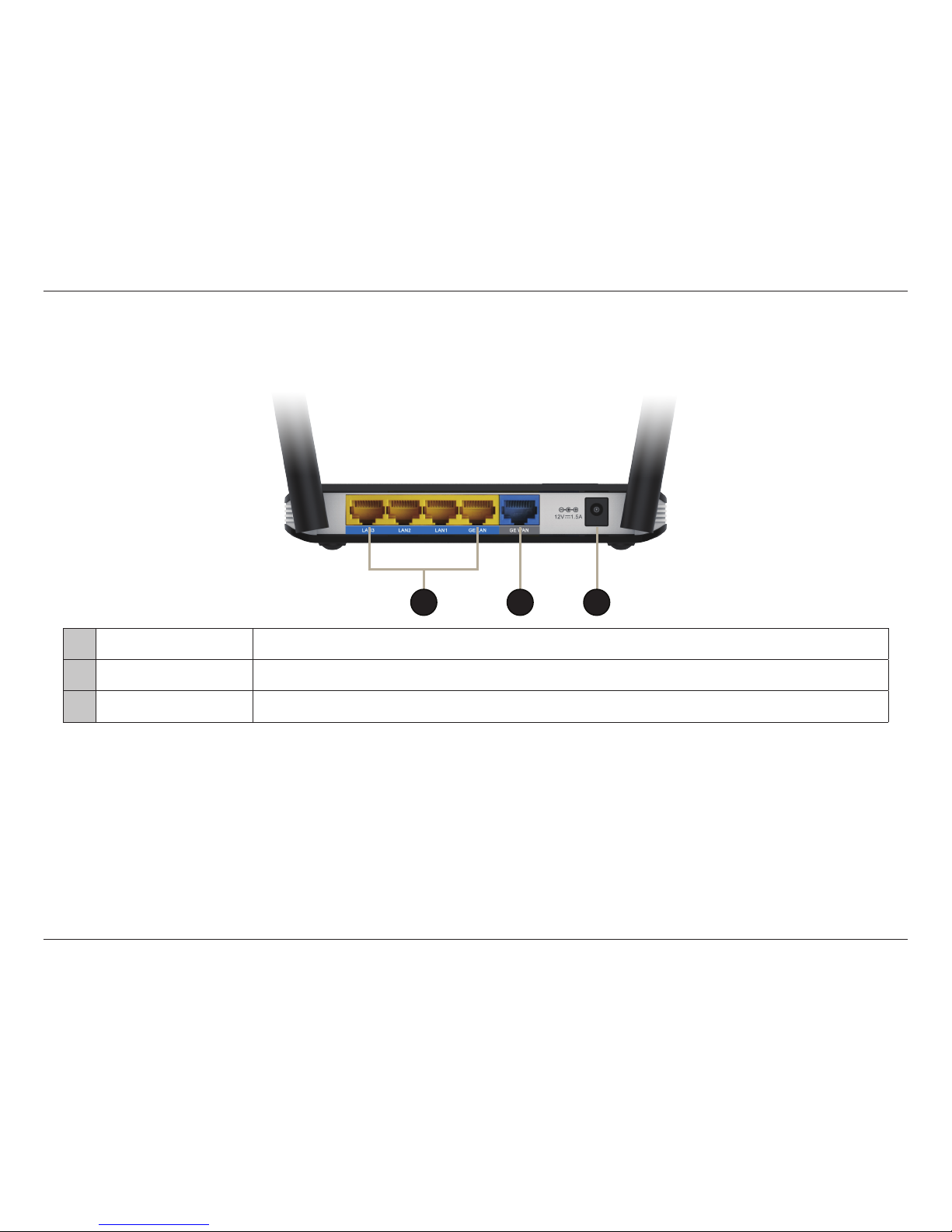

1 Ethernet LAN Ports For connection to a network-enabled desktop or notebook computer.
2Ethernet WAN Port For connection to a DSL/cable modem or router
3 Power Connector Connects to the included power adapter.
Back View
1 2 3

6D-Link DWR-118 User Manual
Section 2 - Installation
Before You Begin
Installation
This section will guide you through the installation process. Placement of the router is very important. Do not place the router in an enclosed area
such as a closet, cabinet, or in an attic or garage.
1. Ensure that your DWR-118 Wireless AC750 Dual-Band Multi-WAN Router is disconnected and powered o.
2. To use your 3G / 4G Internet connection, insert a 3G / 4G USB dongle into the USB port on the top of the device.
3. To use your WAN connection, insert your Internet/WAN network cable into the WAN port on the back of the router.
Note: The 3G/4G connection can also be used as a backup WAN. Once a backup is congured, the router will automatically use 3G / 4G for the
Internet connection if the Ethernet WAN is not available.
4. Insert the Ethernet cable into the LAN Port 1 on the back panel of the DWR-118 Wireless AC750 Dual-Band Multi-WAN Router and an available
Ethernet port on the network adapter in the computer you will use to congure the router.
Note: The DWR-118 Wireless AC750 Dual-Band Multi-WAN Router LAN Ports are Auto-MDI/MDIX, so both patch and crossover Ethernet cables
can be used.
5. Connect the power adapter to the socket on the back panel of your DWR-118 Wireless AC750 Dual-Band Multi-WAN Router. Plug the other end
of the power adapter into a wall outlet or power strip and turn the device on.
a. The Status LED will light up to indicate that power has been supplied to the router.
b. The LEDs on the front panel will ash on and o as the DWR-118 Wireless AC750 Dual-Band Multi-WAN Router performs initialization and
Internet connection processes.
c. After a few moments, if a connection has been established, the following LEDs will turn solid green: Power, Status, WAN, WLAN, and any LAN
Port LEDs that are connected to computers or other devices.

7D-Link DWR-118 User Manual
Section 2 - Installation
Wireless Installation Considerations
The DWR-118 can be accessed using a wireless connection from anywhere within the operating range of your wireless network. Keep in mind that
the quantity, thickness, and location of walls, ceilings, or other objects that the wireless signals must pass through may limit the range of the wireless
signal. Ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or oce.The key to maximizing
the wireless range is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between the D-Link router and other network devices. Each wall or ceiling can reduce your adapter’s
range from 3 to 90 feet (1 to 30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree angle appears to be almost 3 feet
(1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick. Position devices so that the signal will travel straight through a wall
or ceiling (instead of at an angle) for better reception.
3. Try to position access points, wireless routers, and computers so that the signal passes through open doorways and drywall. Materials such as
glass, metal, brick, insulation, concrete, and water can aect wireless performance. Large objects such as sh tanks, mirrors, le cabinets, metal
doors, and aluminum studs may also have a negative eect on range.
4. If you are using 2.4 GHz cordless phones, make sure that the 2.4 GHz phone base is as far away from your wireless device as possible. The base
transmits a signal even if the phone is not in use. In some cases, cordless phones, X-10 wireless devices, and electronic equipment such as ceiling
fans, uorescent lights, and home security systems may dramatically degrade wireless connectivity.

8D-Link DWR-118 User Manual
Section 4 - Conguration
Conguration

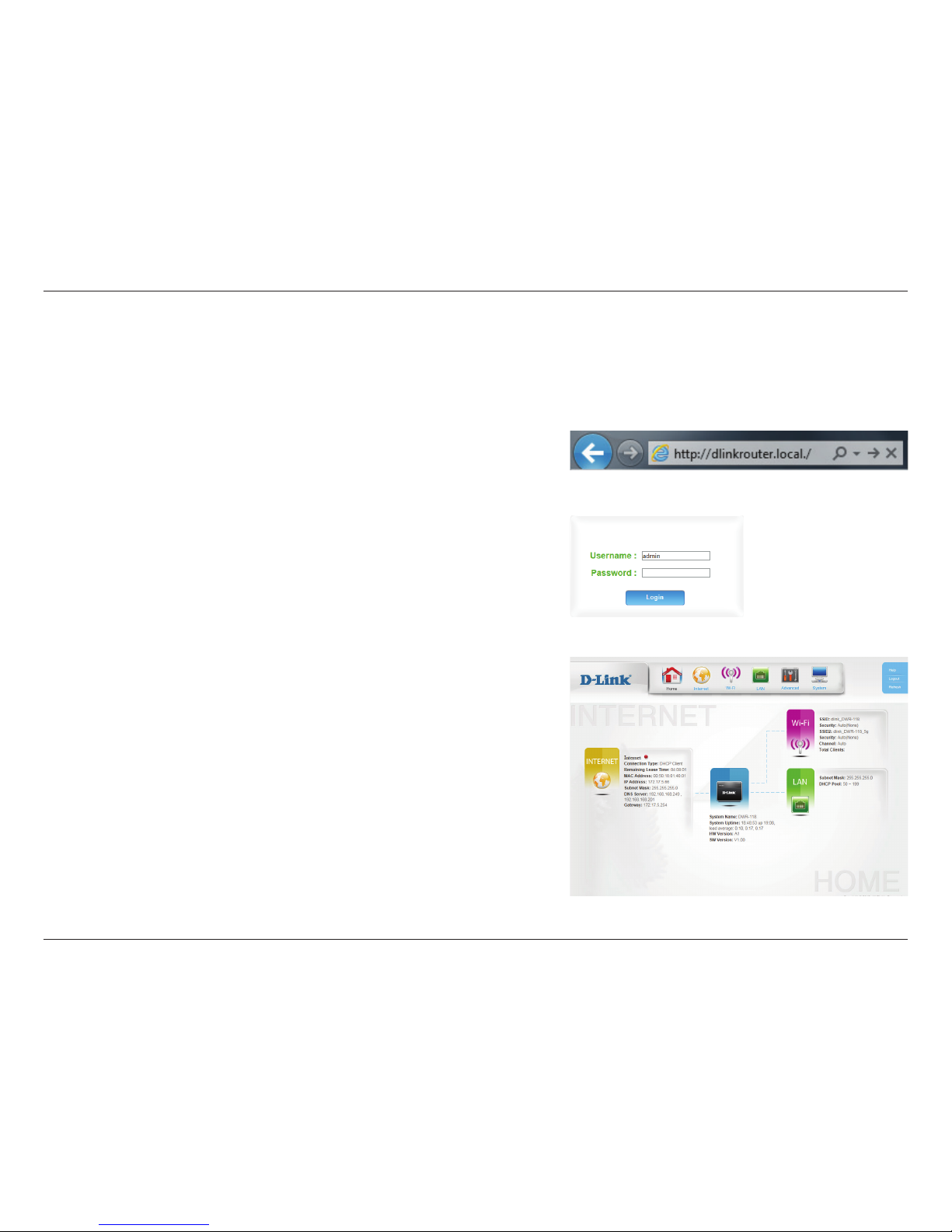

To access the conguration utility, open a web-browser such as Internet Explorer and
enter the address of the router (http://dlinkrouter.local./or 192.168.0.1 by default).
To log in to the conguration utility, enter admin as the username, and then enter
the password. By default, the password is blank.
If you get a Page Cannot be Displayed error, please refer to the Troubleshooting
section for assistance.
Once you have successfully logged in, you will see the Home page. On this page
you can view information about your Internet connection, the wireless/LAN status,
and system information.
At the top of the page is a menu. Clicking on one of these icons will take you to the
appropriate conguration section.
On each page, ll out the desired settings and click Apply when you are done or
Reset to revert to the old settings.
Getting Started

9D-Link DWR-118 User Manual
Section 4 - Conguration
Internet
Select your Internet connection type.
For Dynamic IP (DHCP) refer to Dynamic IP (DHCP) on page 10.
For Static IP refer to Static IP on page 11.
For PPPoE refer to PPPoE on page 12.
For PPTP refer to PPTP on page 13.
For L2TP refer to L2TP on page 14.
For 4G LTE/3G refer to 4G LTE/3G on page 15.
When you have nished conguring your Internet settings, click
Apply to save your changes. To restore your settings to the most
recent save, click Reset.

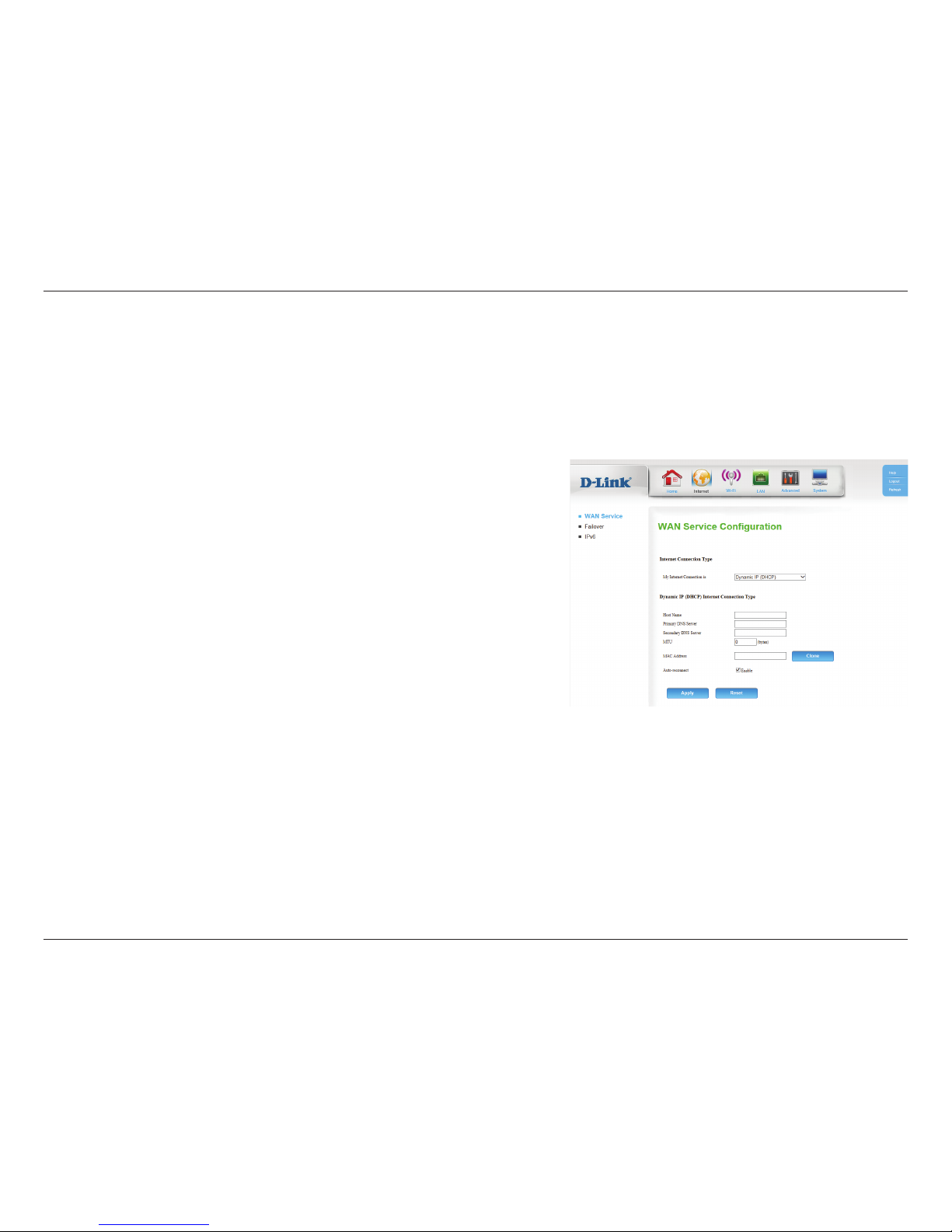

My Internet
Connection is:
WAN Service
On this page you can congure your Internet connection. If you are not sure which settings to use, please contact your Internet Service Provider
(ISP).

10D-Link DWR-118 User Manual
Section 4 - Conguration

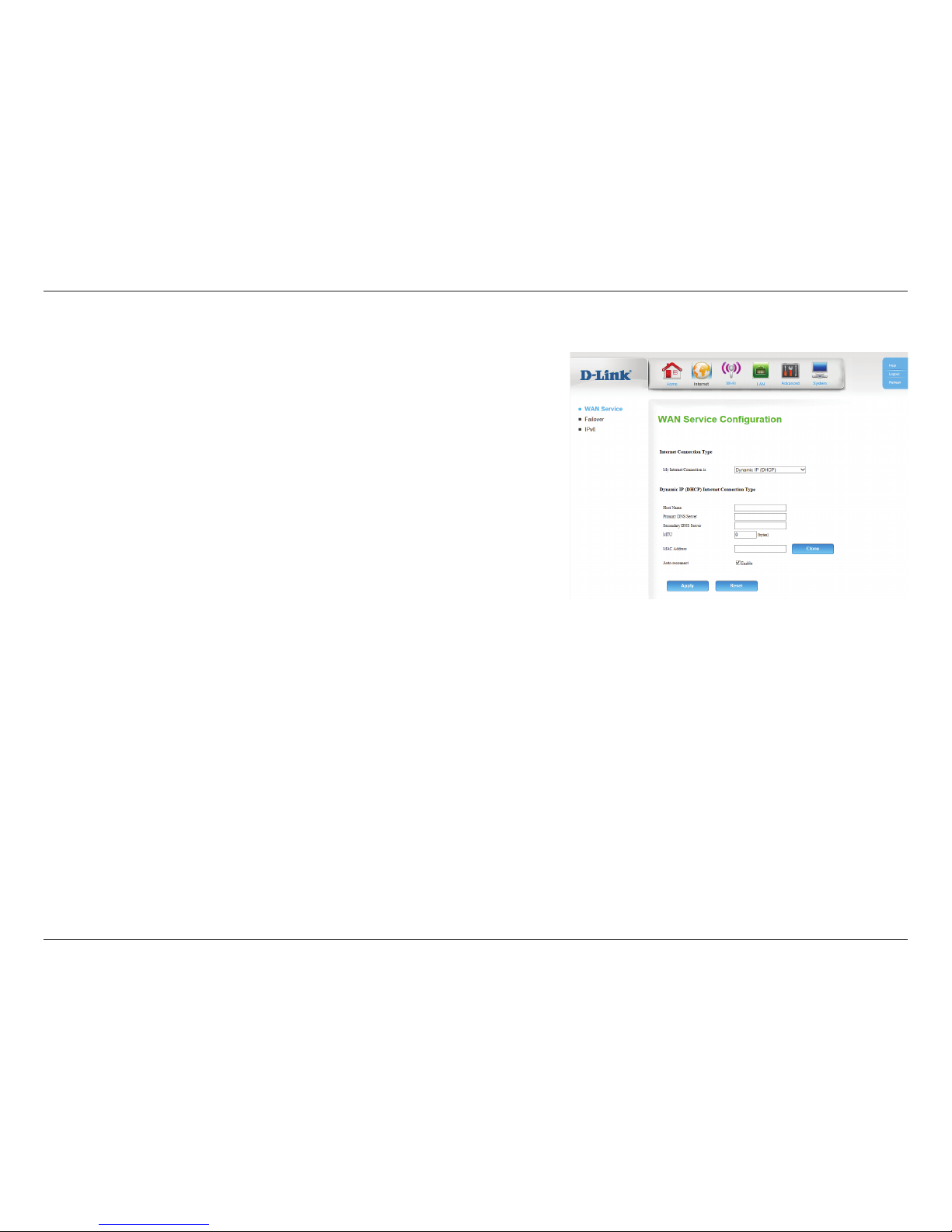

Dynamic IP (DHCP)
The host name is optional but may be required by some ISPs.
Leave it blank if you are not sure.
Enter the primary DNS server provided by your ISP here.
Enter the secondary DNS server provided by your ISP here.
Maximum Transmission Unit - you may need to change the MTU
for optimal performance with your ISP. The default value is 0.
Enter the MAC address, or click Clone to clone your client’s MAC
address to the WAN port.
Check the box to allow the router to automatically attempt to
reconnect whenever the Internet connection is lost.
Host Name:
Primary DNS
Server:
Secondary DNS
Server:
MTU:
MAC Address:
Auto-reconnect:

11D-Link DWR-118 User Manual
Section 4 - Conguration

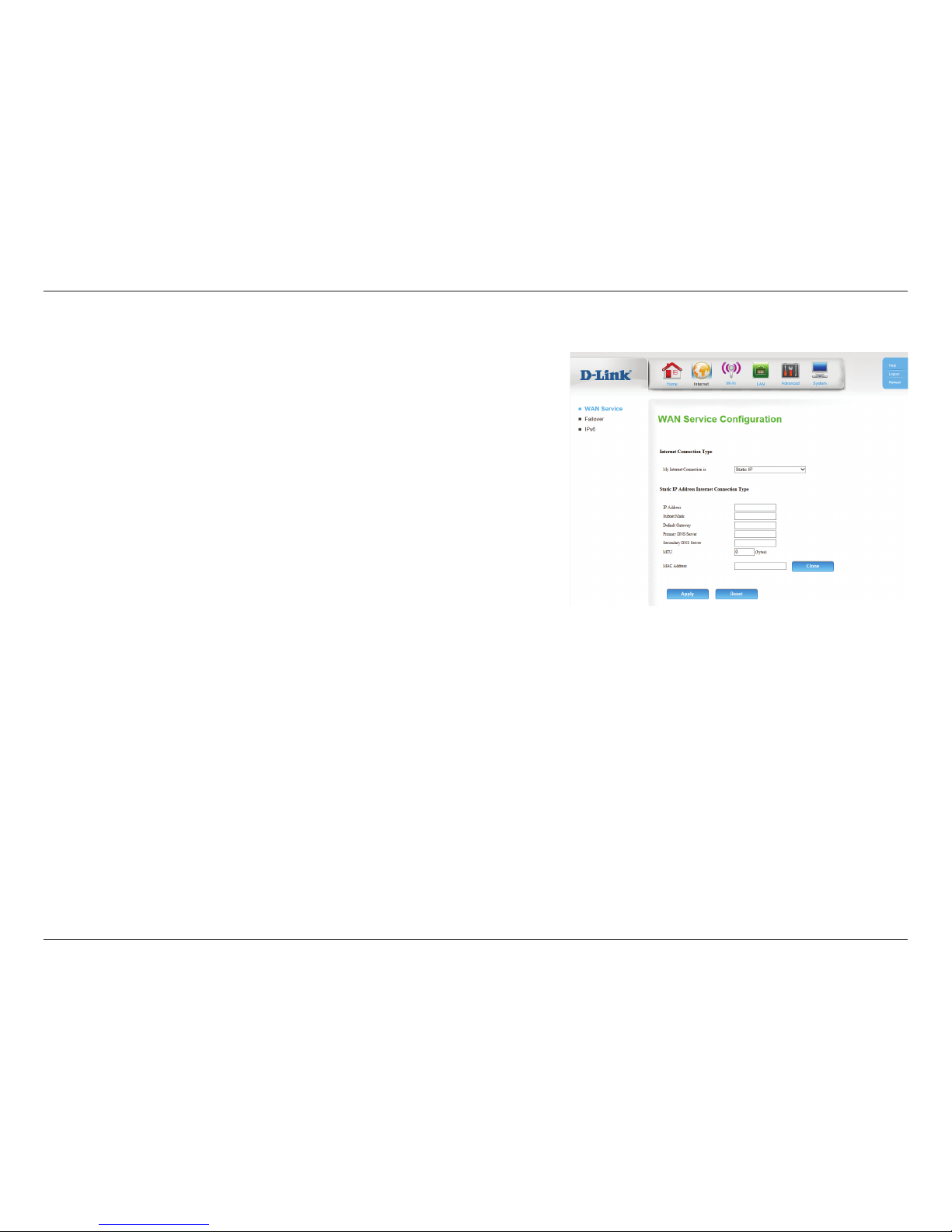

Static IP
Enter the IP address provided by your ISP.
Enter the subnet mask provided by your ISP.
Enter the gateway address provided by your ISP.
Enter the primary DNS server provided by your ISP here.
Enter the secondary DNS server provided by your ISP here.
Maximum Transmission Unit - you may need to change the MTU
for optimal performance with your ISP. The default value is 0.
Enter the MAC address, or click Clone to clone your client’s MAC
address to the WAN port.
IP Address:
Subnet Mask:
Default
Gateway:
Primary DNS
Server:
Secondary DNS
Server:
MTU:
MAC Address:

12D-Link DWR-118 User Manual
Section 4 - Conguration

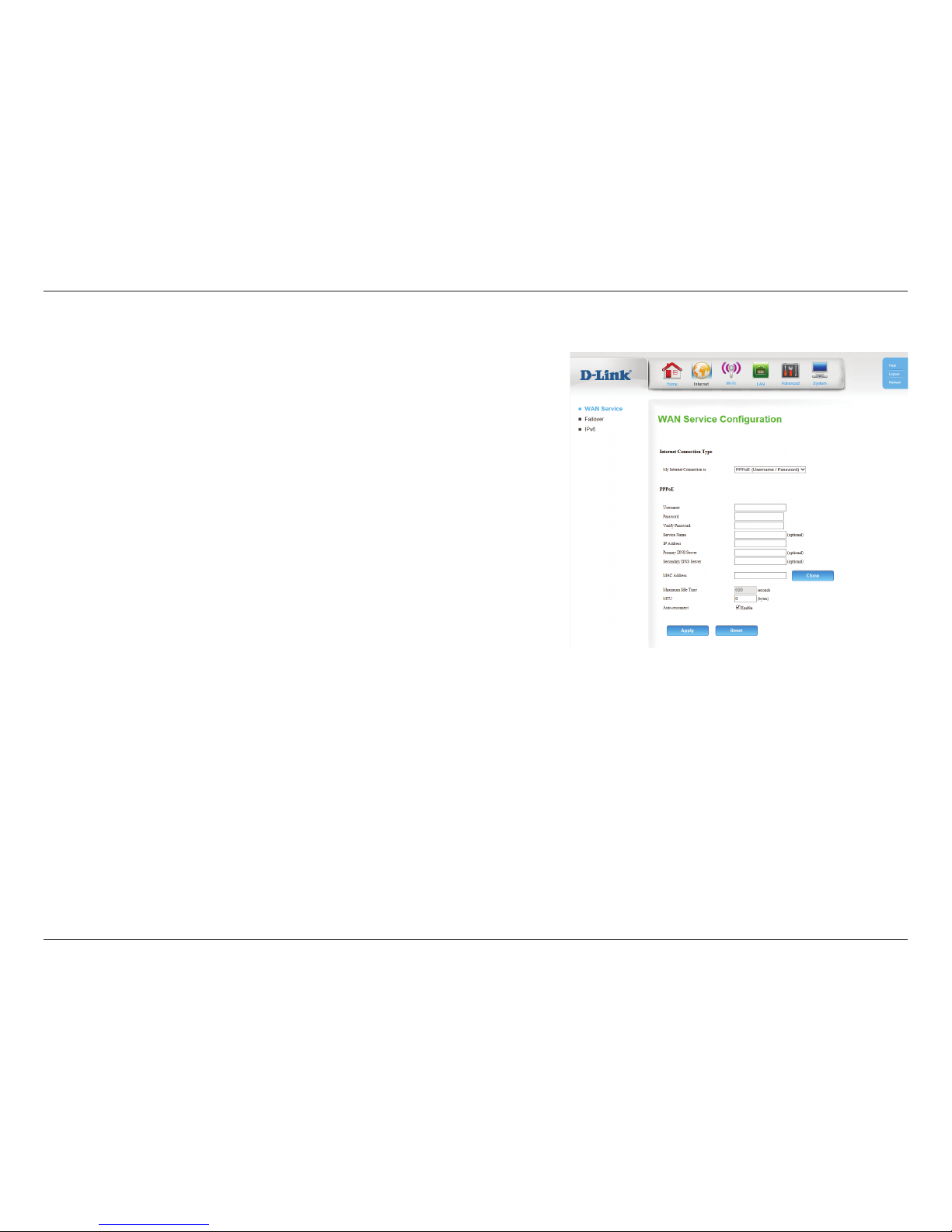

PPPoE
Enter the PPPoE username provided by your ISP.
Enter the PPPoE password provided by your ISP.
Re-enter the PPPoE password for verication.
Enter the PPPoE service name provided by your ISP if applicable.
Enter the IP address provided by your ISP here.
Enter the primary DNS server provided by your ISP here.
Enter the secondary DNS server provided by your ISP here.
Enter the MAC address, or click Clone to clone your client’s MAC
address to the WAN port.
Enter a maximum idle time during which the Internet connection
is maintained during inactivity (if you select Auto-reconnect
below, this setting will have no eect).
Maximum Transmission Unit - you may need to change the MTU
for optimal performance with your ISP. The default value is 0.
Check the box to allow the router to automatically attempt to
reconnect whenever the Internet connection is lost.
Username:
Password:
Verify Password:
Service Name:
IP Address:
Primary DNS
Server:
Secondary DNS
Server:
MAC Address:
Maximum Idle
Time:
MTU:
Auto-reconnect:

13D-Link DWR-118 User Manual
Section 4 - Conguration
PPTP
If your ISP provided a static IP address, select Static IP, otherwise
leave this setting at the default, Dynamic IP.
Enter the IP address provided by your ISP (Static IP only).
Enter the subnet mask provided by your ISP (Static IP only).
Enter the gateway address provided by your ISP (Static IP only).
Enter the server IP address provided by your ISP (Static IP only).
Enter the PPTP username provided by your ISP.
Enter the PPTP password provided by your ISP.
Re-enter the PPTP password for verication.
Select Always on if you would like the router to never disconnect,
or Connect-on-demand to allow the router to establish a
connection to the Internet only when a device on your network
tries to access a resource on the Internet.
Enter a maximum idle time during which the Internet connection
is maintained during inactivity (if you selected Always on above,
this setting will have no eect).
Address Mode:
PPTP IP Address:
PPTP Subnet
Mask:
PPTP Gateway IP
Address:
PPTP Server IP
Address:
Username:
Password:
Verify Password:
Reconnect
Mode:
Maximum Idle
Time:

14D-Link DWR-118 User Manual
Section 4 - Conguration

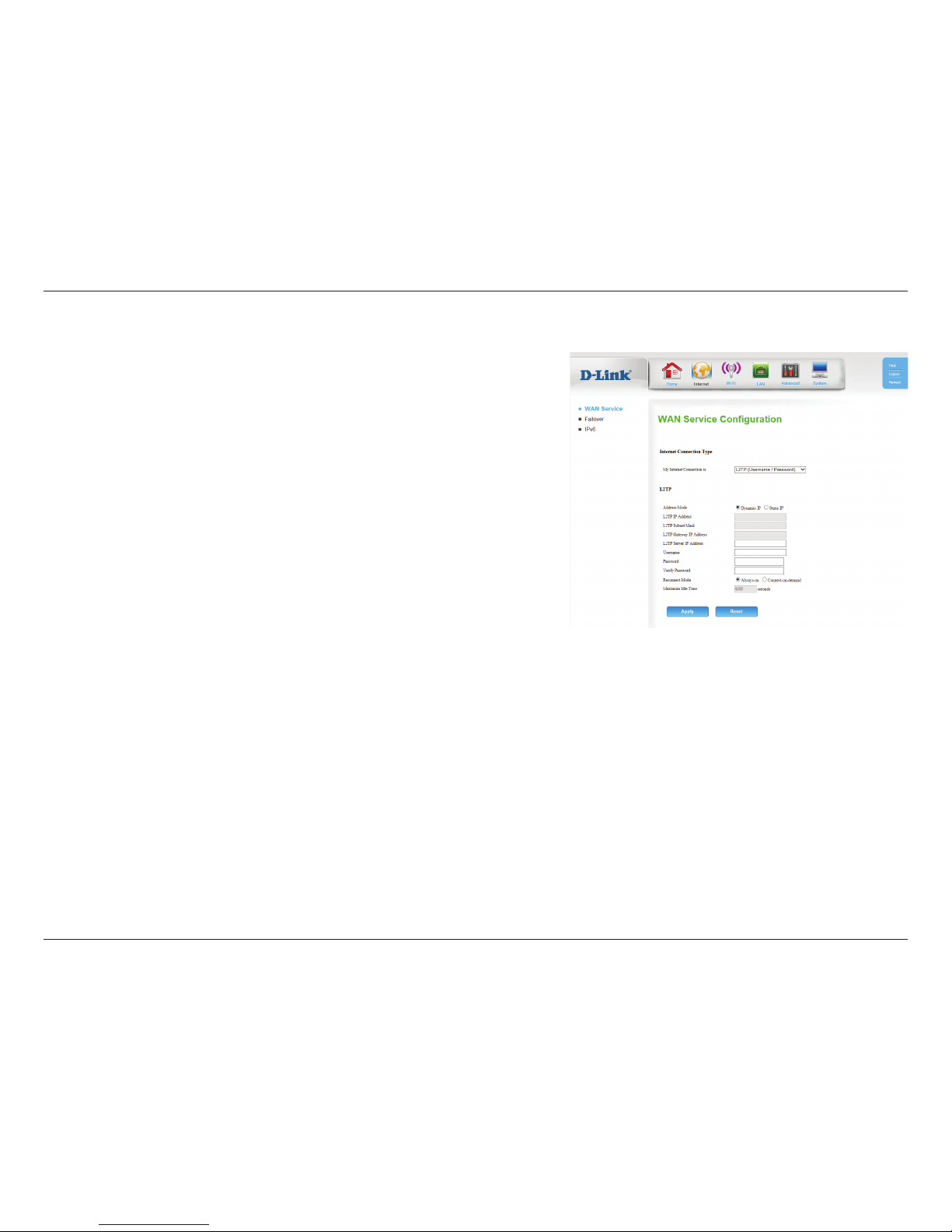

L2TP
If your ISP provided a static IP address, select Static IP, otherwise
leave this setting at the default, Dynamic IP.
Enter the IP address provided by your ISP (Static IP only).
Enter the subnet mask provided by your ISP (Static IP only).
Enter the gateway address provided by your ISP (Static IP only).
Enter the server IP address provided by your ISP (Static IP only).
Enter the L2TP username provided by your ISP.
Enter the L2TP password provided by your ISP.
Re-enter the L2TP password for verication.
Select Always on if you would like the router to never disconnect,
or Connect-on-demand to allow the router to establish a
connection to the Internet only when a device on your network
tries to access a resource on the Internet.
Enter a maximum idle time during which the Internet connection
is maintained during inactivity (if you selected Always on above,
this setting will have no eect).
Address Mode:
L2TP IP Address:
L2TP Subnet
Mask:
L2TP Gateway IP
Address:
L2TP Server IP
Address:
Username:
Password:
Verify Password:
Reconnect
Mode:
Maximum Idle
Time:

15D-Link DWR-118 User Manual
Section 4 - Conguration

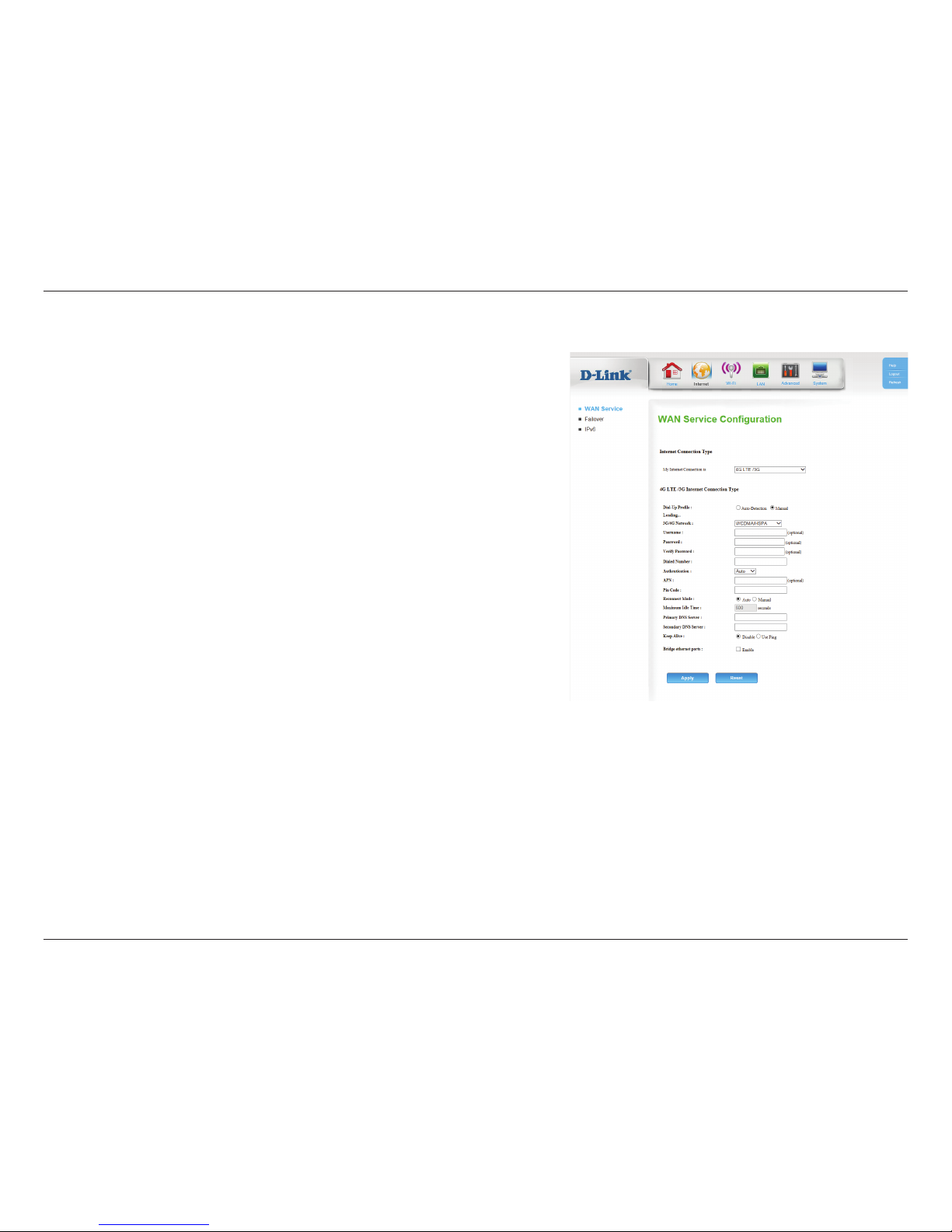

4G LTE/3G
If Auto-Detection does not work, then try selecting Manual and
lling out the information (supplied by your LTE/3G ISP).
Select the technology used by your ISP; either WCDMA/HSPA or
CDMA2000/EV-DO.
Enter the username provided by your ISP.
Enter the password provided by your ISP.
Re-enter the password for verication.
Enter the number to dial, provided by your ISP.
Select Auto, PAP, or CHAP detection. The default authentication
method is Auto.
Enter the APN, provided by your ISP.
Enter the PIN Code, provided by your ISP.
Select either Auto or Manual.
Enter a maximum idle time during which the Internet connection
is maintained during inactivity (if you selected Auto above, this
setting will have no eect).
Enter the primary DNS server provided by your ISP here.
Enter the secondary DNS server provided by your ISP here.
Dial-Up Prole:
3G/4G Network
Username:
Password:
Verify Password:
Dialed Number:
Authentication:
APN:
Pin Code:
Reconnect
Mode:
Maximum Idle
Time:
Primary DNS
Server:
Secondary DNS
Server:

16D-Link DWR-118 User Manual
Section 4 - Conguration

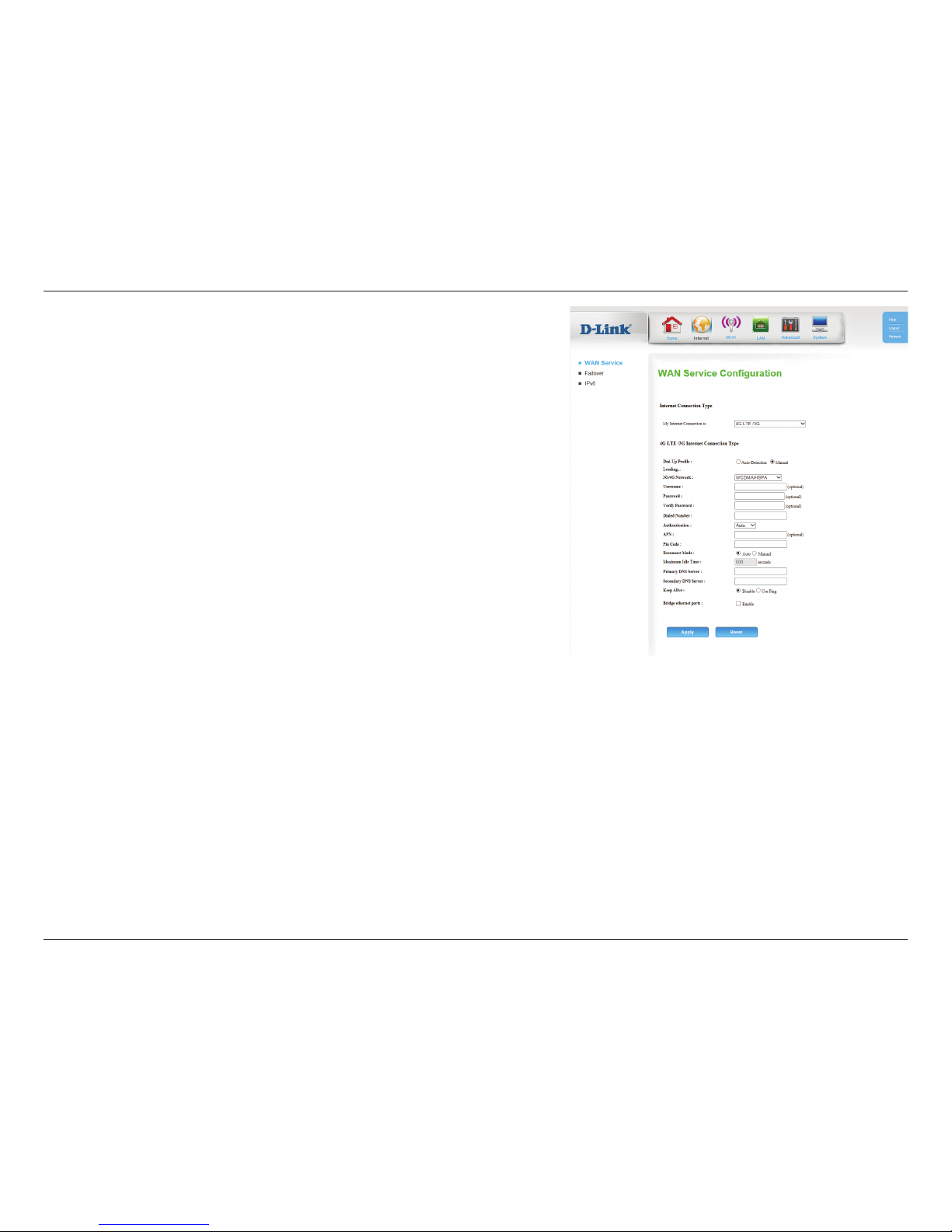

Select Disable or Use Ping depending on the settings required
by your ISP. If you select Use Ping, set the ping interval and the IP
address to ping.
Click Enable to use the router’s WAN port as an additional LAN
port.
Keep Alive:
Bridge ethernet
ports:
