D-Link DIR-862L User manual

Version 1.0 | 2014/01/20
Wireless AC1600 Dual Band Gigabit Cloud Router
User Manual
DIR-862L

iD-Link DIR-862L User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of
their respective companies.
Copyright © 2013 by D-Link Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Systems, Inc.
Revision Date Description
1.0 December 20, 2013 • Initial release for Revision A1
Preface

iiD-Link DIR-862L User Manual
Table of Contents
Product Overview.............................................................. 1
Package Contents......................................................................... 1
System Requirements................................................................. 2
Introduction ................................................................................... 3
Features............................................................................................ 4
Hardware Overview..................................................................... 5
Connections ........................................................................... 5
LEDs........................................................................................... 6
Installation ......................................................................... 7
Before you Begin........................................................................... 7
Wireless Installation Considerations...................................... 8
Hardware Setup ............................................................................ 9
Conguration...................................................................11
Quick Setup Wizard....................................................................12
QRS Mobile App..........................................................................19
SharePort Mobile App ..............................................................20
Setup...............................................................................................25
Internet...................................................................................25
Internet Connection Setup Wizard..........................26
Internet (Manual)...........................................................32

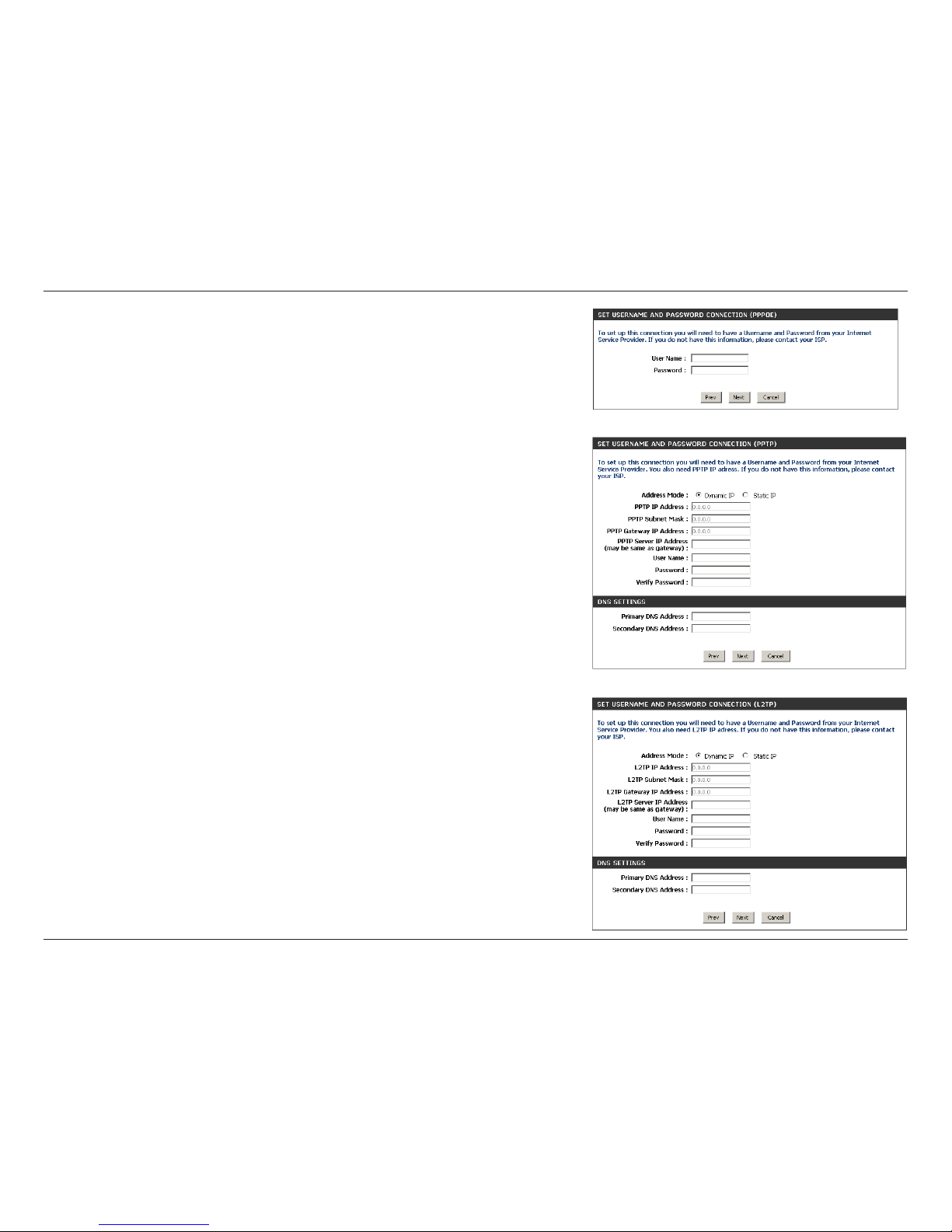

L2TP ....................................................................................39
Wireless Settings.................................................................42
Wireless Connection Setup wizard..........................42
Wi-Fi Protected Setup (WPS) Wizard.......................45
Manual Wireless Network Setup ..............................46
Wireless Security .................................................................57
Network Settings ................................................................58
Router Settings...............................................................58
DHCP Server Settings...................................................59
DHCP Reservation .........................................................61
Storage ...................................................................................62
IPv6 ..........................................................................................65
IPv6 Internet Connection Setup Wizard ................66
IPv6 Manual Setup.........................................................71
mydlink Settings .................................................................80
Advanced ......................................................................................83
Virtual Server........................................................................83
Port Forwarding ..................................................................84
Application Rules................................................................85
QoS Engine............................................................................86
Network Filter.......................................................................87
Access Control .....................................................................88
Website Filters......................................................................91
Inbound Filters.....................................................................92
Firewall Settings..................................................................93
Routing...................................................................................94
Advanced Wireless .............................................................95
Wi-Fi Protected Setup (WPS) ..........................................96
Advanced Network Settings...........................................97
Guest Zone............................................................................98
IPv6 Firewall..........................................................................99
Table of Contents

iiiD-Link DIR-862L User Manual
Table of Contents
IPv6 Routing ...................................................................... 100
Tools ............................................................................................. 101
Admin .................................................................................. 101
Time...................................................................................... 102
SysLog.................................................................................. 103
Email Settings ................................................................... 104
System ................................................................................. 105
Firmware ............................................................................. 106
Language Pack............................................................. 106
Dynamic DNS .................................................................... 107
System Check.................................................................... 108
Schedules ........................................................................... 109
Status ........................................................................................... 110
Device Info ......................................................................... 110
Logs ...................................................................................... 111
Statistics .............................................................................. 112
Internet Sessions.............................................................. 113
Routing................................................................................ 114
Wireless ............................................................................... 115
IPv6 ....................................................................................... 116
IPV6 Routing...................................................................... 117
Support ....................................................................................... 118
Connect a Wireless Client to your Router ....................119
WPS Button................................................................................ 119
Windows® 7................................................................................ 120
WPA/WPA2 ......................................................................... 120
WPS....................................................................................... 123
Windows Vista®......................................................................... 127
WPA/WPA2 ......................................................................... 128
WPS/WCN 2.0 .................................................................... 130
Windows® XP............................................................................. 131
WPA/WPA2 ......................................................................... 132
Troubleshooting ............................................................134
Wireless Basics ...............................................................138
What is Wireless?...................................................................... 139
Tips................................................................................................ 141
Wireless Modes......................................................................... 142
Networking Basics.........................................................143
Check your IP address............................................................ 143
Statically Assign an IP address............................................ 144
Technical Specications ................................................145

1D-Link DIR-862L User Manual
Section 1 - Product Overview
Product Overview
Package Contents
Note: Using a power supply with a dierent voltage rating than the one included with the DIR-862L will cause damage and void the warranty
for this product.
If any of the above items are missing, please contact your reseller.
DIR-862L Wireless AC1600 Dual Band Gigabit Cloud Router
Ethernet Cable
Power Adapter
Wi-Fi Conguration Card
Wi-Fi Conguration Note

2D-Link DIR-862L User Manual
Section 1 - Product Overview
Network Requirements
• An Ethernet-based Cable or DSL modem
• IEEE 802.11ac, 802.11a, 802.11n or 802.11g wireless clients
• 10/100/1000 Ethernet
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 7 or higher
• Firefox 3.5 or higher
• Safari 4 or higher
• Chrome 8 or higher
Windows®Users: Make sure you have the latest version of Java
installed. Visit www.java.com to download the latest version.
mydlink Requirements
• iPhone/iPad/iPod Touch (iOS 3.0 or higher)
• Android device (1.6 or higher)
• Computer with th following browser requirements:
• Internet Explorer 7 or higher
• Firefox 3 or higher
• Safari 5 or higher
• Chrome 5 or higher
iPhone, iPad, and iPod touch are registered trademarks of Apple Inc. Android is a trademark of Google, Inc.
System Requirements

3D-Link DIR-862L User Manual
Section 1 - Product Overview
Introduction
Now you can monitor and manage your home network right from your laptop, iPhone®, iPad®, or Android™ device. This cloud-
enabled router can be congured to send an email to keep you informed anywhere, anytime when new devices are connecting
to your network or unwanted access is detected. Monitor in real time websites that are being visited with recent browser history
displayed on the mydlink™ Lite app – which is great for parents. The D-Link Cloud Service can detect and block unwelcome
guests who try to access your wireless network, and suspicious activities will be displayed right on your mydlink™ Lite app or
browser.
The D-Link DIR-862L is an IEEE 802.11ac compliant device that delivers speeds up to three times faster than 802.11n while
staying backward compatible with 802.11a/g/b devices. Connect the DIR-862L to a Cable or DSL modem and provide high-
speed Internet access to multiple computers, game consoles, and media players. Create a secure wireless network to share
photos, les, music, videos, printers, and network storage. Powered by 802.11ac technology and equipped with four internal
antennas, this router provides superior wireless coverage for larger homes and oces, or for users running bandwidth-intensive
applications. The DIR-862L also includes a 4-port 10/100/1000 Gigabit Ethernet switch that connects wired devices to enjoy
lag-free Internet gaming and faster le transfers.
D-Link has created SharePort™ technology to bring more exibility to your network. With SharePort™ technology, you can
connect a USB printer and share it throughout your network. You can also share a USB storage device, providing network
storage for everyone to share.
With some routers, all wired and wireless trac, including VoIP, Video Streaming, Online Gaming, and Web browsing are mixed
together into a single data stream. By handling data this way, bandwidth intensive applications like video streaming could
pause or delay. With D-Link Intelligent QoS Technology, wired and wireless trac are analyzed and separated into multiple
data streams.
The DIR-862L supports the latest wireless security features to help prevent unauthorized access, be it over a wireless network
or the Internet. Support for WPA™ and WPA2™ standards ensures that you will be able to use the best possible encryption
regardless of your client devices. In addition, this router utilizes Dual Active Firewalls (SPI and NAT) to prevent potential attacks
from across the Internet making it the ideal centerpiece for your wireless network in the home or oce.

4D-Link DIR-862L User Manual
Section 1 - Product Overview
• Ultimate Fast Wireless Networking - The DIR-868L can provide up to a full 1750Mbps* wireless connection
with concurrent 801.11ac and 802.11n wireless clients . It also operates on both the 2.4 GHz and 5 GHz bands to
allow separation of trac so users can participate in high-bandwidth activities, such as video streaming, online
gaming, and real-time audio, without aecting low-priority trac like email and web surng.
• Compatible with 802.11a/g/n Devices - The DIR-862L is still fully compatible with the IEEE 802.11a/g/n
standards, so it can connect with existing 802.11a, 802.11g, and 802.11n PCI, USB, and Cardbus adapters.
• Advanced Firewall Features - The Web-based user interface displays a number of advanced network
management features including:
• Content Filtering - Easily-applied content ltering based on MAC Address, URL, and/or Domain
Name.
• Filter Scheduling - These lters can be scheduled to be active on certain days or for a duration of
hours or minutes.
• Secure Multiple/Concurrent Sessions - The DIR-862L can pass through VPN sessions. It supports
multiple and concurrent IPSec and PPTP sessions, so users behind the DIR-862L can securely access
corporate networks.
• User-friendly Setup Wizard - Through its easy-to-use web-based user interface, the DIR-862L lets you control
what information is accessible to those on the wireless network, whether from the Internet or from your company’s
server. Congure your router to your specic settings within minutes.
* Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11g, 802.11n and draft 802.11ac specications. Actual data throughput will vary. Network conditions
and environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely aect wireless signal range.
Features

5D-Link DIR-862L User Manual
Section 1 - Product Overview

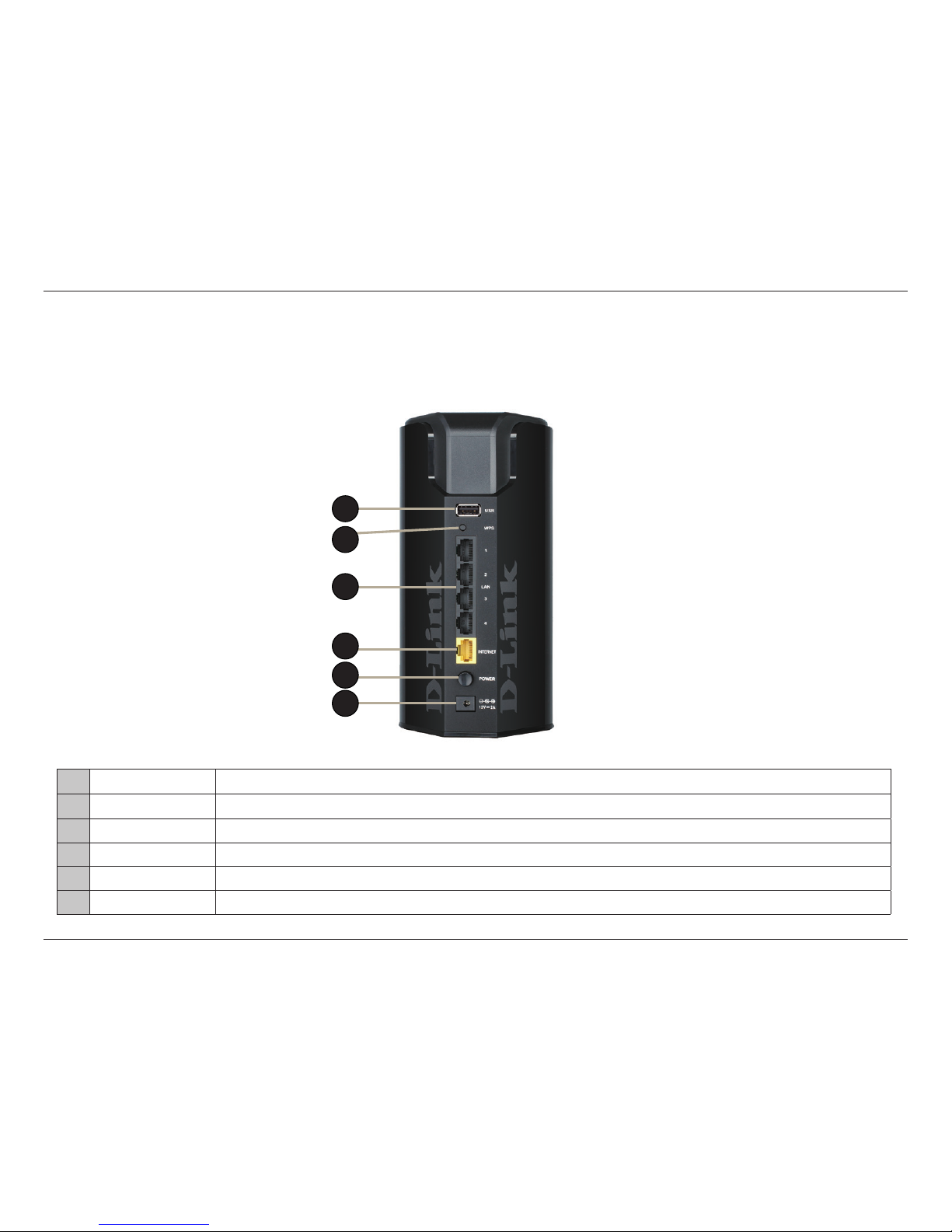

Hardware Overview
Connections
1USB Port Connect a USB ash drive to share content throughout your network.
2WPS Button Press to start the Wi-Fi Protected Setup process. The Internet LED will start to blink.
3LAN Ports (1-4) Connect Gigabit Ethernet devices such as computers, switches, storage (NAS) devices, and game consoles.
4Internet Port Using an Ethernet cable, connect your broadband modem to this port.
5Power Button Press the power button to power on and o.
6Power Receptor Receptor for the supplied power adapter.
1
3
4
5
6
2

6D-Link DIR-862L User Manual
Section 1 - Product Overview
Hardware Overview

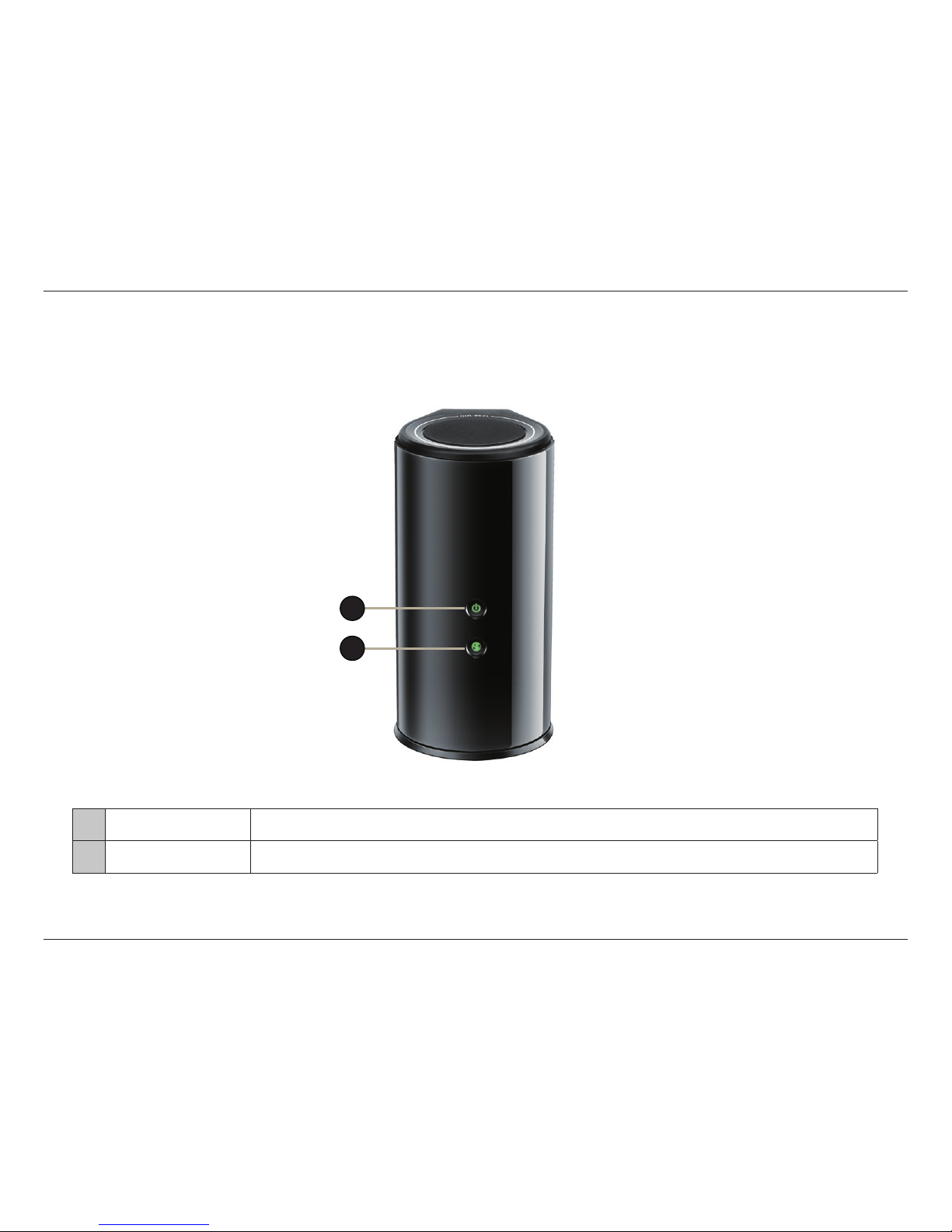

LEDs
1Power LED A solid green light indicates a proper connection to the power supply. The light will blink green during the
WPS process. The light will blink orange during boot up.
2Internet LED A solid green light indicates a connection to the Internet. If the LED is orange, a cable is connected but the
router can not communicate with the Internet.
1
2

7D-Link DIR-862L User Manual
Section 2 - Installation
Before you Begin
Installation
This section will walk you through the installation process. Placement of the router is very important. Do not place the router
in an enclosed area such as a closet, cabinet, or in the attic or garage.
• Please congure the router with the computer that was last connected directly to your modem.
• You can only use the Ethernet port on your modem. If you were using the USB connection before using the router,
then you must turn o your modem, disconnect the USB cable and connect an Ethernet cable to the Internet port
on the router, and then turn the modem back on. In some cases, you may need to call your ISP to change connection
types (USB to Ethernet).
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such asWinPoet,
Broadjump, or Enternet 300 from your computer or you will not be able to connect to the Internet.

8D-Link DIR-862L User Manual
Section 2 - Installation
Wireless Installation Considerations
This D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind, however, that the number, thickness, and location of walls, ceilings,
or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types
of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum -
each wall or ceiling can reduce your adapter’s range from 1-30 meters (3-90 feet). Position your devices so that
the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 0.5 meters at a 45-degree angle appears to
be almost 1 meter thick. At a 2-degree angle it looks over 14 meters thick! Position devices so that the signal
will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range.
Try to position access points, wireless routers, and computers so that the signal passes through drywall or open
doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le
cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4 GHz phone
base is as far away from your wireless devices as possible. The base transmits a signal even if the phone in not
in use.

9D-Link DIR-862L User Manual
Section 2 - Installation

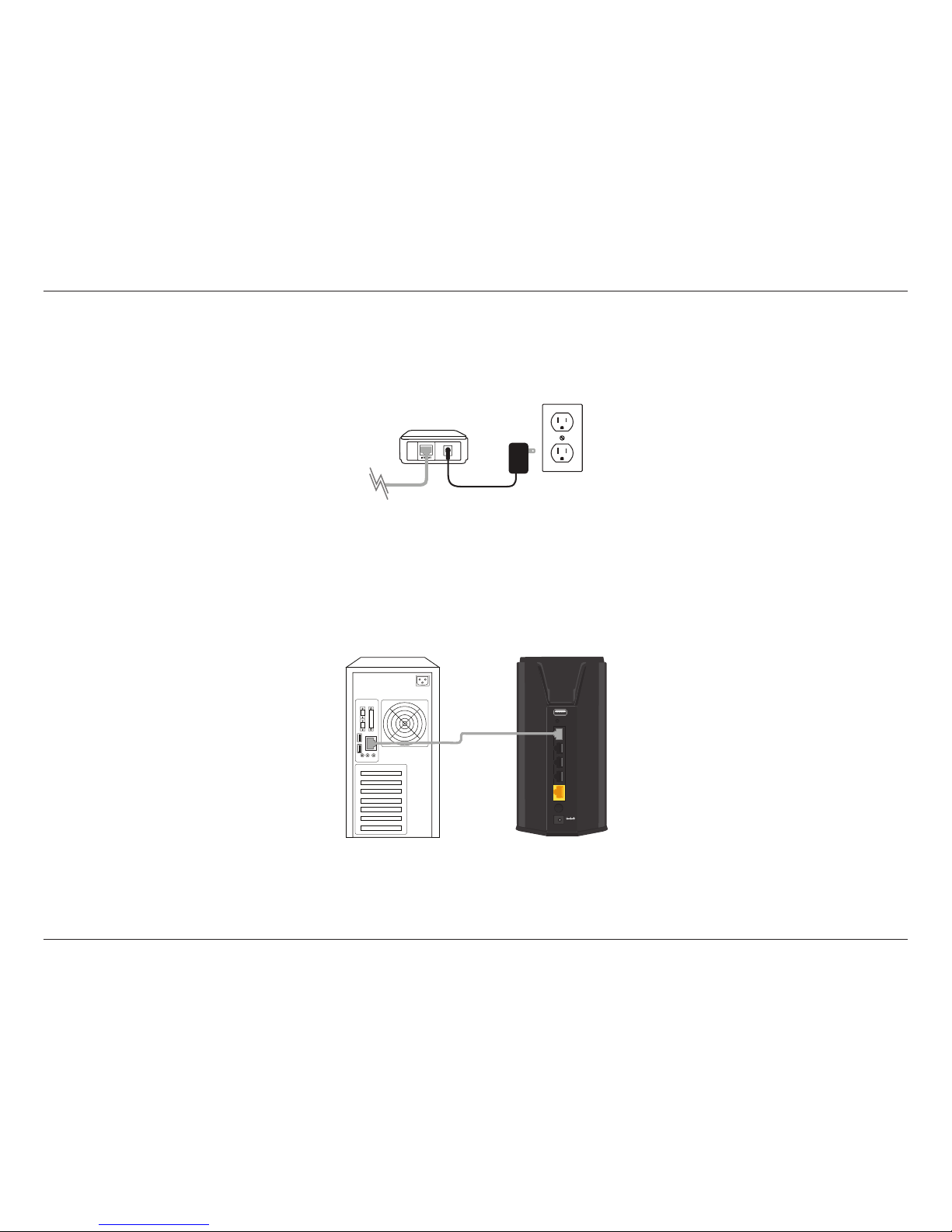

1. Turn o and unplug your cable or DSL broadband modem. This is required.
Hardware Setup
2. Position your router close to your modem and a computer. Place the router in an open area of your intended
work area for better wireless coverage.
3. Unplug the Ethernet cable from your modem (or existing router if upgrading) that is connected to your computer.
Plug it into the LAN port labeled 1on the back of your router. The router is now connected to your computer.
Modem
DIR-862L
Computer
USB
WPS
1
2
3
4
INTERNET
POWER

10D-Link DIR-862L User Manual
Section 2 - Installation

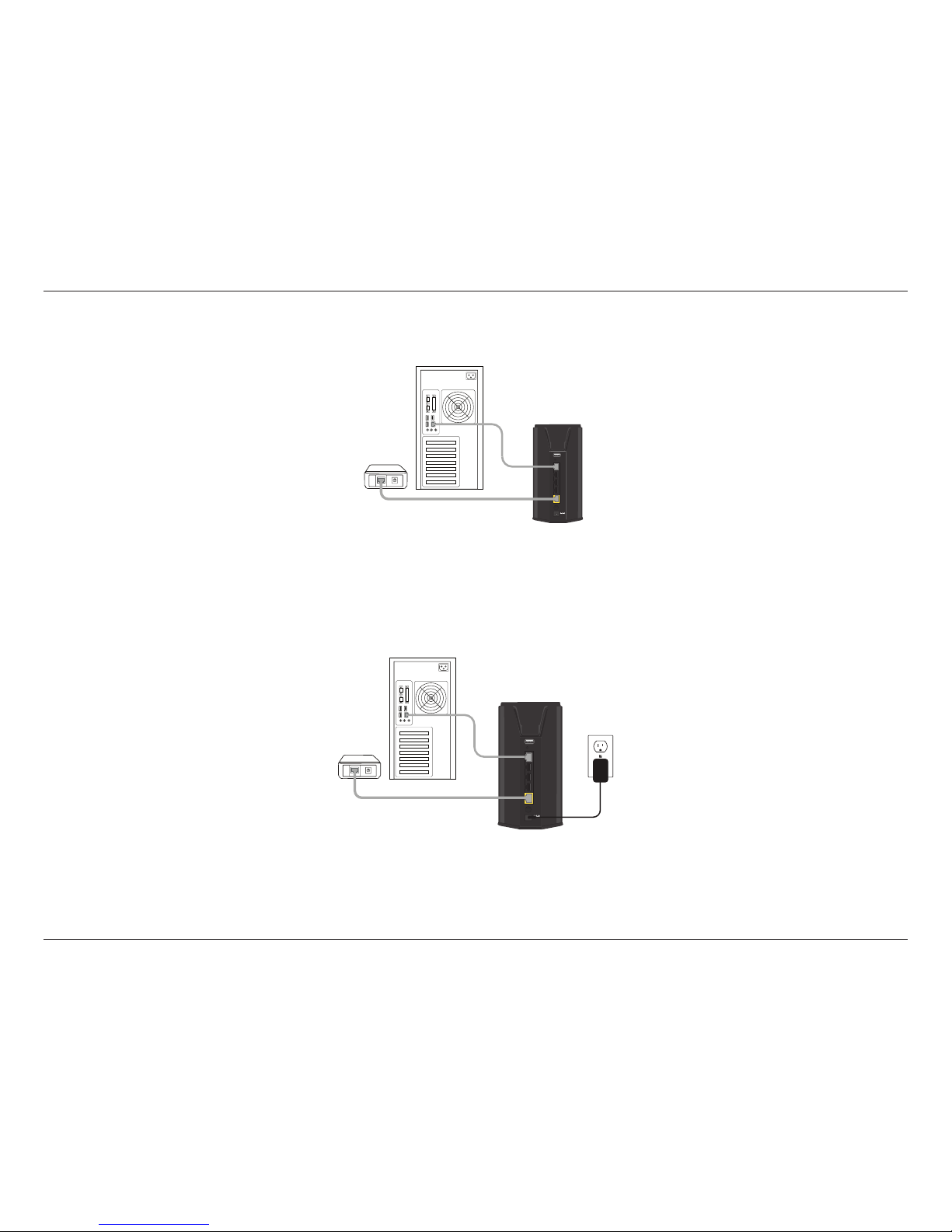

4. Plug one end of the included blue Ethernet cable that came with your router into the yellow port labeled
INTERNET on the back of the router. Plug the other end of this cable into the Ethernet port on your modem.
5. Reconnect the power adapter to your cable or DSL broadband modem and wait for two minutes.
6. Connect the supplied power adapter into the power port on the back of the router and then plug it into a power
outlet or surge protector. Press the power button and verify that the power LED is lit. Allow 1 minute for the
router to boot up.
7. If you are connecting to a Broadband service that uses a dynamic connection (not PPPoE), you may be online
already. Try opening a web browser and enter a web site. A solid green light indicates connection on the Internet
port and the router can connect to the Internet. If the LED is orange, the connection is good but the router cannot
connect to the Internet. It may need to be congured. See next page.
DIR-862L
DIR-862L
Modem
Computer
Modem
Computer
USB
WPS
1
2
3
4
INTERNET
POWER
4
INTERNET
USB
WPS
1
2
3
4
INTERNET
POWER
INTERNET

11D-Link DIR-862L User Manual
Section 3 - Conguration
There are several dierent ways you can congure your router to connect to the Internet and connect to your clients:
• D-Link Setup Wizard - This wizard will launch when you log into the router for the rst time. Refer to ”Quick Setup Wizard”
on page 12.
• QRS Mobile App - Use your iOS or Android device to congure your router. Refer to“QRS Mobile App” on page 19.
• Manual Setup - Log into the router and manually congure your router (advanced users only). Refer to “Internet” on
page 25.
Conguration

12D-Link DIR-862L User Manual
Section 3 - Conguration

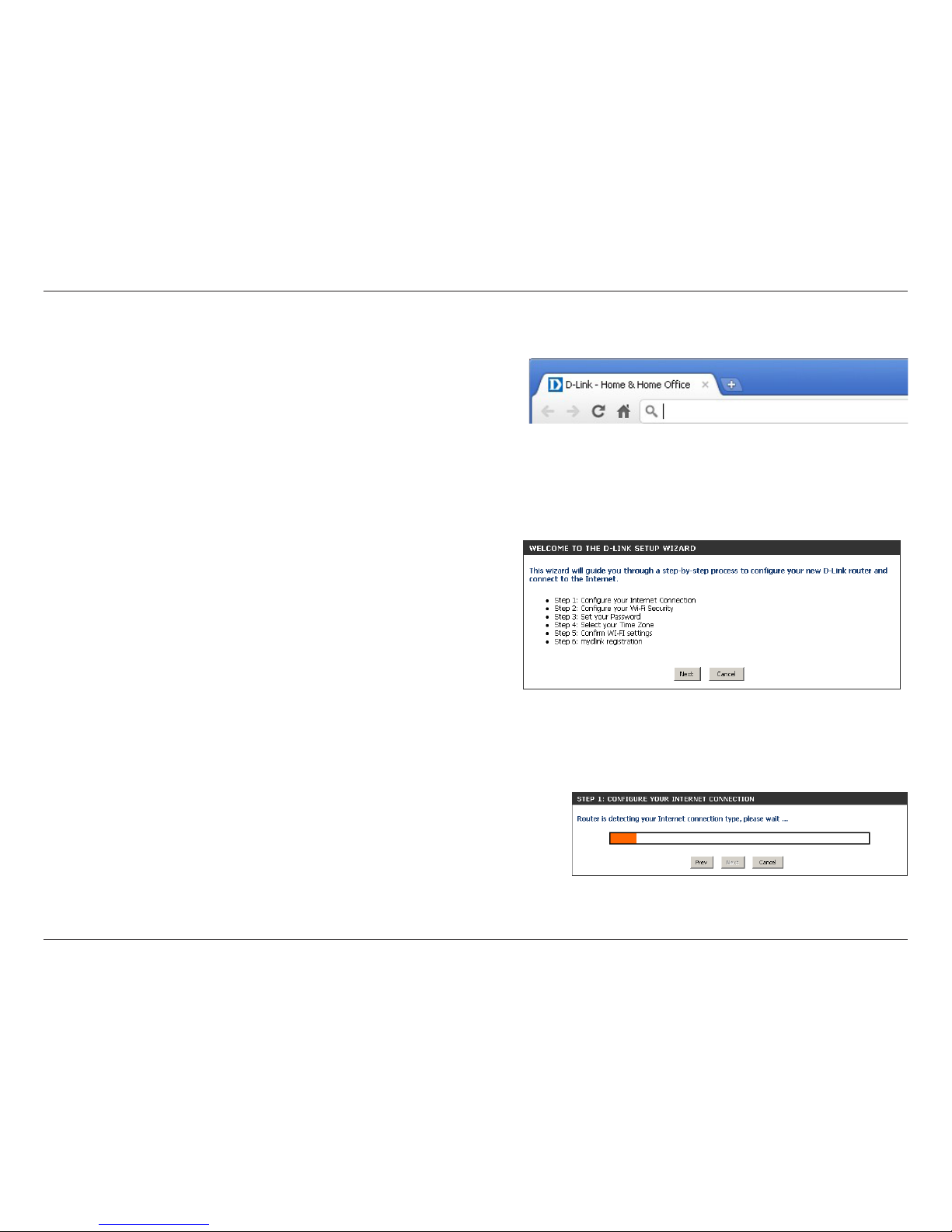

If this is your rst time logging into the router, this wizard will
start automatically.
This wizard is designed to guide you through a step-by-step
process to congure your new D-Link router and connect to the
Internet.
Click Next to continue.
Quick Setup Wizard
If this is your rst time installing the router, open your web
browser. You will automatically be directed to the Wizard Setup
Screen. If not, enter“http://dlinkrouter.local.”then press Enter.
If you have already congured your settings and you would like
to access the conguration utility, please refer to “Web-based
Conguration Utility” on page 24.
Please wait while your router detects your internet connection type.
If the router detects your Internet connection, you may need to enter
your ISP information such as username and password.

13D-Link DIR-862L User Manual
Section 3 - Conguration
If the router does not detect a valid Ethernet connection from the
Internet port, this screen will appear. Connect your broadband modem
to the Internet port and then click Try Again.
If the router detects an Ethernet connection but does not detect the type
of Internet connection you have, this screen will appear. Click Guide me
through the Internet Connection Settings to display a list of connection
types to choose from.
Select your Internet connection type and click Next to continue.

14D-Link DIR-862L User Manual
Section 3 - Conguration
If the router detected or you selected PPPoE, enter your PPPoE username
and password and click Next to continue.
Note: Make sure to remove your PPPoE software from your computer. The
software is no longer needed and will not work through a router.
If the router detected or you selected PPTP, enter your PPTP username,
password, and other information supplied by your ISP. Click Next to
continue.
If the router detected or you selected L2TP, enter your L2TP username,
password, and other information supplied by your ISP. Click Next to
continue.

15D-Link DIR-862L User Manual
Section 3 - Conguration

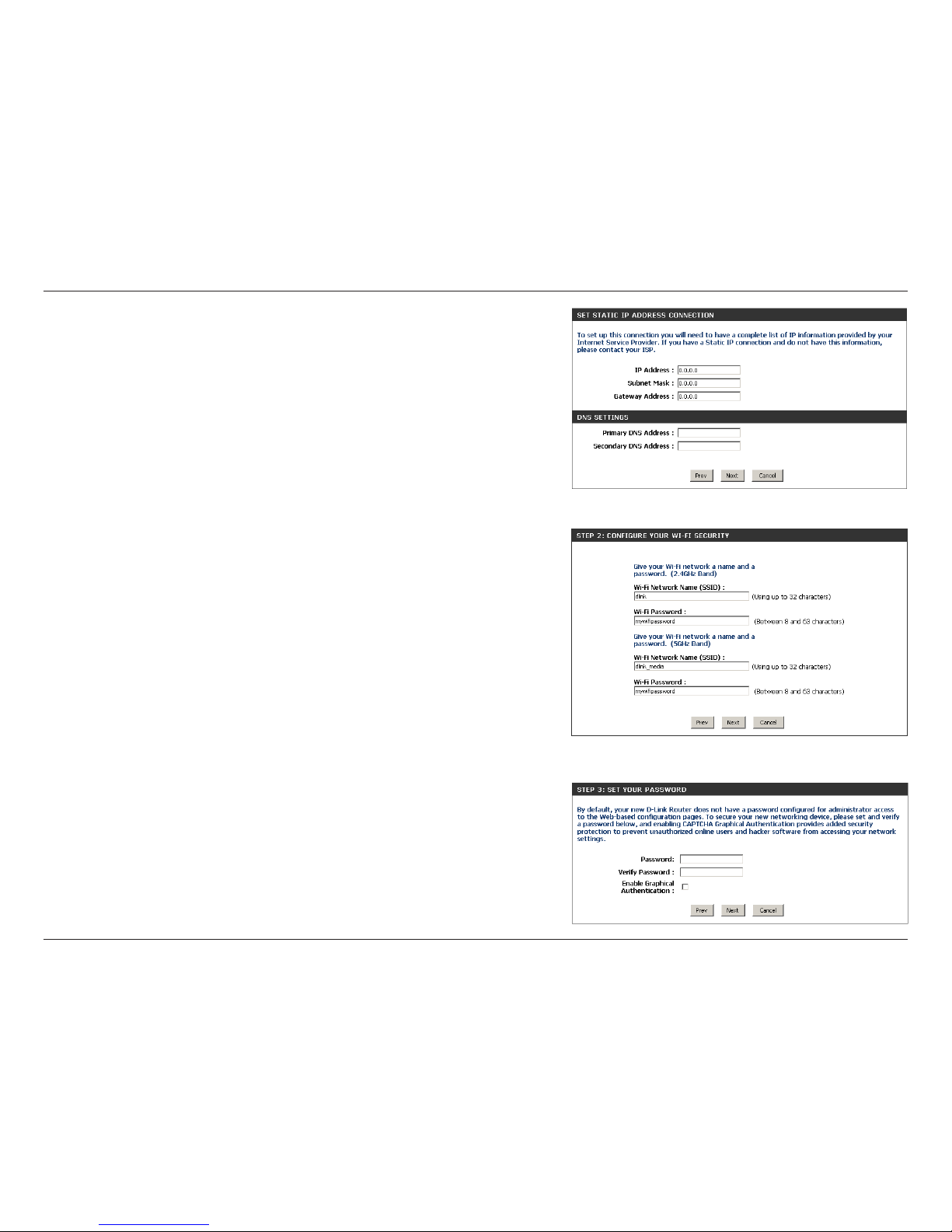

If the router detected or you selected Static, enter the IP and DNS
settings supplied by your ISP. Click Next to continue.
For both the 2.4 GHz and 5 GHz segments, create aWi-Fi network name
(SSID) using up to 32 characters.
Create aWi-Fi password (between 8-63 characters). Your wireless clients
will need to have this passphrase entered to be able to connect to your
wireless network.
Click Next to continue.
In order to secure your router, please enter a new password. Check the
Enable Graphical Authentication box to enable CAPTCHA authentication
for added security. Click Next to continue.

16D-Link DIR-862L User Manual
Section 3 - Conguration

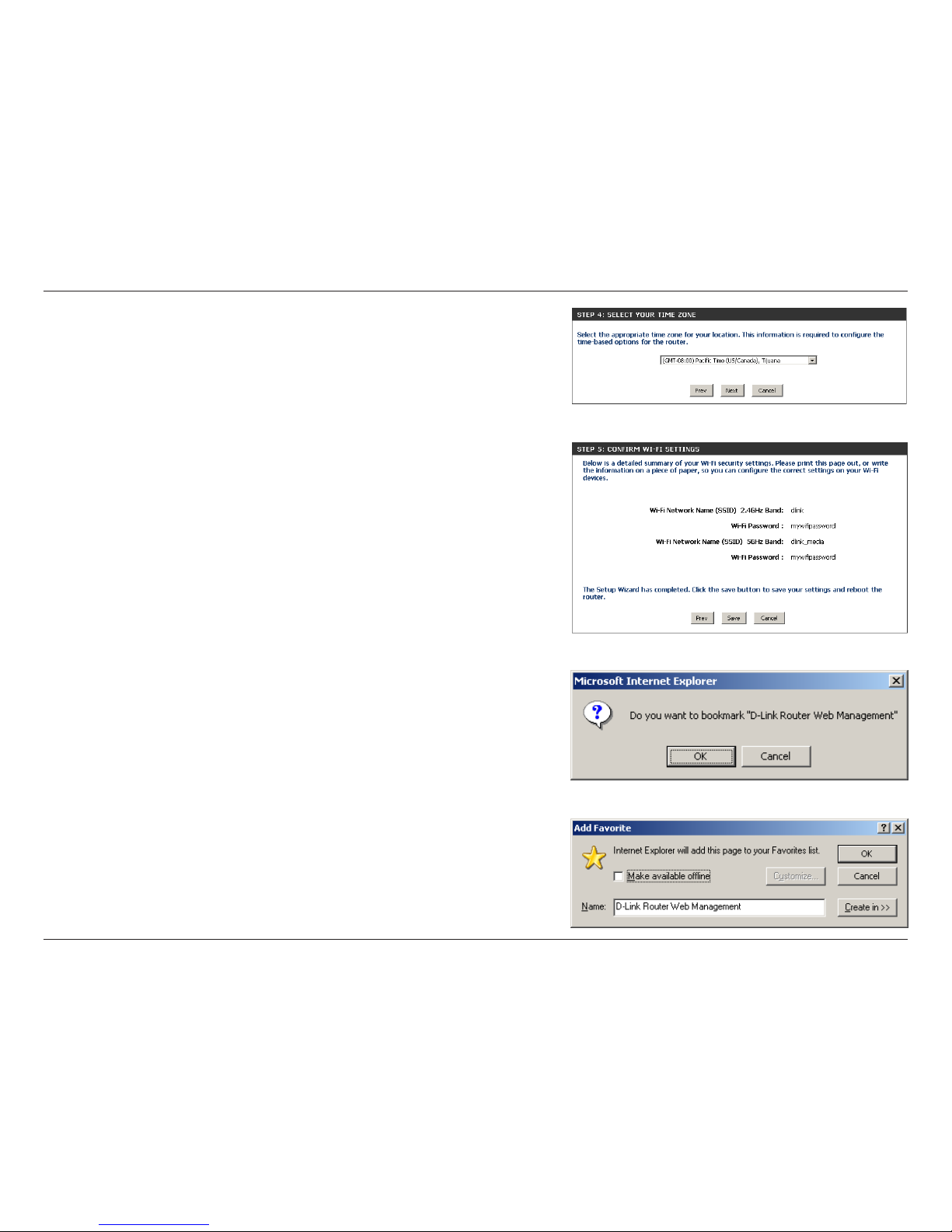

Select your time zone from the drop-down menu and click Next to
continue.
The Setup Complete window will display yourWi-Fi settings. Click Save
and Connect to continue.
If you want to create a bookmark to the router, click OK. Click Cancel if
you do not want to create a bookmark.
If you clicked Yes, a window may appear (depending on what web
browser you are using) to create a bookmark.
