D-Link DWR-330 User manual

1
Portable Wi-Fi Router
DWR-330 User Manual
By Jack

2
Contents
1 Introduction....................................................................................................................................3
1.1. Features..............................................................................................................................3
1.2. Product Overview ..............................................................................................................3
2. Connect to the internet..................................................................................................................6
2.1 Wi-Fi Router mode..............................................................................................................6
3. Router Web-based settings............................................................................................................7
3.1 Status...................................................................................................................................7
3.2 Dial up.................................................................................................................................9
3.3 WLAN...............................................................................................................................10
3.4 System...............................................................................................................................12
4 Troubleshooting ...........................................................................................................................14
5 FCC announcement......................................................................................................................15

3
1 Introduction
DWR-330 is a HSIA Wi-Fi device, working in EV-DO network. This device is a
Wi-Fi router. It can provide up to 8 connections to various Wi-Fi devices such as smart
phones, laptops, or tablet PCs. This quick guide provides instructions on how to use
and get started with the product. For information about connection of services, please
consult your service provider.
1.1. Features
Built-in HSIA modem module
Downlink throughput up to 3.1Mbps
Uplink throughput up to 1.8Mbps
WWAN connection
CDMA2000 EVDO Rev. A
Compatible to CDMA 2000 EVDO Rev 0 and CDMA 2000 1x RTT, IS-95
A/B.
Wi-Fi 802.11 b/g/n
Built-in firewall to protect your Internet
Share internet connection with 8 Wi-Fi devices
Micro USB interface
Multi-color LED indicating status of network connection
Support Microsoft Windows XP / Vista / Windows 7/Windows 8
Support Linux
Support Mac OS 10.5/10.6/10.7/10.8/10.9
Antenna
One Internal EVDO main antenna
One Internal EVDO diversity antenna
One Internal Wi-Fi antenna
1.2. Product Overview

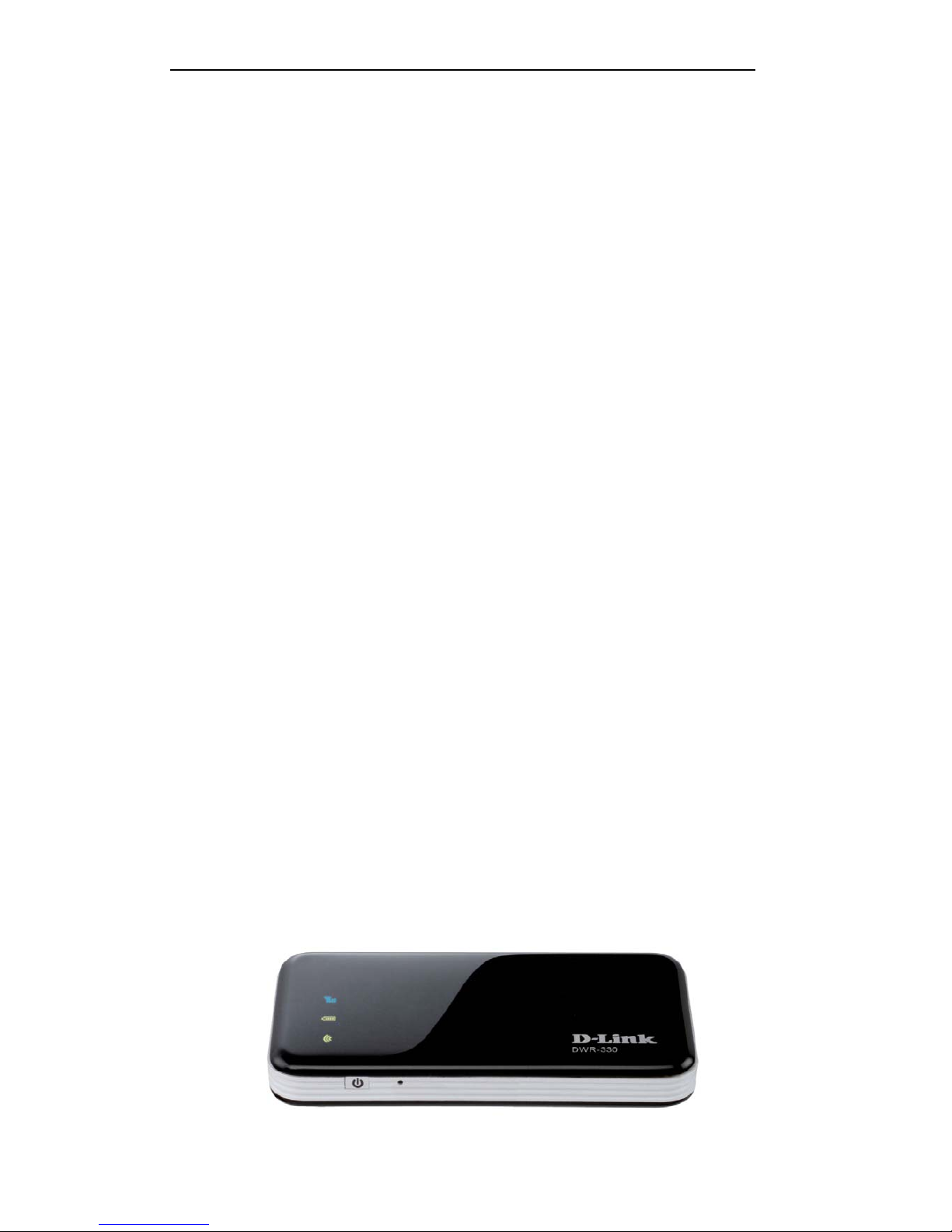

Appearance

4

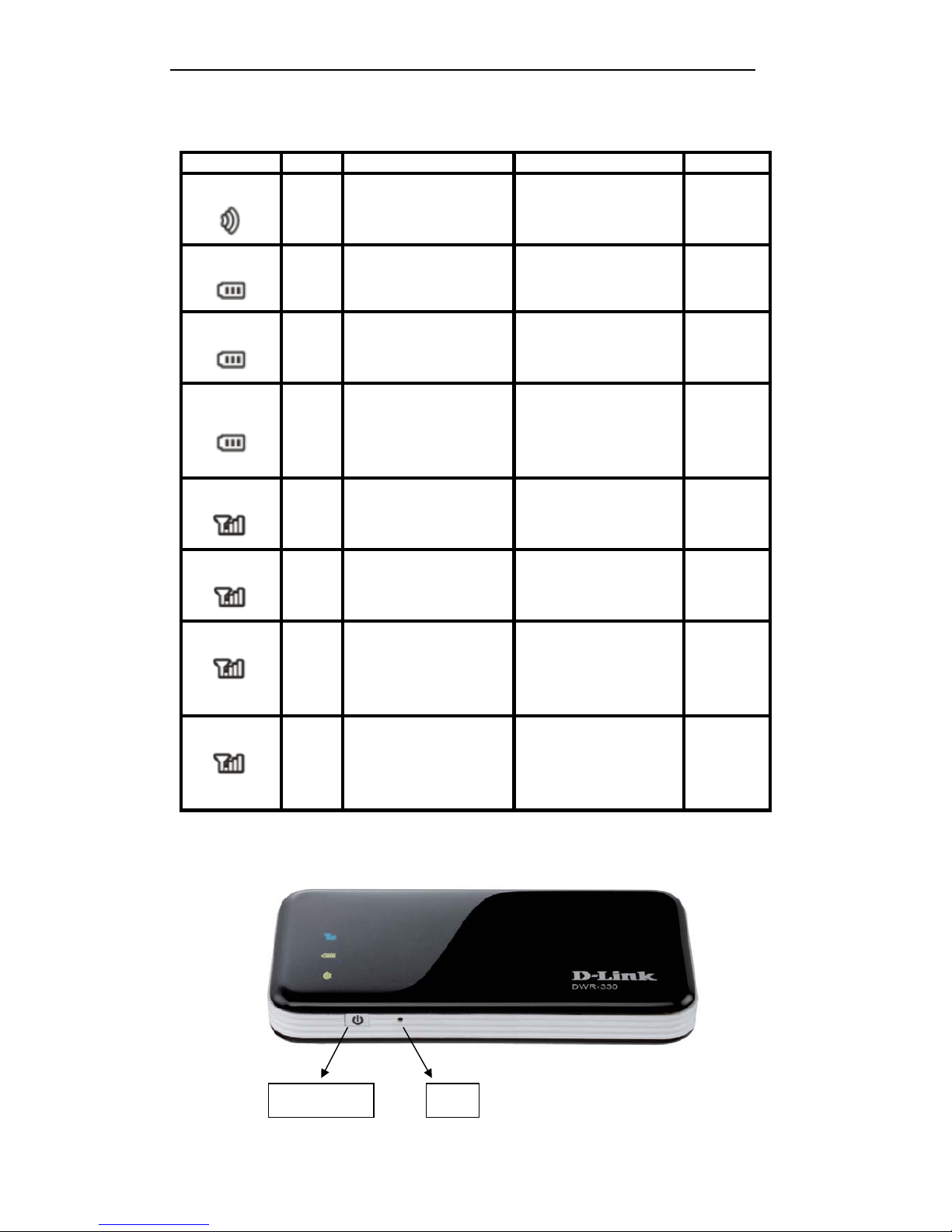

LED indicator:
indicatorColorSolid Blinking Comment
Wi‐Fi

GreenRoutermodeTransmitting‐‐
Battery

Red0%~30%capacity
withoutcharger
Lessthan30%
capacitywhen
charging
‐‐
Battery

Green
60%to30%
capacitywithout
charger
60%~30%
capacitywhen
charging
‐‐
Battery

Blue
99%~60%
capacitywithout
charger;
100%Chargingtofull;
99%~60%
capacitywhencharging‐‐
Signal

off ‐‐ ‐‐ standby
Signal

RedNoService
(Error)
‐‐ ‐‐
Signal
GreenCDMA1X
DATA
Transmitting(quick)
Connectedwithout
DATA(slow)
‐‐
Signal
BlueEVDO
DATA
Transmitting(quick)
Connectedwithout
DATA(slow)
‐‐
Button:
Power button Rese

5
Power button:
Press 3 seconds to turn on or turn off the device
Reset: For system reset to default setting (Press 3 seconds)
Micro USB port:
Charging via a USB cable.

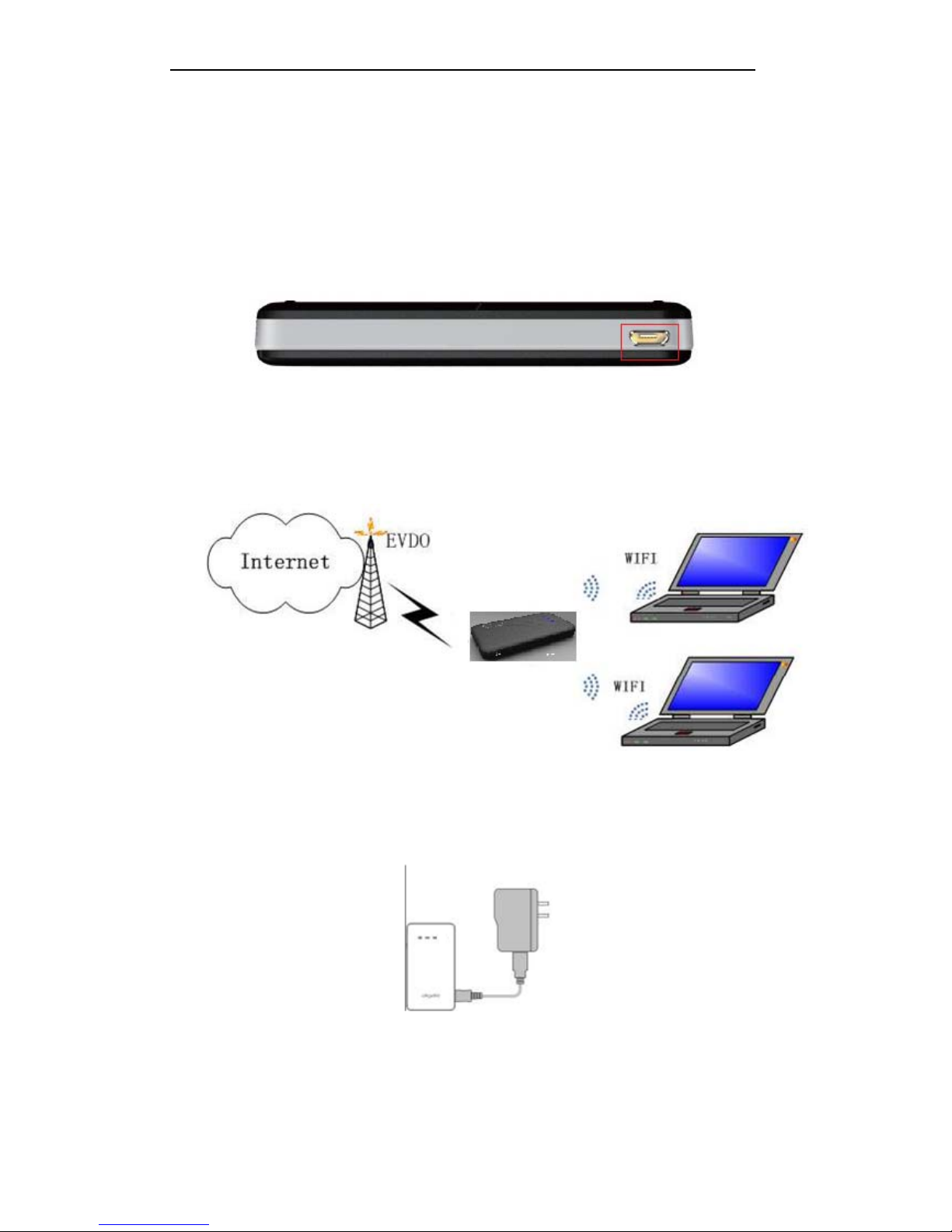

Router mode
Please refer to the illustration below for Wi-Fi Router mode. The HSIA
Mobile Router can provide up to 8 Wi-Fi connections for various Wi-Fi devices to
share the HSIAmobile broadband service.
Battery charging by computer or USB adapter
Method 1: Connect device to the USB adapter with USB cable and plug
power adaptor into an appropriate wall outlet
Method 2: Connect device with PC USB port by the USB cable.

6
2. Connect to the internet
The Wi-Fi Router mode can provide 8 Wi-Fi connections to share the HSIA mobile
broadband.
2.1 Wi-Fi Router mode
The product is used standalone and computers are connected to with Wi-Fi
link and in turn connect to Internet via HSIA network. The Battery is used in this
case, and charging can be provided by one of the computer USB port or with
separated charger.
Step 1. Putthebatteryinthedevice.
Step 2.Pushthepowerbutton3seconds.
Step 3.JointheWi‐Finetwork.
Step 4. Openthewebbrowserandenter192.168.0.1intheaddressbar.
Step 5.Enteradmininusername&passwordField.
Step 6. Click WLAN -> WLAN Basic Settings on the left menu and select
WPA2-PSK for the encryption type, and set WPA KEY in 8-63 alphanumeric
characters.
Step 7. Join the Wi-Fi network again with your password.
***WIFI Channel 12 & Channel 13 is not available in final product. The
hardware is disabled inside.

7
3. Router Web-based settings
DWR330 has built-in web page interface for users to configure router settings. Before
you start using web browser to configure the Router, please make your client device is
connecting to it.
The default IP address is “192.168.0.1”, and you may use any web browser, such as
Microsoft Internet Explorer, Firefox, Safari, Google Chrome and Opera, to perform
following configurations. Please open your preferred web browser and enter the IP
address 192.168.0.1 in the address bar.And press Enter.

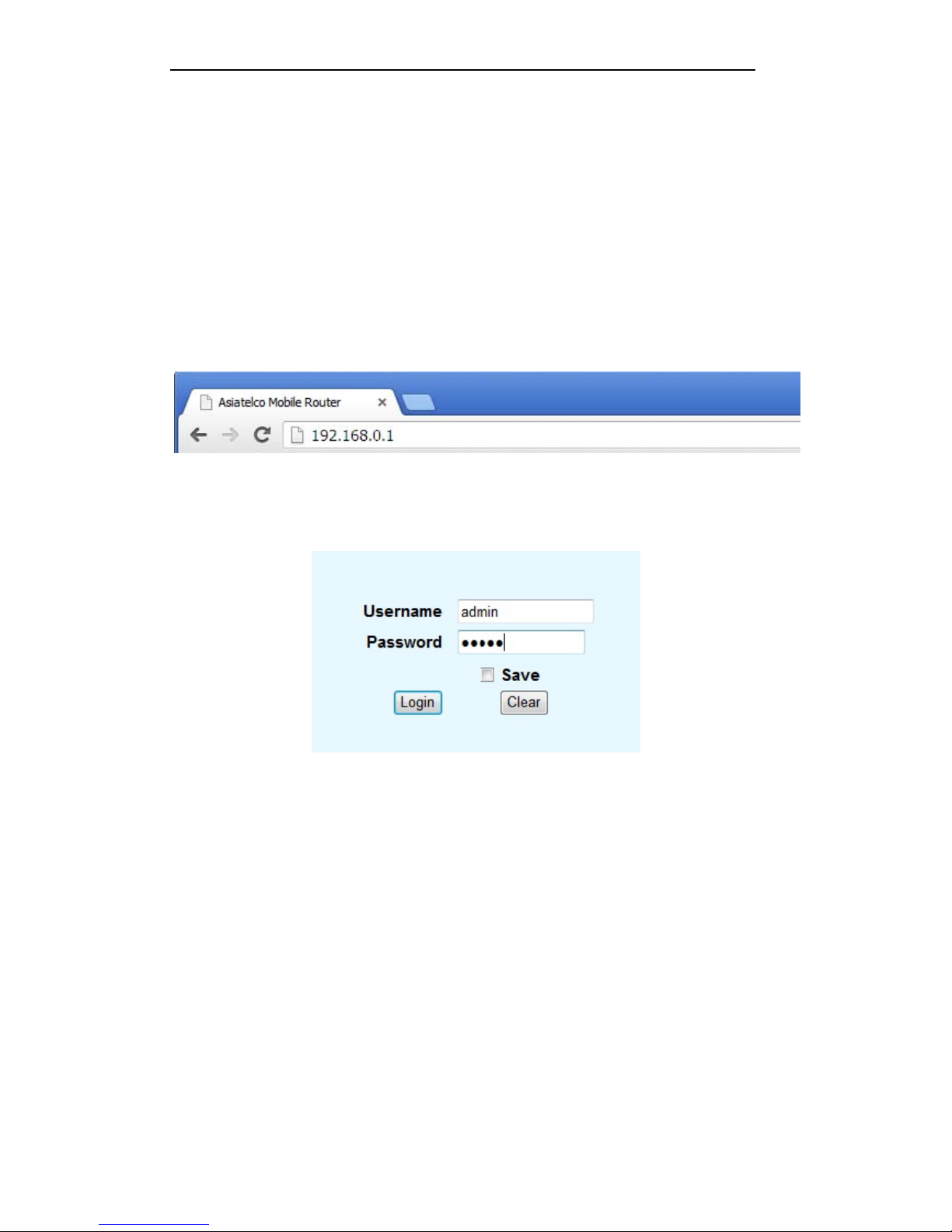

When following window appears, enter user name and password and click OK to
enter the configuration page. The default user name and password are admin.
3.1 Status

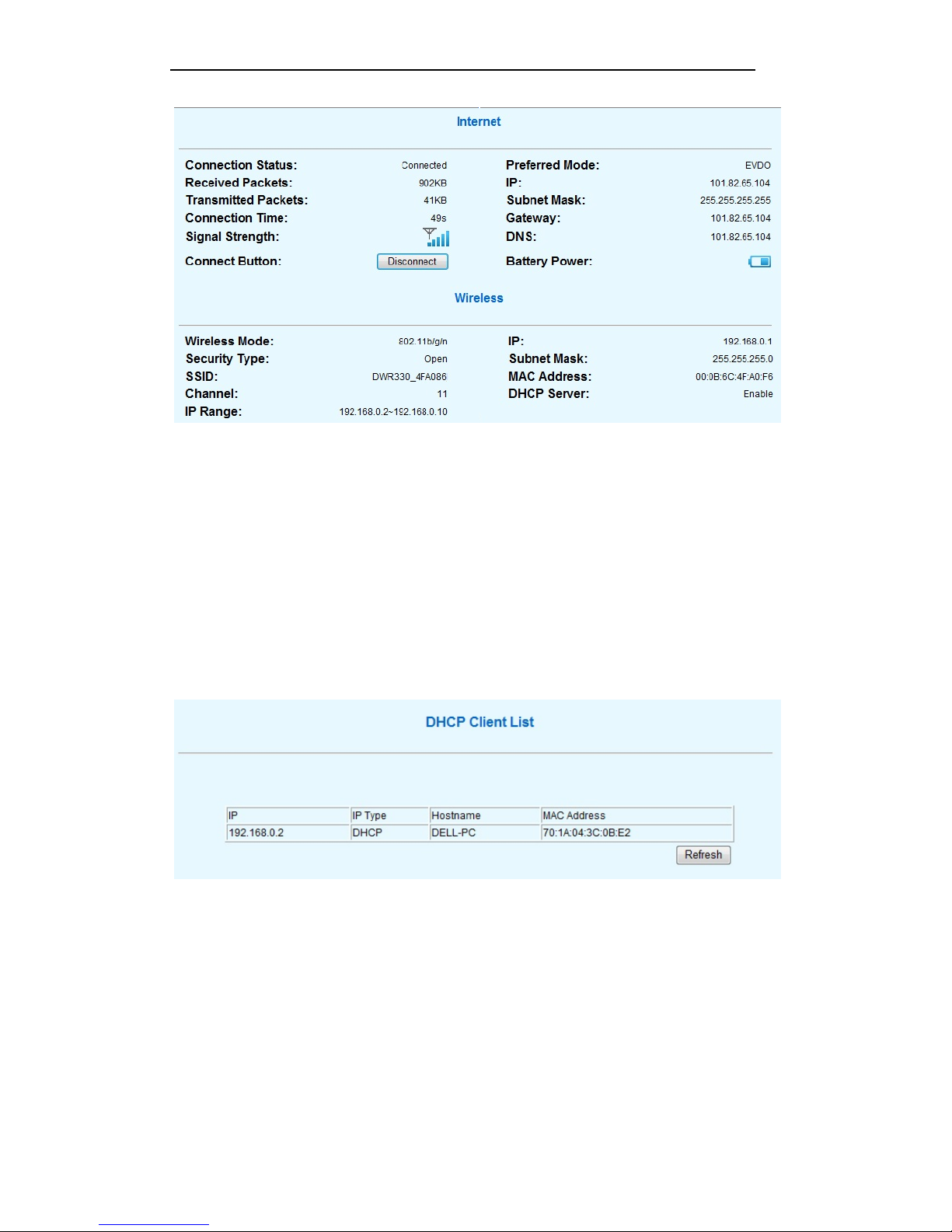

1) Status
After entering the correct IP address and loading to the first web-page, you will see
the Status page. It is the default page for device.

8
 Connect: Press "Connect" button to connect to the internet.
 Disconnect: Press "Disconnect" button to disconnect the internet.
Note: Connect and Disconnect button will brighten clickable when you set Connection
Mode to Manual.
2) DHCP Client List
It shows IP/IP Type/Hostname/MAC address for each associated network client
connected to this device.
 Refresh: Refresh the Client list.

9

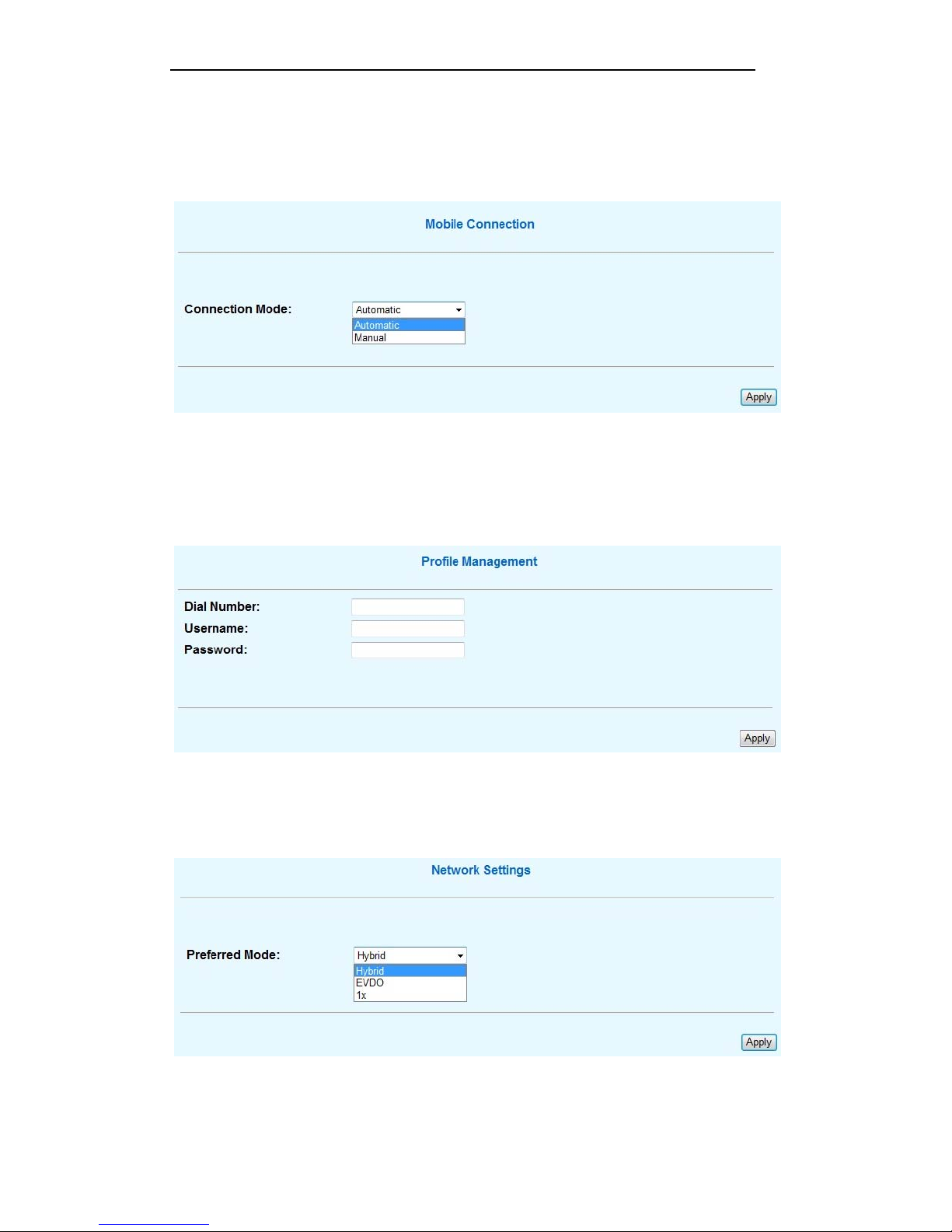

3.2 Dial up
1) Mobile Connection
Automatic: The mobile network connection is always maintained.
Manual: You have to open "Status-> Status" web setting page and click the
"Connect" button manually to connect to network.
2) Profile Management
Dial Number, Username and Password: You can check Dial Number,
Username and Password here.
3) Network Settings
Preferred Mode: You can select network mode: Hybrid/EVDO/1x, then press
<Apply> to save the setting.

10
3.3 WLAN

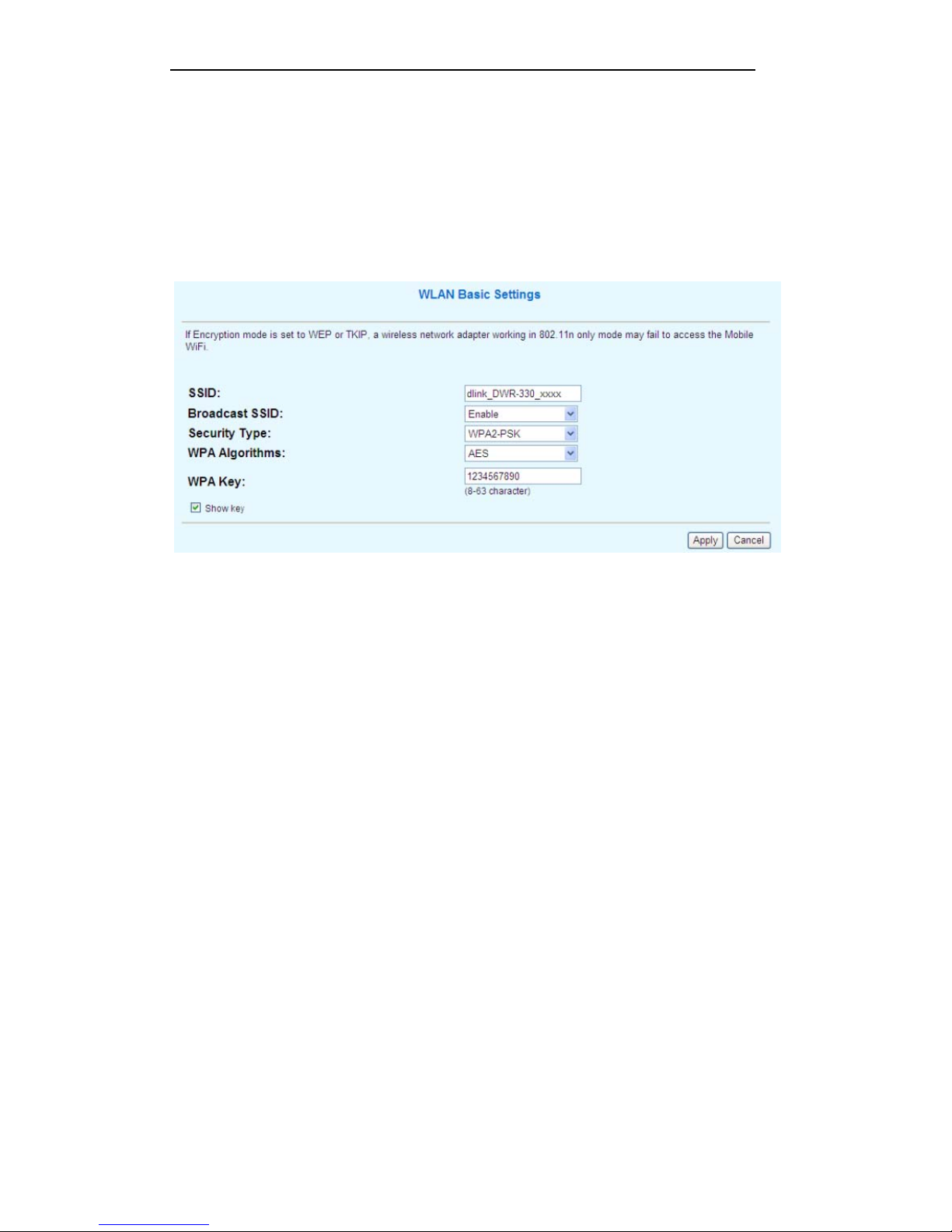

1) WLAN Basic Settings
SSID: Service Set Identifier. The SSID of device appears in the wireless network.
You can assign an ID up to 32 characters here.
Broadcast SSID: It is enabled by default, and anyone can see this device in the
wireless network. If it is disabled, any network client wants to connect to this
device has to enter the correct SSID manually from a client before the client accesses
the Wi-Fi.
Security Type: We highly recommend you to select one of the encryption types
to secure your wireless connection when using this device. Please make sure
your Wi-Fi client device can support the encryption mode you selected.
Open: Open System authentication. If this mode is selected, clients can access
the Wi-Fi without entering any security key.
WEP: Wired Equivalent Privacy. To access the Wi-Fi, clients must enter the Wired
Equivalent Privacy (WEP) key that matches the key set on the web UI.
WPA-PSK: This data encryption method uses a random 256-bit key.
WPA2-PSK: This is the second version of WPA-PSK and is more secure
than WPA-PSK.
WPA/WPA2 Mixed: Both WPA-PSK and WPA2-PSK encryption modes are
supported. Clients can access the Wi-Fi in WPA-PSK or WPA2-PSK mode.
Note: - The Default Security type is WPA2-PSK.the default key is “1234567890”.
