Dürr Technik SICOLAB 062 mini User manual

EN
SICOLAB mini oil-free compressor
station
Installation and operating instructions
0715100100L02
*0715100100L02*
2111V005

Contents
Important information
1About this document .. . . . . . . . . . . . . 3
1.1 Warnings and symbols .. . . . . . . 3
1.2 Copyright information .. . . . . . . . 3
2 Safety .. . . . . . . . . . . . . . . . . . . . . . . . . 4
2.1 Intended use .. . . . . . . . . . . . . . . 4
2.2 Improper use .. . . . . . . . . . . . . . . 4
2.3 General safety information .. . . . . 4
2.4 Specialist personnel .. . . . . . . . . 4
2.5 Electrical safety .. . . . . . . . . . . . . 4
2.6 Only use original parts .. . . . . . . . 4
2.7 Transportation and storage .. . . . 4
2.8 Disposal .. . . . . . . . . . . . . . . . . . 5
Product description
3 Overview .. . . . . . . . . . . . . . . . . . . . . . . 6
3.1 Unit 8012100011 .. . . . . . . . . . . 7
3.2 230 V units .. . . . . . . . . . . . . . . . 8
3.3 115 V units .. . . . . . . . . . . . . . . . 8
3.4 Wear parts and replacement
parts .. . . . . . . . . . . . . . . . . . . . . 9
4Technical data .. . . . . . . . . . . . . . . . . . . 10
4.1 230 V units .. . . . . . . . . . . . . . . . 10
4.2 115 V units .. . . . . . . . . . . . . . . . 11
4.3 Pressure tank .. . . . . . . . . . . . . . 12
4.4 Instructions for use for the pres-
sure vessel (explanation by
Behälter-Werk Burgau GmbH) .. . 13
4.5 Type plate .. . . . . . . . . . . . . . . . . 14
4.6 Declaration of conformity for
machines in accordance with the
2006/42/EC Directive .. . . . . . . . 15
Assembly
5Requirements .. . . . . . . . . . . . . . . . . . . 16
5.1 Installation/setup room .. . . . . . . 16
5.2 Pressure vessel test .. . . . . . . . . 16
6 Commissioning .. . . . . . . . . . . . . . . . . . 17
6.1 Remove the packaging .. . . . . . . 17
6.2 Establishing the compressed air
connection .. . . . . . . . . . . . . . . . 17
6.3 Condensate .. . . . . . . . . . . . . . . . 17
6.4 Electrical installation .. . . . . . . . . 17
6.5 Overtemperature protection .. . . 18
6.6 Checking the safety valve .. . . . . 18
Usage
7Operation .. . . . . . . . . . . . . . . . . . . . . . 19
7.1 Switching the unit on/off .. . . . . . 19
7.2 Start-up cycles .. . . . . . . . . . . . . 19
7.3 Setting the pressure reducer .. . . 19
8 Maintenance .. . . . . . . . . . . . . . . . . . . . 20
8.1 Maintenance schedule .. . . . . . . . 20
8.2 Preparations when replacing a
filter .. . . . . . . . . . . . . . . . . . . . . . 21
8.3 Replace the air intake filter car-
tridge .. . . . . . . . . . . . . . . . . . . . . 21
8.4 Replacing the fine filter (5 µm) in
the condensate separator .. . . . . 22
8.5 Checking the fan .. . . . . . . . . . . . 22
8.6 Cleaning .. . . . . . . . . . . . . . . . . . 23
9Taking out of use .. . . . . . . . . . . . . . . . 23
9.1 Taking the unit out of use .. . . . . 23
9.2 Storage of the unit .. . . . . . . . . . 23
Troubleshooting
10 Tips for operators and service techni-
cians .. . . . . . . . . . . . . . . . . . . . . . . . . . 24
Contact
11 Addresses .. . . . . . . . . . . . . . . . . . . . . . 25
11.1 Returns / Repairs .. . . . . . . . . . . 25
Contents
0715100100L02 2111V005 1
EN

11.2 To order spare parts .. . . . . . . . . 25
11.3 Service .. . . . . . . . . . . . . . . . . . . 25
11.4 Addresses worldwide .. . . . . . . . 25
Contents
2 0715100100L02 2111V005
EN

Important information
1 About this document
These installation and operating instructions rep-
resent a part of the unit. They correspond to the
relevant version of the unit and the status of
technology valid at the time of its market launch.
In the event that the instructions and
notes in these installation and operating
instructions for are not observed, Dürr
Technik accepts no warranty or liability of
any kind for the safe operation and relia-
ble function of the units.
This translation was prepared to the best of our
knowledge. The original German language ver-
sion of the manual is the definitive version. Dürr
Technik is not liable for translation errors.
1.1 Warnings and symbols
Warnings
The warnings in this document are intended to
draw your attention to possible injury to persons
or damage to machinery.
The following warning symbols are used:
General warning symbol
Warning – dangerous high voltage
Warning – hot surfaces
Warning - automatic start-up of the unit
The warnings are structured as follows:
SIGNAL WORD
Description of the type and source of
danger
Here you will find the possible conse-
quences of ignoring the warning
❯Follow these measures to avoid the
danger.
The signal word differentiates between four levels
of danger:
–DANGER
Immediate danger of severe injury or death
–WARNING
Possible danger of severe injury or death
–CAUTION
Risk of minor injuries
–NOTICE
Risk of extensive material/property damage
Other symbols
These symbols are used in the document and on
or in the unit:
Note, e.g. specific instructions regarding
efficient and cost-effective use of the unit.
Comply with the specification in the
accompanying documents.
Date of manufacture
CE labelling
Dispose of the unit properly and in
accordance with applicable national,
regional and local laws.
Disconnect all power from the unit.
1.2 Copyright information
All names of circuits, processes, names, software
programs and units used in this document are
protected by copyright.
The reprinting of the installation and operating
instructions, even in extracts, is only permitted
with the written permission of Dürr Technik.
Important information
0715100100L02 2111V005 3
EN

2 Safety
Dürr Technik has developed and constructed the
units in such a way that danger is to a large
extent excluded if the units are used as intended.
Nevertheless, residual risks can remain. You
should therefore observe the following notes.
2.1 Intended use
The unit is intended for the compression of
atmospheric air. The unit has been designed for
operation in dry, ventilated rooms. The unit must
not be operated in a damp or wet environment.
Its use in the vicinity of gases or flammable liq-
uids is prohibited. Only operate the units in a sta-
tionary, upright position.
2.2 Improper use
Any use of this appliance / these appliances
above and beyond that described in the Installa-
tion and Operating Instructions is deemed to be
incorrect usage. The manufacturer cannot be
held liable for any damage resulting from incor-
rect usage. The operator will be held liable and
bears all risks.
WARNING
Serious injury and material damage
due to improper usage
❯Conveying explosive mixtures in any
way other than that specified is not
permitted.
2.3 General safety information
❯Always comply with the specifications of all
guidelines, laws, and other rules and regula-
tions applicable at the site of operation for the
operation of this unit.
❯Check the function and condition of the unit
prior to every use.
❯Do not convert or modify the unit.
❯Comply with the specifications of the Installa-
tion and Operating Instructions.
❯The Installation and Operating Instructions
must be accessible to all operators of the unit
at all times.
2.4 Specialist personnel
Operation
Unit operating personnel must ensure safe and
correct handling based on their training and
knowledge.
❯Instruct or have every user instructed in han-
dling the unit.
Installation and repairs
❯Always arrange for any assembly work, read-
justments, alterations, extensions, and repairs
to be performed by Dürr Technik or by person-
nel authorised and trained by Dürr Technik.
Qualified personnel are defined as those
trained by Dürr Technik; who are familiar with
the unit technology; and are aware of the dan-
gers presented by the unit.
2.5 Electrical safety
❯Observe and comply with all the relevant elec-
trical safety regulations when working on the
unit.
❯Replace any damaged cables or plugs immedi-
ately.
2.6 Only use original parts
❯Only use accessories and special accessories
that are specified or approved by Dürr Technik.
❯Only use original working and spare parts.
Dürr Technik accepts no liability for dam-
age resulting from the use of non-
approved accessories, special accesso-
ries or any working parts or spare parts
other than original parts.
2.7 Transportation and storage
The original packaging provides optimum protec-
tion for the unit during transport.
Dürr Technik will not accept any responsi-
bility or liability for damage occurring dur-
ing transport due to the use of incorrect
packaging, even where the unit is still
under guarantee.
– Only transport the unit in its original packaging.
– Keep the packing materials out of the reach of
children.
Important information
4 0715100100L02 2111V005
EN

WARNING
Risk of explosion of the pressure ves-
sel and pressure hoses
Serious personal injury and material
damage
❯The pressure vessel and the pressure
hoses must be vented before they are
stored or transported.
❯Protect the unit from moisture during
transportation.
❯Always transport the unit in an upright
position.
❯Only transport the unit using the trans-
port handles provided.
The unit may be stored in its original packaging
– in warm, dry and dust-free rooms;
– protected from contaminants.
If possible, retain the packaging material.
Ambient conditions during storage and trans-
port
Ambient conditions during storage and
transport
Temperature °C -25 to +55
Rel. humidity % 10 % to 90 %
Please refer to the labels on the packaging pad-
ding.
2.8 Disposal
Unit
Dispose of the unit properly and in
accordance with applicable national,
regional and local laws.
Packaging
Dispose of the packaging material in an
environmentally responsible manner.
– Note current disposal routes.
– Keep the packing materials out of the reach of
children.
Important information
0715100100L02 2111V005 5
EN

Product description
3 Overview
The unit draws in atmospheric air and com-
presses it. The oil-free compressed air is then
transported to the pressure vessel. The oil-free
and filtered air is made available to the consum-
ers in the pressure vessel.
If compressed air is removed for a consumer, the
pressure in the vessel drops. When the switch-on
pressure is reached, the unit is automatically
switched on again via the pressure switch. When
the cut-off pressure is reached, the unit is auto-
matically switched off. A safety valve prevents the
maximum permissible vessel pressure from being
exceeded.
1
2
3
4
6
5
7

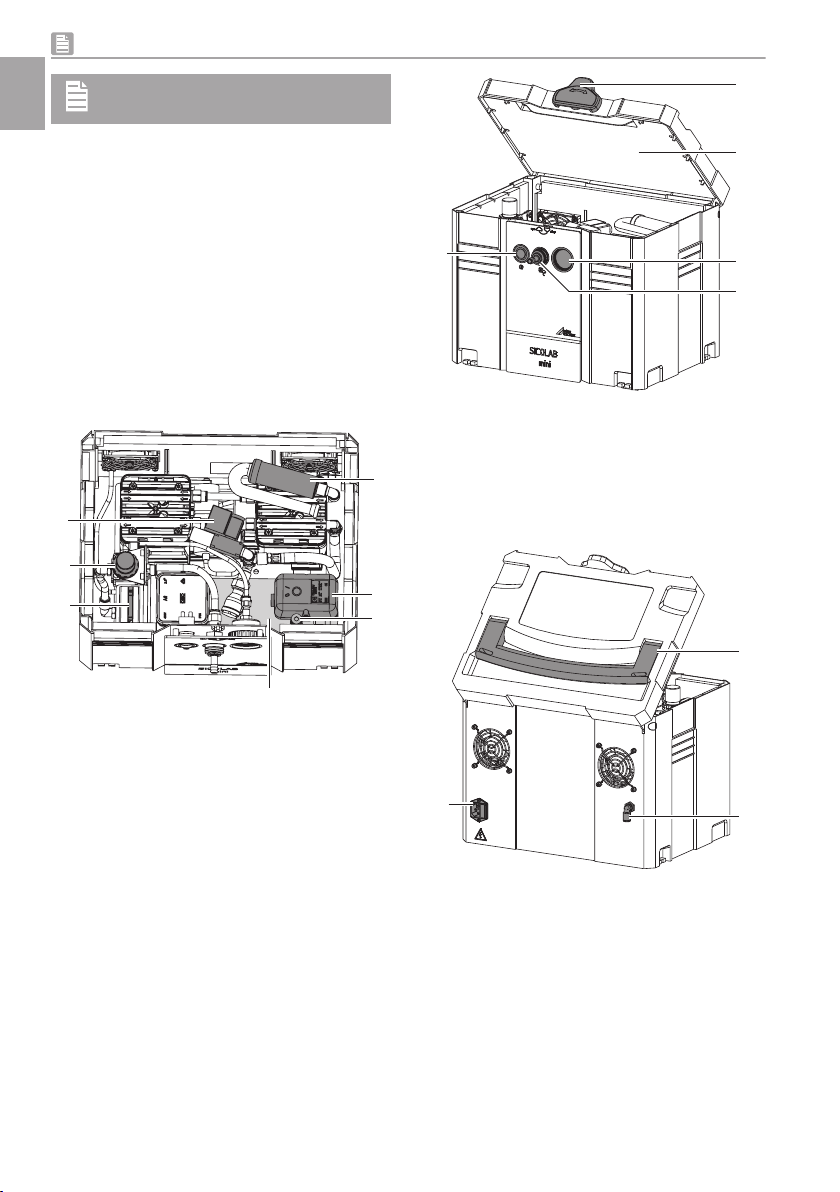

Fig. 1: Top view (without unit cover)
1 Pressure vessel
2 Safety Valve
3 Pressure switch
4 Air intake filter
5 Pressure reducer with condensate separa-
tor and fine filter 5 µm
6 Soleinoid valve
7 Operating time counter
10
9
12
11
8
Fig. 2: SICOLAB 062 mini front view
8 Quick-release coupling (choked)
9 On/Off switch
10 Pressure gauge
11 Unit cover
12 Unit cover lock
13
14
15
Fig. 3: View of the rear
13 Carry handle
14 Condensate drain
15 Power plug with fuses
Product description
6 0715100100L02 2111V005
EN

3.1 Unit 8012100011
8

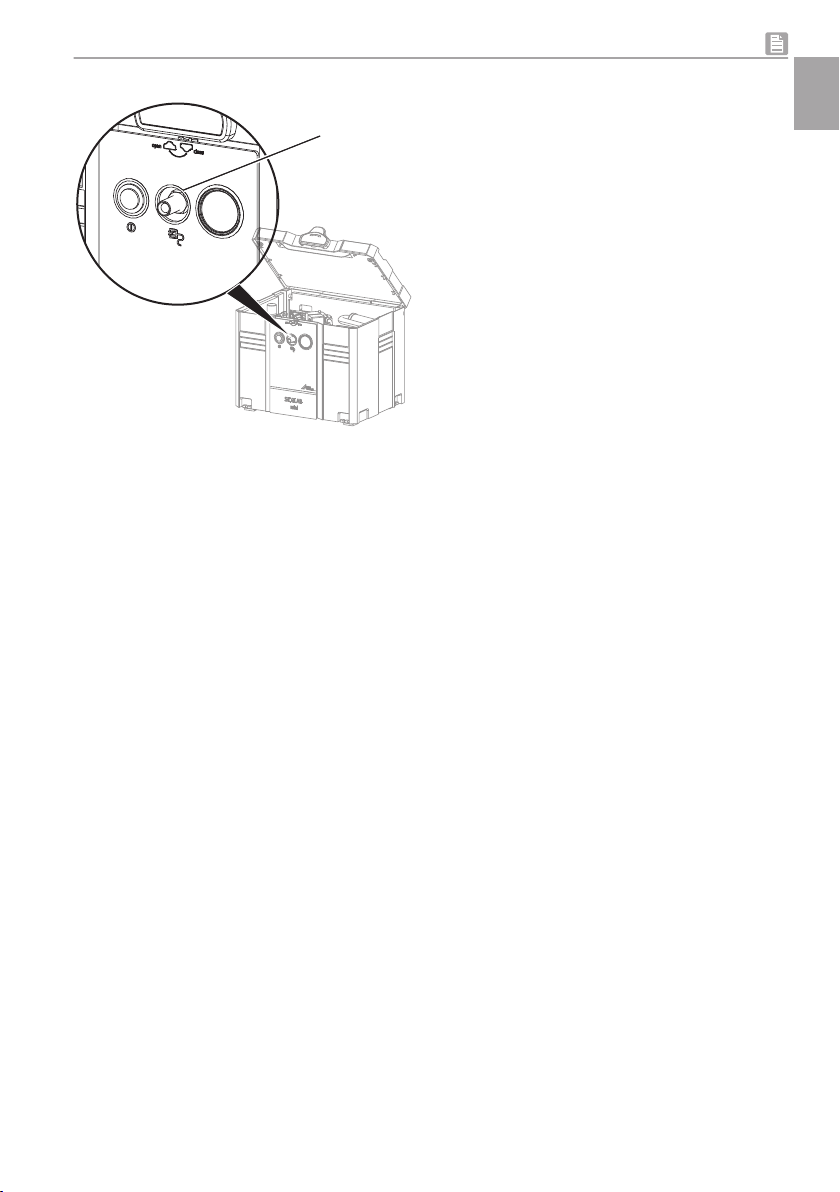

Fig. 4: SICOLAB 062 mini; Article 8012100011
with bulkhead fitting; front view
8 Bulkhead fitting*
* Bulkhead fitting G 1/4" - tightening torque
max. 15 Nm
Product description
0715100100L02 2111V005 7
EN

3.2 230 V units
The units are available in the following 230 V variants:
Description Article no. Air
intake
filter
car-
tridge,
long .. 0714200050
Fine
filter
car-
tridge
5µm .. 0715100052
SICOLAB 025 mini 0715100035 L L
SICOLAB 038 mini 0715100033 L L
SICOLAB 038 mini 8012100013 L L
SICOLAB 062 mini 0715100007 L L
SICOLAB 062 mini 8012100011 L L
LPresent
3.3 115 V units
The units are available in the following 115 V variants:
Description Article no. Air
intake
filter
car-
tridge,
long .. 0714200050
Fine
filter
car-
tridge
5µm .. 0715100052
SICOLAB 038 mini 0715100040 L L
SICOLAB 062 mini 0715100039 L L
LPresent
Product description
8 0715100100L02 2111V005
EN

3.4 Wear parts and replacement parts
The following wearing parts need to be replaced at the specified maintenance intervals (see "8.1 Main-
tenance schedule").
Spare parts
SICOLAB
025 / 038 / 062 mini
Remark
Air intake filter cartridge, long .. . . . . . . . . . . . . . . . 0714200050 Filter cartridge
Fine filter cartridge 5µm .. . . . . . . . . . . . . . . . . . . . 0715100052 Filter cartridge in condensate
separator
Spare parts and accessories
Fuses (mains fuses) SICOLAB 025 mini / SICOLAB 038 mini (230 V) .. . . . . . . . . . . . . . 9000-115-0012
Fuses (mains fuse) SICOLAB 062 mini (230 V) .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9000-115-0013
Fuses (mains fuse) SICOLAB 038 mini (115 V) .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9000-115-14
Fuses (mains fuse) SICOLAB 062 mini (115 V) .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9000-115-46
powercord (RW-F3G1,00; length 2,5m), CN plug - IEC .. . . . . . . . . . . . . . . . . . . . . . . . . . . 8012100014
powercord (H05VV-F3G1,00; length 2,5m); UK plug - IEC .. . . . . . . . . . . . . . . . . . . . . . . . . 8012100015
Product description
0715100100L02 2111V005 9
EN

4 Technical data
4.1 230 V units
Electrical data SICOLAB 025 mini
0715100035
SICOLAB 038 mini
0715100033
8012100013
SICOLAB
062 mini
07151000
07
80121000
11
Electrical frequency Hz 50 60 50 60 50
Nominal voltage V 230 230 230 230 230
Rated power P1 (kW) 0.22 0.27 0.34 0.34 0.44
Nominal current A 1.0 1.2 1.8 1.6 2.1
Nominal pressure bar / MPa 7 / 0.7 7 / 0.7 7 / 0.7 7 / 0.7 7 / 0.7
Mains fusing A 2 2 2 2 2.5
General data
Pressure vessel volume L 2 2 2 2 2
Delivery quantity at 0
bar (0 MPa)
l/min 25 29 36 38 67
Delivery quantity at 5
bar (0.5 MPa)
l/min 8 9 20 23 36
Delivery quantity at 7
bar (0.7 MPa)
l/min 6 7 16 18 26
Duty cycle % 100 100 100 100 100
Switch-on/cut-off pres-
sure
bar / MPa 5 - 7 / 0.5
- 0.7
5 - 7 / 0.5
- 0.7
5 - 7 / 0.5
- 0.7
5 - 7 / 0.5
- 0.7
5 - 7 / 0.5
- 0.7
Safety pressure PS bar / MPa 8 / 0.8 8 / 0.8 8 / 0.8 8 / 0.8 8 / 0.8
Speed min-1 1400 1600 1300 1500 1390
Noise level (at nominal
pressure)
dB (A) 48 50 50 52 51
Weight kg 15 15 16 16 20
Dimensions* (L x W x H) mm 396 x 295
x 321
396 x 295
x 321
396 x 295
x 321
396 x 295
x 321
396 x 295
x 321
*Dimensions without quick-release coupling and hose nozzle
Ambient conditions during opera-
tion
temperature °C +5 to +40 +5 to +40 +5 to +40 +5 to +40 +5 to +40
Relative humidity % Max. 95 Max. 95 Max. 95 Max. 95 Max. 95
Product description
10 0715100100L02 2111V005
EN

4.2 115 V units
Electrical data SICOLAB 038
mini
0715100040
SICOLAB 062
mini
0715100039
Electrical frequency Hz 50 60 60
Nominal voltage V 115 115 115
Rated power P1 (kW) 0.35 0.38 0.58
Nominal current A 4.0 3.2 4.8
Nominal pressure bar / MPa 7 / 0.7 7 / 0.7 7 / 0.7
Mains fusing A 4 4 6.3
General data
Pressure vessel volume L 2 2 2
Delivery quantity at 0 bar (0
MPa)
l/min 36 42 77
Delivery quantity at 5 bar (0.5
MPa)
l/min 20 23 41
Delivery quantity at 7 bar (0.7
MPa)
l/min 16 18 29
Duty cycle % 100 100 100
Switch-on/cut-off pressure bar / MPa 5 - 7 / 0.5 -
0.7
5 - 7 / 0.5 -
0.7
5 - 7 / 0.5 -
0.7
Safety pressure PS bar / MPa 8 / 0.8 8 / 0.8 8 / 0.8
Speed min-1 1370 1630 1620
Noise level (at nominal pressure) dB (A) 52 53 54
Weight kg 16 16 20
Dimensions* (L x W x H) mm 396 x 295 x
321
396 x 295 x
321
396 x 295 x
321
*Dimensions without quick-release coupling and hose nozzle
Ambient conditions during operation
temperature °C +5 to +40 +5 to +40
Relative humidity % 0 - 95 0 - 95
Product description
0715100100L02 2111V005 11
EN

4.3 Pressure tank
Pressure vessels from Behälter-Werk Burgau GmbH are installed in the unit.
The instructions for use given below apply to the following pressure vessel type:
Type Pressure1) Vessel2) APP3) c4) Remark5)
316206 / 0715100005 PS 11 bar V 2 l B c = 1.0 mm 1; 2
For serial number and build year refer to the labelling on the vessel.
1)Pressure Maximum operating pressure PS in bar
2)Vessel Vessel volume V in litres
3)Application (APP) B = Pressure vessel for stationary systems
4)Corrosion allowance c in mm
Maximum tempera-
ture
+100 °C
Minimum temperature -10 °C
Medium Air/nitrogen
5)Remark 1:
The vessel is capable of sustained operation within a pressure fluctuation
range of
2.2 bar (20% PS)
Applied standards EN 286-1:1998/A2:2005
Product description
12 0715100100L02 2111V005
EN

4.4 Instructions for use for the pressure vessel (explanation by Behälter-
Werk Burgau GmbH)
The pressure vessel must only be used in accordance with the aforementioned intended purpose and in
accordance with the specified technical data. Other forms of use are not permitted for reasons of safety.
The pressure vessel has been designed in accordance with Directive 2014/29/EU and has been manu-
factured as a single component without safety equipment for the application area detailed above.
The unit has been designed for internal pressure loads.
Before commissioning, the vessel must be fitted with the necessary safety equipment such as a pres-
sure gauge and safety equipment designed to protect against overpressure, etc. These parts are not
included in our scope of delivery.
No welding work or heat treatment may be carried out on the pressure-retaining walls of the vessel. It
must be ensured that the internal pressure does not exceed the operating pressure PS specified in the
labelling on the vessel during operation. However, this pressure may be temporarily exceeded by up to
10%. Vibration stress that would be damaging for the pressure vessel and corrosion on the vessel must
be prevented using appropriate measures.
The assembly or installation of the pressure vessel must be carried out in such a way that safe use of
the vessel is ensured (e.g. no rigid connection to the floor or machine base frame without vibration
dampers).
The operating instructions to be provided by the equipment supplier must include the following informa-
tion in accordance with the equipment fitted:
– a) Instructions for draining the condensate
– b) Instructions and information about maintenance to ensure safety of use
The supplier must also specify whether the pressure vessel, when fully equipped for operation, has to
undergo an acceptance test before commissioning. The supplier/owner must observe the laws and reg-
ulations regarding the operation of the pressure vessel that apply in the country of operation.
Load changes and capability of sustained operation (fatigue strength) – see "4.3 Pressure tank" Notes.
Product description
0715100100L02 2111V005 13
EN

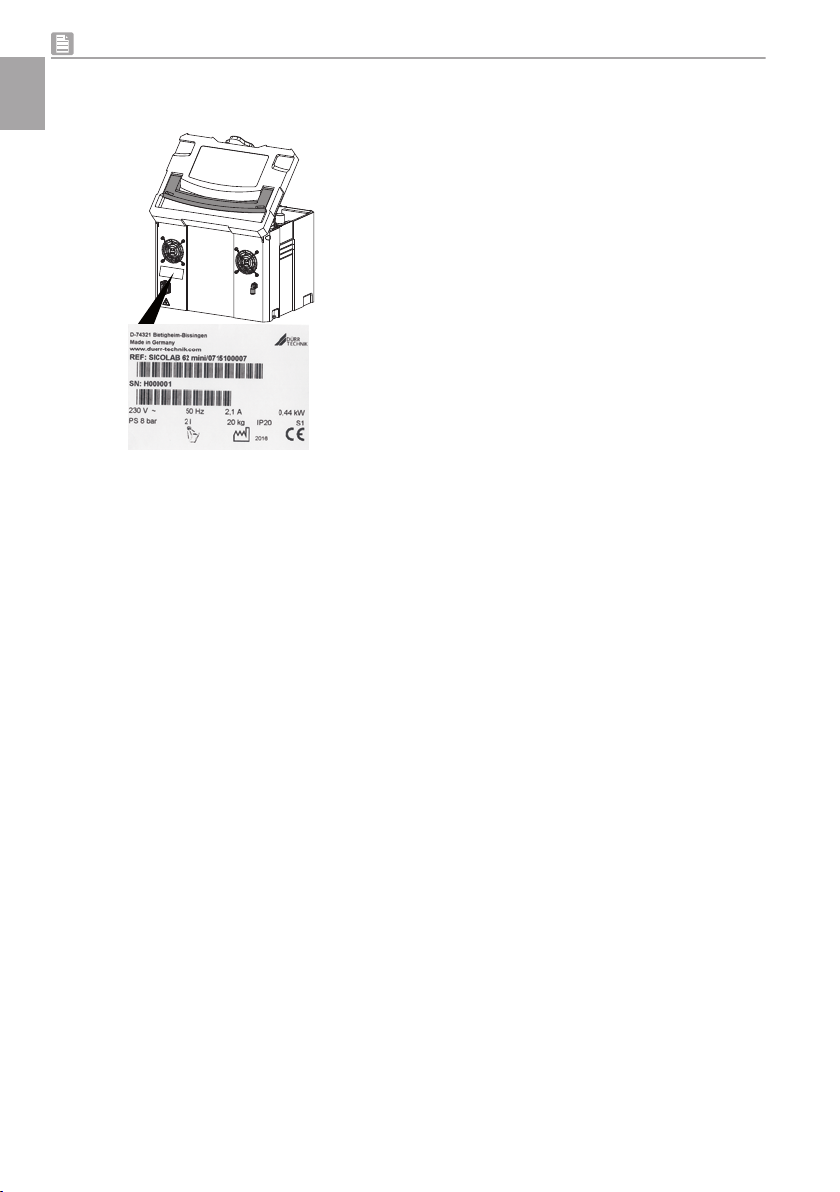

4.5 Type plate
The type plate is located on the rear of the unit.
REF Order number
SN Serial number
This information is also required when order-
ing spare parts.
Product description
14 0715100100L02 2111V005
EN

4.6 Declaration of conformity for machines in accordance with the
2006/42/EC Directive
We hereby declare that the unit described below conforms to all requirements of the machine directive
2006/42/EC.
The unit named below fulfills the requirements of the following directives:
– Electromagnetic Compatibility (EMC) Directive 2014/30/EU
– Simple pressure vessel directive 2014/29/EU
– RoHS directive 2011/65/EU
Manufacturer's name: Dürr Technik GmbH & Co. KG
Manufacturer's address: Pleidelsheimer Straße 30
D-74321 Bietigheim-Bissingen
Reference number: 0715 / 8012
Article designation: SICOLAB mini
From the serial number: H400000 (0715) / J400000 (8012)
We hereby declare that the unit may only be commissioned once it has been established that the
machine into which this unit is to be installed complies with the provisions as set out in Machinery Direc-
tive 2006/42/EC.
The following harmonised standards and other standards have been applied:
DIN EN 1012-1:2011-02
DIN EN 60034-1:2011-02
DIN EN 60034-5:2007-09
DIN EN 60335-1:2014-11
DIN EN 61000-6-2:2011-06
DIN EN 61000-6-3:2012-11
DIN EN 60204-1:2019-06
DIN EN ISO 12100:2013-08
Bietigheim-Bissingen, 01/06/2017
Andreas Ripsam Proof of signature in the
Executive Board of Dürr Technik Original document held by Dürr Technik
Product description
0715100100L02 2111V005 15
EN

Assembly
5 Requirements
5.1 Installation/setup room
The room chosen for set up must fulfil the follow-
ing requirements:
– Closed, dry, well-ventilated room.
– Should not be a purpose-made room (e. g.
boiler room or wet room).
– Set up the unit on a clean, level and sufficiently
stable surface (take the weight of the unit into
account).
– Set up or install the unit so that the type plate
can be easily read and the unit is easily acces-
sible for operation and maintenance.
– Set up the units so that the socket to which
the units is connected is easily accessible.
– Room temperature: +5°C to +40°C.
– Ensure that there is sufficient distance to the
wall so that the air can flow in and out without
any obstruction.
The air is filtered when it is sucked in. This
does not alter the composition of the air.
The source of the air taken in should be
free of any harmful substances (e.g. do
not draw in air from an underground
garage or directly next to a suction
machine).
NOTICE
Risk of overheating due to insufficient
ventilation
The units generates heat. Possibility of
heat damage and/or reduced service life
of the unit.
❯Do not cover the unit.
❯Air must be able to flow in and out
unobstructed.
❯Ventilation openings must be suffi-
ciently large.
❯Installed units may require an inde-
pendent ventilation system in unfavour-
able cases.

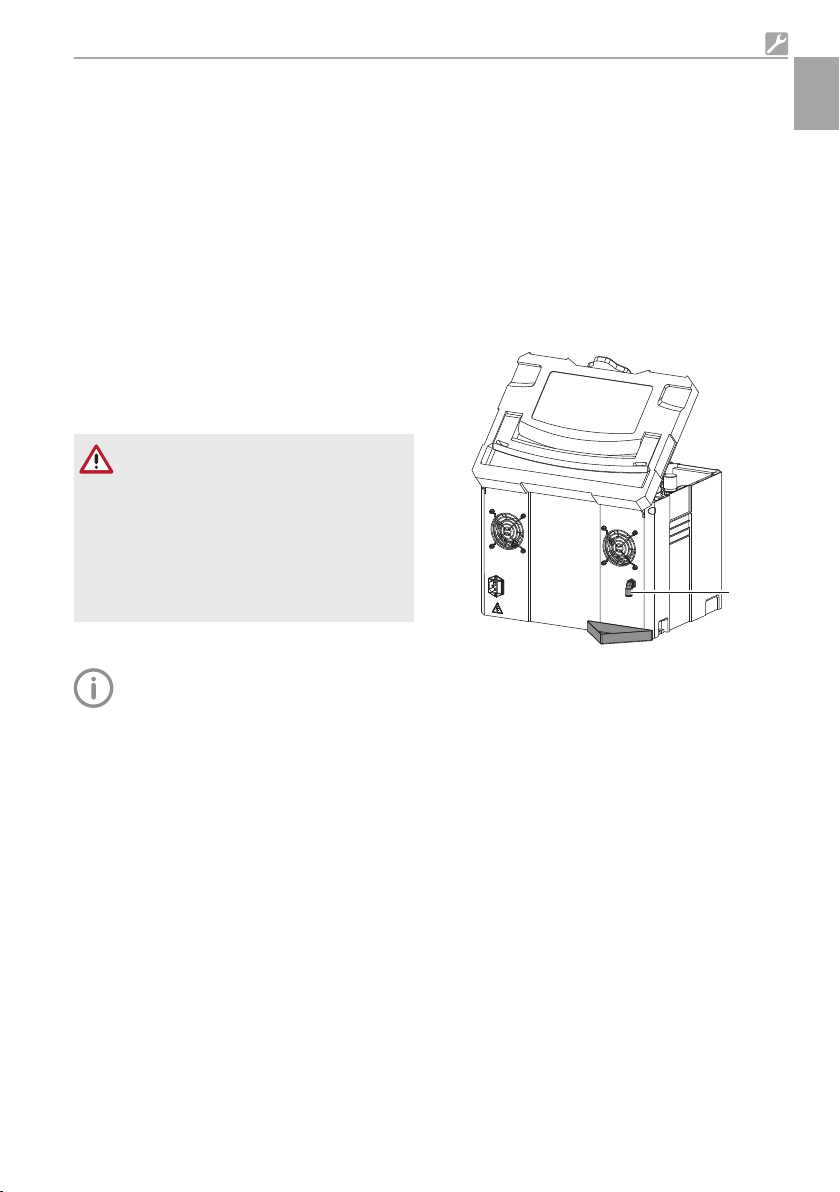

The unit must only be operated on a stable, even
base. The unit must not be used as a climbing
aid. Danger of breakage! Place a collector tray
under the condensate drain (14) on the rear of
the unit to collect any condensate that is blown
out.
13
14
15
WARNING
Do not reach into the fan grille with
your fingers or any objects
Risk of injury from fan blades.
❯
5.2 Pressure vessel test
The owner must comply with the national
directives.
Example for Germany: German Ordinance on
Industrial Safety and Health (BetrSichV)
Assembly
16 0715100100L02 2111V005
EN

6 Commissioning
6.1 Remove the packaging
The unit is securely protected with packaging
material to ensure safe transportation.
❯Remove the packaging material.
❯Remove the protective film.
❯Check the unit for damage in transit.
❯Only lift the unit using the transport handles
and/or from the bottom.
6.2 Establishing the compressed
air connection
The unit has a 7.2 mm quick-release coupling on
its outer side. The matching hose nozzle for a
connecting hose with an internal diameter of
6 mm is included in the scope of delivery.
CAUTION
Damage to the quick-release coupling
if the cover of the unit is open
The quick-release coupling can be dam-
aged due to high compressive forces
during connection of the pressure hose.
❯The cover of the unit must be closed
and locked.
Quick-release coupling – operating panel
The compressed-air connection to the
pressure reducer has a constant pressure
(set at the factory) of 0 – 6 bar.
The pressure can be adjusted via the
pressure reducer in the unit – see "7.3
Setting the pressure reducer".
❯Compressed air is extracted at the quick-
release coupling (7.2 mm) via a hose adapter
piece on the operating panel of the unit.
❯Secure the pressure hose to the hose adapter
piece using a hose clip.
❯Connect the hose adapter piece to the quick-
release coupling.
Article 8012100011 - Bulkhead fitting
❯Air is extracted at the bulkhead fitting G 1/4".
Tighten the bulkhead fitting with a maximum
tightening torque of 15 Nm.
6.3 Condensate
When air from the surrounding atmosphere is
compressed, different amounts of condensate
will accumulate in the pressure vessel depending
on the humidity and temperature of the air. This
condensate is collected via the integrated con-
densate separator, which is located between the
pressure vessel and the compressed air connec-
tion. As soon as a certain fill level is reached in
the condensate separator, the condensate is
drained off to the outside via the condensate
drain.
❯Place a collector tray under the condensate
drain.
14
14 Condensate drain
6.4 Electrical installation
❯Connect the power cord to the mains socket
on the rear of the unit
❯Connect the power cord to a properly installed
mains socket with PE conductor.
❯Route the power cord in such a way that it is
not under any mechanical tension.
❯Before commissioning, verify that the power
supply voltage complies with the voltage speci-
fications of the type plate.
Assembly
0715100100L02 2111V005 17
EN

DANGER
Risk of electric shock due to dam-
aged power cord or plug
Electric shocks can cause severe inju-
ries.
❯Do not start up the unit if the power
cord or plug is damaged.
❯Replace the damaged power cord.
6.5 Overtemperature protection
The motors in the units are equipped with a tem-
perature switch that switches the unit off if it
overheats. If this happens, you will first need to
determine the cause of the fault and then remedy
it.
If the unit is switched off via the tempera-
ture switch, the fan of the unit will con-
tinue to run.
NOTICE
Automatic start-up of the unit after
cooling down
❯Allow unit to cool down
6.6 Checking the safety valve
The safety valve must be checked/vented when
the unit is started up for the first time and once
a year after that.
At the factory, the safety valve is set to 10
bar (1 MPa) or 8 bar (0.8 MPa) (depend-
ing on the maximum pressure), inspected
and stamped (see also "4 Technical
data").
DANGER
Risk of explosion of the pressure ves-
sel and
pressure hoses
❯Do not change the safety valve set-
tings.
WARNING
Risk of damage to the safety valve
Risk of explosion of the pressure vessel
and pressure hoses due to a defective
safety valve
❯Do not use the safety valve to vent the
pressure vessel.
❯Switch on the unit at the pressure switch and
fill the pressure vessel to the cut-off pressure.
❯Rotate the cap of the safety valve a few turns
anti-clockwise until the valve begins to blow
off. Only allow the safety valve to blow for a
short period.
❯Turn the cap clockwise as far as it will go.
The valve is closed.
Assembly
18 0715100100L02 2111V005
EN
